Download Product Data Sheet

Diffusore Quadrato

Multidirezionale

sku model price info add to cart

00000066070

DIFFUSORE QUADRATO - 150 x 150 mm

€45,55 IVA esclusa

Physical data

UM Base:
NR

Dimension:
30 × 5 × 30 cm

Volume:
0.0045 m3

Weight:
0,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066071

DIFFUSORE QUADRATO - 225 x 225 mm

€60,67 IVA esclusa

Physical data

UM Base:
NR

Dimension:
37 × 4 × 37 cm

Volume:
0.0062 m3

Weight:
0,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066072

DIFFUSORE QUADRATO - 300 x 300 mm

€86,32 IVA esclusa

Physical data

UM Base:
NR

Dimension:
47 × 5 × 46 cm

Volume:
0.0108 m3

Weight:
1,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066074

DIFFUSORE QUADRATO - 450 x 450 mm

€108,71 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
61 × 5 × 62 cm

Volume:
0.0189 m3

Weight:
2,63 kg

Minimum Order Quantity:
1

Customs data

Customs Code

 Info Request

00000066075

DIFFUSORE QUADRATO - 600 x 600 mm

€171,26 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
74 × 5 × 74 cm

Volume:
0.0305 m3

Weight:
2,97 kg

Minimum Order Quantity:
1

Customs data

Customs Code

 Info Request

00000066225

SERRANDA DI TARATURA - 150 x 150 mm

€19,15 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
13 × 5 × 13 cm

Volume:
0.001 m3

Weight:
0,27 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066226

SERRANDA DI TARATURA - 225 x 225 mm

€21,97 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
21 × 6 × 21 cm

Volume:
0.0026 m3

Weight:
0,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066227

SERRANDA DI TARATURA - 300 x 300 mm

€35,54 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066228

SERRANDA DI TARATURA - 375 x 375 mm

€43,73 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066229

SERRANDA DI TARATURA - 450 x 450 mm

€54,62 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
43 × 43 × 6 cm

Volume:
0.0112 m3

Weight:
1,51 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066230

SERRANDA DI TARATURA - 600 x 600 mm

€87,28 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066235

PLENUM ISOLATO - 150 x 150 mm - Ø 122 mm

€65,64 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
18 × 21 × 17 cm

Volume:
0.0068 m3

Weight:
0,78 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066236

PLENUM ISOLATO - 225 x 225 mm - Ø 147 mm

€72,22 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
25 × 21 × 25 cm

Volume:
0.0131 m3

Weight:
1,12 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066237

PLENUM ISOLATO - 300 x 300 mm - Ø 197 mm

€79,28 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
33 × 21 × 33 cm

Volume:
0.0229 m3

Weight:
1,59 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066238

PLENUM ISOLATO - 375 x 375 mm - Ø 197 mm

€106,75 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066239

PLENUM ISOLATO - 450 x 450 mm - Ø 247 mm

€115,43 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066240

PLENUM ISOLATO - 600 x 600 mm - Ø 297 mm

€198,33 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066245

PLENUM ISOLATO - 150 x 150 mm - Ø 122 mm

€85,52 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
27 × 17 × 24 cm

Volume:
0.011 m3

Weight:
1,07 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066246

PLENUM ISOLATO - 225 x 225 mm - Ø 147 mm

€90,90 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
25 × 28 × 25 cm

Volume:
0.0175 m3

Weight:
1,74 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066247

PLENUM ISOLATO - 300 x 300 mm - Ø 197 mm

€109,52 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
32 × 21 × 32 cm

Volume:
0.0224 m3

Weight:
1,54 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066248

PLENUM ISOLATO - 375 x 375 mm - Ø 197 mm

€141,09 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066249

PLENUM ISOLATO - 450 x 450 mm - Ø 247 mm

€159,43 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
48 × 38 × 56 cm

Volume:
0.1021 m3

Weight:
4,88 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066250

PLENUM ISOLATO - 600 x 600 mm - Ø 297 mm

€256,44 IVA esclusa

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
76169990

 Info Request

00000066073

DIFFUSORE QUADRATO - 375 x 375 mm

€97,64 IVA esclusa

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code

 Info Request

Product informations

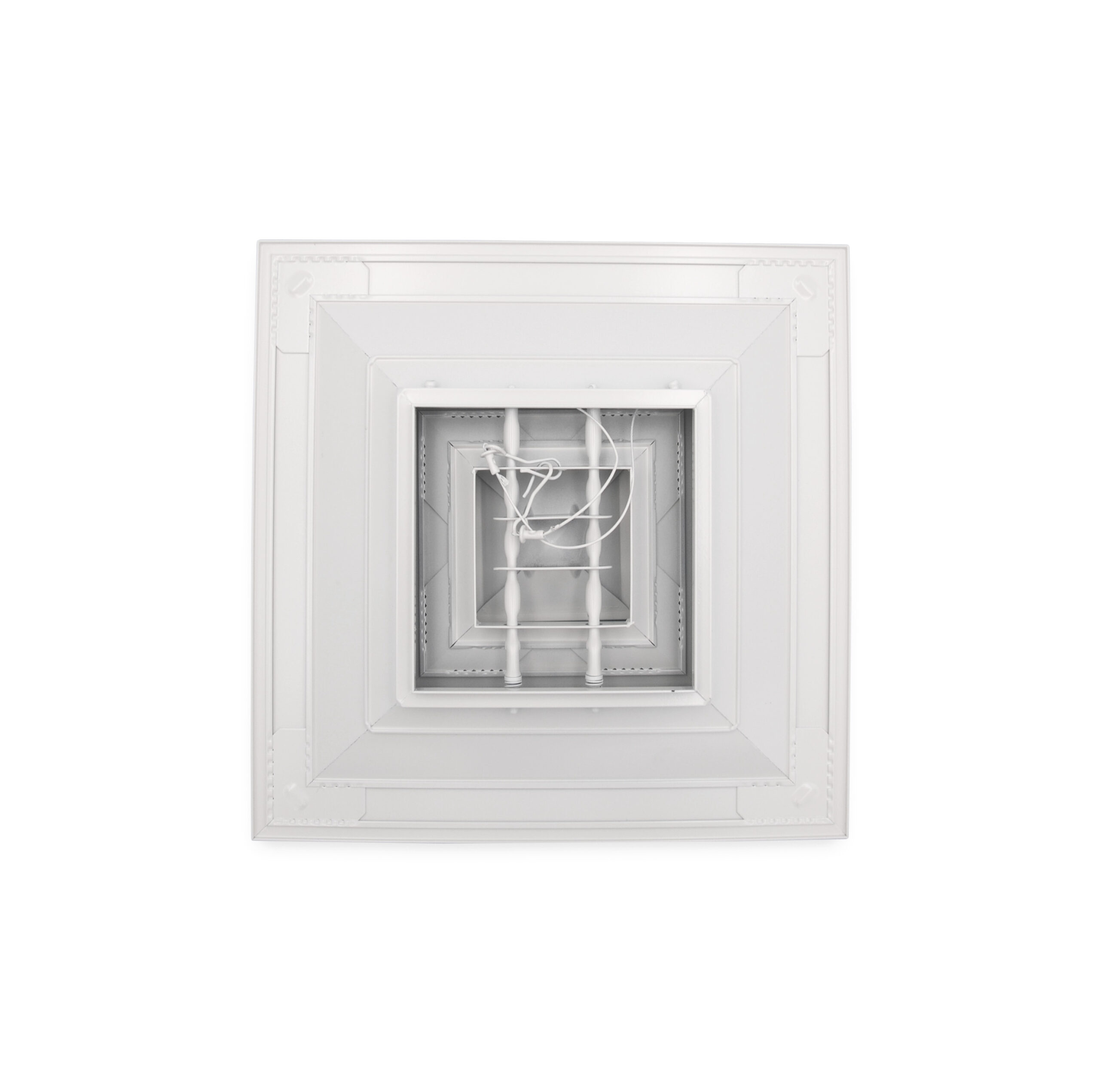

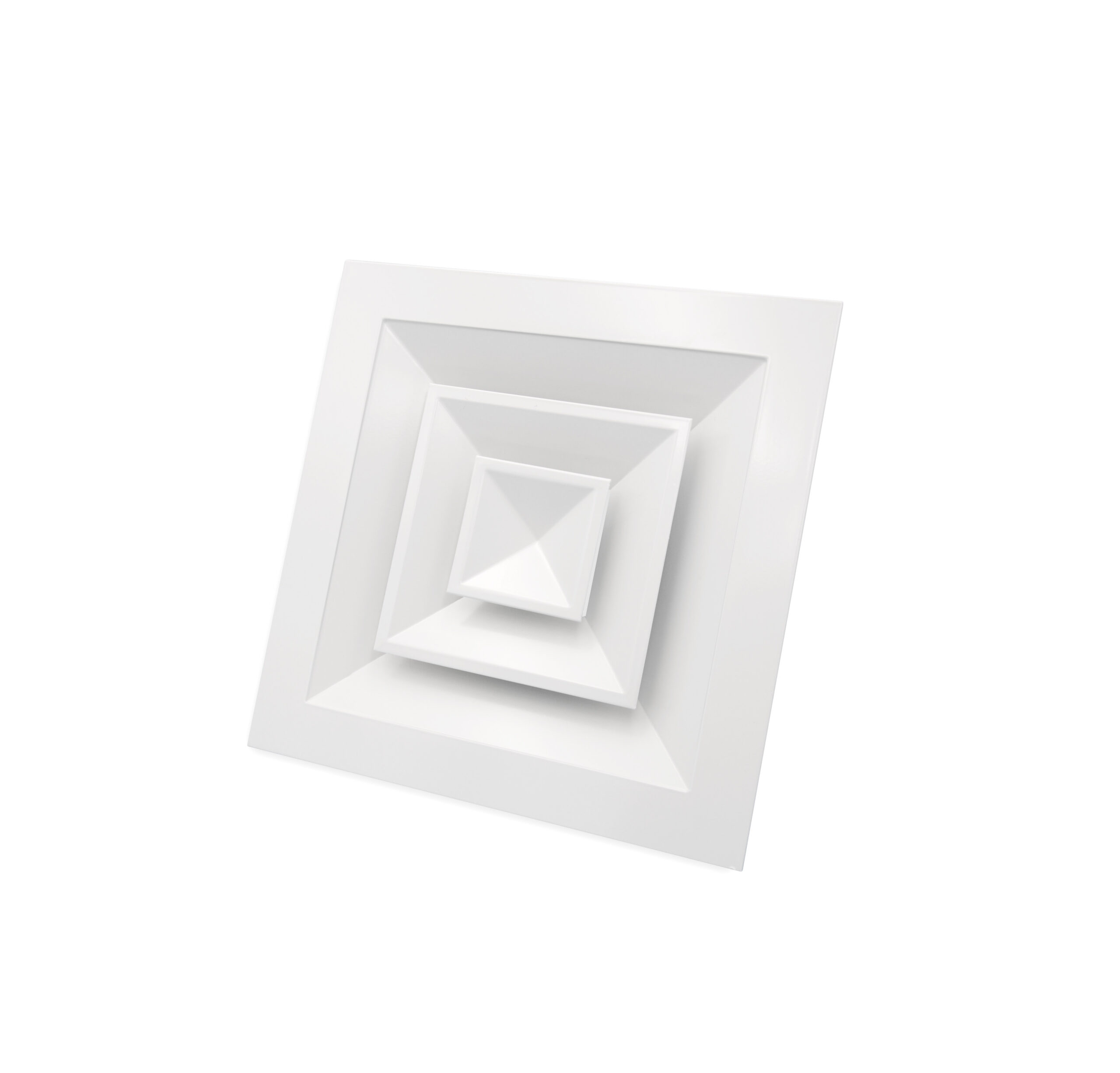

Diffusori multidirezionali a 4 vie con parte centrale asportabile, costruiti in alluminio verniciato.



Caratteristiche del prodotto

  • costruiti in alluminio anodizzato verniciato
  • impiego: a soffitto, in mandata e ripresa
  • verniciatura di colore bianco RAL 9010
  • diffusori dotati di sistema "anti caduta"
  • altezza di installazione: 2,5 - 3,1 m
  • fissaggio a viti nascoste posizionate sul collo del diffusore



Accessori

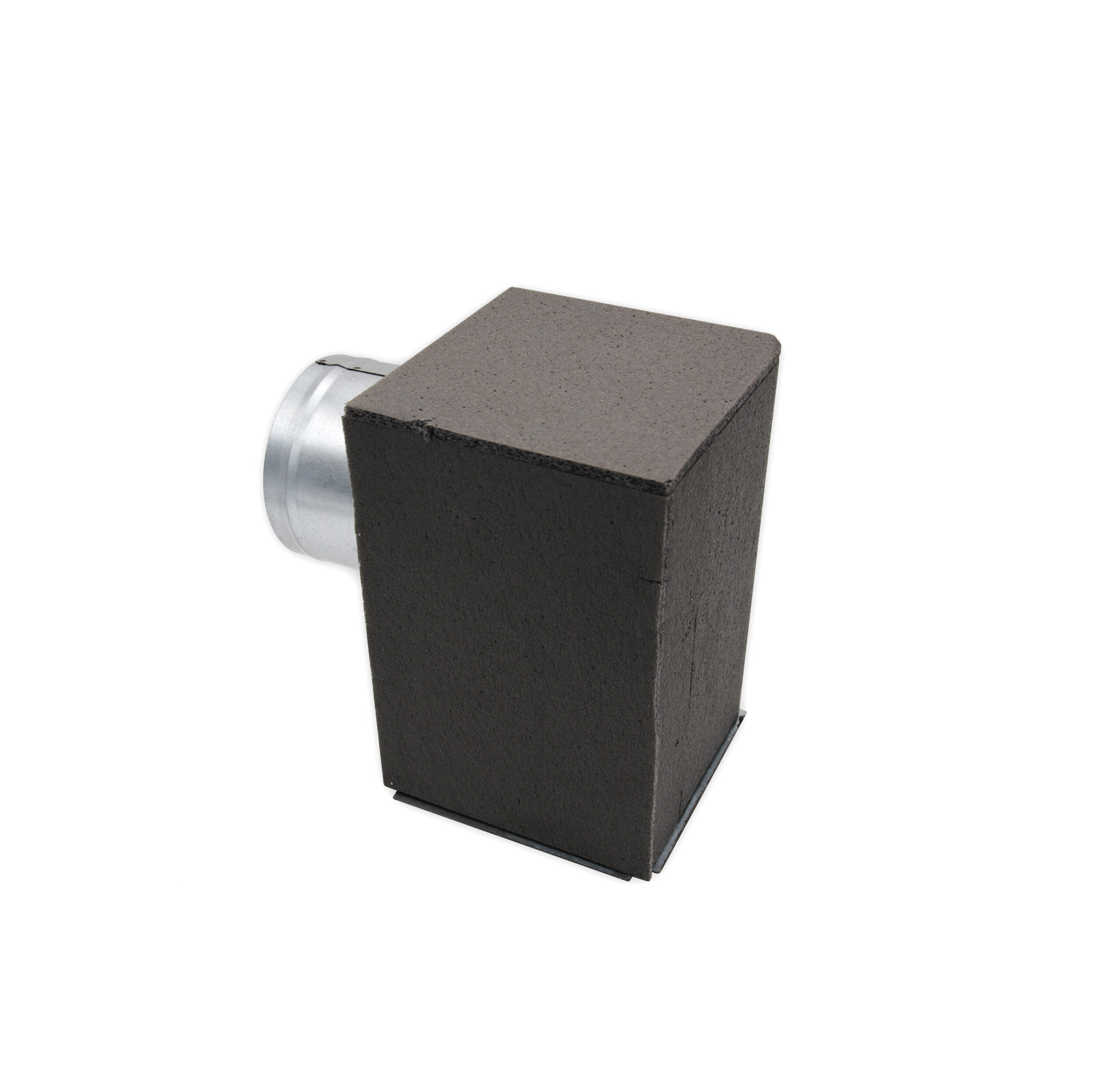

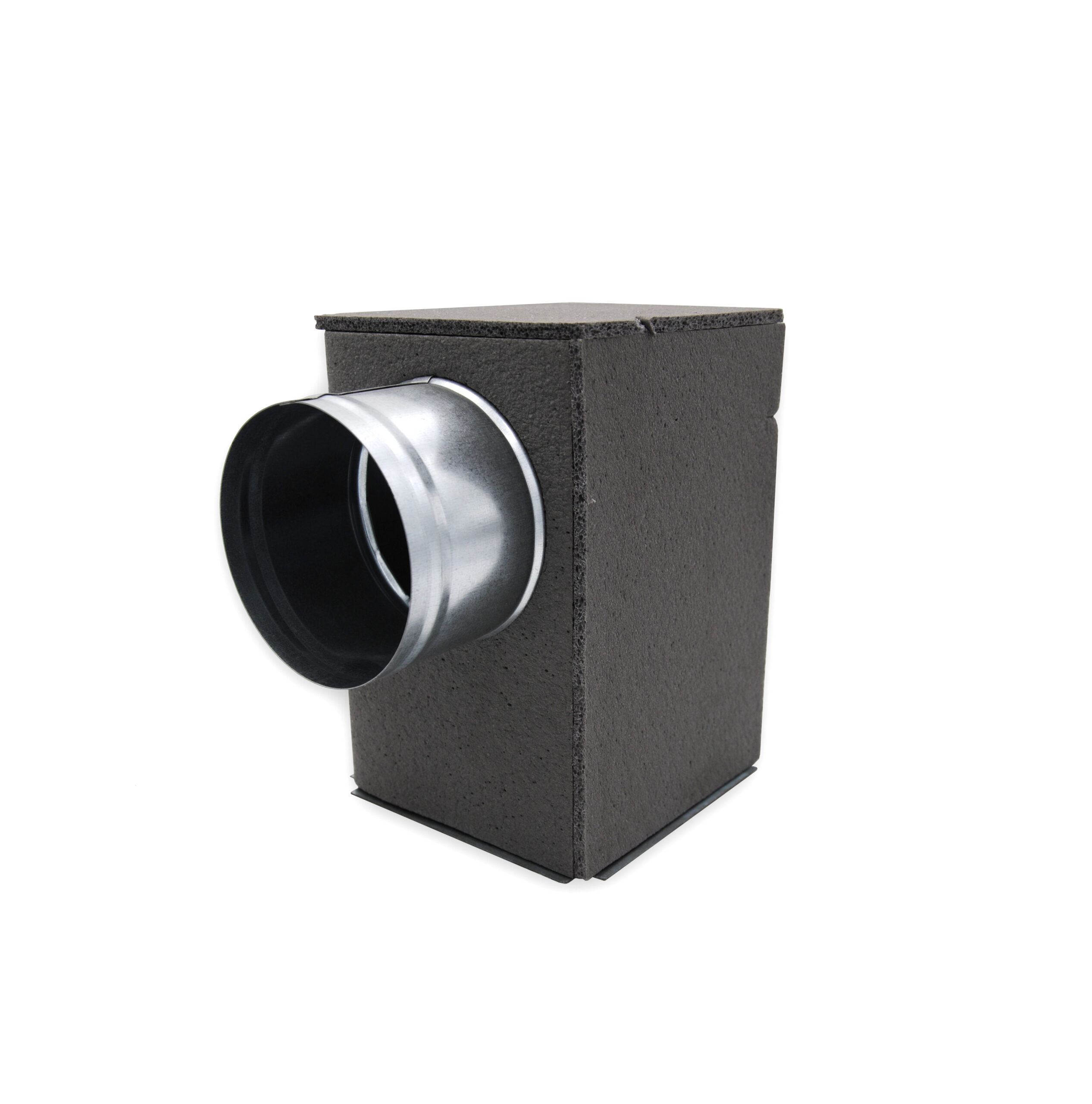

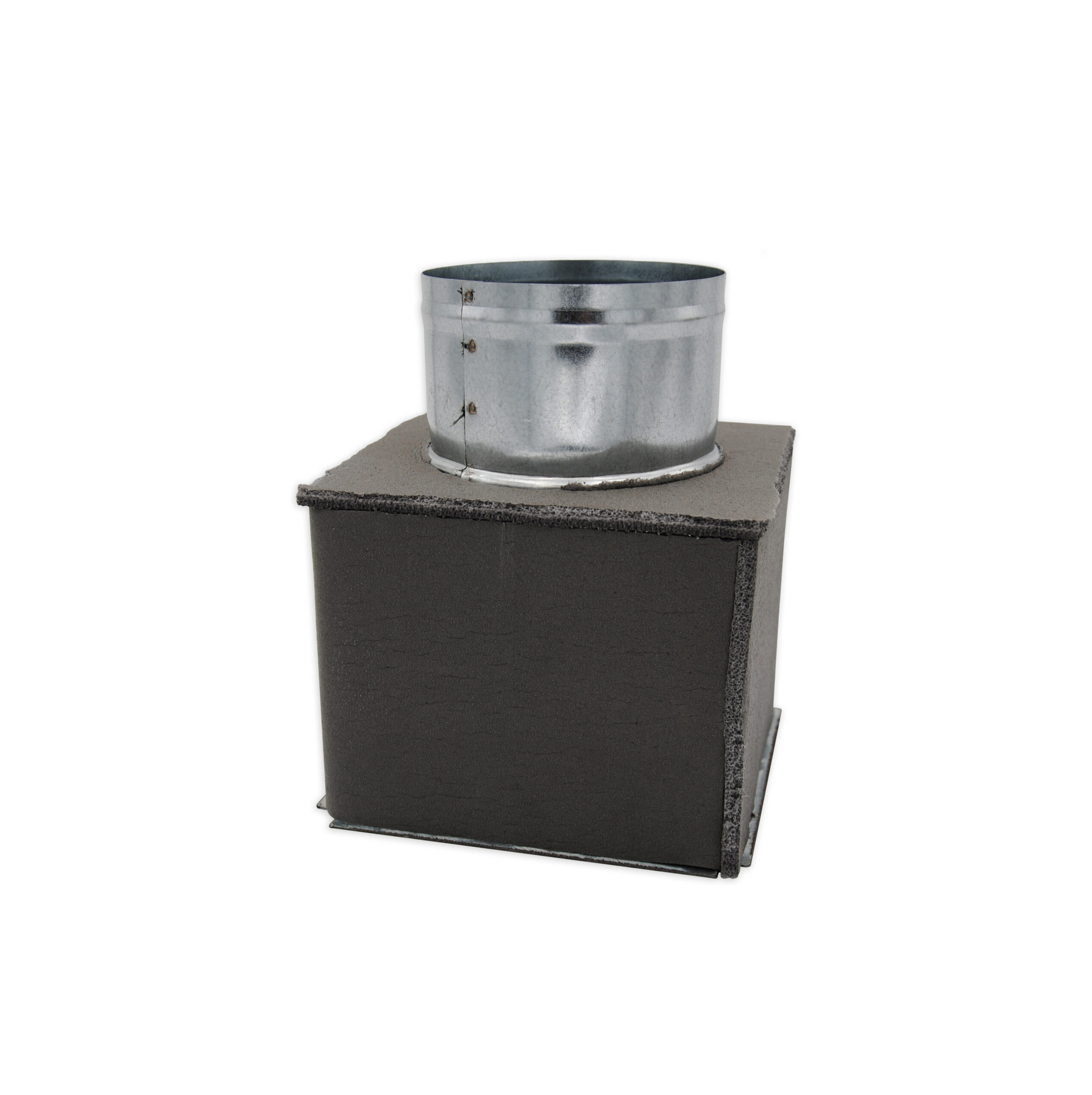

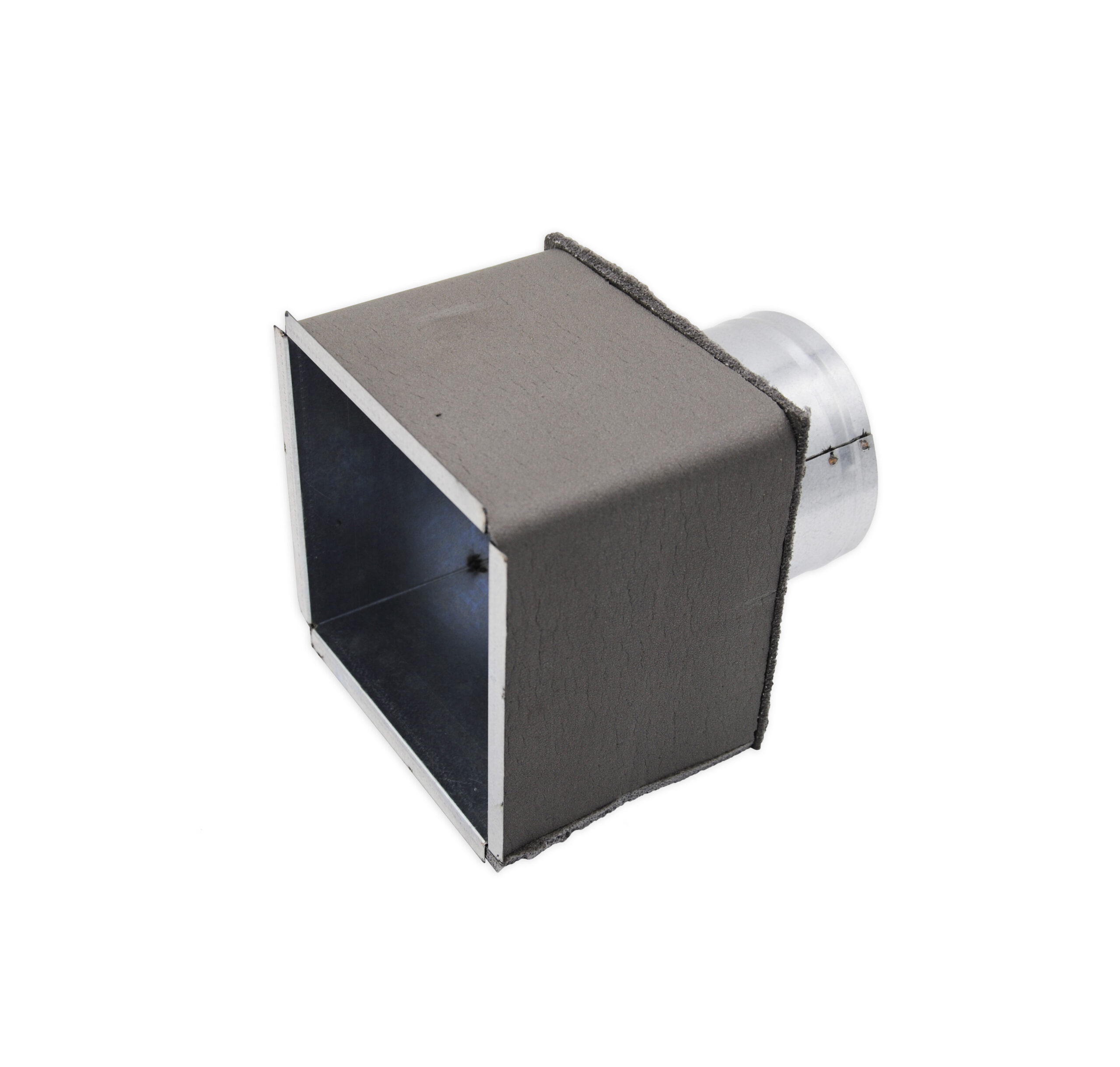

  • plenum in acciaio zincato standar isolato, con attacco laterale o posteriore

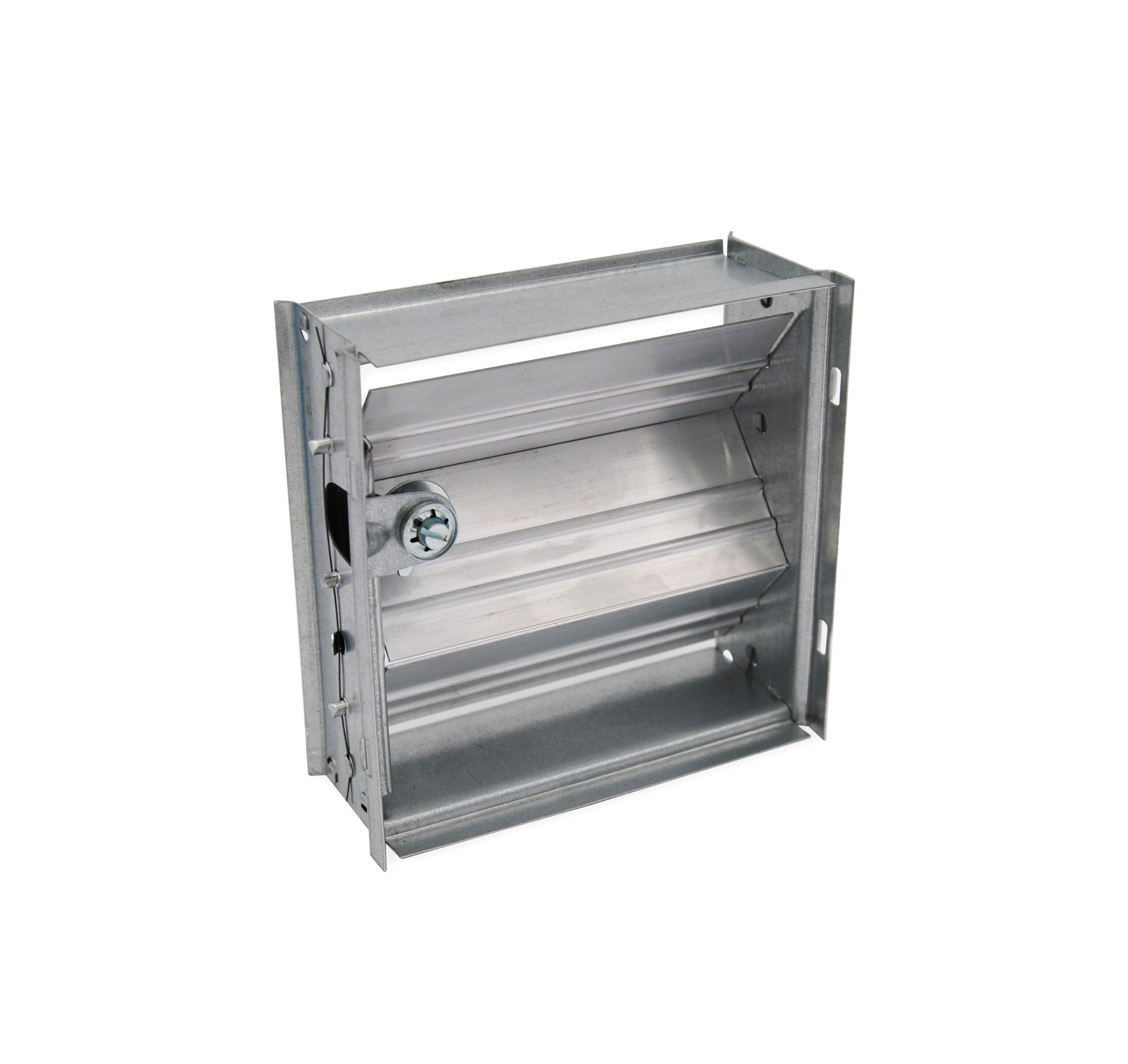

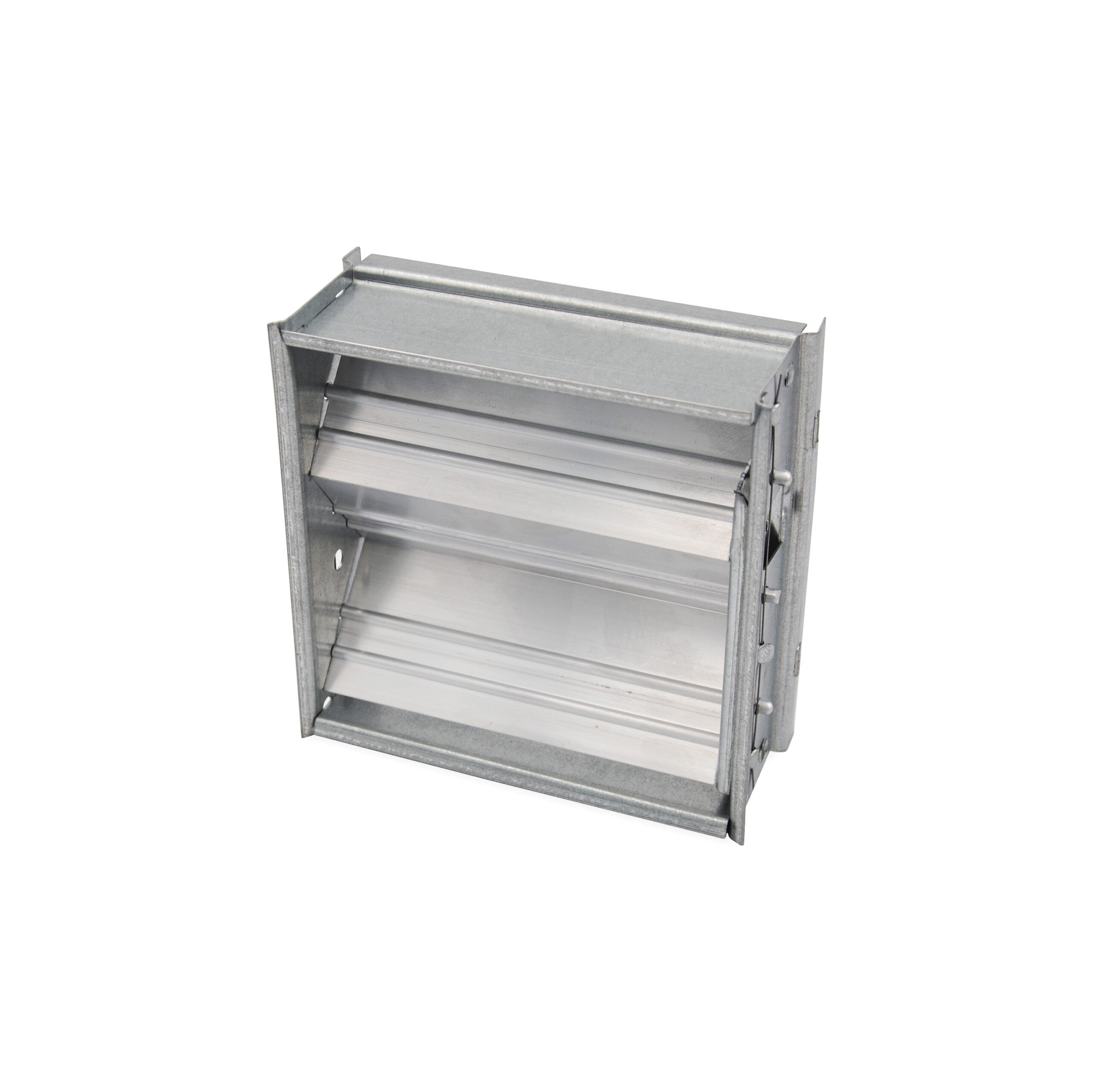

  • serranda di taratura in acciaio zincato con alette a movimento contrapposto



Technical Features

SKU DIFFUSORE DIMENSIONI DIFFUSORE SKU SERRANDA  SKU PLENUM ISOLATO "A" SKU PLENUM ISOLATO "B"
66070 150 x 150 mm 66225 66235 66245
66071 225 x 225 mm 66226 66236 66246
66072 300 x 300 mm 66227 66237 66247
66073 375 x 375 mm 66228 66238 66248
66074 450 x 450 mm 66229 66239 66249
66075 600 x 600 mm 66230 66240 66250

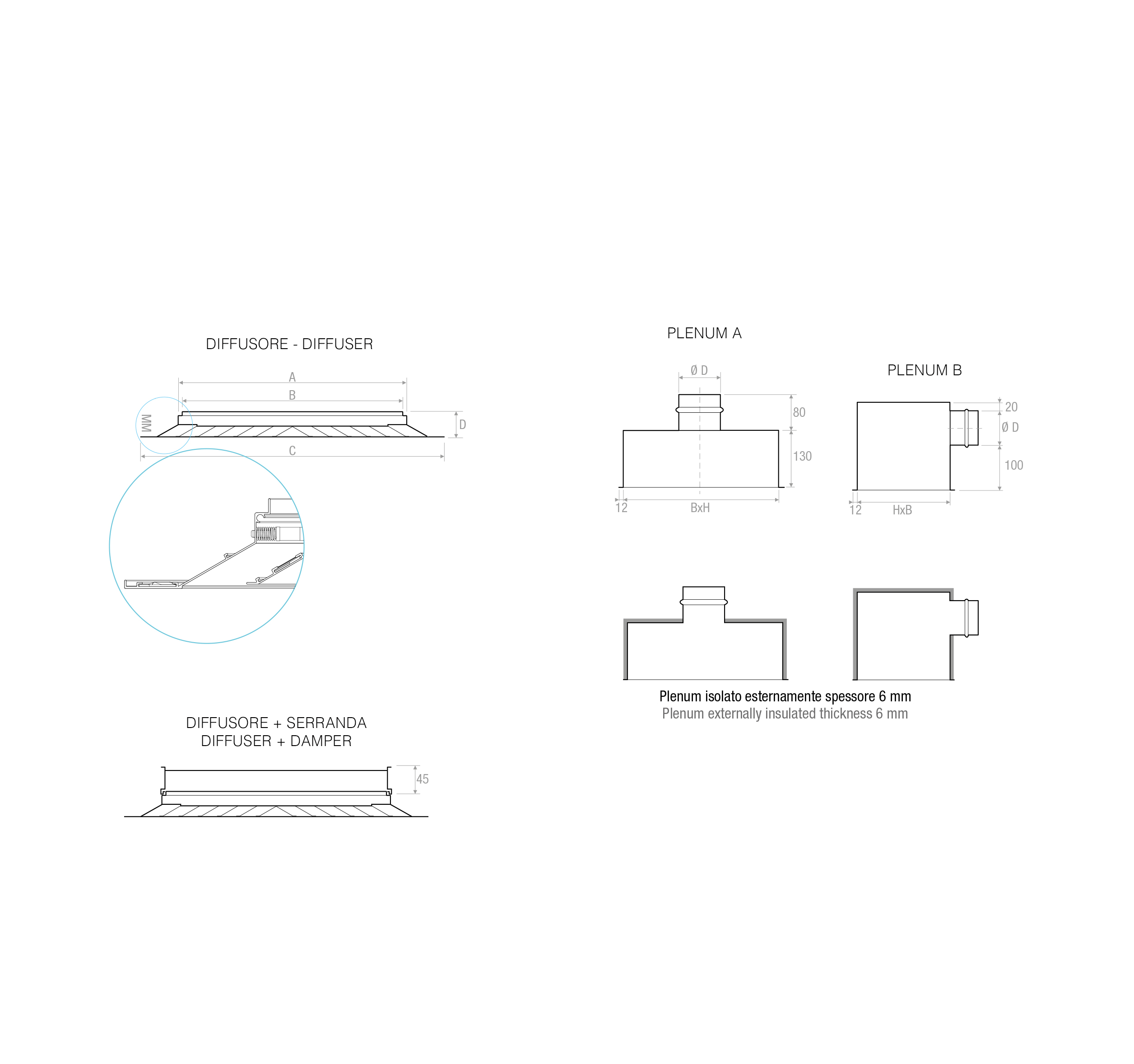

MISURE PLENUM A / B
B x H (mm) A (mm)  B (mm) C (mm) D (mm) CONNECTION PLENUM (mm)
150 x 150 mm 128 mm 144 mm 294 mm 50 mm Ø 122 mm
225 x 225 mm 203 mm 219 mm 369 mm 50 mm Ø 147 mm
300 x 300 mm 278 mm 294 mm 444 mm 50 mm Ø 197 mm
375 x 375 mm 353 mm 369 mm 519 mm 50 mm Ø 197 mm
450 x 450 mm 428 mm 444 mm 594 mm 50 mm Ø 247 mm
600 x 600 m 580 mm 597 mm 745 mm 50 mm Ø 297 mm
