Download Product Data Sheet

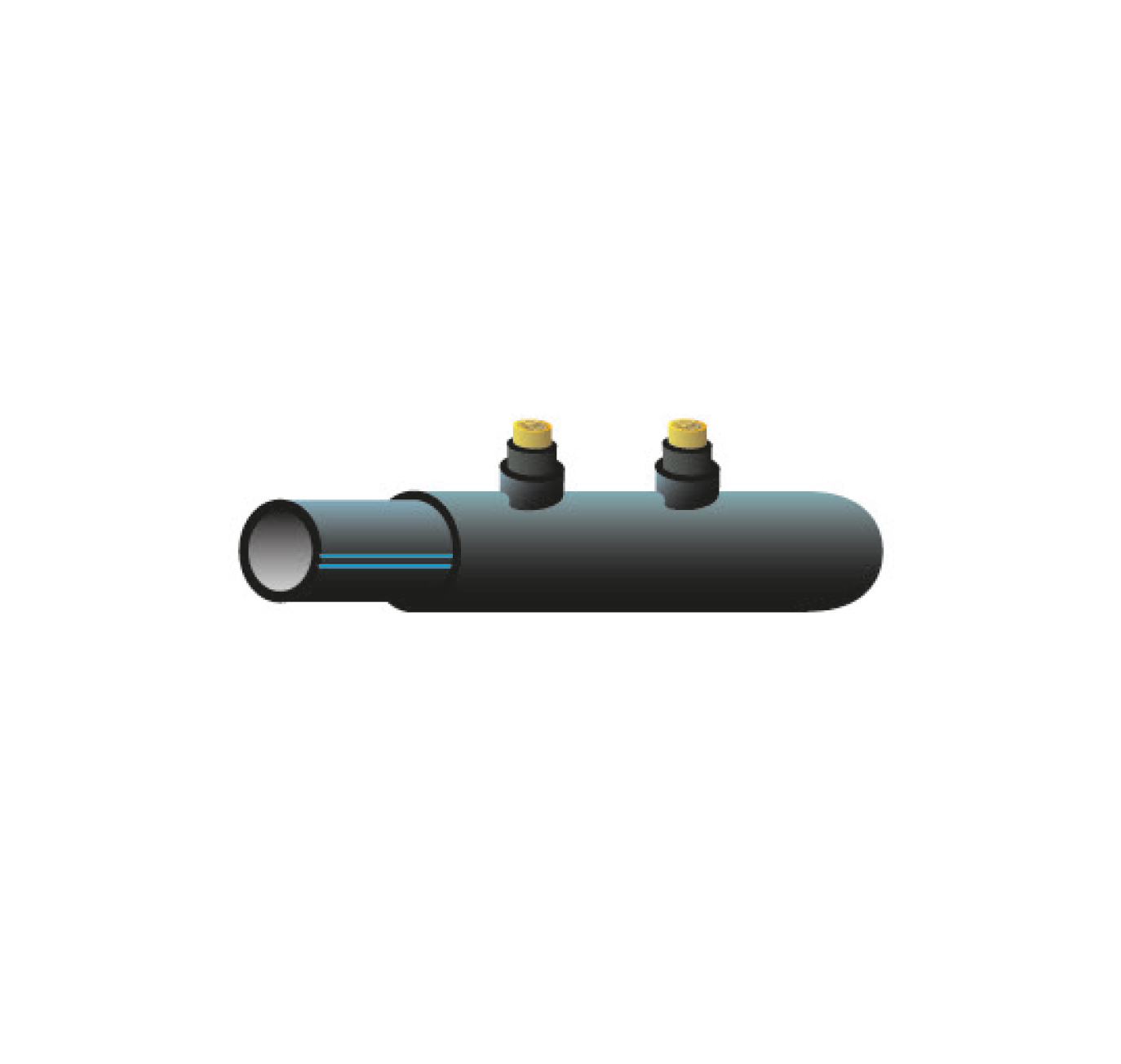

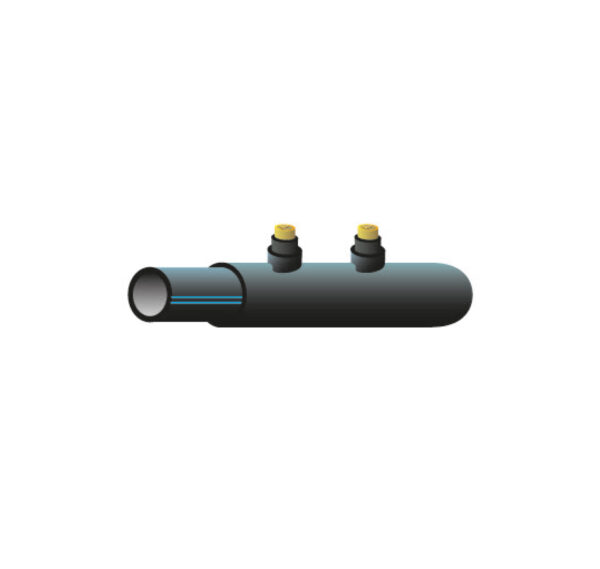

Welding PE Manifold

Unilateral end-of-line PE manifold to welding for the supply of fluids

FOR OTHER SIZES, QUOTATIONS AND DELIVERY TIMES, ASK OUR. COMMERCIAL OFFICE

sku model price info add to cart

U18SF321202

MANIFOLD DN 32 - 1/2" connection - 2 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF321204

MANIFOLD DN 32 - 1/2" connection - 4 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF321206

MANIFOLD DN 32 - 1/2" connection - 6 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
103 × 8 × 8 cm

Volume:
0.0066 m3

Weight:
0,88 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF323402

MANIFOLD DN 32 - 3/4" connection - 2 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF323404

MANIFOLD DN 32 - 3/4" connection - 4 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF323406

MANIFOLD DN 32 - 3/4" connection - 6 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF501202

MANIFOLD DN 50 - 1/2" connection - 2 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF501204

MANIFOLD DN 50 - 1/2" connection - 4 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF501206

MANIFOLD DN 50 - 1/2" connection - 6 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF503402

MANIFOLD DN 50 - 3/4" connection - 2 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF503404

MANIFOLD DN 50 - 3/4" connection - 4 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

U18SF503406

MANIFOLD DN 50 - 3/4" connection - 6 POSITIONS

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
39174000

 Info Request

Product informations

Manifolds in PE (polyethylene) designed for the connection of water meters in residential areas, the joint between them can be performed by T/T welding or with an electrofusion sleeve. This product is also non-toxic, anti-odour and offers maximum resistance to aggression from chemical agents.



Product features

  • ideal for multi-user houses
  • unlimited number of derivations thanks to the possibility of joining several modules (on demand)
  • mechanical, impact and aging resistance
  • there is no lead in contact with drinking water



Technical Features

MAX PRESSURE 16 bar
TEMPERATURE RANGE - 30°C ÷ + 60°C
MATERIALS
  • PE100 SDR11 UNI EN 12201-2
  • insert and nut in brass
CONNECTIONS 3/4" o 1/2"
POSITIONS 2 - 4 - 6 positions
REFERENCE STANDARDS
  • DM 174/2014: regulation concerning the materials and objects that can be used in fixed plants for the collection, treatment, adduction and distribution of water intended for human consumption. (GU General Series n.166 of 17-07-2004)
  • UNI EN 12201-3:2013: plastics piping systems for water distribution, and for pressurized waste and sewer - Polyethylene (PE) - Part 3: Fittings.
  • UNI 9736:2014: fittings manufactured with mixed metal-polyethylene joint for use in pipelines for combustible gases, water and other pressurized fluids and metal-propylene for use in pipelines for water and other pressurized fluids.
