Wall Digital Weekly Chronothermostat
WPT OT model
MADE ACCORDING TO EN 60730-2-9 AND EN 60730-2-7 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000080631 |
DIGITAL WEEKLY PROGRAMMABLE CHRONOTHERMOSTAT - WPT OT MODEL |
€155,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

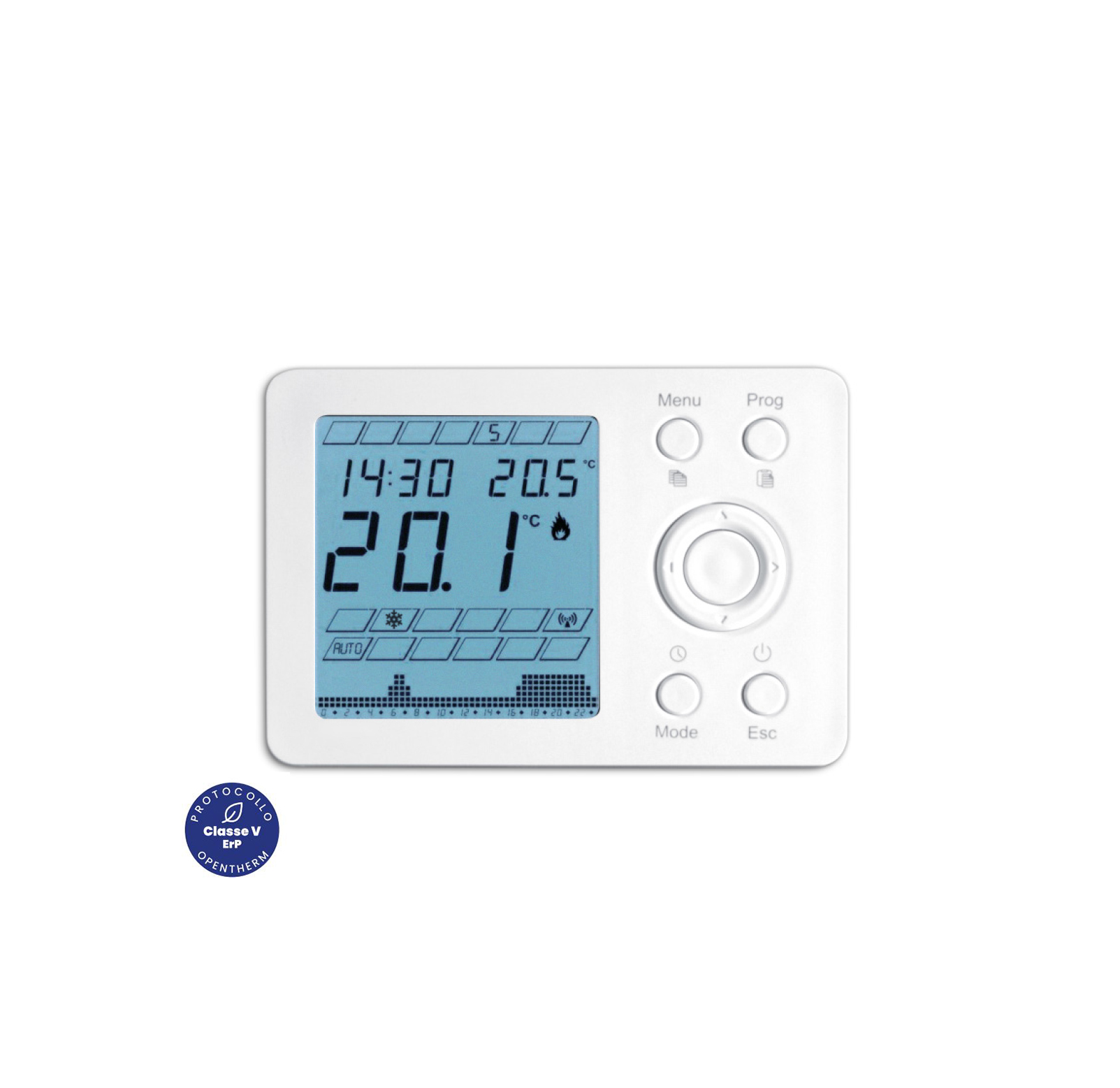

WPT OT, the Class V ErP digital weekly electronic chronothermostat which uses the OpenTherm switching protocol, with energy savings of around 4% on each bill; equipped with the possibility of programming 3 temperatures on 30 minute time slots.
Product features
- blue backlit LCD display in which it is possible to view the detected temperature, set temperature, time, active day of the week and operating mode
- ideal product for those who have different habits depending on the time of day and take advantage of different environments throughout the day
- wall mounting
Technical Features
| MAXIMUM CONTACT CAPACITY | 5A(1A) 250 Vac |
|---|---|
| POWER SUPPLY | alkaline batteries 2x1,5V (AAA type) |
| BATTERY LIFE | > 1 year |
| ROOM TEMPERATURE | 0°C ÷ 50°C |
| INSULATION CLASS | type II (double insulated) |
| DEGREE OF PROTECTION | IP20 (not protected against the ingress of liquids, but protected against the ingress of solid objects larger than 12 mm) |
| SOFTWARE | class A |
| RATED IMPULSE WITHSTAND VOLTAGE | 2,5 kV |

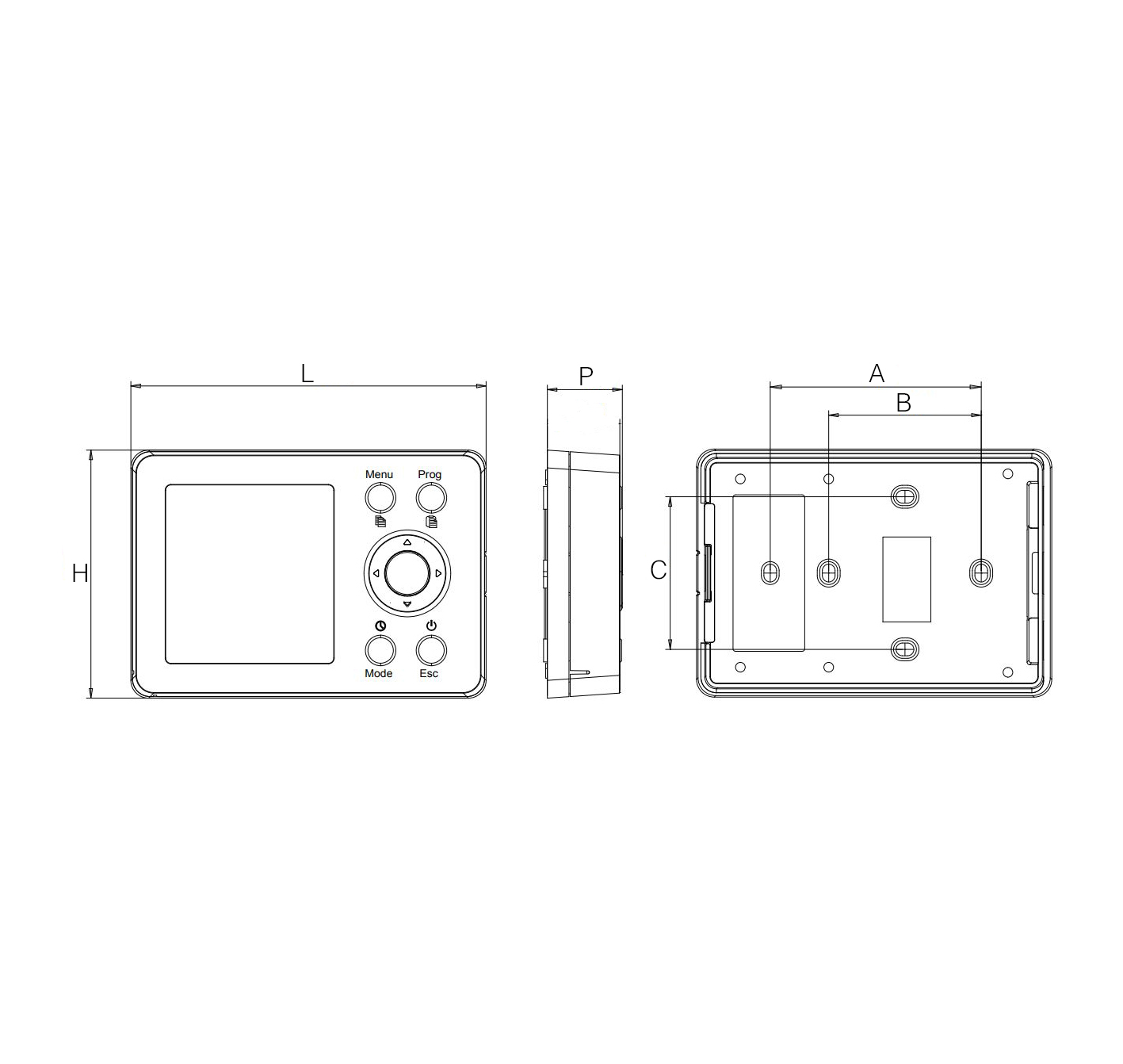

| FRONT DIMENSIONS | 139,5 x 97,5 x 29,5 mm (WxHxD) |
| REAR DIMENSIONS | 83 x 60 x 60 mm (AxBxC) |
Download
