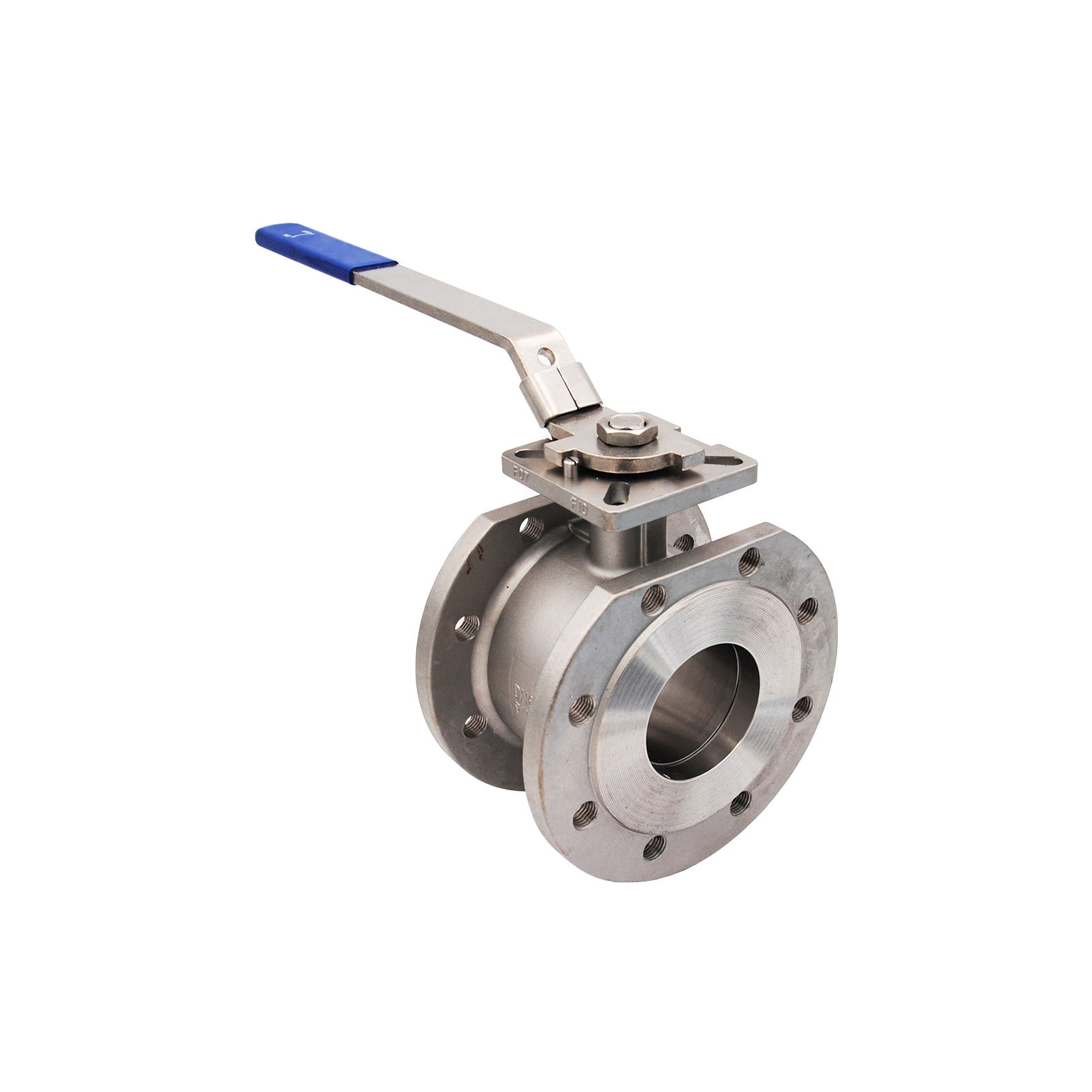

Wafer Ball Valve

Model PN16 and PN40

sku model price info add to cart

00000003119

WAFER BALL VALVE - DN15 PN40

€100,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,16 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003120

WAFER BALL VALVE - DN20 PN40

€202,55 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 10 × 13 cm

Volume:
0.0022 m3

Weight:
2,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003127

WAFER BALL VALVE - DN25 PN40

€174,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 22 × 16 cm

Volume:
0.0042 m3

Weight:
1,99 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003128

WAFER BALL VALVE - DN40 PN40

€304,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003129

WAFER BALL VALVE - DN50 PN40

€520,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
20 × 32 × 16 cm

Volume:
0.0109 m3

Weight:
6,26 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003130

WAFER BALL VALVE - DN65 PN40

€611,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
9,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000003131

WAFER BALL VALVE - DN80 PN40

€863,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

0000003131A

WAFER BALL VALVE - DN100 PN40

€1.232,40 Excl. Taxes

Physical data

UM Base:
-

Dimension:
N/A

Volume:
-

Weight:
0,00 kg

Minimum Order Quantity:
-

Customs data

Customs Code
-
Buy
Info Request

Product informations

Wafer ball valve built in AISI 316 stainless steel, equipped with flanged execution and seat in PTFE loaded with glass fiber to increase the mechanical performance.



Product features

  • allows installation with common flanged connections
  • guarantees very low load losses
  • can be used as a pipe end valve
  • it can be used with a pneumatic, double or single effect, or electric actuator because they are equipped with a unified coupling flange required by the ISO 5211 rule
  • it can also be used manually means the locking device

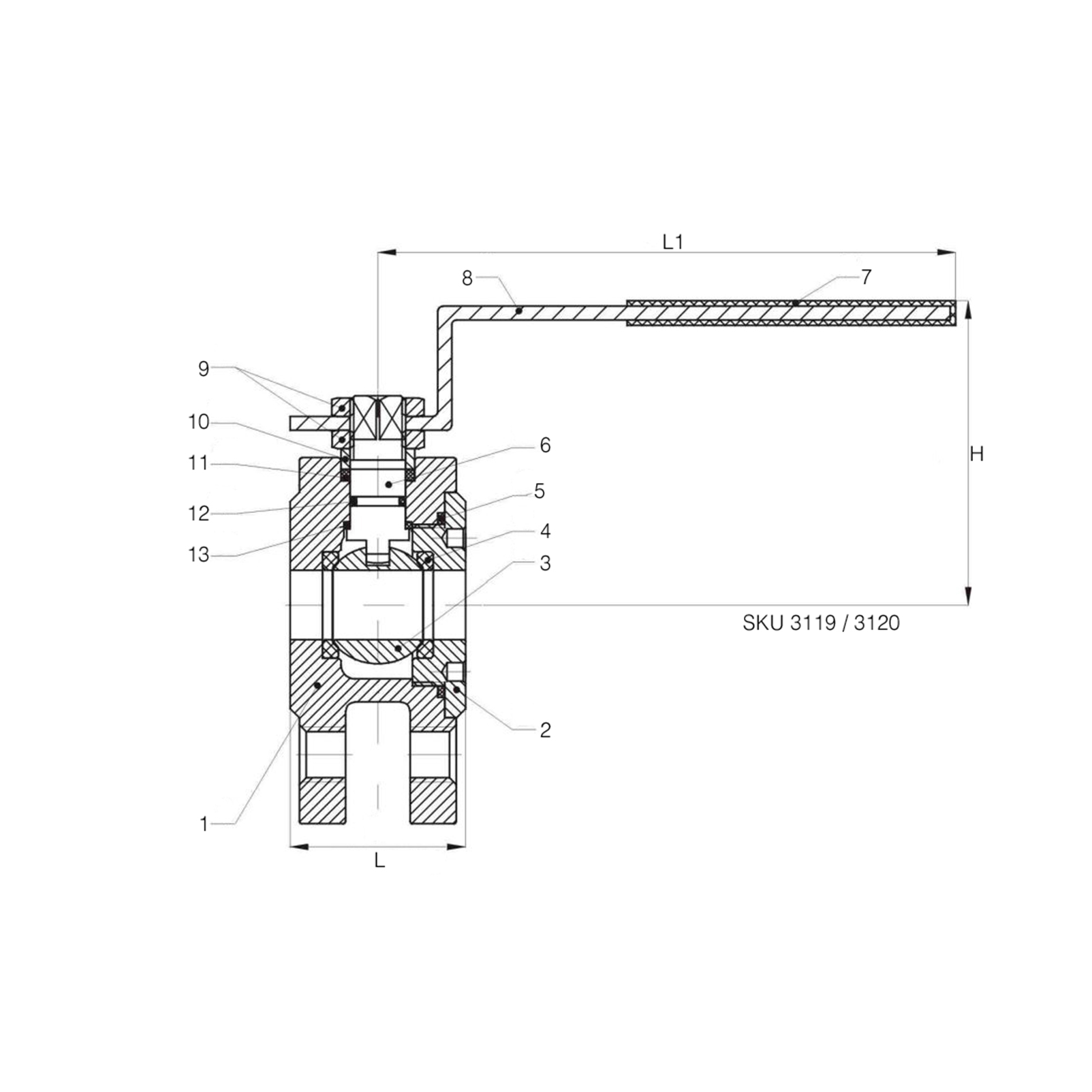

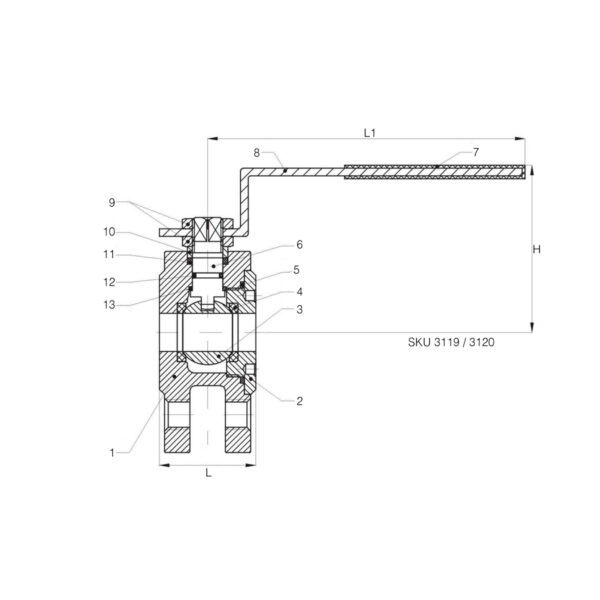

VALVE STRUCTURE (sku 3119 / 3120)
1 BODY AISI 316
2 FERRULE AISI 316
3 BALL AISI 316
4 SEAD PTFE + 15% glass
5 GASKET PTFE
6 SHAFT AISI 316
7 HANDLE plastic
8 LEVER AISI 304
9 NUT AISI 304
10 SEAL AISI 304
11 FLAT GASKET PTFE
12 O-RING FKM
13 WASHER PTFE

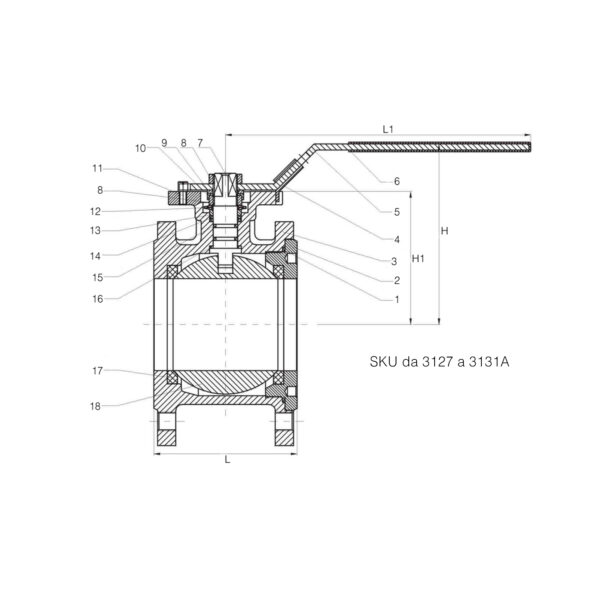

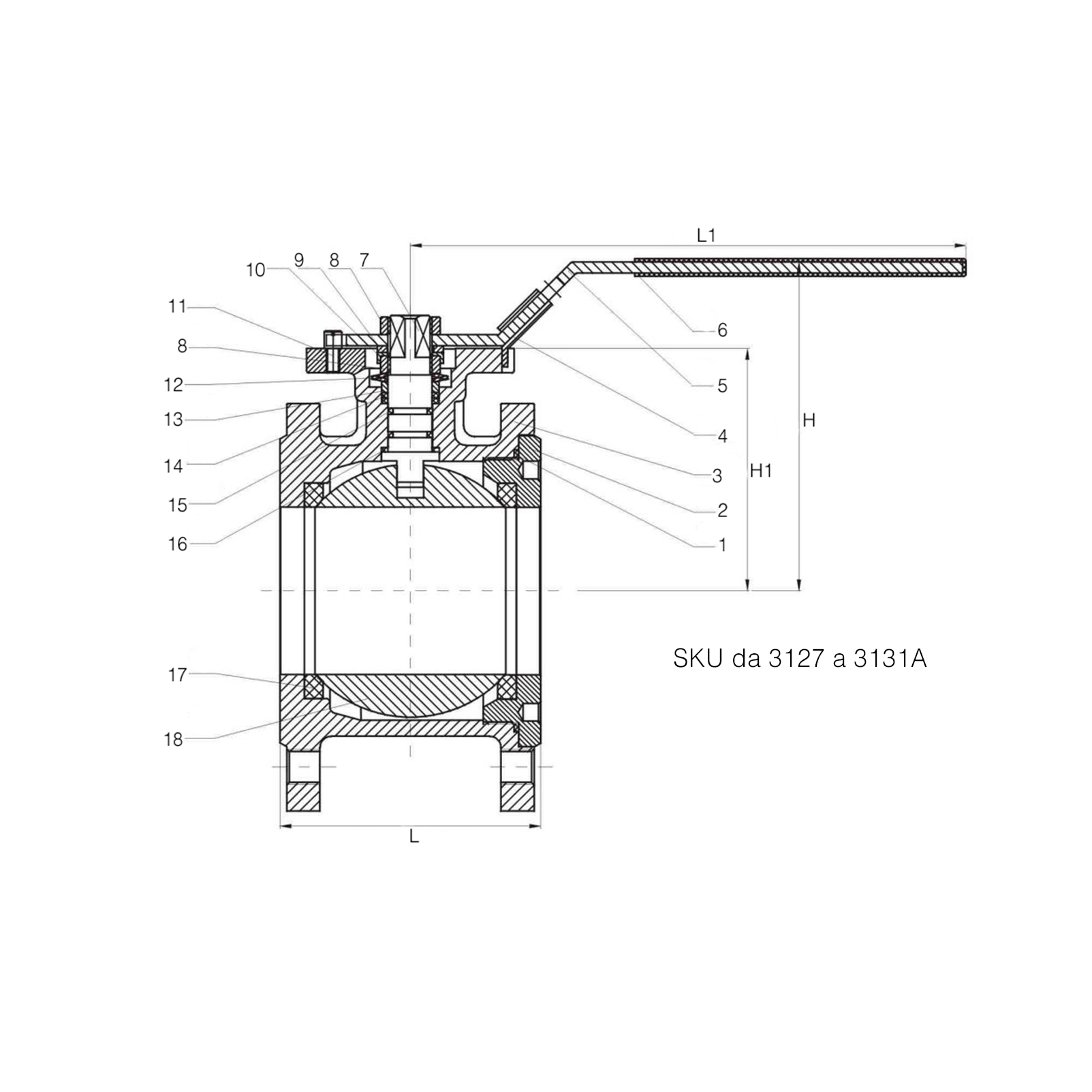

VALVE STRUCTURE (sku from 3127 to 3131A)
1 BODY GASKET PTFE
2 FERRULE AISI 316
3 BODY AISI 316
4 BLOCKING DEVICE AISI 304
5 LEVER AISI 304
6 HANDLE plastic
7 SHAFT AISI 316
8 NUT AISI 304
9 WASHER AISI 304
10 LOCK WASHER AISI 304
11 BOLT AISI 304
12 CUP SPRING AISI 304
13 SEAL AISI 304
14 FLAT GASKET PTFE
15 O-RING FKM
16 WASHER PTFE
17 SEAD PTFE + 15% glass
18 BALL AISI 316



Technical Features

SKU DN NOMINAL PRESSURE TEMPERATURE RANGE L L1 H H1
3119 DN15 PN40 - 25°C ÷ + 150°C 35 mm 125 mm 75 mm -
3120 DN20 PN40 - 25°C ÷ + 150°C 39 mm 125 mm 80 mm -
3127 DN25 PN40 - 25°C ÷ + 150°C 44 mm 185 mm 95 mm 65 mm
3128 DN40 PN40 - 25°C ÷ + 150°C 64 mm 275 mm 122 mm 85 mm
3129 DN50 PN40 - 25°C ÷ + 150°C 83 mm 275 mm 122 mm 85 mm
3130 DN65 PN16 - 25°C ÷ + 150°C 105 mm 380 mm 161 mm 101 mm
3131 DN80 PN16 - 25°C ÷ + 150°C 121 mm 380 mm 142 mm 120 mm
3131A DN100 PN16 - 25°C ÷ + 150°C 152 mm 440 mm 174 mm 130 mm
