Flanged Excess Flow Valve
Model for LPG
sku | model | price | info | add to cart | |
---|---|---|---|---|---|
|
00000050160 |
DN40 FLANGED EXCESS FLOW VALVE |
€345,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000050161 |
DN50 FLANGED EXCESS FLOW VALVE |
€378,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000050162 |
DN65 FLANGED EXCESS FLOW VALVE |
€509,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000050163 |
DN80 FLANGED EXCESS FLOW VALVE |
€619,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

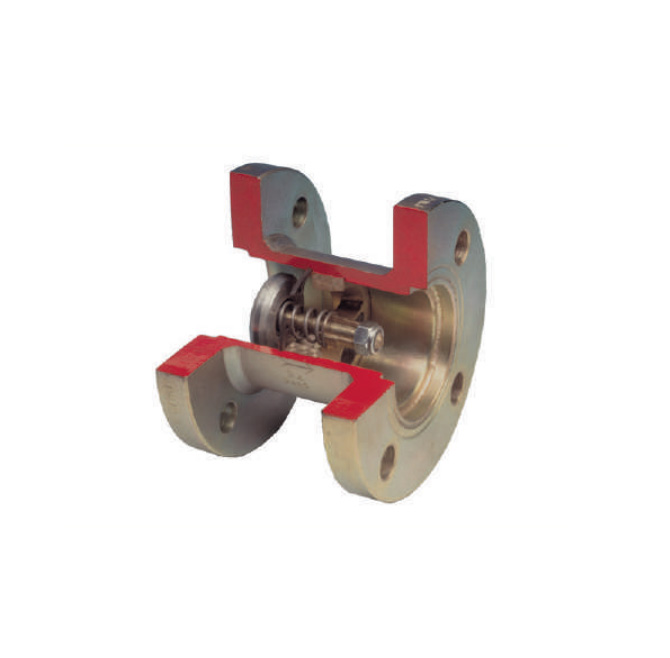

Excess flow valve for LPG, designed to instantly halt the gas flow whenever the tank closure flow rate is exceeded.
Technical Features

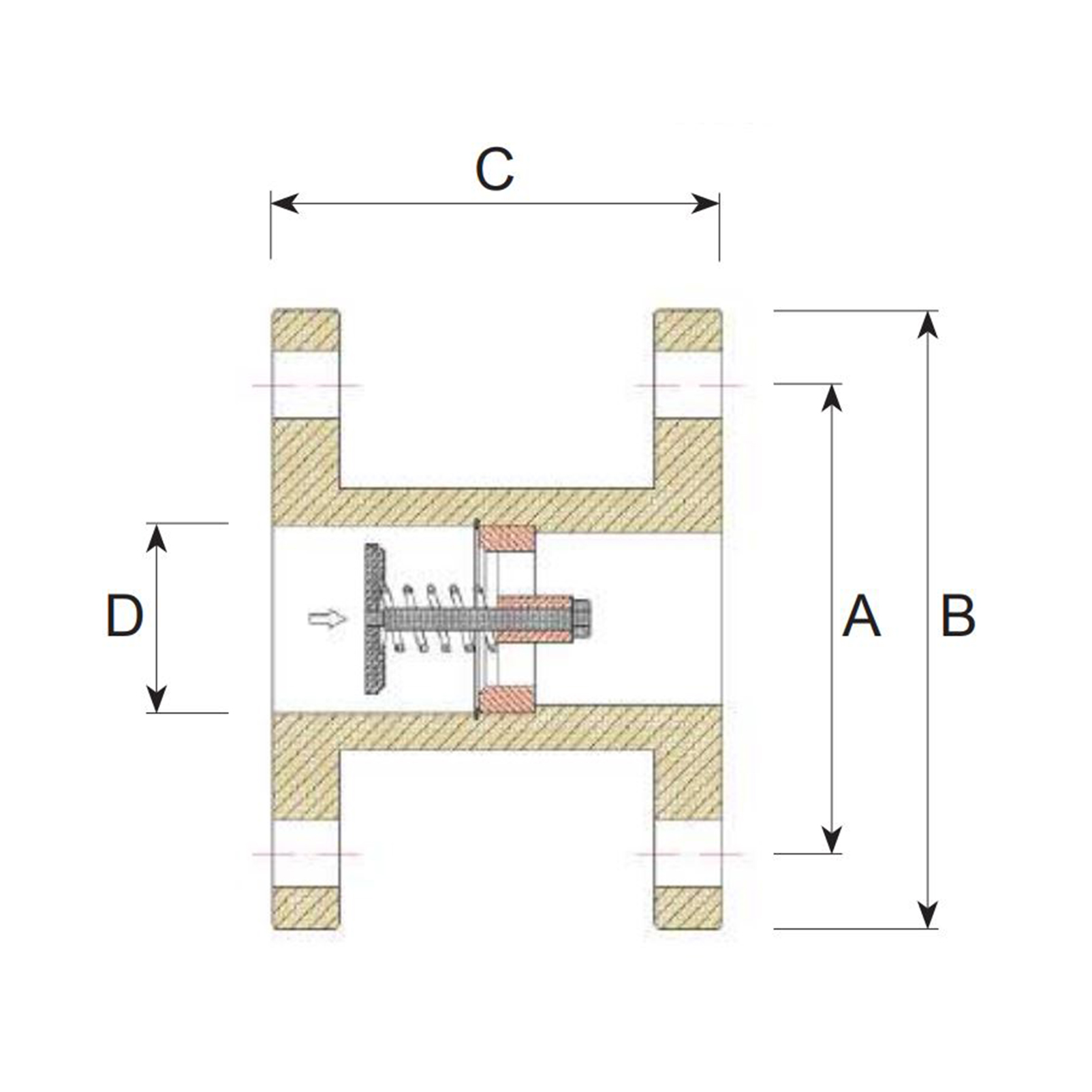

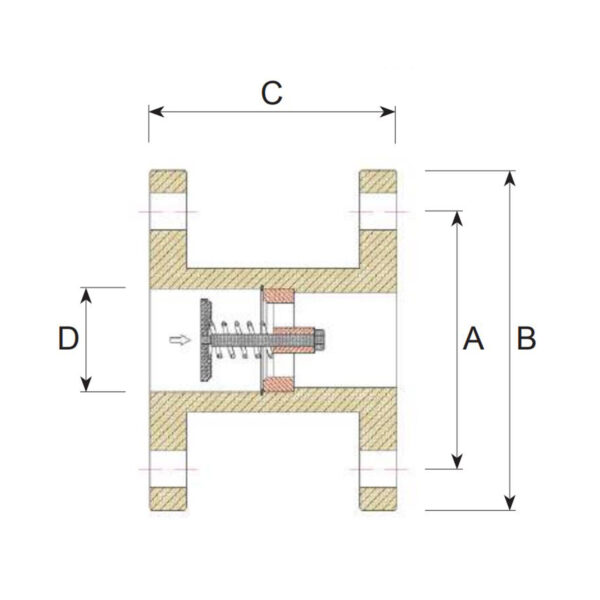

SKU | DIAMETER | CONNECTION | WORKING TEMPERATURE | TEST PRESSURE | MATERIAL | DIMENSION |
---|---|---|---|---|---|---|
50160 | DN 40 | flanged PN 40 | - 40°C ÷ + 50°C | 40 bar | steel body | 110x150x120 mm (AxBxC) |
50161 | DN 50 | 125x165x120 mm (AxBxC) | ||||
50162 | DN 65 | 145x185x140 mm (AxBxC) | ||||
50163 | DN 80 | 160x200x140 mm (AxBxC) |
