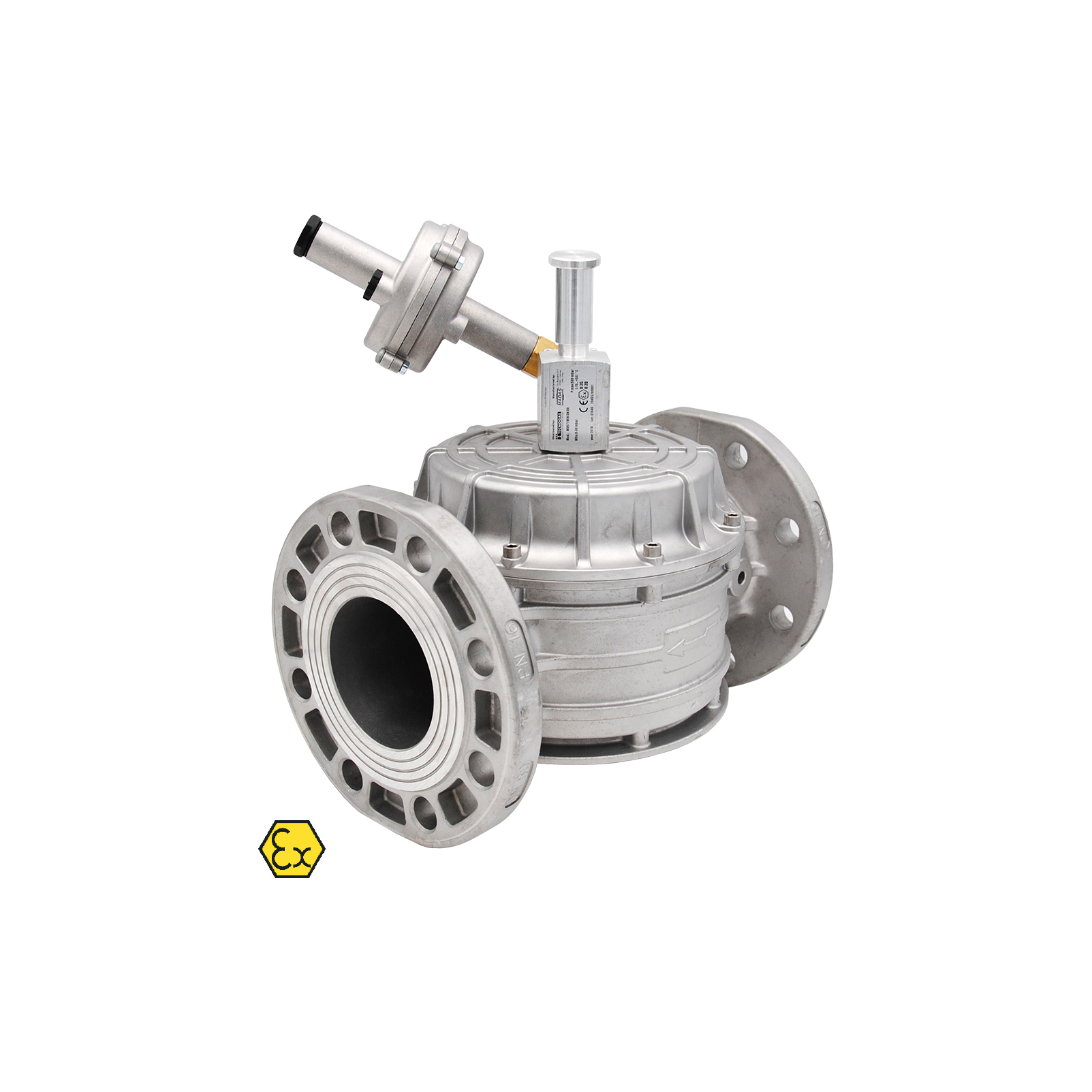

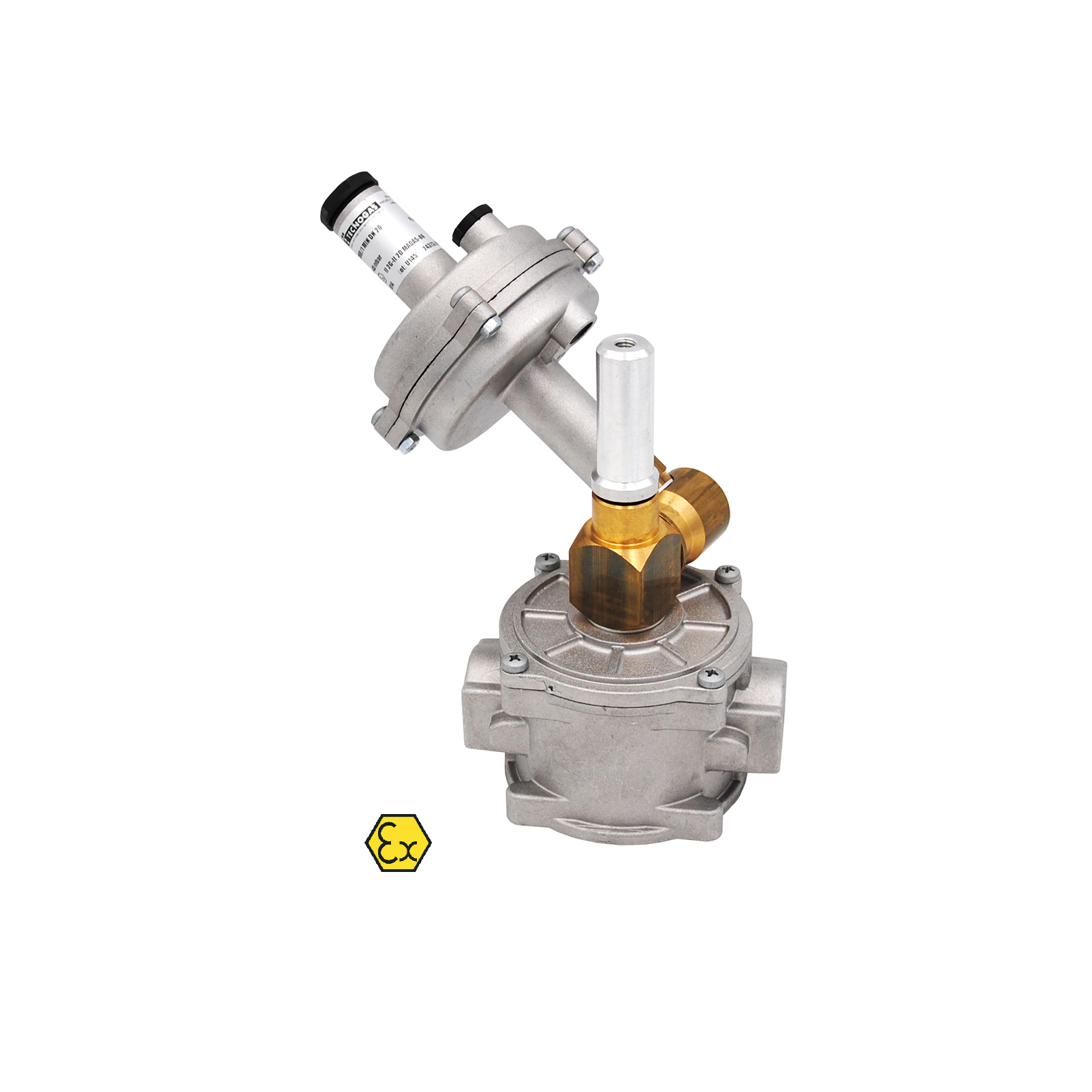

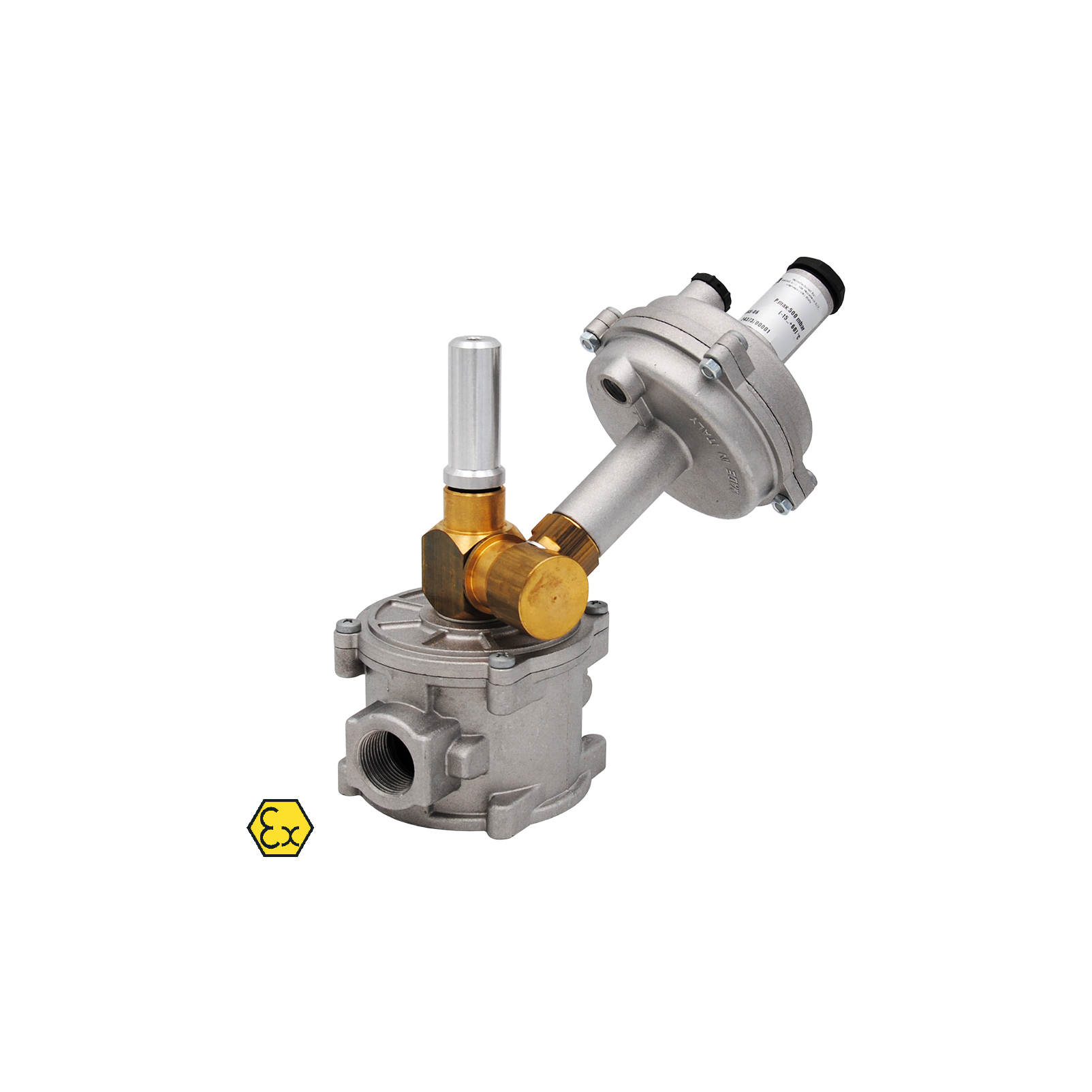

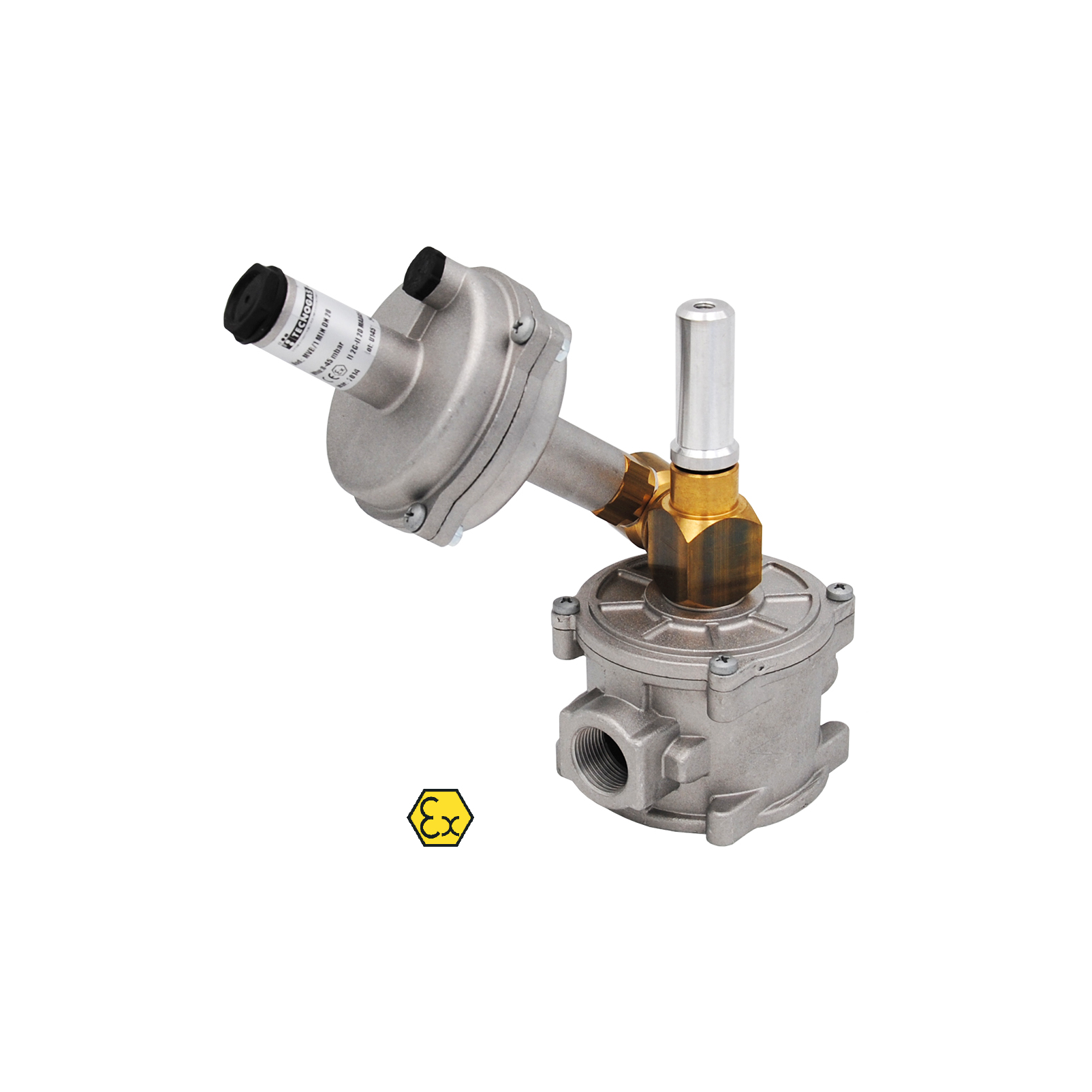

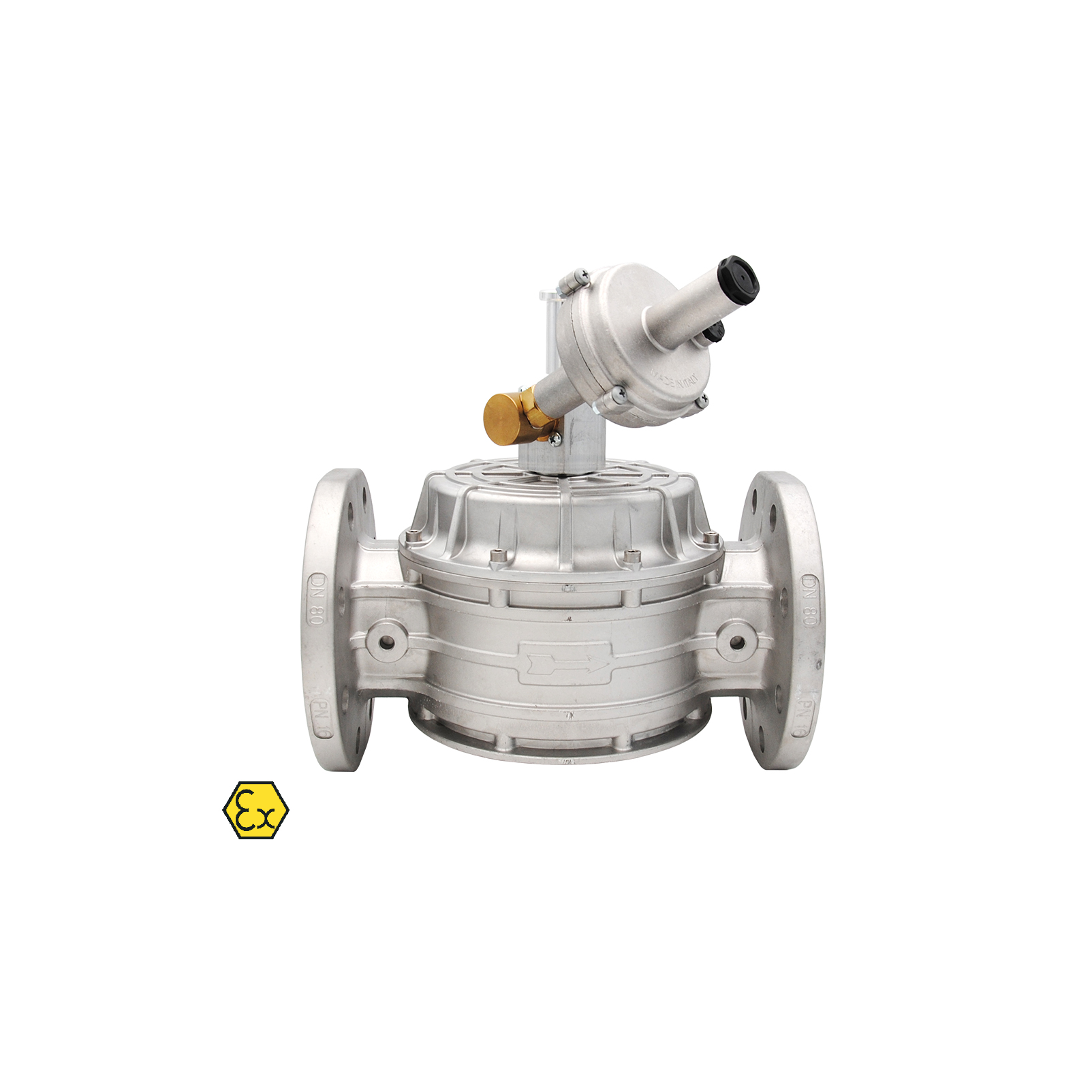

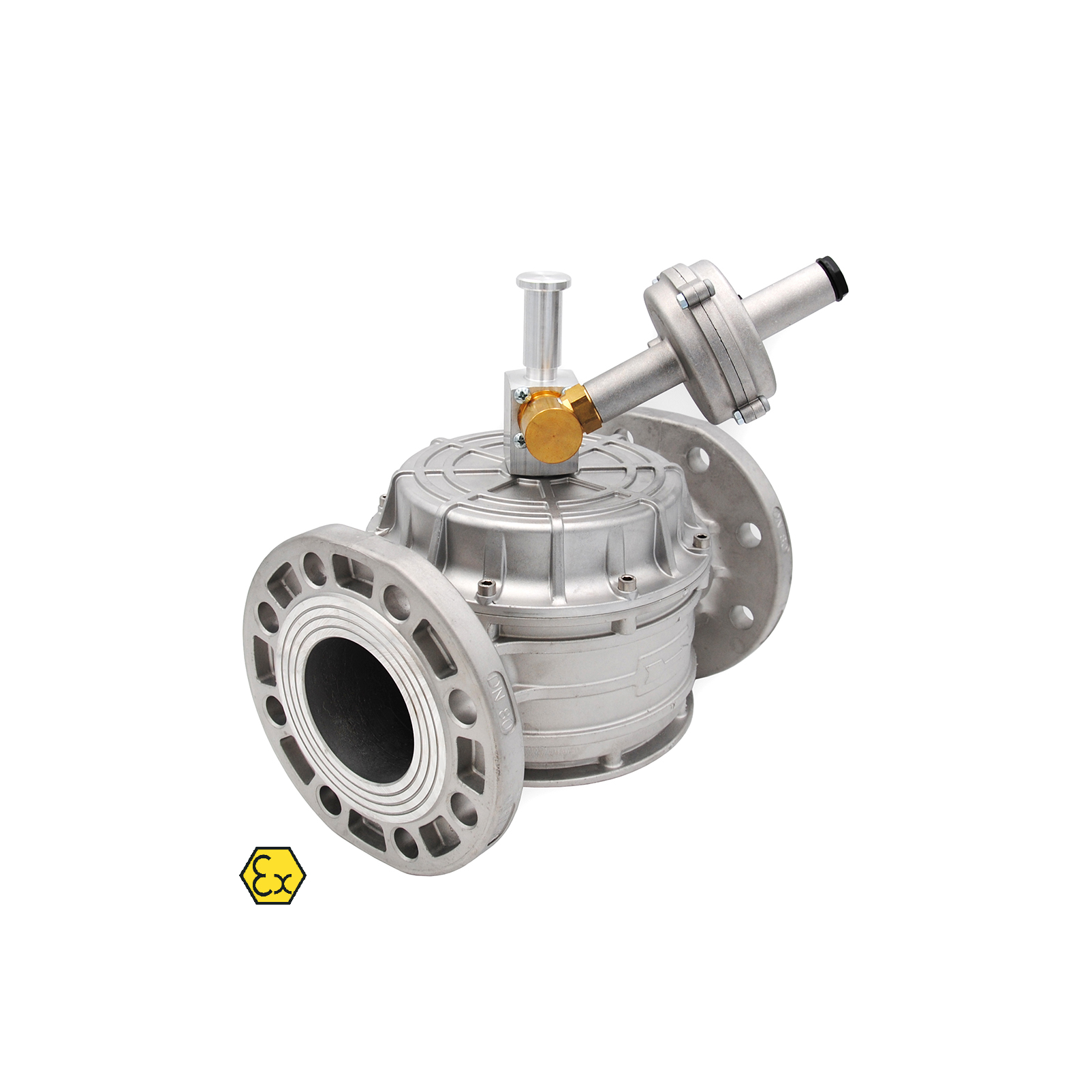

Minimum Pressure Shut Off Valve

MVB/1 MIN model, for assembly in line

COMPLIANT WITH ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000004314

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 50 PN 16 connections

€384,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
4,47 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004390

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - 3/4" FF connections

€225,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004391

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" FF connections

€227,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
1,68 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004392

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" 1/4 FF connections

€281,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004393

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" 1/2 FF connections

€281,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004394

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - 2" FF connections

€290,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004395

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 65 PN 16 connections

€542,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
34 × 46 × 24 cm

Volume:
0.0385 m3

Weight:
8,38 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004396

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 80 PN 16 connections

€549,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
8,23 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004397

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 100 PN 16 connections

€863,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
38 × 36 × 44 cm

Volume:
0.0602 m3

Weight:
13,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004398

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 125 PN 16 connections

€1.854,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004399

MINIMUM PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 150 PN 16 connections

€1.854,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Minimum pressure shut off valve (UPSO) designed to shut off gas flow upstream in order to make the entire system safe; the valve closes automatically when the regulation pressure value drops below the block calibration pressure. The valve can only be opened manually and this must only be after the problem that caused the closure is found and eliminated.

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
FLOW RATE see data sheet in downloads below
MAXIMUM WORKING PRESSURE 500 mbar
SHUT OFF SETTING
  • 8 ÷ 45 mbar - sku 4390 / 4391 / 4392 / 4393 / 4394
  • 8 ÷ 30 mbar - sku 4314 / 4395 / 4396 / 4397 / 4398 / 4399
CLOSING TIME < 1s
OPERATING TEMPERATURE - 15°C ÷ + 60°C
INLET CONNECTION
  • 3/4" FF - sku 4390
  • 1" FF - sku 4391
  • 1" 1/4 FF - sku 4392
  • 1" 1/2 FF - sku 4393
  • 2" FF - sku 4394
  • DN 50 PN 16 - sku 4314
  • DN 65 PN 16 - sku 4395
  • DN 80 PN 16 - sku 4396
  • DN 100 PN 16 - sku 4397
  • DN 125 PN 16 - sku 4398
  • DN 150 PN 16 - sku 4399
OUTPUT CONNECTION
  • 3/4" FF - sku 4390
  • 1" FF - sku 4391
  • 1" 1/4 FF - sku 4392
  • 1" 1/2 FF - sku 4393
  • 2" FF - sku 4394
  • DN 50 PN 16 - sku 4314
  • DN 65 PN 16 - sku 4395
  • DN 80 PN 16 - sku 4396
  • DN 100 PN 16 - sku 4397
  • DN 125 PN 16 - sku 4398
  • DN 150 PN 16 - sku 4399

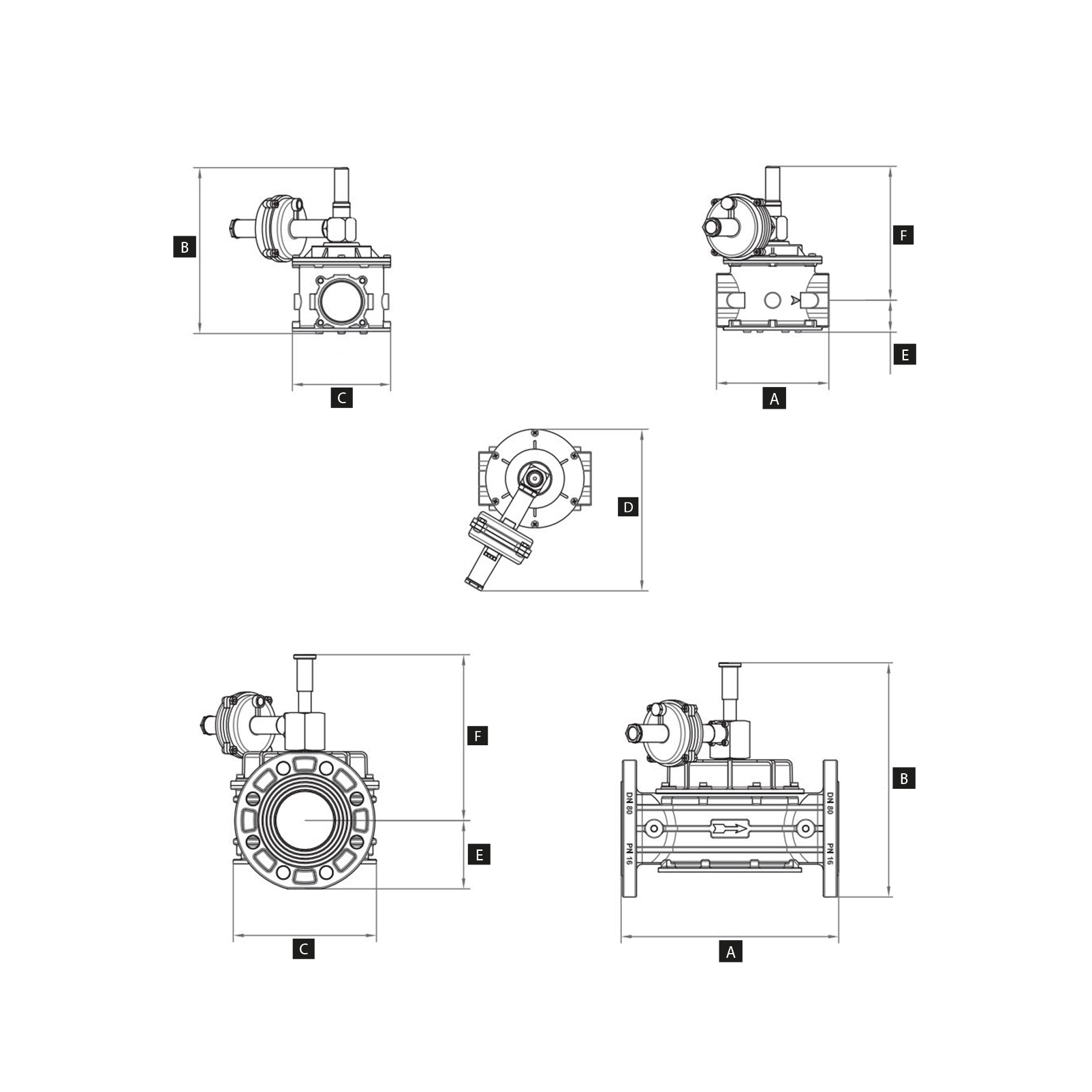

OVERALL DIMENSIONS
SKU TYPE OF CONNECTION HOLES A B C D E F
4390 filettato - 120 mm 178 mm 94 mm 225 mm 29,5 mm 148,5 mm
4391 filettato - 120 mm 178 mm 94 mm 225 mm 29,5 mm 148,5 mm
4392 filettato - 160 mm 210 mm 140 mm 205 mm 37 mm 173 mm
4393 filettato - 160 mm 210 mm 140 mm 205 mm 37 mm 173 mm
4394 filettato - 160 mm 236 mm 140 mm 230 mm 45 mm 181 mm
4314 flangiato 4 230 mm 263 mm 165 mm 230 mm 67,5 mm 195,5 mm
4395 flangiato 4 290 mm 325 mm 211 mm 255 mm 90 mm 235 mm
4396 flangiato 8 310 mm 332 mm 211 mm 255 mm 97 mm 242 mm
4397 flangiato 8 350 mm 350 mm 254 mm 275 mm 105 mm 245 mm
4398 flangiato 8 480 mm 452 mm 328 mm 310 mm 125 mm 327 mm
4399 flangiato 8 480 mm 457 mm 328 mm 310 mm 130 mm 332 mm
