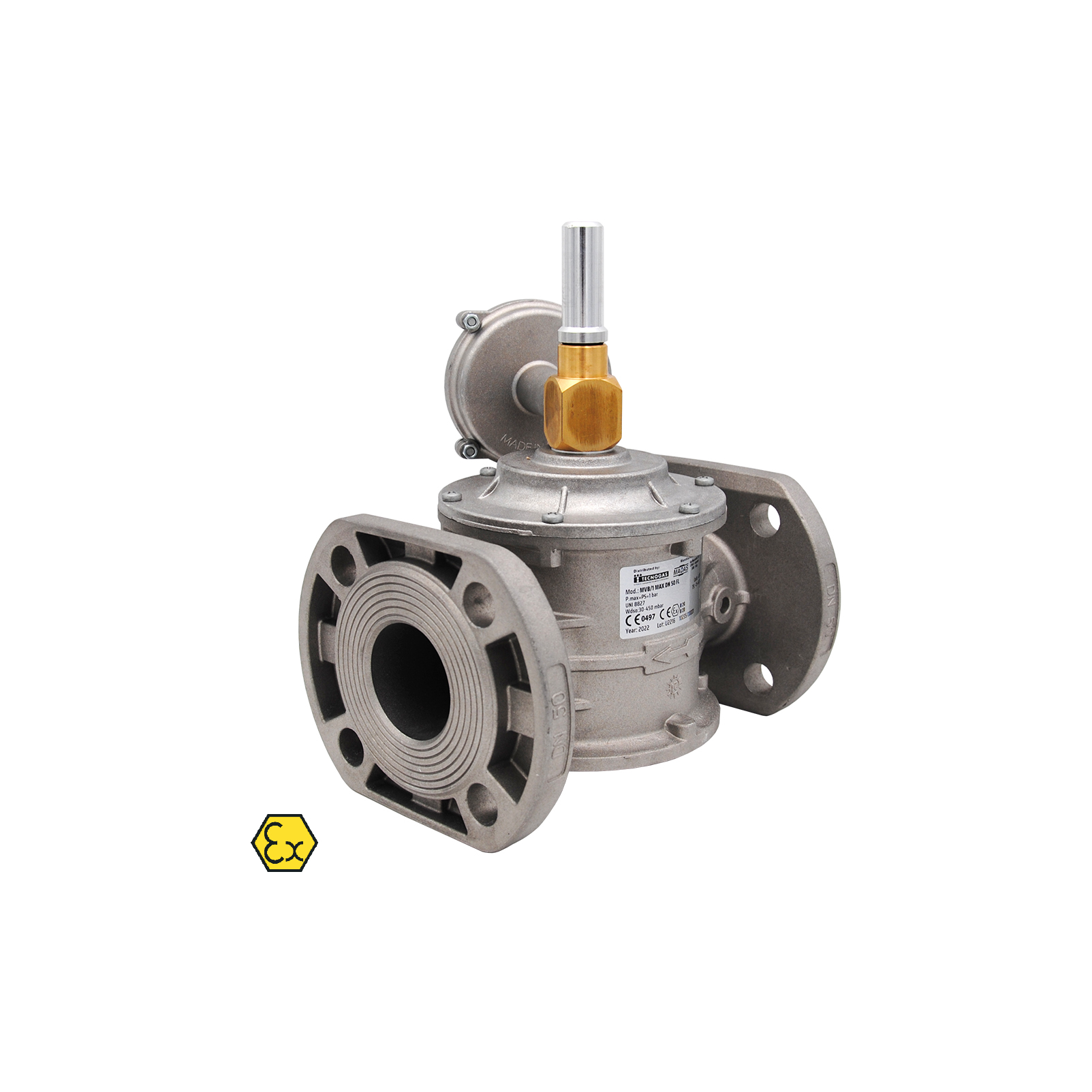

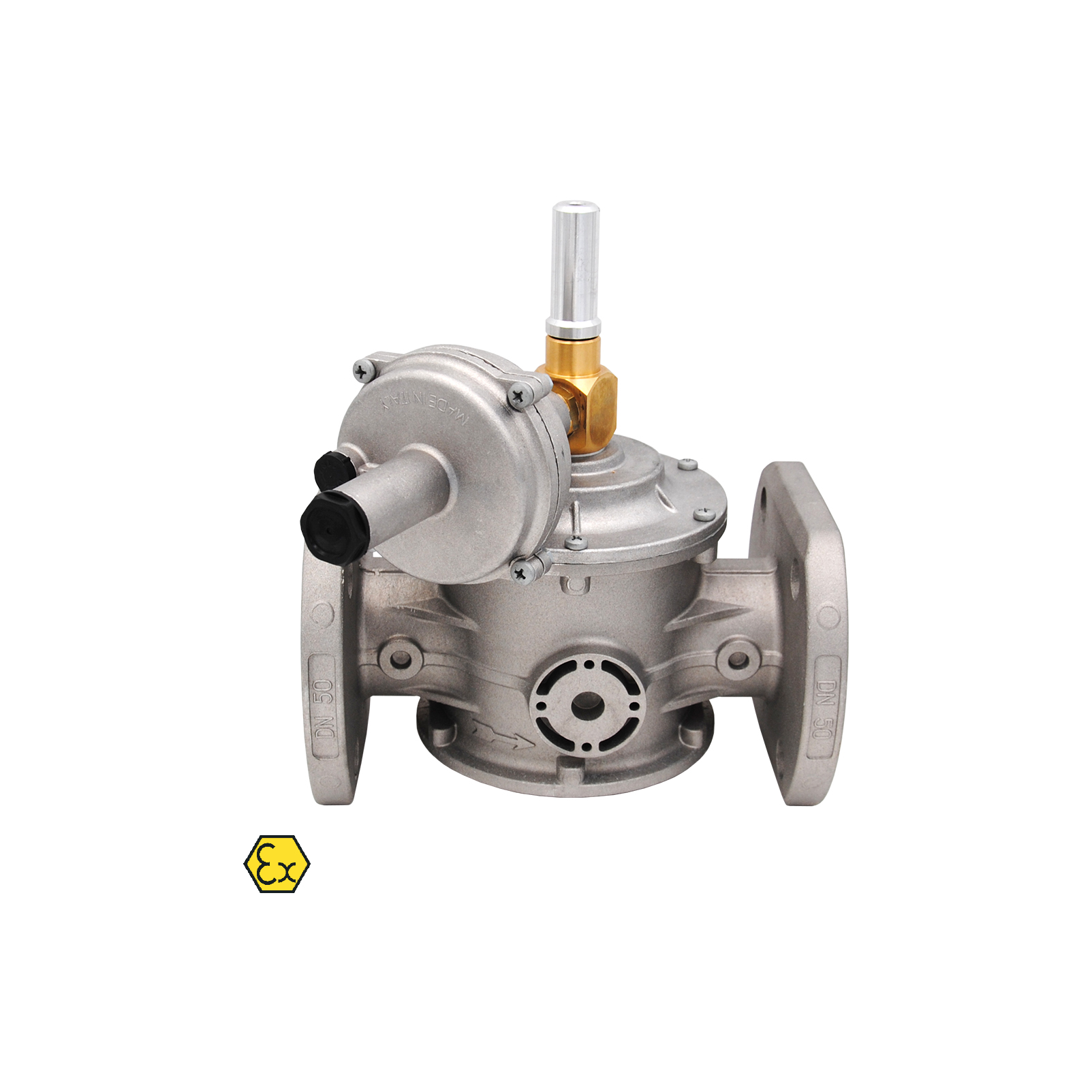

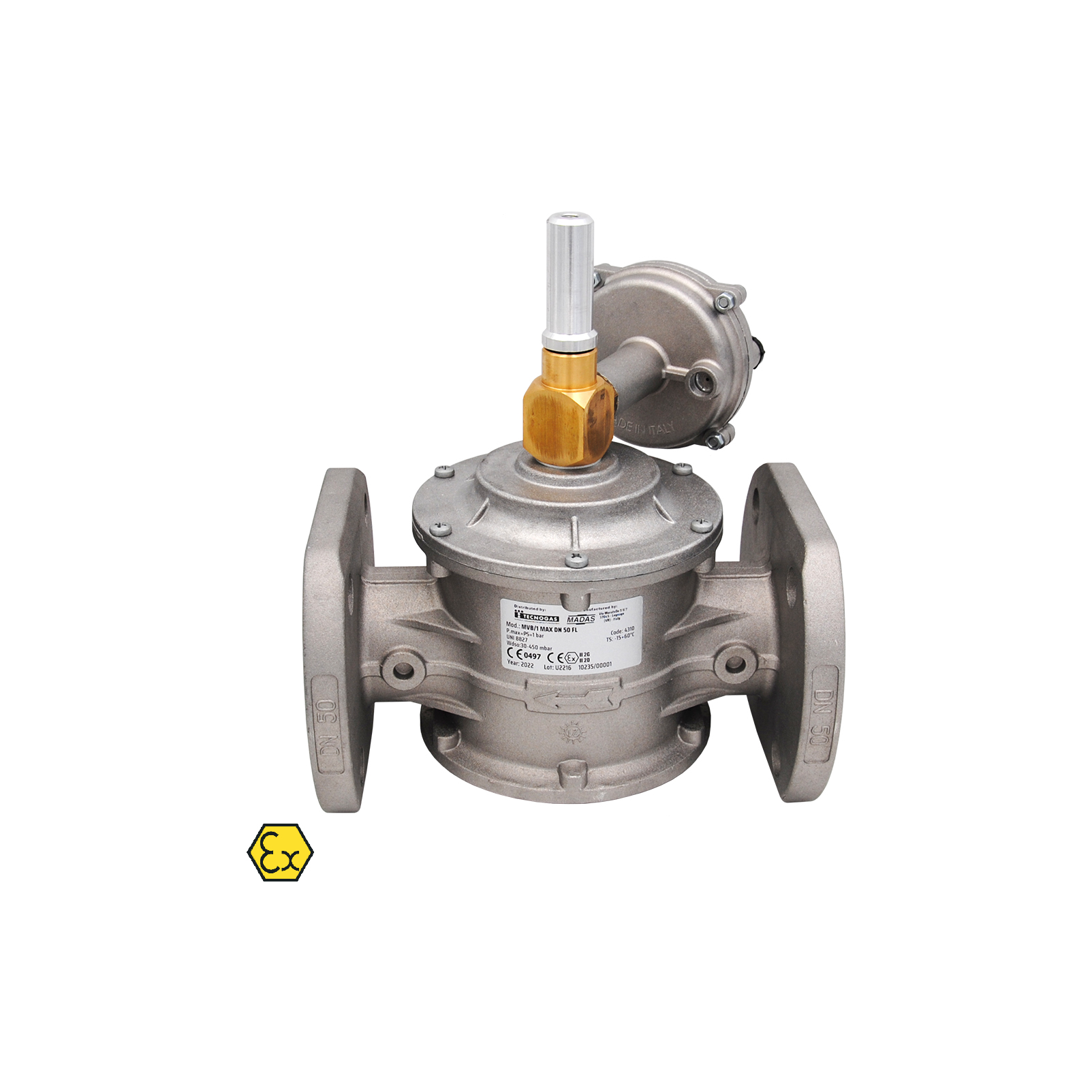

Max Pressure Shut Off Valve

MVB/1 MAX model, for line assembly

VERSION WITH MAX PRESSURE OF 6 BAR ALSO AVAILABLE, ASK OUR SALES OFFICE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000004310

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 50 PN 16 connections

€361,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 30 × 25 cm

Volume:
0.0188 m3

Weight:
4,28 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004352

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - 3/4" FF connections

€189,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 17 × 24 cm

Volume:
0.0061 m3

Weight:
1,59 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004353

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" FF connections

€189,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
17 × 23 × 15 cm

Volume:
0.006 m3

Weight:
1,59 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004354

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" 1/4 FF connections

€225,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
25 × 24 × 25 cm

Volume:
0.0153 m3

Weight:
2,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004355

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - 1" 1/2 connections

€225,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
23 × 26 × 25 cm

Volume:
0.0152 m3

Weight:
2,63 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004356

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - 2" FF connections

€268,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
23 × 25 × 26 cm

Volume:
0.0153 m3

Weight:
2,94 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004357

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 65 PN 16 connections

€544,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 35 × 23 cm

Volume:
0.0288 m3

Weight:
7,76 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004358

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 80 PN 16 connections

€551,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
36 × 35 × 23 cm

Volume:
0.0294 m3

Weight:
8,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004359

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 100 PN 16 connections

€970,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
44 × 36 × 37 cm

Volume:
0.0594 m3

Weight:
13,90 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004370

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 125 PN 16 connections

€1.854,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000004371

MAX PRESSURE SHUT OFF VALVE MVB/1 MODEL - DN 150 PN 16 connections

€1.854,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
52 × 57 × 37 cm

Volume:
0.1111 m3

Weight:
29,60 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Max pressure shut off valve (OPSO) designed to shut off gas flow upstream in order to make the entire system safe; the valve closes automatically when the regulation pressure value exceeds the block setting pressure. The valve can only be opened manually and this must only be after the problem that caused the closure is found and eliminated.

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
FLOW RATE see data sheet in downloads below
MAXIMUM WORKING PRESSURE 1 bar - 6 bar
SHUT OFF SETTING 30 ÷ 450 mbar
CLOSING TIME < 1s
OPERATING TEMPERATURE - 15°C ÷ + 60°C
INLET CONNECTION
  • 3/4" FF - sku 4352
  • 1" FF - sku 4353
  • 1" 1/4 FF - sku 4354
  • 1" 1/2 FF - sku 4355
  • 2" FF - sku 4356
  • DN 50 PN 16 - sku 4310
  • DN 65 PN 16 - sku 4357
  • DN 80 PN 16 - sku 4358
  • DN 100 PN 16 - sku 4359
  • DN 125 PN 16 - sku 4370
  • DN 150 PN 16 - sku 4371
OUTPUT CONNECTION
  • 3/4" FF - sku 4352
  • 1" FF - sku 4353
  • 1" 1/4 FF - sku 4354
  • 1" 1/2 FF - sku 4355
  • 2" FF - sku 4356
  • DN 50 PN 16 - sku 4310
  • DN 65 PN 16 - sku 4357
  • DN 80 PN 16 - sku 4358
  • DN 100 PN 16 - sku 4359
  • DN 125 PN 16 - sku 4370
  • DN 150 PN 16 - sku 4371

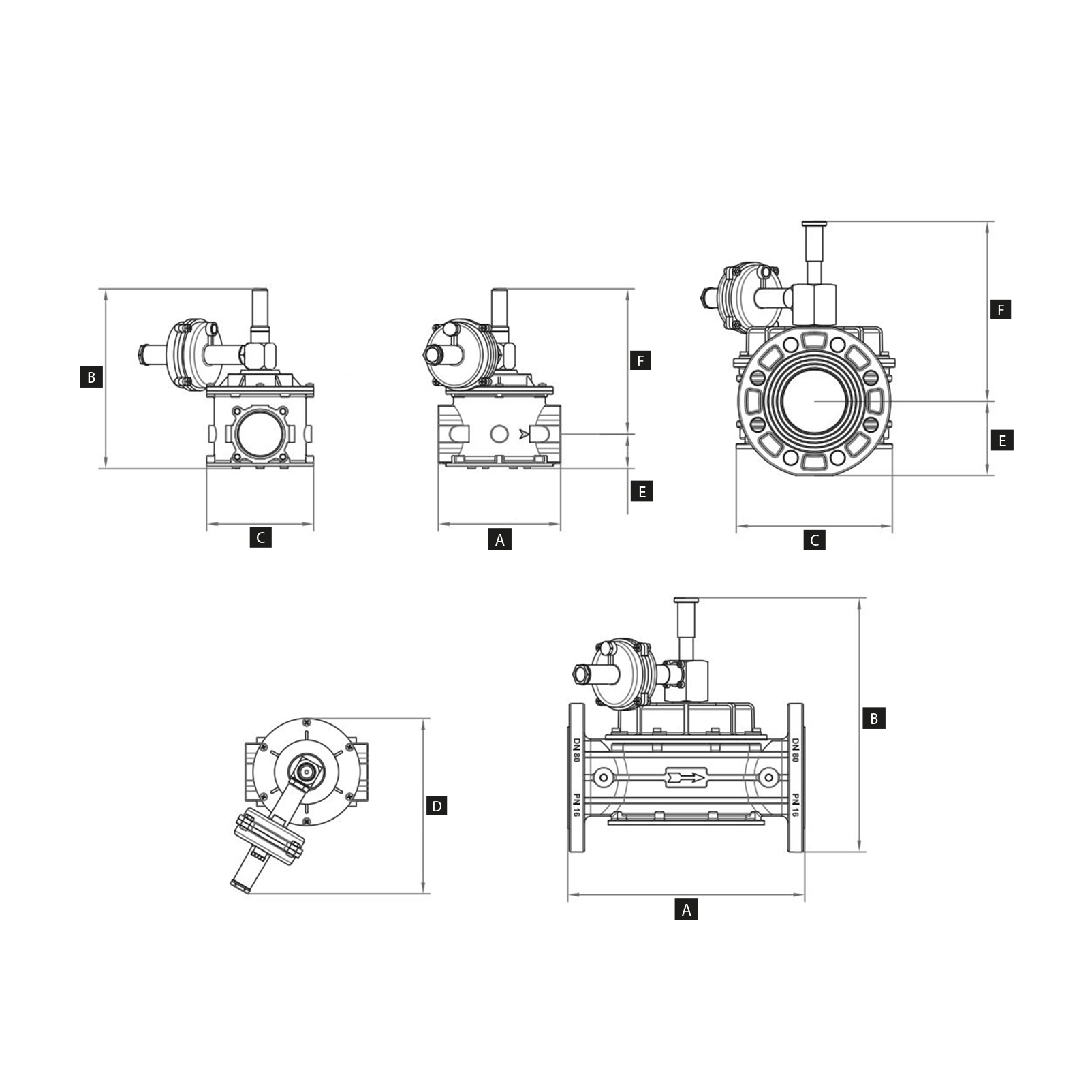

OVERALL DIMENSIONS
SKU TYPE OF CONNECTION HOLES A B C D E F
4352 filettato - 120 mm 178 mm 94 mm 225 mm 29,5 mm 148,5 mm
4353 filettato - 120 mm 178 mm 94 mm 225 mm 29,5 mm 148,5 mm
4354 filettato - 160 mm 210 mm 140 mm 205 mm 37 mm 173 mm
4355 filettato - 160 mm 210 mm 140 mm 205 mm 37 mm 173 mm
4356 filettato - 160 mm 236 mm 140 mm 230 mm 45 mm 181 mm
4310 flangiato 4 230 mm 236 mm 165 mm 230 mm 67,5 mm 195,5 mm
4357 flangiato 4 290 mm 325 mm 211 mm 255 mm 90 mm 235 mm
4358 flangiato 8 310 mm 332 mm 211 mm 255 mm 97 mm 242 mm
4359 flangiato 8 350 mm 350 mm 254 mm 275 mm 105 mm 245 mm
4370 flangiato 8 480 mm 452 mm 328 mm 310 mm 125 mm 327 mm
4371 flangiato 8 480 mm 457 mm 328 mm 310 mm 130 mm 332 mm
