Vacuum Pump

Model DS PRO EX-2

sku model price info add to cart

00000011190

VACCUM PUMP Mod. DS PRO EX-2 - 1 pcs.

1.075,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
49 × 30 × 28 cm

Volume:
0.0412 m3

Weight:
19,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84141089

Buy
Info Request

Product informations

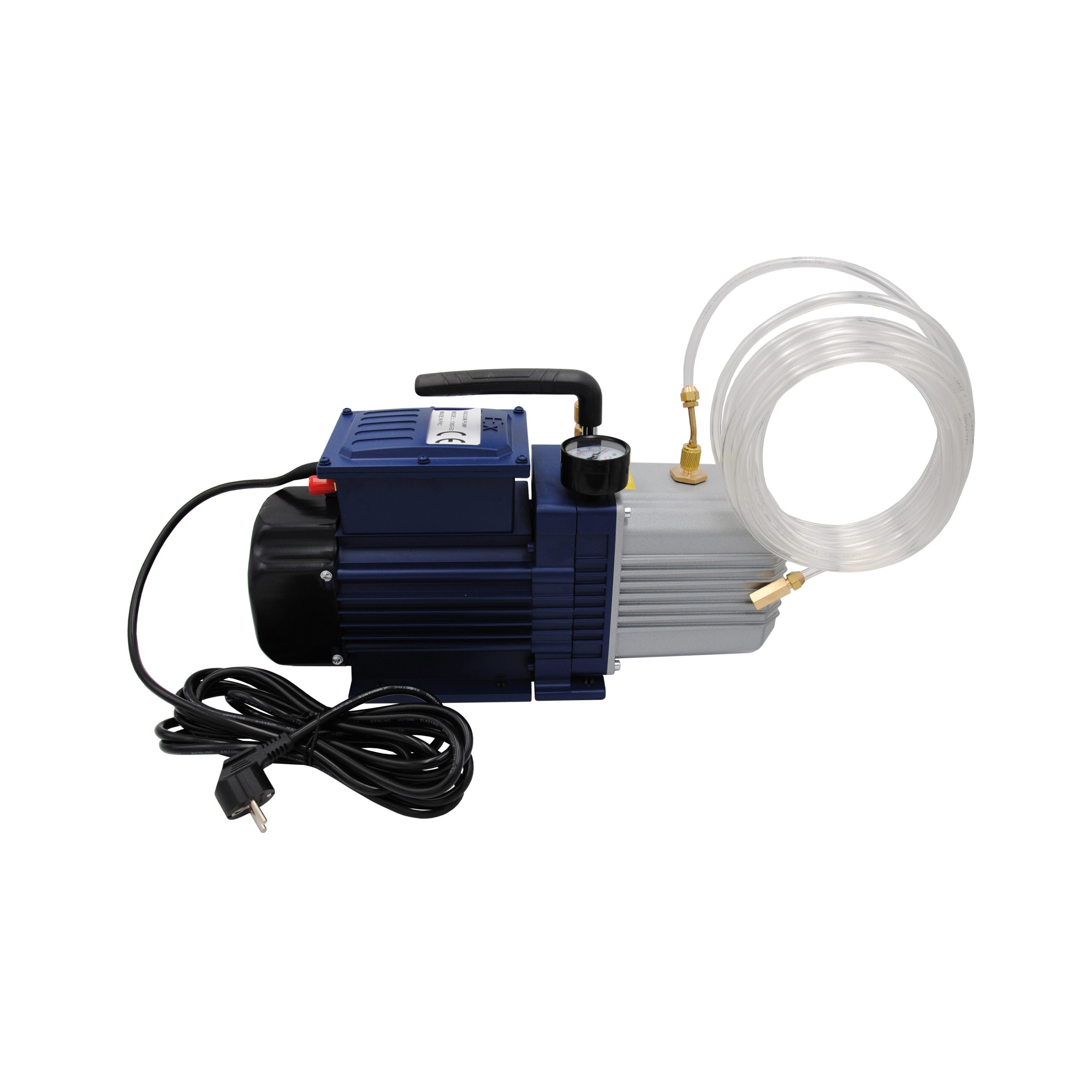

DS PRO EX-2, the vacuum pump designed to achieve high vacuum levels in systems operating with class A2L (R32) or A3 (R290) refrigerant gases; this device is to be used only in well-ventilated environments.



Product features

  • equipped with a vacuum gauge but not solenoid valve

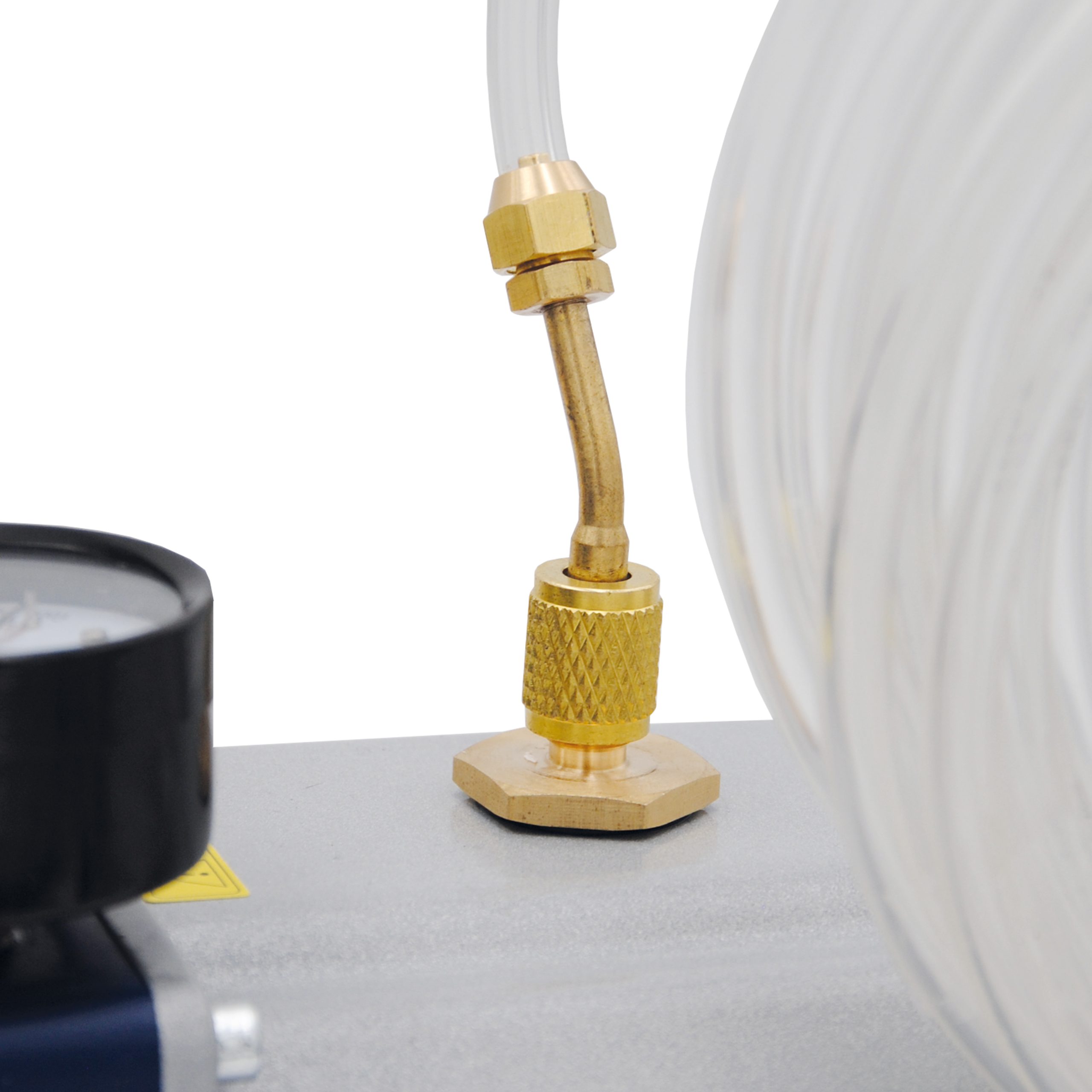

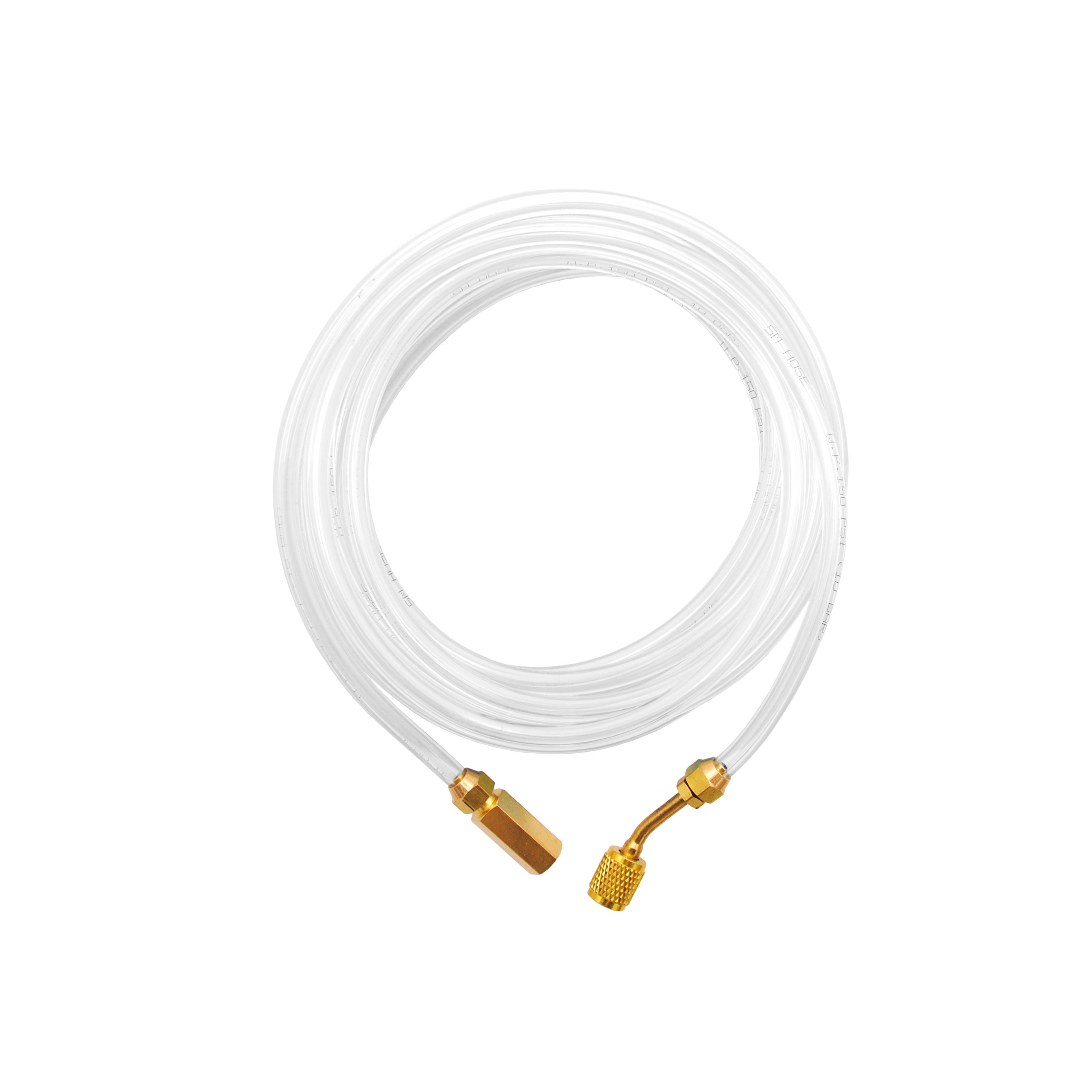

  • equipped with a 5 m long tube with ballast valve necessary for evacuation of gases or vapors generated in the early stages of vacuum
  • 5-meter long power cable to ensure operator safety



PUMP COMPONENTS
1 discharge pipe with ballast valve

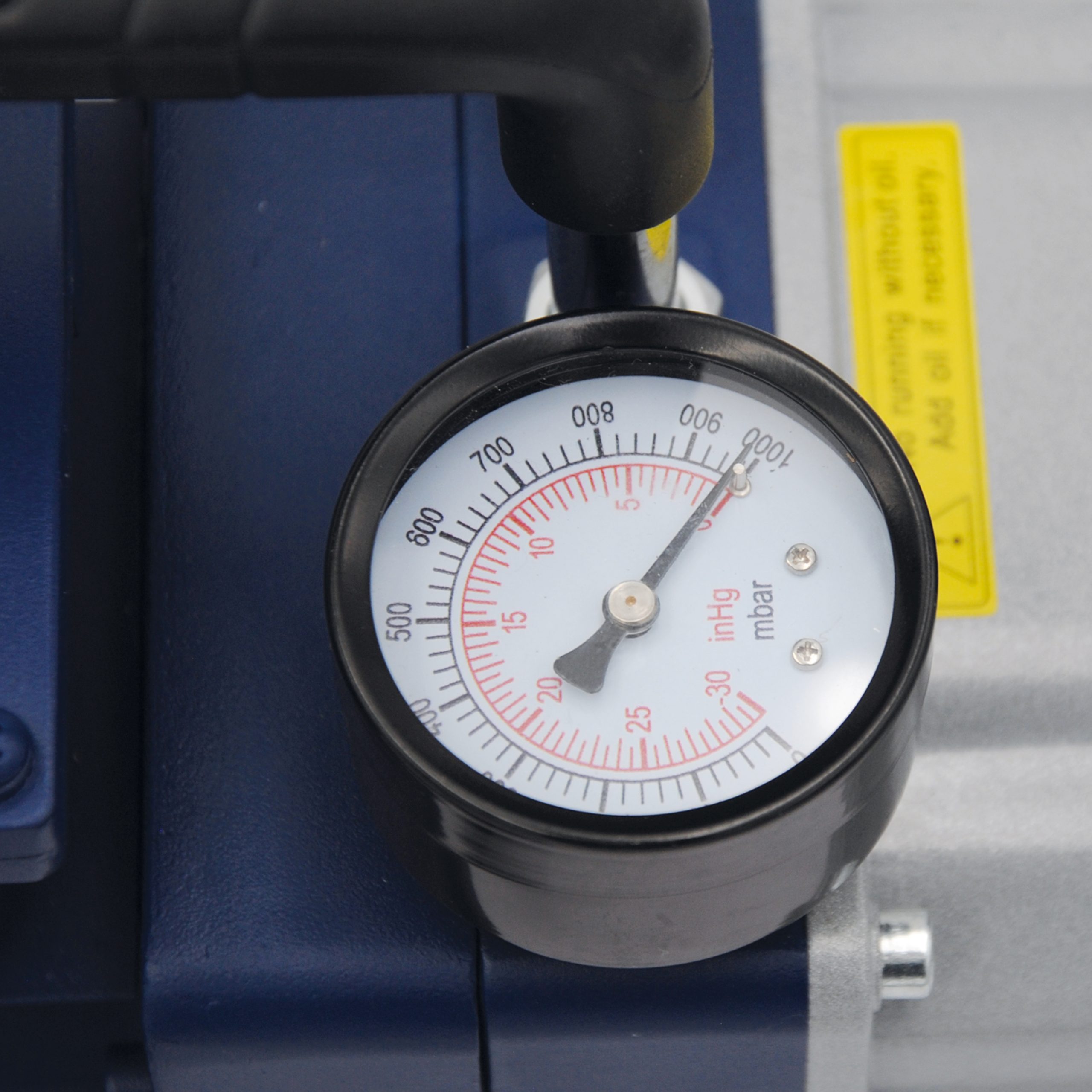

2 vacuum gauge
3 oil tank

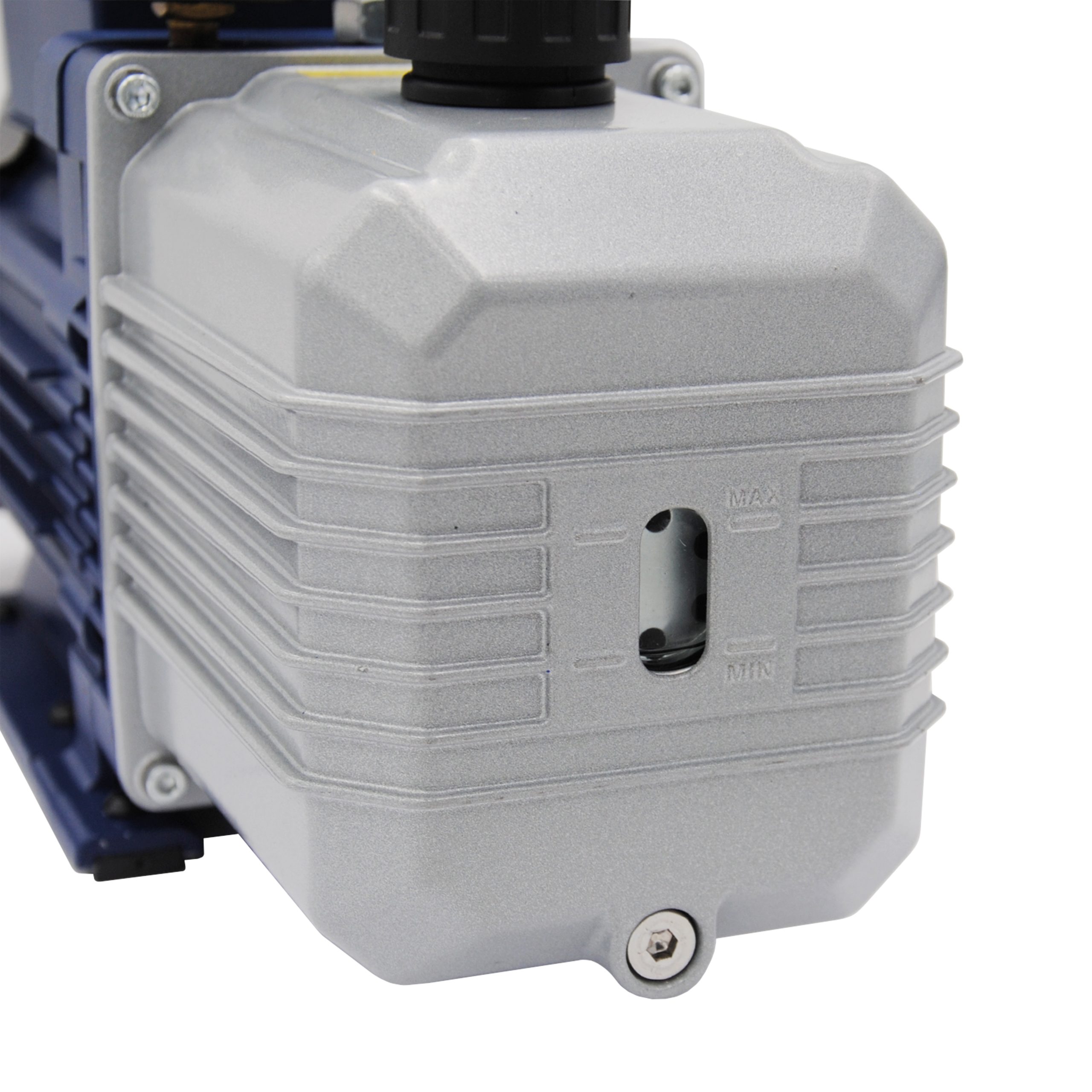

4 oil level sight glass
5 oil drain plug
6 handle

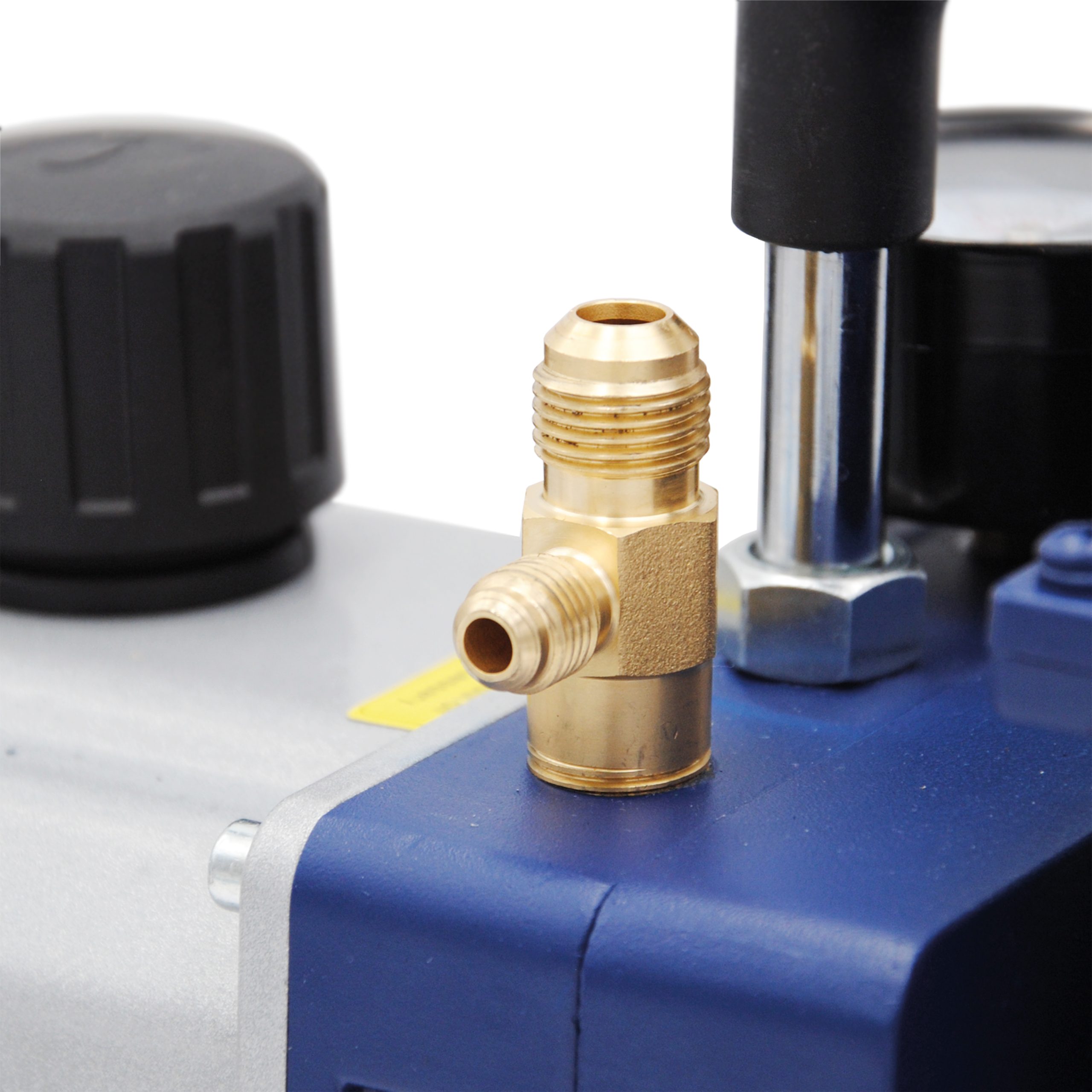

7 suction fitting
8 ATEX switch
9 electric motor

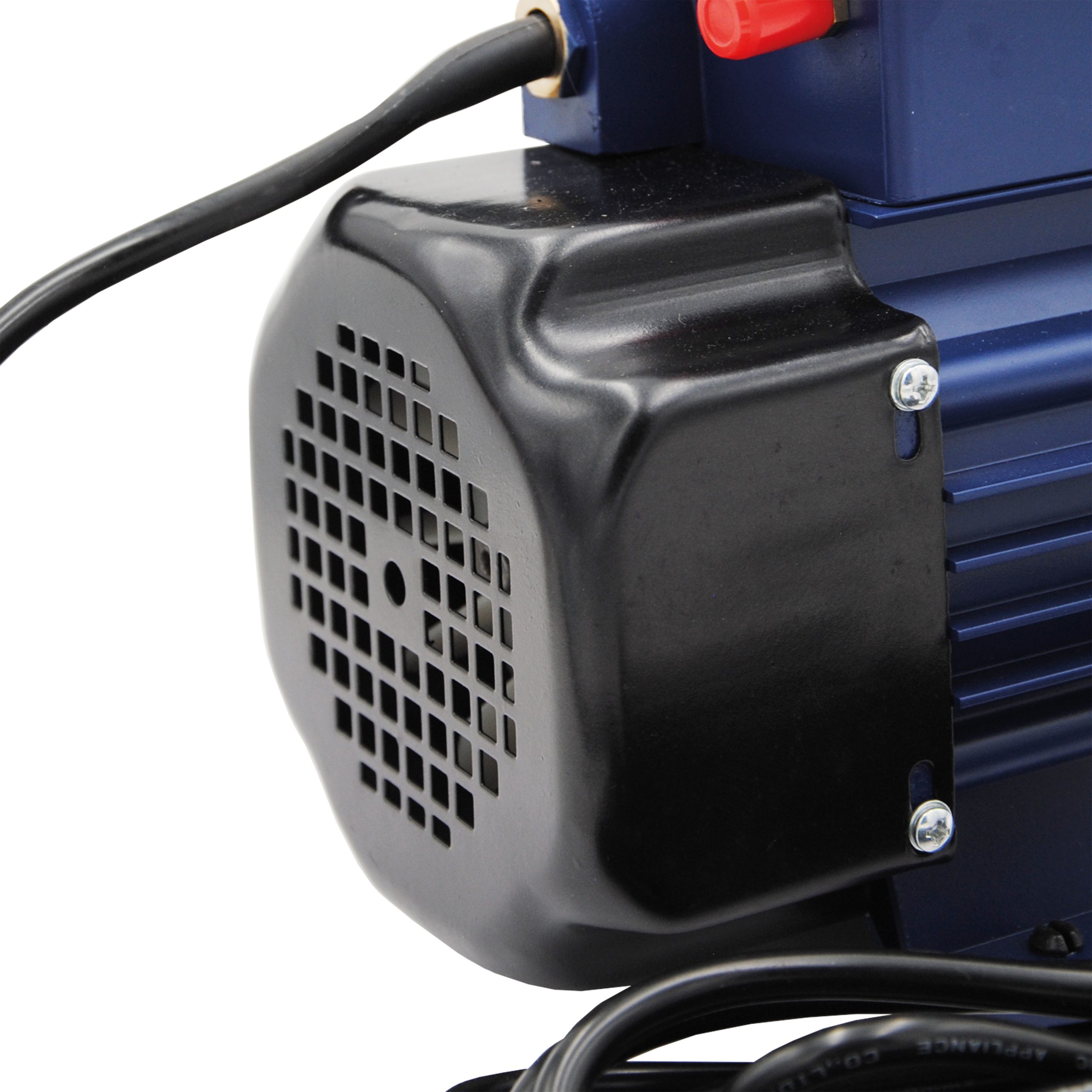

10 cooling fan cover
11 base



Technical Features

ELECTRICAL SPECIFICATIONS 230V 50-60 Hz
POWER 3/4HP
FLOW RATE 170 l/min
ULTIMATE VACUUM 7,5 microns
OIL CAPACITY 600 ml
WORKING TEMPERATURE 5°C ~ 40°C
CONNECTIONS 1/4" e 3/8" SAE
USABLE GAS A2L-class refrigerants, including R290
WEIGHT 17,9 kg
DIMENSIONS 457x356x254 mm (HxWxD)
