Mini Anemometer

Model with fixed probe

sku model price info add to cart

00000011517

MINI ANEMOMETER WITH FIXED PROBE

445,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
24 × 12 × 4 cm

Volume:
0.0012 m3

Weight:
0,19 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90158000

Buy
Info Request

Product informations

Mini anemometer with fixed fan probe, designed to easily measure temperature, flow rate and air speed.



Product features

  • wear-resistant fan structure for greater precision and reliability
  • data block function
  • MAX/AVG mode
  • backlit LCD screen
  • automatic shut-down
  • overload indication
  • low battery indication



The kit consists of

  • mini anemometer
  • 3 AAA batteries (R03) 1.5V



ANEMOMETER STRUCTURE
1 temperature and wind speed sensor
2 anemometer body
3 display LCD
4 ON/OFF button - Bluetooth® activation
5 button for unit selection (°C/°F)
6 mode selection button (MAX/AVG)
7 "HOLD" mode selection button / display backlight activation

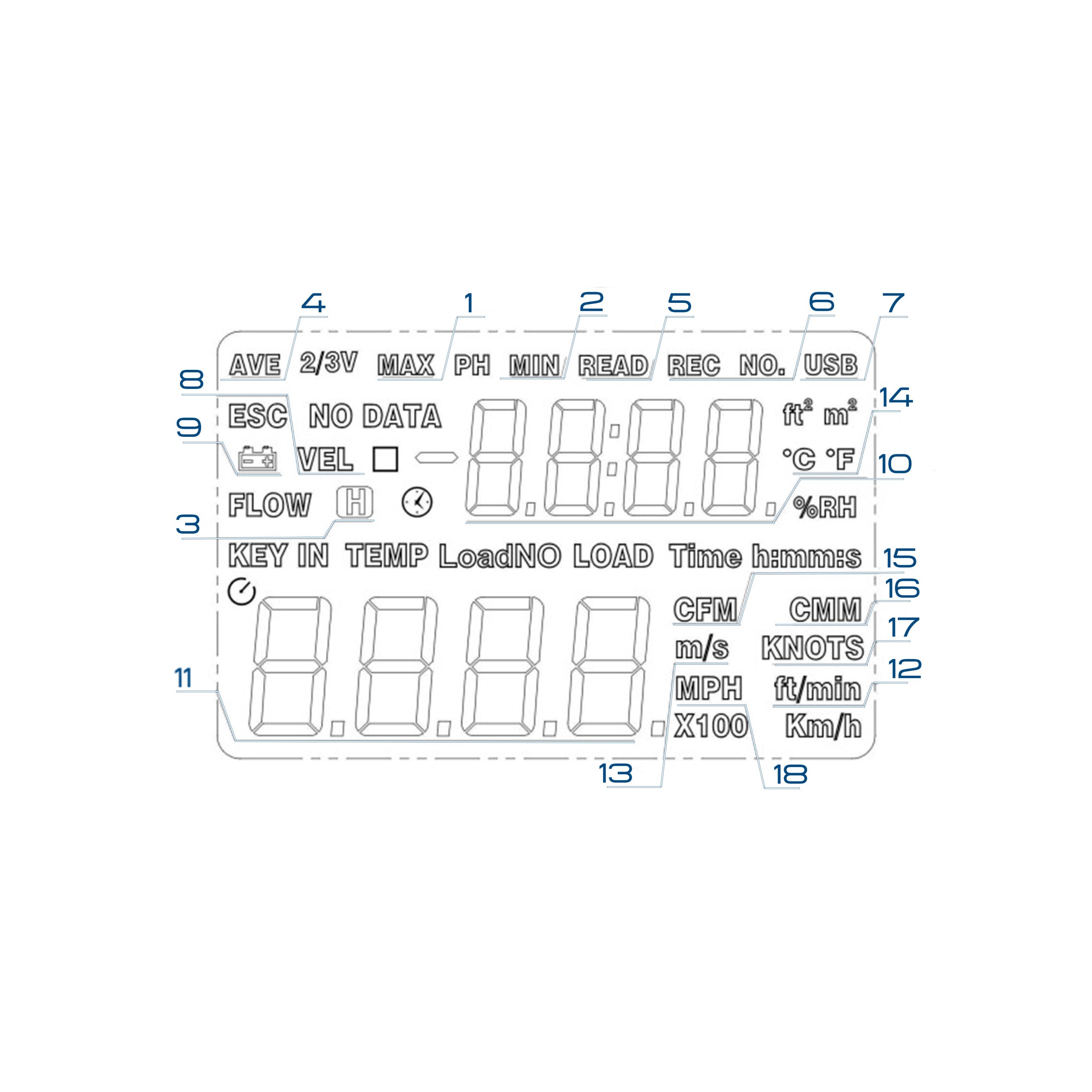

DISPLAY STRUCTURE
1 maximum value
2 average value
3 "data hold" function icon active
4 low battery icon
5 unit of measurement m/s
6 unit of measurement km/h
7 unit of measurement ft/min
8 unit of measurement Knots
9 unit of measurement Mph
10 active temperature unit (°C)
11 active temperature unit (°F)
12 measured temperature value
13 "Wind Chill" warning icon
14 measured wind speed value
15 Beaufort scale
16 Bluetooth® communication icon active



Technical Features

FUNCTION RANGE RESOLUTION PRECISION NOTE
WIND SPEED MEASUREMENT 0 ~ 30 m/s (standard) 0.1 ± (5%rdg+0.5)
  • ambient temperature: 23°C ± 5°C
  • humidity in the environment: ≤ 80% RH
1.4 ~ 108 km/h (reference) ± (5%rdg+15dgts)
0.7 ~ 58 Knots (reference) ± (5%rdg+10dgts)
0.8 ~ 67 mph (reference) ± (5%rdg+10dgts)
78 ~ 5905 ft/min (reference) 1 ± (5%rdg+180dgts)
TEMPERATURE MEASUREMENT - 10°C ~ 50°C 0.1°C ± 2°C sensor operating temperature
14°F ~ 122°F 0.2°F ± 4°F
WIND RATING 0 ~ 12 1 ± 1 wind assessment to be used as a reference



SAMPLING FREQUENCY 0.5 seconds
AUTOMATIC SHUT-DOWN after 5 minutes of inactivity
POWER SUPPLY 3 AAA batteries (R03) 1.5V
SCREEN DIMENSIONS 32x26 mm (WxH)
ANEMOMETER DIMENSIONS 160x50x28 mm (HxWxD)
WEIGHT 118 g
