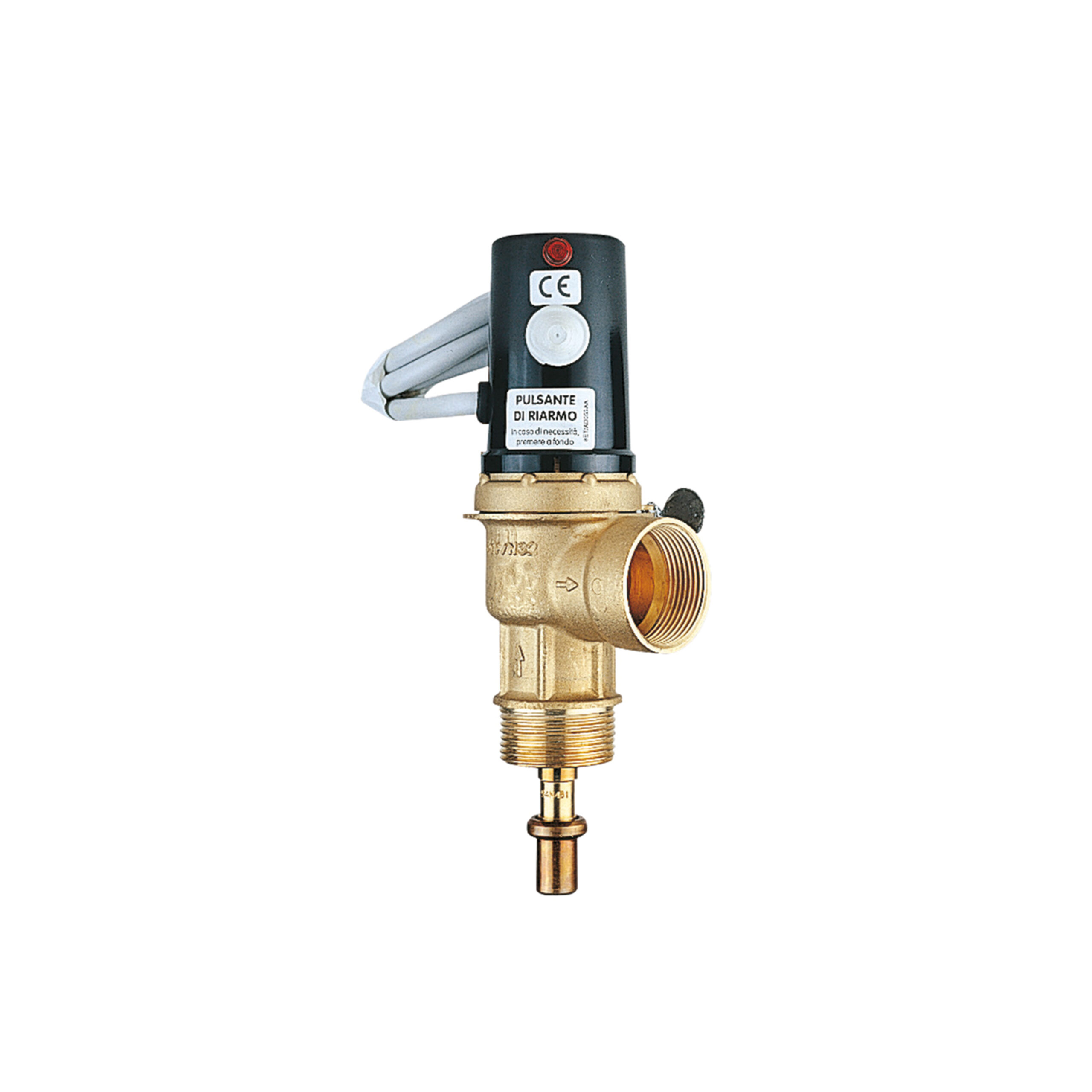

Thermal Discharge Valve
ISPESL approved valve
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070217 |
THERMAL DISCHARGE VALVE - Ø 1" 1/4 |
€894,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070218 |
THERMAL DISCHARGE VALVE - Ø 1" 1/2 |
€1.177,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Positive action thermal discharge valve, with manual reset and optical signal, ISPESL approved.
Technical Features
| SKU 70217 | |
|---|---|
| CONNECTIONS | Ø 1" 1/4 |
| CALIBRATION TEMPERATURE | 95°C |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, protected though against the ingress of solid objects larger than 1 mm) |
| DISCHARGE POTENTIAL WITHOUT RESTORATION | 176,750 kcal/h equal to 7070 l/h |
| DISCHARGE TEMPERATURE | 96°C |
| CLOSING TEMPERATURE | 92°C |
| FLOW COEFFICIENT (Δp=1 kg/cm2) | 11.000 kg/h |
| SKU 70218 | |
|---|---|
| CONNECTIONS | Ø 1" 1/2 |
| CALIBRATION TEMPERATURE | 95°C |
| DEGREE OF PROTECTION | IP40 (not protected against the ingress of liquids, protected though against the ingress of solid objects larger than 1 mm) |
| DISCHARGE POTENTIAL WITHOUT RESTORATION | 318.200 kcal/h equal to 12728 l/h |
| DISCHARGE TEMPERATURE | 96°C |
| CLOSING TEMPERATURE | 90°C |
| FLOW COEFFICIENT (Δp=1 kg/cm2) | 20.000 kg/h |
