Thermal Discharge Valve
Thermal safety discharge
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070215 |
THERMAL DISCHARGE VALVE - Ø 3/4" |
€176,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

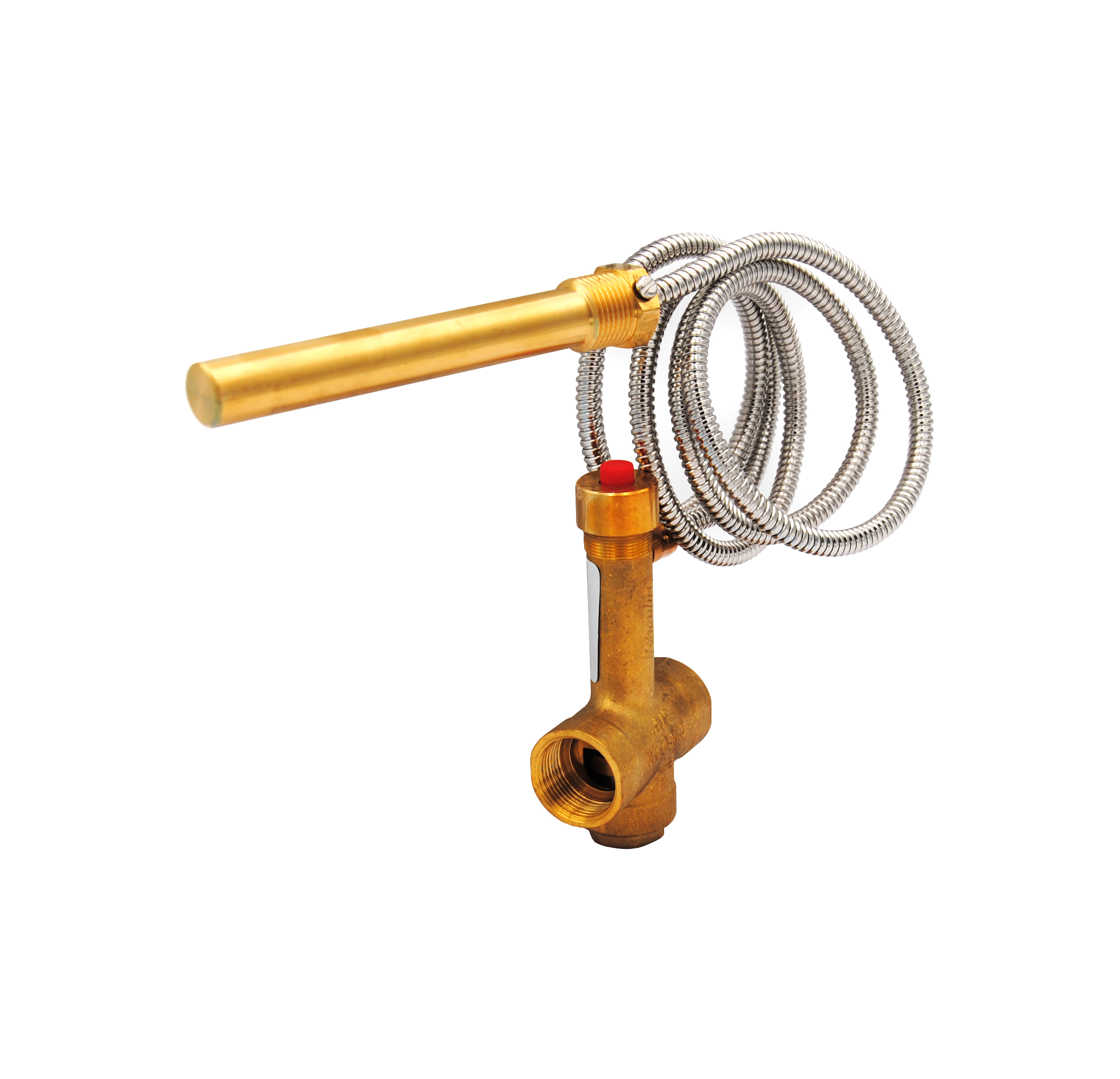

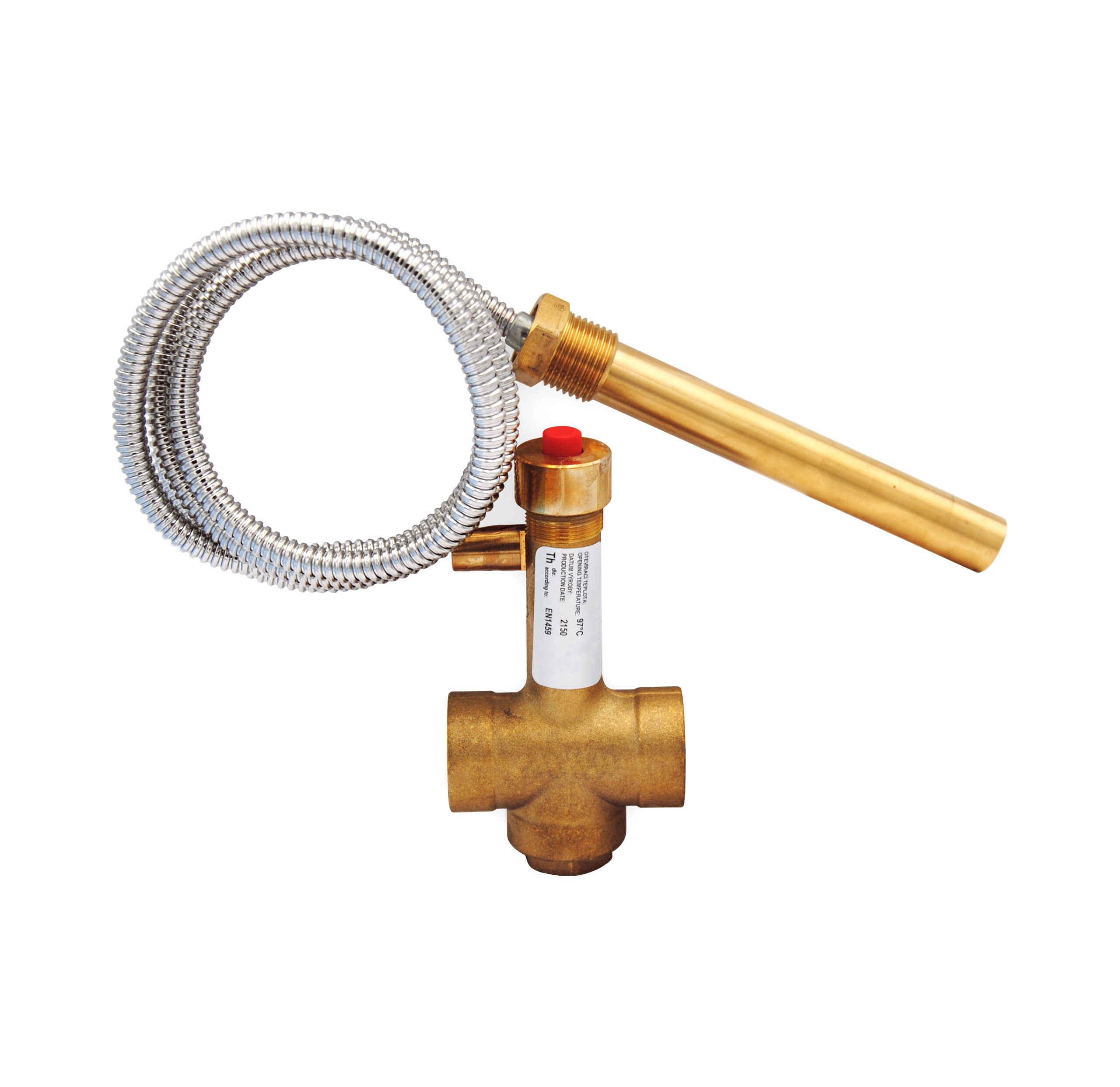

Drain valve designed to prevent overheating of thermal generators, such as boilers operating with biomass; when the temperature reaches 97°C, the valve opens, allowing cold water to enter the boiler.
Product features
- it can also be used to avoid flashback to the fuel tank flooding the duct in the event of overheating of the same
- equipped with two temperature sensors, in case of failure of one of them, the other ensures the operation of the valve
Technical Features
| OPENING TEMPERATURE | 97 ± 2°C |
|---|---|
| NOMINAL INTERNAL DIAMETER | DN 20 |
| CONNECTION OF THE PIPES | thread G 3/4" |
| CONNECTION TO THE GENERATOR | thread cockpit G 1/2" |
| NOMINAL PRESSURE | PN 10 |
| MAXIMUM WORKING PRESSURE OF THE HEATING LIQUID | 6 bar |
| MAXIMUM WORKING PRESSURE OF THE COOLING WATER | 10 bar |
| ROOM TEMPERATURE | 0°C ÷ 80°C |
| MAXIMUM SENSOR TEMPERATURE | 125°C |
| Kvs AT VALVE OPENING TEMPERATURE +13°C | 2,6 m3/h |
| MATERIALS |
|
| CAPILLARY LENGTH | 1,3 m |
| COCKPIT LENGTH | 140 mm |
