TECNOWATER PC-12A Mini Pump

For condensate drain

sku model price info add to cart

00000011945

TECNOWATER PC-12A MINI PUMP

109,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 13 × 10 cm

Volume:
0.0021 m3

Weight:
0,54 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84135020

Buy
Info Request

Product informations

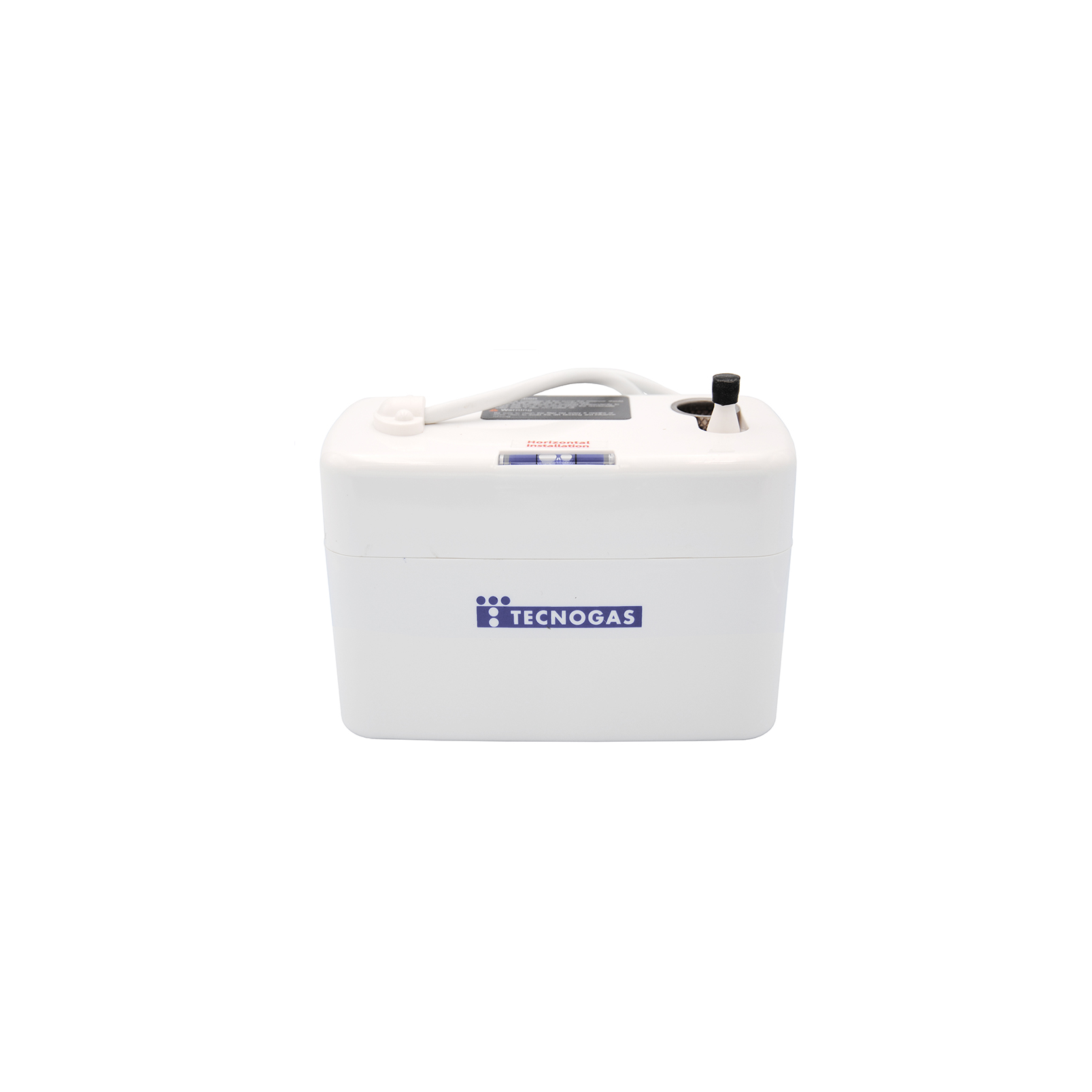

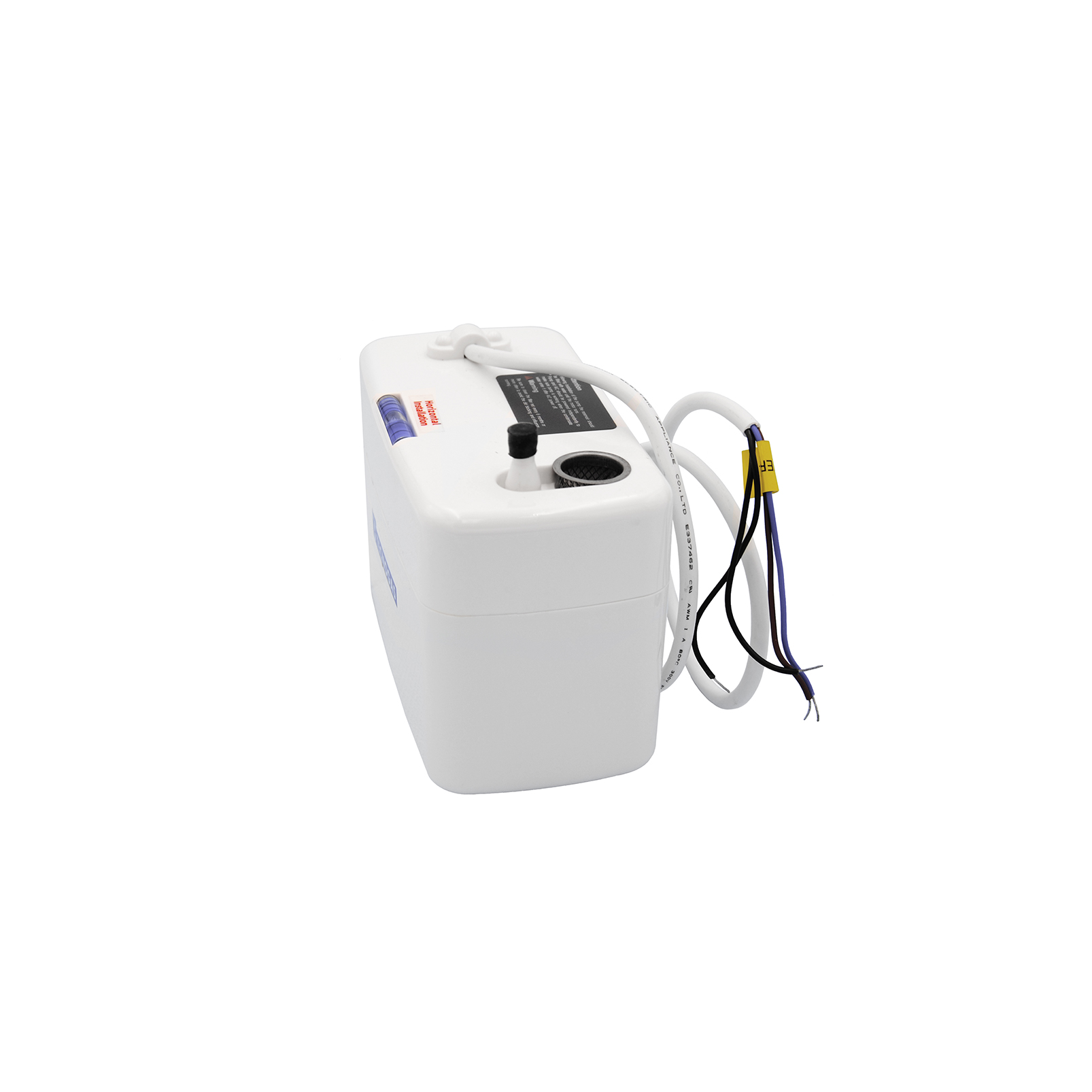

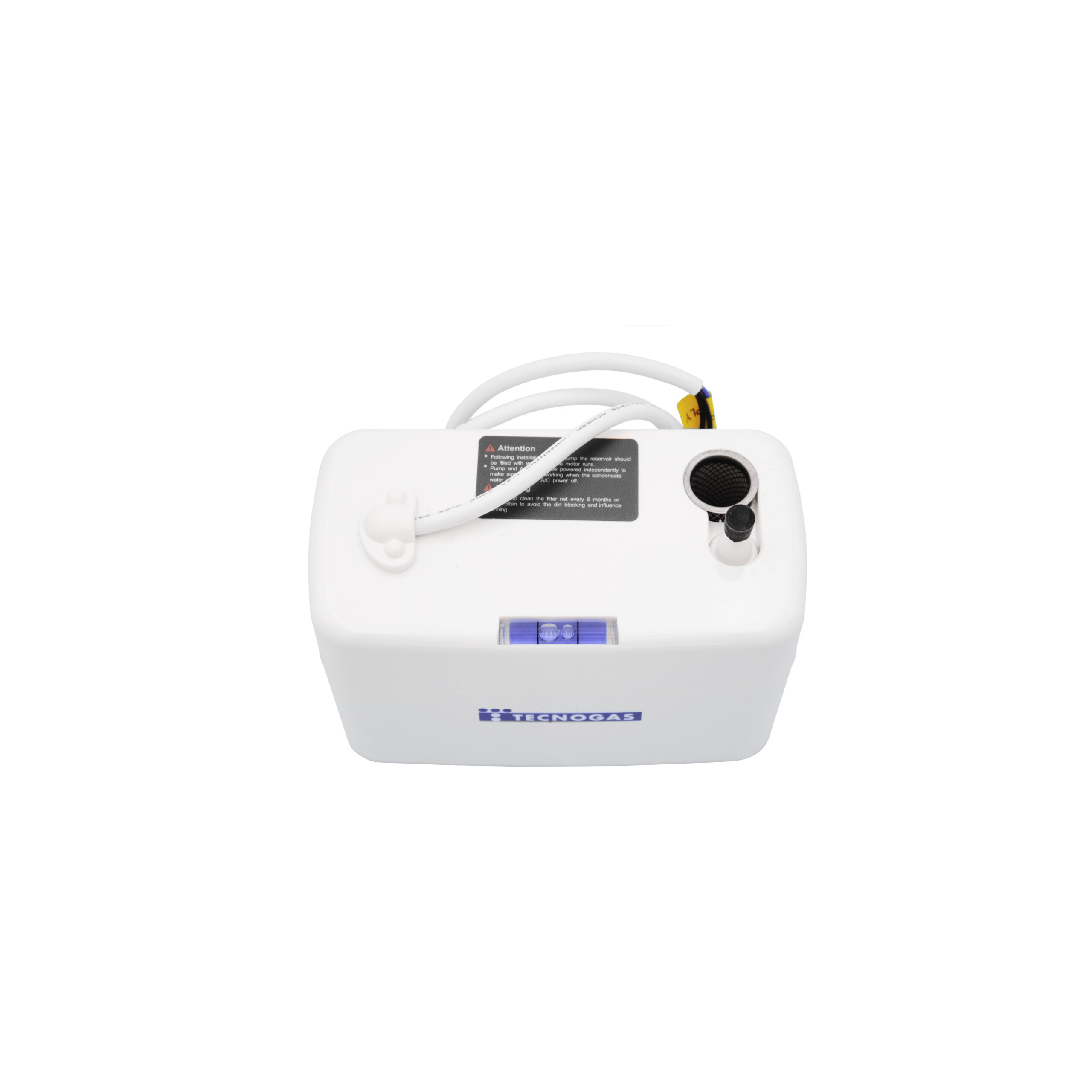

The compact and silent TECNOWATER PC-12A mini pump is installed under wall air conditioners and, thanks to its rounded shape, it adapts to any type of environment. The mini pump is equipped with a thermal protector in case of overheating, a double insulation that protects it from electric shocks and an integrated tank with overflow.

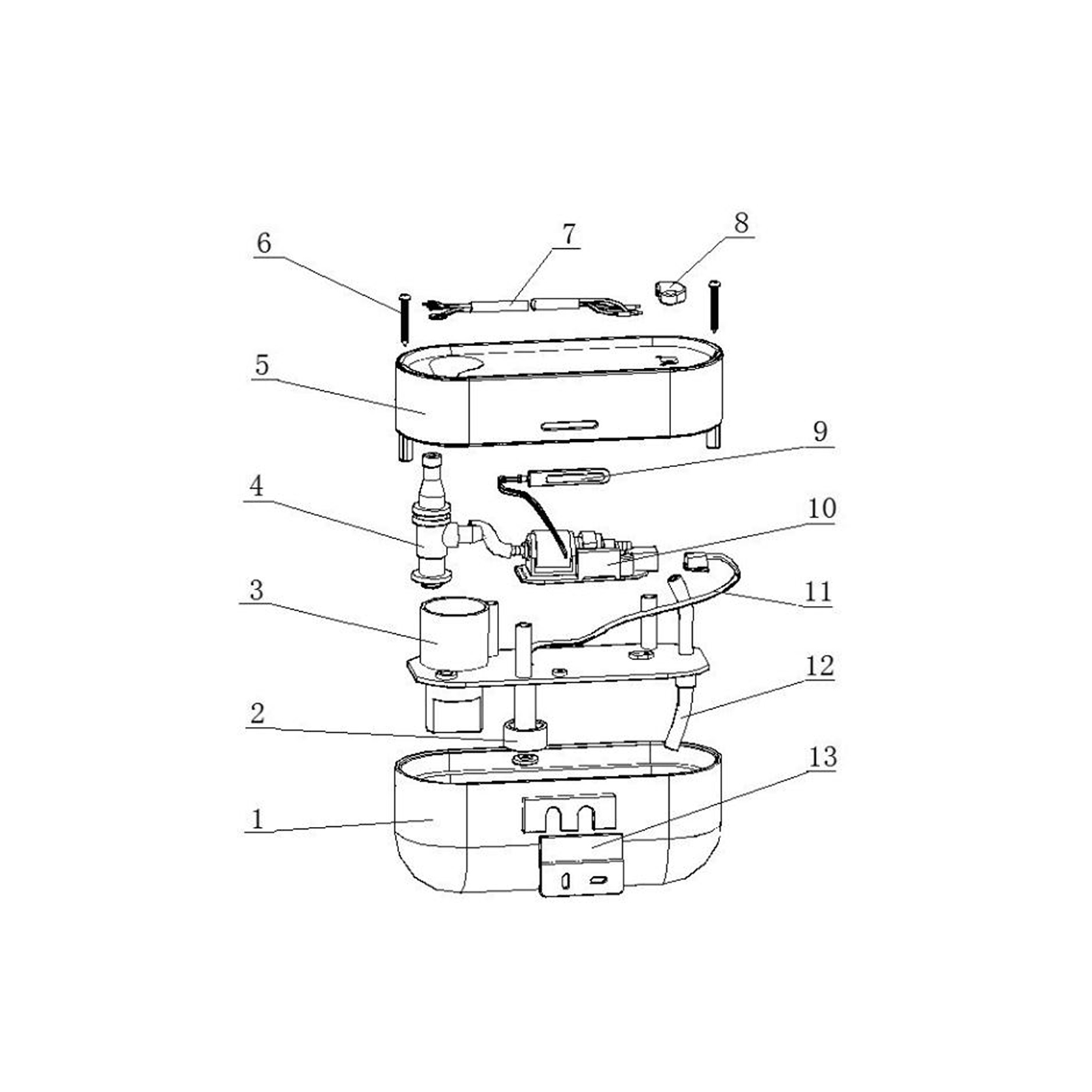

DESCRIPTION
1 tank
2 float
3 middel panel
4 discharge fitting
5 pump cover
6 fixing screws
7 power supply
8 cable locker
9 LED indicator
10 engine
11 sensor cable
12 aspiration pipe

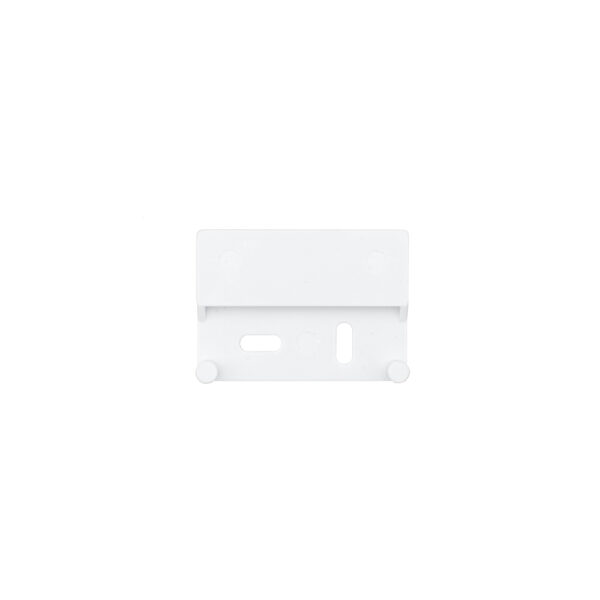

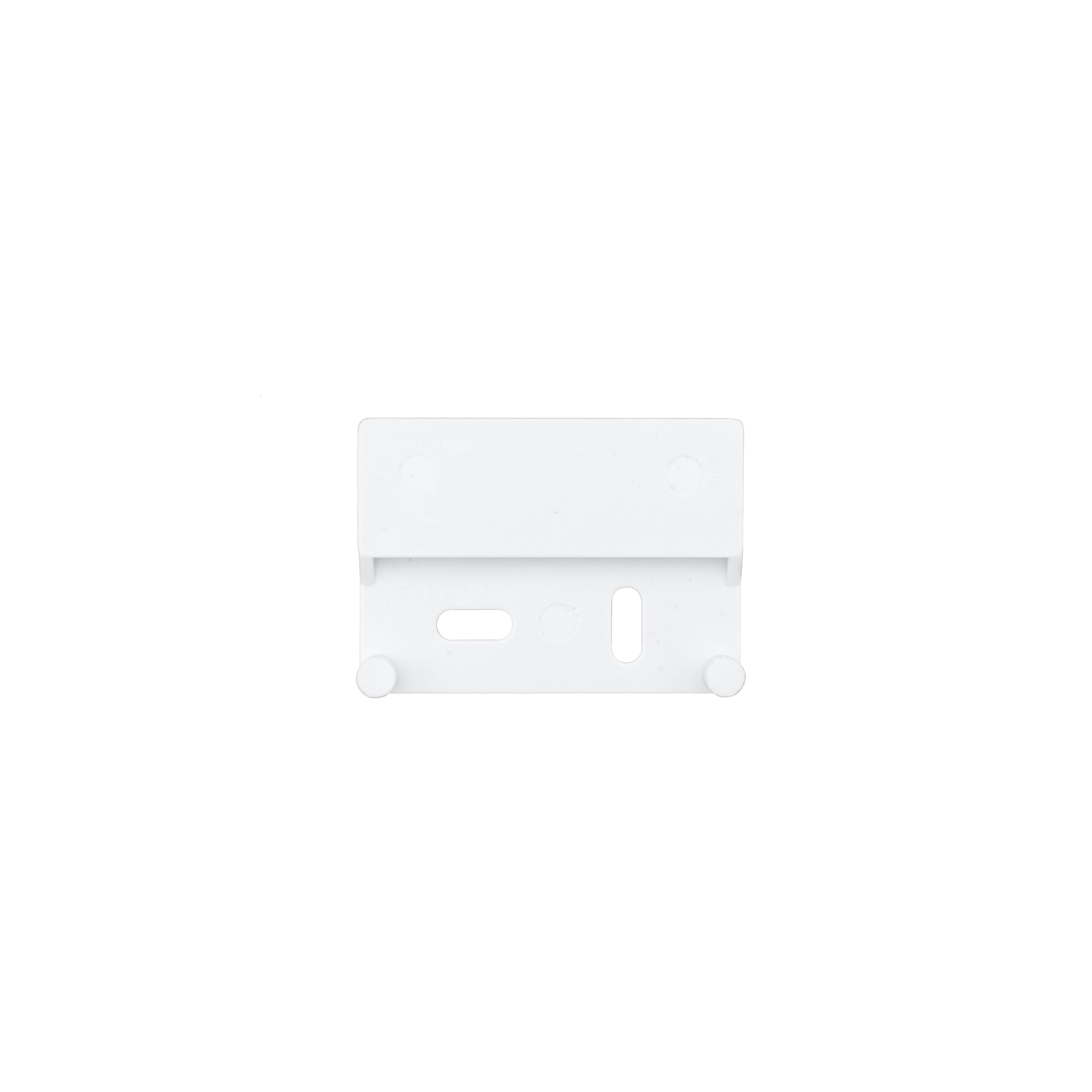

13 mounting plate

Technical Features

MAXIMUM FLOW RATE 24 l/h
POWER SUPPLY 100-230 V 50-60 Hz
MAX SPLIT POWER 8 kW
DRAIN LENGHT 10 m
MAX ASPIRATION 10 m
SOUND LEVEL 19 dbB (A)
TANK CAPACITY 200 ml
THERMAL PROTECTION 0°C ÷ + 50°C
WORKING TEMPERATURE 0°C ÷ + 50°C
DIMENSIONS 200x76x120 mm (WxDxH)
