Taps to Carry Pressure Gauge

PN4 – PN10 and PN50 models

sku model price info add to cart

00000006920

PUSH BUTTON PRESSURE GAUGE TAP - Ø 1/4" FF

€15,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 2 × 5 cm

Volume:
0.0001 m3

Weight:
0,19 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000006921

PUSH BUTTON PRESSURE GAUGE TAP - Ø 3/8" FF

€17,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
5 × 7 × 2 cm

Volume:
0.0001 m3

Weight:
0,21 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000006922

PUSH BUTTON PRESSURE GAUGE TAP - Ø 1/2" FF

€19,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
5 × 7 × 2 cm

Volume:
0.0001 m3

Weight:
0,23 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000R02978

PRESSURE GAUGE TAP WITH FLANGE - Ø 1/4" FM

€15,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
6 × 5 × 8 cm

Volume:
0.0003 m3

Weight:
0,22 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000R02979

PRESSURE GAUGE TAP WITH FLANGE - Ø 3/8" FM

€17,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 4 × 7 cm

Volume:
0.0003 m3

Weight:
0,26 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000R02980

PRESSURE GAUGE TAP WITH FLANGE - Ø 1/2" FM

€19,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 9 × 4 cm

Volume:
0.0003 m3

Weight:
0,27 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020
Buy
Info Request

00000006935

PUSH BUTTON PRESSURE GAUGE TAP - Ø 1/2" MF

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

 Info Request

00000006937

PUSH BUTTON PRESSURE GAUGE TAP - Ø 1/4" MF

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

 Info Request

00000006938

STEEL NEEDLE TAP - Ø 1/2" MF

on request

Physical data

UM Base:
NR

Dimension:
5 × 5 × 2 cm

Volume:
0.0001 m3

Weight:
0,18 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

 Info Request

00000006939

STEEL NEEDLE TAP - Ø 1/4" MF

on request

Physical data

UM Base:
NR

Dimension:
4 × 4 × 2 cm

Volume:
0.0001 m3

Weight:
0,12 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

 Info Request

Product informations

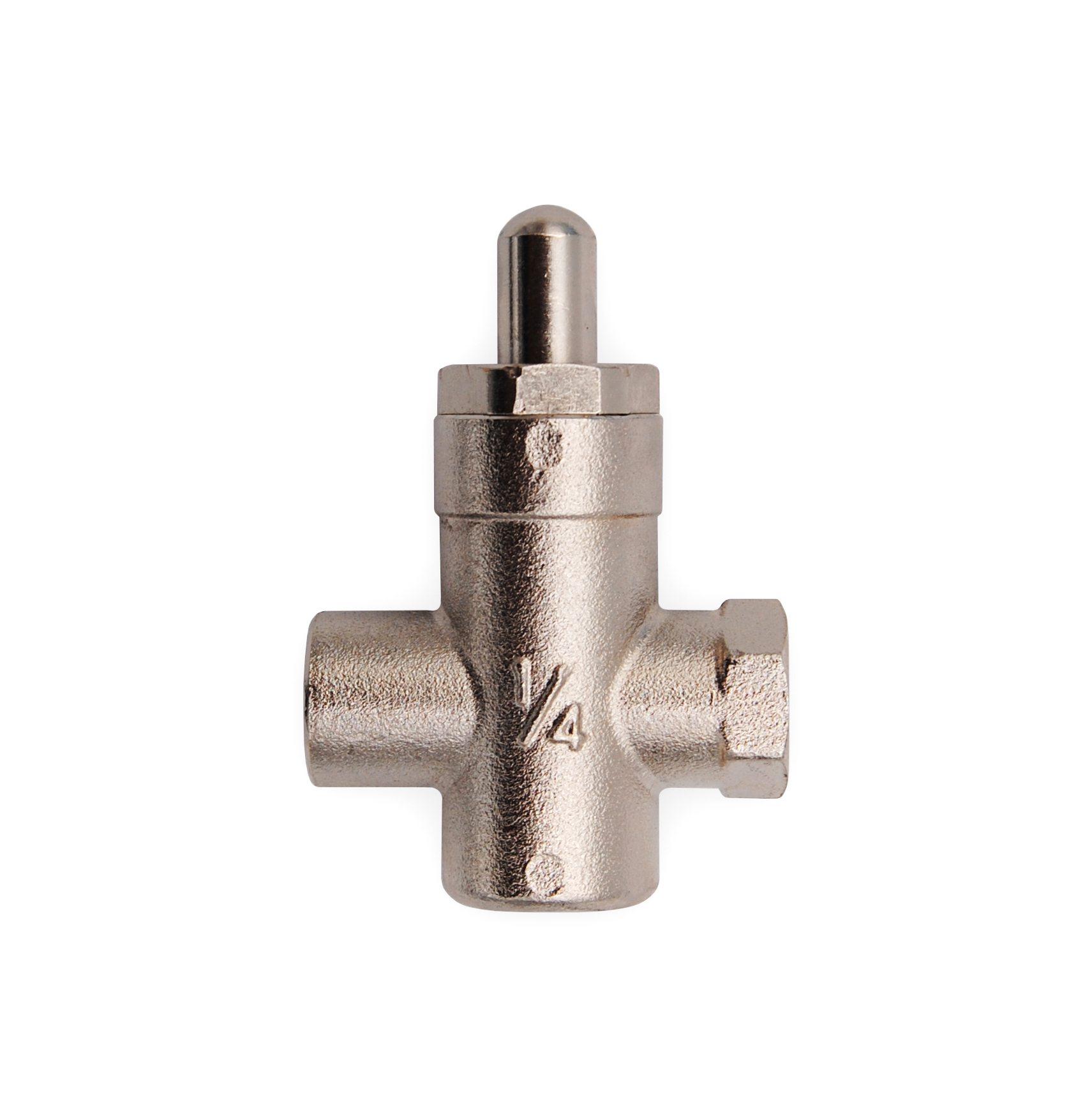

  • FF pressure gauge tap with push button control (SKU 6920 / 6921 / 6922)

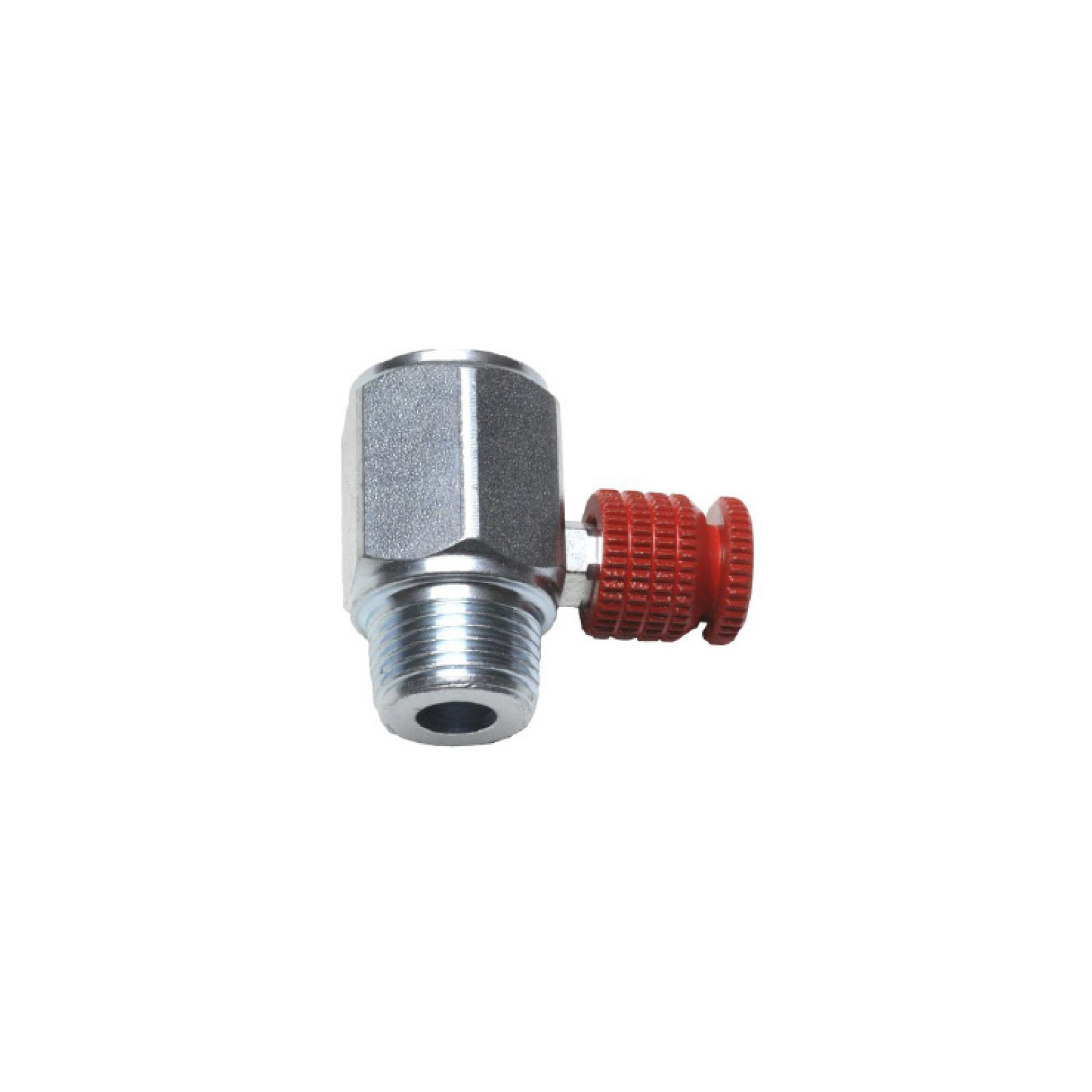

  • MF push button pressure gauge tap (SKU 6935 / 6937)

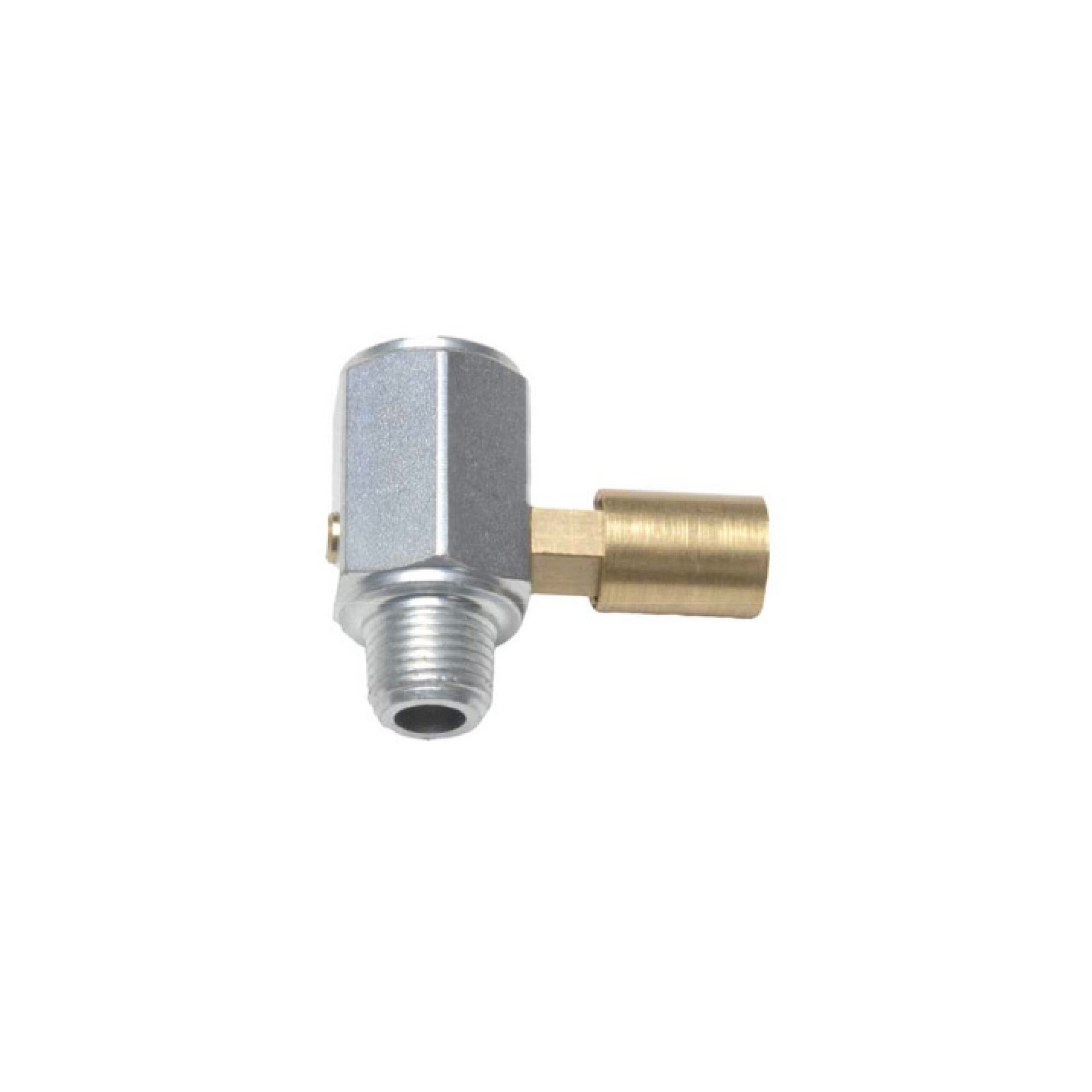

  • MF PN50 pressure gauge needle tap (SKU 6938 / 6939)

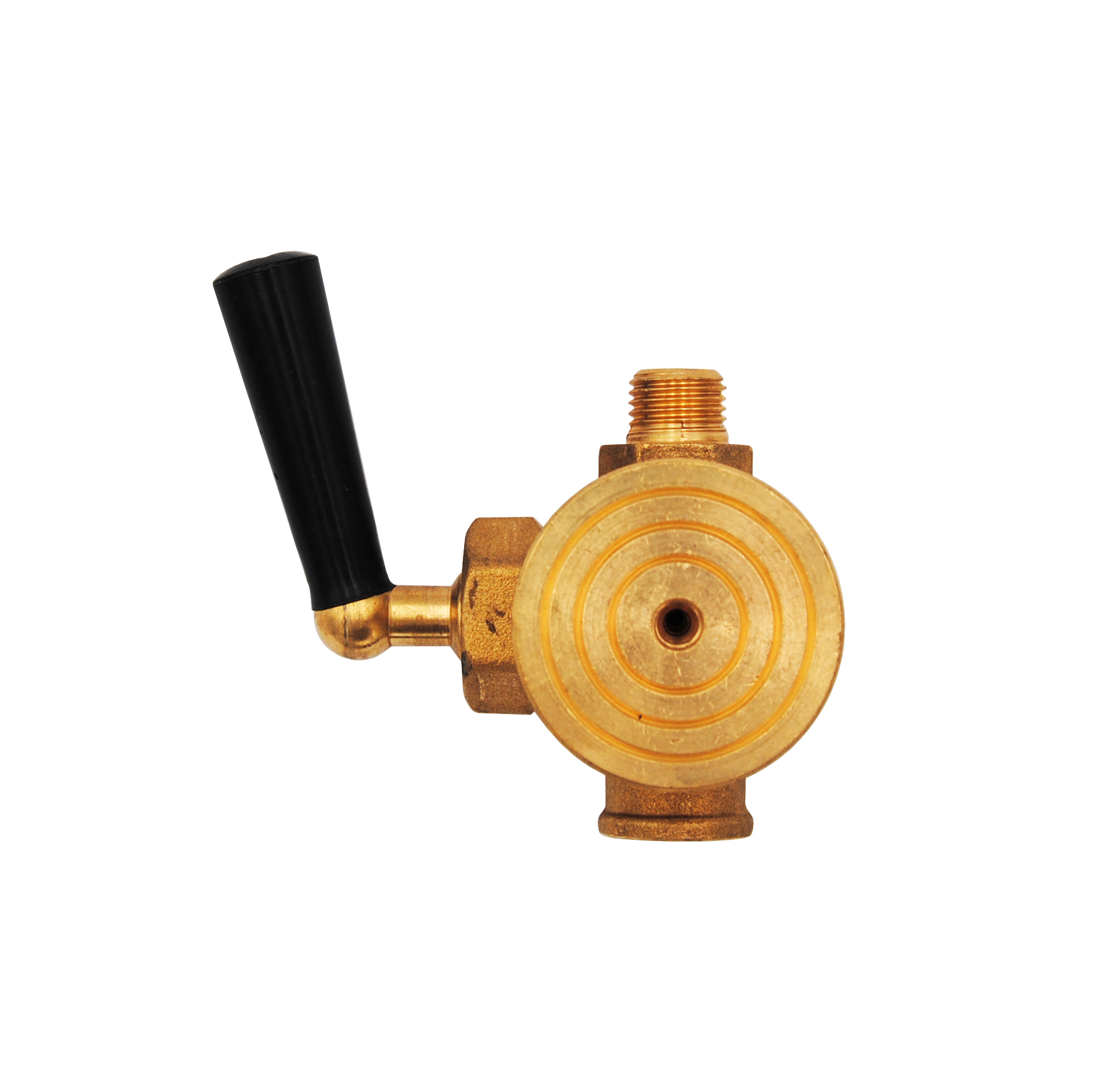

  • FM pressure gauge tap with INAIL compliant flange (I.S.P.E.S.L.) and PVC handle (SKU R02978 / R02979 / R02980)

Technical Features

SKU 6920 - 6921 - 6922
FINISH trattamento superficiale di nikelatura
MATERIALS
  • CW617N body
  • steel spring
  • NBR O-ring
FLUIDS ALLOWED not dangerous gases, vapors and liquids (group 2)
NOMINAL PRESSURE 4 bar
MAX TEMPERATURE 70°C
THREADING according to EN ISO 228-1
STANDARD REFERENCE DIR90/396/CE



SKU R02978 - R02970 - R02980
MATERIALS
  • brass body
  • graphite gasket
  • PVC handle
FLUIDS ALLOWED not dangerous gases (group 2)
MAX PRESSURE 16 bar
MAX TEMPERATURE 80°C
THREADING according to EN ISO 228-1

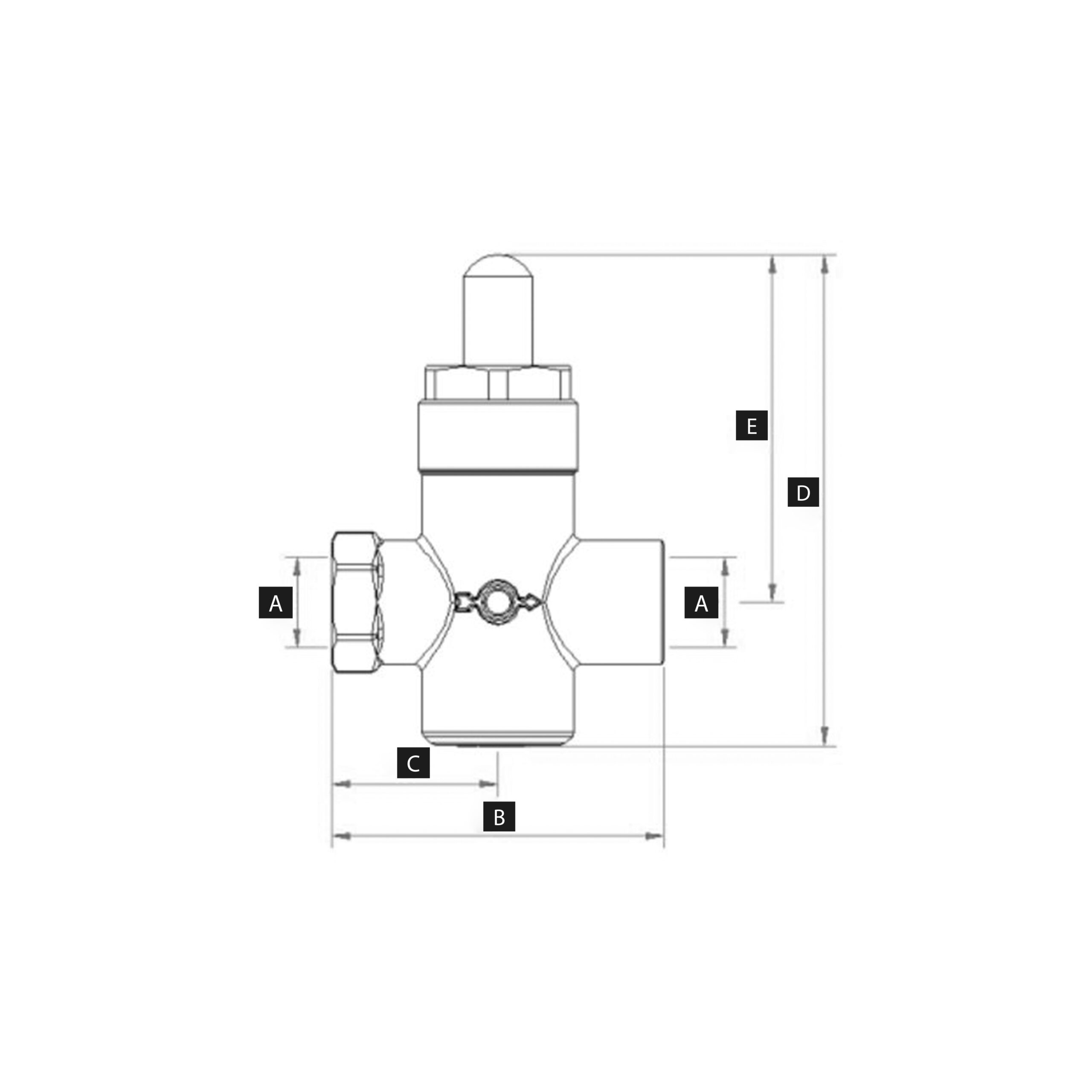

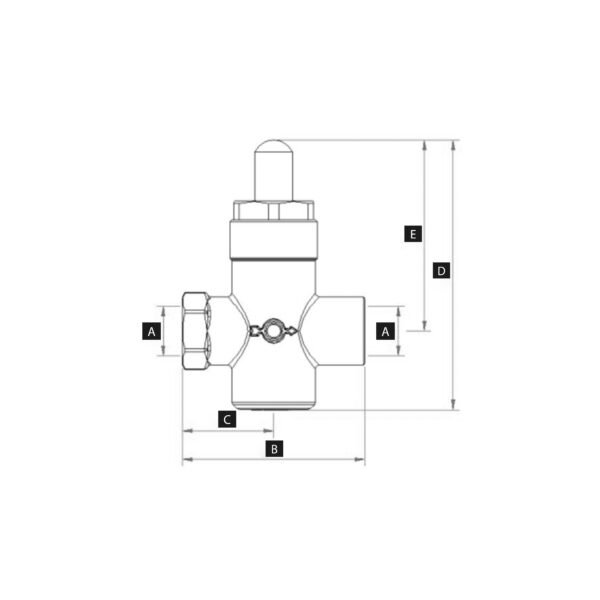

SKU A B C D E F
6920 Ø 1/4" FF 48 mm 24 mm 71 mm 50 mm -
6921 Ø 3/8" FF  52 mm 26 mm 71 mm 50 mm -
6922 Ø 1/2" FF 56 mm 28 mm 71 mm 50 mm -
R02978 Ø 1/4" F Ø 1/4" M 60 mm 76 mm 41,5 mm 80 mm
R02979 Ø 3/8" FM Ø 3/8" M 68 mm 78 mm 43 mm 80 mm
R02980 Ø 1/2" FM Ø 1/2" M 72,5 mm 81 mm 45,5 mm 80 mm
