T Joint Air-Flow
Rectangular with reducer
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000012678 |

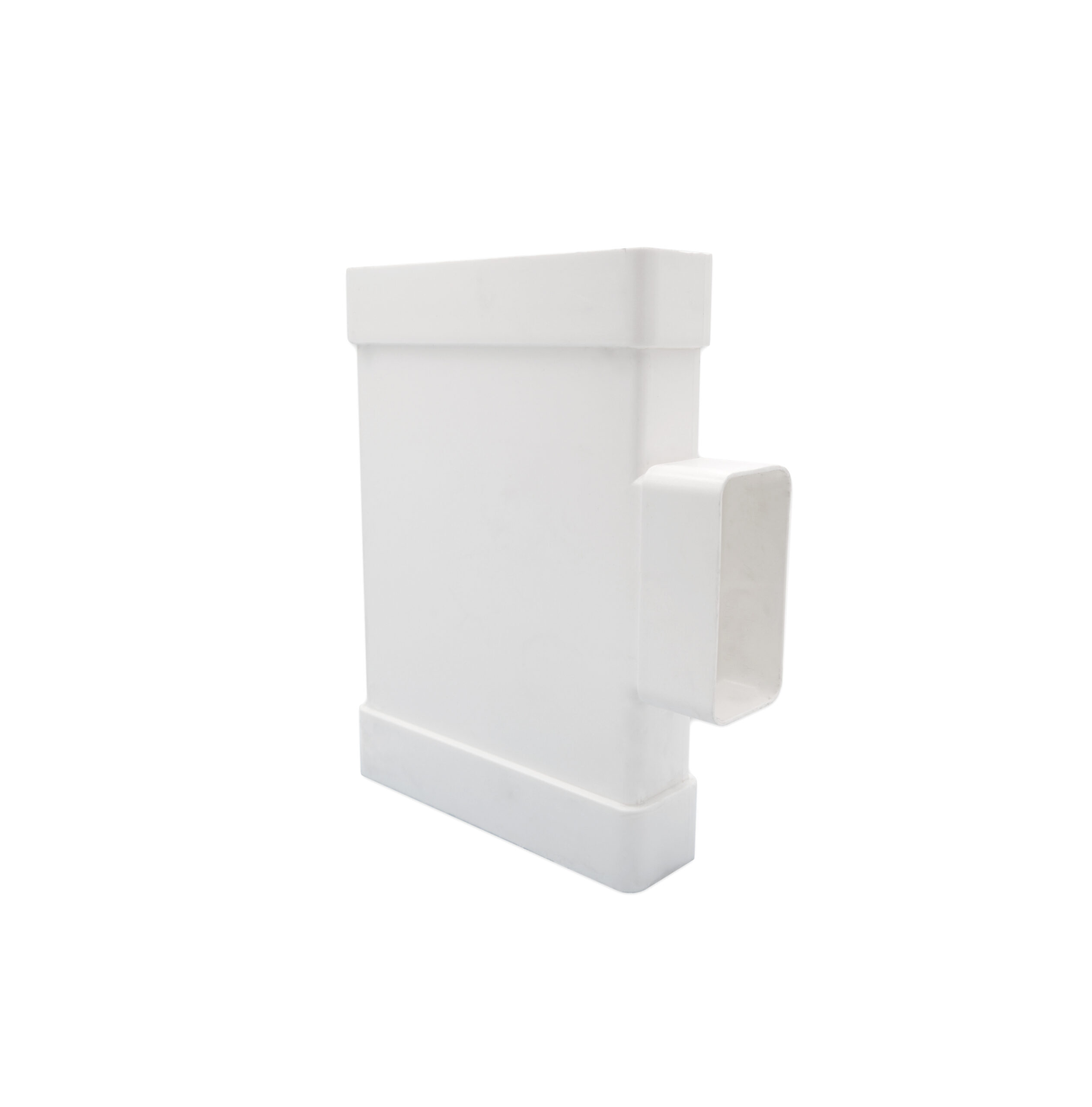

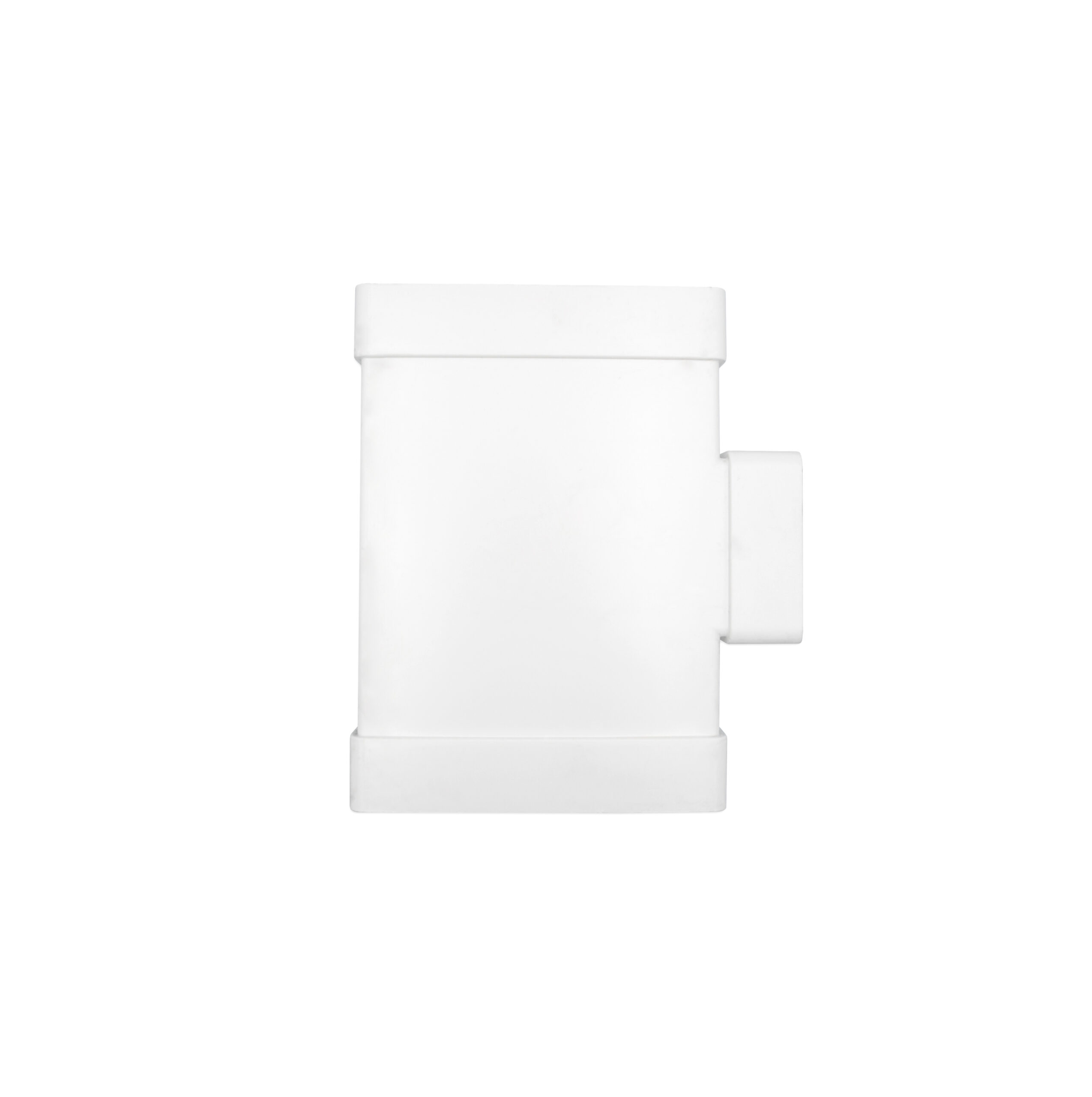

 AIR-FLOW RECTANGULAR T JOINT WITH REDUCER - 55 x 220 mm > 55 x 110 mm |
€84,76 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Rectangular T joint with reduction for AIR-FLOW Rectangular duct.
The installation is recommended for hygro-adjustable systems, VMC systems and for hood smoke evacuation, without the risk of damage caused by humidity.
Technical Features
| MATERIAL | self-extinguishing thermoplastic material V0 |
|---|---|
| MAXIMUM USE TEMPERATURE | 80°C |
| FIXING TYPE | collar fixing |
| USE | on VMCs with flow < to 300 m3/h the Ø 100 mm and < to 600 m3/h the Ø 125 mm |
| AVAILABLE DIMENSIONS | 55 x 220 mm > 55 x 110 mm |
