SI – RM3

Smart wireless manifold P/T probes with dual valves

F-GAS

IN COMPLIANCE WITH DPR 146/2018, OUR PRODUCTS ARE SUPPLIED, UPON REQUEST, WITH THE RELATIVE CALIBRATION REPORT; THIS REPORT MAY ALSO BE REQUESTED ON USED PRODUCTS, EVEN FROM NOT TECNOGAS ORIGINS

sku model price info add to cart

00000011641

SI-RM3

757,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
40 × 18 × 8 cm

Volume:
0.0059 m3

Weight:
1,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262020

Buy
Info Request

Product informations

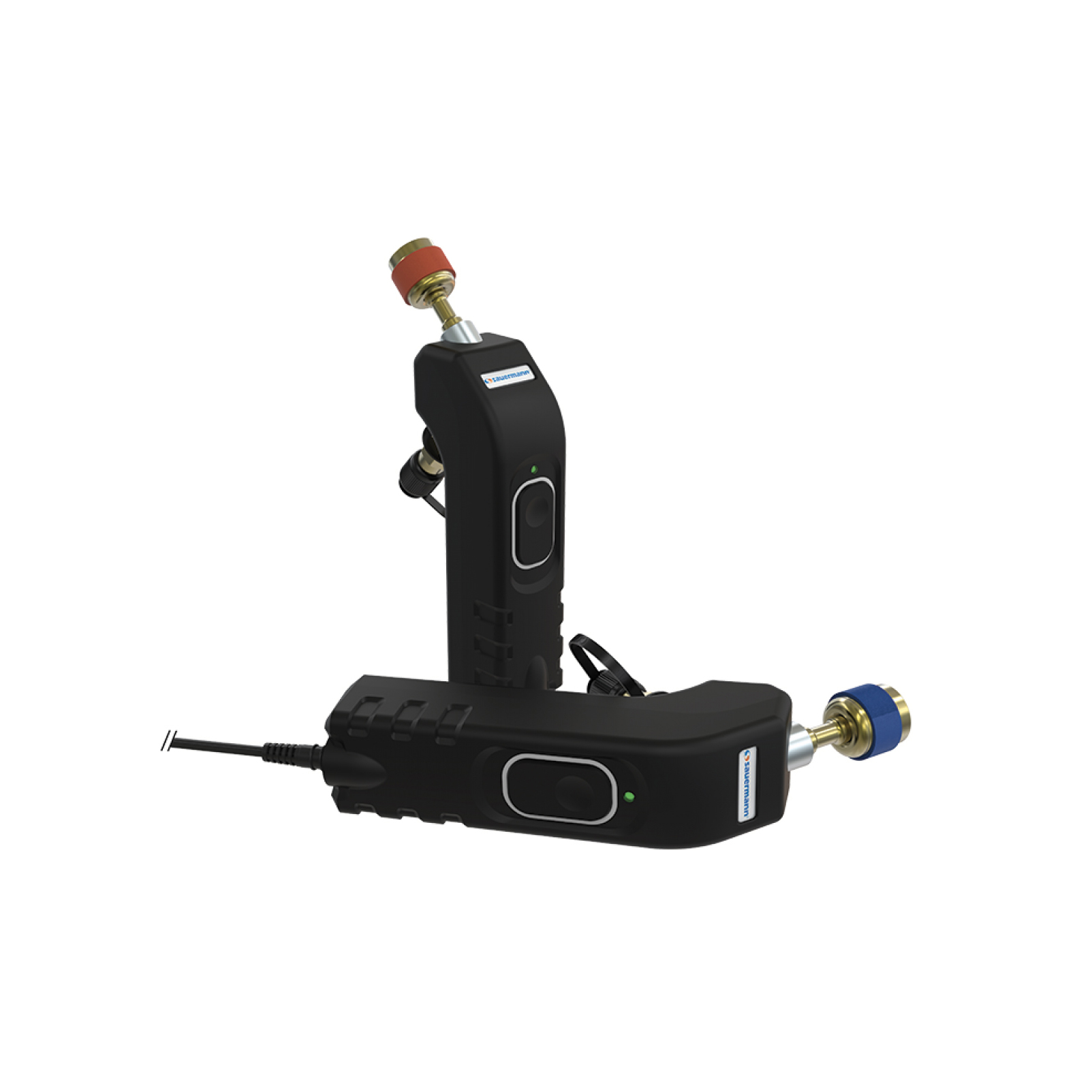

SI - RM3 smart wireless manifold probes for pressure and temperature measurements in a refrigeration system.



Product features

  • light and curved design for easy plug-in to facilities
  • dual valve system for simultaneous measurement and charge/discharge of refrigerant
  • built-in Shrader® cores for easy refrigerant charging
  • range up to 60 bar
  • reduce the use of cumbersome hoses
  • overmoulding for easy handling and protection
  • long range wireless connection 4.2 low energy



Manifold features

  • superheat and subcooling real time calculation
  • condiguration of superheat/subcooling target values
  • heating and cooling functions
  • 126 refrigerant gases with favorite list



Vacuometer Features

  • vacuum measurement function
  • configuration of vacuum target value
  • temperature of water evaporation

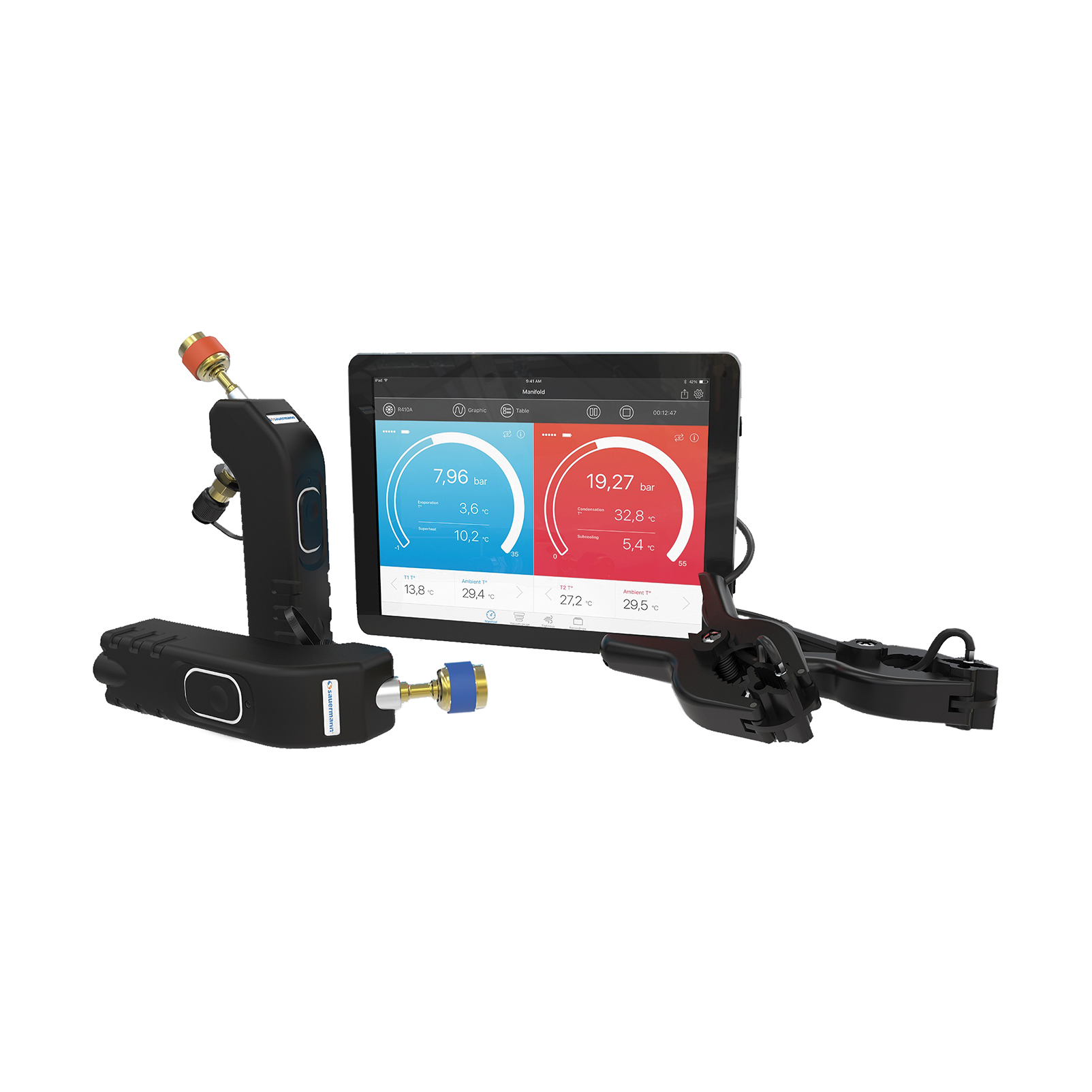

The kit consists of

  • 2 pressure probes Ref: Si-RM1
  • 2 temperature probes Ref: Si-RM2
  • certificate of conformity
  • user manual
  • 6 AAA batteries
  • soft case Ref: Si-RM4



Manifold App features

  • clear interface for easy reading in any condition
  • gauge, table or graphic visualizations
  • creation of measurements report with possibility to add pictures
  • report exportation in PDF, CVS and XML formats
  • data logging
  • chronometer function
  • free app for iOS and Android devices (minimum required versions: Android 4.4, iOS 8.0)



Download here!





TOOL DESCRIPTION
1 Female connector ¼’’ FFL with Schrader® depressor
2 identification label
3 male connector ¼’’ MFL with Schrader® valve
4 cap
5 input for temperature clamp probe
6 operating LED
7 On/Off button

Technical Features

PRESSURE
PRESSURE VALVES 2 valves
MEASURING RANGE - 1 ÷ 60 bar
PRESSURE SENSING ACCURACY ± 0.5% of full scale
AVAILABLE UNITS psi, MPa, kPa, bar
REFRIGERANT DATABASE 126 Refrigerant gases CFC, HFC, HCFC, N, CO2, H2O (see the complete list in the user manual)
RESOLUTION 0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar
OVERPRESSURE 65 bar
BREAKING PRESSURE 150 bar
OPERATING TEMPERATURE - 20 ÷ 50°C
STORAGE TEMPERATURE - 20 ÷ 60°C
TEMPERATURE

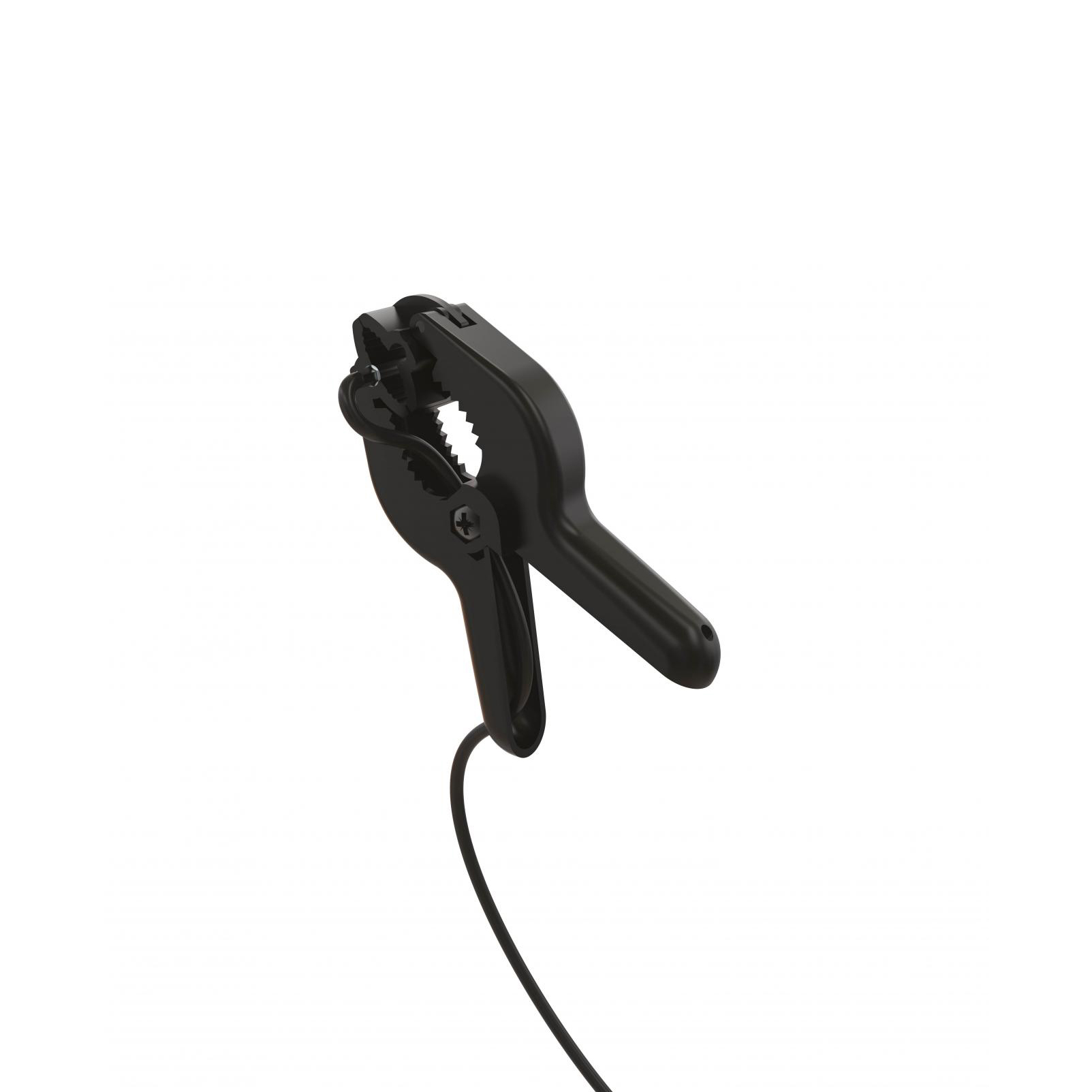

NUMBER OF PROBE 2 clamp probes
TEMPERATURE PROBE high accuracy NTC thermistors
TEMPERATURE SENSOR FIELD - 40° ÷ 150°C
TEMPERATURE ACCURACY ± 1.3°C
MAX OPERATING TEMPERATURE
  • clamps: 150°C
  • cable: 105°C
  • handle: 90°C
AVAILABLE UNITS °C, °F, K
RESOLUTION 0.1°C, 0.1°F, 0.1 K
PIPE DIAMETERS from 6 to 42 mm
CABLE 2 m length with reinforced 3 point Jack connector - Ø 3.2 mm - PVC material - max. temperature 105°C
DEVICE
ENVIRONMENTAL CONDITIONS OF USE
  • humidity: not under condensing conditions (<80% RH)
  • maximum altitude: 2000 m
  • non-corrosive or combustible gases
BATTERY LIFE 250 h (for one measurement every second at 20°C)
BLUETOOTH® RANGE Up to 30 m (depends on the wireless connection range of the smartphone and tablet)
CASING
MATERIAL
  • wireless smart probe: ABS-PC and thermoplastic elastomer
  • temperature clamp probes: polyamide 6.6
  • manifold body: anodized aluminum
POWER SUPPLY 3 AAA 1.5V alkaline batteries
DEGREE OF PROTECTION IP54 (protected against splashing water from any direction and protected against dust such that it does not interfere with the operation of the device)
WEIGHT 560 g
