Rotating Union

Double rotating union

APPROVED CE (PED, RoHS, REACH), EAC

sku model price info add to cart

00000011335

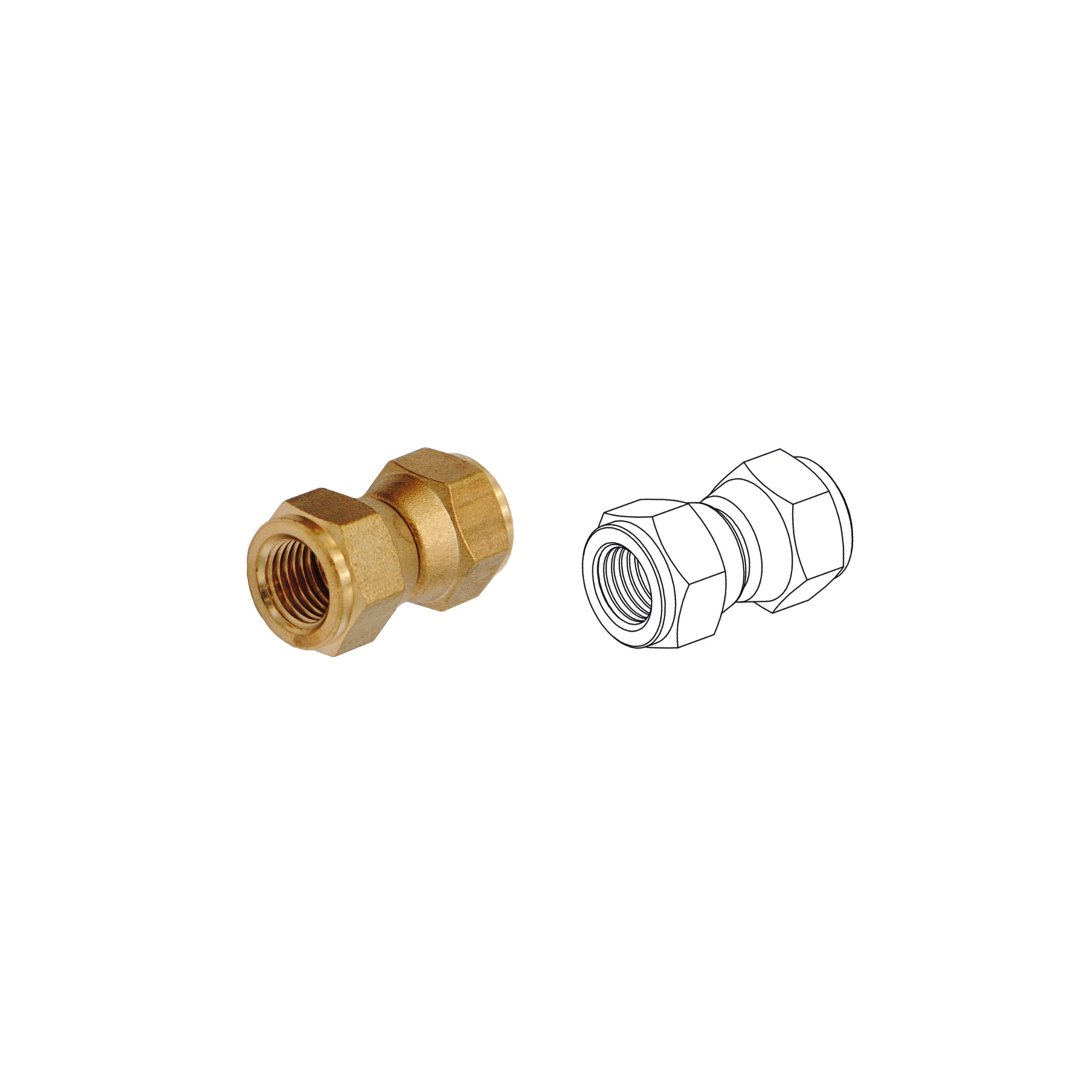

DOUBLE ROTATING UNION - 1/4" SAE

7,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
1 × 3 × 1 cm

Volume:
0 m3

Weight:
0,03 kg

Minimum Order Quantity:
1

Customs data

Customs Code
74122000

Buy
Info Request

00000011336

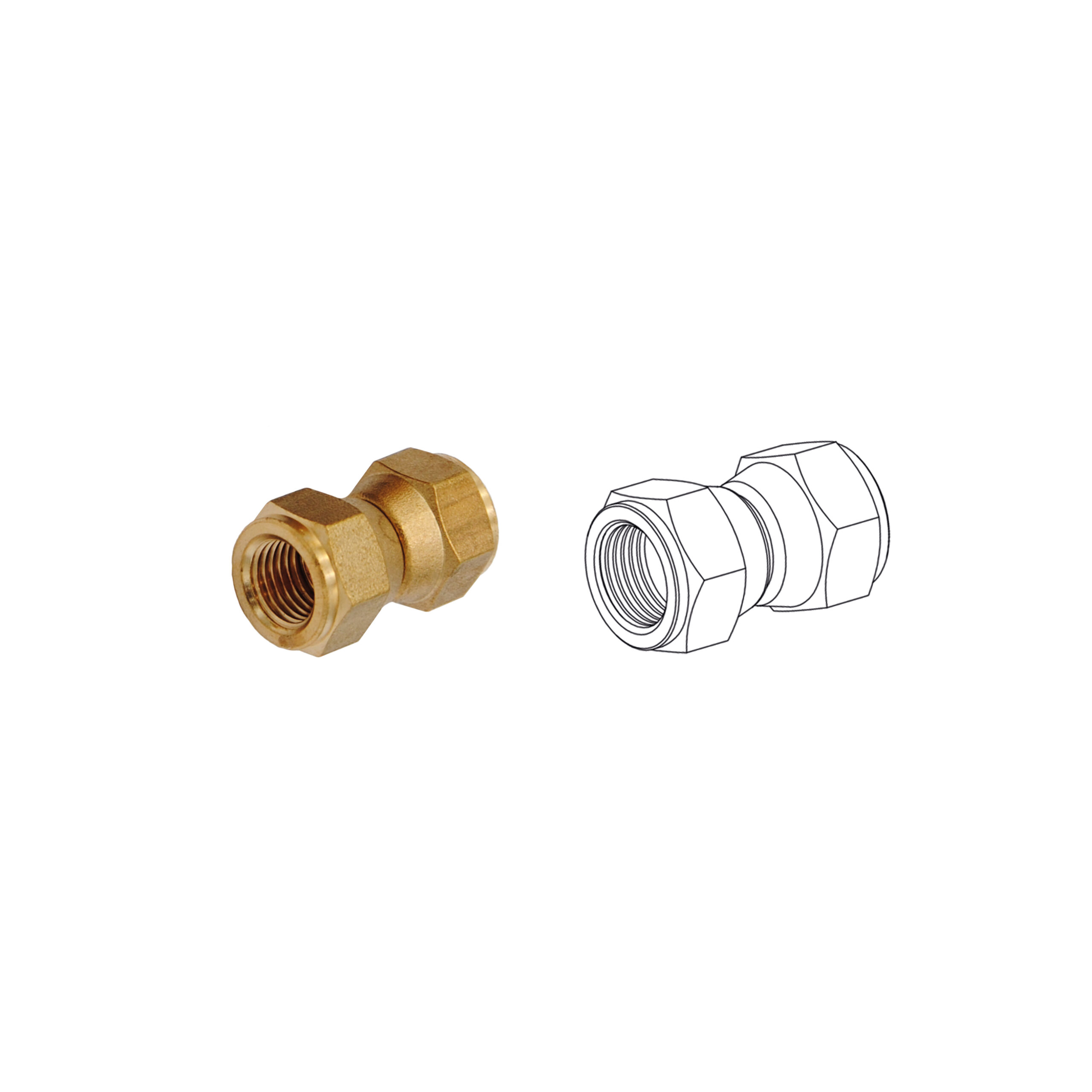

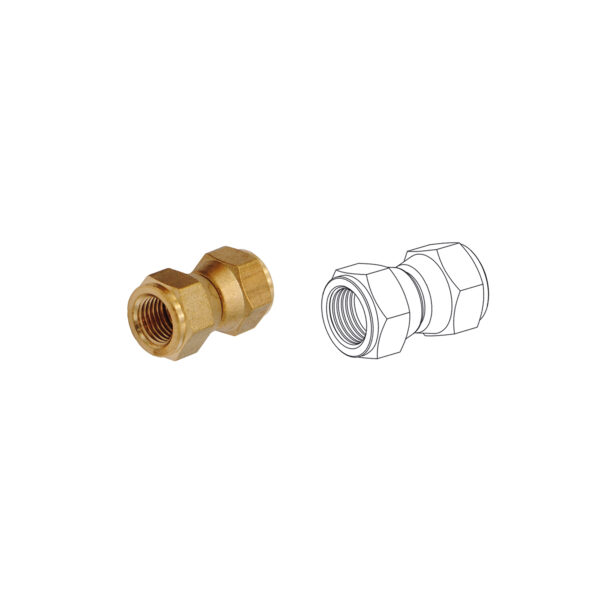

DOUBLE ROTATING UNION - 3/8" SAE

9,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 3 × 2 cm

Volume:
0 m3

Weight:
0,06 kg

Minimum Order Quantity:
1

Customs data

Customs Code
74122000

Buy
Info Request

00000011337

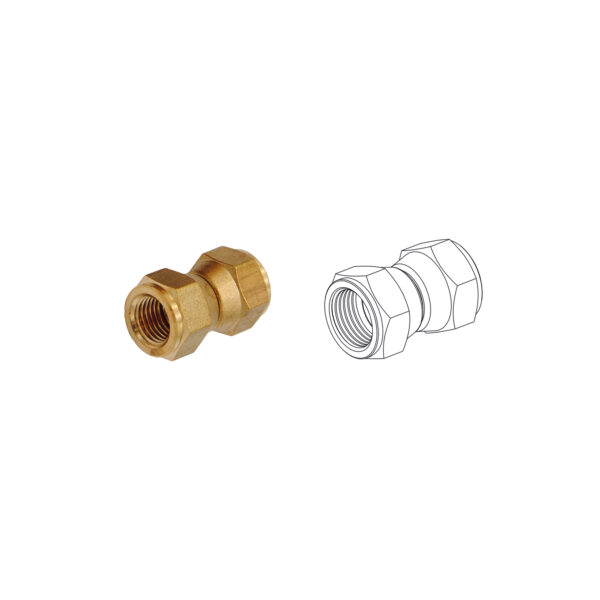

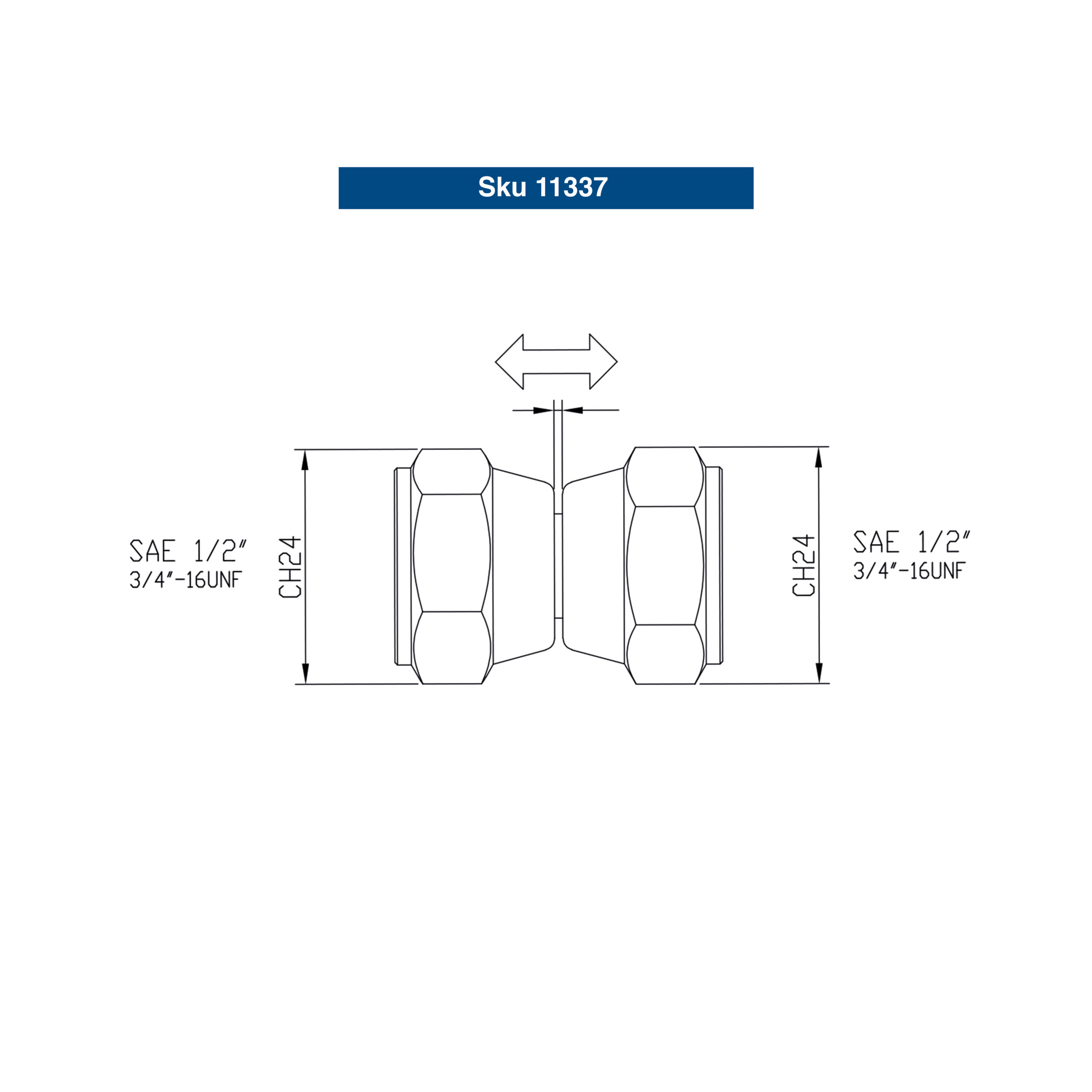

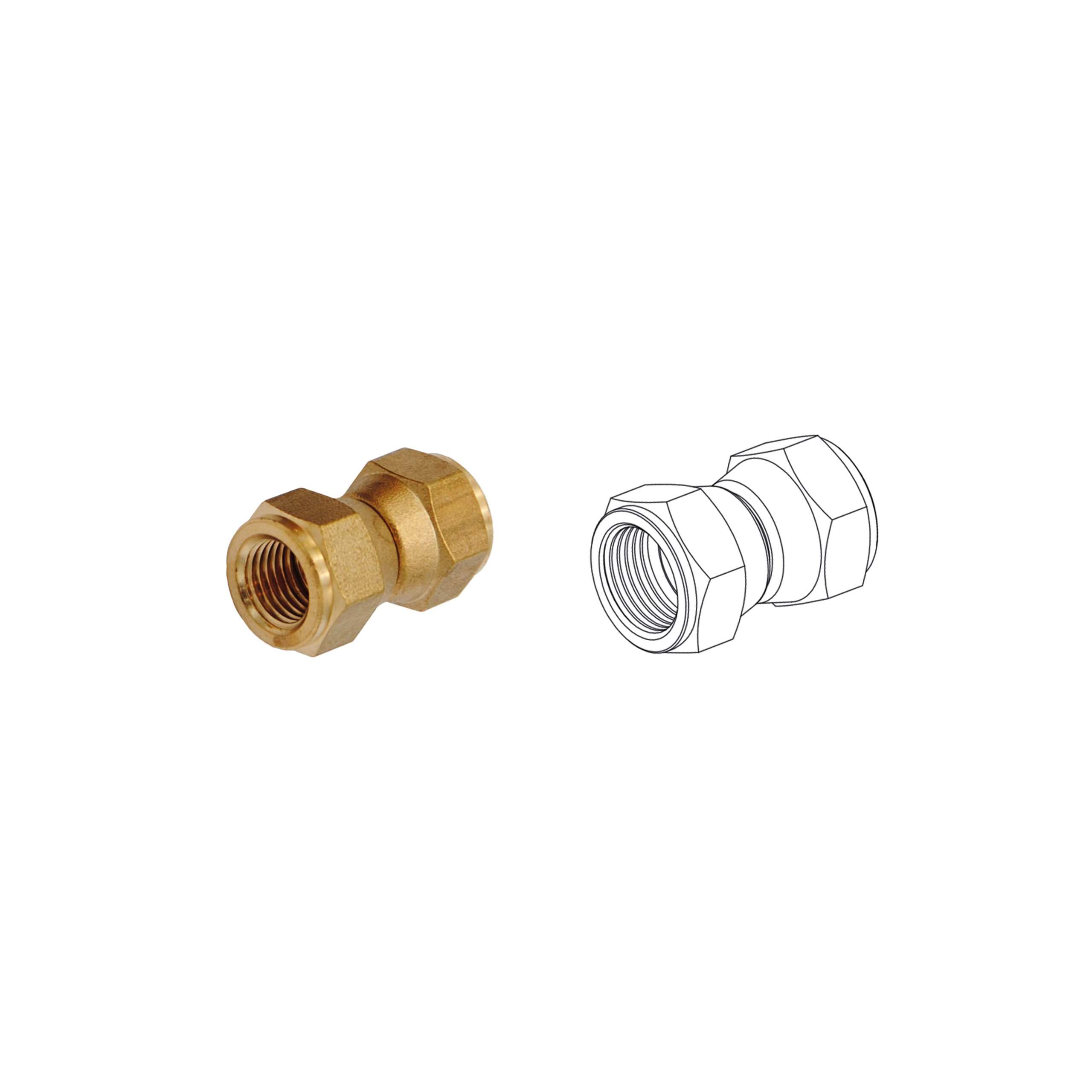

DOUBLE ROTATING UNION - 1/2" SAE

10,10 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 4 × 2 cm

Volume:
0 m3

Weight:
0,08 kg

Minimum Order Quantity:
1

Customs data

Customs Code
74122000

Buy
Info Request

00000011338

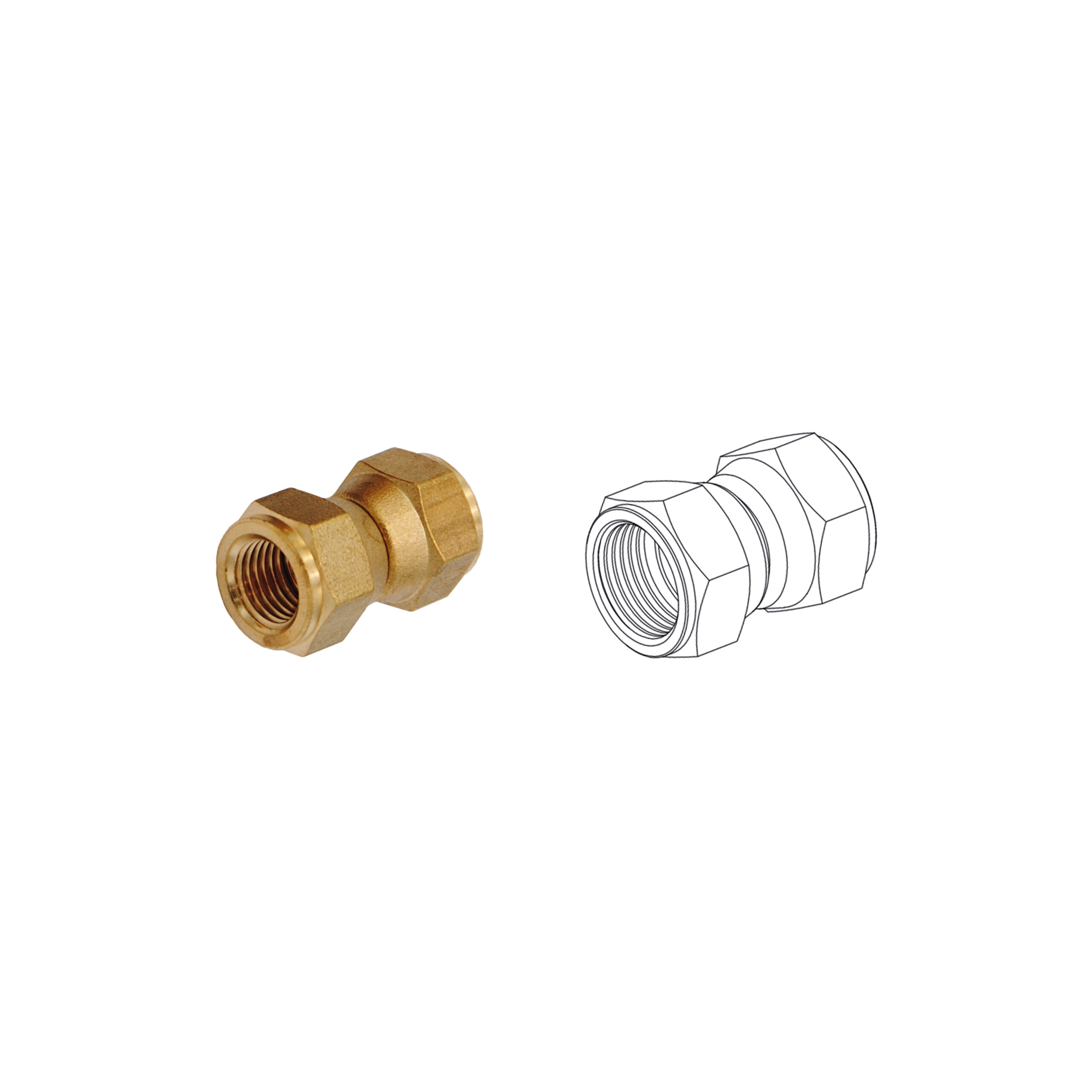

DOUBLE ROTATING UNION - 5/8" SAE

13,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 5 × 2 cm

Volume:
0 m3

Weight:
0,11 kg

Minimum Order Quantity:
1

Customs data

Customs Code
74122000

Buy
Info Request

Product informations

Double rotating union for refrigeration and air-conditioning systems comply to DIN 8912 standard, SAE J513 standard, U.S. Military Standards MS‐35867 through MS35873 inclusive, MS‐35919, MS‐24815 and MS‐16993.



Product features

  • manufactured from brass forgings (compliant to standards EN 12420 and EN 12165) or drawn brass rod (compliant to standard EN 12164) which eliminate the possibility of leakage due to porosity in the material
  • accurately machined and fully protected against damage during shipping, handling and storage to assure tight leakproof joints
  • smooth interior finish provides unrestricted flow and reduced pressure drop
  • smooth sealing surfaces finish and tight tollerances to eliminate the risk of leakage
  • risk category as per Art. 4 Par. 3 of Directive PED 2014/68/EU
  • suitable for HCFC, HFC and R744 (CO2) refrigerants. Not suitable for ammonia

Technical Features

SKU  ANSI/ASME B1.1 THREAD (female) CONNECTION TIGHTENING TORQUE Nm (lbf•ft) MAXIMUM RECOMMENDED PRESSURE

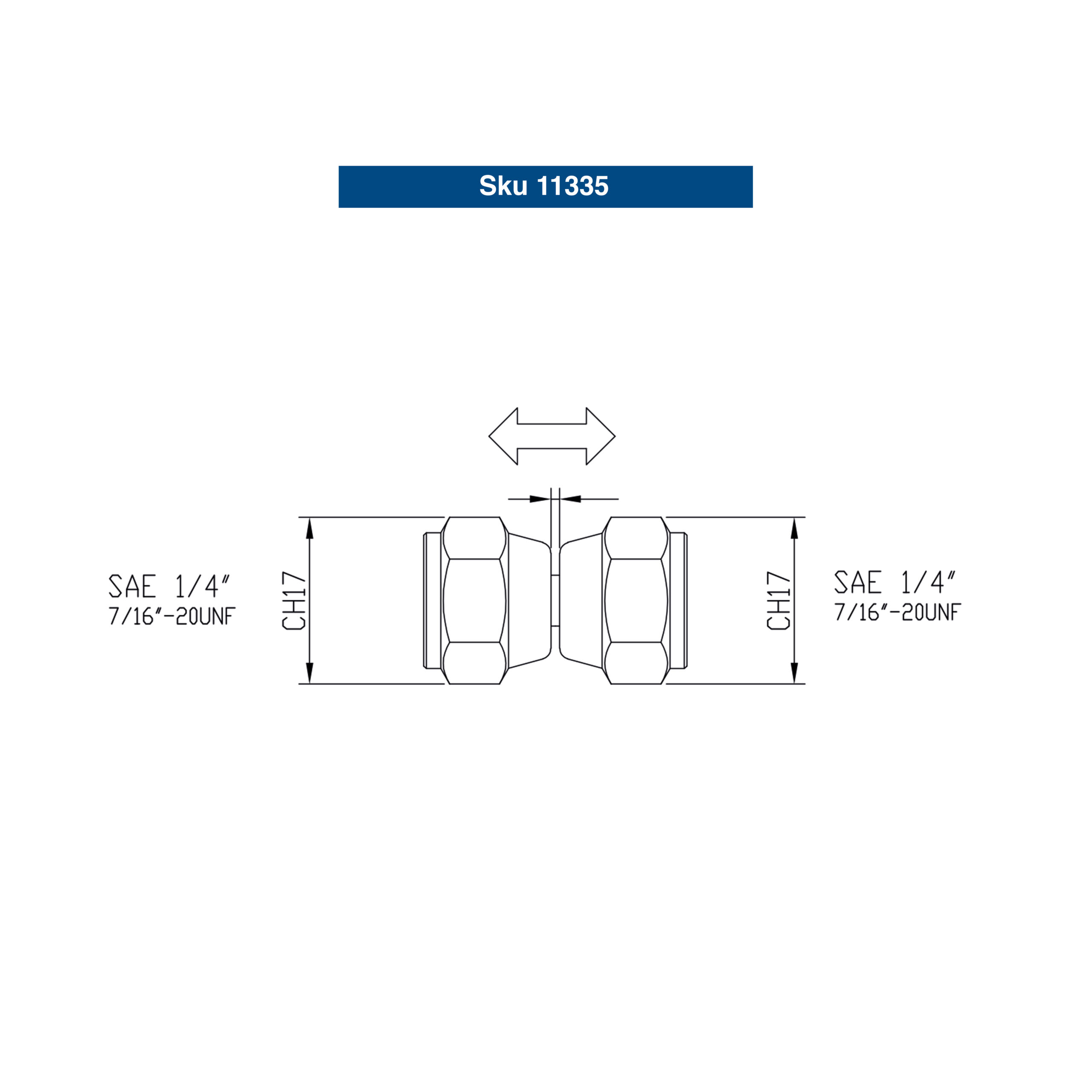

11335 7/16" - 20 UNF 1/4" SAE 11 ÷ 14 (8 ÷ 10) 140 bar

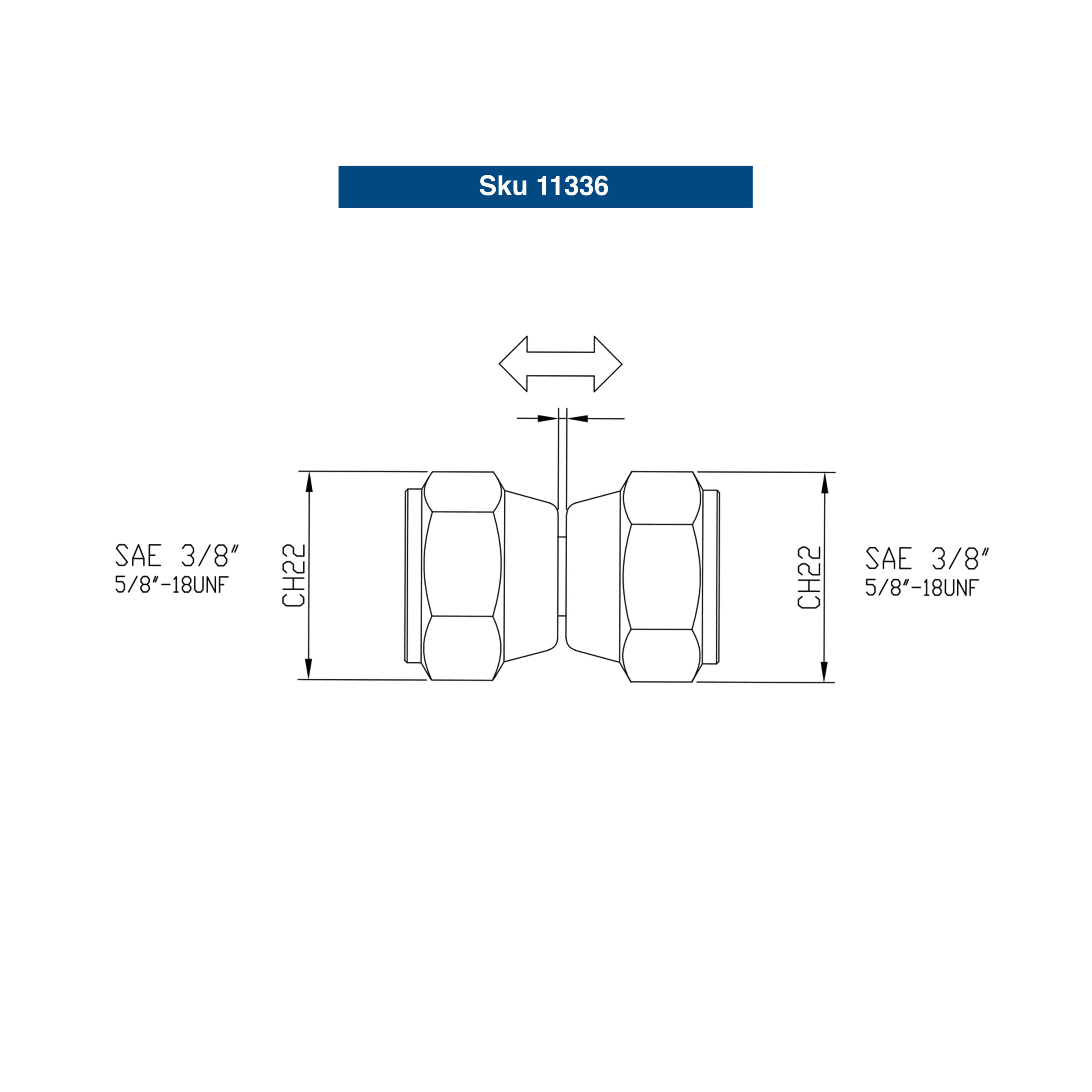

11336 5/8" - 18 UNF 3/8" SAE 20 ÷ 25 (15 ÷ 18.5)
11337 3/4" - 16 UNF 1/2" SAE 34 ÷ 47 (25 ÷ 34.5)

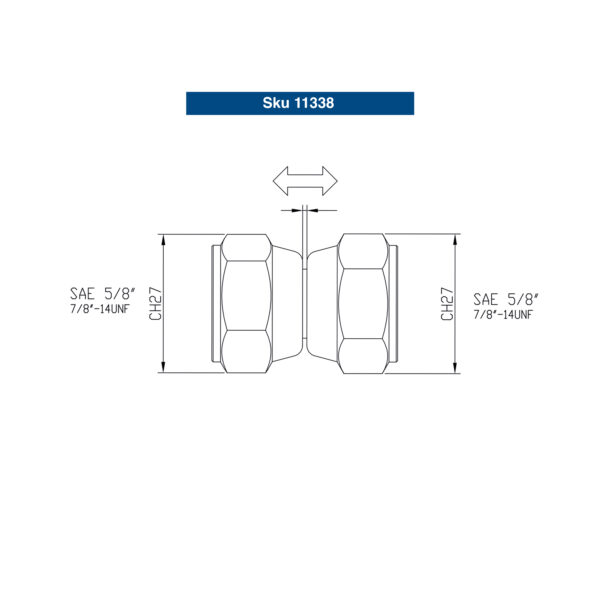

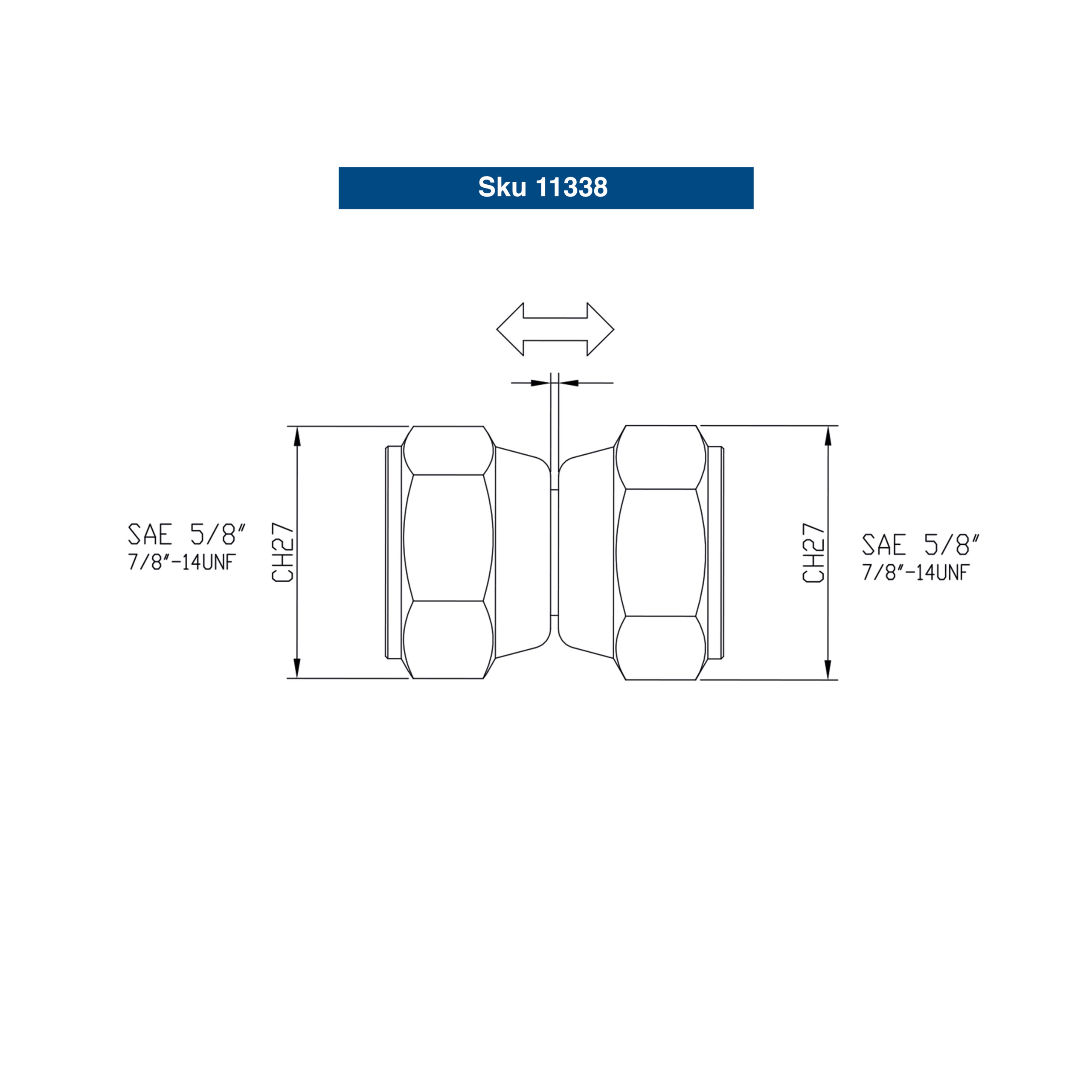

11338 7/8" - 14 UNF 5/8" SAE 54 ÷ 75 (40 ÷ 55)
