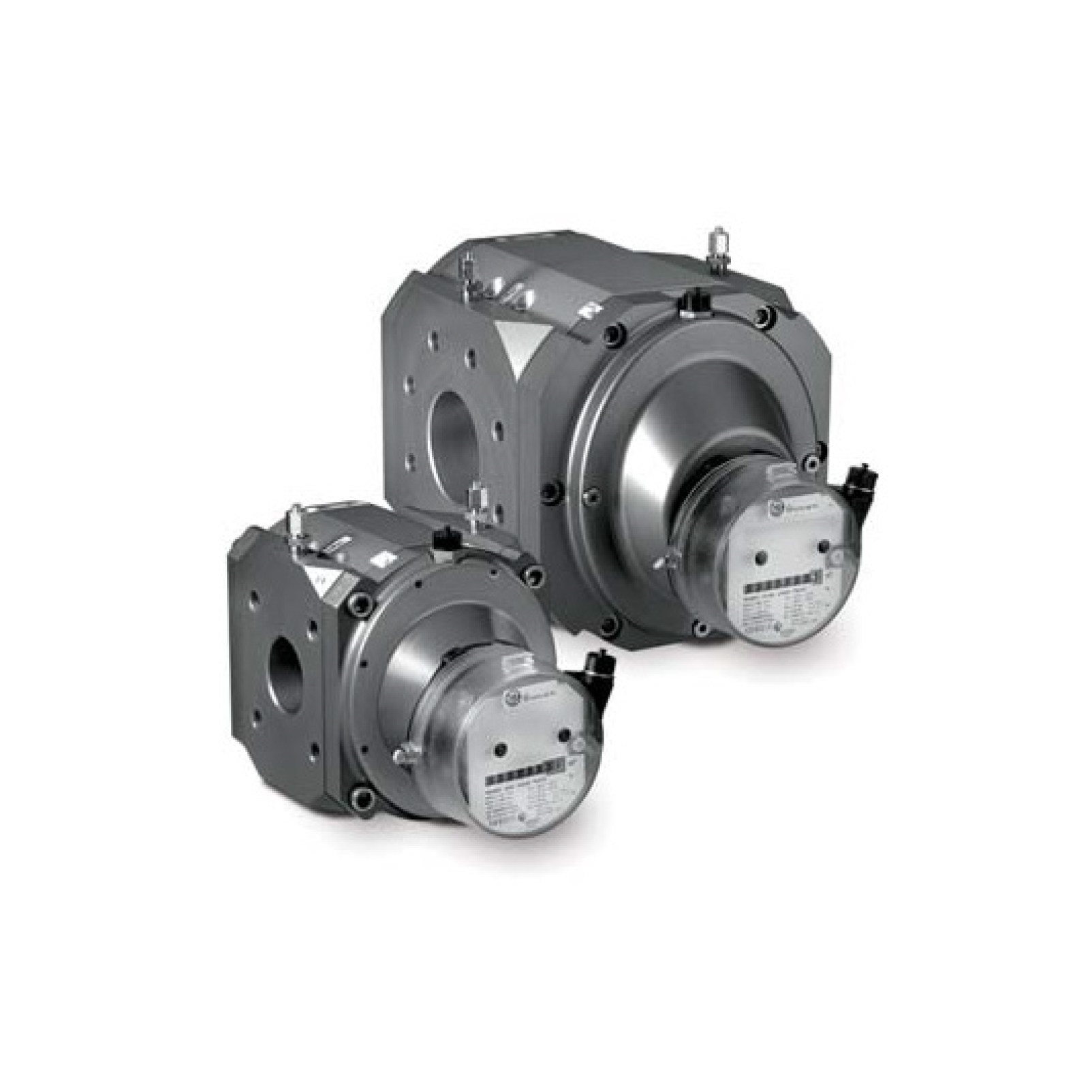

Rotating Piston Gas Meter

Model RABO®

FOR OTHER FLOW RATES ASK FOR QUOTATIONS TO OUR TECHNICAL DEPARTMENTS

sku model price info add to cart

00000050670

RABO® ROTARY PISTON GAS METER - G65 DN50

on request

Physical data

UM Base:
PZ

Dimension:
48 × 31 × 29 cm

Volume:
0.0432 m3

Weight:
13,14 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050671

RABO® ROTARY PISTON GAS METER - G100 DN50

on request

Physical data

UM Base:
PZ

Dimension:
47 × 32 × 29 cm

Volume:
0.0436 m3

Weight:
17,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050672

RABO® ROTARY PISTON GAS METER - G100 DN80

on request

Physical data

UM Base:
PZ

Dimension:
47 × 32 × 28 cm

Volume:
0.0421 m3

Weight:
16,86 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050673

RABO® ROTARY PISTON GAS METER - G160 DN80

on request

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050674

RABO® ROTARY PISTON GAS METER - G250 DN80

on request

Physical data

UM Base:
PZ

Dimension:
58 × 38 × 35 cm

Volume:
0.0789 m3

Weight:
38,41 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050675

RABO® ROTARY PISTON GAS METER - G160 DN100

on request

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

00000050676

RABO® ROTARY PISTON GAS METER - G250 DN100

on request

Physical data

UM Base:
PZ

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90281000

Info Request

Product informations

RABO®, the rotary piston meter suitable for measuring natural gas and various filtered, not corrosive gases; it is characterized by its wide measuring ranges and compact dimensions, guaranteeing high precision even in the case of reduced or irregular flow.

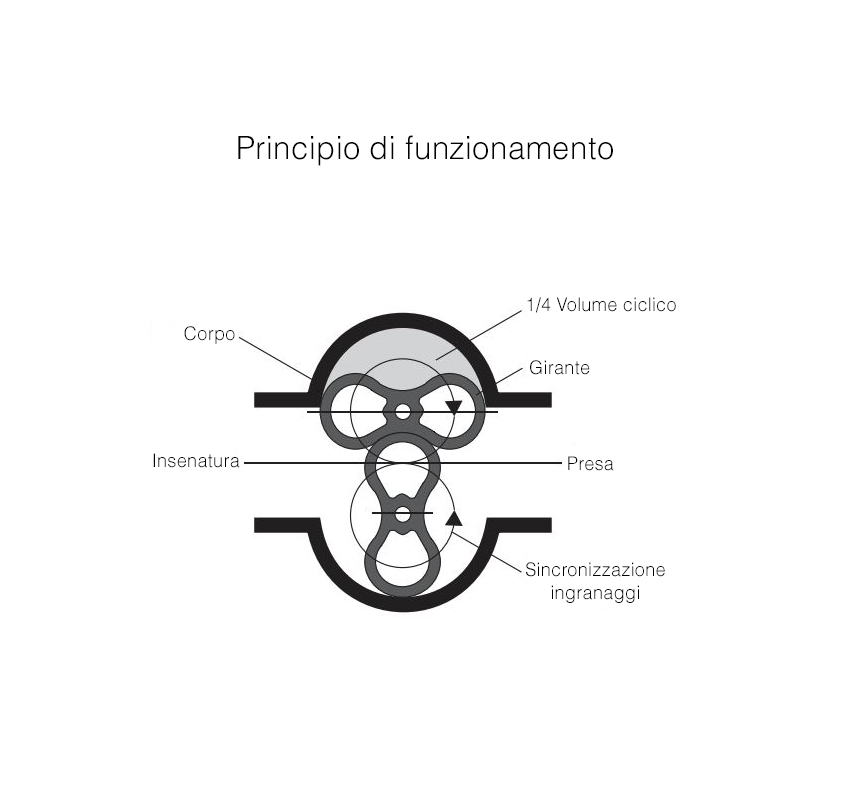

Working Principles

Rotary piston gas meters are volumetric meters for gaseous media which work on the principle of the displacement of defined quantities of gas, thanks to the volumetric measurement they operate independently of the influences of the installation and are therefore particularly suitable for compact measuring systems with short straight entrance sections. These meters measure the volume of gas at operating conditions and are approved for custody transfer measures, where required they can also be combined with a volume converter for measurement at the basic reference conditions.



Product Features

  • compact size
  • 5-year maintenance interval
  • the index can be rotated for horizontal and vertical installation
  • optional index solutions (e.g., absolute ENCODER S1D)

Technical Features

SIZE from G16 to G400
FLOW RATES from 0.6 to 650 m3/h
NOMINAL DIMENSIONS from DN32 to DN150
OPERATING PRESSURE max 20 bar
PRESSURE CLASSES PN10/16 and class 150 according to ASME B 16.5
PULSE OUTPUTS
  • pulse transmitter BF IN-Sx (reed contact, standard) according to EC type examination certificate TÜV 03 ATEX 2123
  • pulse transmitter BF IN-W11 (Wiegand sensor, optional) according to EC type examination certificate TÜV 01 ATEX 1776
  • HF pulse transmitter A1K (Namur sensor, opt) according to EC type examination certificate PTB 99 ATEX 2219X
GAS AND AMBIENT TEMPERATURE RANGE - 25°C ÷ + 70°C
MATERIALS corpo in alluminio o ghisa sferoidale
DEGREE OF PROTECTION IP67 (protected against brief immersions up to 1 m deep and completely hermetic against dust and fumes) - suitable for outdoor installations
MEASURING RANGE 1:160
MID APPROVAL DE-12-MI002-PTB001 (PTB)
ATEX APPROVED Ex-zone 1
PED APPROVAL CE-0085CN0022 (DVGW Cert GmbH)
