Roof Bracket

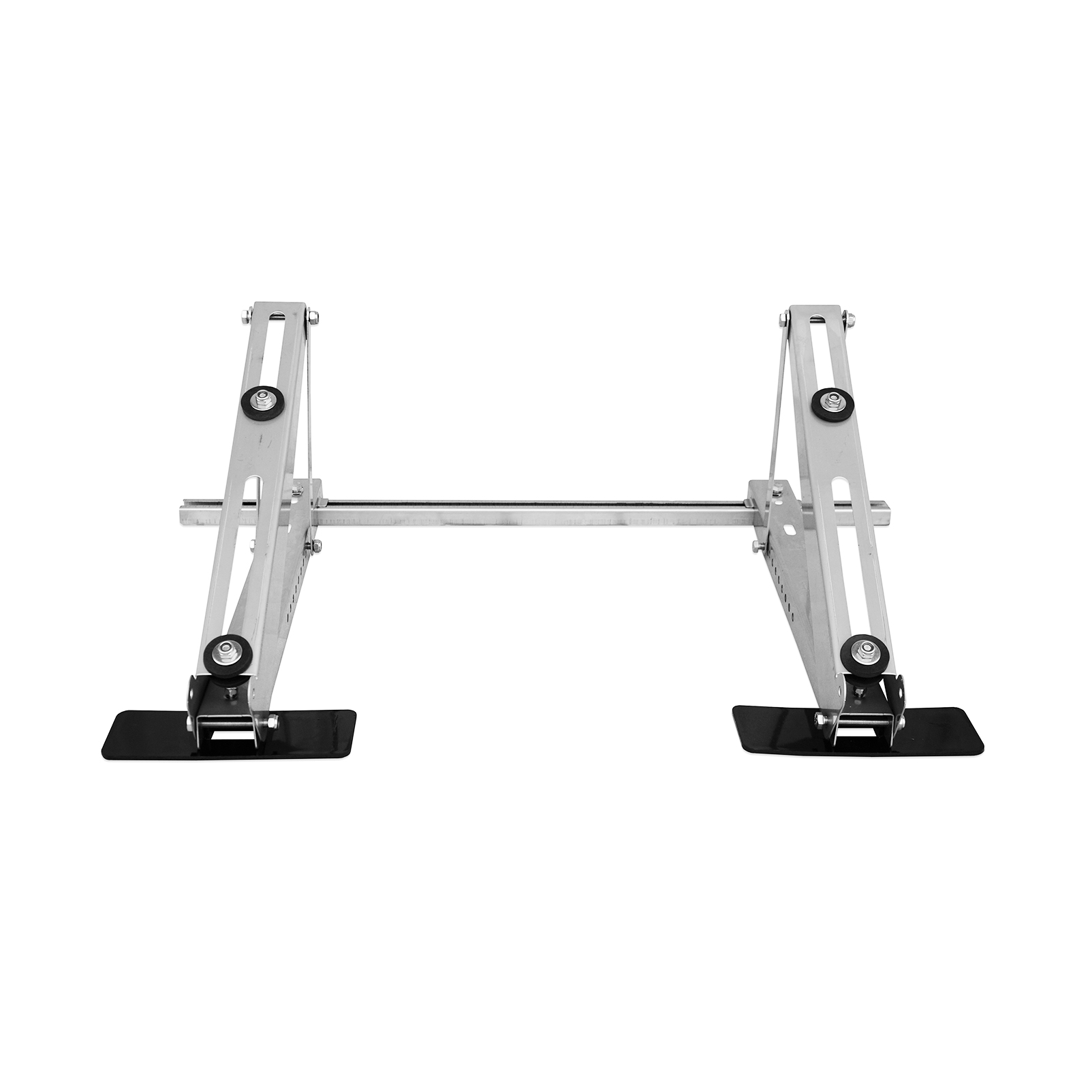

Adjustable roof bracket

sku model price info add to cart

00000011101

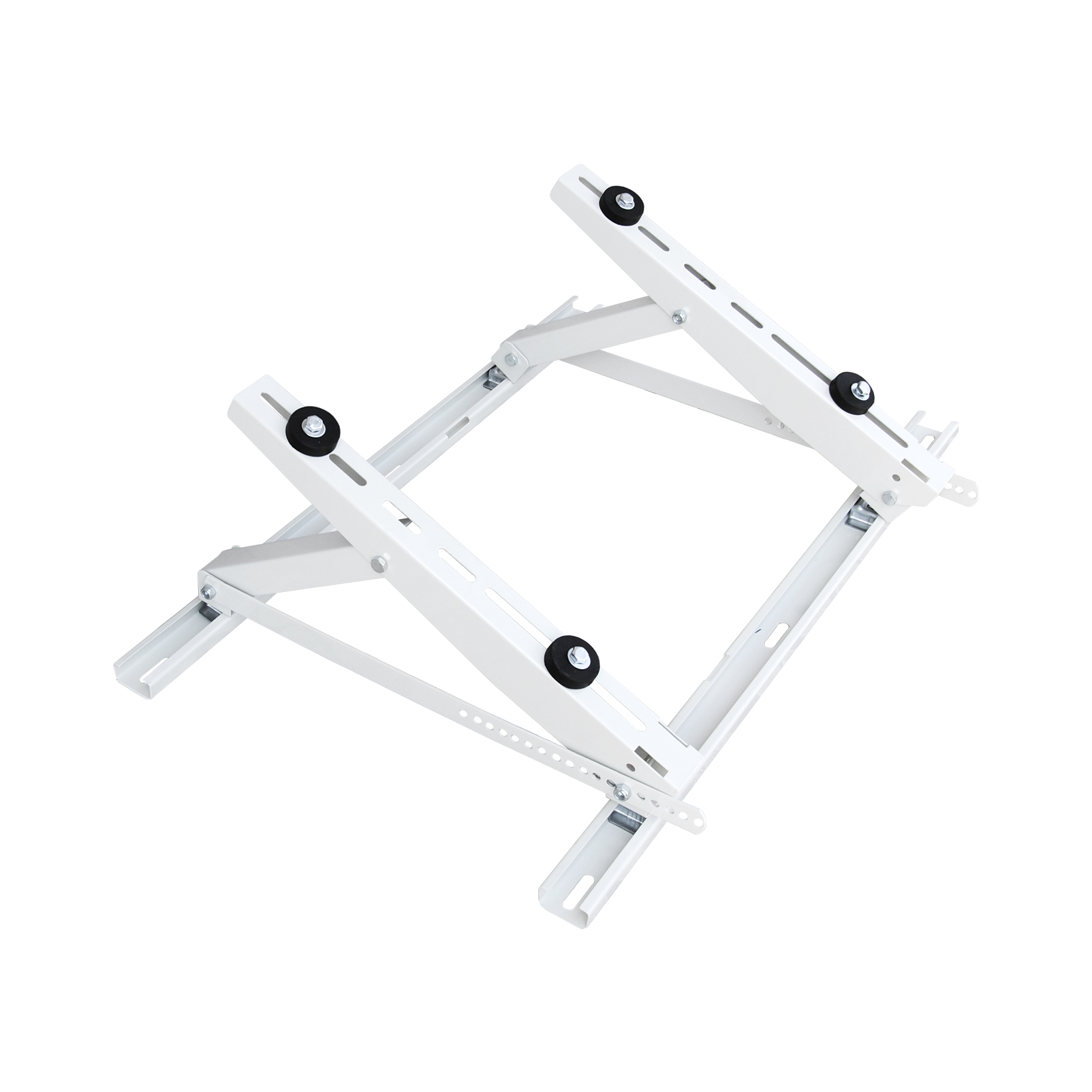

GALVANIZED ROOF BRACKET 800x480 mm

94,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
82 × 7 × 12 cm

Volume:
0.0069 m3

Weight:
5,55 kg

Minimum Order Quantity:
1

Customs data

Customs Code
72169180

Buy
Info Request

00000011117

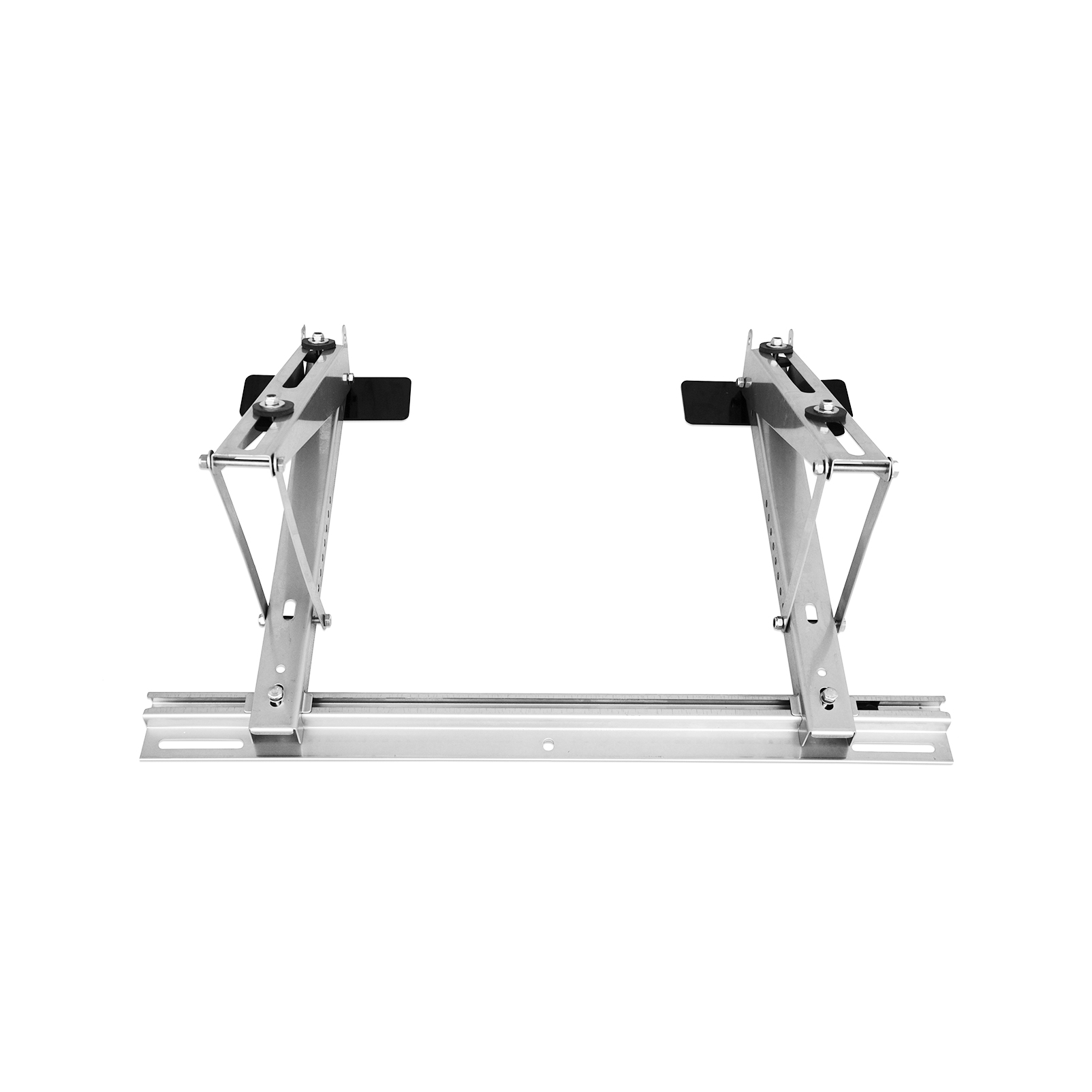

STAINLESS STEEL ROOF BRACKET 800x480 mm

178,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
81 × 8 × 10 cm

Volume:
0.0072 m3

Weight:
4,70 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

Product informations

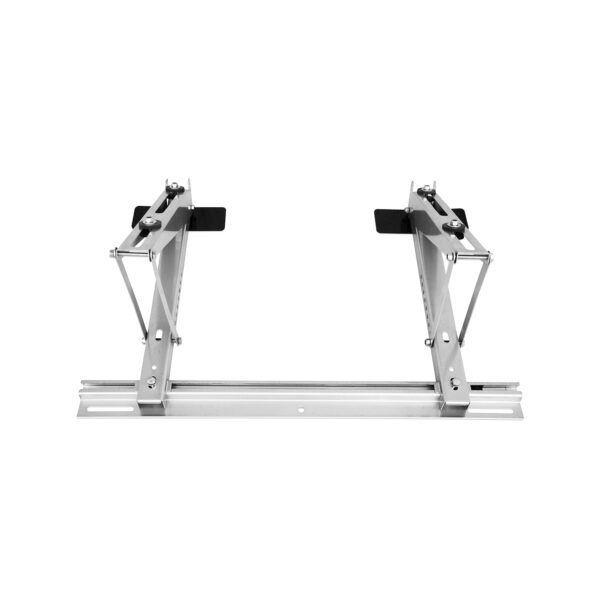

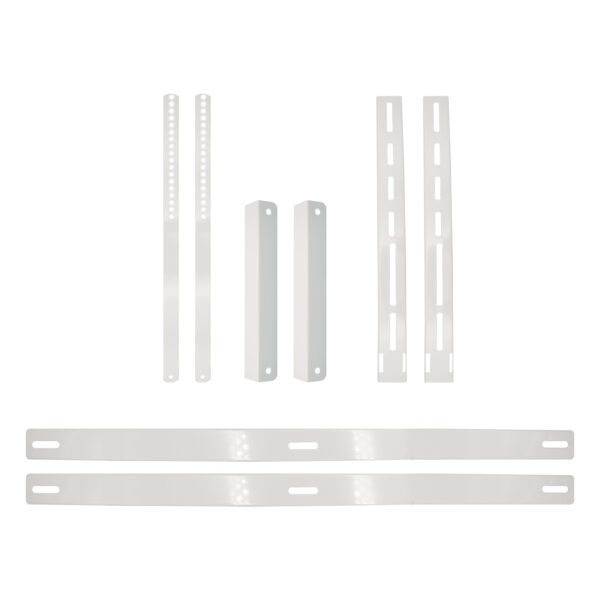

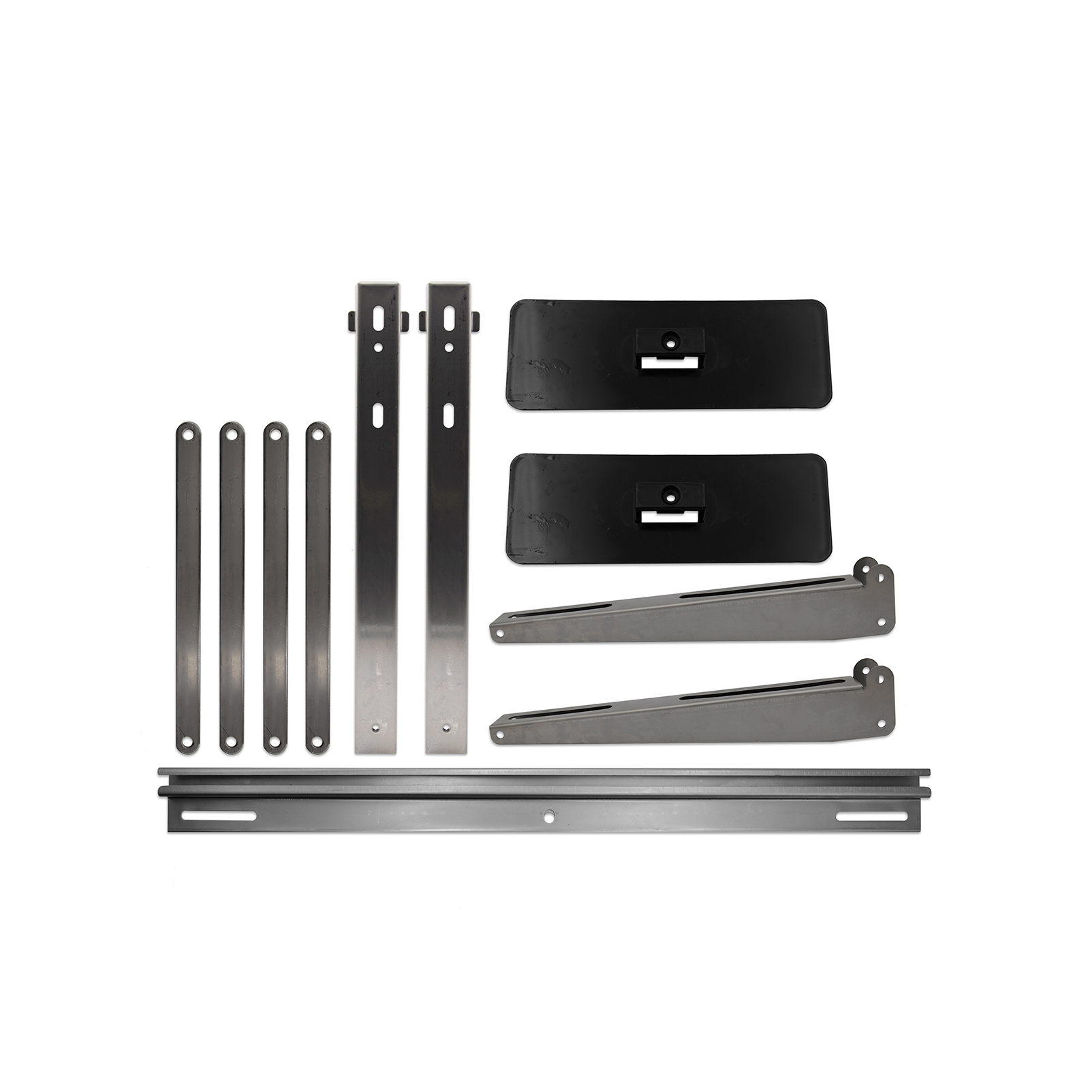

Adjustable roof bracket ideal for supporting heavy machines, with a variable angle between 15° and 30° according to the slope of the roof; available both in the galvanized version painted with polyester powders, and in the stainless steel version.

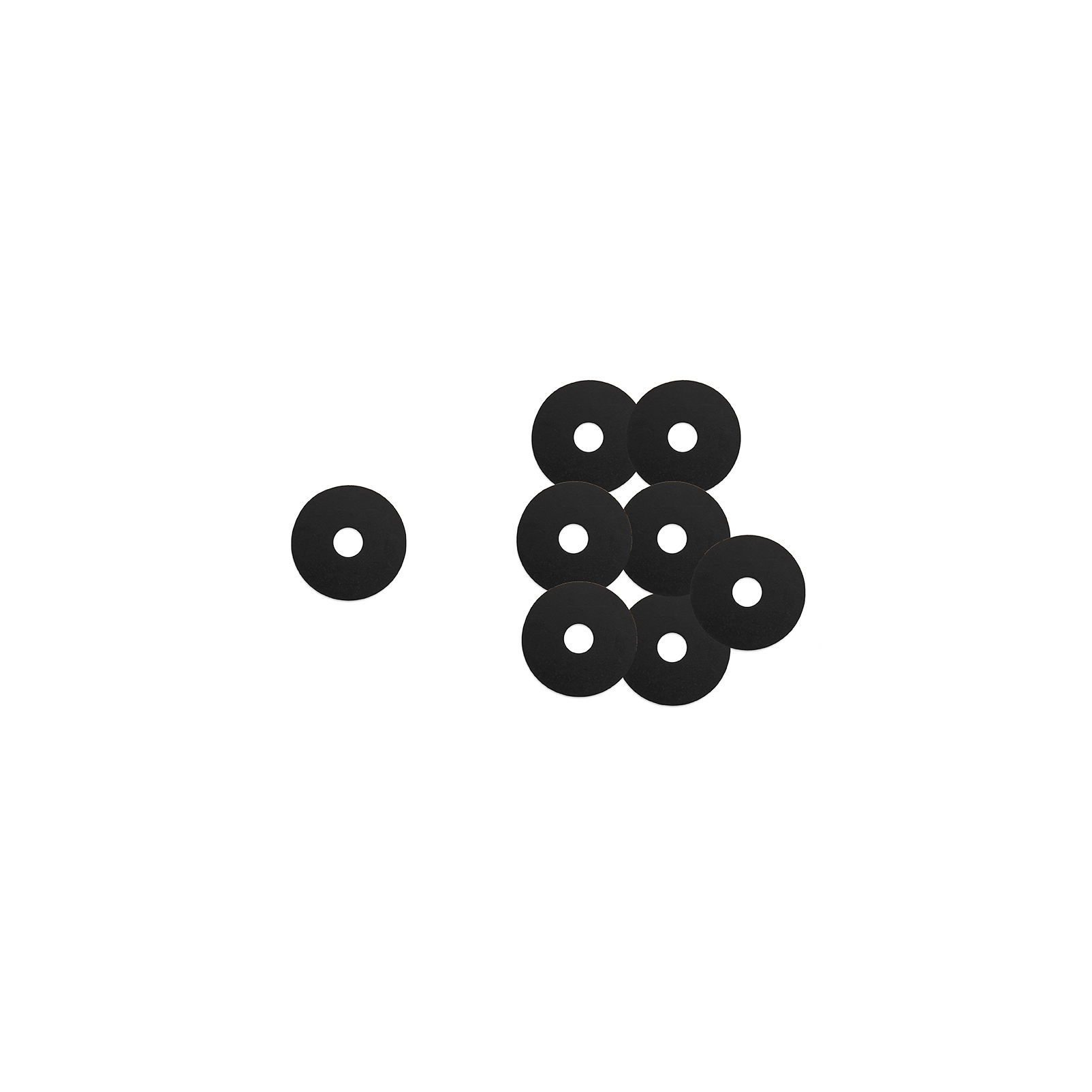

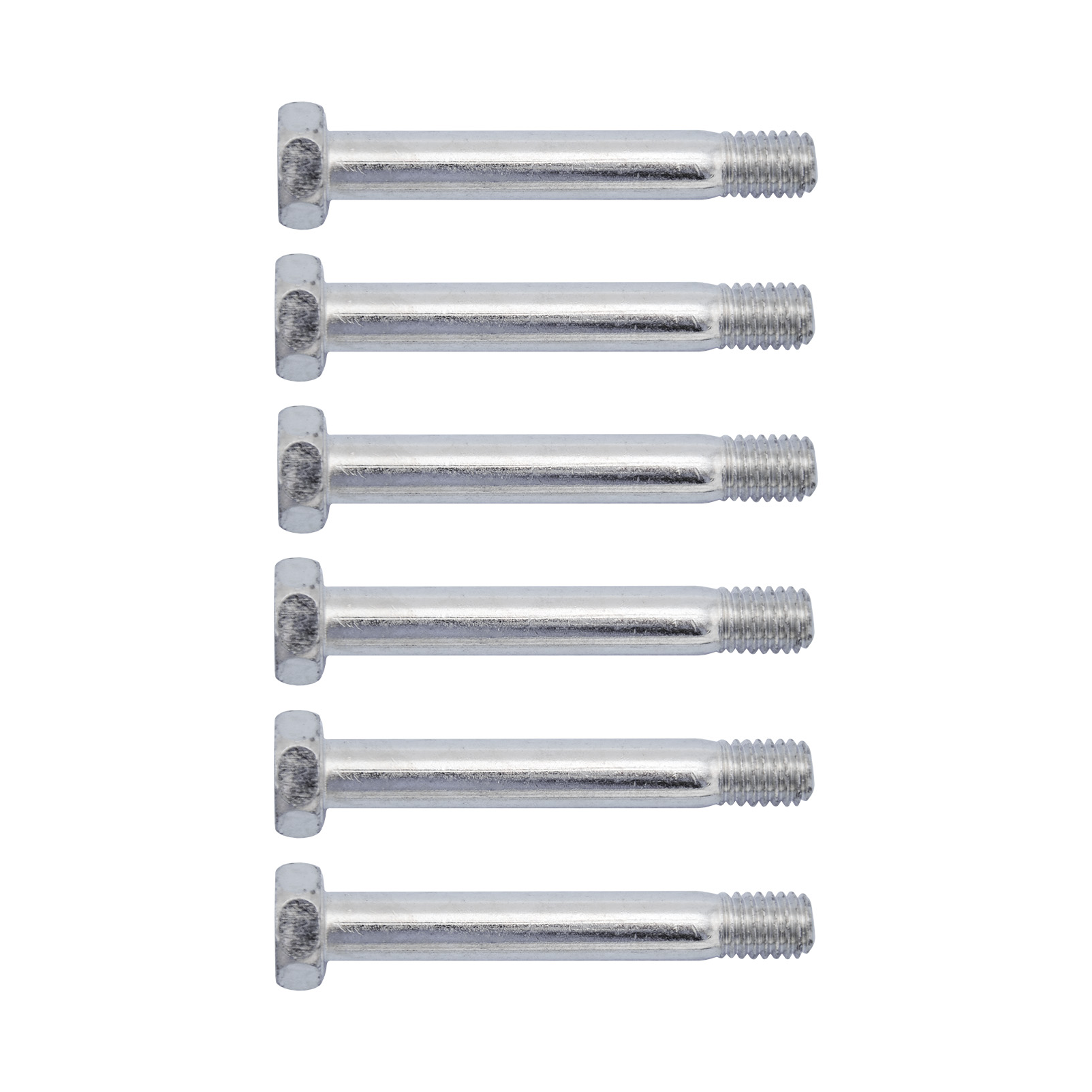

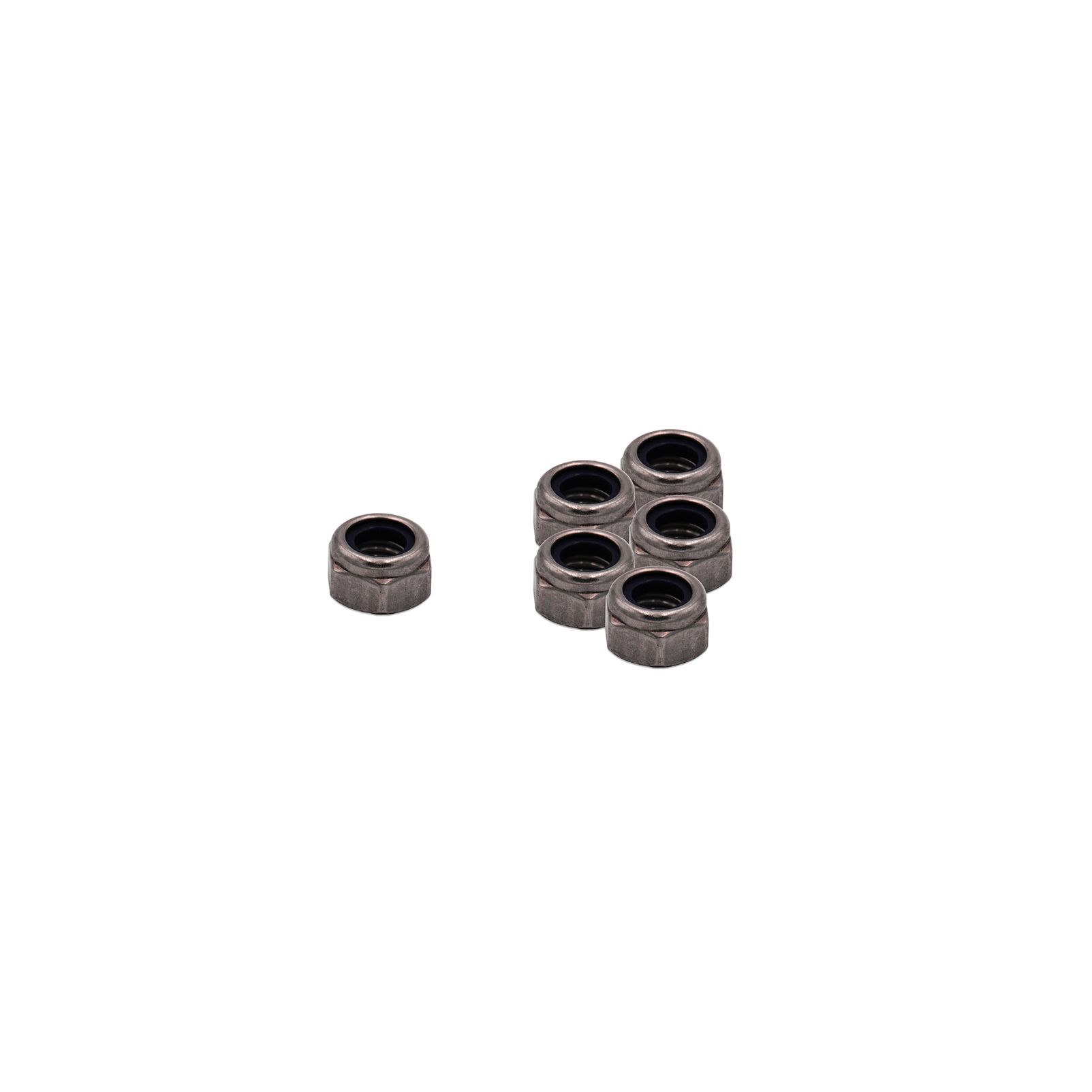

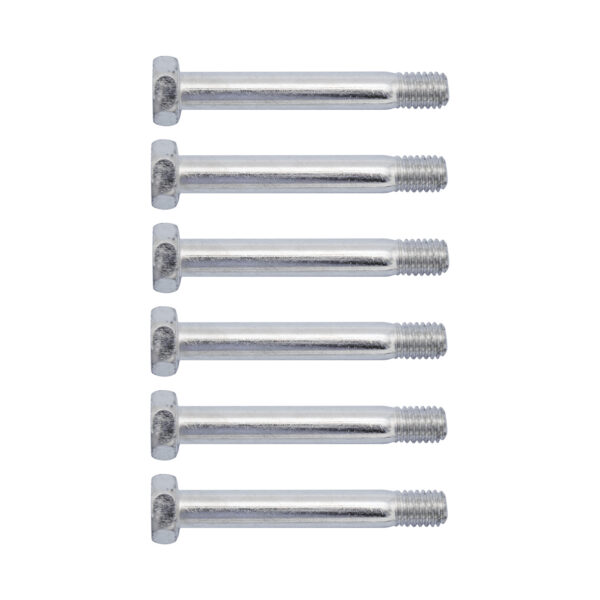

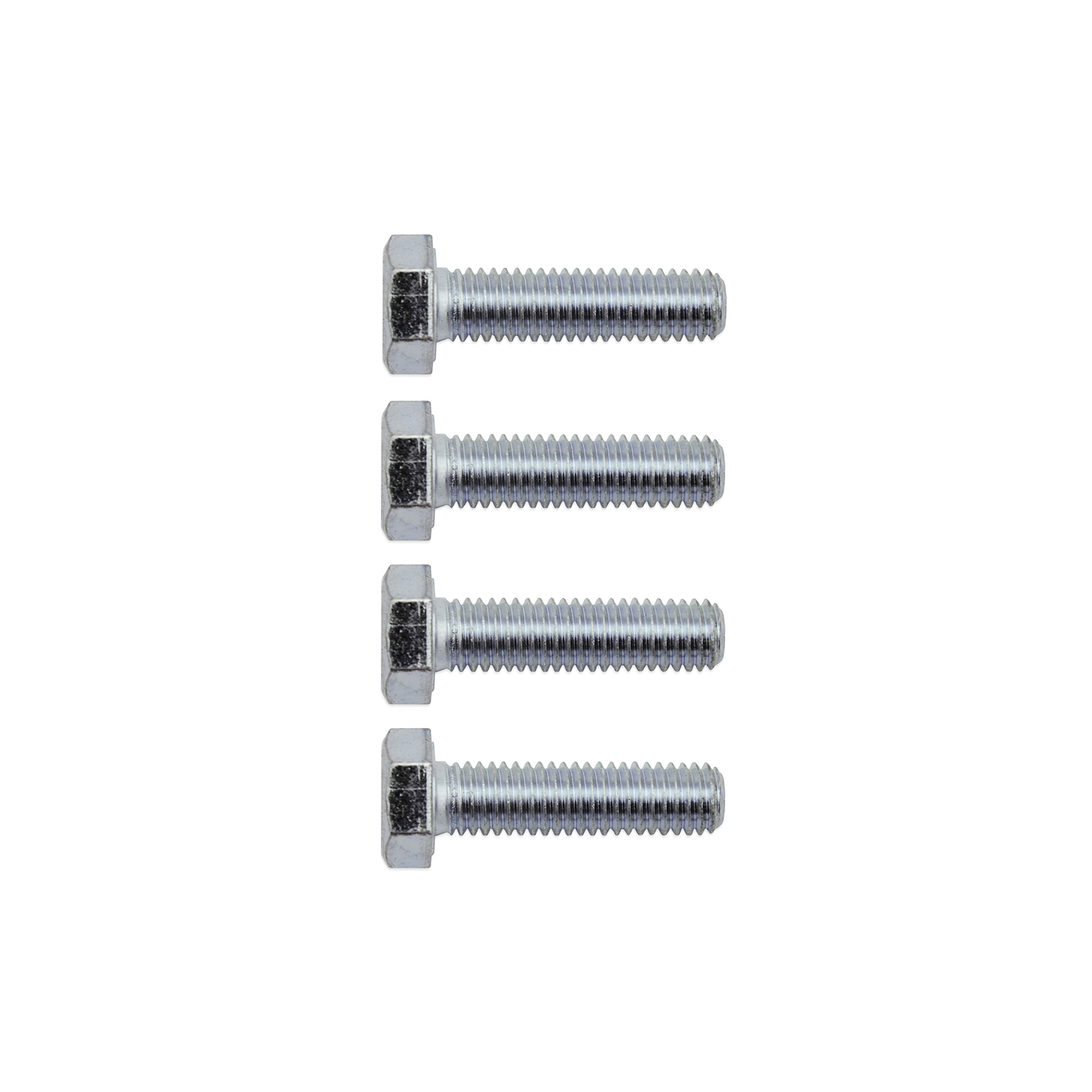

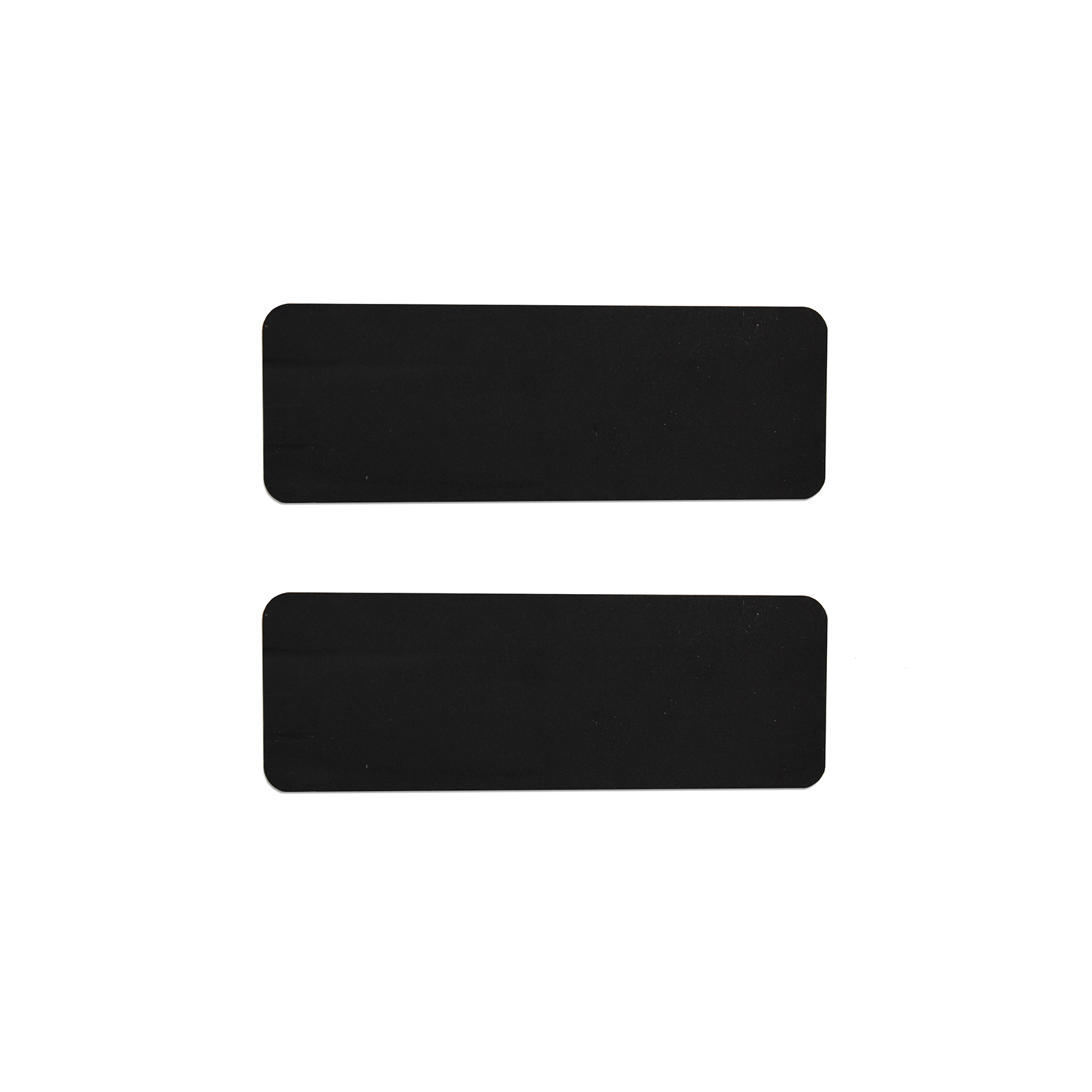

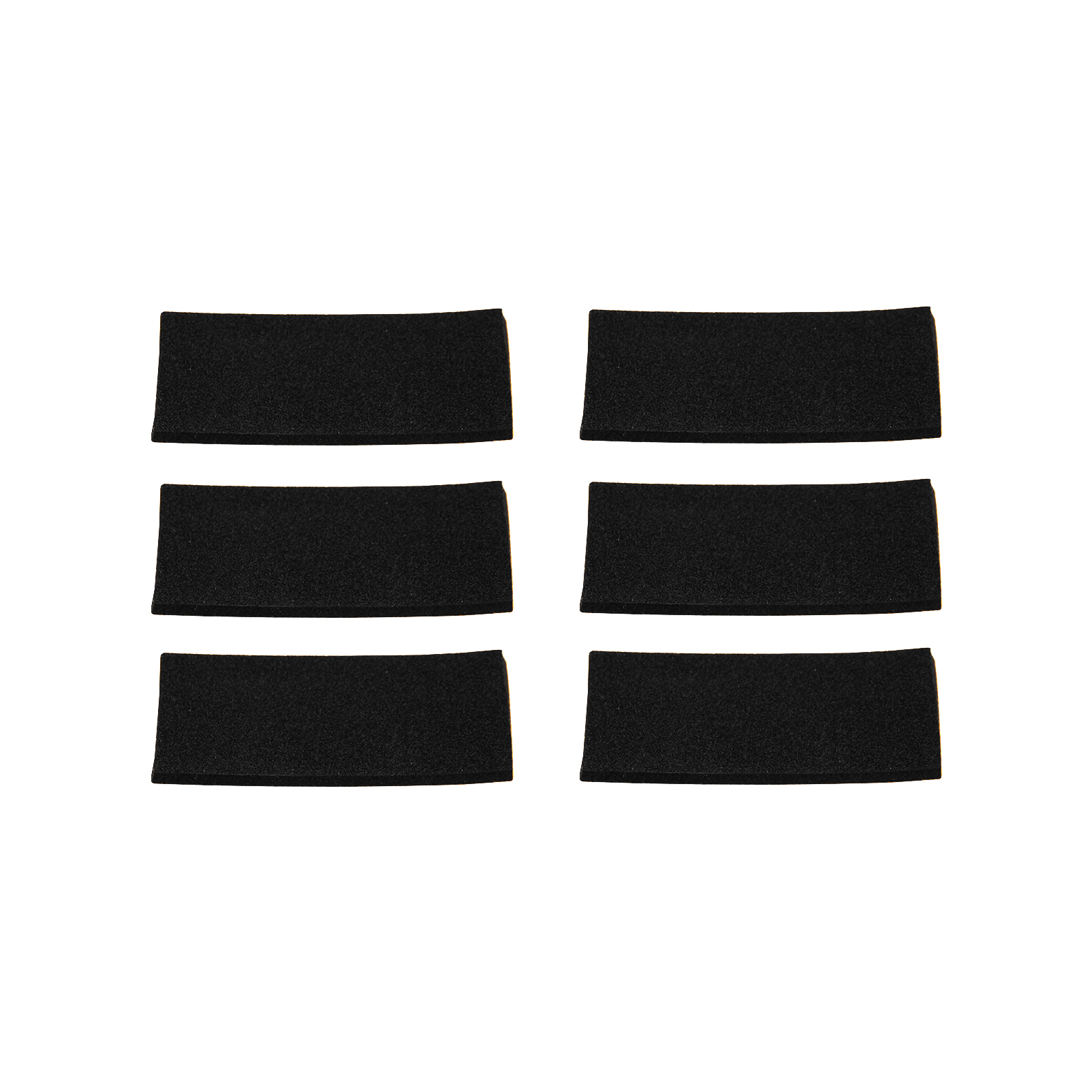

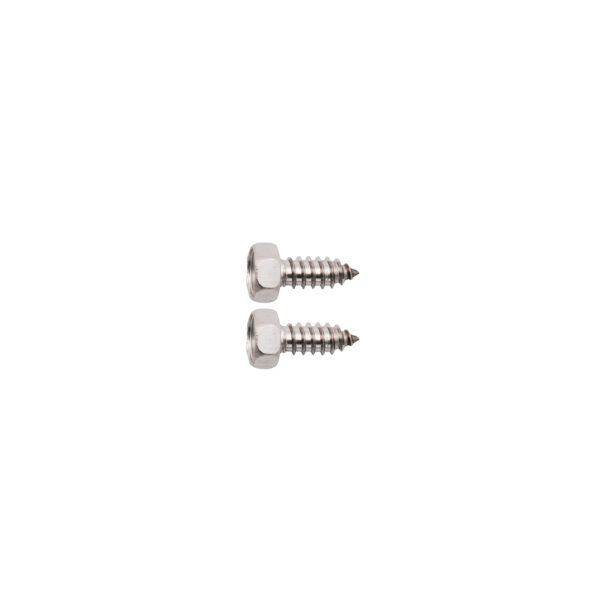

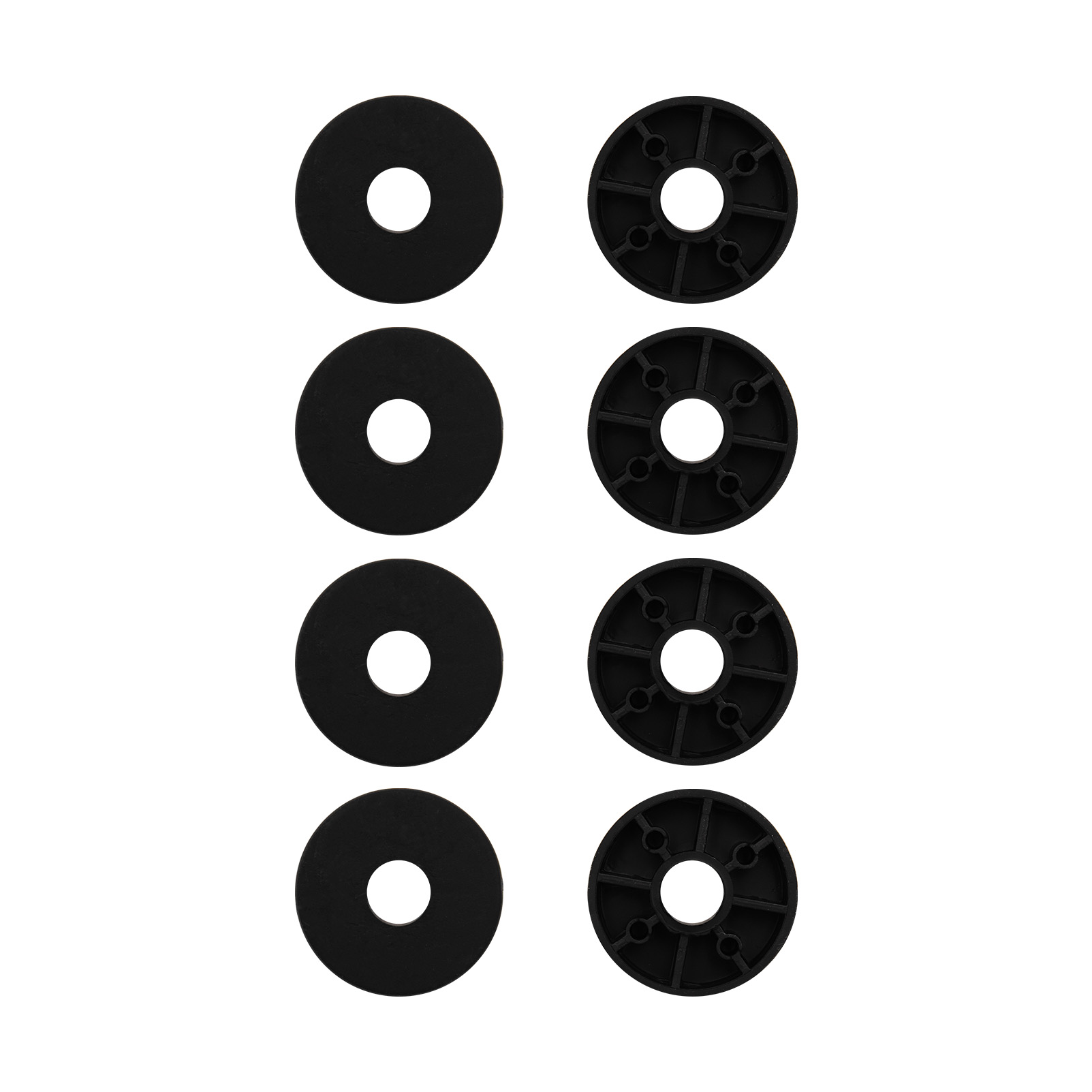

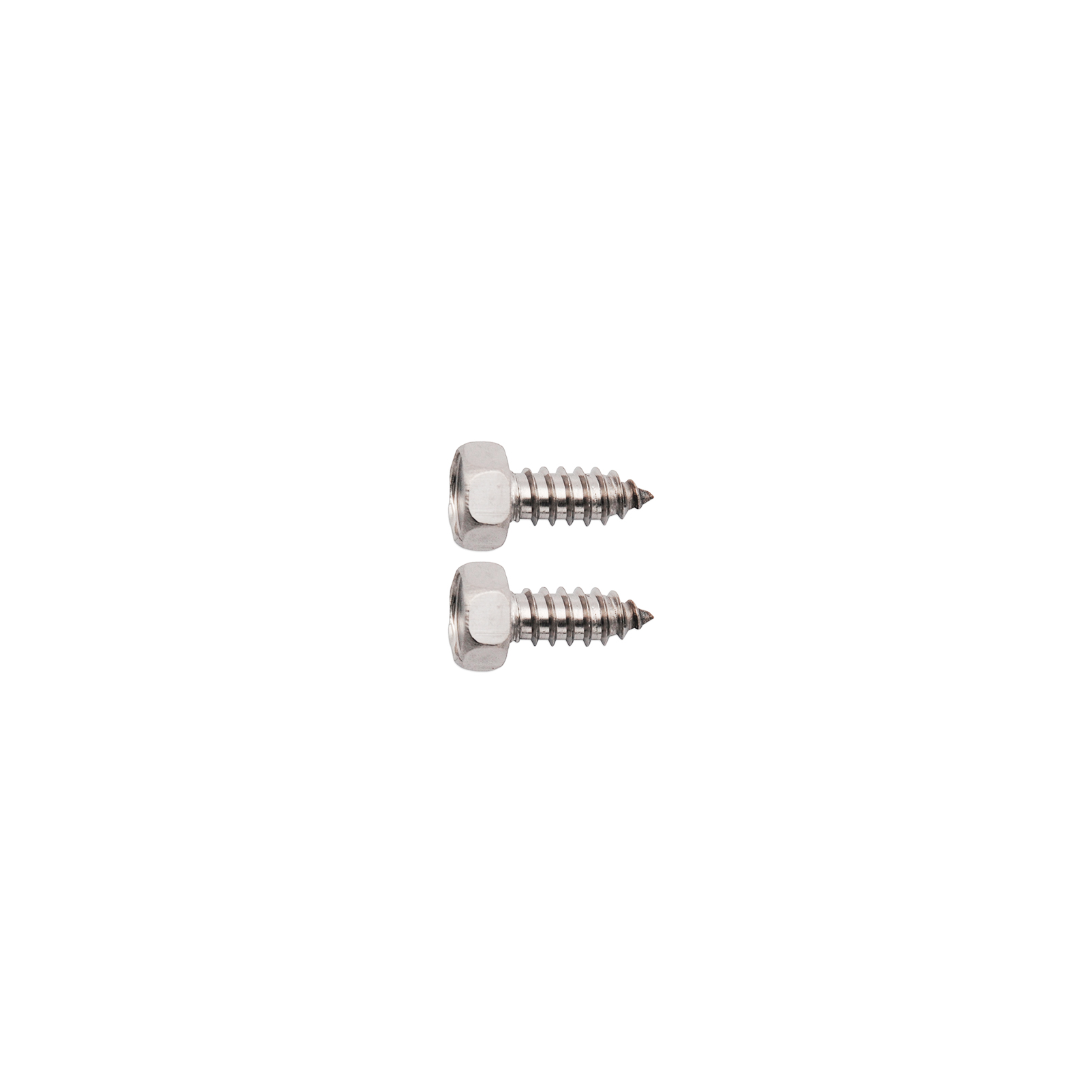

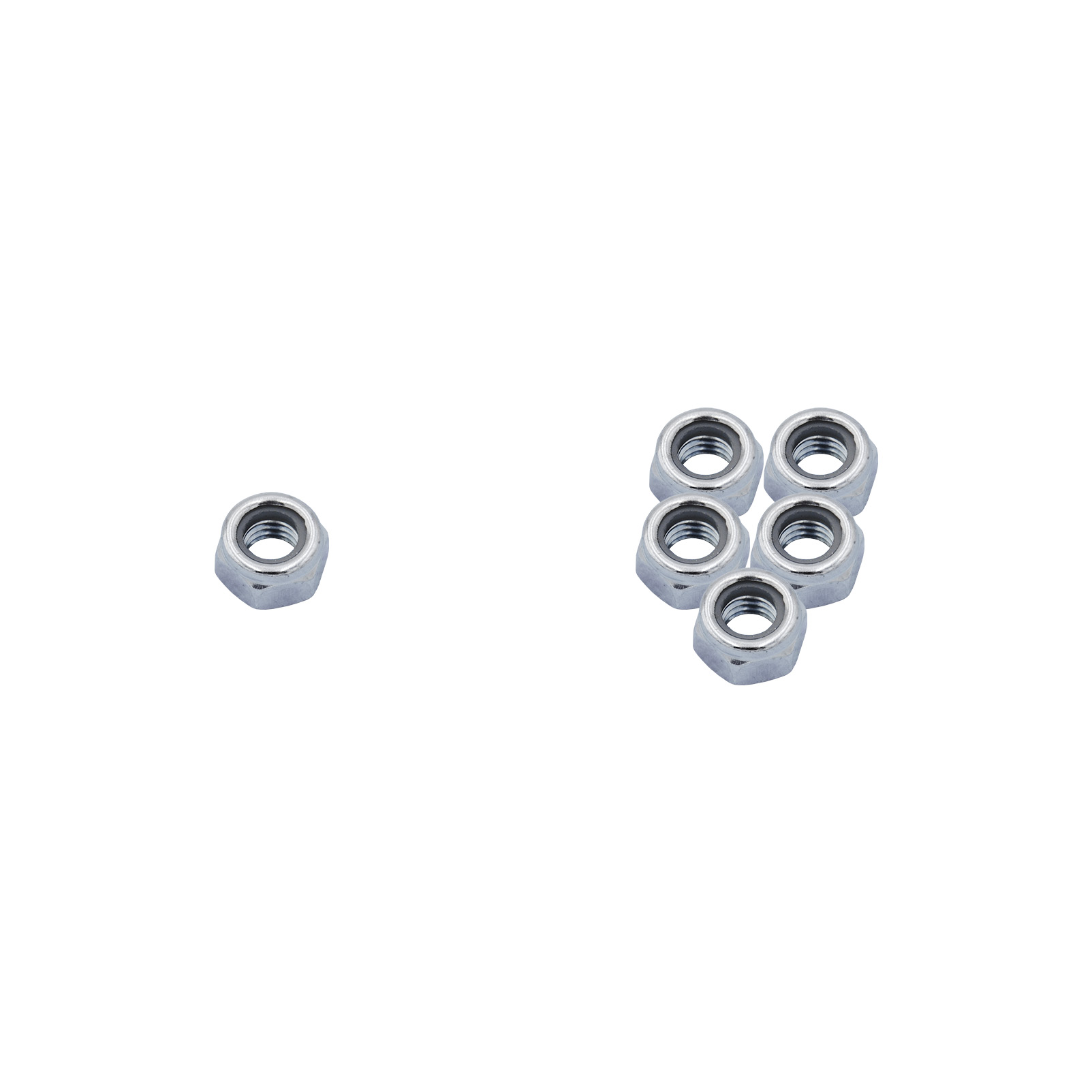

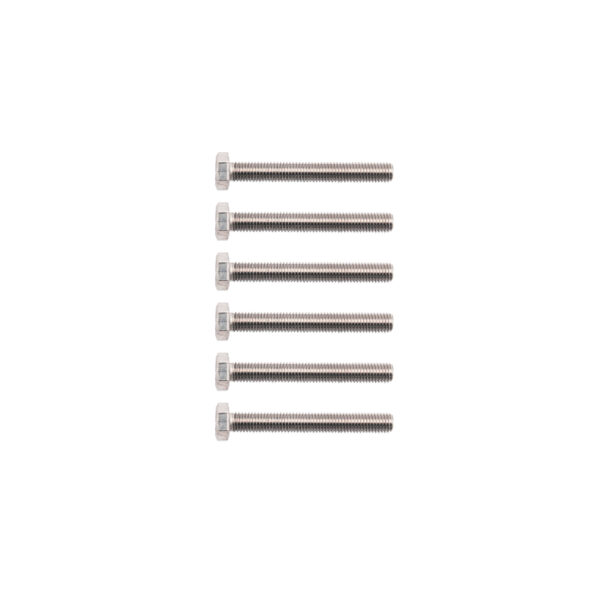

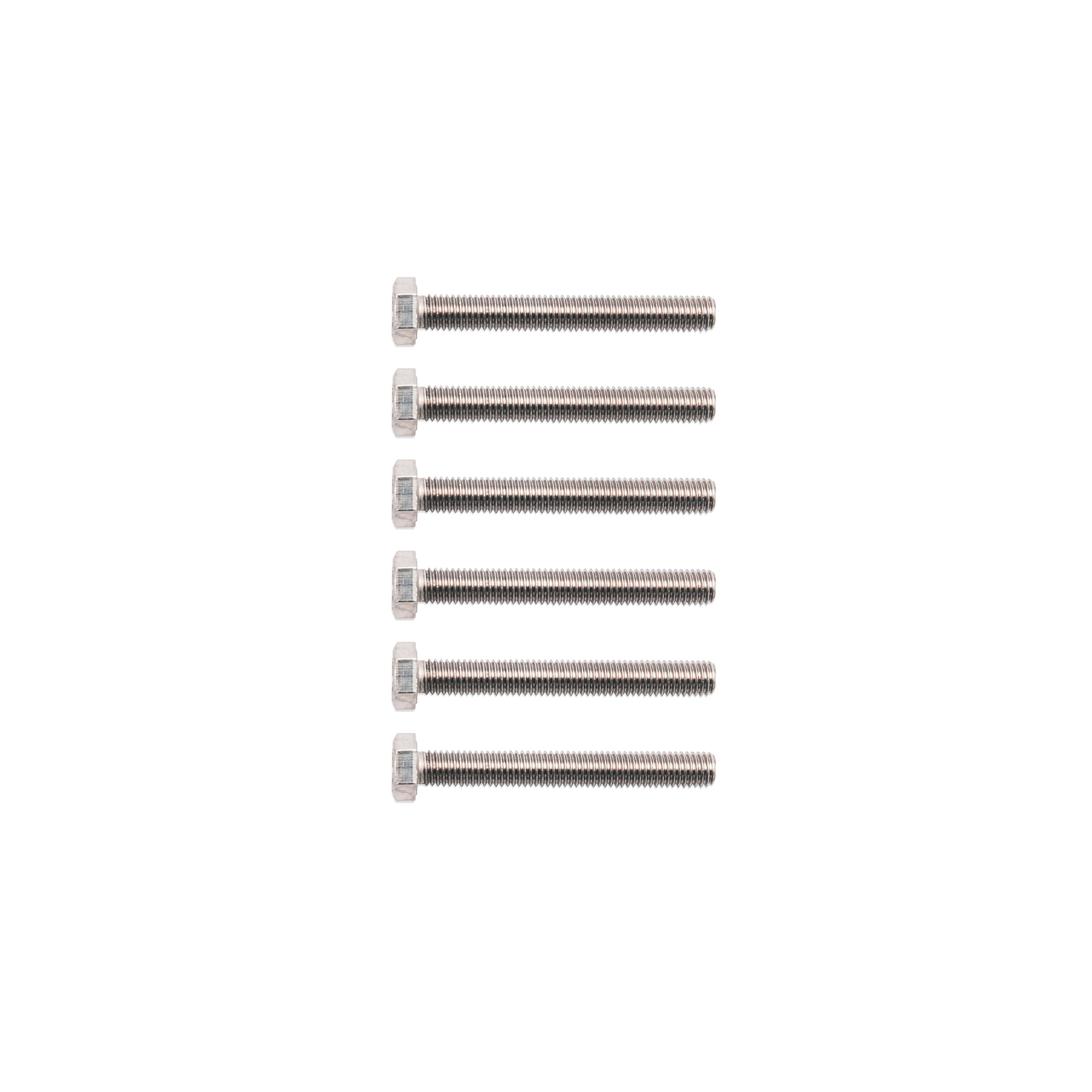

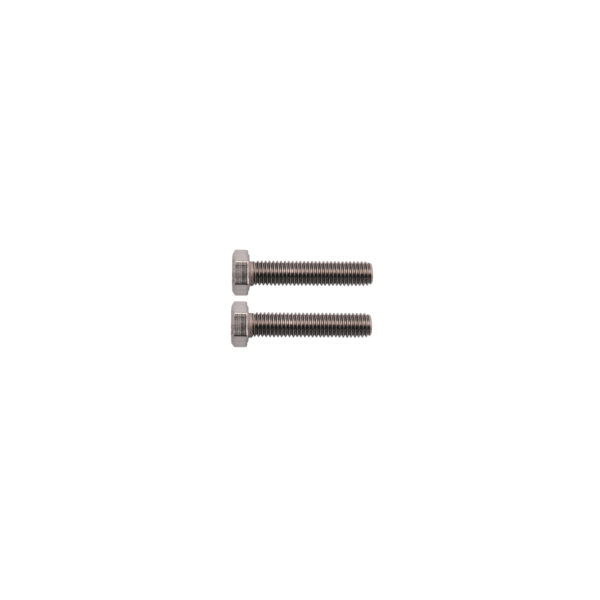

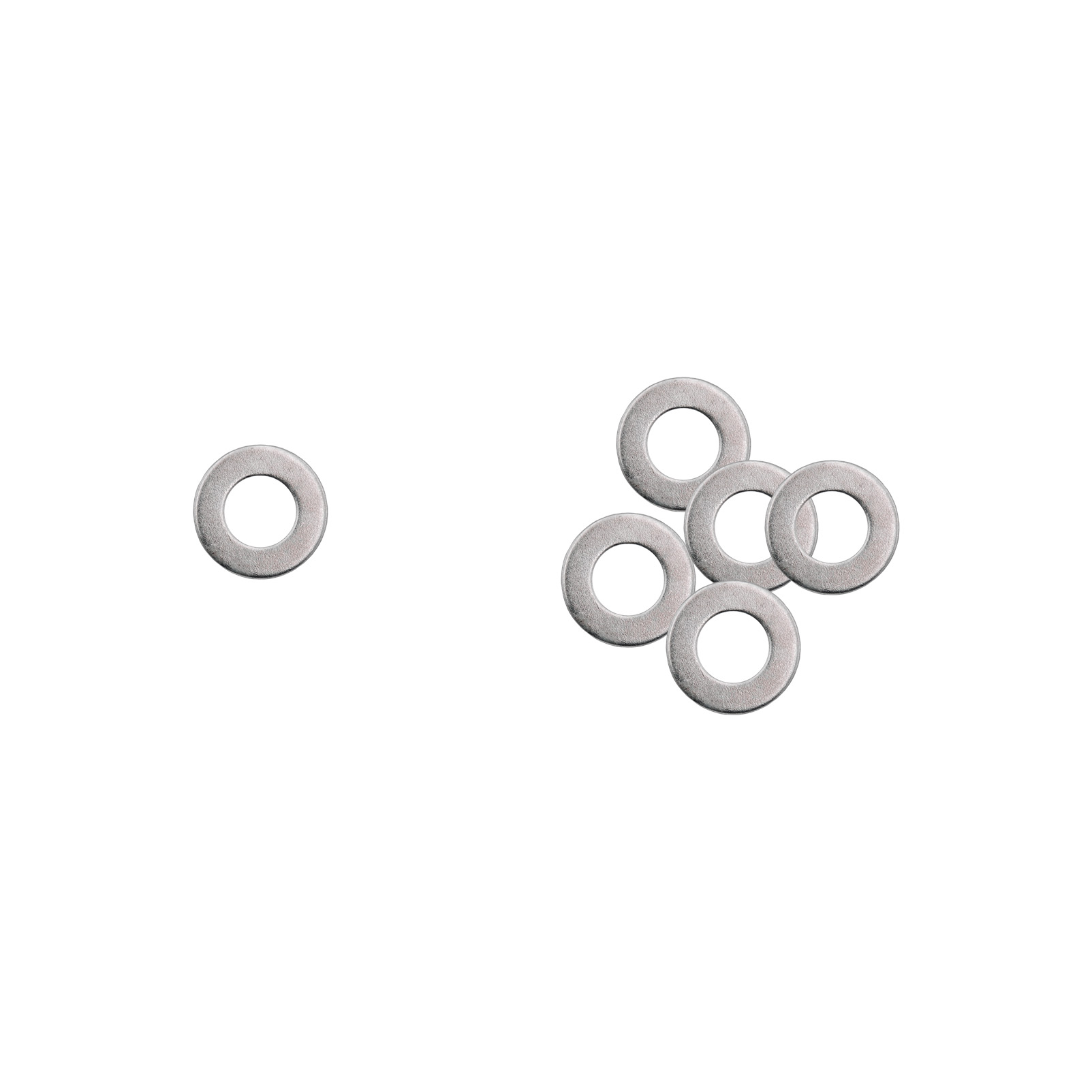

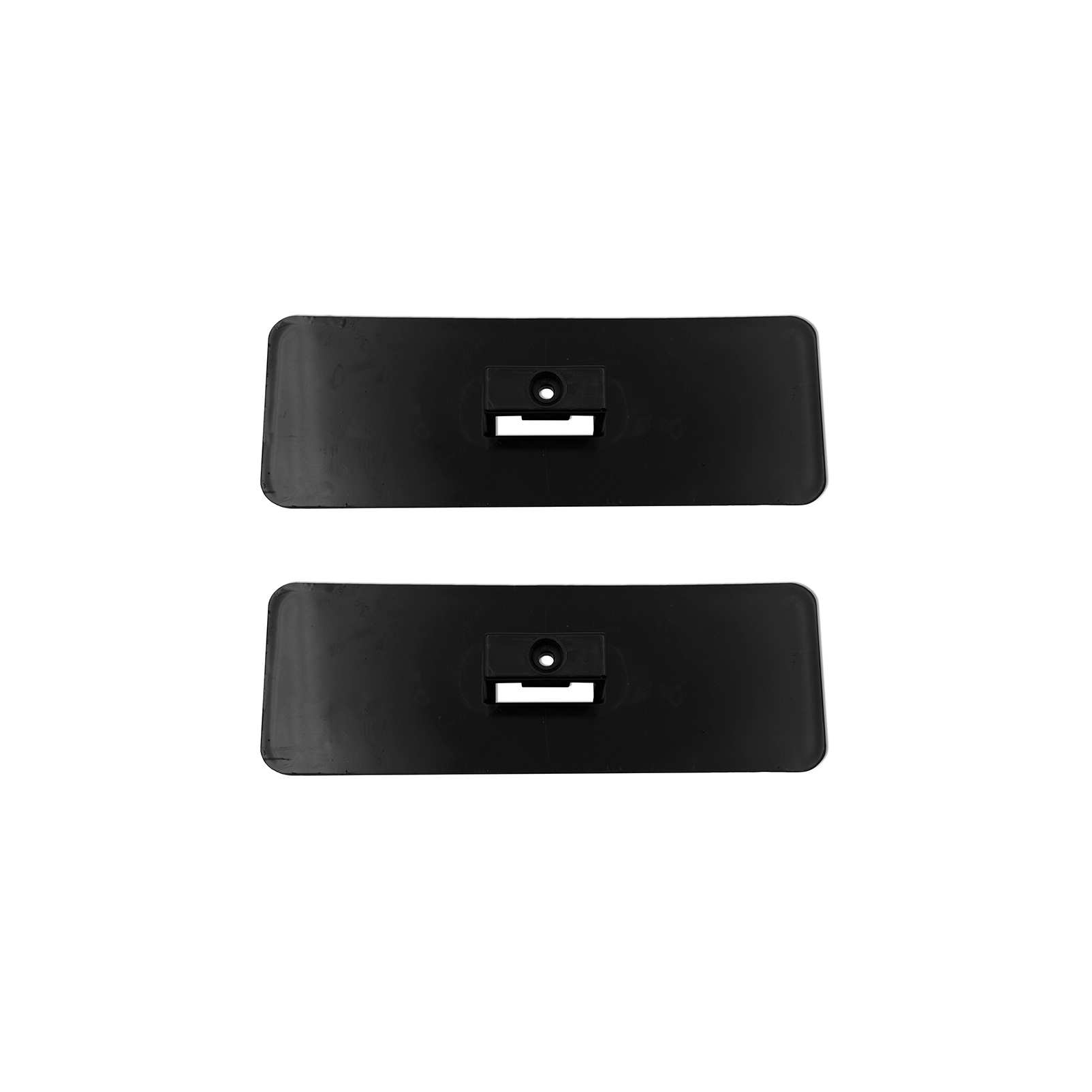

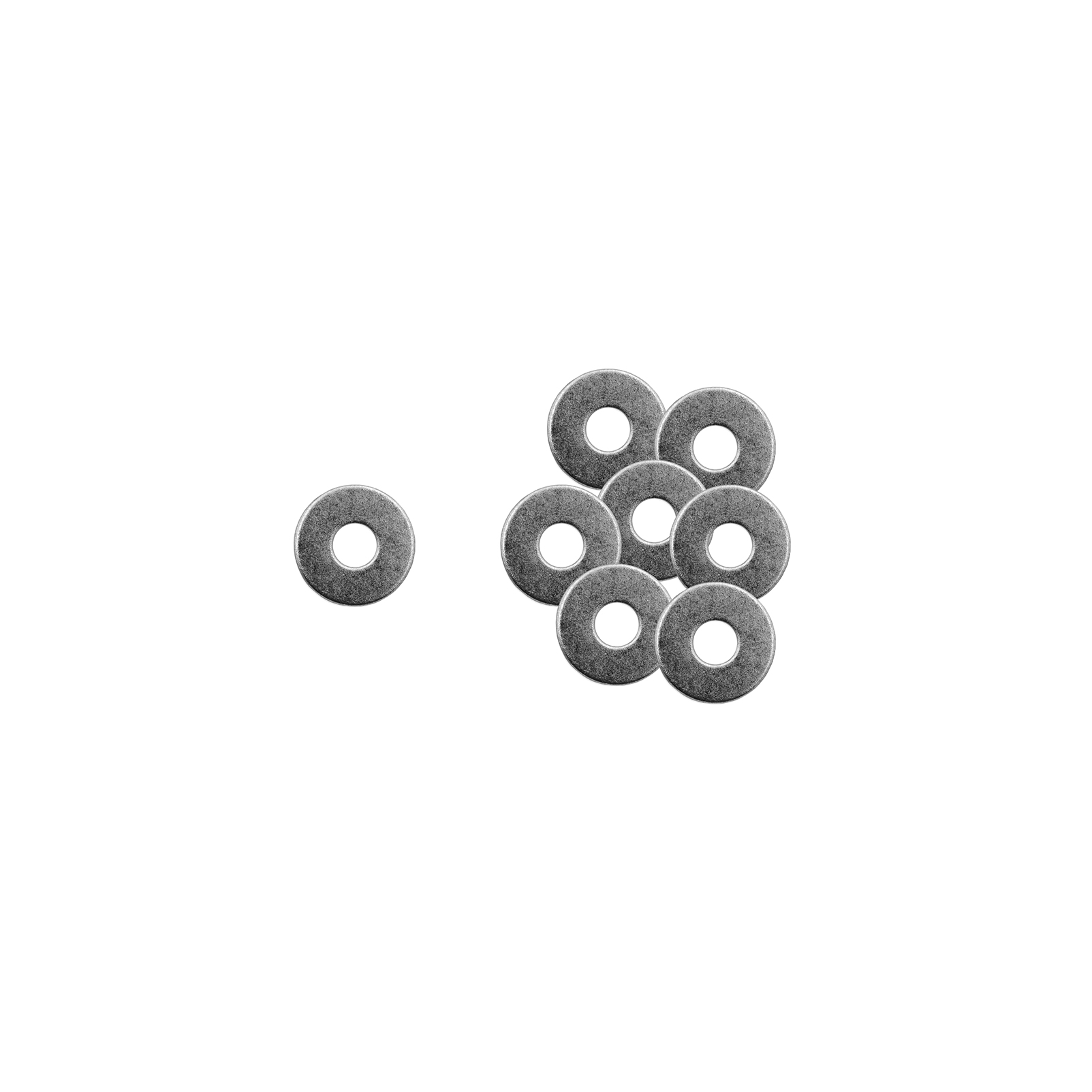

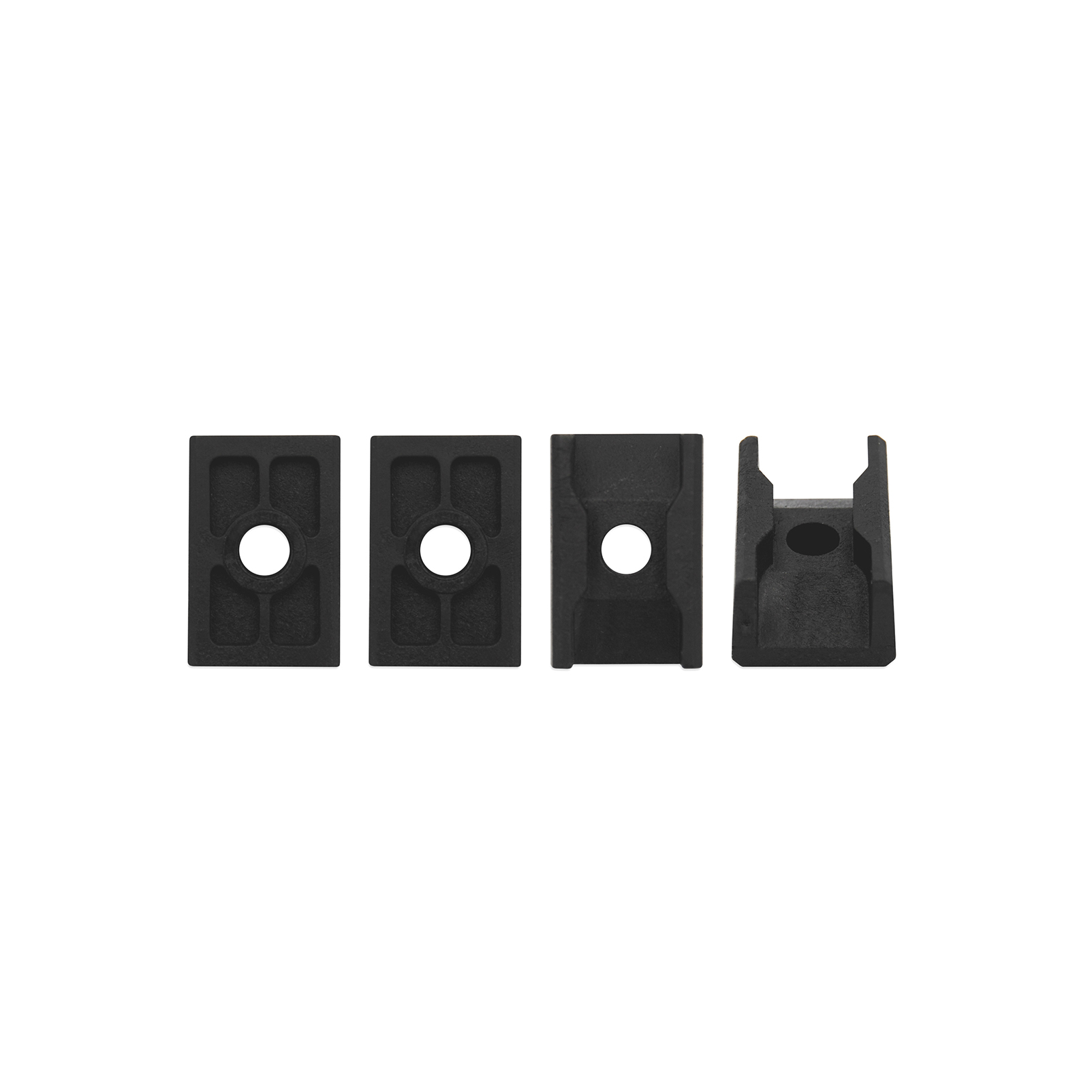

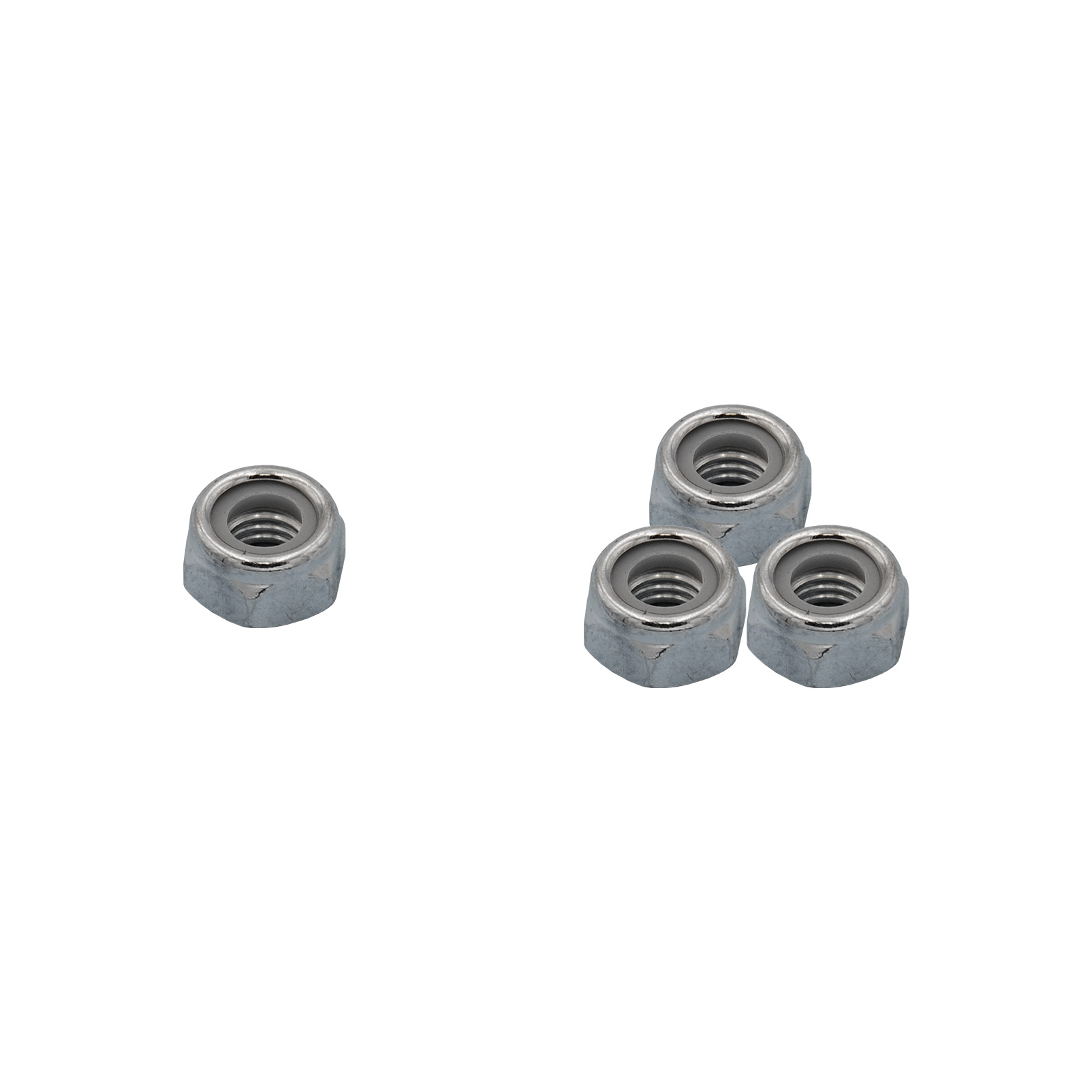

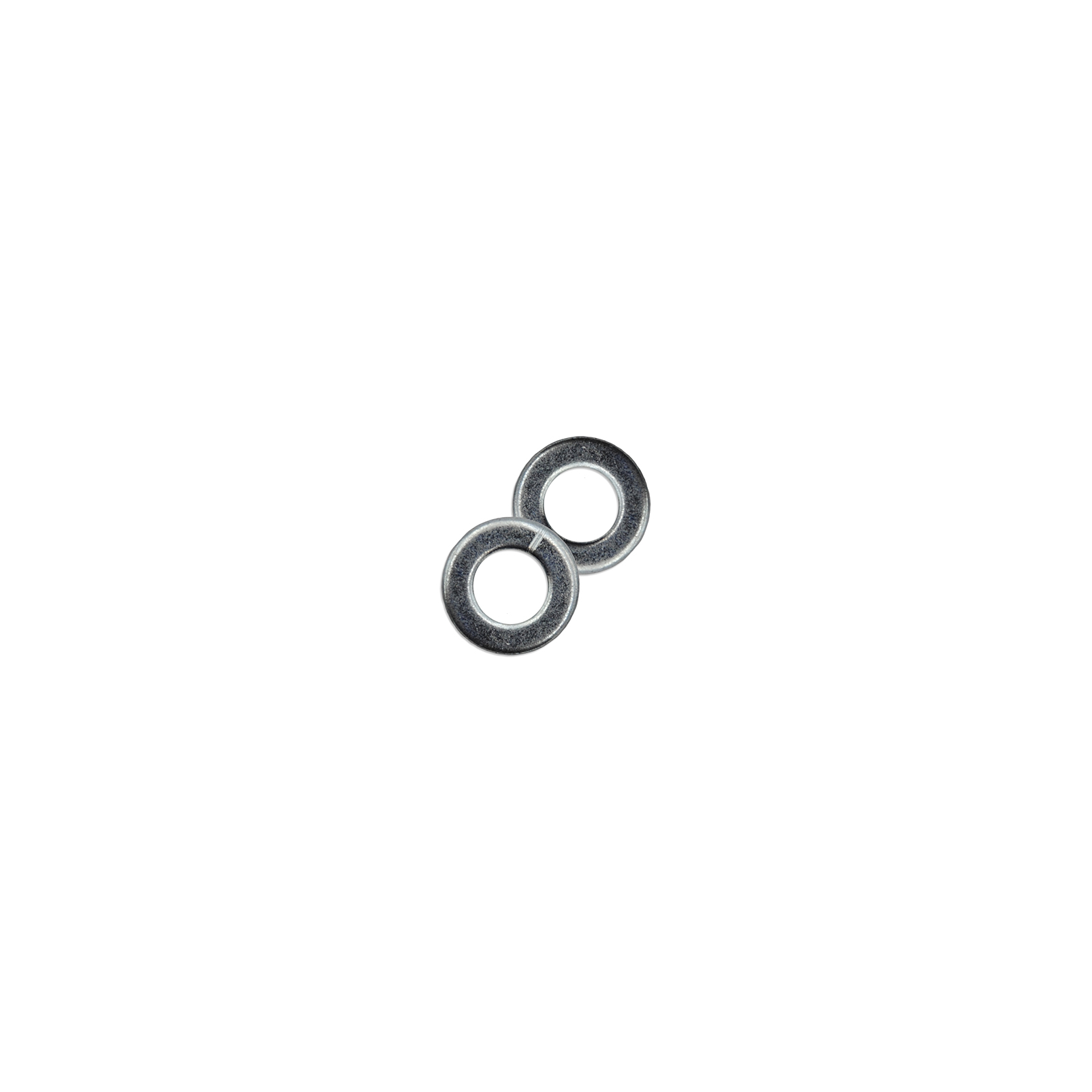

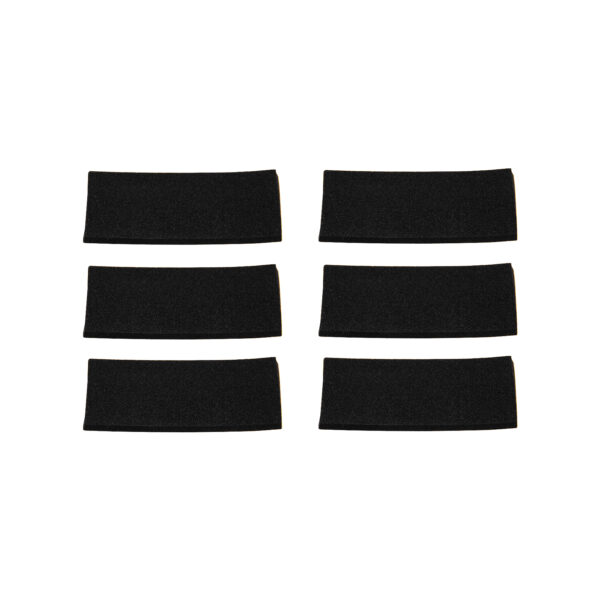

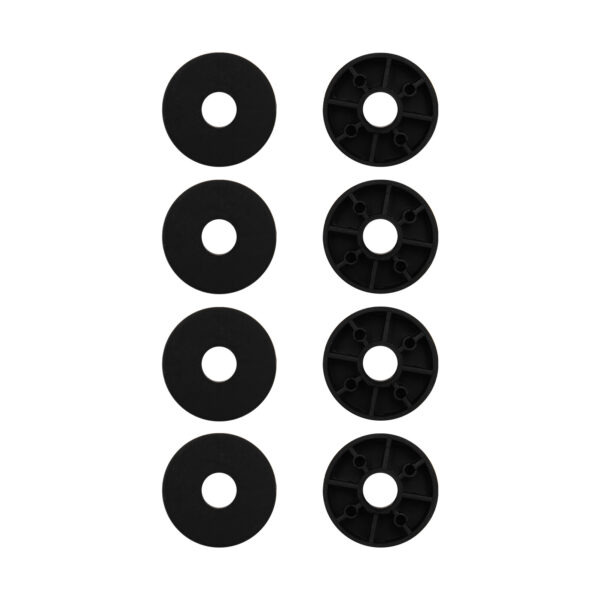

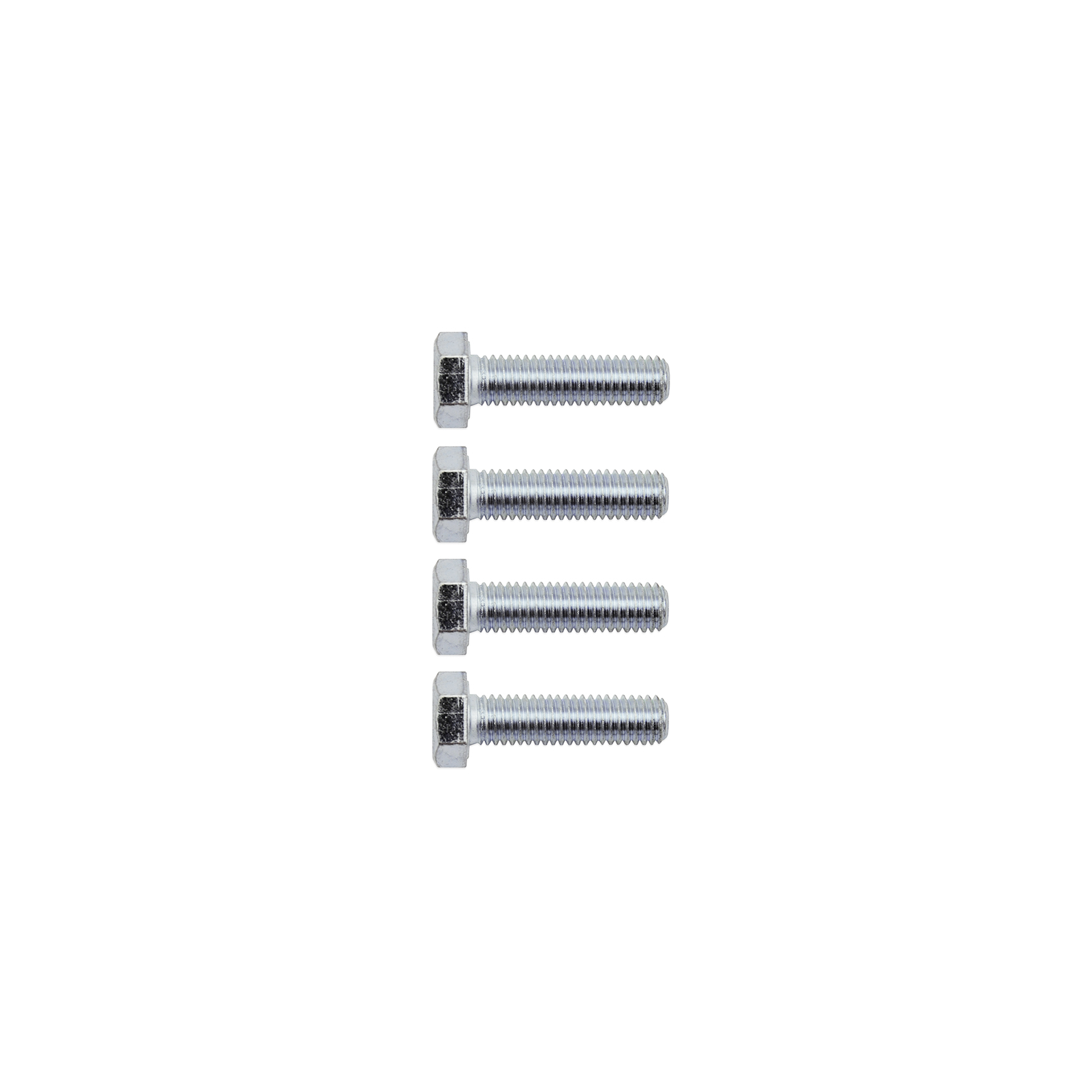

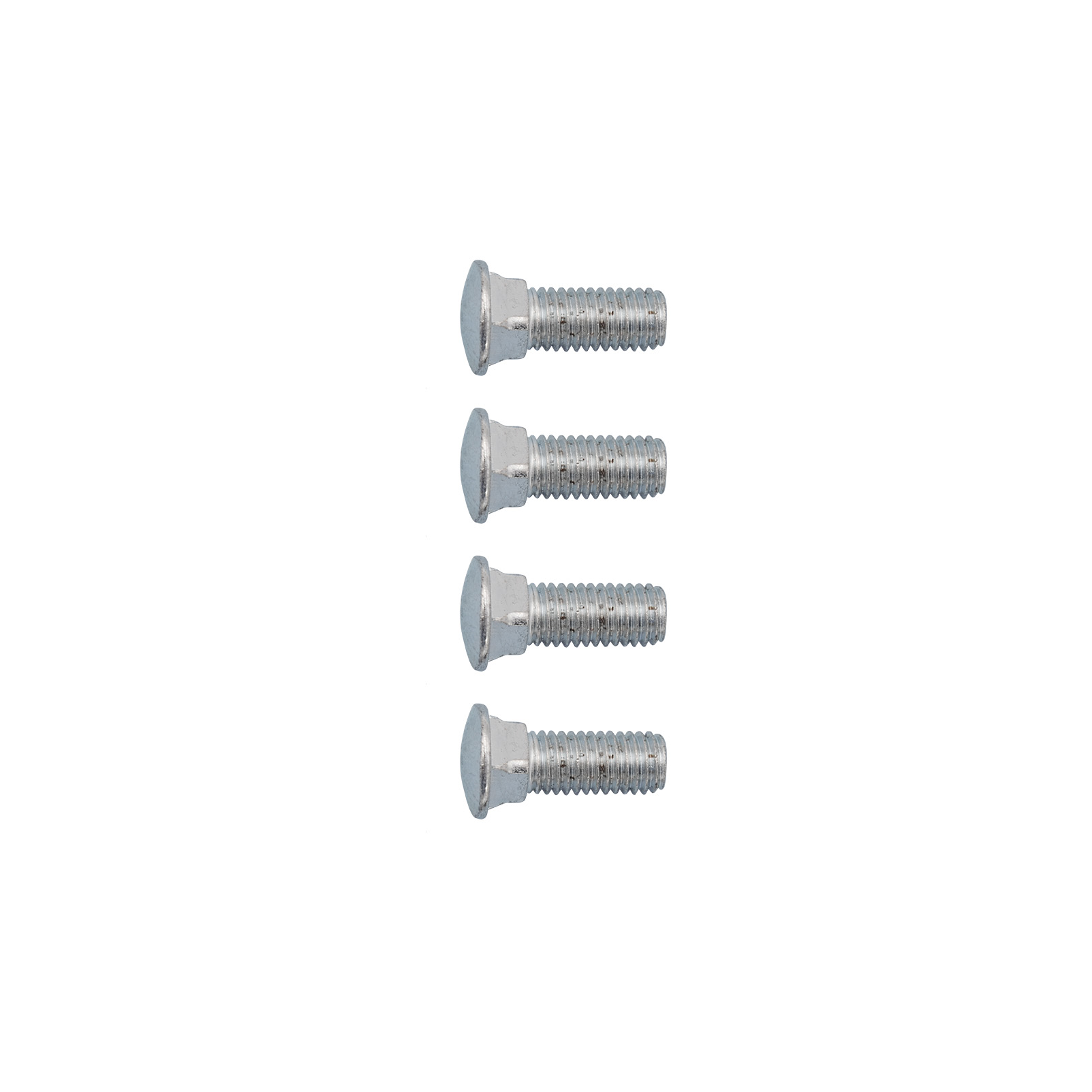

Complete with screwsdowels and rubber pads for assembly.

Technical Features

PAYLOAD 100 kg
CONSTRUCTION

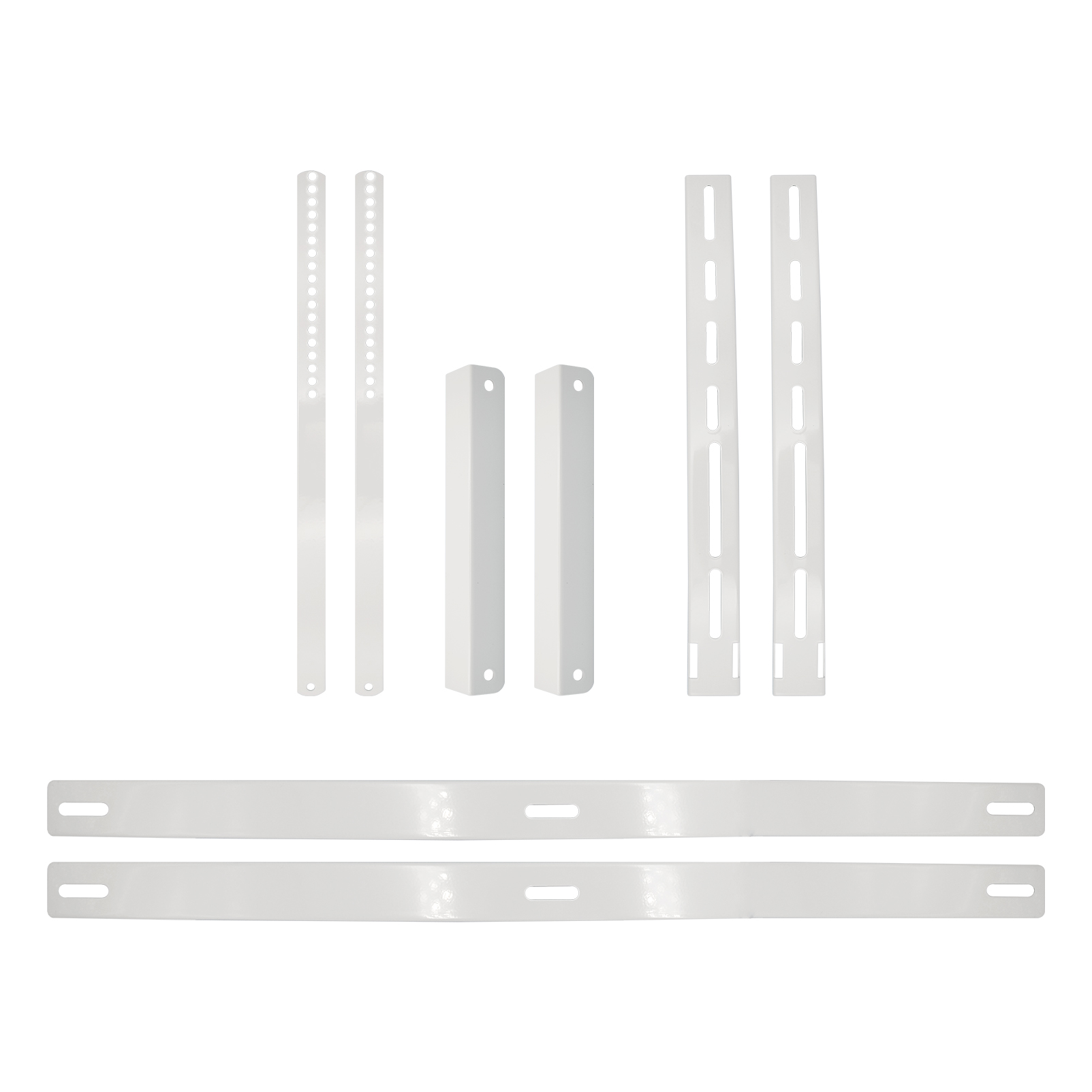

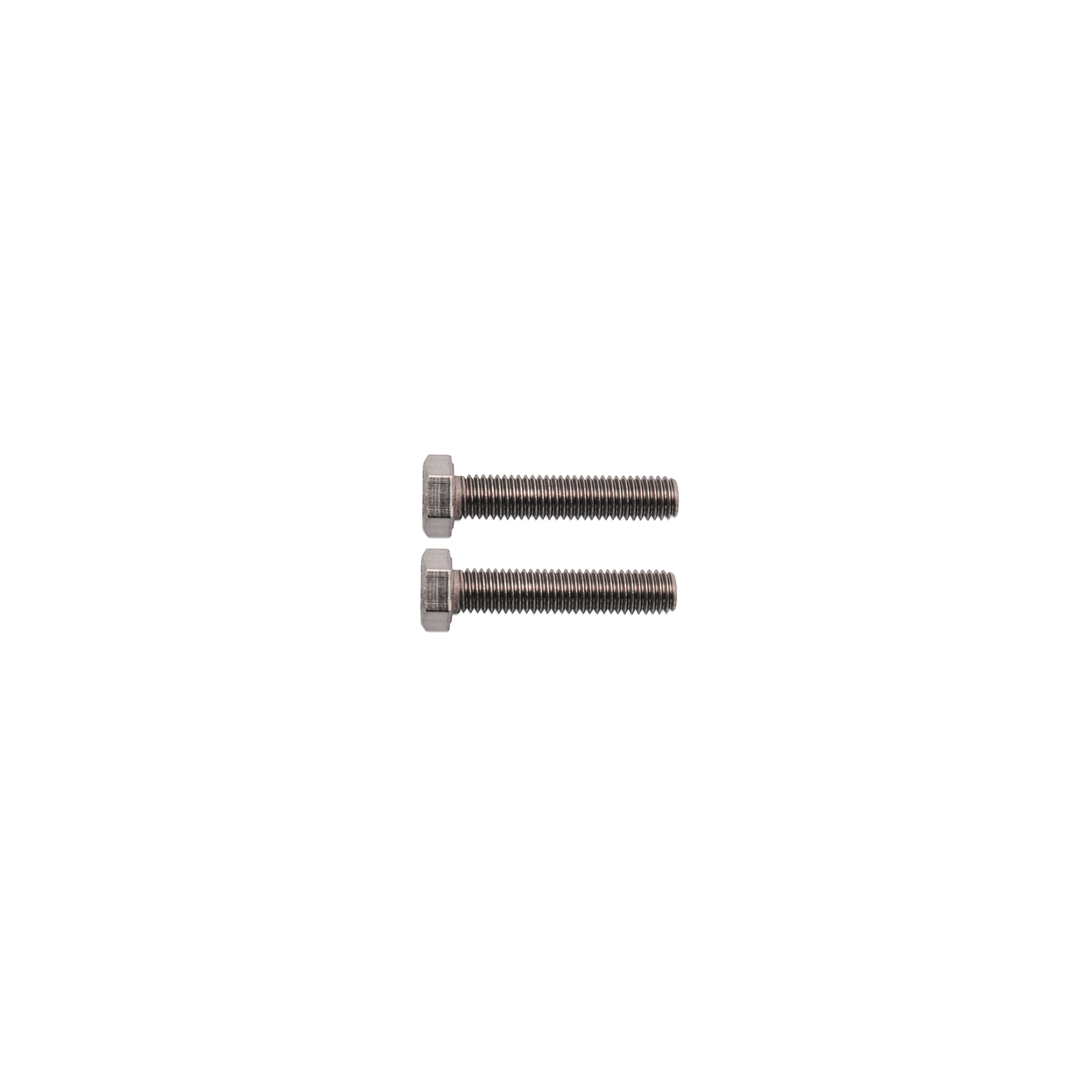

  • structure and bolts entirely in stainless steel, thickness 20/10sku 11117
  • structure and bolts in galvanized sheet metal 15/10, painted with epoxy powders, colour RAL 9002 - sku 11101
SKU 11101 DIMENSIONS 800x480 mm (WxD)
SKU 11117 DIMENSIONS 800x480 mm (WxD)
