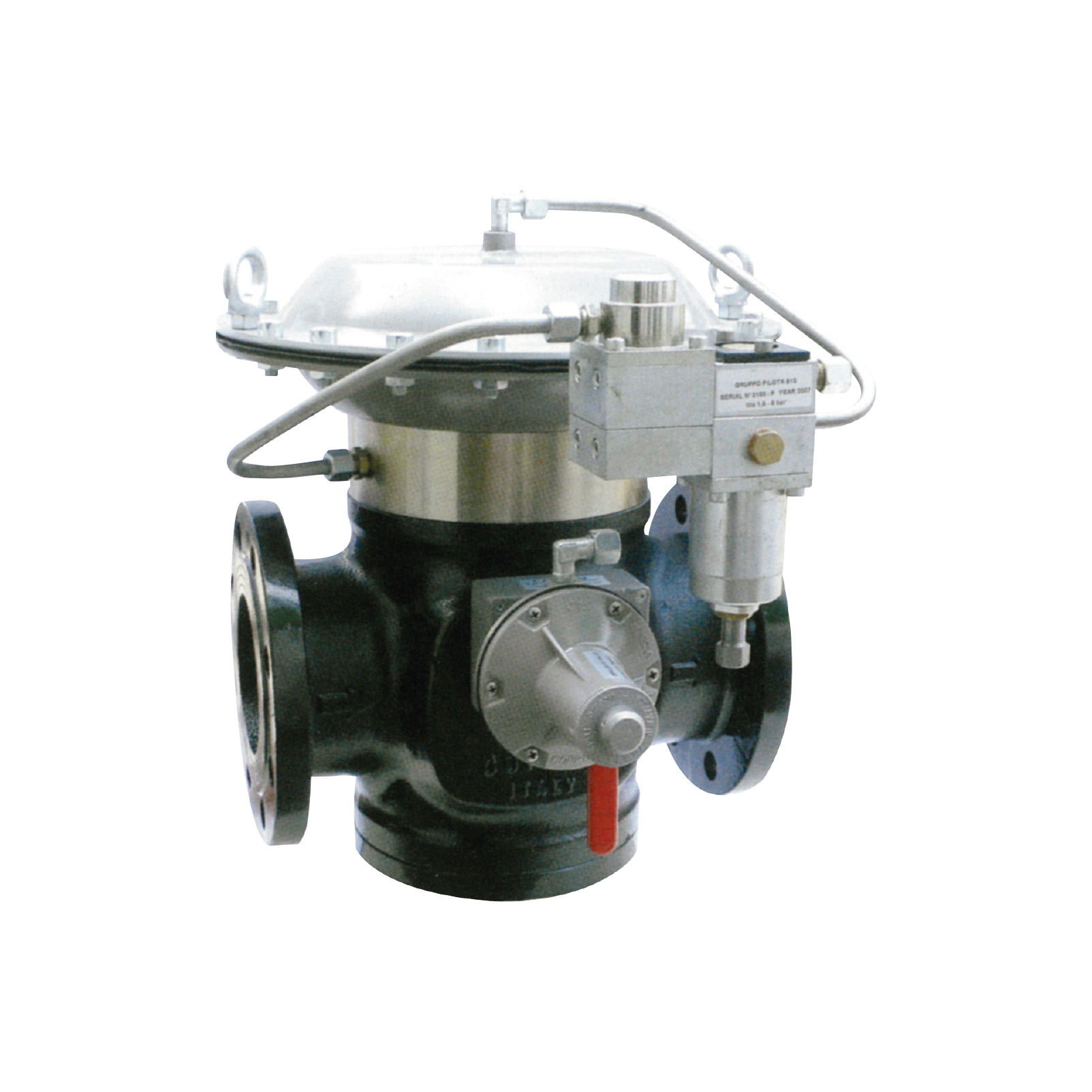

Piloted Regulators

Alfa 60 / 80 / 100 series, "fail close" regulation

INAIL CERTIFICATE 0100, MODULE H - H 1

FOR OTHER TECHNICAL DATA ON PRESSURES AND FLOW RATES, PLEASE CONTACT OUR TECHNICAL DEPARTMENT

ACCORDING TO THE EN 334 RULE

sku model price info add to cart

00000002661

REGULATOR SERIES ALFA 60 BP - DN 50 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002662

REGULATOR SERIES ALFA 60 MP - DN 50 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002663

REGULATOR SERIES ALFA 60 AP - DN 50 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002665

MINIMUM AND MAXIMUM PRESSURE SHUT-OFF VALVE FOR ALFA 60

€1.172,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000002667

REGULATOR SERIES ALFA 80 BP - DN 80 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002668

REGULATOR SERIES ALFA 80 MP - DN 80 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002669

REGULATOR SERIES ALFA 80 AP - DN 80 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002670

MINIMUM AND MAXIMUM PRESSURE SHUT-OFF VALVE FOR ALFA 80

€1.205,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

00000002671

REGULATOR SERIES ALFA 100 BP - DN 100 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002672

REGULATOR SERIES ALFA 100 MP - DN 100 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002673

REGULATOR SERIES ALFA 100 AP - DN 100 CONNECTIONS - BODY IN GS400

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002674

MINIMUM AND MAXIMUM PRESSURE SHUT-OFF VALVE FOR ALFA 100

€1.258,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099
Buy
Info Request

Product informations

"Fail close" pilot regulators (closing reaction), they close the gas transit in the event of:

  • pilot circuit power failure
  • break of the regulator main membrane



Technical Features

FLOW RATE
  • BP - sku 2661 / 2667 / 2671
  • MP - sku 2662 / 2668 / 2672
  • AP - sku 2663 / 2669 / 2673
ACCURACY CLASS RG up to 2.5 / SG ± 5%
INLET CONNECTION
  • DN 50 - sku 2661 / 2662 / 2663
  • DN 80 - sku 2667 / 2668 / 2669
  • DN 100 - sku 2671 / 2672 / 2673
OUTPUT CONNECTION
  • DN 50 - sku 2661 / 2662 / 2663
  • DN 80 - sku 2667 / 2668 / 2669
  • DN 100 - sku 2671 / 2672 / 2673
WORKING TEMPERATURE - 20°C ÷ + 60°C
MATERIALS
  • body: cast iron GS 400 *
  • header: steel
  • seals and membrane: NBR
  • stem and shutter: stainless steel

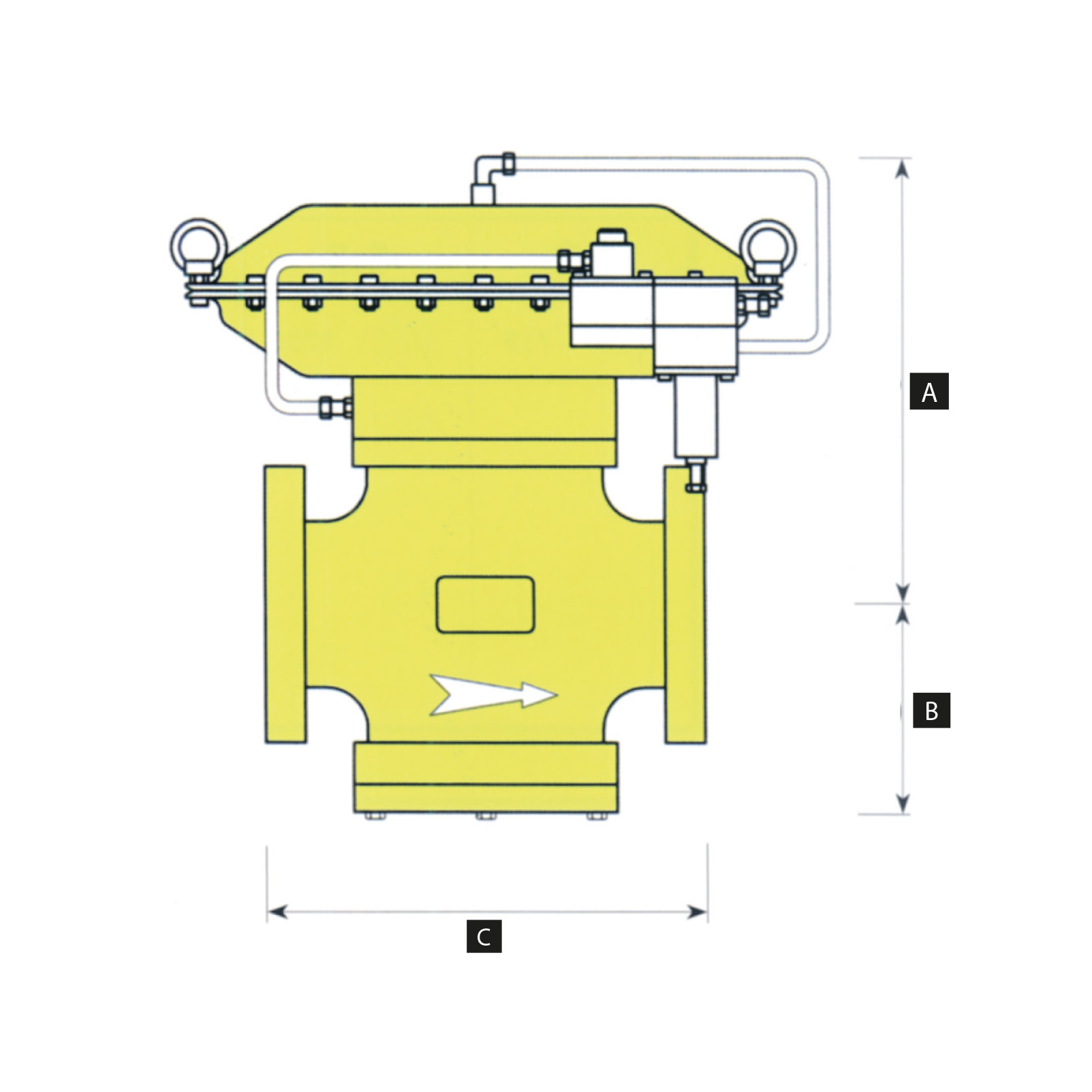

DIMENSIONS
  • 390 x 110 x 254 mm (AxBxC) - sku 2661 / 2662 / 2663
  • 455 x 140 x 298 mm (AxBxC) - sku 2667 / 2668 / 2669
  • 480 x 150 x 354 mm (AxBxC) - sku 2671 / 2672 / 2673

* Steel-body version also available upon request only.
