High Pressure Regulator

Model DIVAL 507 and 512

ACCORDING TO THE EN 334 RULE

sku model price info add to cart

00000002560

REGULATOR Mod. DIVAL 507 - IN 1" F - OUT 1" F

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

00000002570

REGULATOR Mod. DIVAL 512 - IN 1" F - OUT 1" 1/2 F

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84825099

 Info Request

0000002560B

REGULATOR Mod. DIVAL 507 - IN 1" F - OUT 1" F - WITH SHUT-OFF VALVE

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

0000002570B

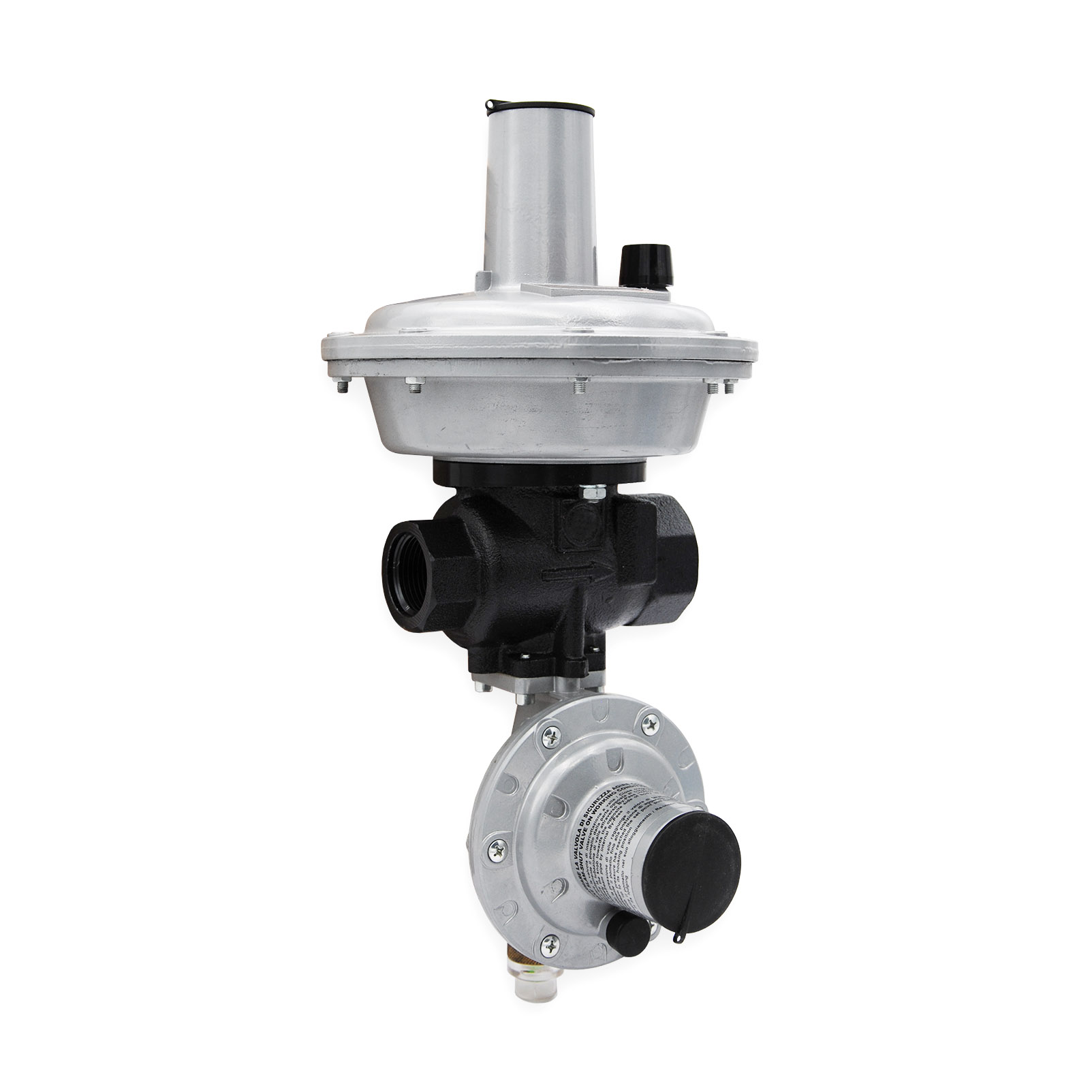

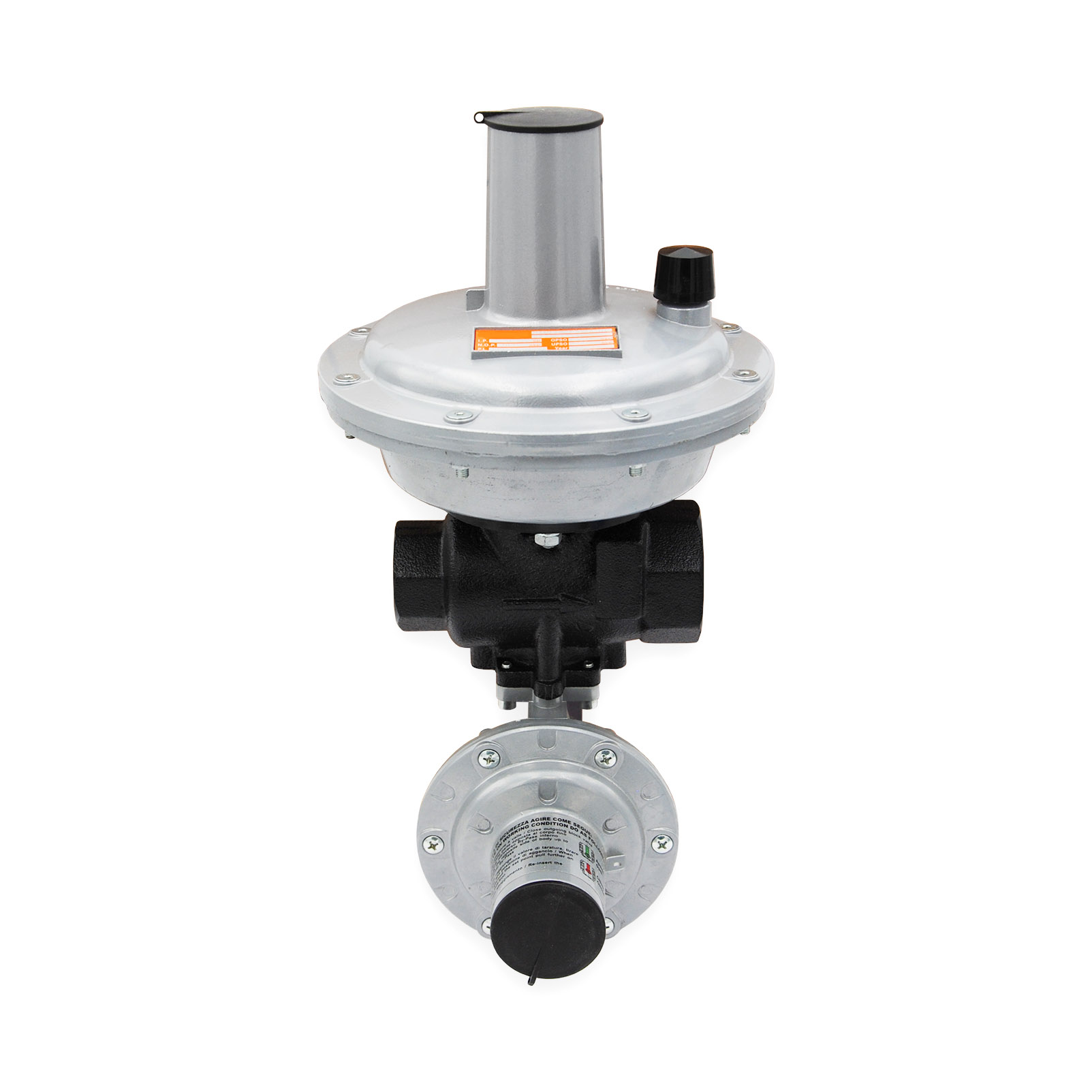

REGULATOR Mod. DIVAL 512 - IN 1" F - OUT 1" 1/2 F - WITH SHUT-OFF VALVE

on request

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
4,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

 Info Request

Product informations

High pressure regulator Mod. DIVAL 507 and 512 equipped with incorporated safety relief valve and internal sensing line, to be used with previously filtered not corrosive gases.

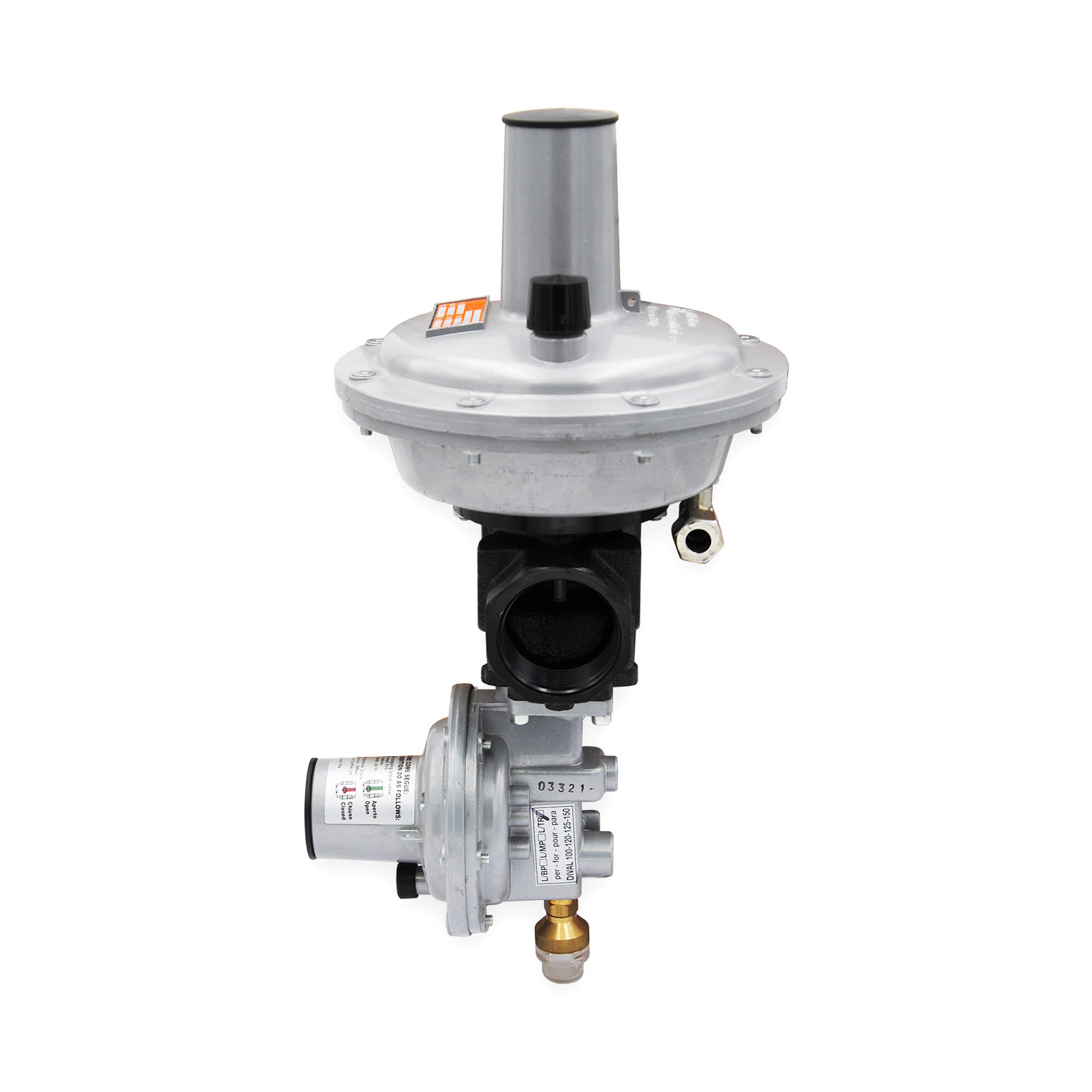

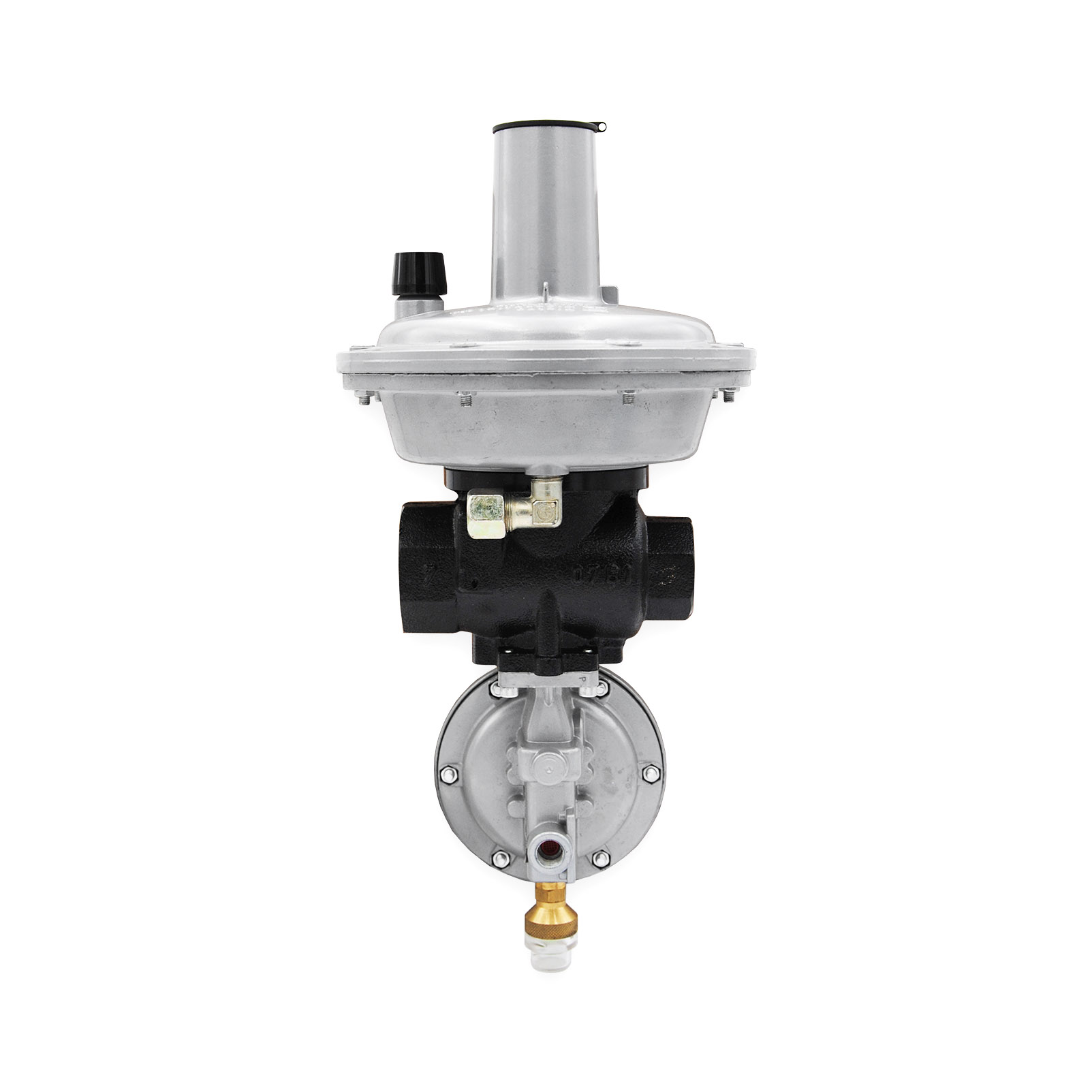

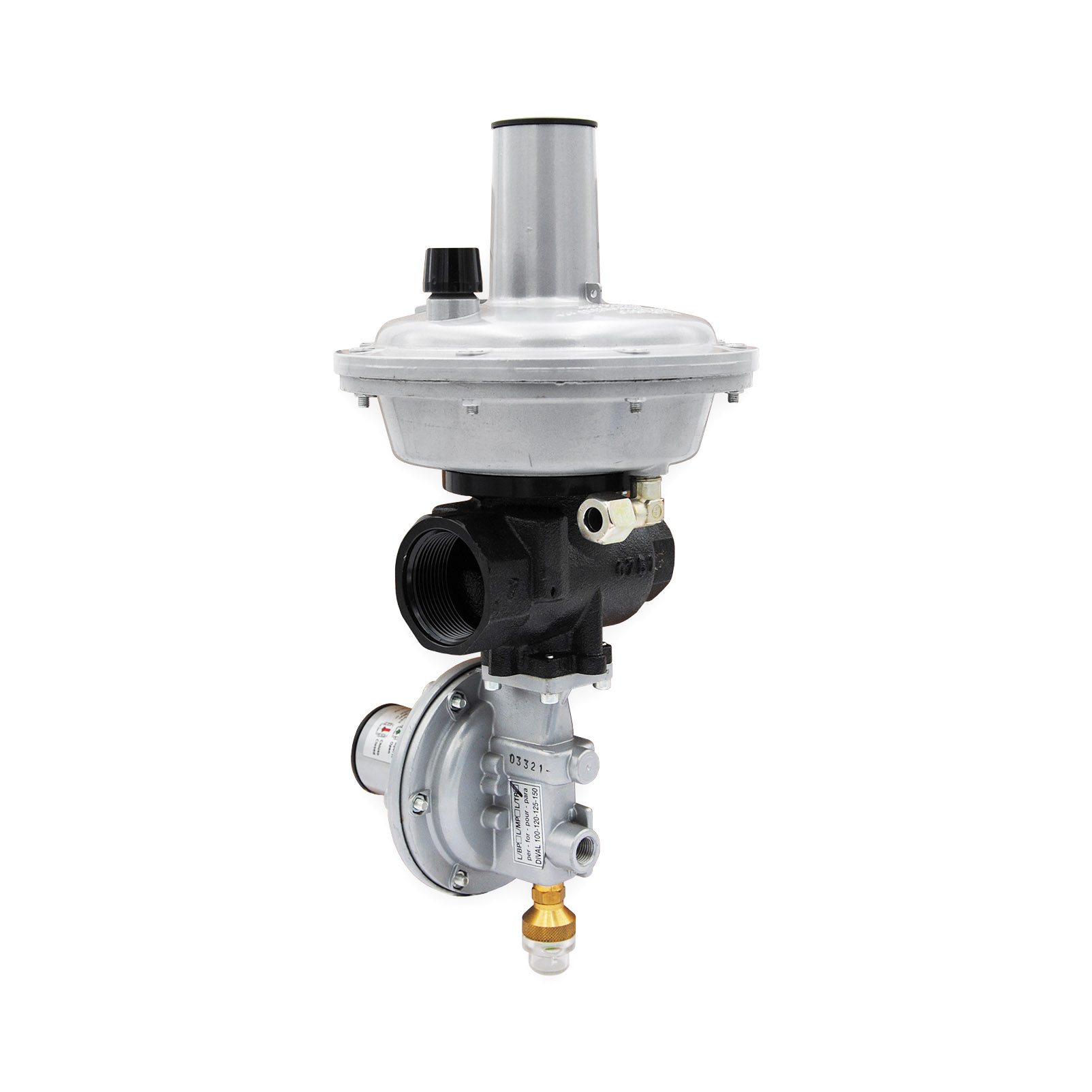

Also available in the version with shut-off valve for maximum and minimum downstream pressure (sku 2560B / 2570B).

Technical Features

SKU MODEL FLOW RATE CONNECTIONS VENT VALVE DIAMETER INLET PRESSURE OUTPUT PRESSURE RANGE STANDARD PRESSURE ROOM TEMPERATURE MATERIALS DIMENSIONS
2560 DIVAL 507 60 kg/h - 50 m3/h IN 1" F - OUT 1" F Ø 1/4" F 18 bar 0,3 ÷ 2 bar 0,5 bar - 20°C ÷ + 50°C
  • body: GS 400 cast iron
  • header: aluminum
  • seat: brass
  • membrane: rubber with fabric finish
  • O-ring: nitrile rubber

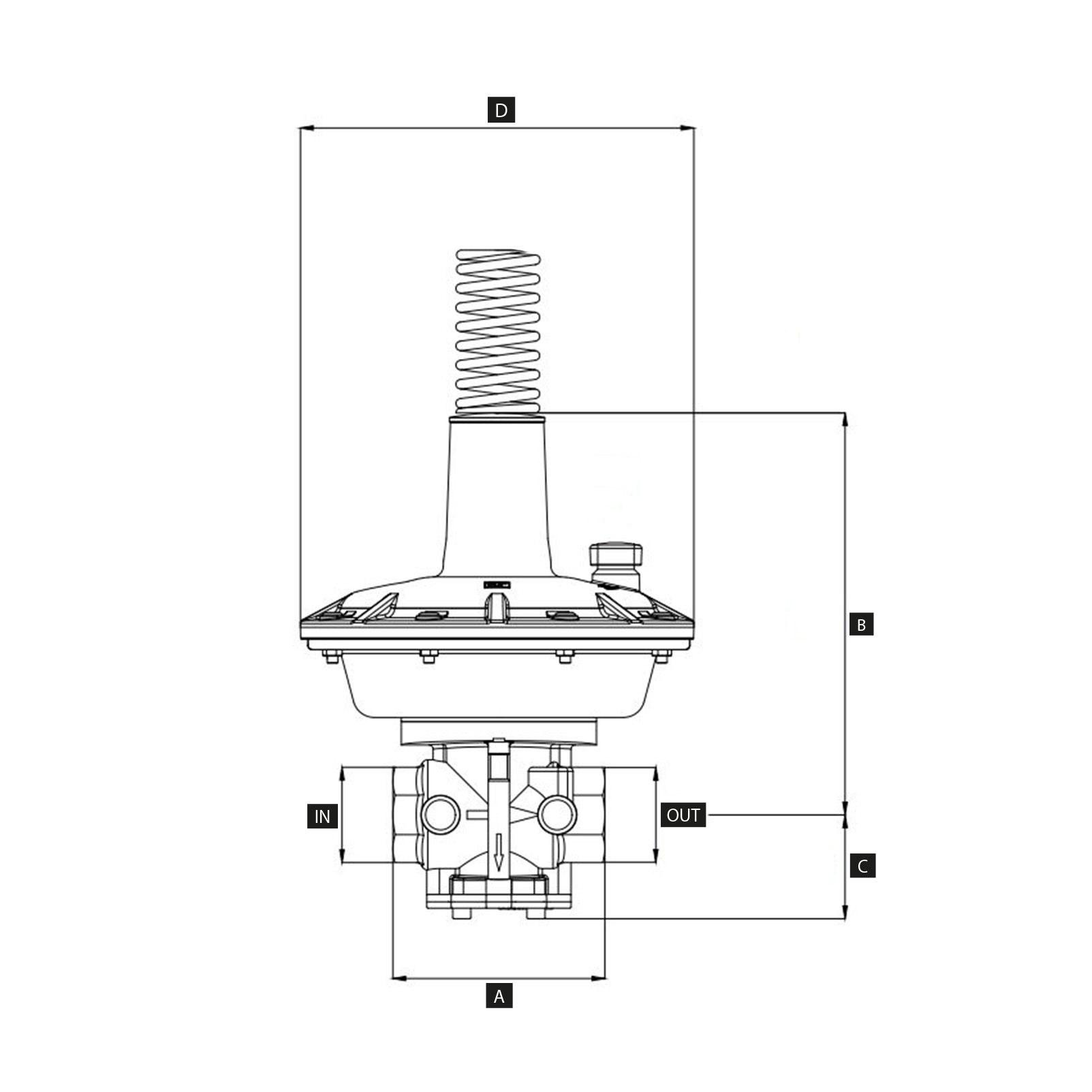

 100 x 190 x 49 x 185,5 mm (AxBxCxD)

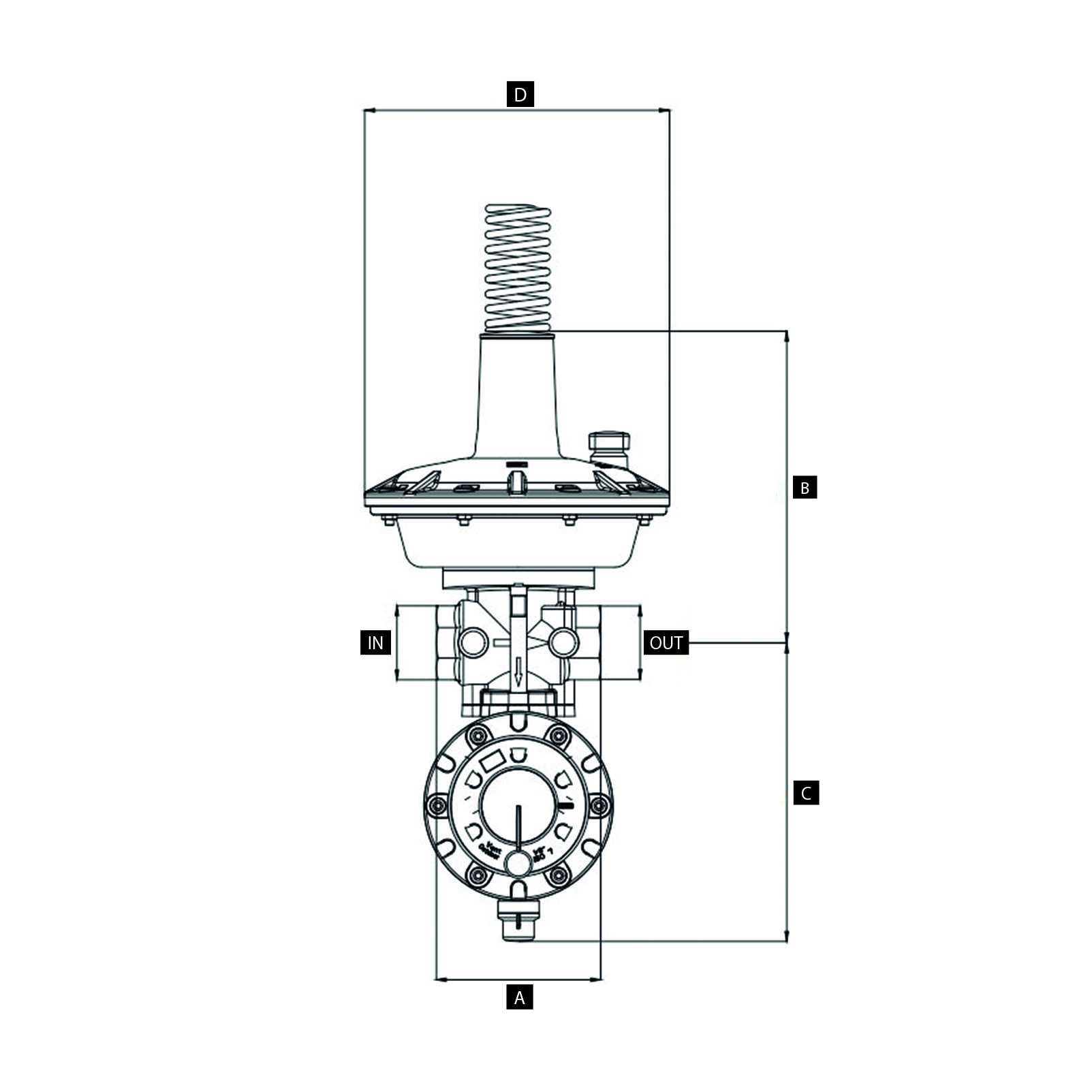

2560B DIVAL 507 with shut-off valve 60 kg/h - 50 m3/h 100 x 190 x 185 x 185,5 mm (AxBxCxD)
2570 DIVAL 512 120 kg/h - 100 m3/h IN 1" F - OUT 1" 1/2 F 129 x 257 x 55 x 185,5 mm (AxBxCxD)
2570B DIVAL 512 with shut-off valve 120 kg/h - 100 m3/h 129 x 194 x 185 x 185,5 mm (AxBxCxD)
