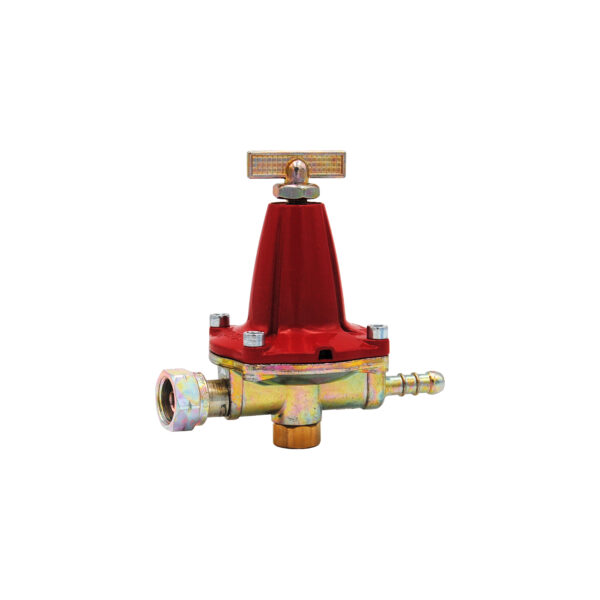

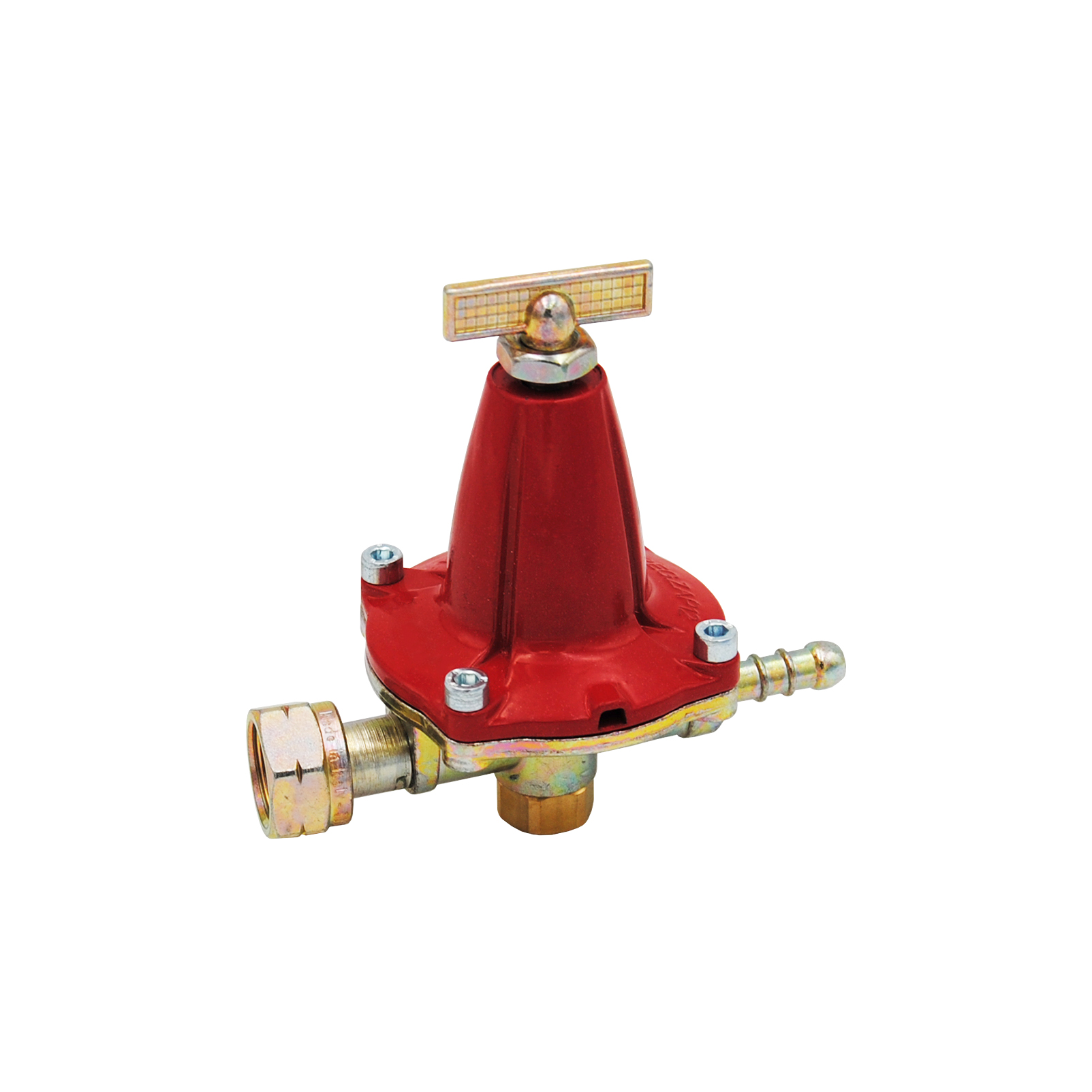

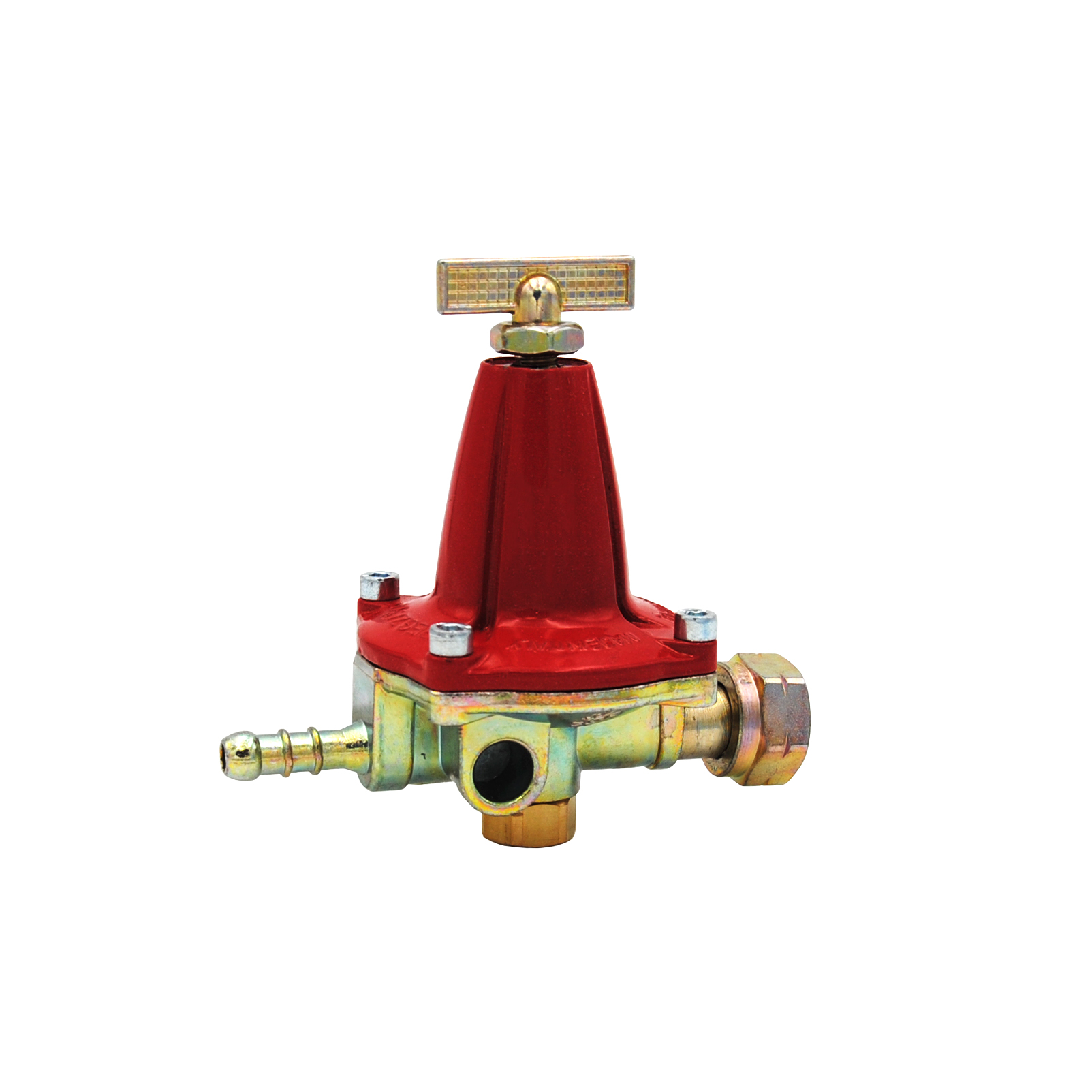

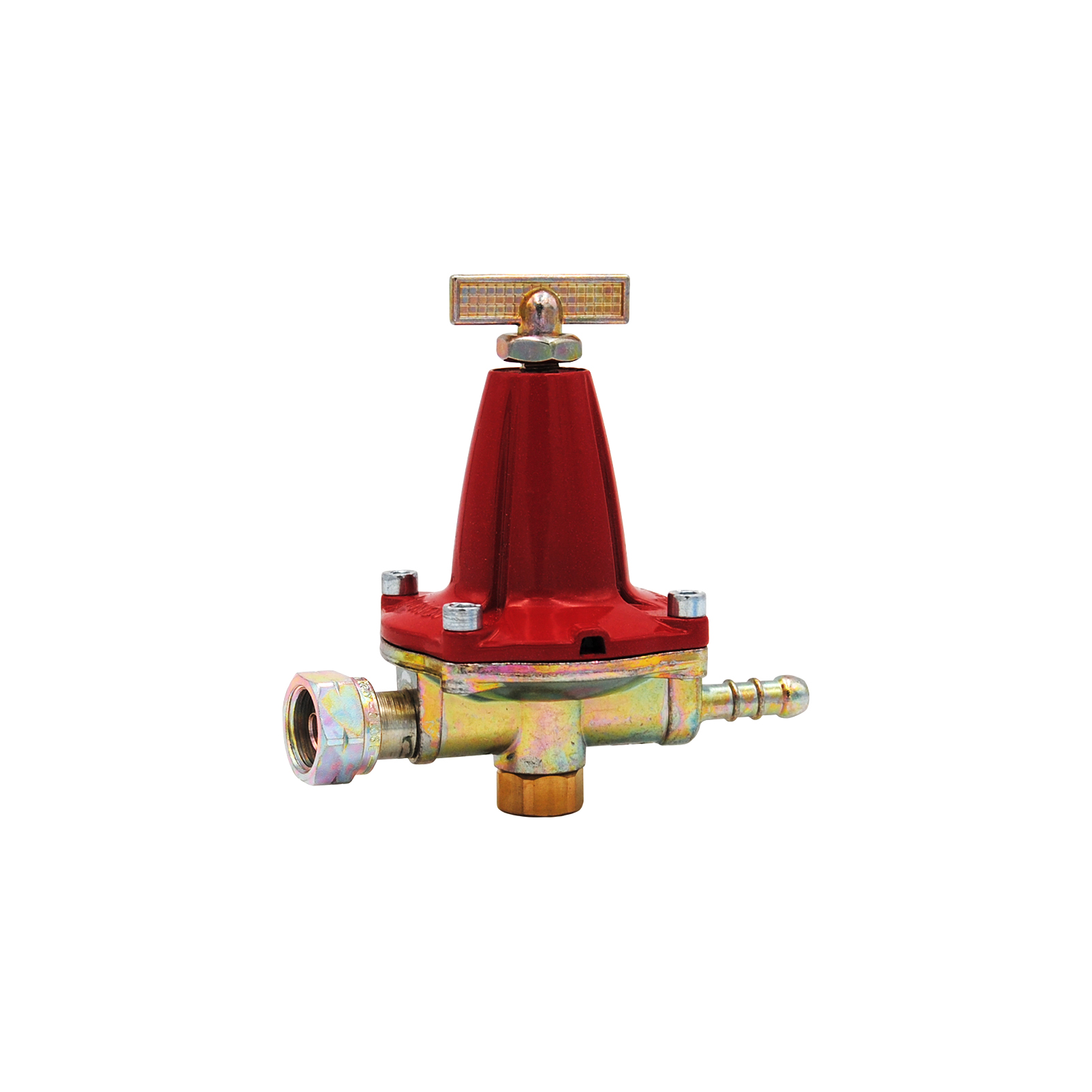

High Pressure Regulator
APZ 12 model, flow rate 12kg/h
COMPLIANT WITH EN 16129 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000000925 |
HIGH PRESSURE REGULATOR Mod. APZ 12 - IN left nut Ch 25 H16 - OUT LPG hose nozzle - flow rate 12 kg/h |
€30,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
High pressure regulator Mod. APZ 12, designed to make the gas pressure at the outlet of a tank suitable for the downstream user.
Technical Features
| TYPES OF GAS | LPG |
|---|---|
| FLOW RATE | 12 kg/h |
| OPERATING TEMPERATURE | - 20°C ÷ + 50°C |
| INLET PRESSURE | 0,5 ÷ 16 bar |
| OUTLET PRESSURE | 0 ÷ 4 bar - external setting |
| CONNECTIONS | IN left nut Ch 25 H16 - OUT LPG hose nozzle |
