Medium Pressure Regulator
Alfa 30 MP series, with balanced direct action regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002438 |
ALFA 30 MP SERIES REGULATOR - DN 25 - DN 20 CONNECTION |
€670,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002440 |
ALFA 30 MP SERIES REGULATOR - DN 25 - DN 20 CONNECTION - WITH BLOCK |
€1.026,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

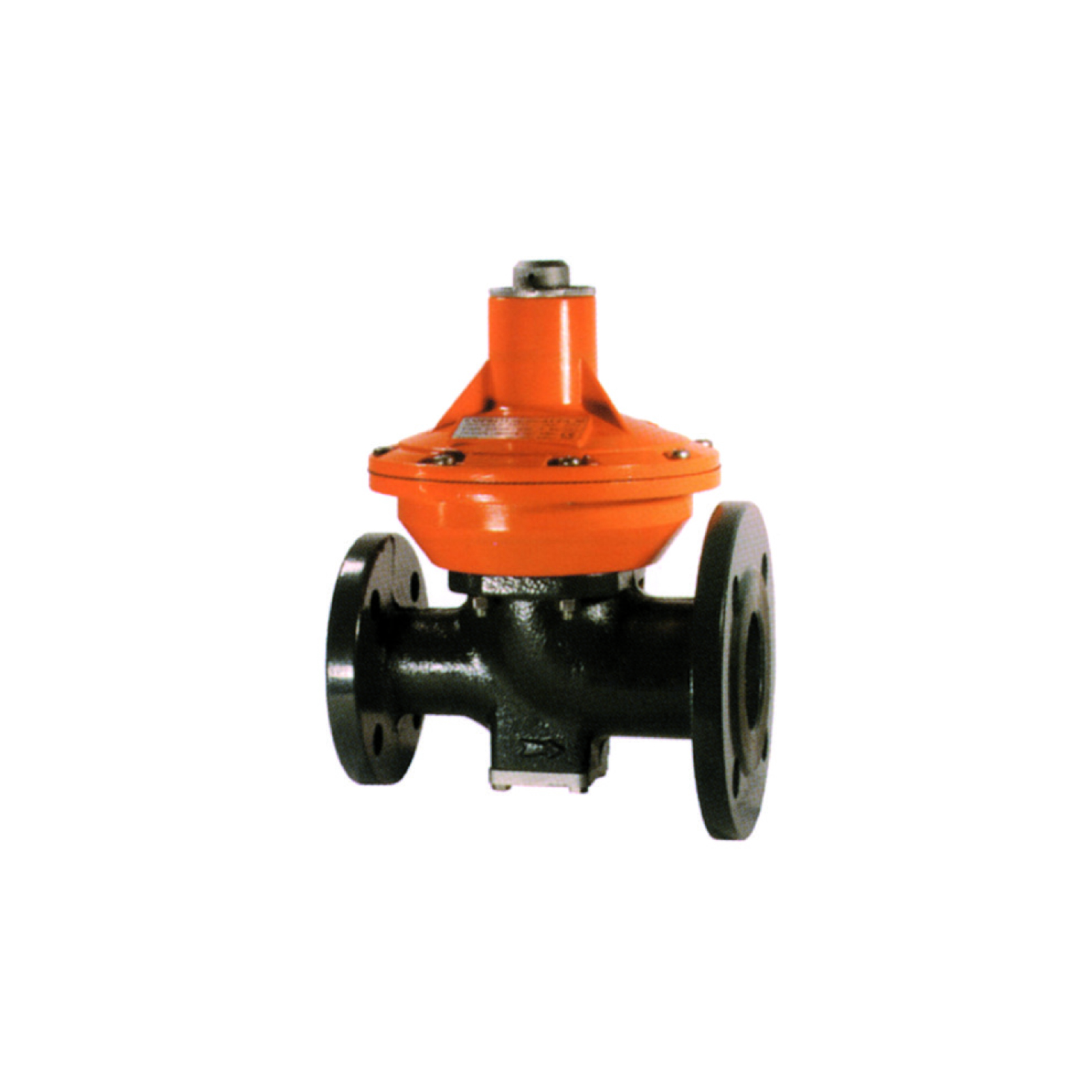

Alfa 30 MP series regulator with balanced direct action, equipped with external sensing line and safety relief valve; suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2440).

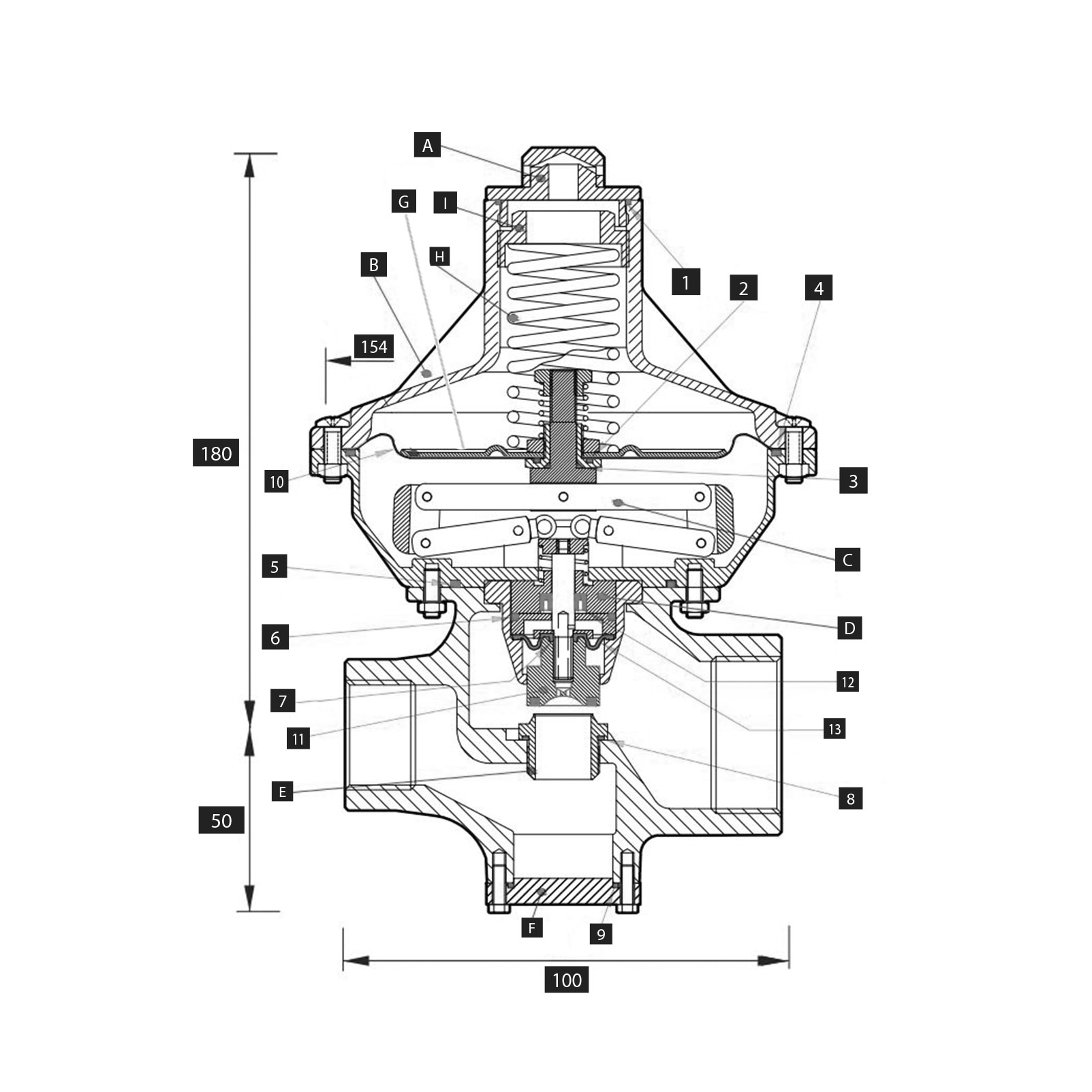

| REGULATOR STRUCTURE | |
|---|---|
| 1 | O-ring |
| 2 | O-ring |
| 3 | O-ring |
| 4 | O-ring |
| 5 | O-ring |
| 6 | O-ring |
| 7 | O-ring |
| 8 | O-ring |
| 9 | O-ring |
| 10 | membrane |
| 11 | pill |
| 12 | lip ring |
| 13 | balancing membrane |
| A | plastic cap + O-ring |
| B | complete header |
| C | full leverage |
| D | complete block |
| E | shutter seat + O-ring |
| F | bottom plate + O-ring + screws |
| G | diaphragm protective plate |
| H |
|
| I | adjustment ferrule |
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 25 |
| OUTLET CONNECTION | DN 40 |
| INLET PRESSURE | 0.5 ÷ 5 bar |
| OUTLET PRESSURE | 95 ÷ 450 mbar |
| STANDARD OUTLET PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 10 |
| MATERIALS |
|
| DIMENSIONS | 180 x 180 x 76 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | |||
|---|---|---|---|---|
| 0,5 Bar | 1 Bar | 1,5 Bar | ||
| OUTLET PRESSURE | 0,11 Bar | 93 m3/h | 133 m3/h | 207 m3/h |
| 0,15 Bar | 84 m3/h | 128 m3/h | 205 m3/h | |
| 0,20 Bar | 70 m3/h | 121 m3/h | 202 m3/h | |
| 0,30 Bar | - | 103 m3/h | 195 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
