Medium Pressure Regulator
Alfa 80 MP series, with balanced direct action regulation
ACCORDING TO THE EN 334 RULE
sku | model | price | info | add to cart | |
---|---|---|---|---|---|
|
00000002632 |
ALFA 80 MP SERIES REGULATOR - DN 80 - DN 80 CONNECTION |
€5.795,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000002634 |
ALFA 80 MP SERIES REGULATOR - DN 80 - DN 80 CONNECTION - WITH BLOCK |
€7.068,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

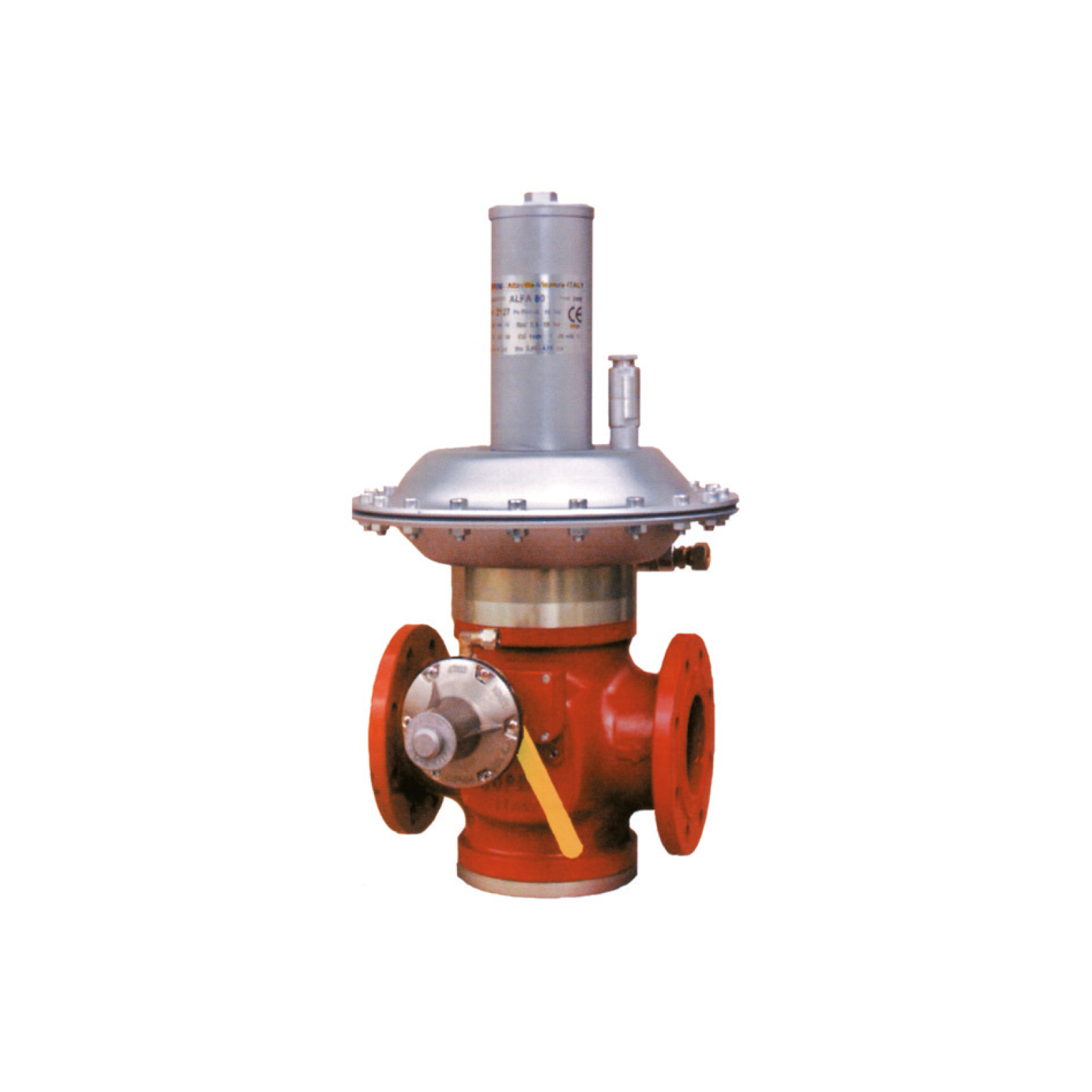

Alfa 80 MP series regulator with balanced direct action, equipped with external sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2632).
Technical Features
FLOW RATE | see table underlying |
---|---|
INLET CONNECTION | DN 80 |
OUTPUT CONNECTION | DN 80 |
INLET PRESSURE | 0,5 ÷ 5 bar |
OUTPUT PRESSURE | 0,2 ÷ 1 bar |
STANDARD OUTPUT PRESSURE | on request |
WORKING TEMPERATURE | - 20°C ÷ + 60°C |
EXTERNAL SENSING LINE | Ø 14 |
MATERIALS |
|

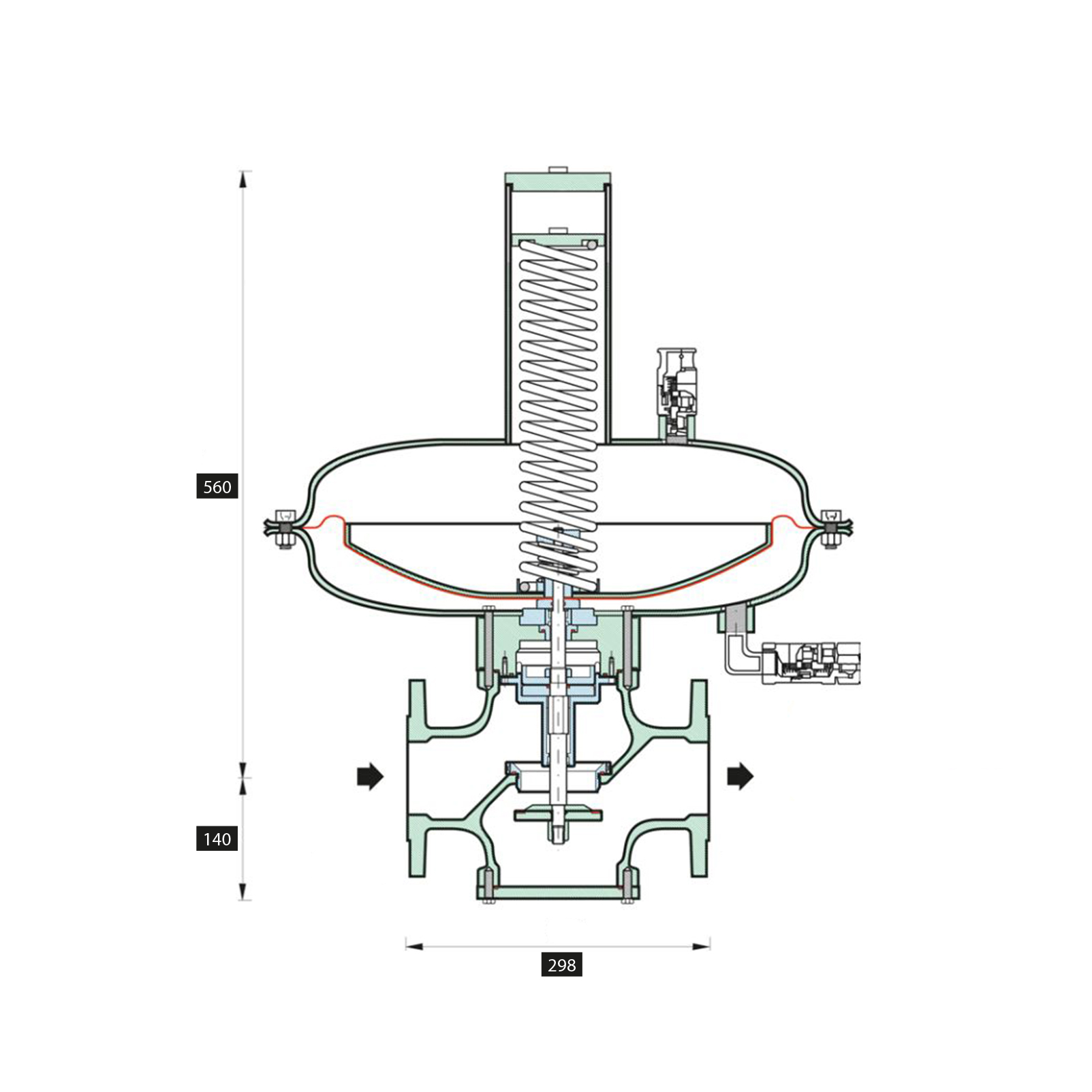

DIMENSIONS | 560 x 298 x 140 mm |
FLOW RATE TABLE M3/H | INLET PRESSURE | |||
---|---|---|---|---|
0,5 Bar | 1 Bar | 1,5 Bar | ||
OUTLET PRESSURE | 0,2 Bar | 1255 m3/h | 2089 m3/h | 2754 m3/h |
0,3 Bar | 1066 m3/h | 2017 m3/h | 2717 m3/h | |
0,5 Bar | - | 1815 m3/h | 2612 m3/h | |
0,7 Bar | - | 1493 m3/h | 2457 m3/h | |
1 Bar | - | - | 2092 m3/h |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
