Medium Pressure Regulator

Alfa 60 MP series, with balanced direct action regulation

ACCORDING TO THE EN 334 RULE

	sku	model	price	info	add to cart
	00000002620	ALFA 60 MP SERIES REGULATOR - DN 50 - DN 50 CONNECTION	€4.750,00 Excl. Taxes	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Medium Pressure Regulator quantity Buy Info Request
	00000002622	ALFA 60 BP SERIES REGULATOR - DN 50 - DN 50 CONNECTION - WITH BLOCK	€6.004,00 Excl. Taxes	Physical data UM Base: NR Dimension: N/A Volume: 0 m³ Weight: 0,00 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Medium Pressure Regulator quantity Buy Info Request

Product informations

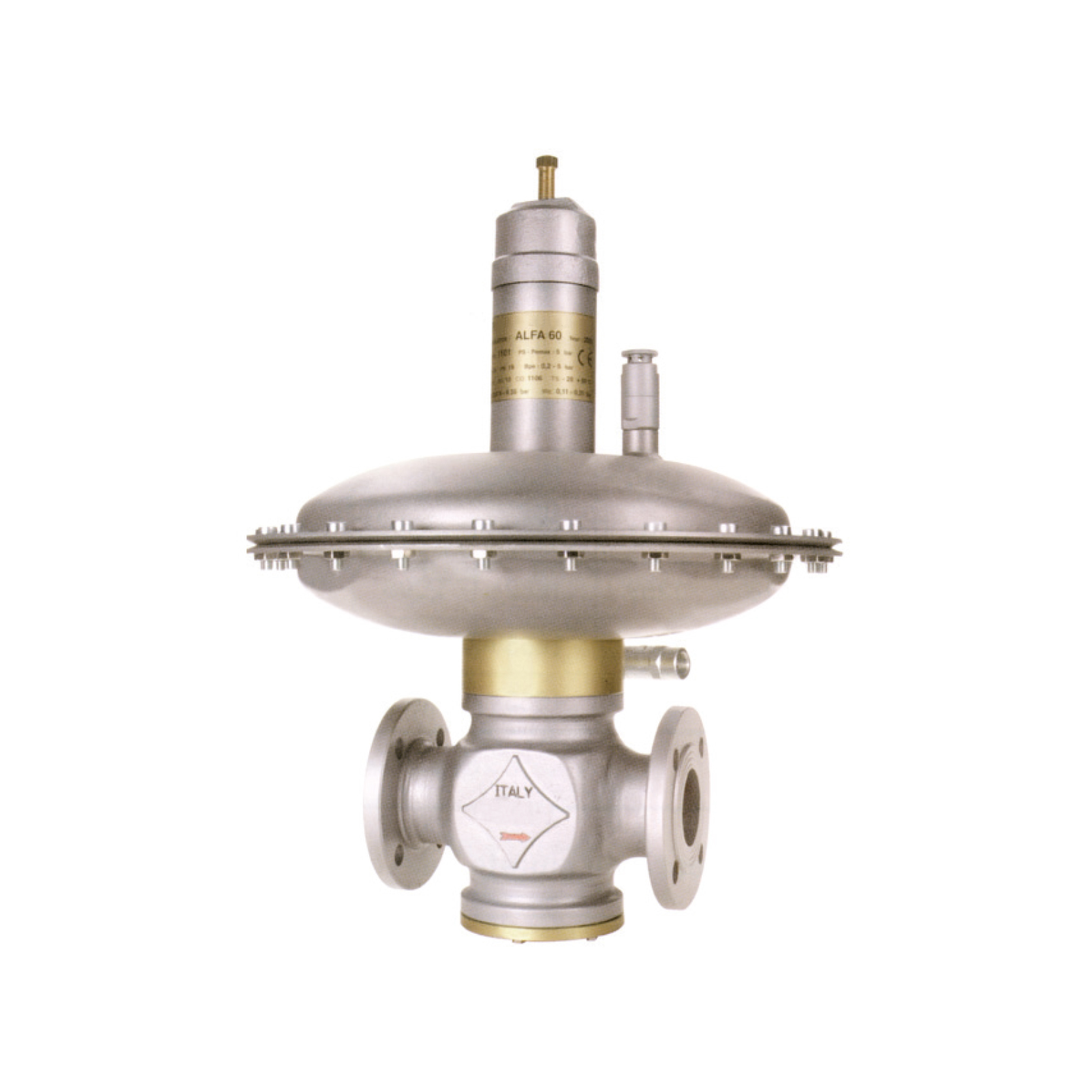

Alfa 60 MP series regulator with balanced direct action, equipped with internal sensing line, suitable for the use of not corrosive gases as methane and LPG.

Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2622).

Technical Features

FLOW RATE	*see table underlying*
INLET CONNECTION	DN 50
*OUTPUT CONNECTION*	DN 50
*INLET PRESSURE*	0,5 ÷ 5 bar
*OUTPUT PRESSURE*	0,2 ÷ 1 bar
*STANDARD OUTPUT PRESSURE*	on request
*WORKING TEMPERATURE*	- 20°C ÷ + 60°C
*EXTERNAL SENSING LINE*	Ø 14
*MATERIALS*	body: GS 400 cast iron header: steel seal: nitrile rubber NBR or HNBR membrane: sandwich rubberized fabric

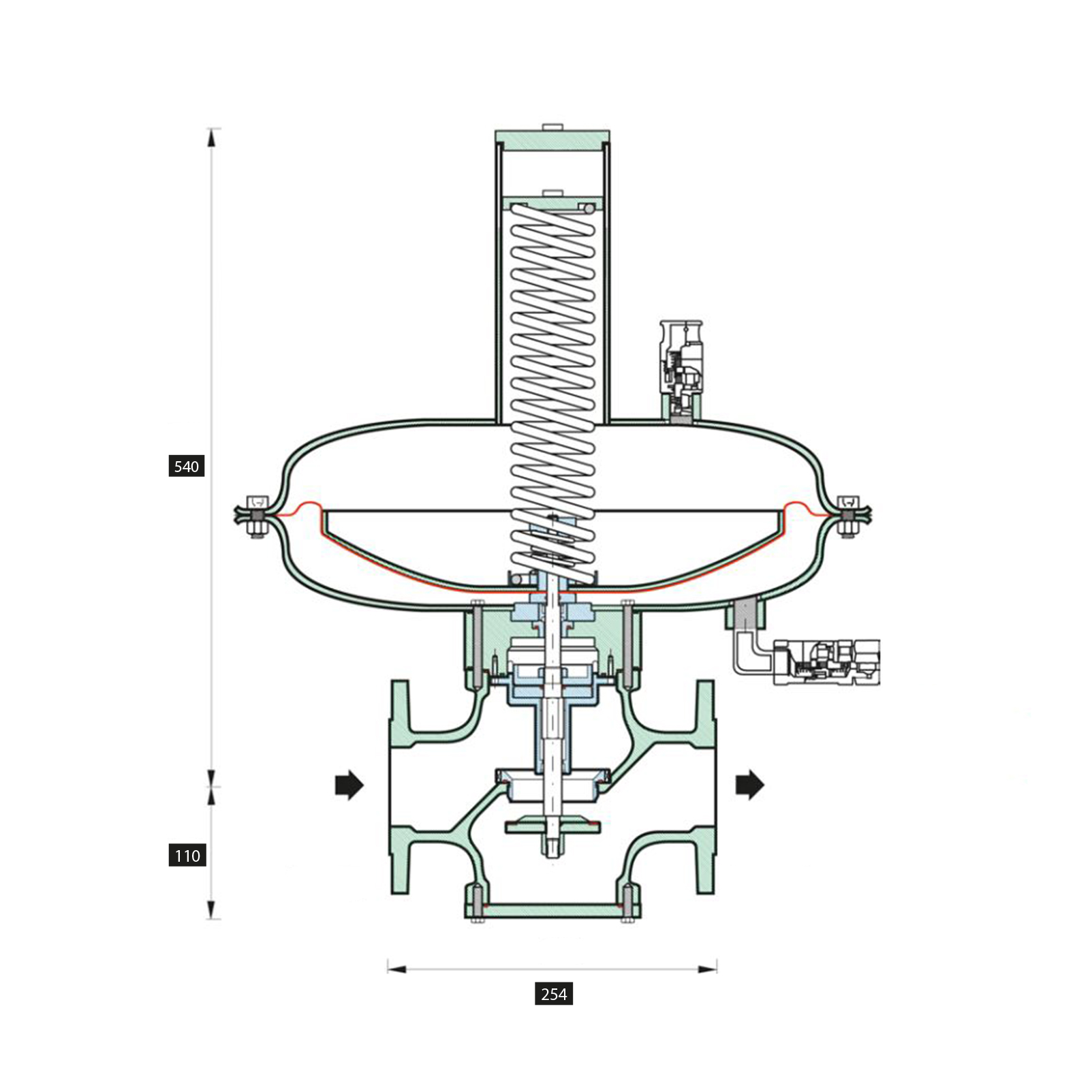

*DIMENSIONS*	540 x 254 x 110 mm

FLOW RATE TABLE M³/H		*INLET PRESSURE*
FLOW RATE TABLE M³/H		0,5 Bar	1 Bar	1,5 Bar
OUTLET PRESSURE	0,2 Bar	826 m³/h	1375 m³/h	1812 m³/h
	0,3 Bar	702 m³/h	1328 m³/h	1788 m³/h
	0,5 Bar	-	1194 m³/h	1719 m³/h
	0,7 Bar	-	983 m³/h	1617 m³/h
	1 Bar	-	-	1376 m³/h

To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
