High Pressure Regulator
Alfa 60 AP series, with balanced direct action regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002624 |
ALFA 60 AP SERIES REGULATOR - DN 50 - DN 50 CONNECTION |
€4.750,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002626 |
ALFA 60 AP SERIES REGULATOR - DN 50 - DN 50 CONNECTION - WITH BLOCK |
€6.241,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

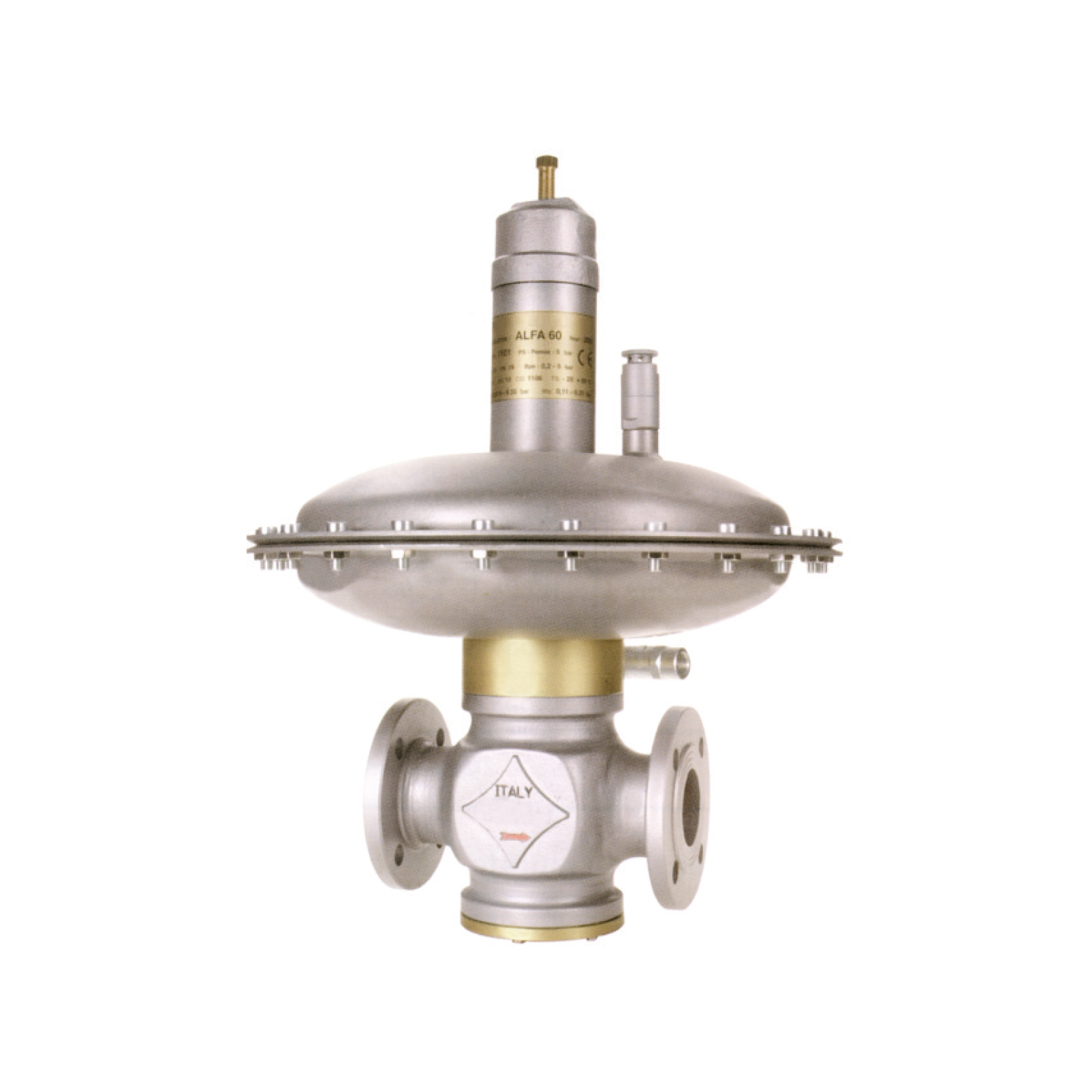

Alfa 60 AP series regulator with balanced direct action, equipped with internal sensing line, suitable for the use of not corrosive gases as methane and LPG.

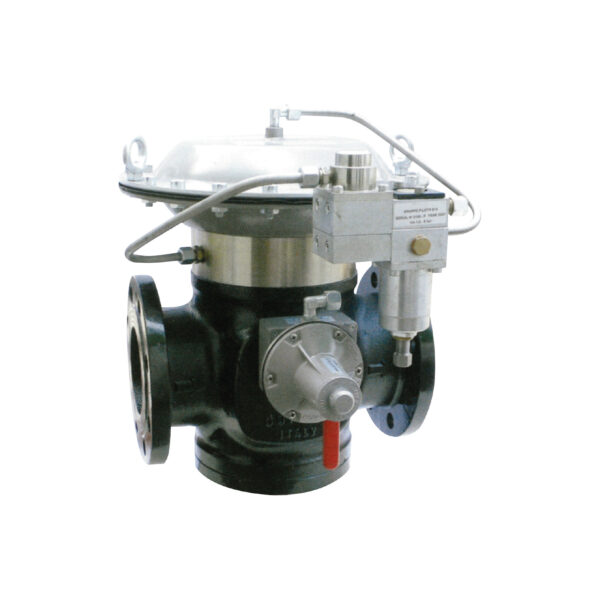

Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2626).
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 50 |
| OUTPUT CONNECTION | DN 50 |
| INLET PRESSURE | max 18 bar |
| OUTPUT PRESSURE | 0,8 ÷ 4 bar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 14 |
| MATERIALS |
|

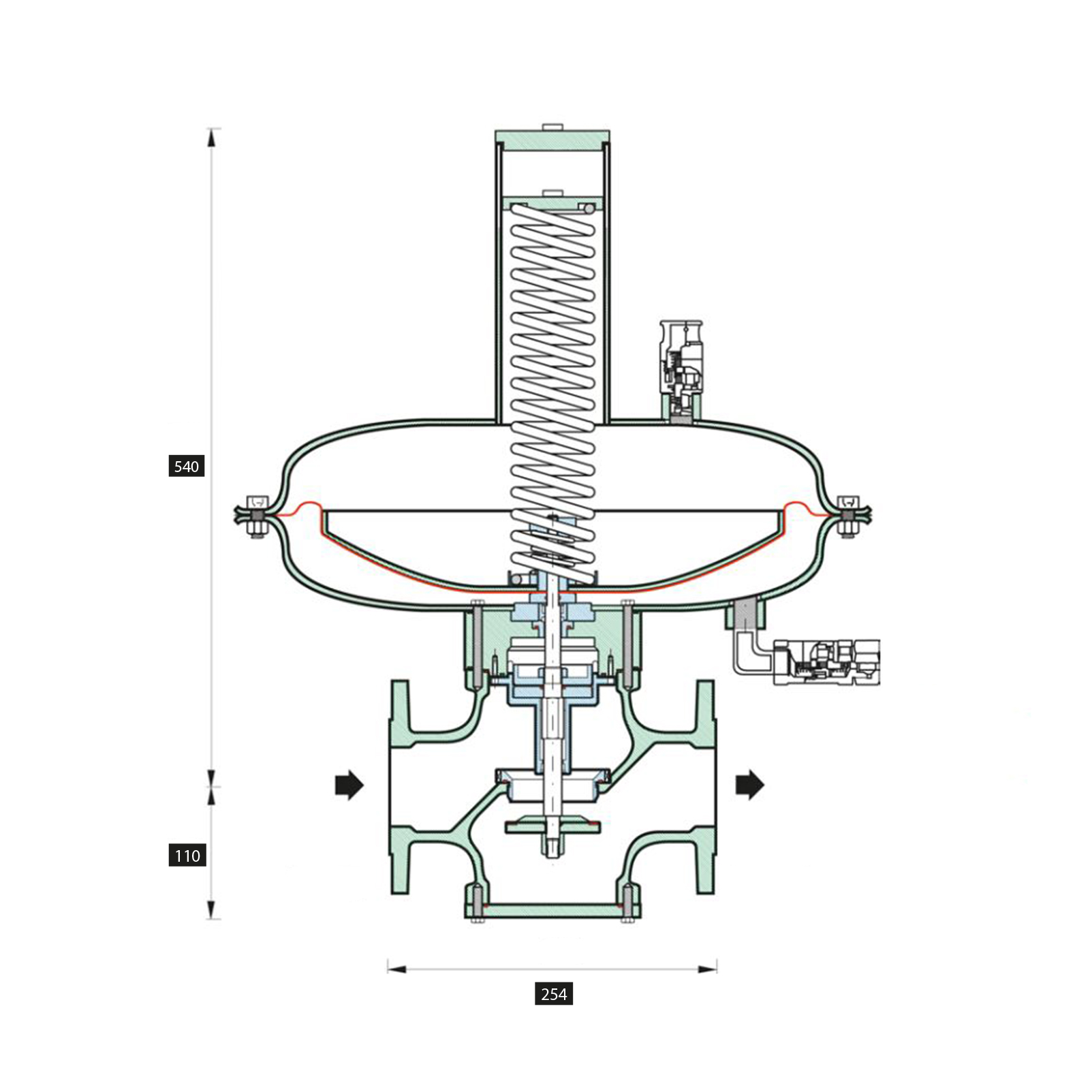

| DIMENSIONS | 540 x 254 x 110 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | ||||
| 3 Bar | 4 Bar | 5 Bar | 8 Bar | ||
| OUTLET PRESSURE | 0,8 Bar | 2290 m3/h | 2290 m3/h | 2290 m3/h | 2290 m3/h |
| 1 Bar | 2718 m3/h | 3053 m3/h | 3053 m3/h | 3053 m3/h | |
| 1,5 Bar | 2706 m3/h | 3602 m3/h | 3817 m3/h | 3817 m3/h | |
| 2 Bar | 2389 m3/h | 3438 m3/h | 4322 m3/h | 4590 m3/h | |
| 3 Bar | - | 2733 m3/h | 3929 m3/h | 6107 m3/h | |
| 4 Bar | - | - | 3078 m3/h | 6339 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
