Medium Pressure Regulator
Alfa 50 MP series, balanced direct acting regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002586 |
ALFA 50 MP SERIES REGULATOR - DN 50 - DN 50 CONNECTION |
€1.960,50 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002588 |
ALFA 50 MP SERIES REGULATOR - DN 50 - DN 50 CONNECTION - WITH BLOCK |
€2.413,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Alfa 50 MP series regulator with balanced direct action equipped with external sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2588).

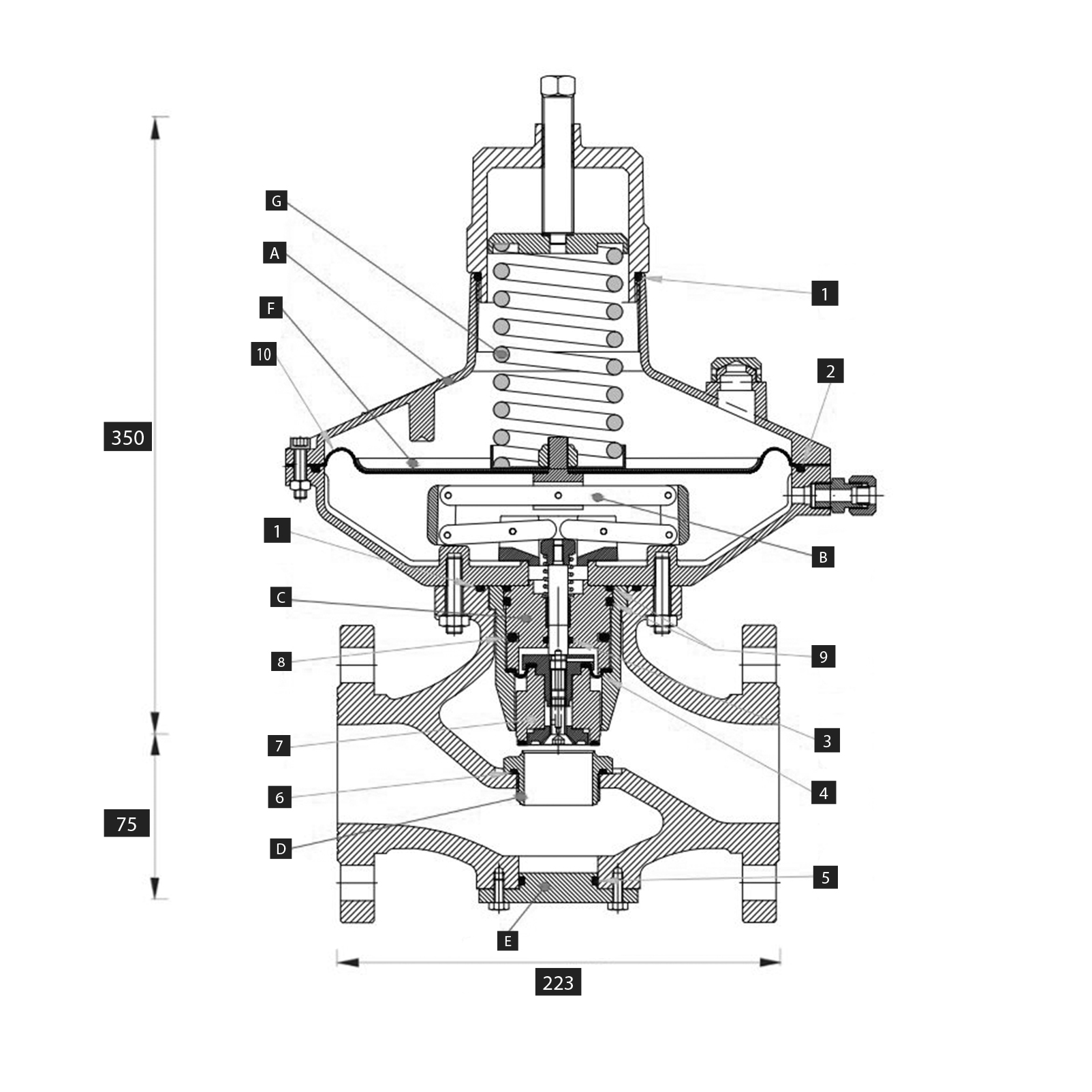

| REGULATOR STRUCTURE | |
|---|---|
| 1 | O-ring |
| 2 | O-ring |
| 3 | O-ring |
| 4 | balancing membrane |
| 5 | O-ring |
| 6 | O-ring |
| 7 | pill |
| 8 | O-ring |
| 9 | O-ring |
| 10 | membrane |
| A | complete header |
| B | full leverage |
| C | complete block |
| D | shutter seat + O-ring |
| E | bottom plate + O-ring + screws |
| F | membrane protective plate |
| G | white spring Ø 7 (setting 110 ÷ 320 mbar) |
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 50 |
| OUTPUT CONNECTION | DN 50 |
| INLET PRESSURE | 0,5 ÷ 5 bar |
| OUTPUT PRESSURE | 110 ÷ 320 mbar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 10 |
| MATERIALS |
|
| DIMENSIONS | 350 x 254 x 82 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | |||
|---|---|---|---|---|
| 0,5 Bar | 1 Bar | 1,5 Bar | ||
| OUTLET PRESSURE | 0,11 Bar | 323 m3/h | 499 m3/h | 647 m3/h |
| 0,15 Bar | 308 m3/h | 492 m3/h | 644 m3/h | |
| 0,20 Bar | 291 m3/h | 485 m3/h | 640 m3/h | |
| 0,30 Bar | 248 m3/h | 469 m3/h | 631 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
