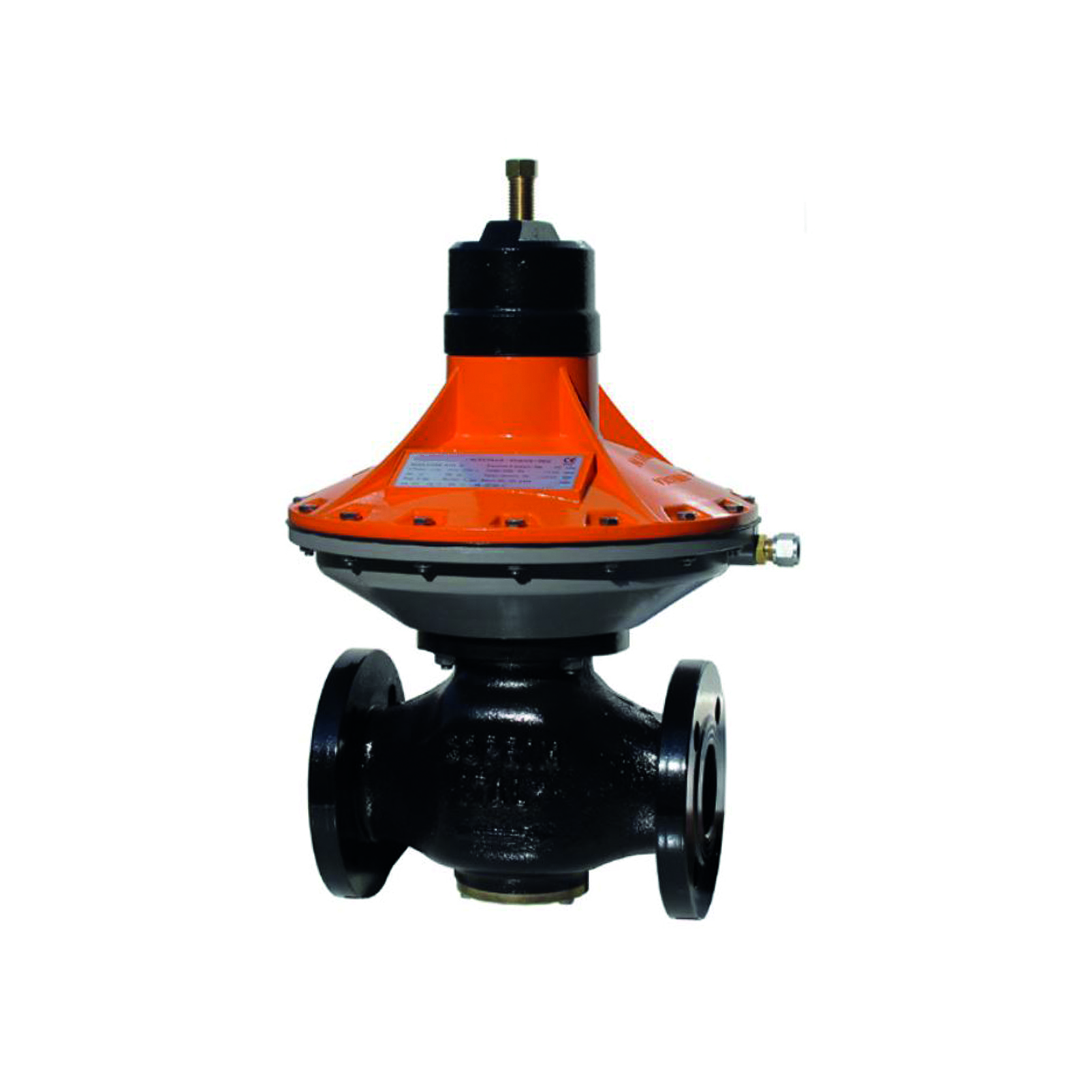

Medium Pressure Regulator
Alfa 40 MP series, balanced direct acting regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002450 |
ALFA 40 MP SERIES REGULATOR - DN 40 - DN 40 CONNECTION |
€1.729,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002452 |
ALFA 40 MP SERIES REGULATOR - DN 40 - DN 40 CONNECTION - WITH BLOCK |
€2.185,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Alfa 40 MP series regulator with balanced direct action equipped with external sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2452).

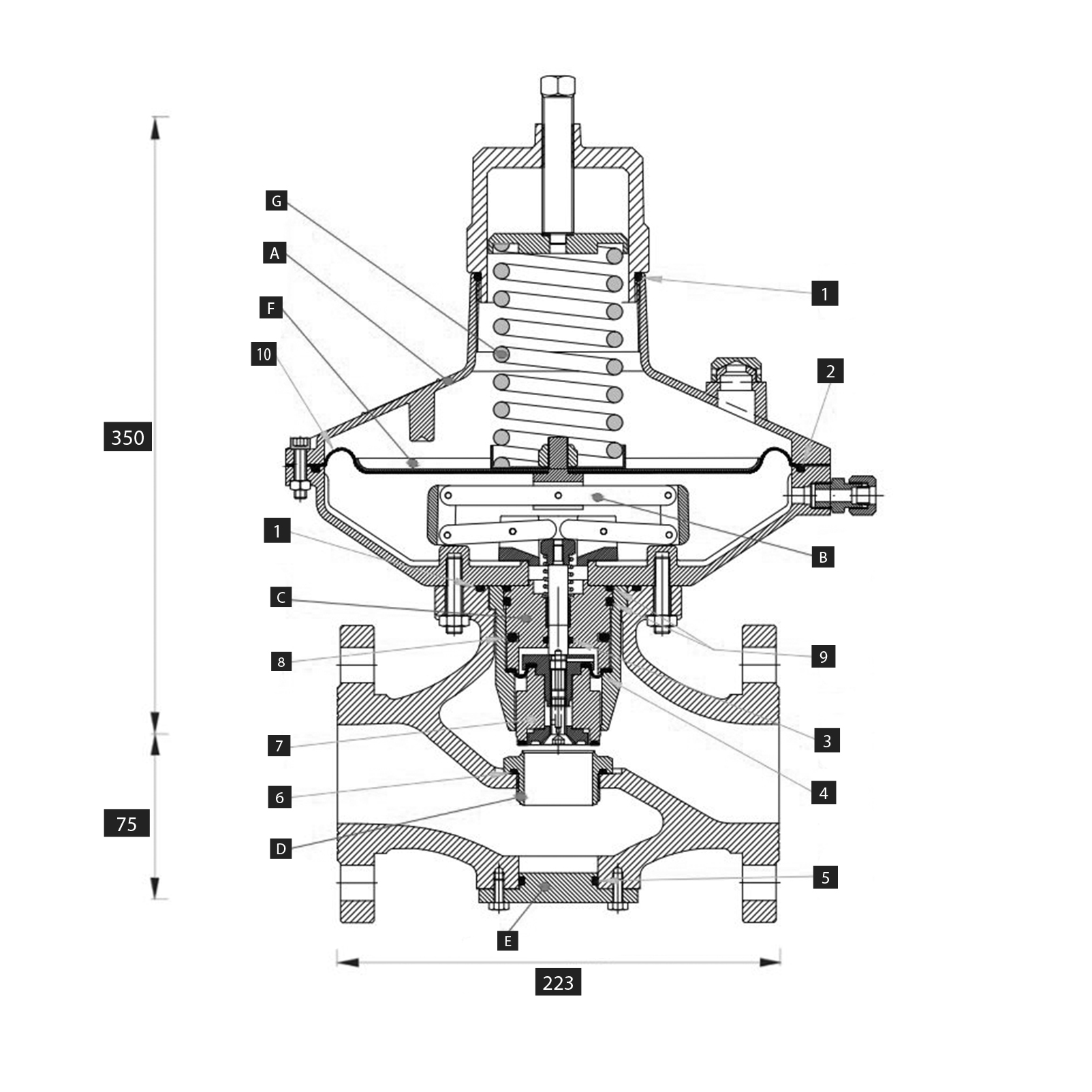

| REGULATOR STRUCTURE | |
|---|---|
| 1 | O-ring |
| 2 | O-ring |
| 3 | O-ring |
| 4 | balancing membrane |
| 5 | O-ring |
| 6 | O-ring |
| 7 | pill |
| 8 | O-ring |
| 9 | O-ring |
| 10 | membrane |
| A | complete header |
| B | full leverage |
| C | complete block |
| D | shutter seat + O-ring |
| E | bottom plate + O-ring + screws |
| F | membrane protective plate |
| G | white spring Ø 7 (setting 110 ÷ 320 mbar) |
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 40 |
| OUTPUT CONNECTION | DN 40 |
| INLET PRESSURE | 0,5 ÷ 5 bar |
| OUTPUT PRESSURE | 110 ÷ 320 mbar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 10 |
| MATERIALS |
|
| DIMENSIONS | 350 x 223 x 75 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | |||
|---|---|---|---|---|
| 0,5 Bar | 1 Bar | 1,5 Bar | ||
| OUTLET PRESSURE | 0,11 Bar | 207 m3/h | 319 m3/h | 414 m3/h |
| 0,15 Bar | 197 m3/h | 315 m3/h | 412 m3/h | |
| 0,20 Bar | 186 m3/h | 311 m3/h | 409 m3/h | |
| 0,30 Bar | 158 m3/h | 300 m3/h | 404 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1.42.
