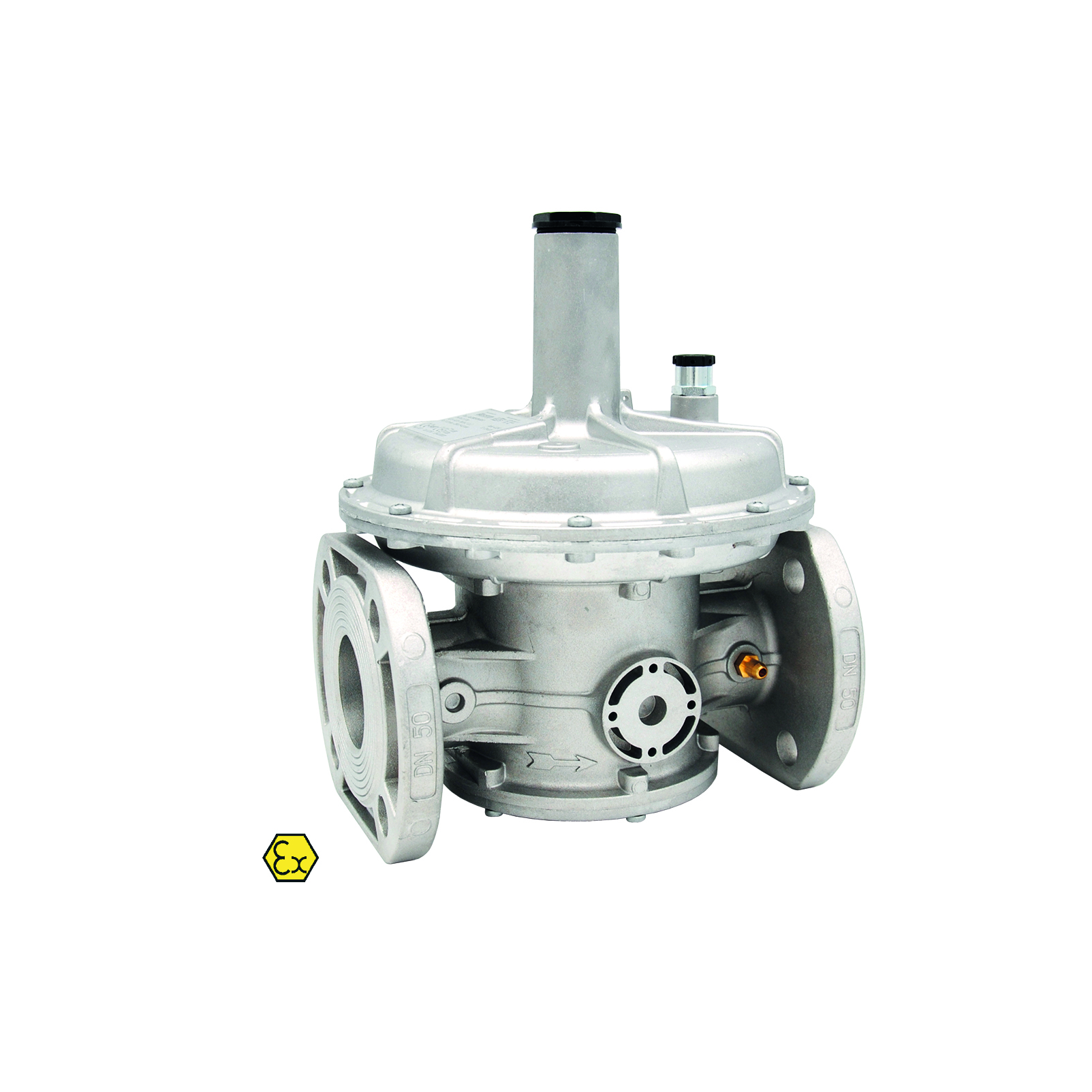

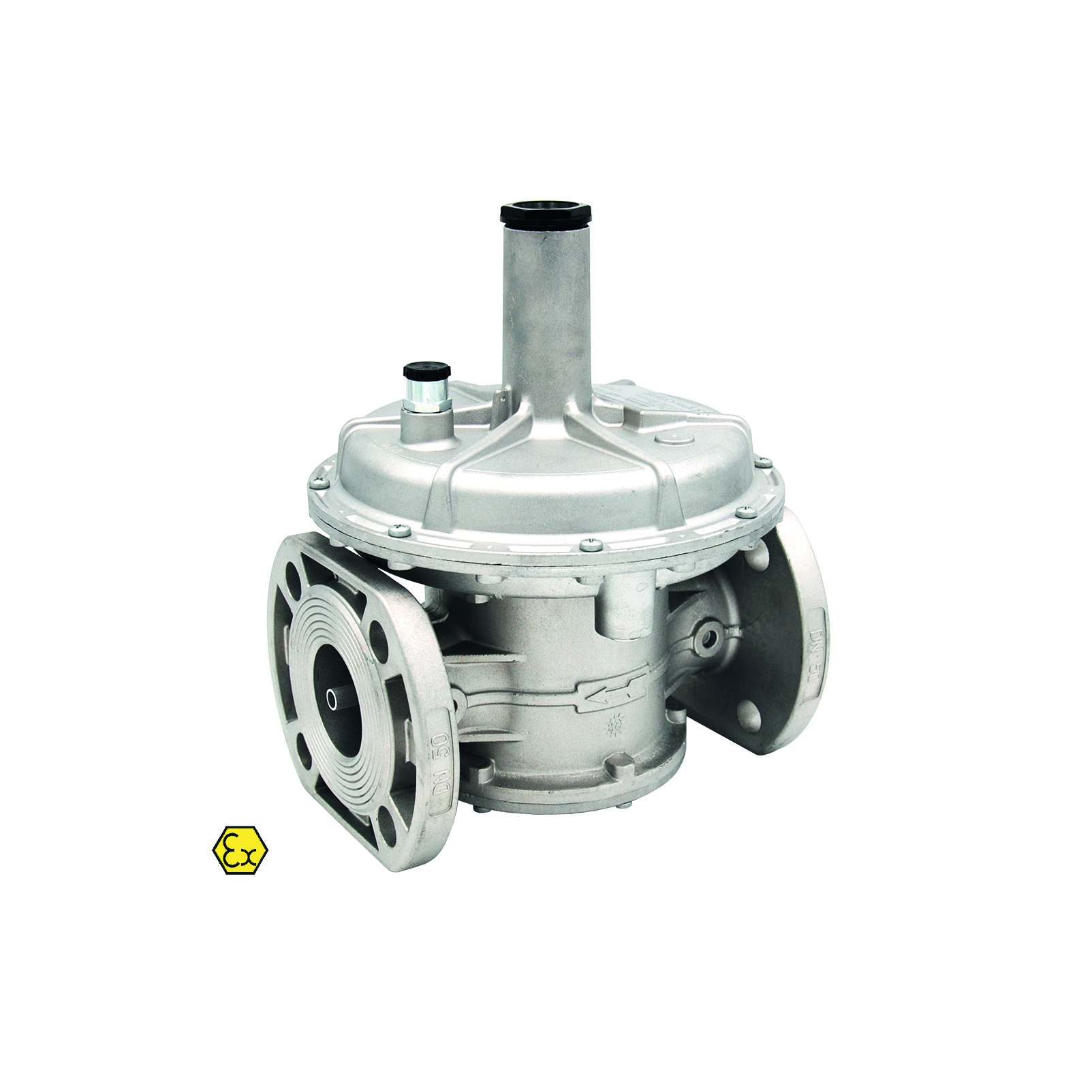

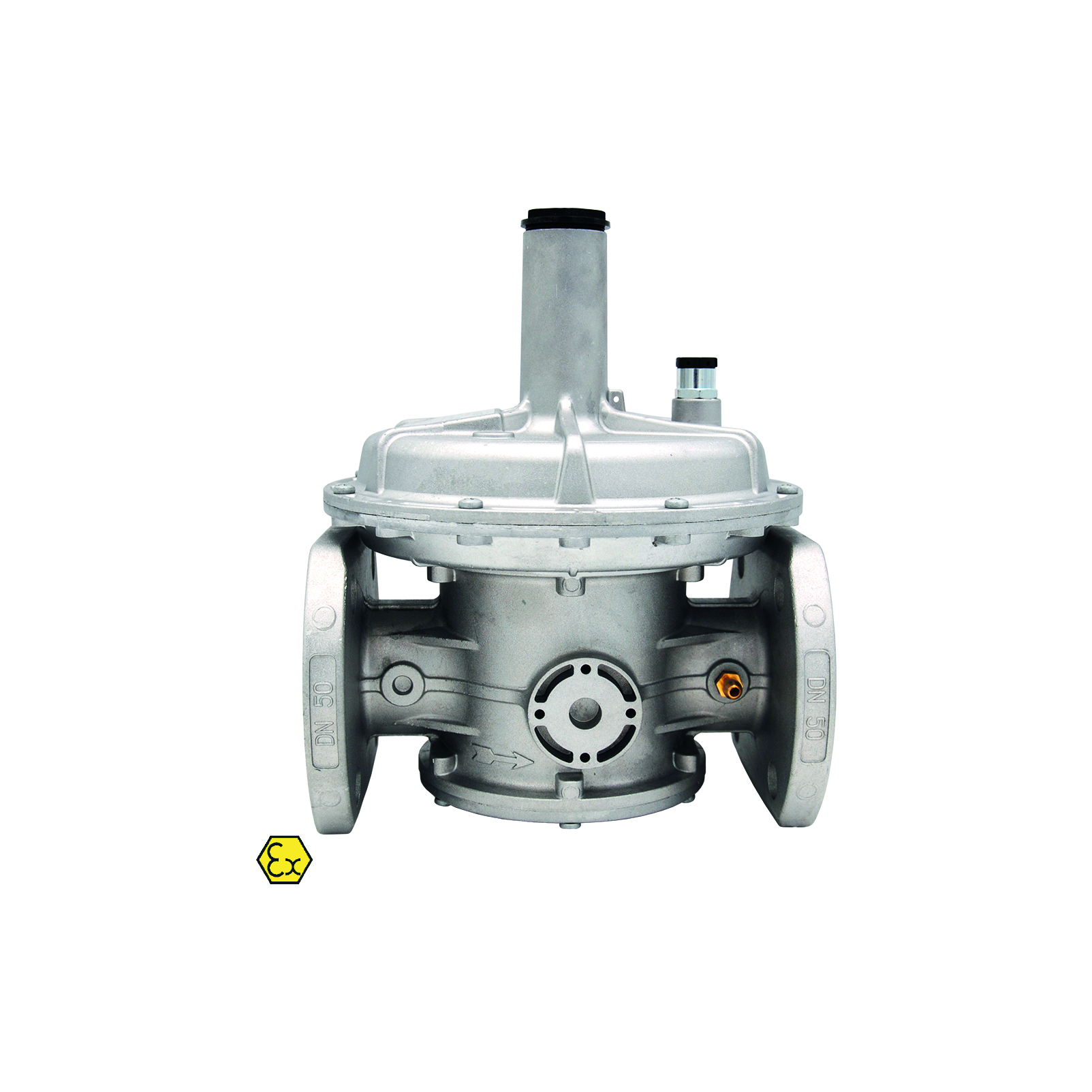

Double Membrane Single-Stage Pressure Regulator Balanced, Without Filter

Model RG/2MC-S, max inlet pressure 5 bar, flanged connections

IT IS ADVISABLE TO INSTALL A OPSO VALVE

REINFORCED MEMBRANE OR BIOGAS VERSION ALSO AVAILABLE

COMPLIANT WITH PED DIRECTIVE 2014/68/EU AND ATEX DIRECTIVE 2014/34/EU

sku model price info add to cart

00000040224

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 65 PN 16

€1.541,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040225

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 80 PN 16

€1.548,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
35 × 52 × 34 cm

Volume:
0.0628 m3

Weight:
15,38 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040226

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 100 PN 16

€2.604,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
51 × 57 × 37 cm

Volume:
0.11 m3

Weight:
19,10 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040248

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 32 PN 16

€688,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040249

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 40 PN 16

€688,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000040250

DOUBLE MEMBRANE SINGLE STAGE PRESSURE REGULATOR Mod. RG/2MB-S - connections DN 50 PN 16

€694,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 26 × 23 cm

Volume:
0.0132 m3

Weight:
5,23 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

Device which supplies a preset and constant “downstream” pressure value, when the inlet pressure and/or the flow rate changes.

Technical Features

USE not aggressive gases of the three families (manufactured / natural / LPG)
INLET PRESSURE 5 bar
OUTPUT PRESSURE RANGE
  • 13 ÷ 23 mbar - sku 40248 / 40249 / 40250
  • 13 ÷ 27 mbar - sku 40224 / 40225
  • 15 ÷ 27 mbar - sku 40226
INLET CONNECTION
  • DN 32 PN 16 - sku 40248
  • DN 40 PN 16 - sku 40249
  • DN 50 PN 16 - sku 40250
  • DN 65 PN 16 - sku 40224
  • DN 80 PN 16 - sku 40225
  • DN 100 PN 16 - sku 40226
OUTPUT CONNECTION
  • DN 32 PN 16 - sku 40248
  • DN 40 PN 16 - sku 40249
  • DN 50 PN 16 - sku 40250
  • DN 65 PN 16 - sku 40224
  • DN 80 PN 16 - sku 40225
  • DN 100 PN 16 - sku 40226
OPERATING TEMPERATURE - 20°C ÷ + 60°C

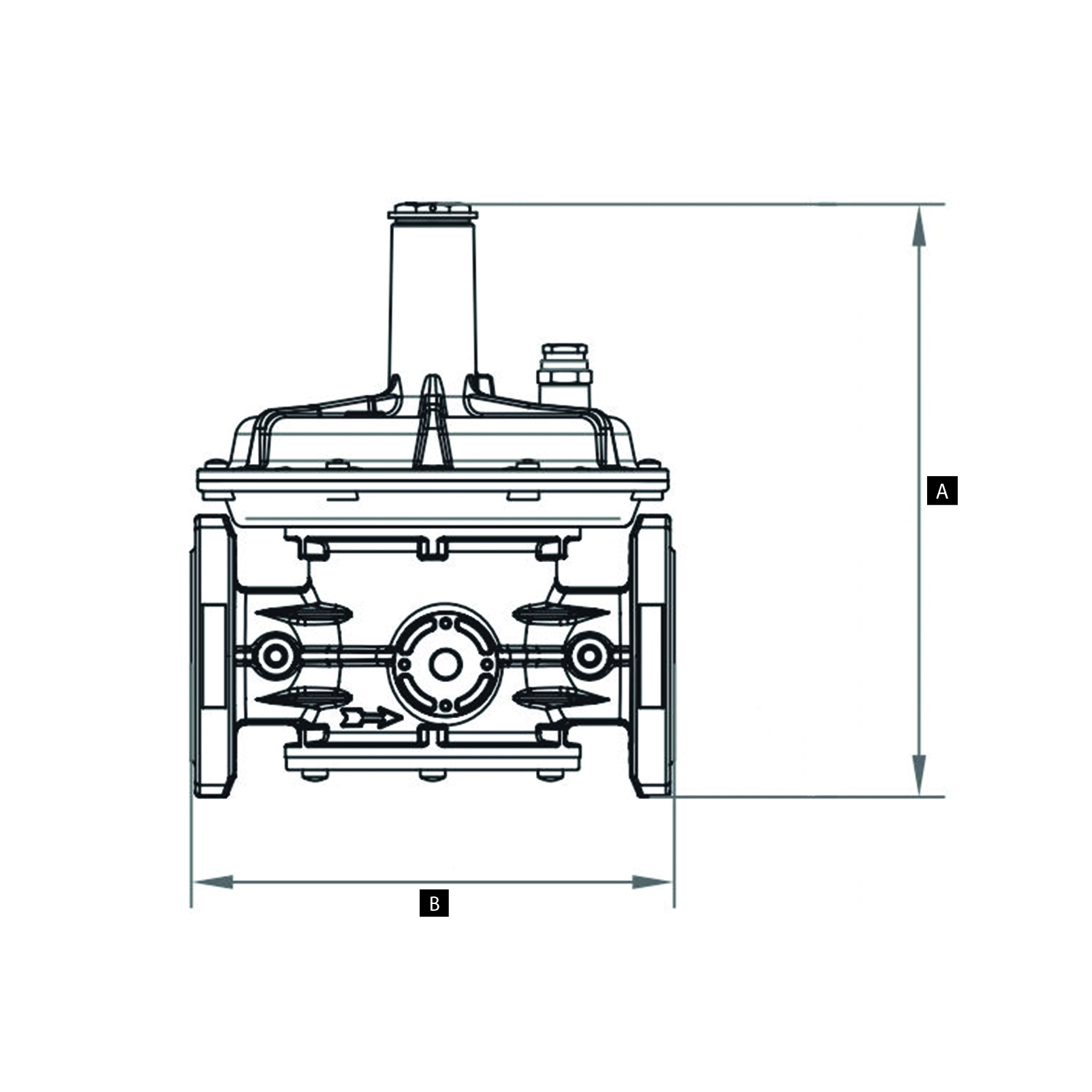

OVERALL DIMENSIONS
SKU A B
40248 230 mm 285 mm
40249 230 mm 285 mm
40250 230 mm 285 mm
40224 290 mm 477 mm
40225 310 mm 484 mm
40226 350 mm 510 mm



Download

Download Product Data Sheet

Data Sheets

Data Sheet Scheda Tecnica Fiche Technique Ficha De Datos
