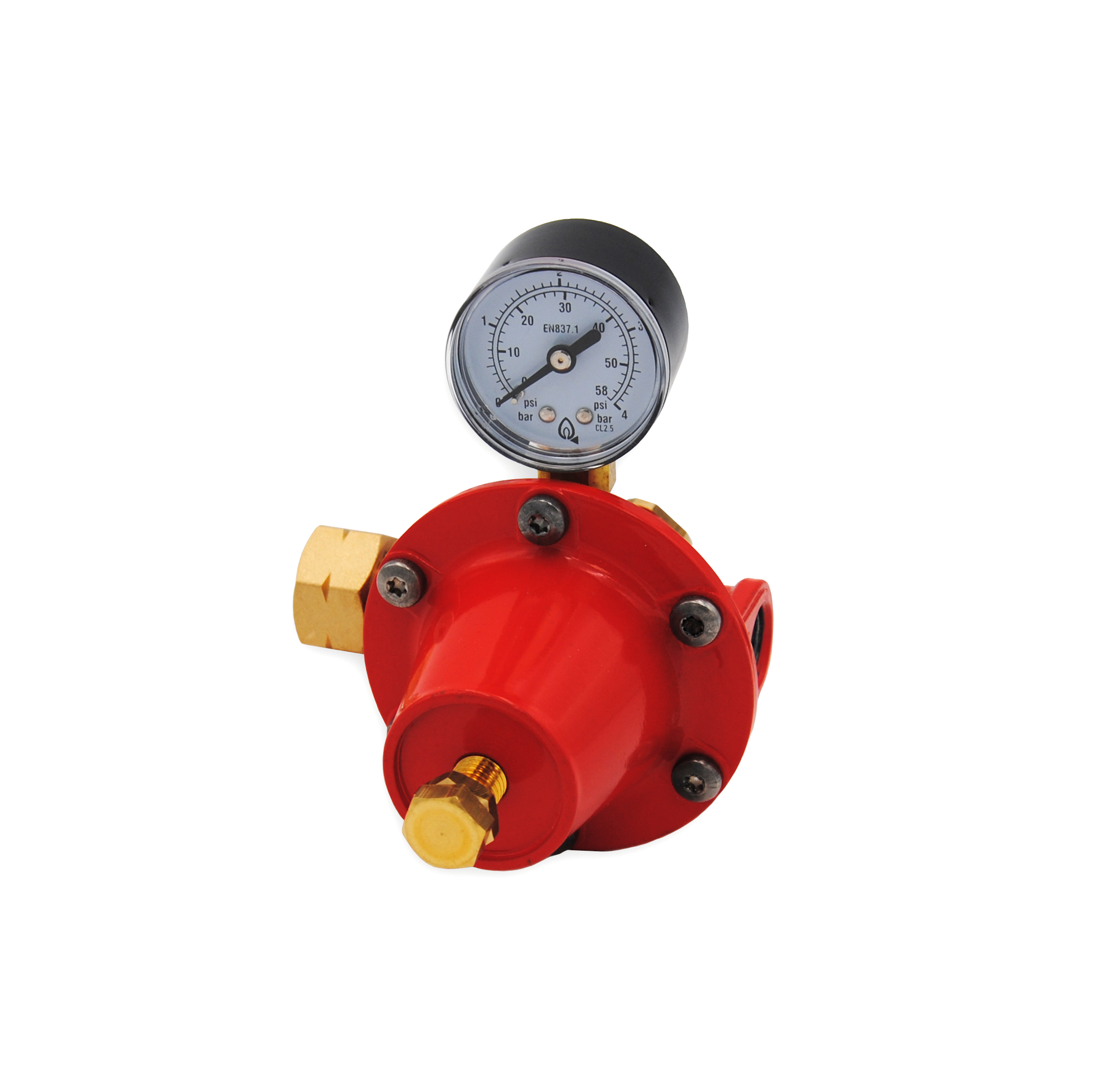

First Stage Regulator Mod. AP 40
Model with pressure gauge, safety valve and external setting, flow rate 20-40 kg/h
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002812 |
HIGH PRESSURE REGULATOR Mod. AP 40 - IN left nut W20LH-25-UN - OUT 3/8" F - flow rate 20-40 kg/h |
€141,35 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
First stage high pressure regulator Mod. AP 40, equipped with pressure gauge, safety valve and external setting; designed to be connected directly to the tank or cylinder, reducing the pressure to an intermediate pressure towards a second stage regulator.
Technical Features
| TYPES OF GAS | LPG |
|---|---|
| FLOW RATE | 20-40 kg/h |
| OPERATING TEMPERATURE | - 20°C ÷ + 50°C |
| INLET PRESSURE | 2,5 ÷ 16 bar |
| SAFETY VALVE SETTING | 4 bar |
| PRESSURE GAUGE RANGE | 0 - 4 bar |
| OUTLET PRESSURE | 0,5 ÷ 2 bar - external setting |
| CONNECTION | IN left nut W20LH-25-UN - OUT 3/8" F |
| MATERIALS |
|
