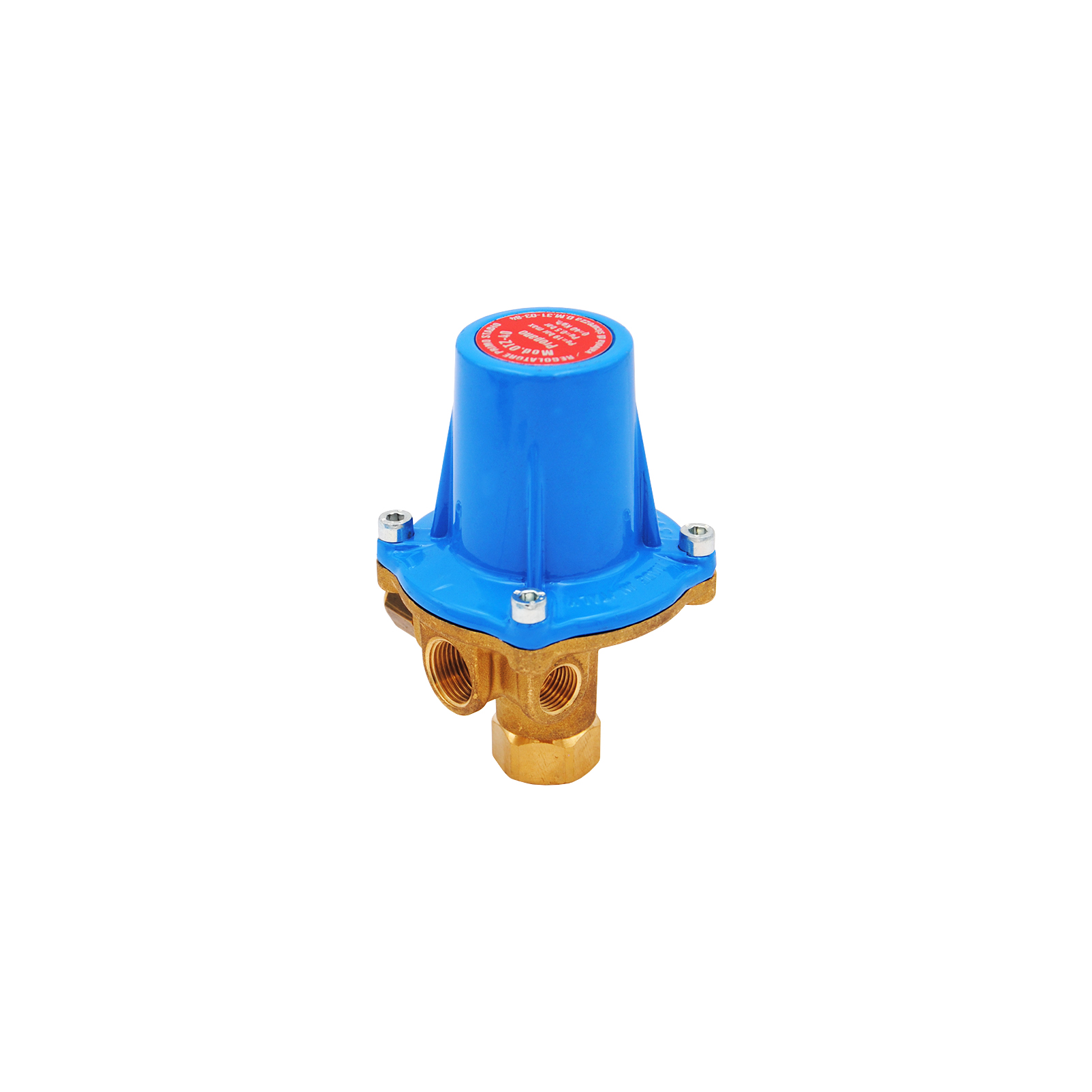

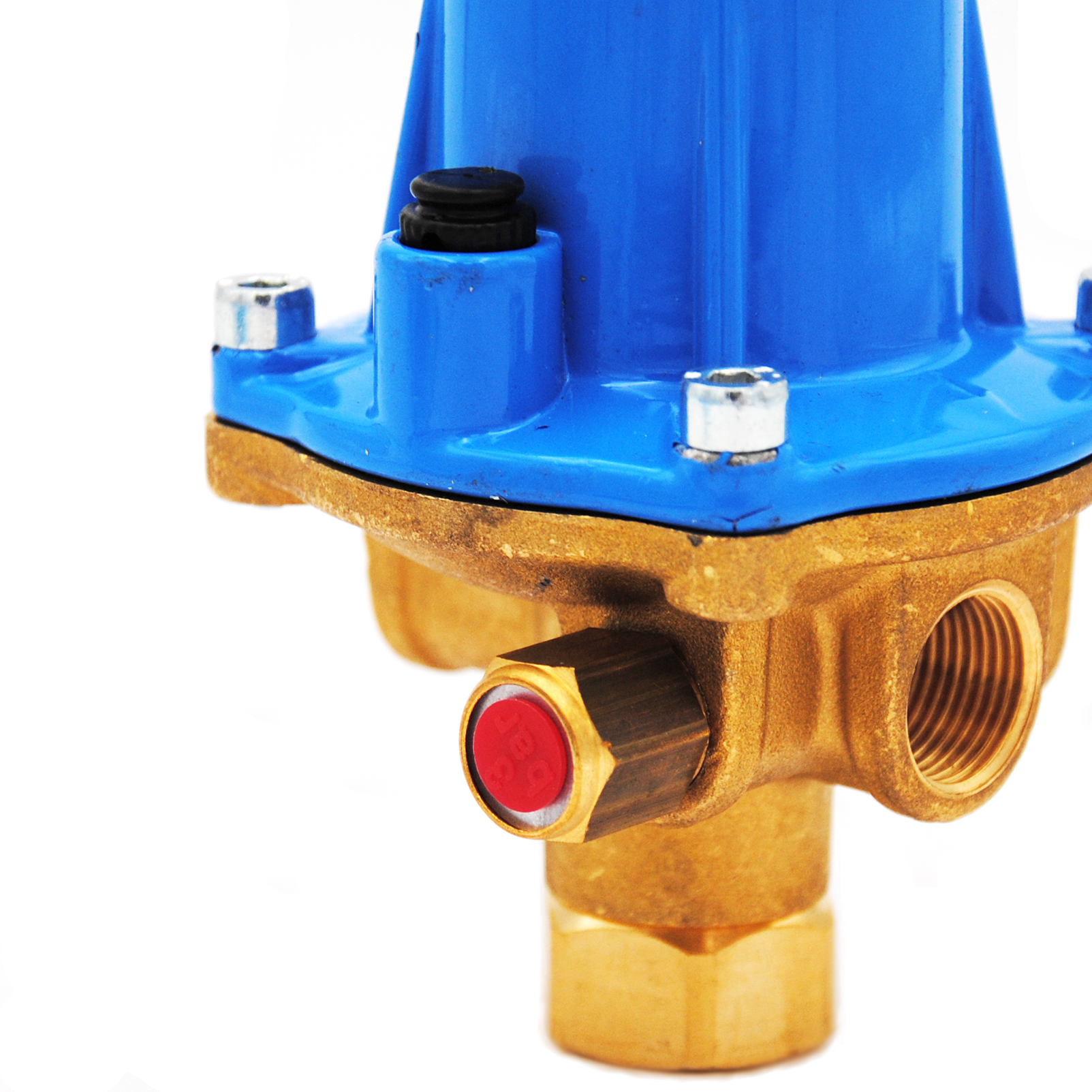

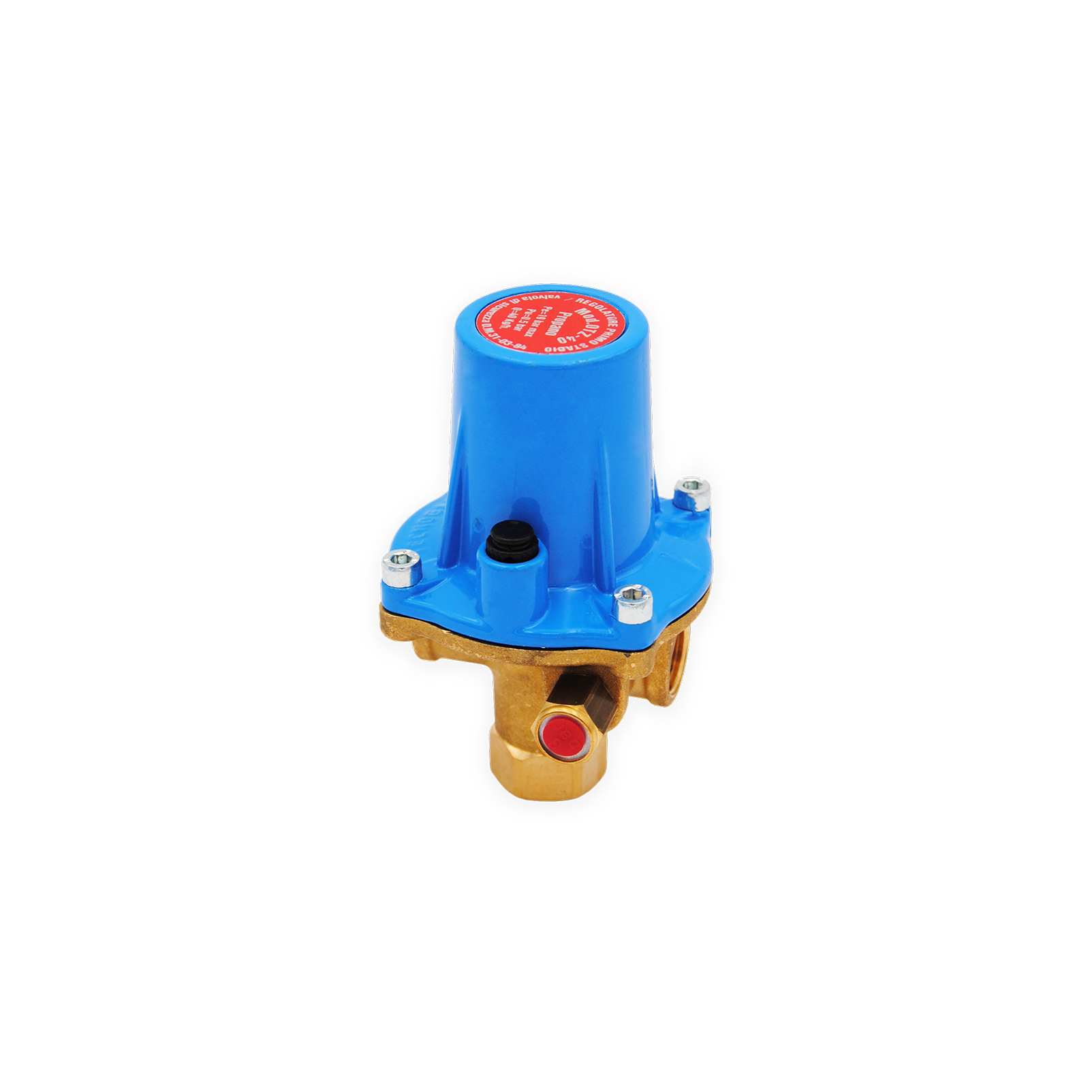

First Stage Regulator AP 40 Model

Model with fixed and/or external setting, safety valve and/or pressure gauge

COMPLIANT WITH THE EN 16129 RULE

sku	model	price	info	add to cart
00000002807	FIRST STAGE REGULATOR MOD. APZ 40 - IN left nut - OUT 3/8" F - fixed setting 0,5 bar - with safety valve	€71,40 Excl. Taxes	Physical data UM Base: NR Dimension: 10 × 8 × 10 cm Volume: 0.0009 m³ Weight: 0,75 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	First Stage Regulator AP 40 Model quantity Buy Info Request
00000002815	FIRST STAGE REGULATOR MOD. APZ 40 - IN left nut - OUT 3/8" F - fixed setting 1,5 bar - with safety valve	€72,90 Excl. Taxes	Physical data UM Base: NR Dimension: 10 × 9 × 10 cm Volume: 0.0009 m³ Weight: 0,73 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	First Stage Regulator AP 40 Model quantity Buy Info Request
00000002816	FIRST STAGE REGULATOR MOD. APZ 40 - IN 1/4" F - OUT 3/8" F - external setting - with pressure gauge and safety valve	€69,55 Excl. Taxes	Physical data UM Base: NR Dimension: 14 × 12 × 12 cm Volume: 0.002 m³ Weight: 0,80 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	First Stage Regulator AP 40 Model quantity Buy Info Request
00000002817	FIRST STAGE REGULATOR MOD. APZ 40 - IN left nut - OUT 3/8" F - external setting - with pressure gauge and safety valve	€78,45 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 11 × 11 cm Volume: 0.0017 m³ Weight: 0,84 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	First Stage Regulator AP 40 Model quantity Buy Info Request
00000002855	FIRST STAGE REGULATOR MOD. APZ 40 - IN nut 3/4" F - OUT 1/2" M dx - fixed angle setting - with pressure gauge and safety valve	€81,00 Excl. Taxes	Physical data UM Base: NR Dimension: 13 × 11 × 11 cm Volume: 0.0017 m³ Weight: 0,81 kg Minimum Order Quantity: 1 Customs data Customs Code 84818059	First Stage Regulator AP 40 Model quantity Buy Info Request

Product informations

First stage low pressure regulator Mod. AP 40, designed to be connected directly to the tank or cylinder, reducing the pressure down to an intermediate pressure towards a second stage regulator.

Also available the version with pressure gauge for gas pressure control, or with safety valve for overpressure discharge.

Technical Features

*TYPES OF GAS*	LPG
*FLOW RATE*	40 kg/h
*OPERATING TEMPERATURE*	- 20°C ÷ + 50°C
*INLET PRESSURE*	0,2 ÷ 16 bar
*OUTLET PRESSURE*	3,0 - 2,5 bar
*CONNECTIONS*	IN left nut - OUT 3/8" F - fixed setting 0,5 bar - with safety valve (*sku 2807) IN left nut - OUT 3/8" F - fixed setting 1,5 bar - with safety valve (sku 2815) IN 1/4" F - OUT 3/8" F - external setting - with pressure gauge and safety valve (sku 2816) IN left nut - OUT 3/8" F - external setting - with pressure gauge and safety valve (sku 2817) IN nut 3/4" F - OUT 1/2" M dx - fixed angle setting - with pressure gauge and safety valve (sku 2855*)

Download

Download Product Data Sheet
