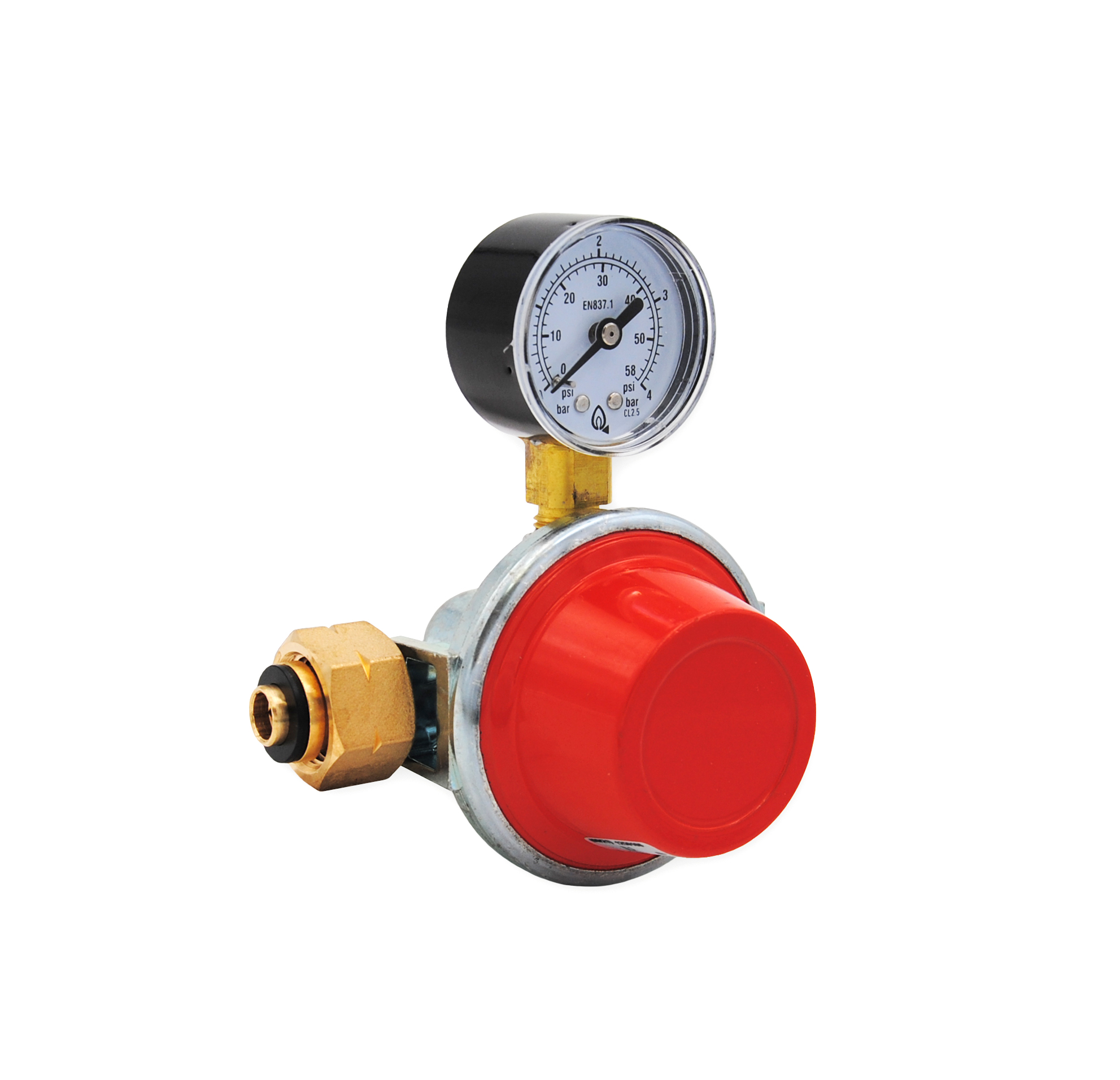

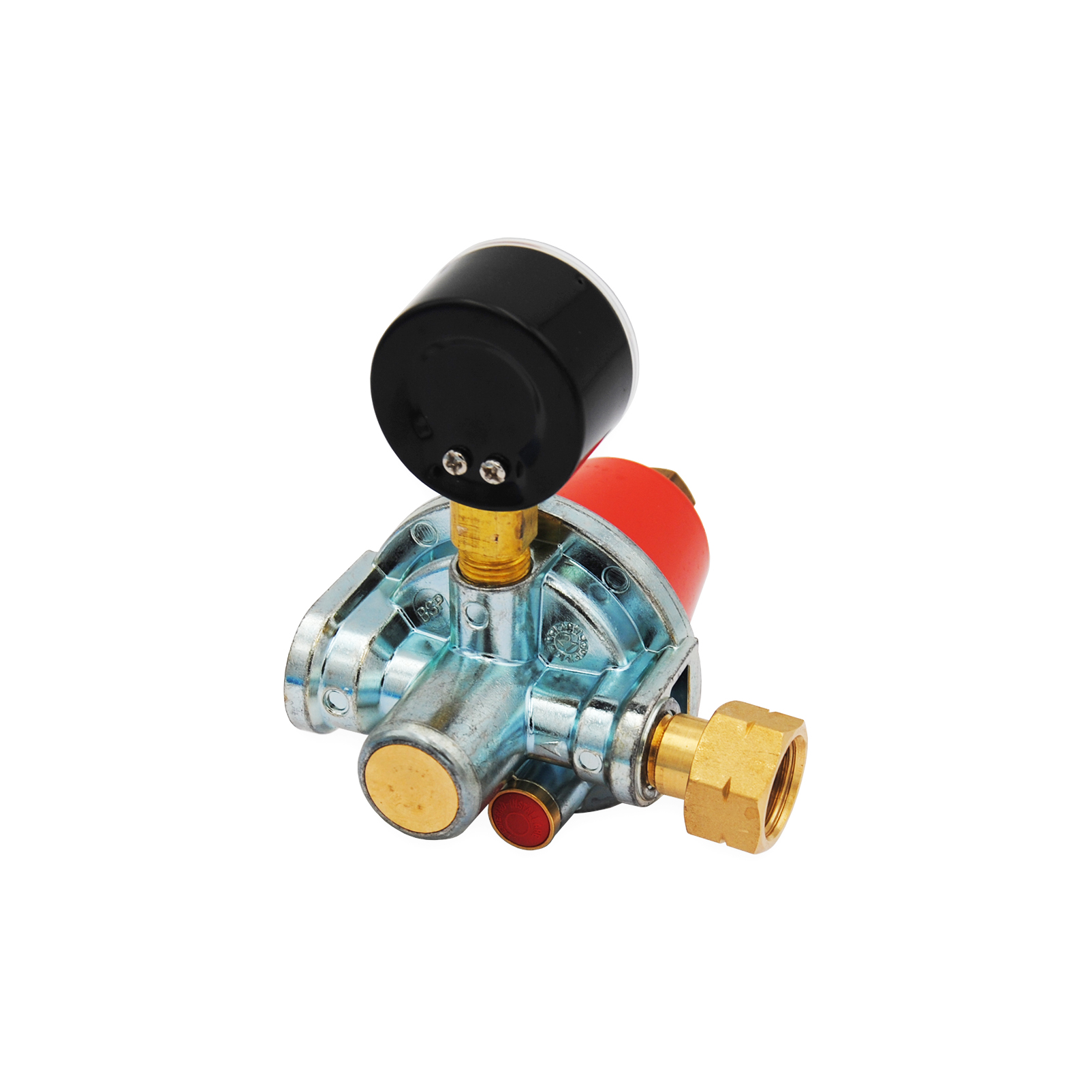

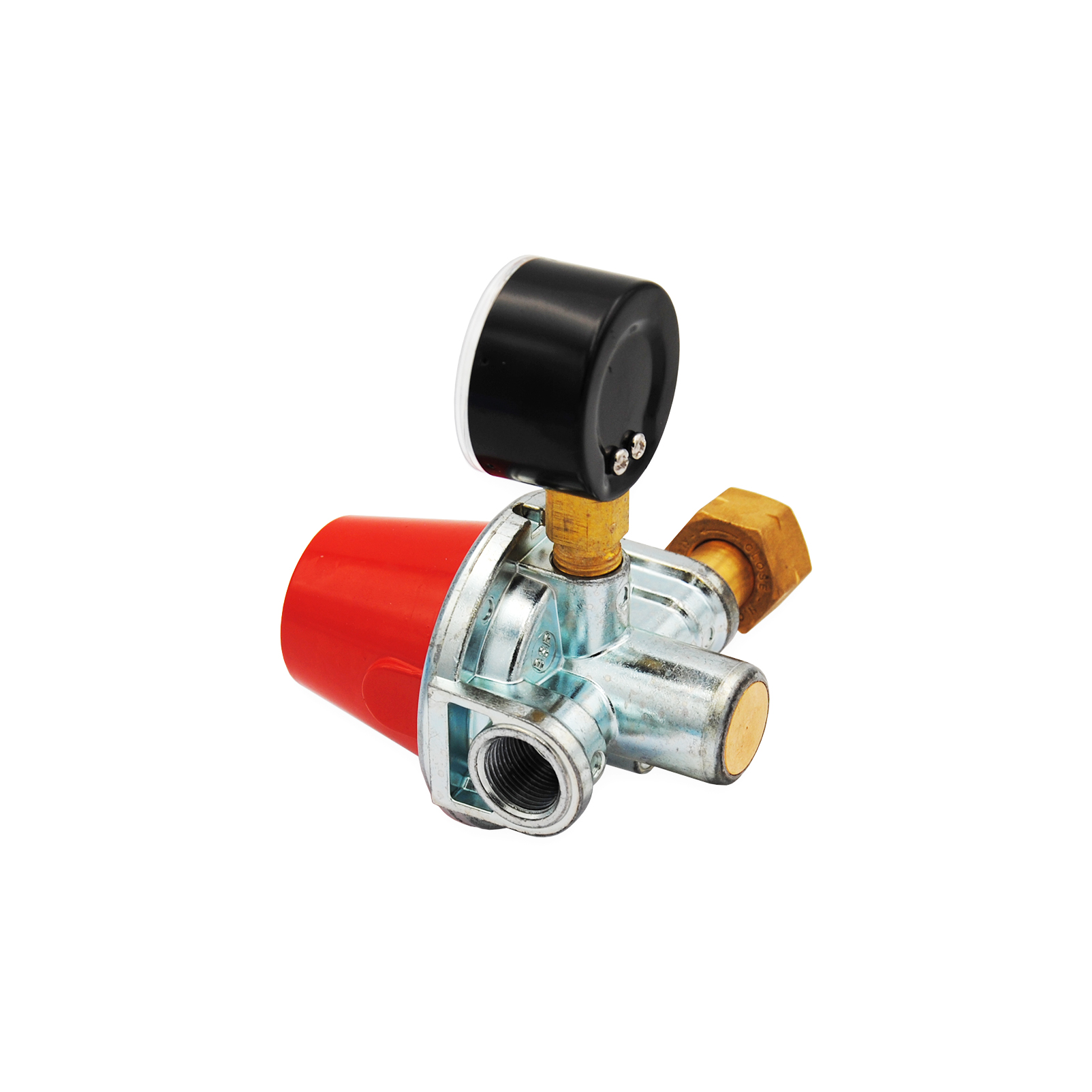

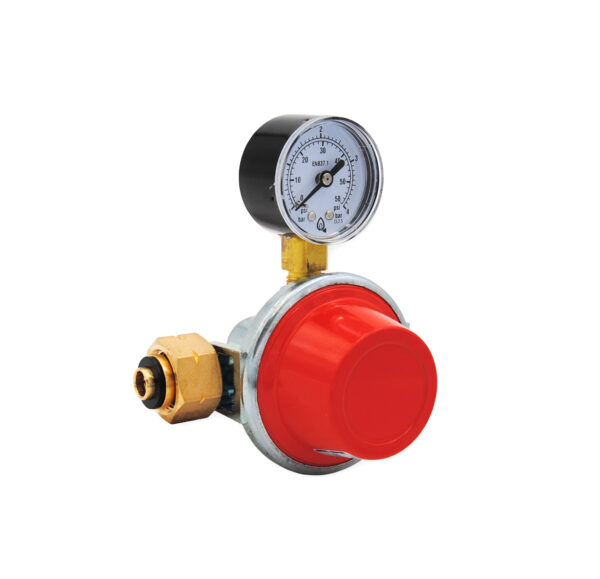

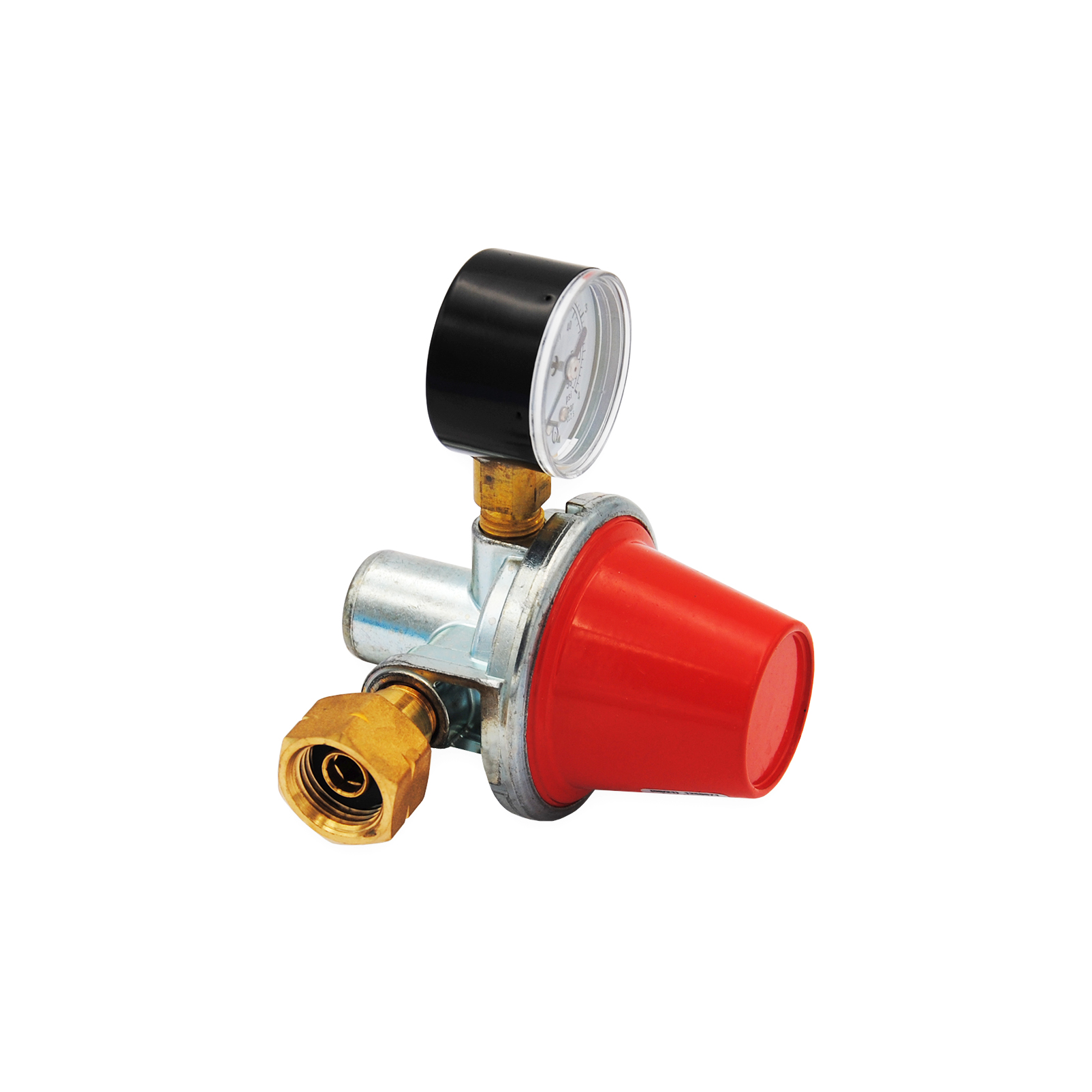

First Stage Regulator Mod. AP 30

Name: First Stage Regulator Mod. AP 30
SKU: M0100026
Availability: InStock

Model with pressure gauge, safety valve and fixed or external setting, flow rate 25-40 kg/h

AVAILABLE WITH FIXED OR EXTERNAL SETTING

COMPLIANT WITH THE EN 16129 RULE

sku	model	price	info	add to cart

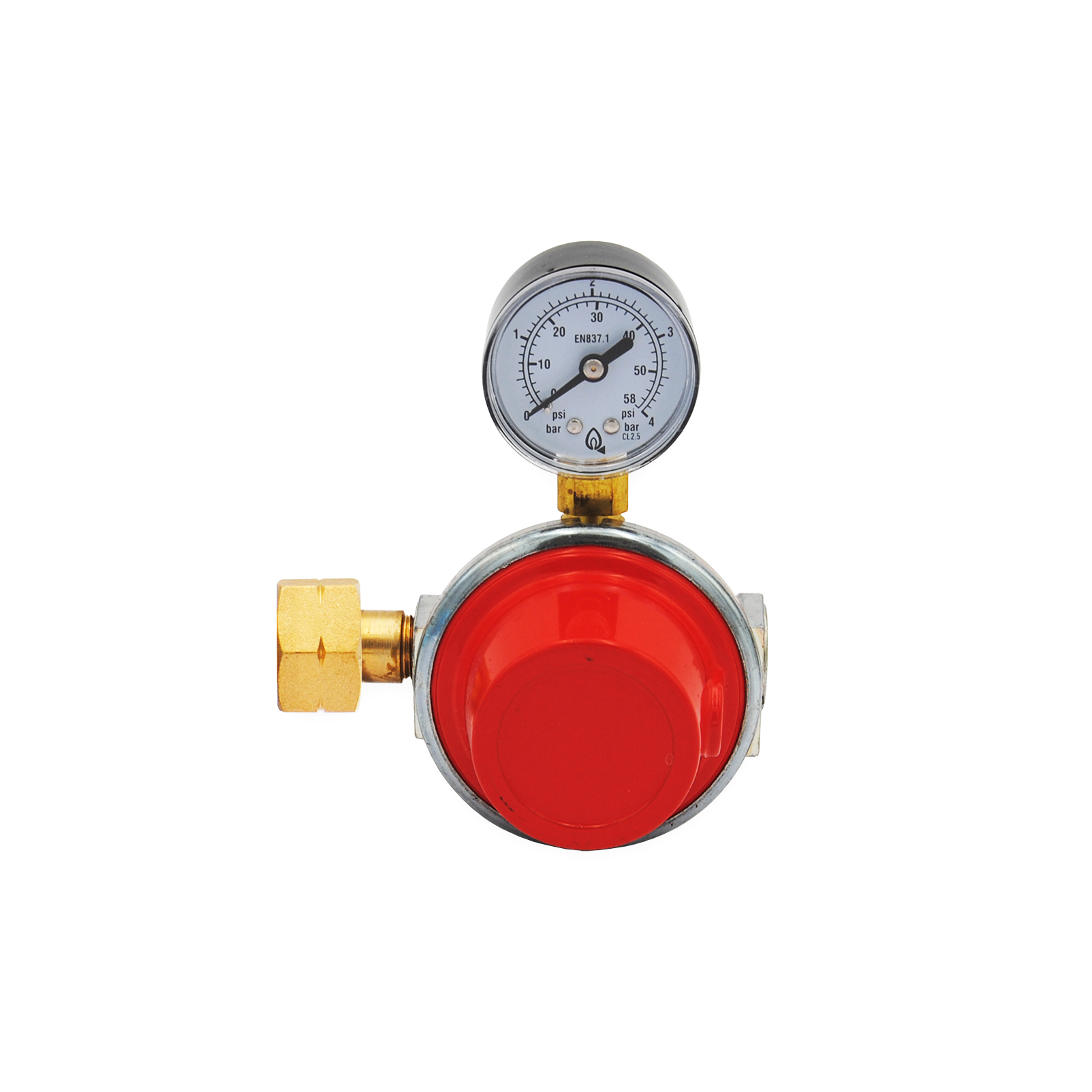

00000002331	HIGH PRESSURE REGULATOR Mod. AP 30 - IN left nut W20LH-25-UN - OUT 3/8" F - flow rate 30 kg/h	€80,05 Excl. Taxes	Physical data UM Base: NR Dimension: 14 × 8 × 8 cm Volume: 0.0009 m³ Weight: 0,45 kg Minimum Order Quantity: 1 Customs data Customs Code 84811099	First Stage Regulator Mod. AP 30 quantity Buy Info Request

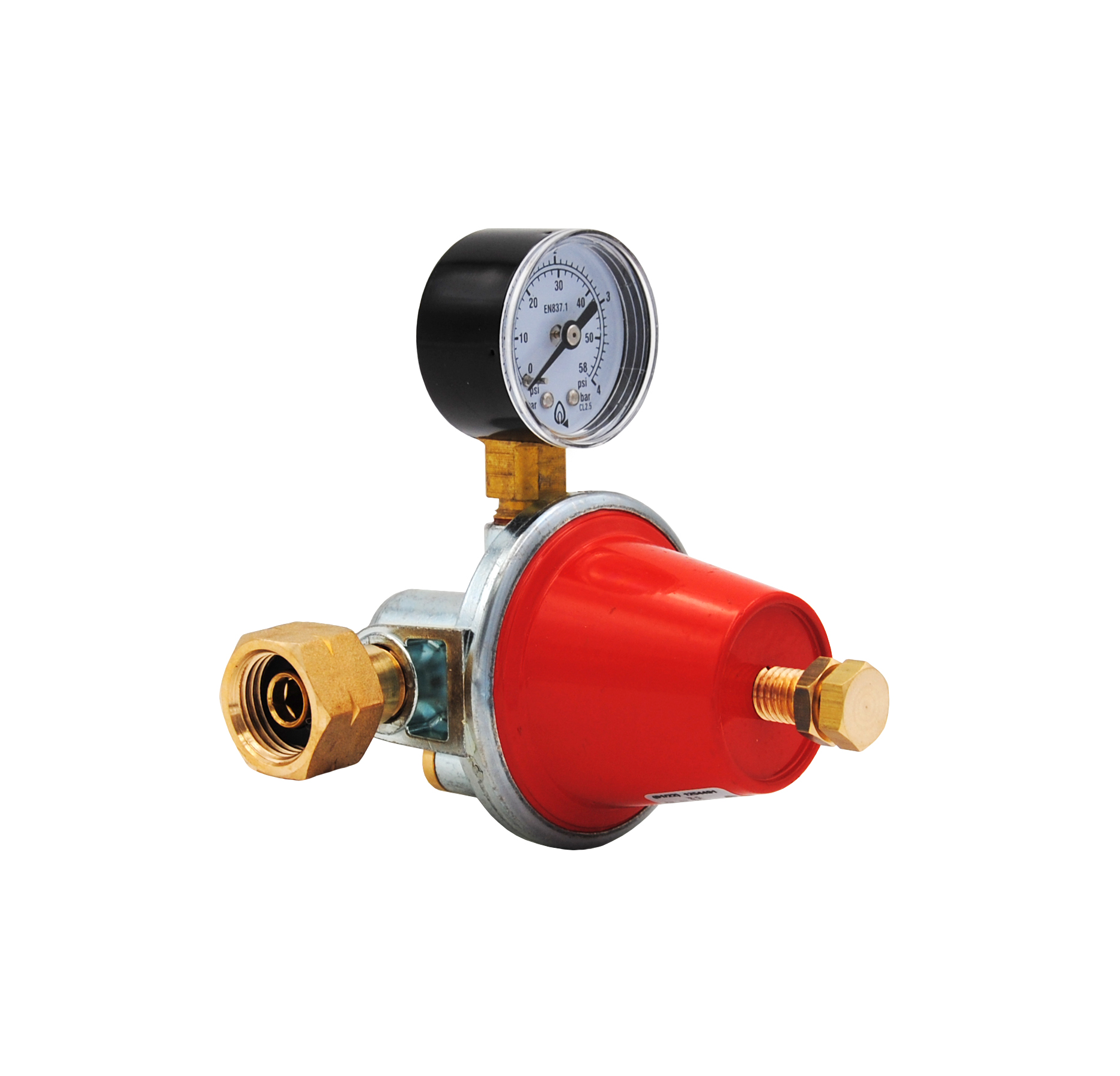

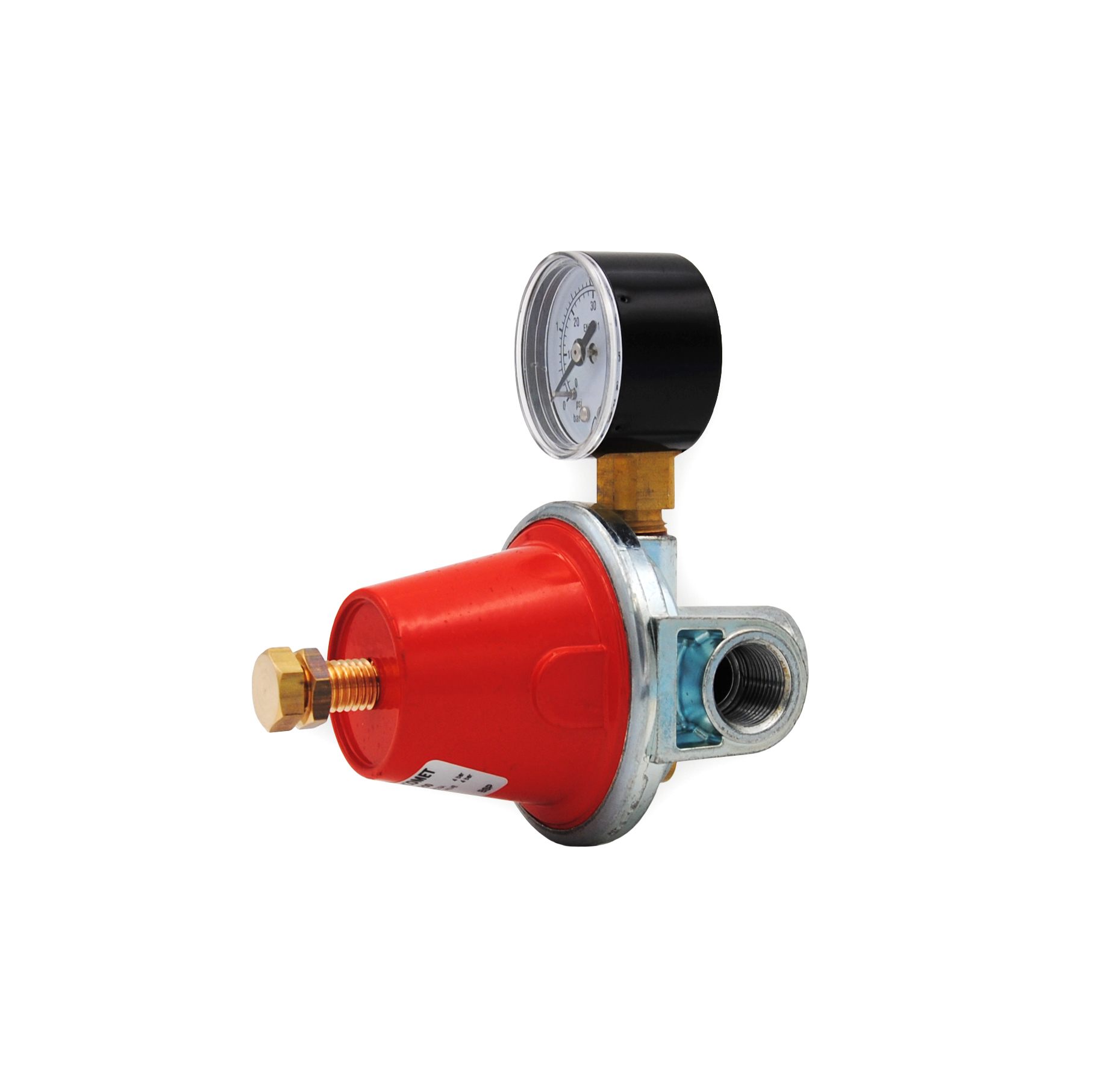

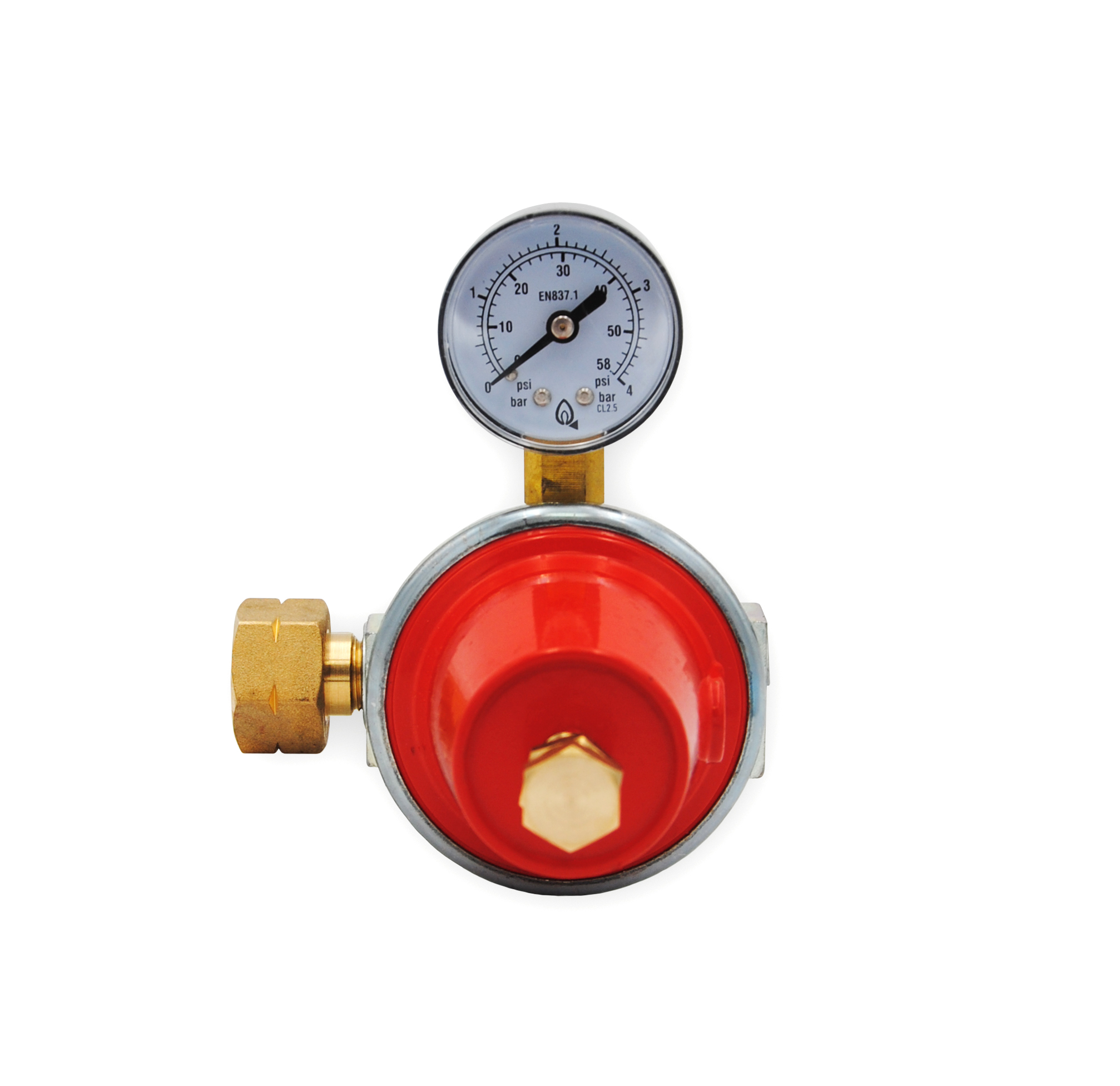

00000002341	HIGH PRESSURE REGULATOR Mod. AP 30 - IN left nut W20LH-25-UN - OUT 3/8" F - flow rate 25-40 kg/h	€74,60 Excl. Taxes	Physical data UM Base: NR Dimension: 11 × 12 × 9 cm Volume: 0.0013 m³ Weight: 0,57 kg Minimum Order Quantity: 1 Customs data Customs Code 84811099	First Stage Regulator Mod. AP 30 quantity Buy Info Request

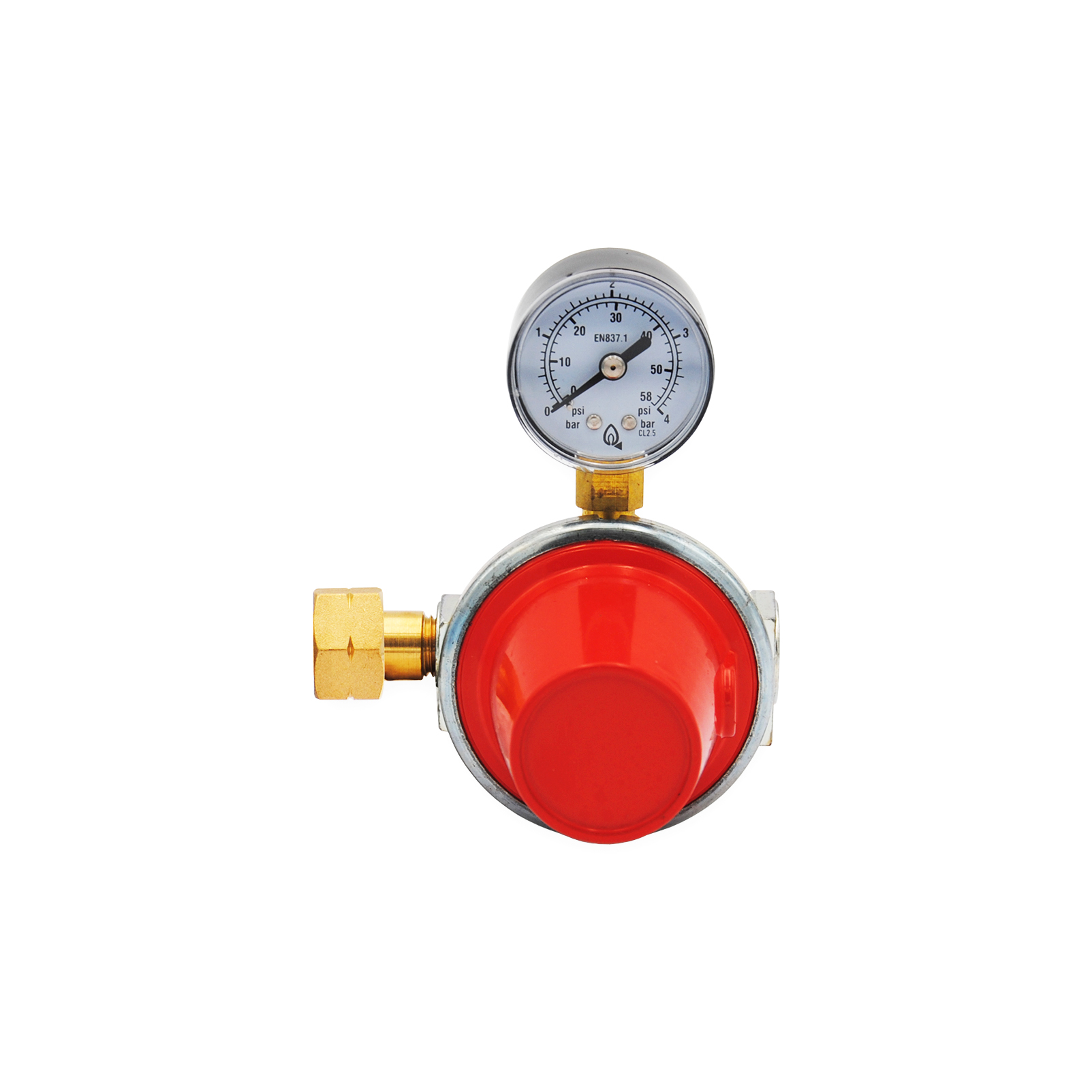

00000002345	HIGH PRESSURE REGULATOR Mod. AP 30 - IN left nut W20LH-25-UN - OUT 3/8" F - flow rate 30 kg/h	€58,40 Excl. Taxes	Physical data UM Base: NR Dimension: 9 × 12 × 11 cm Volume: 0.0013 m³ Weight: 0,53 kg Minimum Order Quantity: 1 Customs data Customs Code 84811099	First Stage Regulator Mod. AP 30 quantity Buy Info Request

Product informations

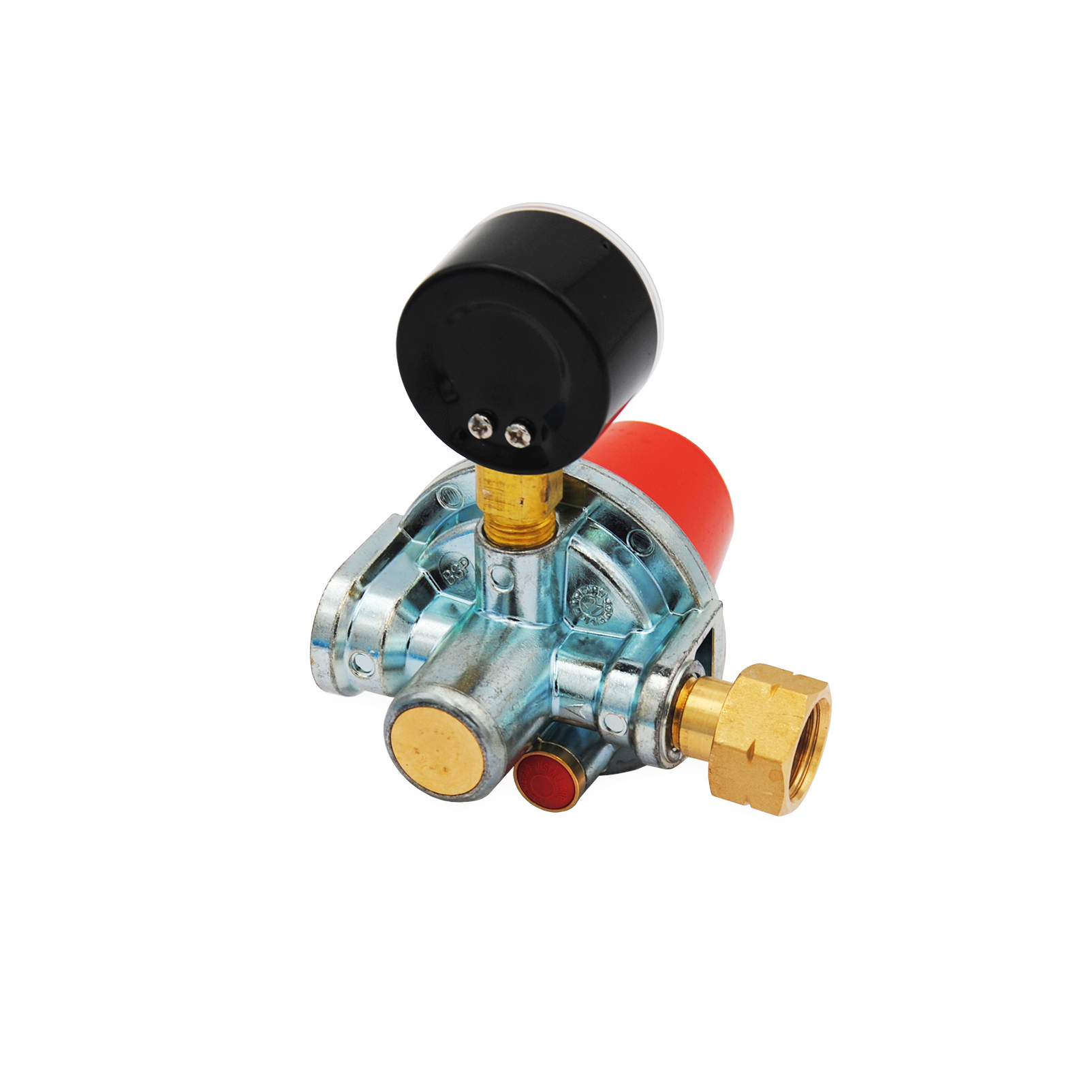

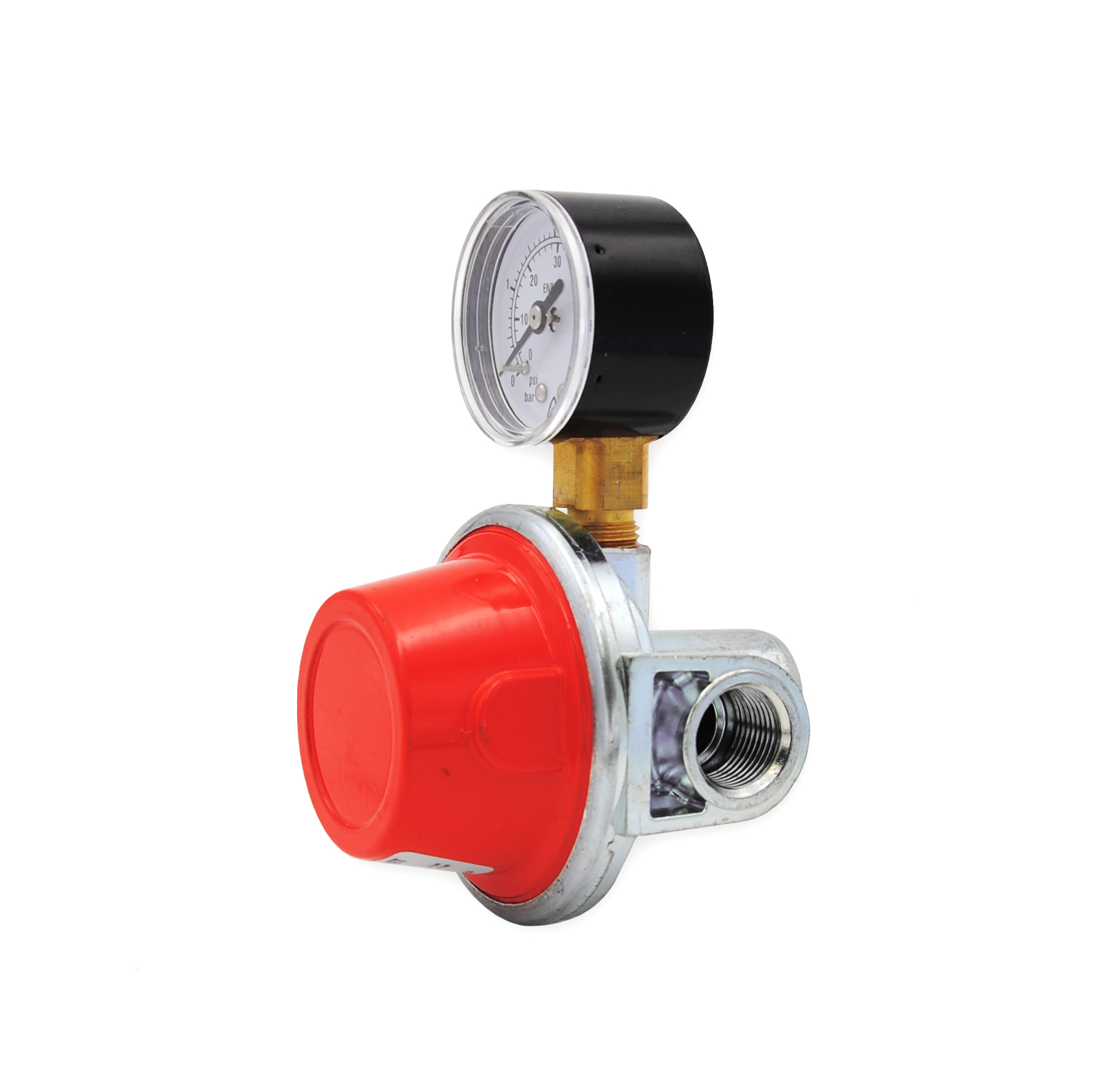

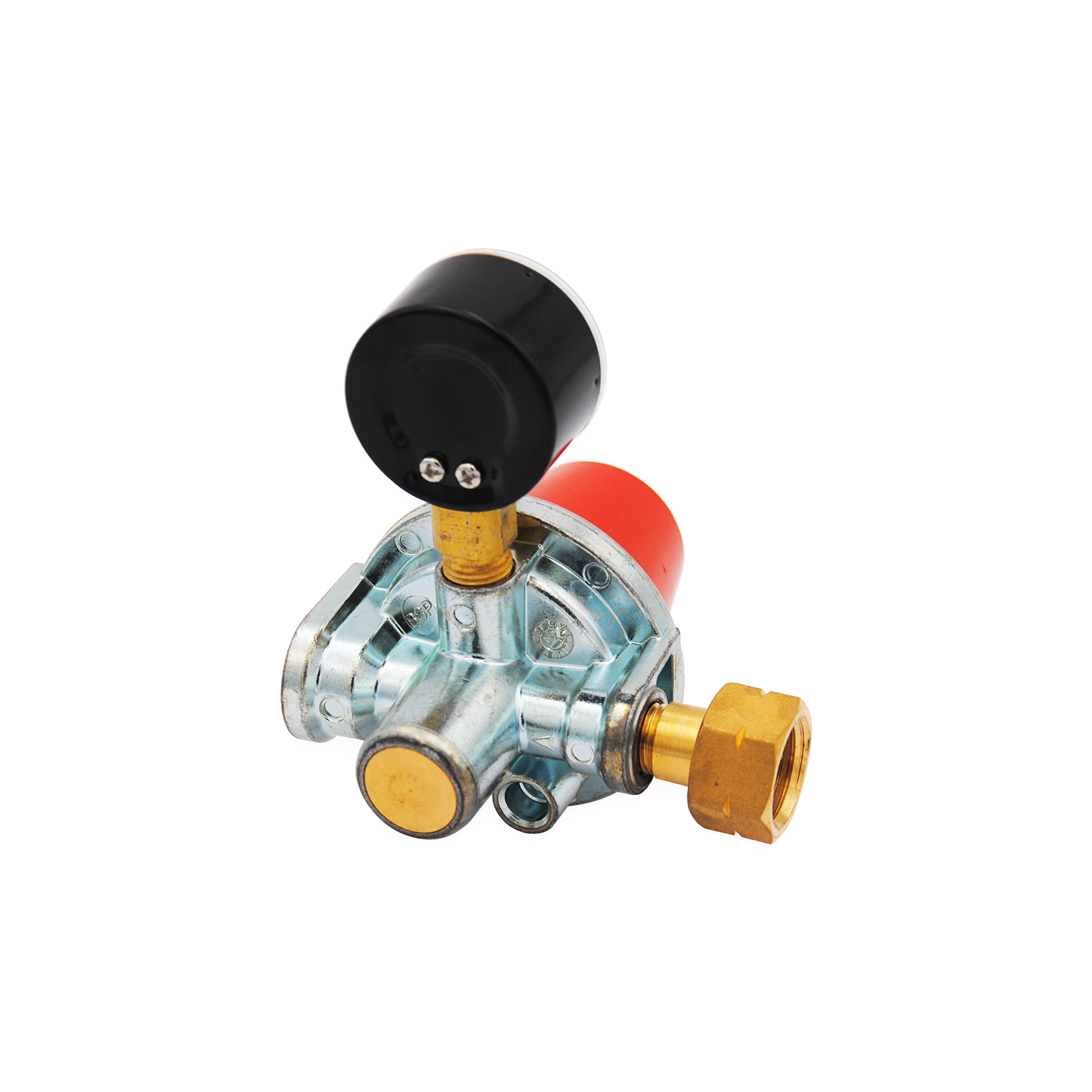

First stage high pressure regulator Mod. AP 30, equipped with safety valve and pressure gauge; designed to be connected directly to the tank or cylinder, reducing the pressure to an intermediate pressure towards a second stage regulator.

Technical Features

*TYPES OF GAS*	LPG
*FLOW RATE*	25-40 kg - *sku 2341* 30 kg - *sku 2331 / 2345*
*OPERATING TEMPERATURE*	- 20°C ÷ + 50°C
*INLET PRESSURE*	2,5 ÷ 16 bar
*SAFETY VALVE SETTING*	4 bar
*PRESSURE GAUGE RANGE*	0 - 4 bar
*OUTLET PRESSURE*	0,5 ÷ 2 bar external setting - sku 2341 1,5 bar fixed setting - sku 2331 0,75 bar fixed setting - sku 2345
*CONNECTION*	IN left nut W20LH-25-UN - OUT 3/8" F
*MATERIALS*	body and cover: ZAMAK diaphragm and gaskets: LPG resistant elastomer
