First Stage Regulator Mod. APS2000
Model with external setting, flow rate 150 kg/h
COMPLIANT WITH THE EN 16129 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002500 |
REGULATOR Mod. APS2000 - IN 3/4" F - OUT 3/4" F - flow rate 150 kg/h - EXTERNAL SETTING |
€298,20 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002530 |
REGULATOR Mod. APS2000 WITH DRY PRESSURE GAUGES - IN 3/4" F - OUT 3/4" F - flow rate 150 kg/h - EXTERNAL SETTING |
€326,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002540 |
REGULATOR Mod. APS2000 WITH GLYCERINE BATH PRESSURE GAUGES - IN 3/4" F - OUT 3/4" F - flow rate 150 kg/h - EXTERNAL SETTING |
€339,80 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

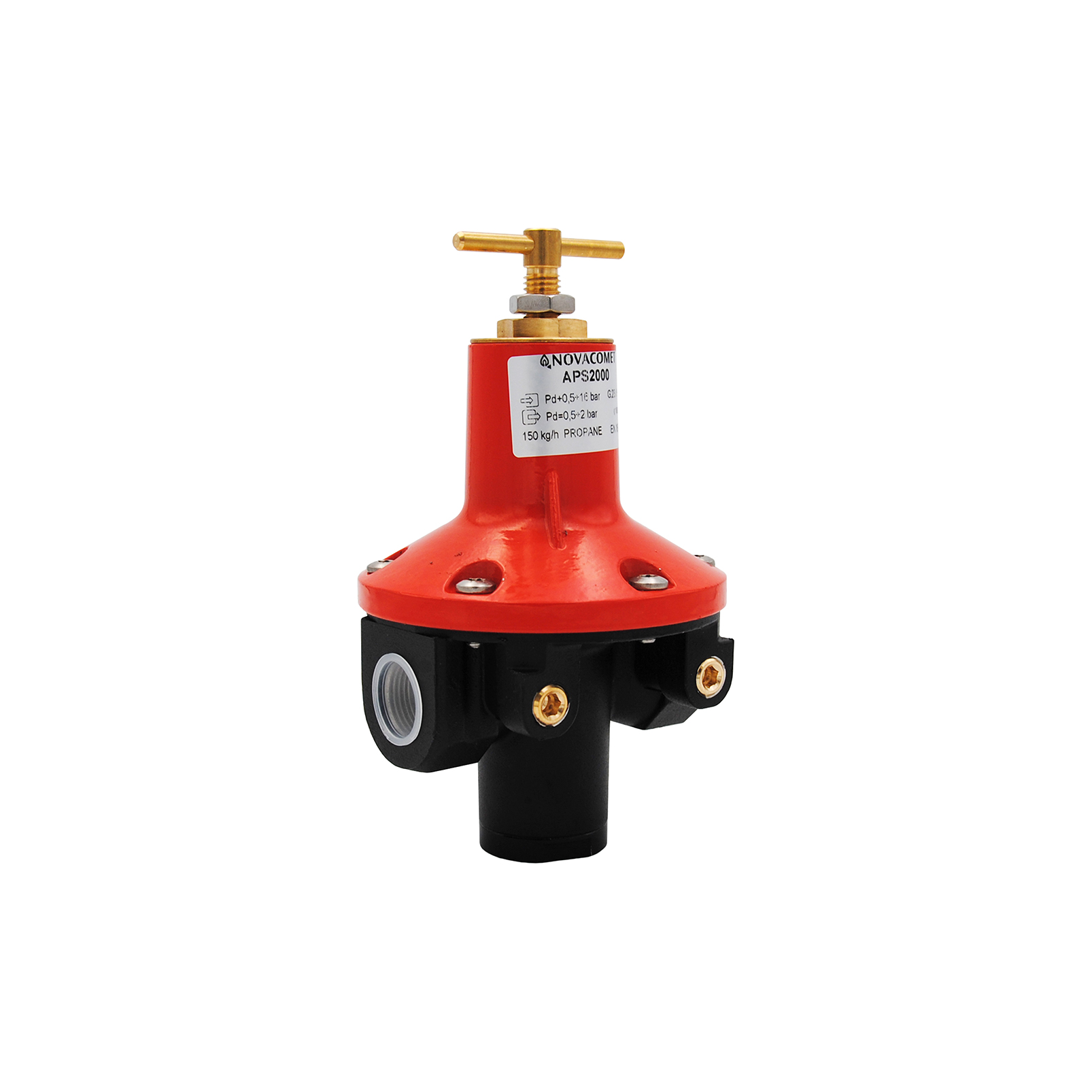

First stage high pressure regulator Mod. APS2000, designed to be connected directly to the tank or cylinder, reducing the pressure down to an intermediate pressure towards a second stage regulator.

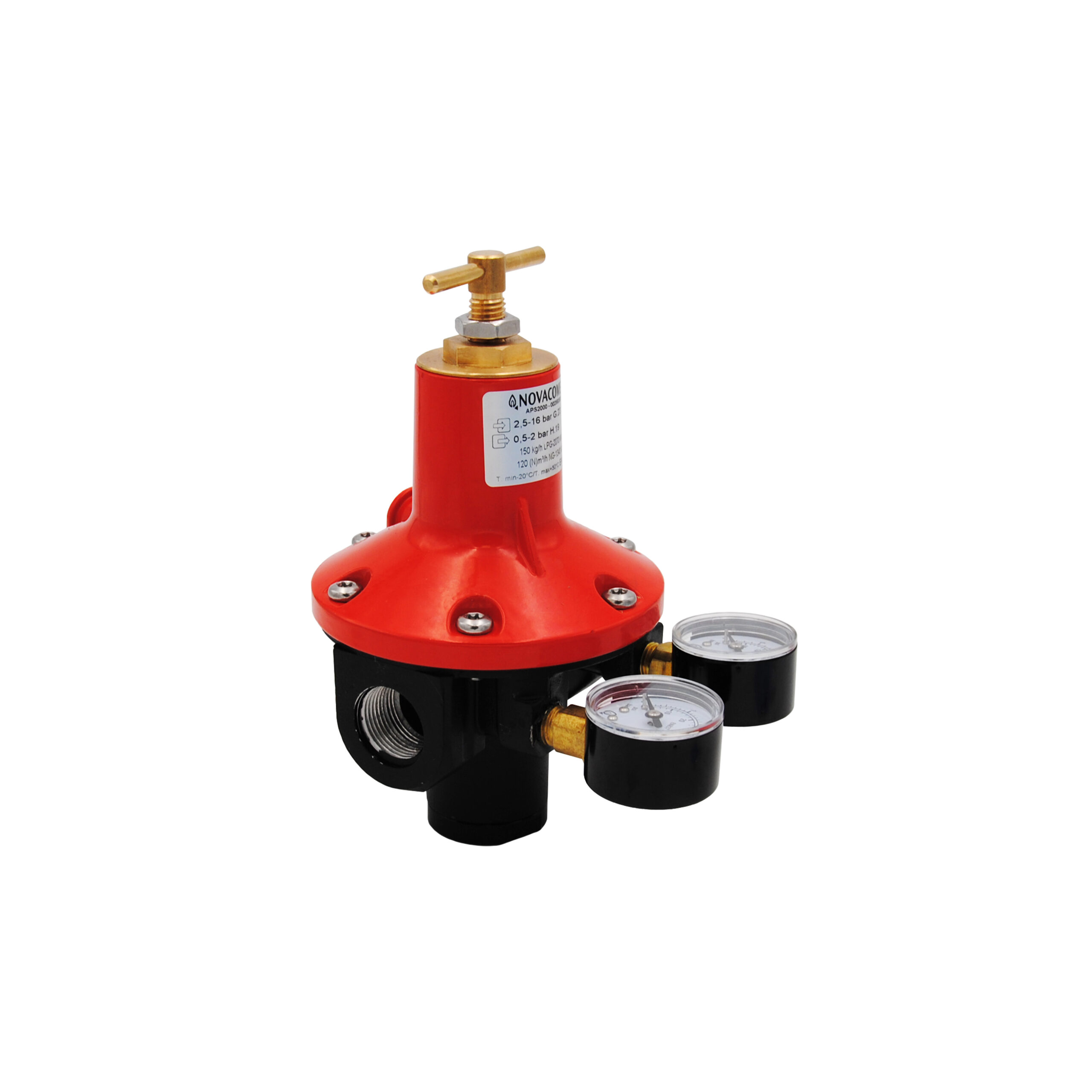

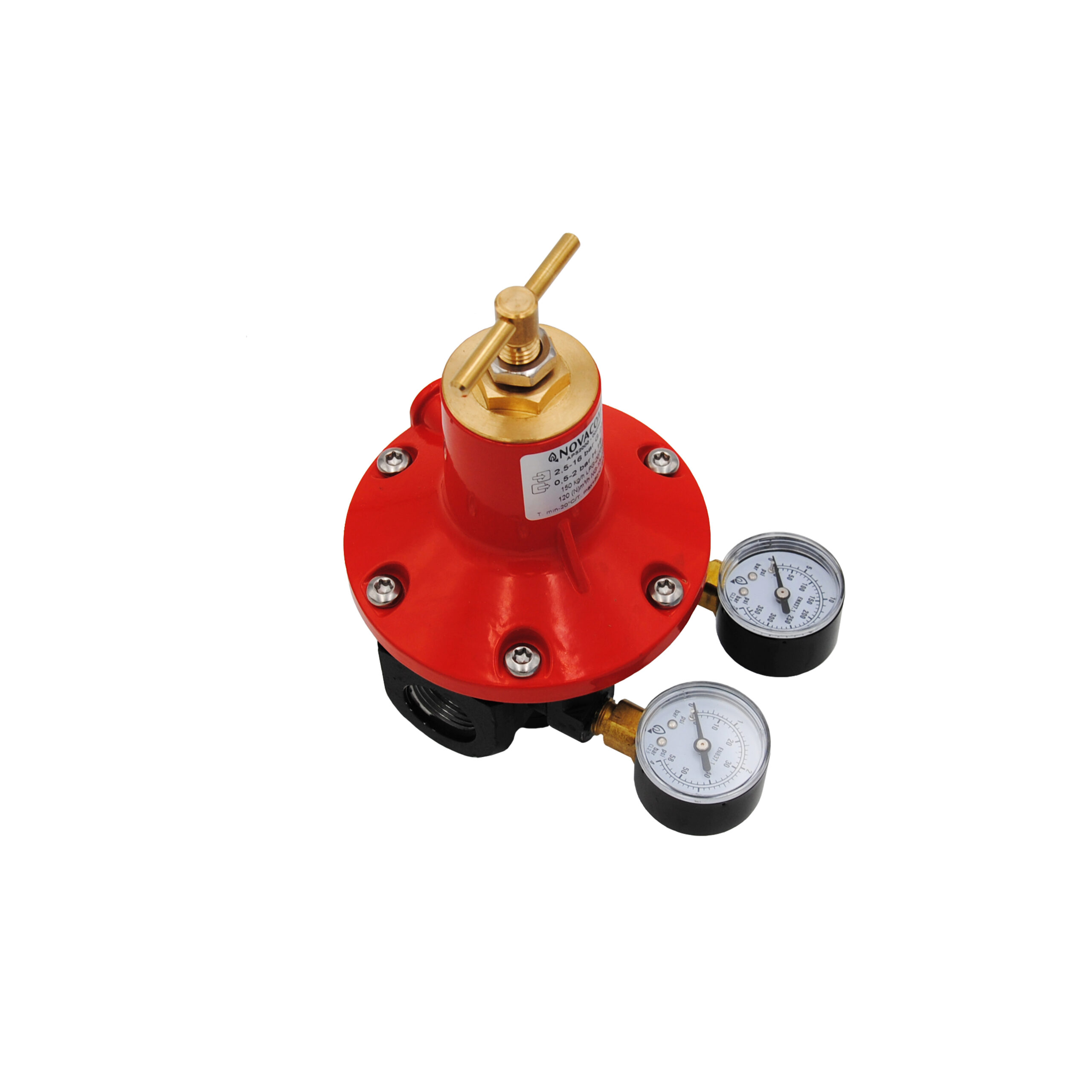

Also available in the version with 2 dry pressure gauges (sku 2530) or in glycerine bath (sku 2540).
Technical Features
| TYPES OF GAS | LPG |
|---|---|
| FLOW RATE | 150 kg/h |
| OPERATING TEMPERATURE | - 20°C ÷ + 50°C |
| INLET PRESSURE | 0,5 ÷ 16 bar |
| OUTLET PRESSURE | 0,5 ÷ 2 bar - external setting |
| PRESSURE GAUGES SKU 2530 |
|
| PRESSURE GAUGES SKU 2540 |
|
| CONNECTIONS | IN 3/4" F - OUT 3/4" F |
| MATERIALS |
|
Download
