Low Pressure Regulator
Nova Comet model, flow rate 4 kg/h
THIS REGULATOR MUST NOT BE USED IN GAS SYSTEMS FOR CARAVAN AND CAMPER BUILT ACCORDING TO THE EN 1949 RULE
COMPLIANT WITH THE EN 16129 RULE
sku | model | price | info | add to cart | |
---|---|---|---|---|---|
|
00000000600 |

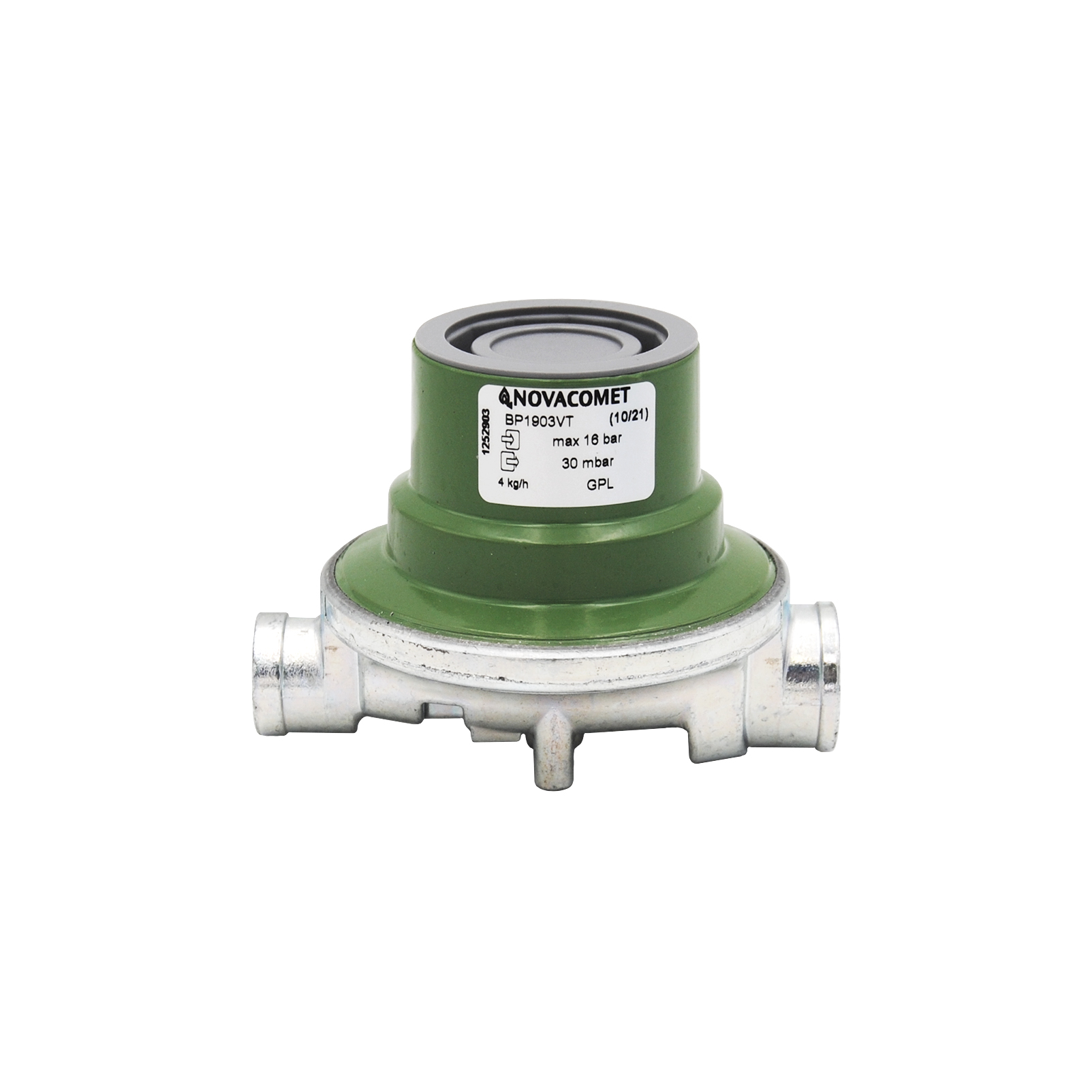

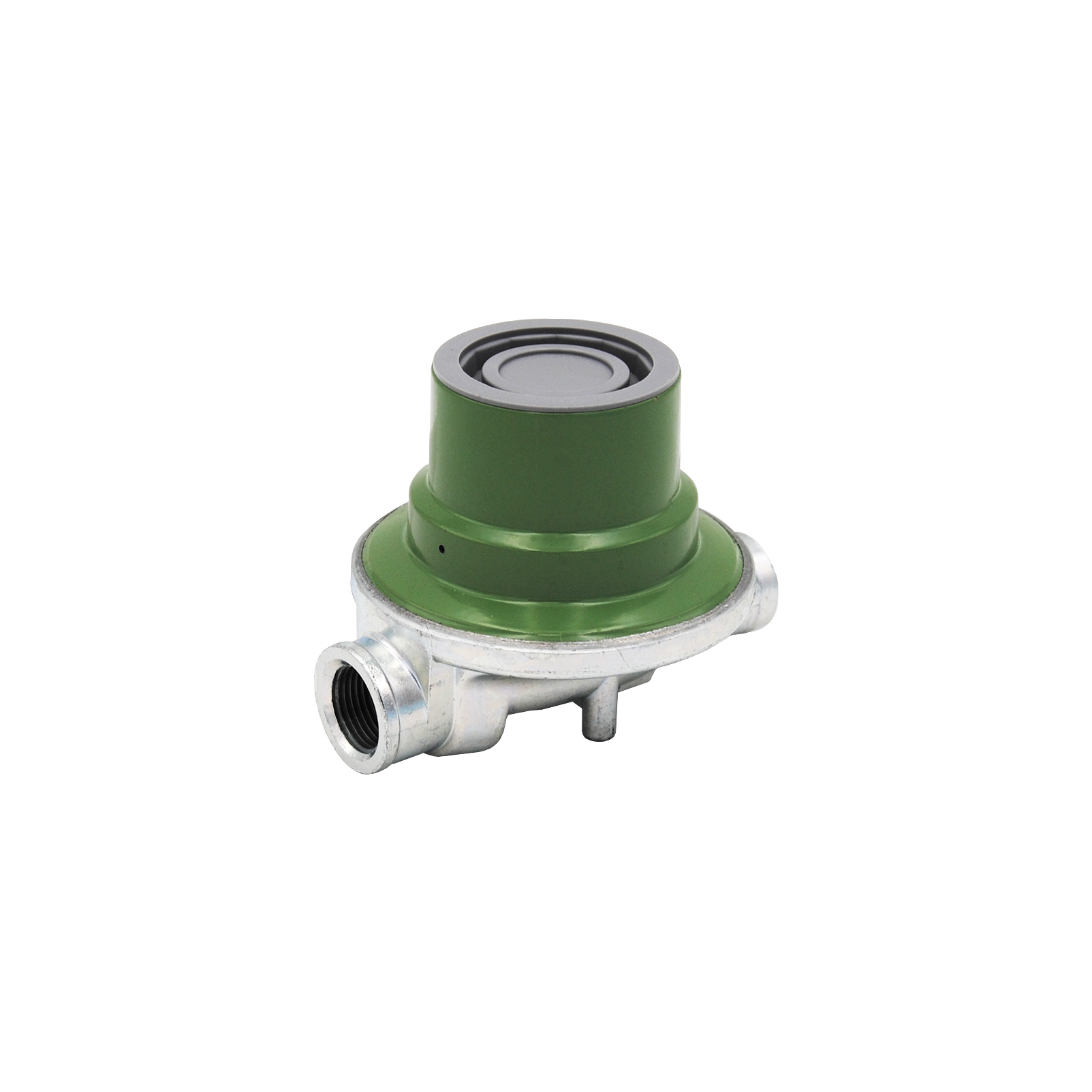

LOW PRESSURE REGULATOR - IN 1/4" F OUT 3/8" F - flow rate 4 kg/h |
€32,25 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
00000000610 |

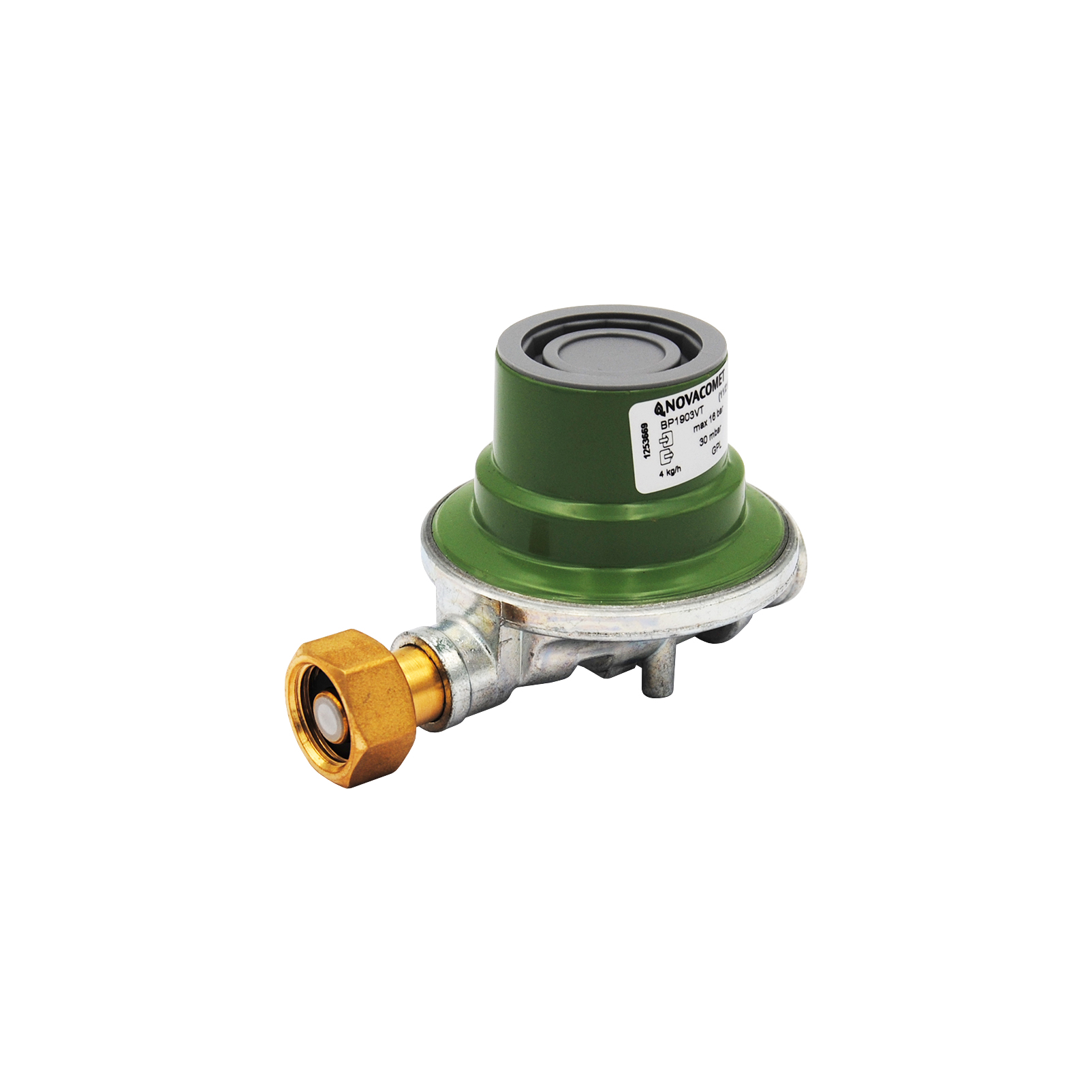

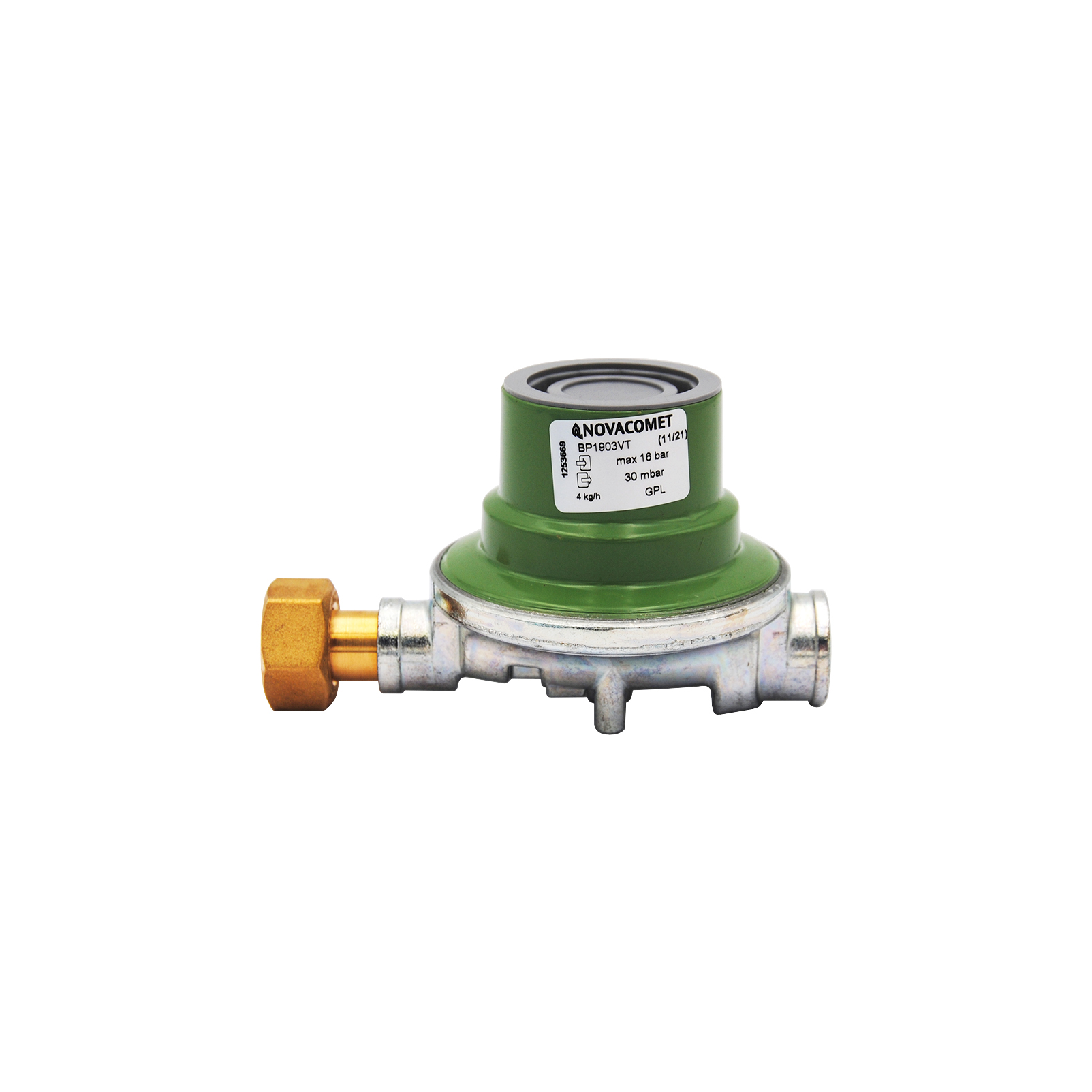

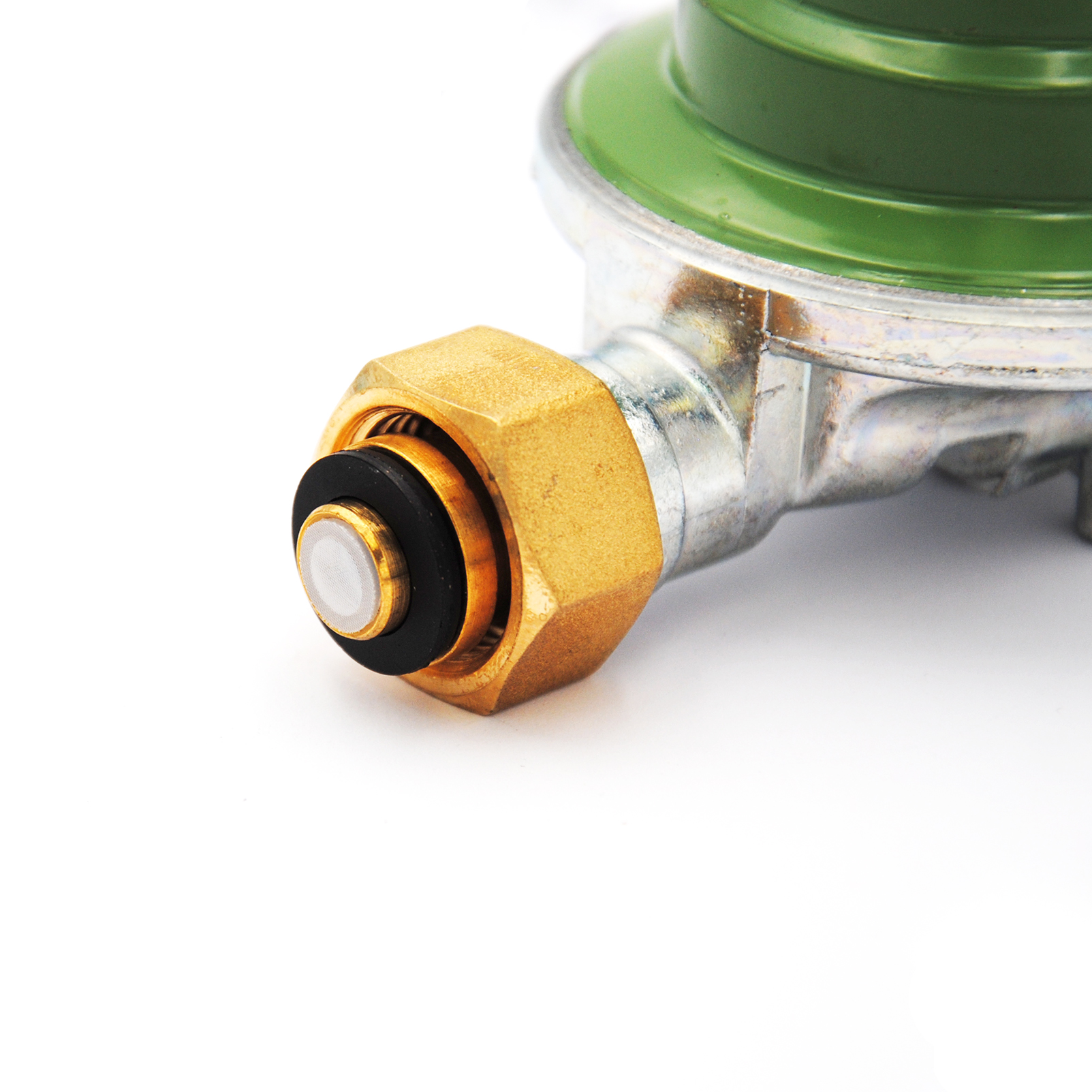

LOW PRESSURE REGULATOR - IN left nut OUT 3/8" F - flow rate 4 kg/h |
€38,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Low pressure regulator, designed to make the gas pressure at the outlet of a tank suitable for the downstream user.
Technical Features
TYPES OF GAS | LPG |
---|---|
FLOW RATE | 4 kg/h |
OPERATING TEMPERATURE | - 20°C ÷ + 50°C |
INLET PRESSURE | 0,5 ÷ 16 bar |
OUTLET PRESSURE | 30 mbar |
CONNECTIONS |
|
MATERIALS |
|
