Low Pressure Regulator

Model with safety relief valve incorporated, flow rate 12 kg/h

COMPLIANT WITH THE EN 16129 RULE

sku model price info add to cart

00000000900

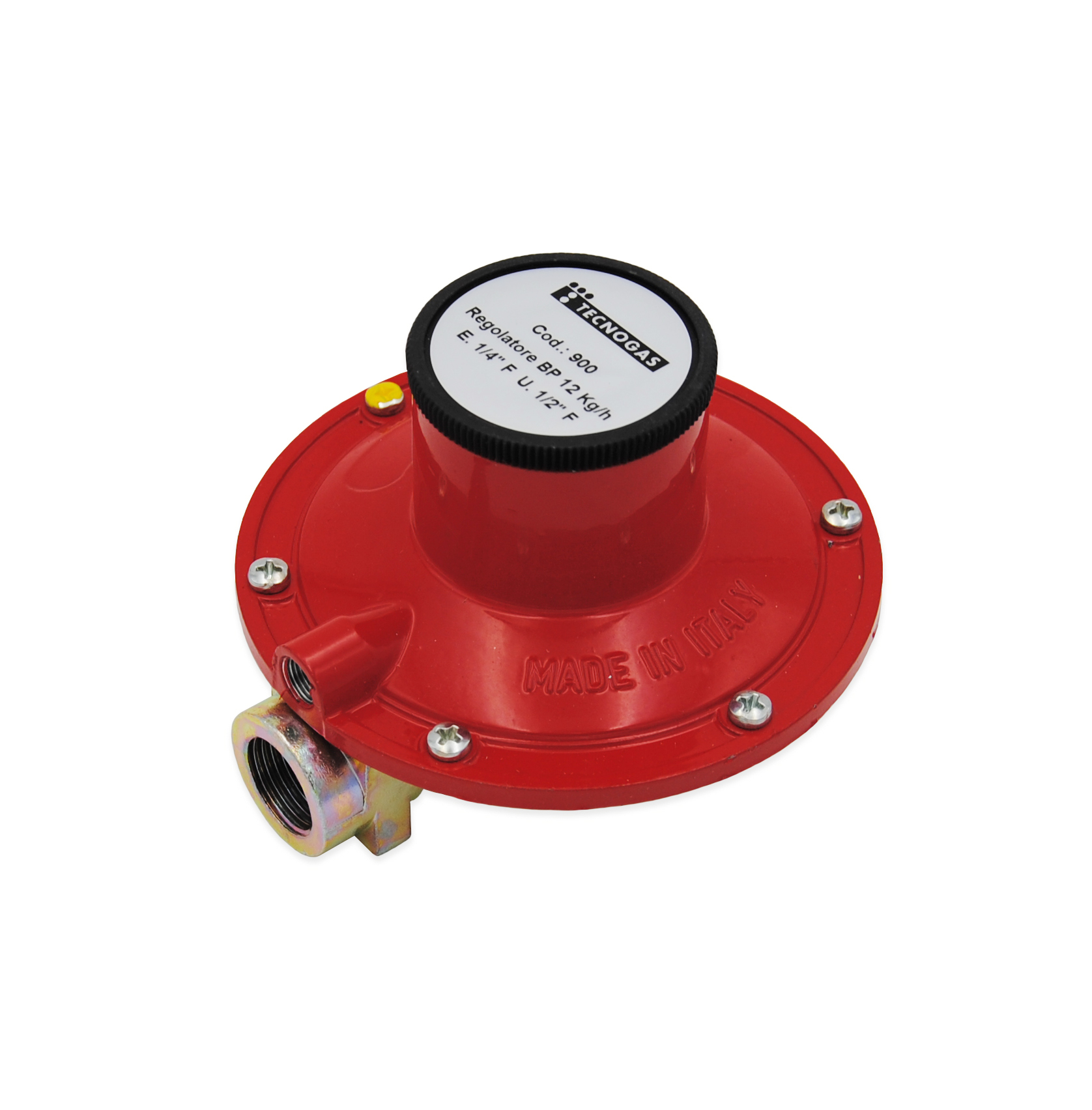

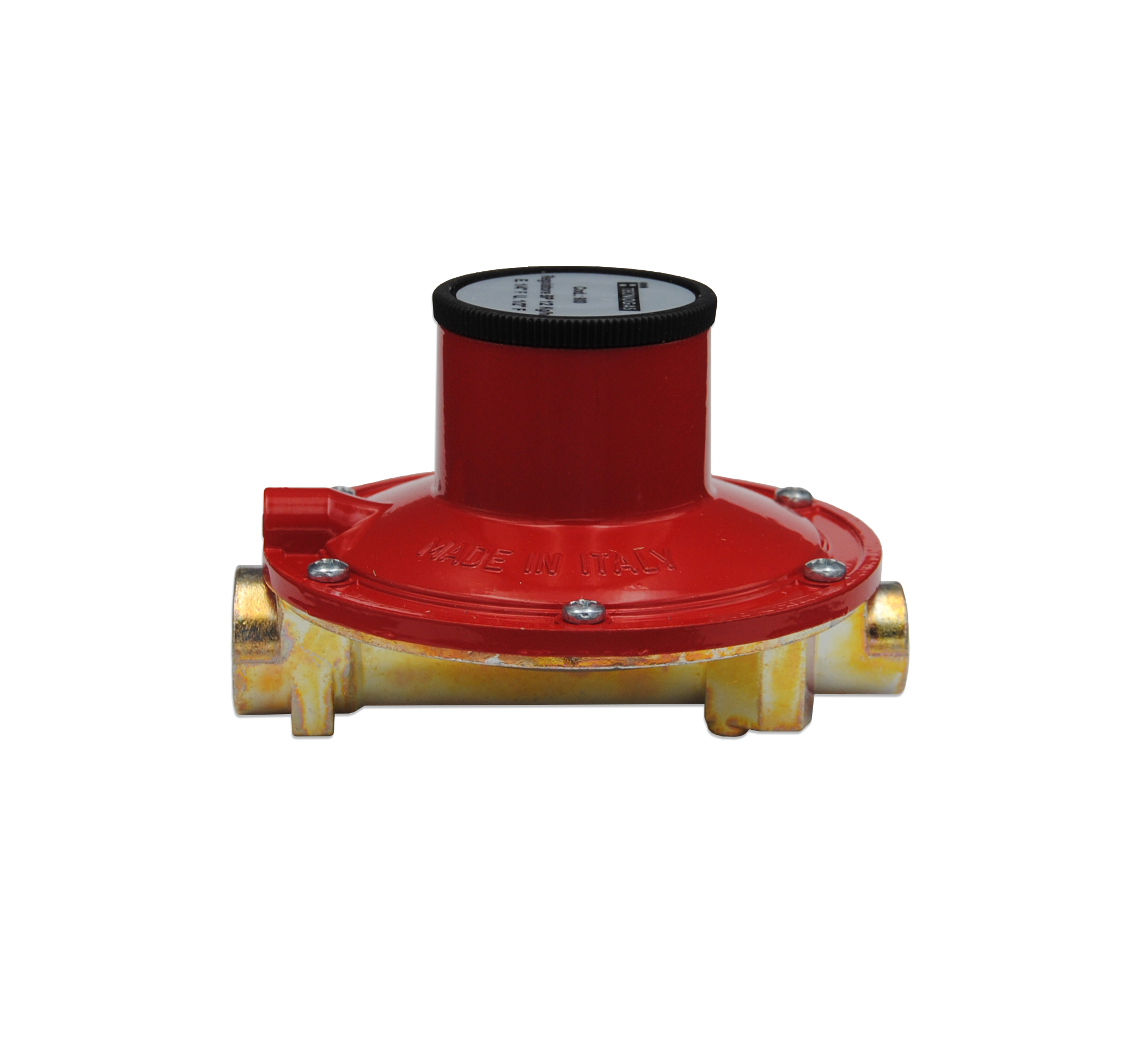

LOW PRESSURE REGULATOR - IN 1/4" F OUT 1/2" F

55,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
15 × 9 × 13 cm

Volume:
0.0019 m3

Weight:
0,50 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

00000000905

LOW PRESSURE REGULATOR - IN 1/2" F OUT 1/2" F

70,50 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
14 × 9 × 12 cm

Volume:
0.0016 m3

Weight:
0,80 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84811099

Buy
Info Request

Product informations

Low pressure regulator with safety relief valve incorporated, designed to make the gas pressure at the outlet of a tank suitable for the downstream user.



Technical Features

TYPES OF GAS LPG
FLOW RATE 12 kg/h
OPERATING TEMPERATURE - 20°C ÷ + 50°C
INLET PRESSURE 1,5 bar
OUTLET PRESSURE 25 ÷ 45 mbar
CONNECTIONS
  • IN 1/4" F - OUT 1/2" F (sku 900
  • IN 1/2" F - OUT 1/2" F (sku 905)
MATERIALS
  • die casting body and cover: zamak EN 1774
  • diaphragm and other rubber parts: NBR
  • regulator lever, spring press and diaphragm holder in die casting zamak EN 1774
  • springs: C85 steel with zinc-coating treatment
  • diaphragm washer and spring press: UNI EN 10130 iron with zinc-coating treatment
