High Pressure Regulator Mignon Model

Model with external setting, flow rate 6 and/or 12 kg/h

COMPLIANT WITH THE EN 16129 RULE

sku model price info add to cart

000000E2010

HIGH PRESSURE REGULATOR MOD. MIGNON - IN left nut OUT hose nozzle - flow rate 6 kg

25,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 6 × 8 cm

Volume:
0.0006 m3

Weight:
0,36 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

000000E2020

HIGH PRESSURE REGULATOR MOD. MIGNON - IN left nut OUT hose nozzle - flow rate 6 kg - WITH PRESSURE GAUGE

34,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
10 × 8 × 10 cm

Volume:
0.0009 m3

Weight:
0,40 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

000000E2025

HIGH PRESSURE REGULATOR MOD. MIGNON - IN left nut OUT 1/4" F - flow rate 12 kg - WITH PRESSURE GAUGE

32,75 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
7 × 6 × 11 cm

Volume:
0.0005 m3

Weight:
0,37 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

000000E2030

HIGH PRESSURE REGULATOR MOD. MIGNON - IN left nut OUT 1/4" F - flow rate 12 kg

24,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
8 × 6 × 12 cm

Volume:
0.0006 m3

Weight:
0,33 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

Product informations

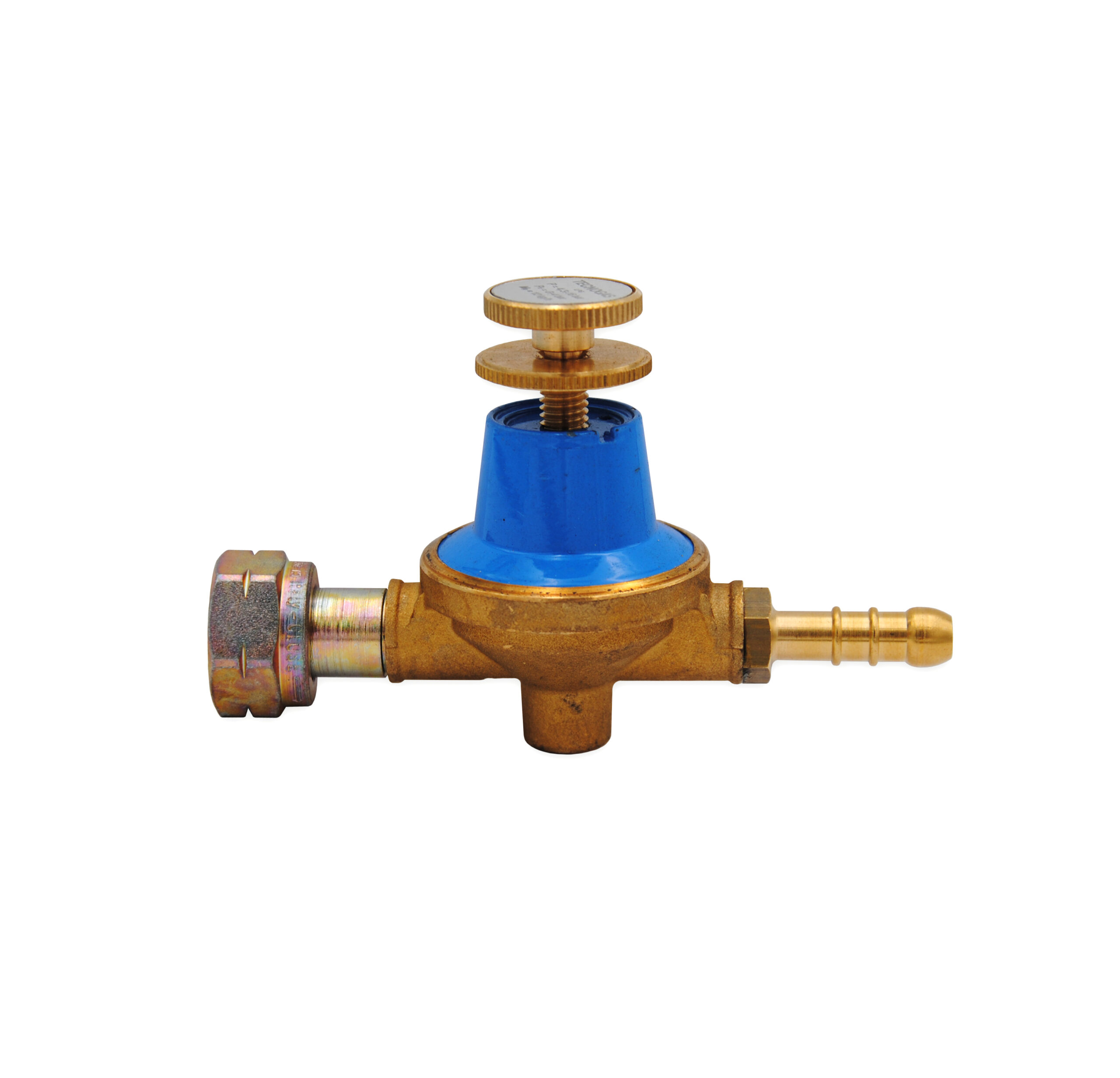

High pressure regulator Mignon model, designed to make the gas pressure at the outlet of a tank suitable for the downstream user.

Also available the Mignon model version with external setting and pressure gauge (sku E2020 / E2025).

Technical Features

TYPES OF GAS LPG
FLOW RATE
  • 6 kg/h (sku E2010 / E2020)
  • 12 kg/h (sku E2030 / E2025)
OPERATING TEMPERATURE - 20°C ÷ + 50°C
INLET PRESSURE 0,5 ÷ 16 bar
OUTLET PRESSURE 0,3 ÷ 3 bar
CONNECTIONS
  • IN left nut Ch25 W20x1" 1/4 - OUT hose nozzle (sku E2010)
  • IN left nut Ch25 W20x1" 1/4 - OUT 1/4" F (sku E2030)

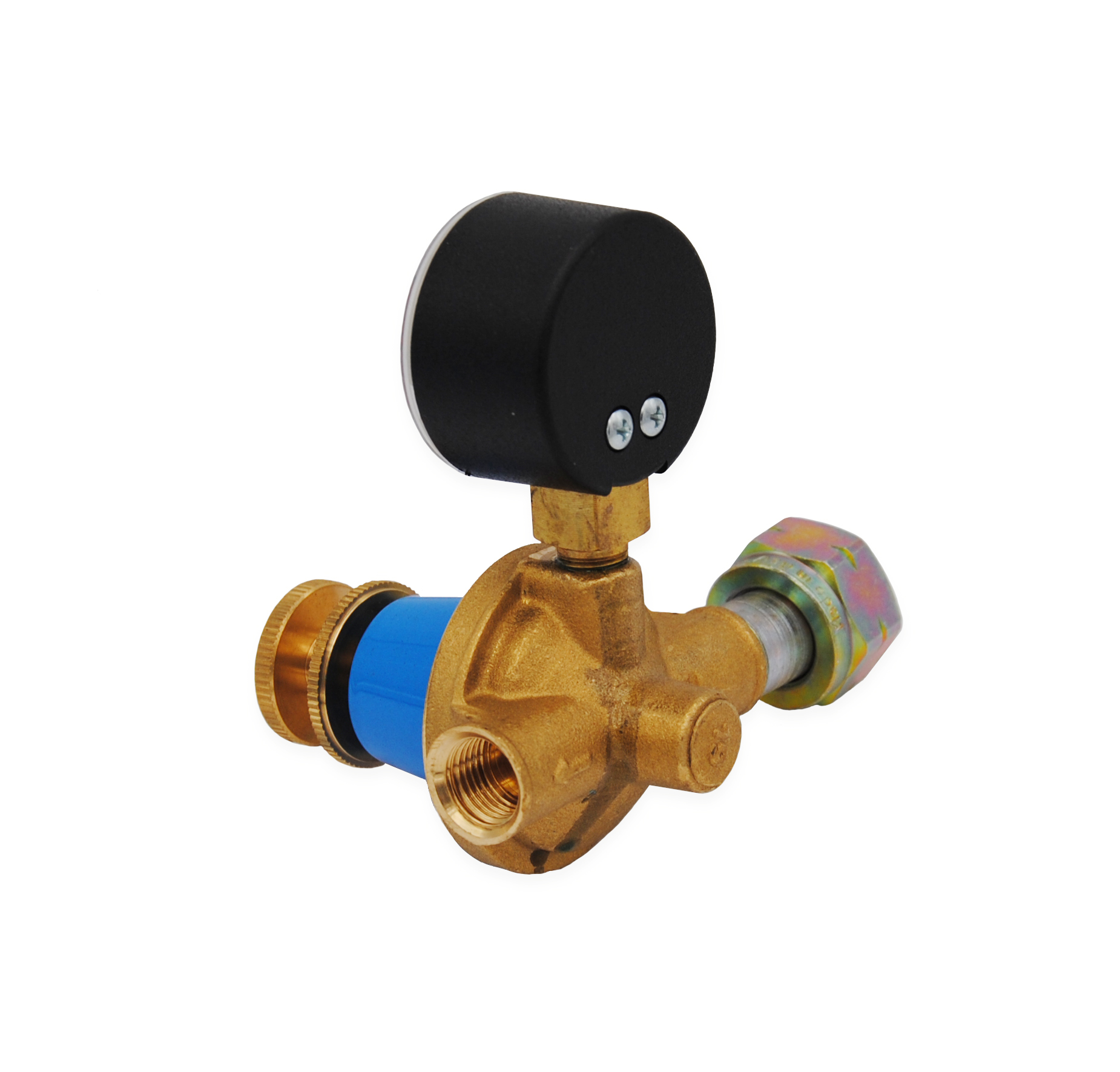

  • IN left nut Ch25 W20x1" 1/4 - OUT hose nozzle (sku E2020) - equipped with pressure gauge

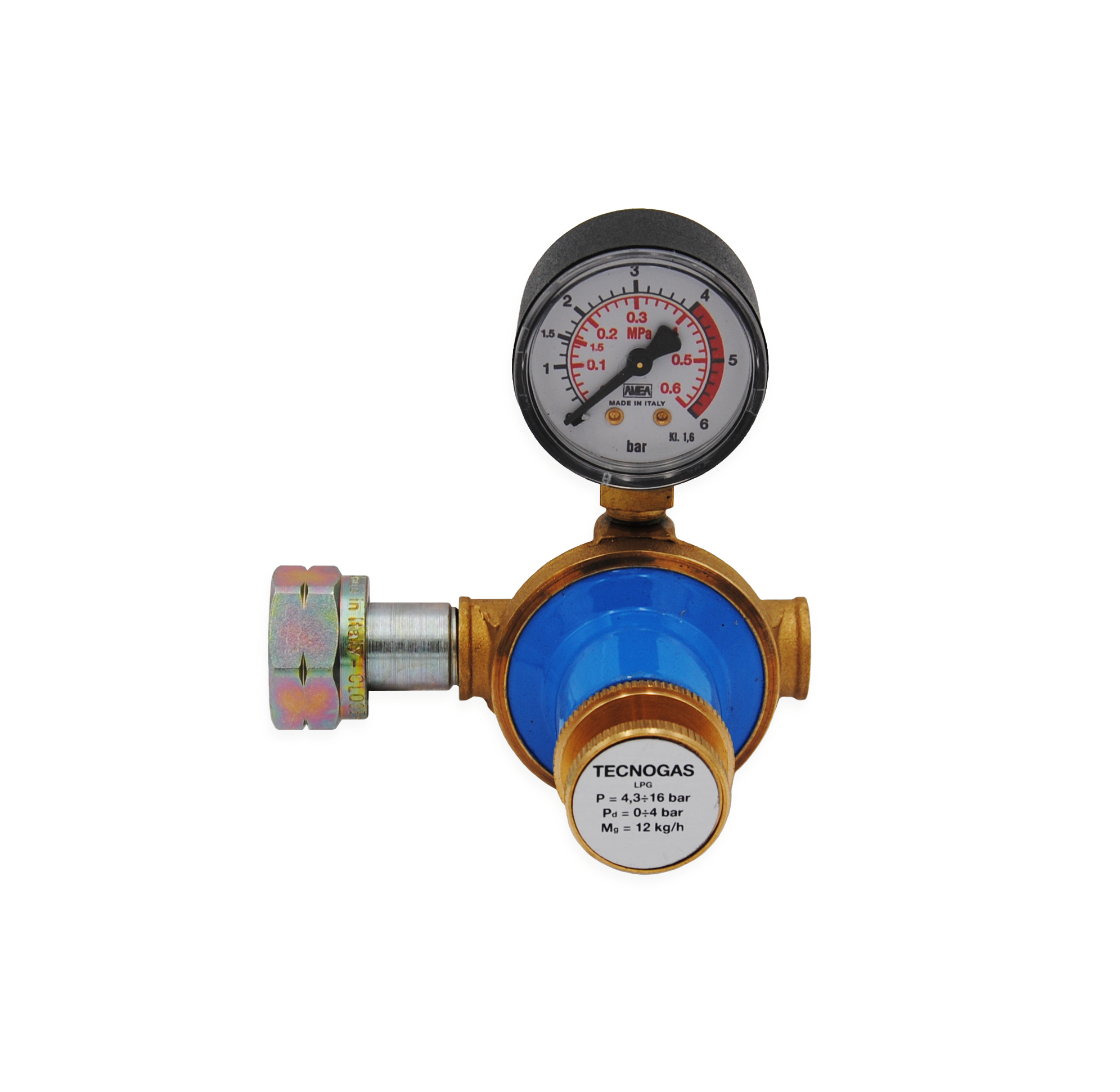

  • IN left nut Ch25 W20x1" 1/4 - OUT 1/4" F (sku E2025) - equipped with pressure gauge
