Low Pressure Regulator
Alfa 80 BP series, with balanced direct action regulation
ACCORDING TO THE EN 334 RULE
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000002628 |
ALFA 80 BP SERIES REGULATOR - DN 80 - DN 80 CONNECTION |
€5.605,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000002630 |
ALFA 80 BP SERIES REGULATOR - DN 80 - DN 80 CONNECTION - WITH BLOCK |
€6.878,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

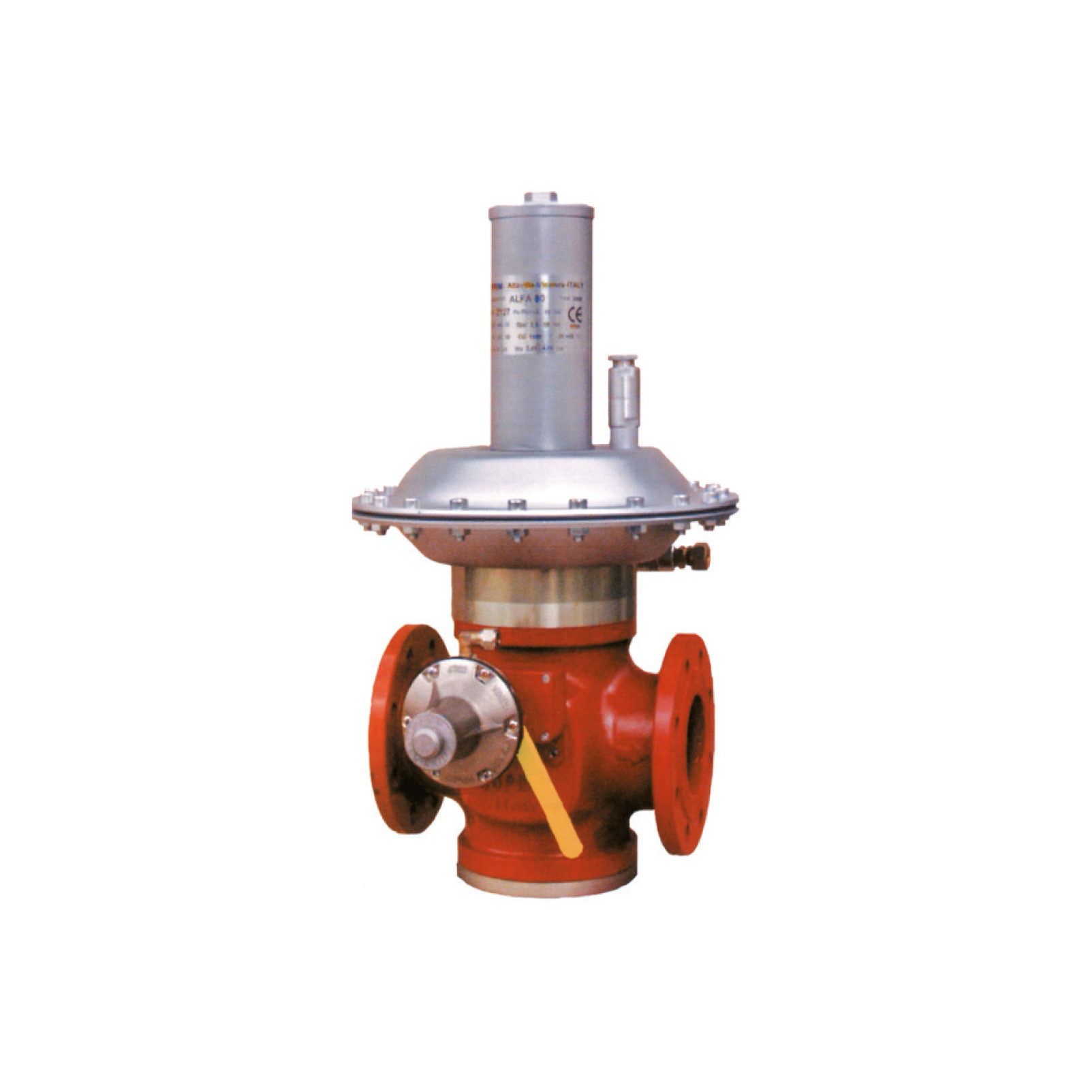

Alfa 80 BP series regulator with balanced direct action, equipped with external sensing line, suitable for the use of not corrosive gases as methane and LPG.
Also available the version with minimum and maximum pressure shut-off valve downstream (sku 2630).
Technical Features
| FLOW RATE | see table underlying |
|---|---|
| INLET CONNECTION | DN 80 |
| OUTPUT CONNECTION | DN 80 |
| INLET PRESSURE | 0,5 ÷ 5 bar |
| OUTPUT PRESSURE | 0,2 ÷ 1 bar |
| STANDARD OUTPUT PRESSURE | on request |
| WORKING TEMPERATURE | - 20°C ÷ + 60°C |
| EXTERNAL SENSING LINE | Ø 14 |
| MATERIALS |
|

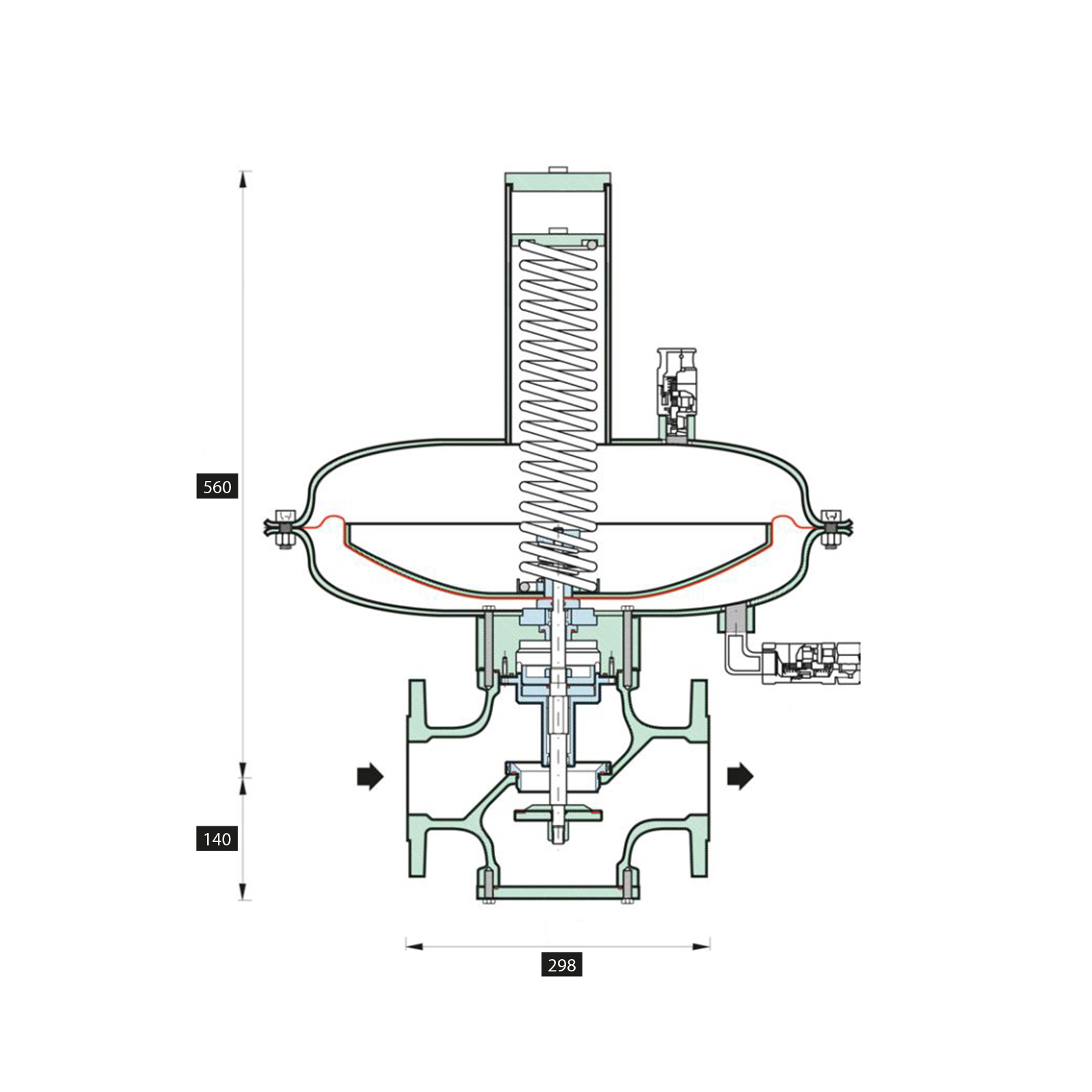

| DIMENSIONS | 560 x 298 x 140 mm |
| FLOW RATE TABLE M3/H | INLET PRESSURE | ||||
|---|---|---|---|---|---|
| 0,3 Bar | 0,5 Bar | 1 Bar | 1,5 Bar | ||
| OUTLET PRESSURE | 25 mbar | 1111 m3/h | 1470 m3/h | 2719 m3/h | 2782 m3/h |
| 50 mbar | 1071 m3/h | 1445 m3/h | 2169 m3/h | 2794 m3/h | |
| 100 mbar | 981 m3/h | 1391 m3/h | 2146 m3/h | 2783 m3/h | |
| 150 mbar | 869 m3/h | 1328 m3/h | 2119 m3/h | 2769 m3/h | |
| 200 mbar | 726 m3/h | 1255 m3/h | 2089 m3/h | 2754 m3/h | |
| 300 mbar | - | 1066 m3/h | 2017 m3/h | 2717 m3/h | |
To obtain the LPG flow rates in kg/h, multiply the values in red by 1,42.
