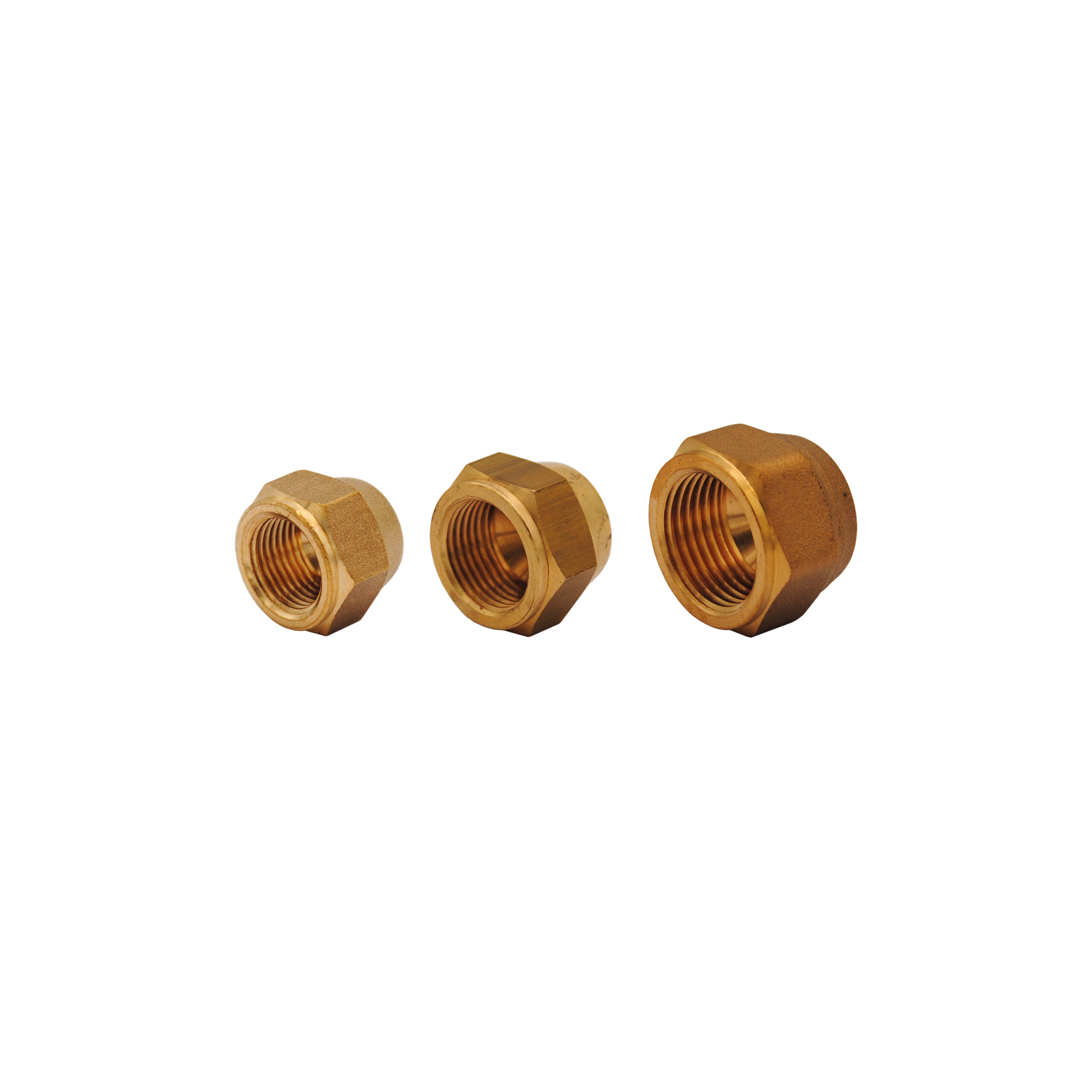

Reduced Nozzles

For copper pipes

sku model price info add to cart

00000011285

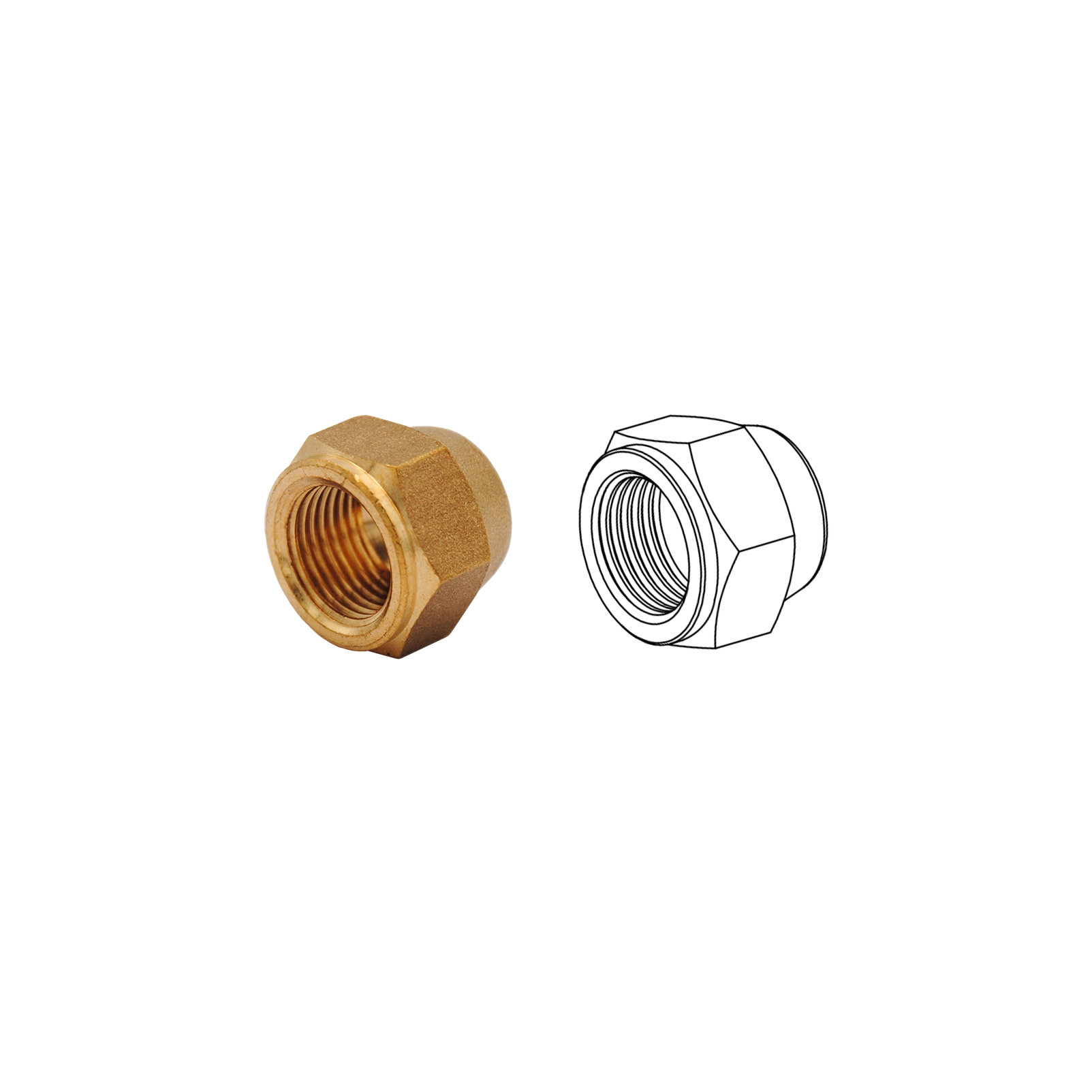

REDUCED NOZZLE 1/4" - 3/8" SAE - 10 pcs.

2,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 1 × 2 cm

Volume:
0 m3

Weight:
0,03 kg

Minimum Order Quantity:
10

Customs data

Customs Code
74122000

Buy
Info Request

00000011286

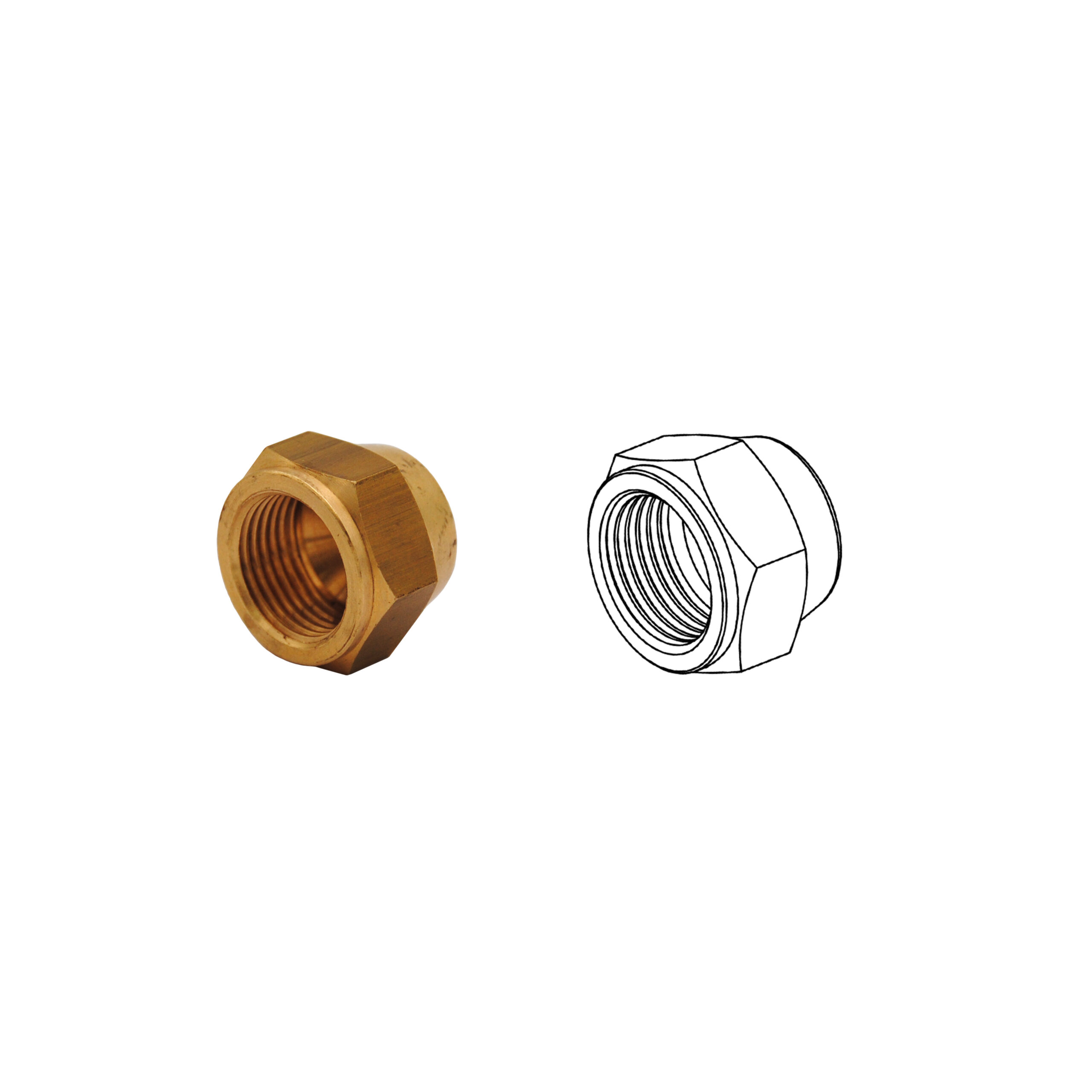

REDUCED NOZZLE 1/2" - 3/8" SAE - 10 pcs.

3,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
2 × 1 × 2 cm

Volume:
0 m3

Weight:
0,03 kg

Minimum Order Quantity:
10

Customs data

Customs Code
74122000

Buy
Info Request

00000011287

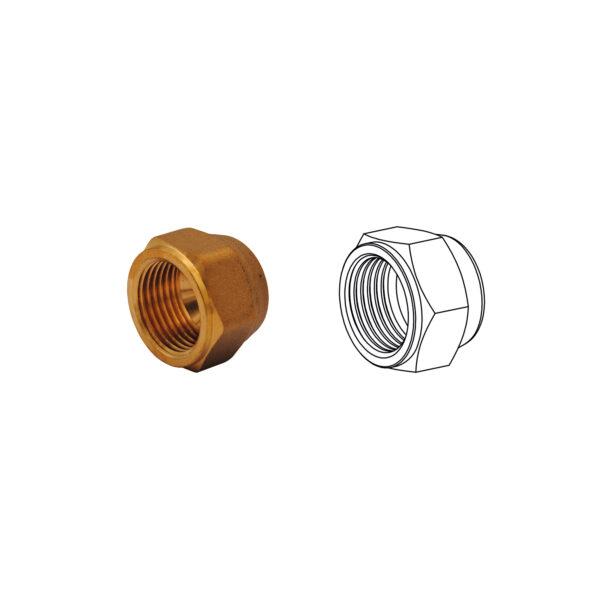

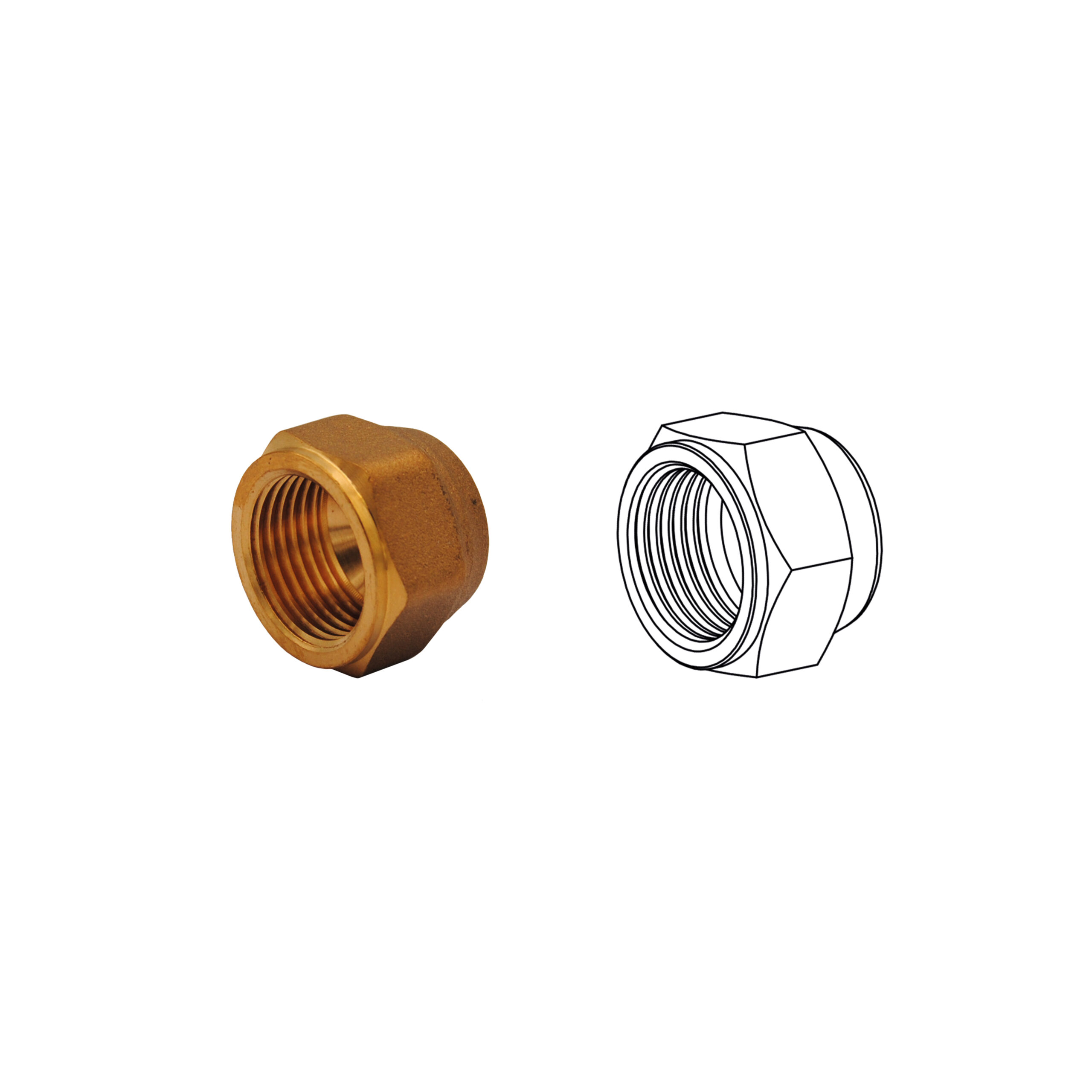

REDUCED NOZZLE 5/8" - 1/2" SAE - 10 pcs.

5,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
3 × 2 × 3 cm

Volume:
0 m3

Weight:
0,04 kg

Minimum Order Quantity:
10

Customs data

Customs Code
74122000

Buy
Info Request

Product informations

Reduced nozzles essential to connect the copper pipe with the indoor or outdoor unit of the air conditioner.



Product features

  • forged from forged brass or drawn brass bar that eliminate the possibility of leakage due to porosity in the material
  • low-roughness internal mechanical processing to ensure lower pressure drop and higher refrigeration flow rate in joints
  • suitable for HCFC, HFC and R744 (CO2) refrigerants, not suitable for ammonia



Technical Features

SKU  ANSI/ASME B1.1 THREAD (female) CONNECTION TIGHTENING TORQUE Nm (lbf-ft) TEMPERATURE RANGE MAXIMUM RECOMMENDED PRESSURE MATERIAL

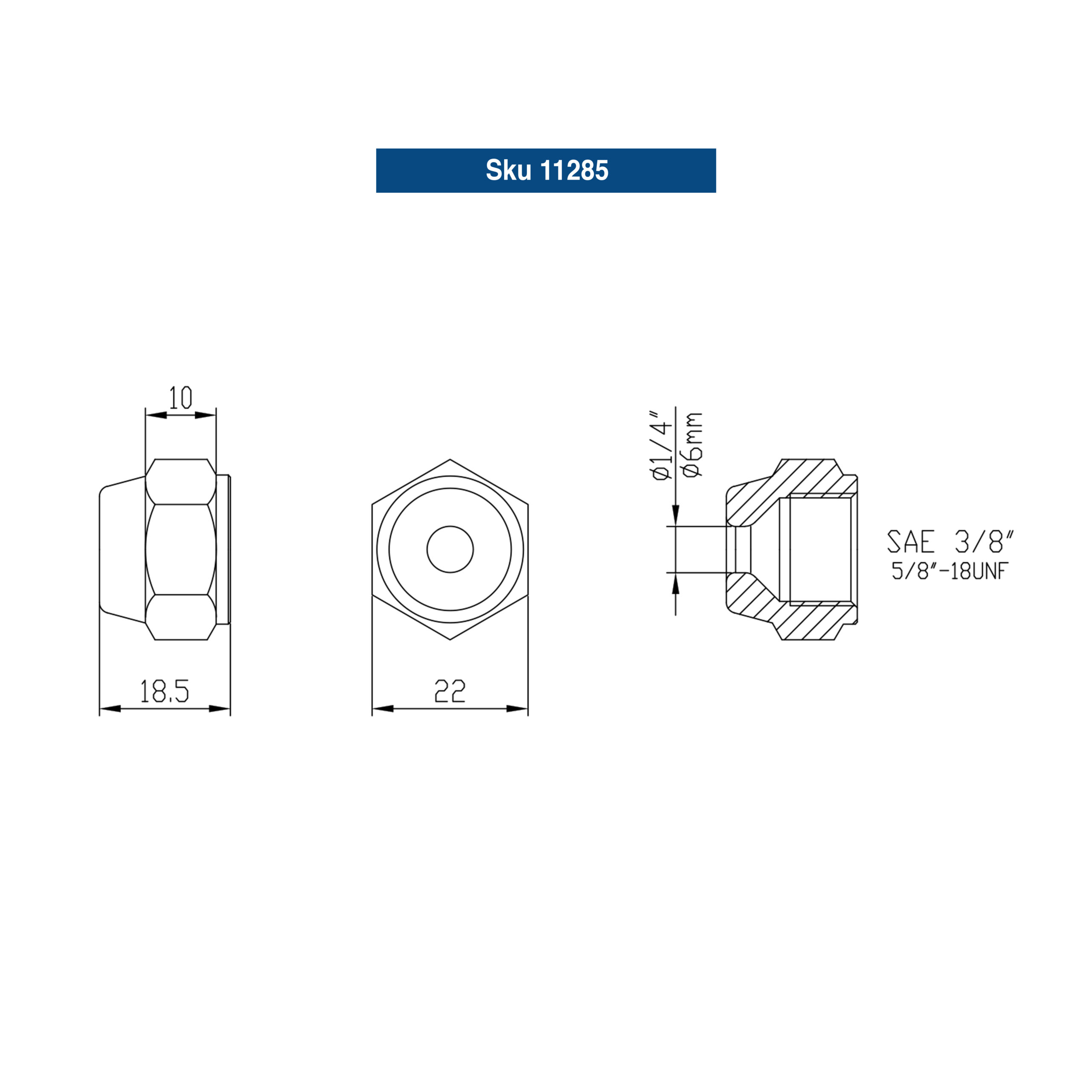

11285 5/8" - 18 UNF 3/8" 20 ÷ 25 (15 ÷ 18.5) - 40°C ÷ + 150°C 140 bar brass

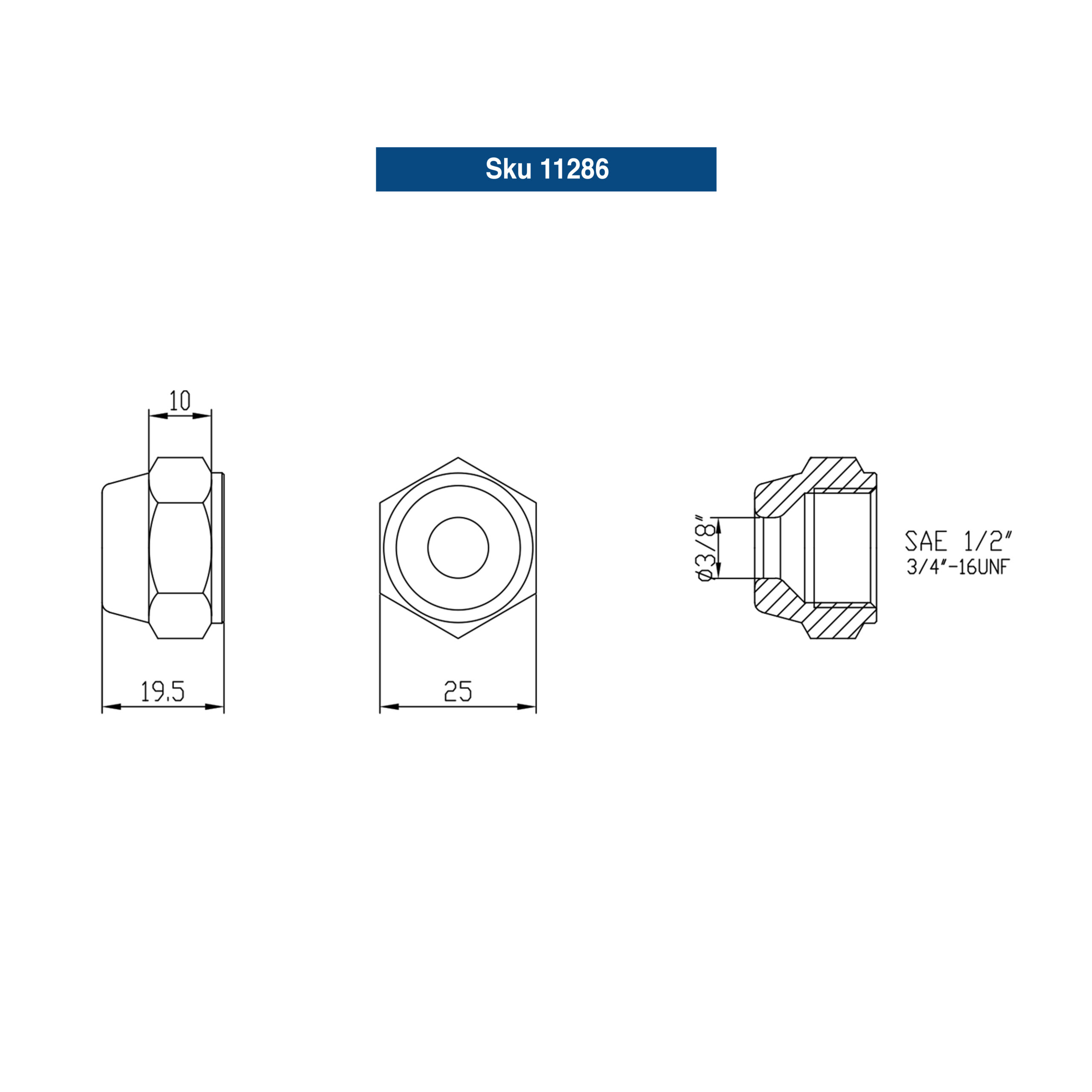

11286 3/4" - 16 UNF 1/2" 34 ÷ 47 (25 ÷ 34.5)

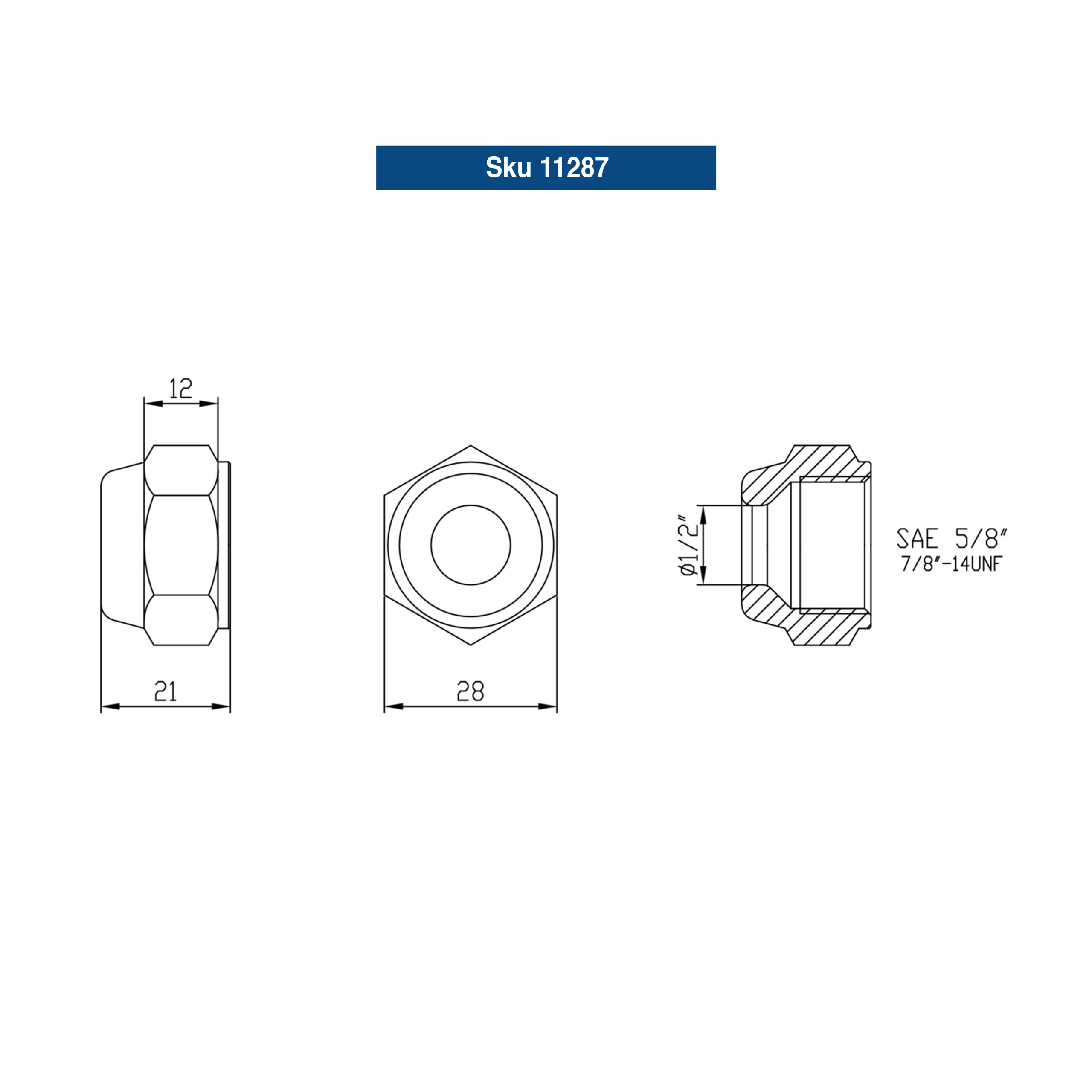

11287 7/8" - 14 UNF 5/8" 54 ÷ 75 (40 ÷ 55)
