Recovery Station

REC-24 and REC-24 COMPACT models

F-GAS

IN COMPLIANCE WITH DPR 146/2018, OUR PRODUCTS ARE SUPPLIED, UPON REQUEST, WITH THE RELATIVE CALIBRATION REPORT; THIS REPORT MAY ALSO BE REQUESTED ON USED PRODUCTS, EVEN FROM NOT TECNOGAS ORIGINSZA NON TECNOGAS

sku model price info add to cart

00000011681

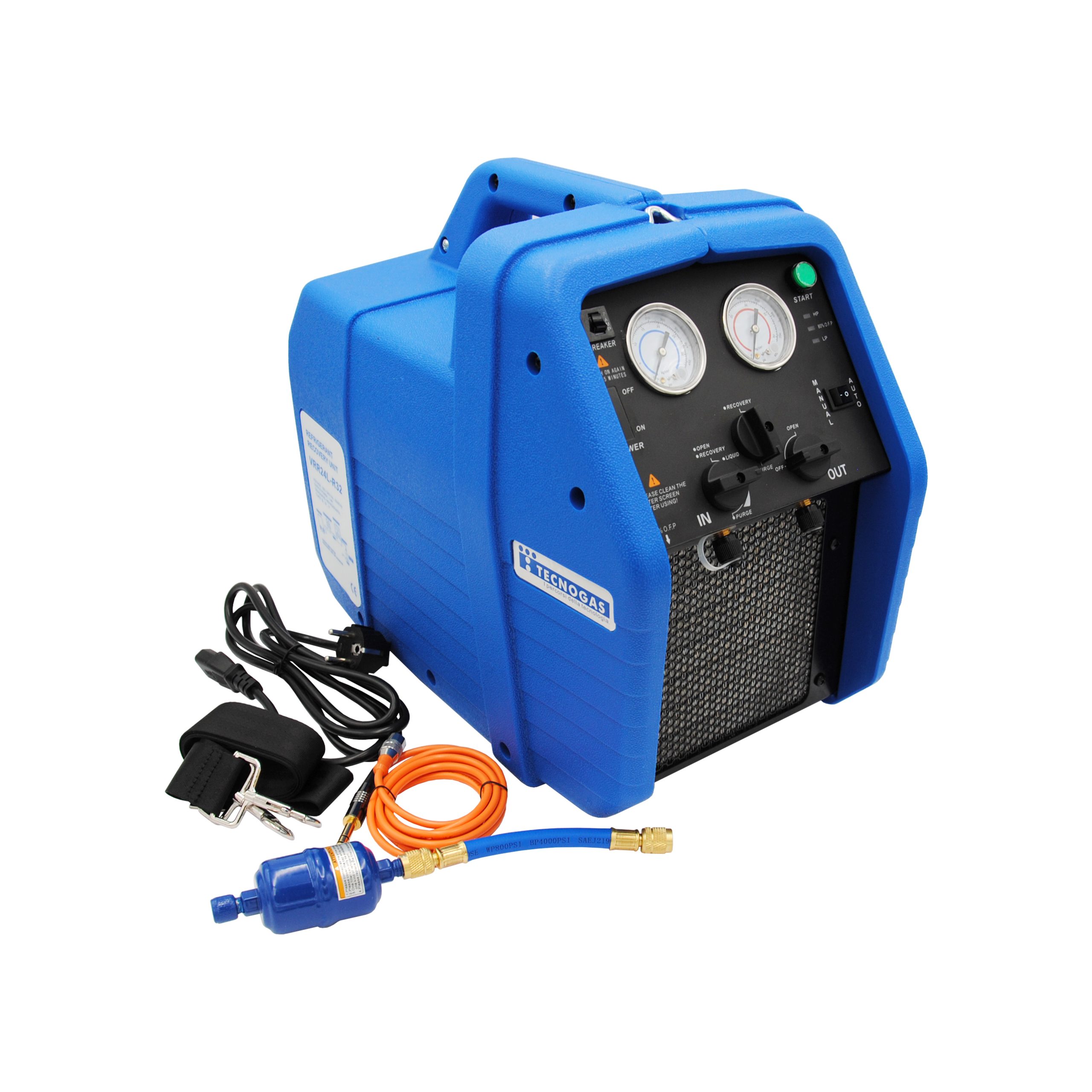

RECOVERY STATION Mod. REC-24

2.286,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
57 × 30 × 40 cm

Volume:
0.0684 m3

Weight:
22,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84148051

Buy
Info Request

00000011712

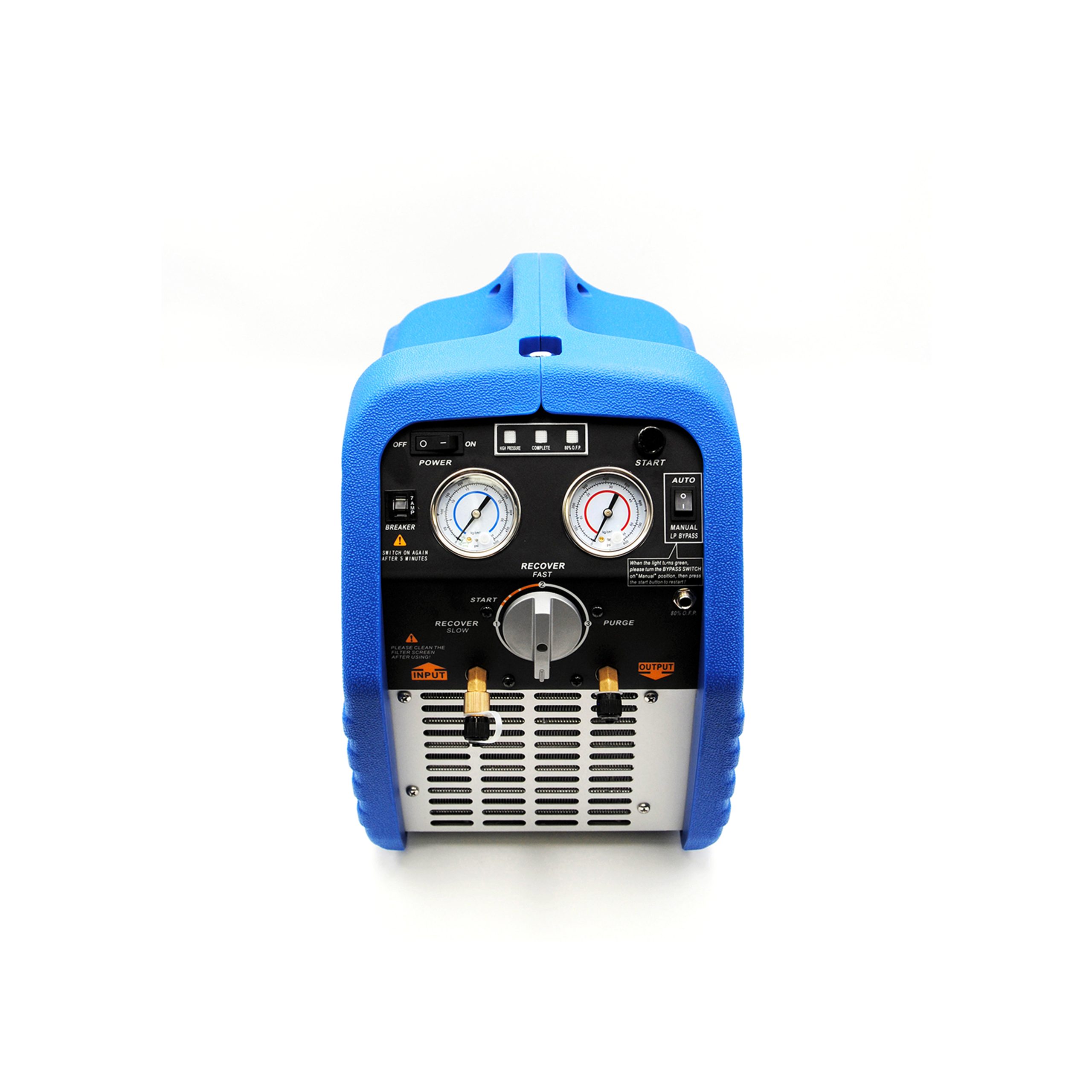

RECOVERY STATION Mod. REC-24 COMPACT

2.264,25 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
50 × 40 × 28 cm

Volume:
0.057 m3

Weight:
16,39 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84148051

Buy
Info Request

Product informations

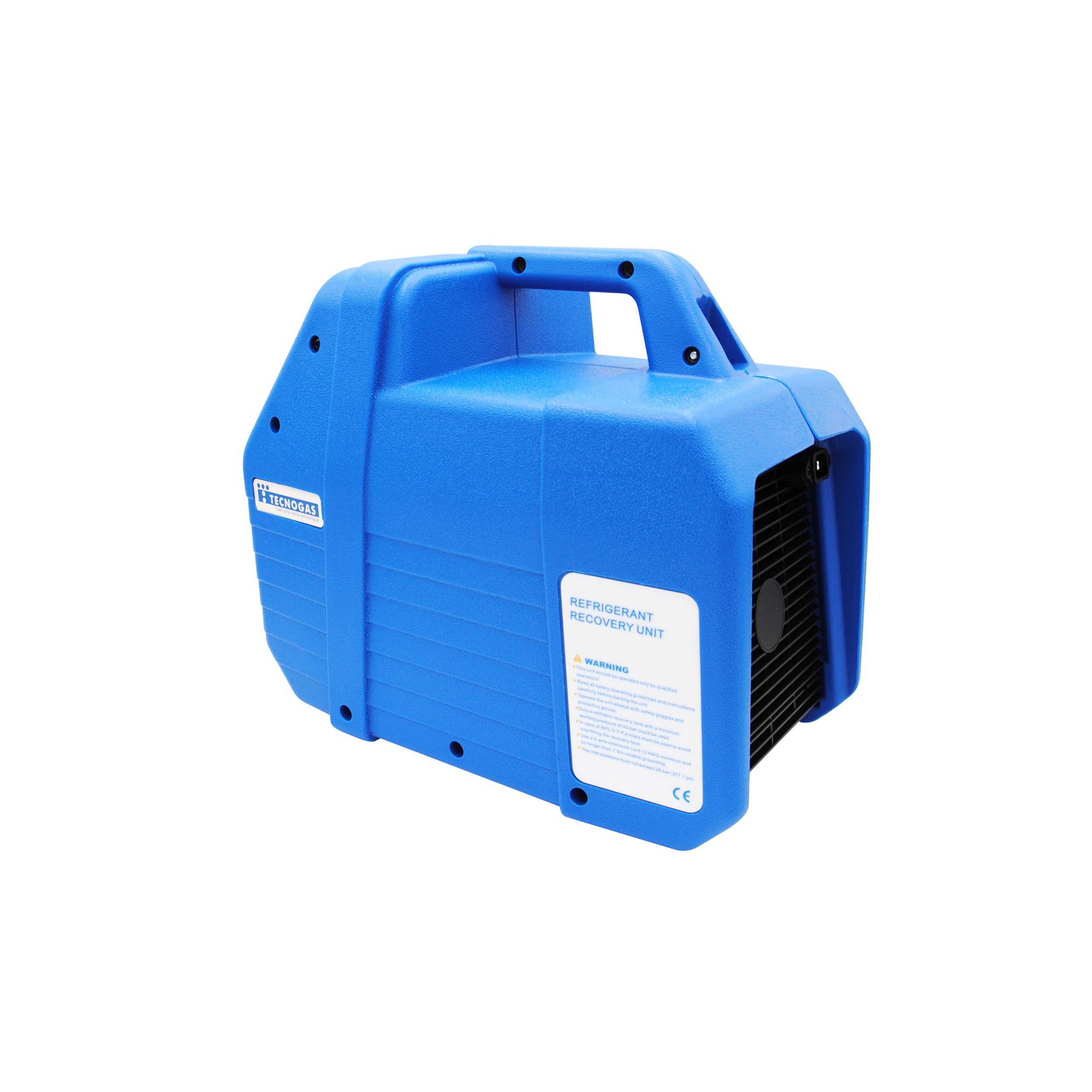

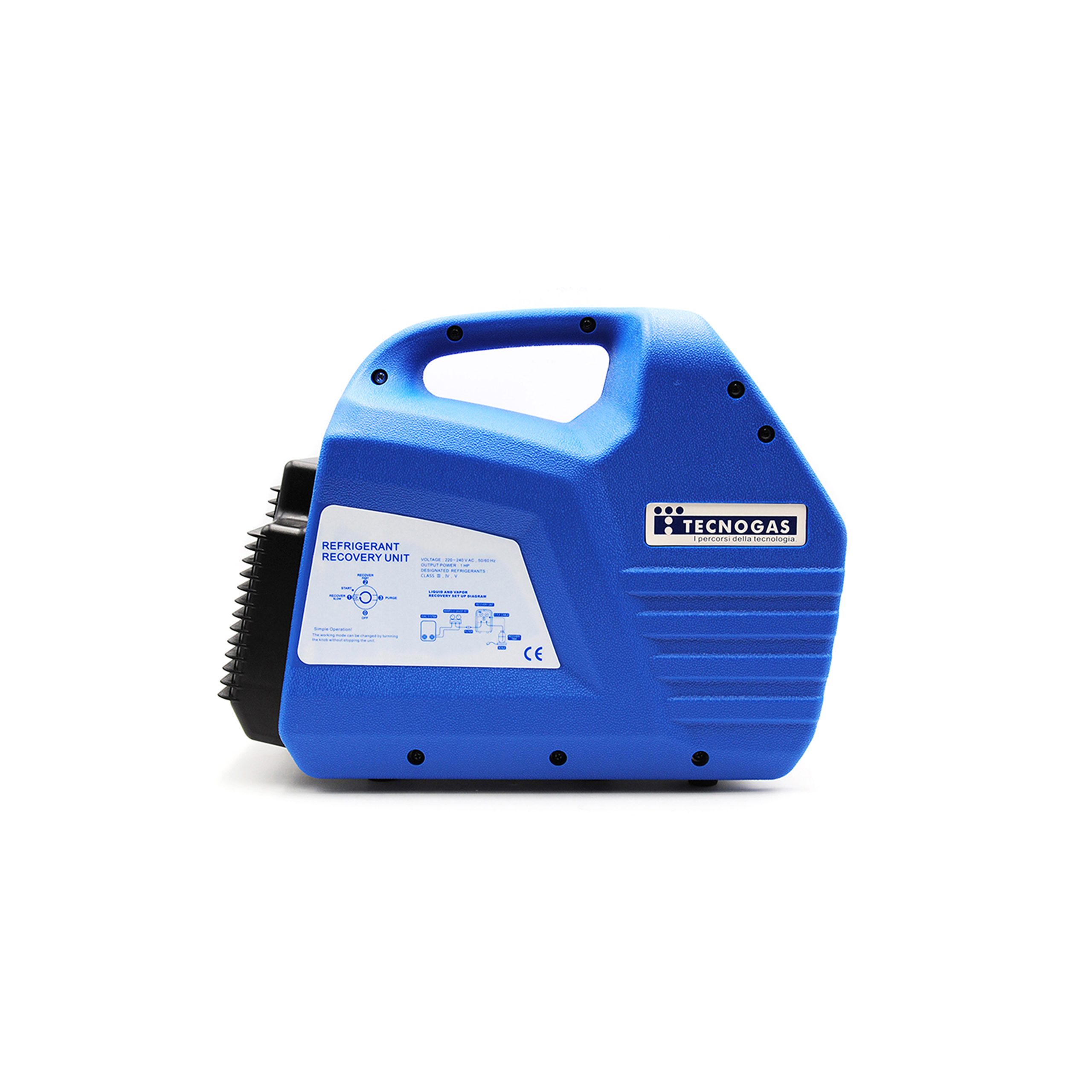

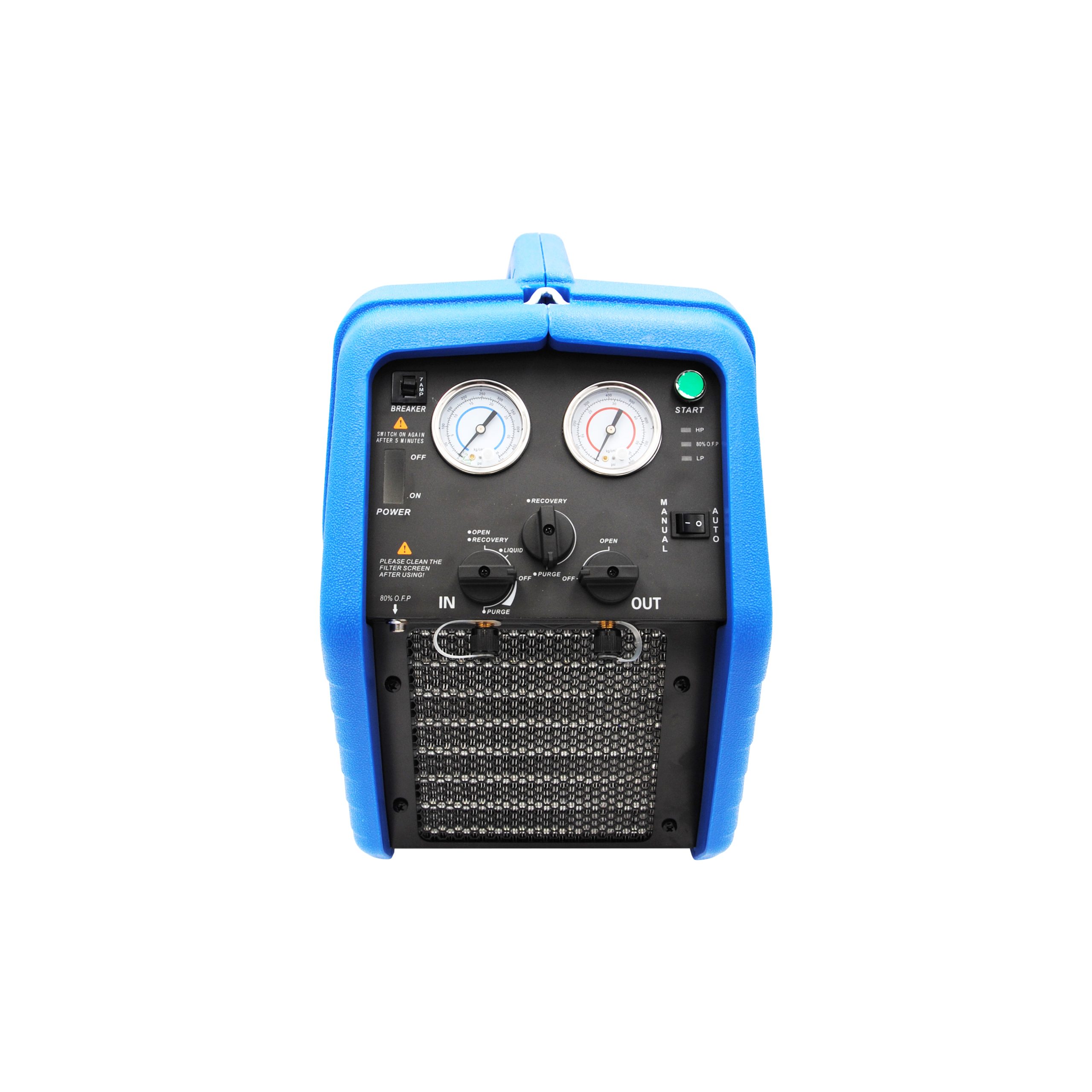

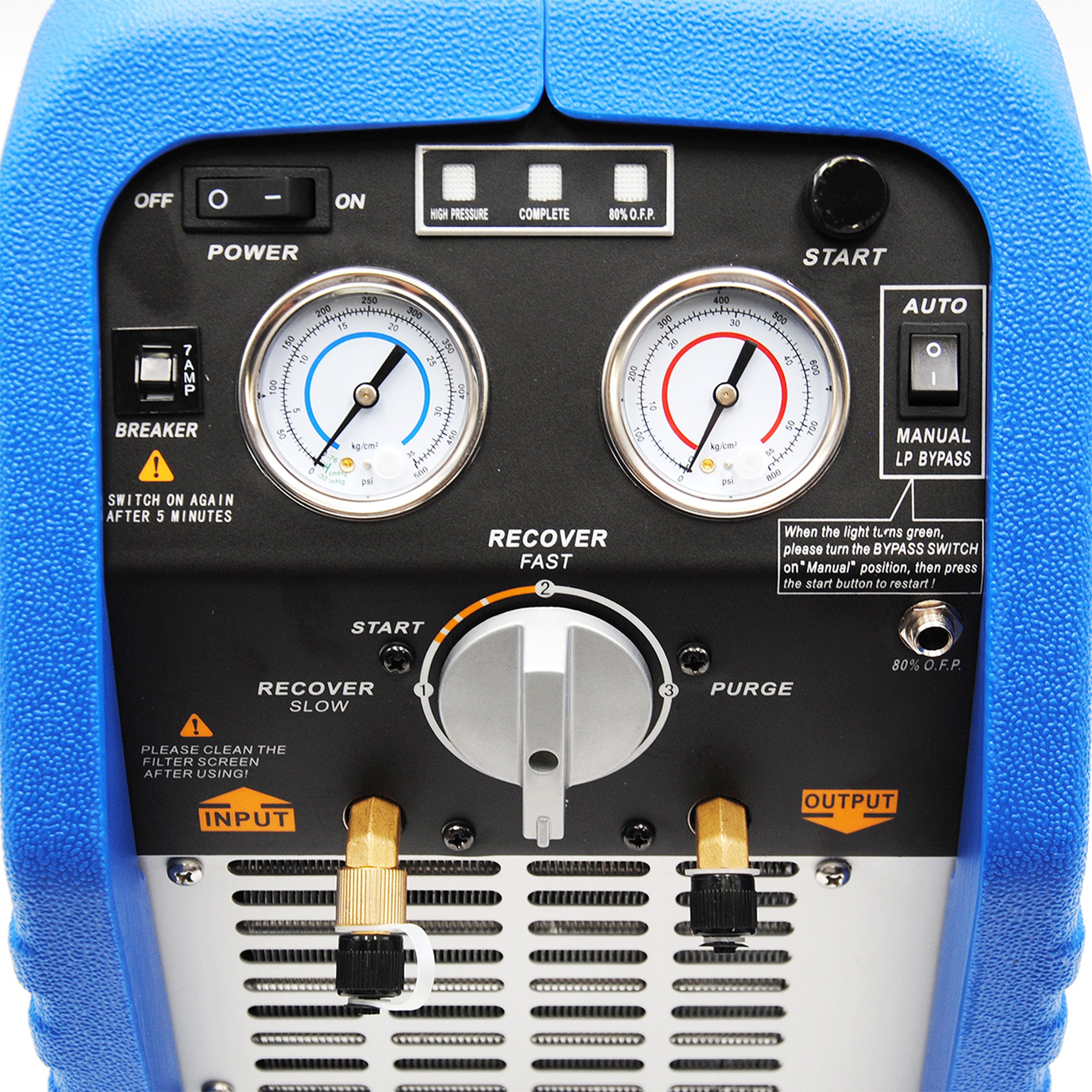

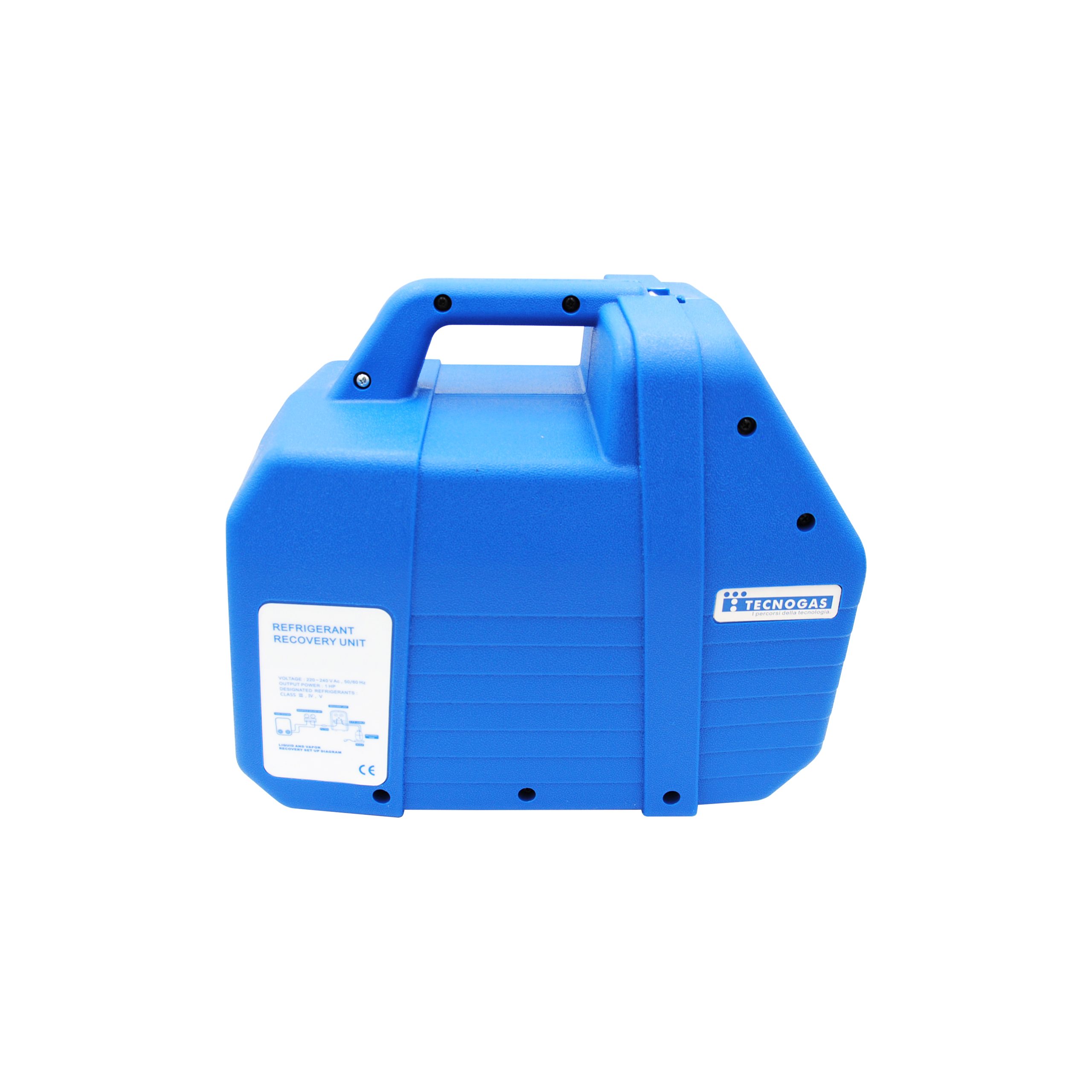

Recovery stations Mod. REC-24 and REC-24 COMPACT equipped with two dry pressure gauges, one on the suction line and the other on the discharge line that allow to control the pressures during the recover and transfer operations of the refrigerant with method PUSH-PULL.



Product features

  • a single selector switch for the various functions of the recuperator, making your work easier and safer

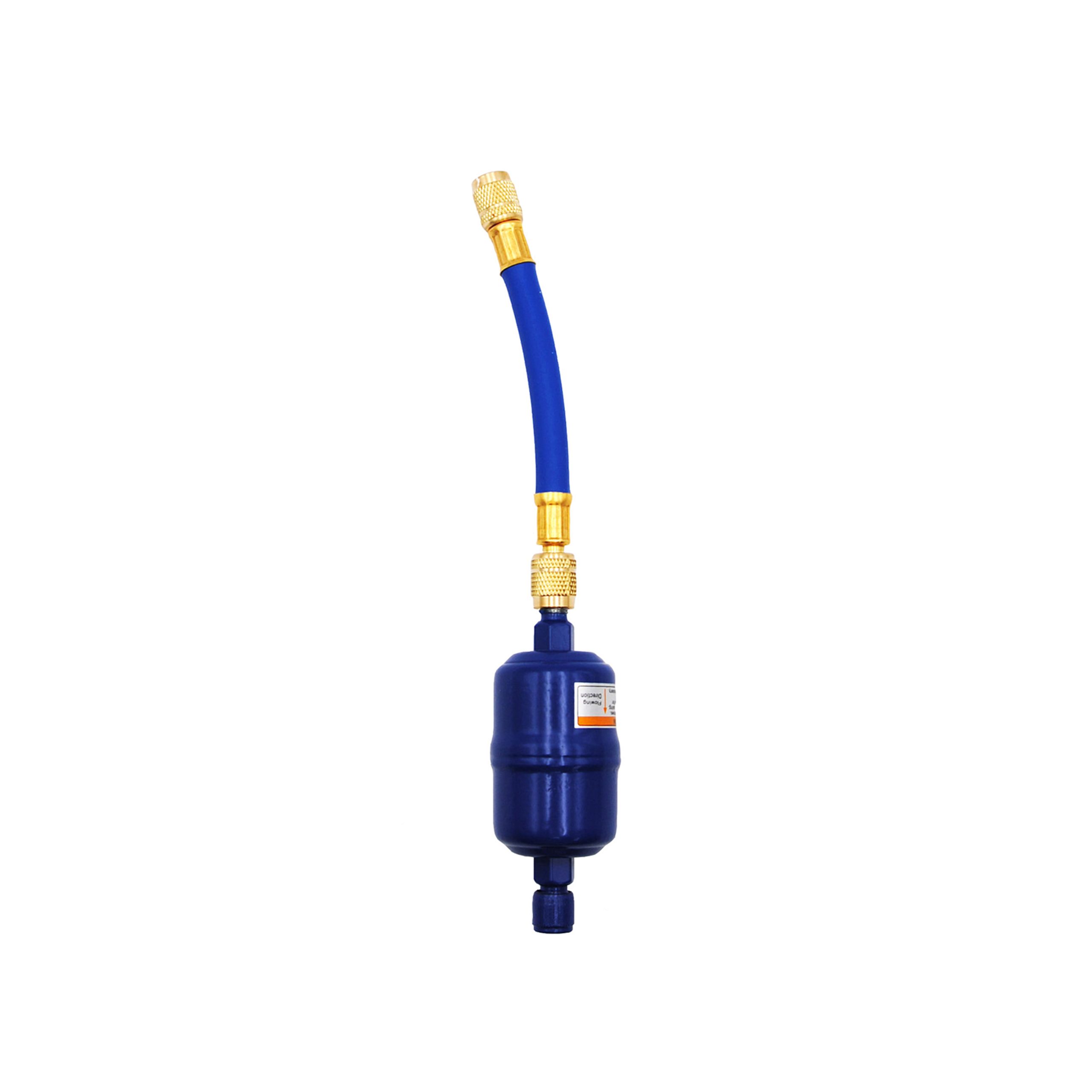

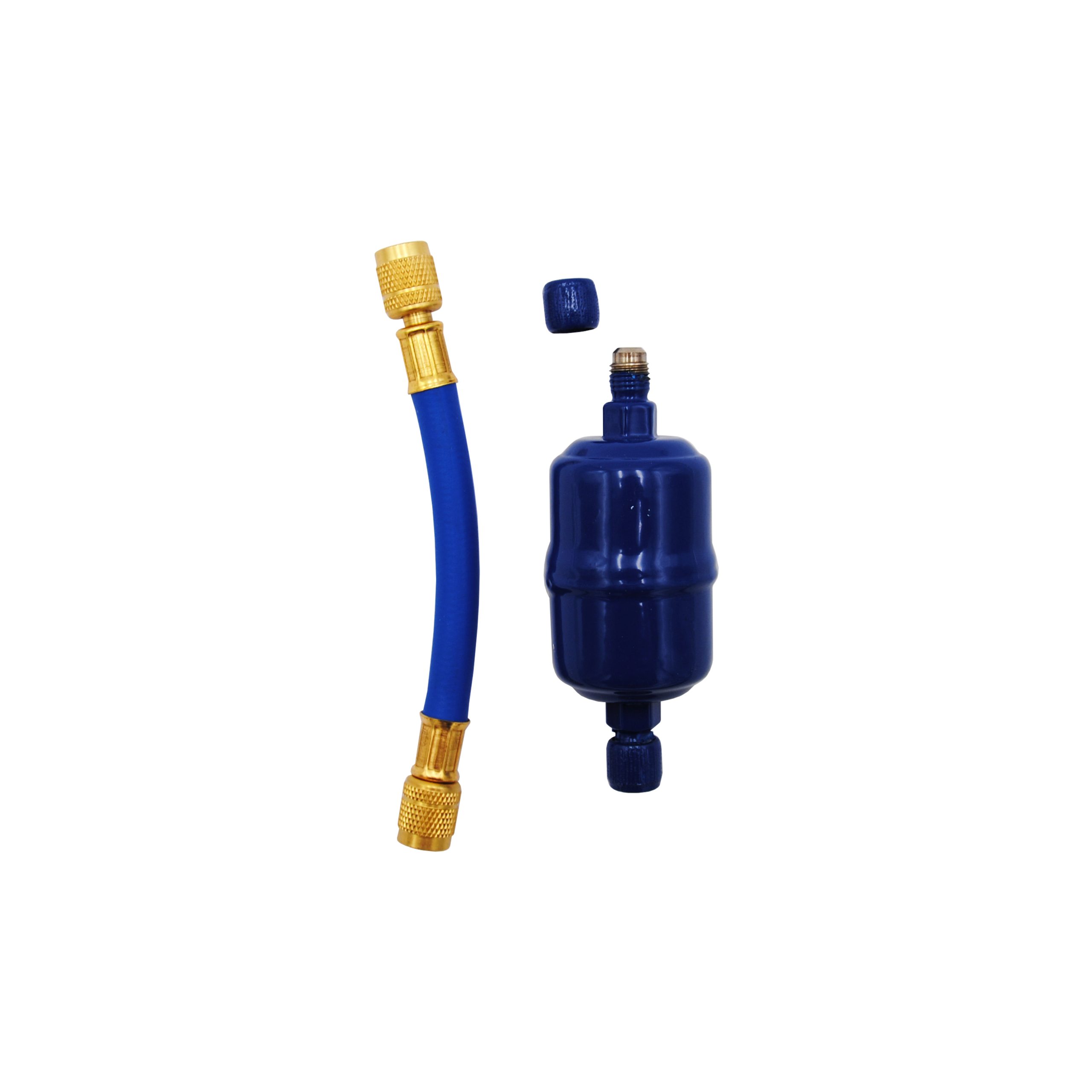

  • all stations are equipped with oil separator and the filter

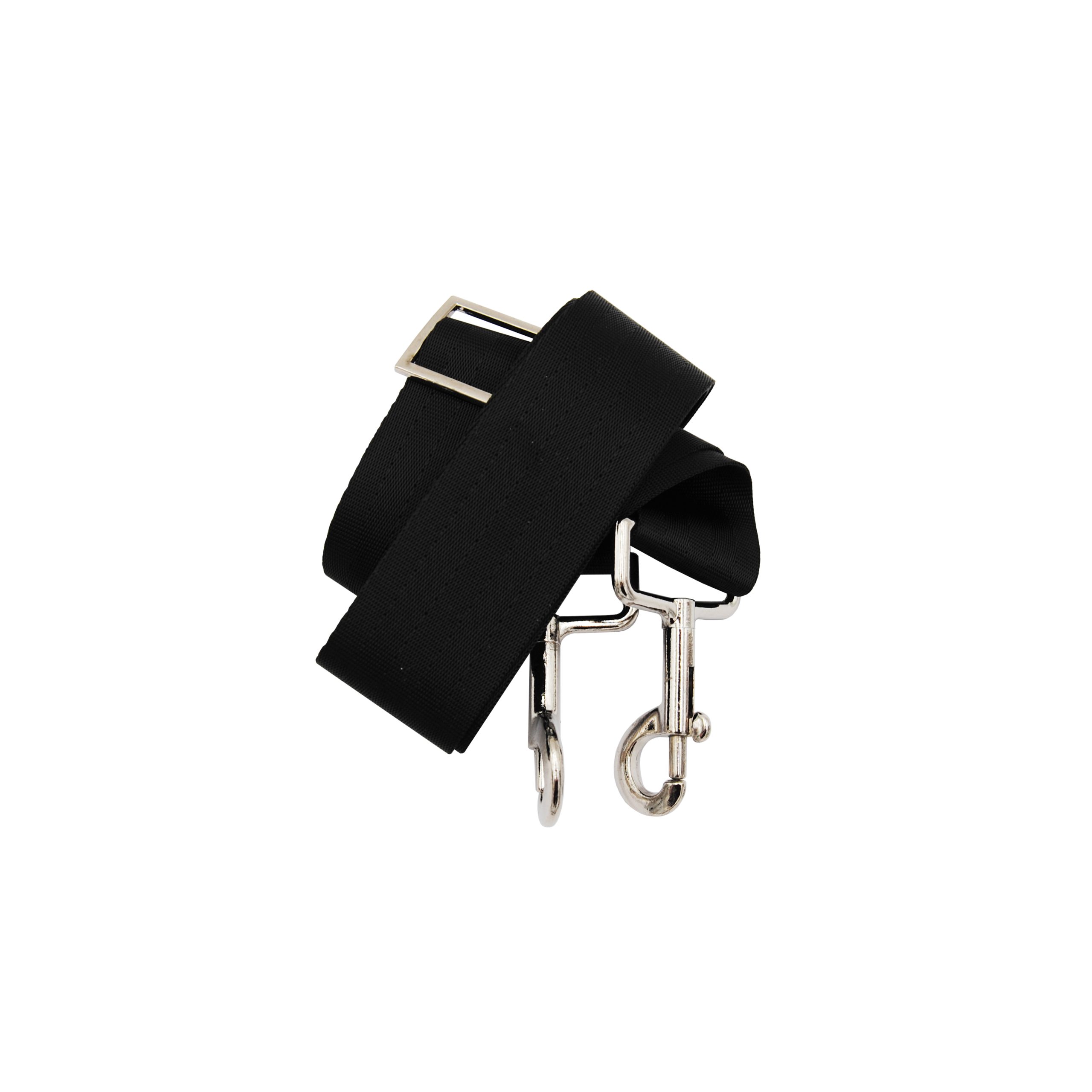

  • easy to transport thanks to the small dimensions and the central position of the handgrip
  • suitable for all types of refrigerant gases CFC - HCFC - HFC

Technical Features

MODEL REC-24 (sku 11681) REC-24 COMPACT (sku 11712)
COMPRESSOR oil less maintenance free
POWER SUPPLY 230V - 50 Hz (1450 rpm)
POWER 1 HP - 750 W 1 HP - 750 W
SAFETY automatic shut-down with pressure higher than 38.5 bar
WEIGHT 19 kg 14,7 kg
DIMENSIONS 515x245x360 mm (LxPxH) 450x250x355 mm (LxPxH)
RECOVERY RATE
  • steam up to 30 kg/h
  • liquid up to 210 kg/h
  • push-pull up to 570 kg/h
  • steam up to 30 kg/h
  • liquid up to 210 kg/h
  • push-pull up to 570 kg/h
COMPATIBLE GASES R12 - R134a - R410C - R406A - R500 - R22 - R401A - R401B - R402B - R407C - R407D - R408A R409A - R411A - R411B - R412A
R502 - R509 - R402A - R404A - R407A - R407B - R410A - R507 - R32
R12 - R134a - R410C - R406A - R500 - R22 - R401A - R401B - R402B - R407C - R407D - R408A R409A - R411A - R411B - R412A
R502 - R509 - R402A - R404A - R407A - R407B - R410A - R507 - R32
