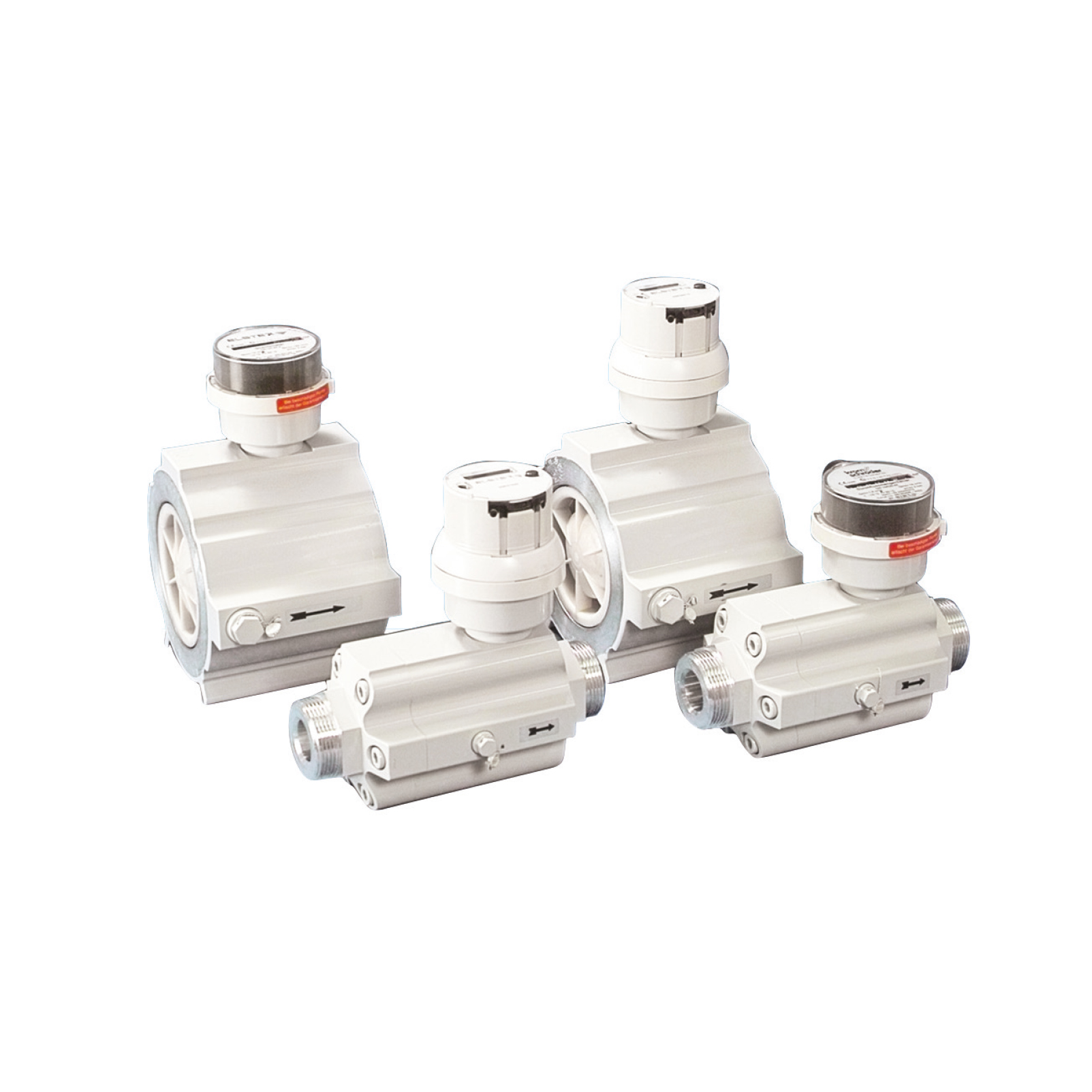

Quantimeters / Flow Meters with Mechanical or Electronic Numerator

Name: Quantimeters / Flow Meters with Mechanical or Electronic Numerator
SKU: M0100377
Availability: InStock

Model QA and QAe

FOR OTHER FLOW RATES CONTACT OUR SALES DEPARTMENT

DVGW APPROVED

sku	model	price	info	add to cart
00000050660	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/10 DN25 MODEL	€2.560,00 Excl. Taxes	Physical data UM Base: NR Dimension: 24 × 19 × 18 cm Volume: 0.0082 m³ Weight: 3,30 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050661	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/16 DN25 MODEL	€2.560,00 Excl. Taxes	Physical data UM Base: NR Dimension: 24 × 19 × 17 cm Volume: 0.008 m³ Weight: 3,23 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050662	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/25 DN25 MODEL	€2.560,00 Excl. Taxes	Physical data UM Base: NR Dimension: 26 × 17 × 27 cm Volume: 0.0119 m³ Weight: 2,80 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050663	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/40 DN25 MODEL	€2.560,00 Excl. Taxes	Physical data UM Base: NR Dimension: 17 × 19 × 24 cm Volume: 0.0082 m³ Weight: 3,20 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050664	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/65 DN50 MODEL	€3.560,00 Excl. Taxes	Physical data UM Base: NR Dimension: 17 × 23 × 18 cm Volume: 0.0073 m³ Weight: 3,41 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050665	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/100 DN80 MODEL	€4.400,00 Excl. Taxes	Physical data UM Base: NR Dimension: 27 × 25 × 22 cm Volume: 0.0148 m³ Weight: 8,30 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050666	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/160 DN80 MODEL	€4.400,00 Excl. Taxes	Physical data UM Base: NR Dimension: 26 × 25 × 22 cm Volume: 0.0146 m³ Weight: 8,34 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050667	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/250 DN80 MODEL	€4.400,00 Excl. Taxes	Physical data UM Base: NR Dimension: 27 × 26 × 22 cm Volume: 0.0154 m³ Weight: 8,30 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050668	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/250 DN100 MODEL	€5.080,00 Excl. Taxes	Physical data UM Base: NR Dimension: 22 × 28 × 26 cm Volume: 0.016 m³ Weight: 10,97 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request
00000050669	QUANTOMETER WITH MECHANICAL NUMERATOR - QA/400 DN100 MODEL	€5.080,00 Excl. Taxes	Physical data UM Base: NR Dimension: 26 × 27 × 22 cm Volume: 0.016 m³ Weight: 10,80 kg Minimum Order Quantity: 1 Customs data Customs Code 84818099	Quantimeters / Flow Meters with Mechanical or Electronic Numerator quantity Buy Info Request

Product informations

QA, flow meters with mechanical (QA) or electronic numerator (QAe) very safe for the wide range of flow rates and for the different needs of companies, the operation is based on the principle of the turbine, the rotation of the impeller is proportional to the volume of the gas flow and is recorded using a mechanical or electronic numerator. The self-lubricating bearings guarantee perfect maintenance-free operation of the Quantometer, while the Quantimeter itself can be installed very easily, as it can be mounted in any position (horizontal, vertical, etc.). The direction of flow is indicated on the meter body with an arrow.

Product features

in production and heating processes, the quantometers allow precise control and optimization of energy
compact gas meter
does not require maintenance
instant flow rate
high resolution volume (decimal)
measurement ratio up to 1:20
overload up to 160% of the maximum capacity
within a wide measuring range the accuracy is independent of the physical characteristics of the gas such as density, pressure and temperature

Applications

gas type: methane, city gas, natural gas, not corrosive gases, inert gases and oxygen
fields of application: chemical, food, petrochemical, district heating and power generation industries
tasks: measurement, control, regulation and recording

Technical Features

*SIZE*	QA/e 10 - QA/e 1000
*FLOW RATES*	1,6 - 1600 m³/h
*NOMINAL DIAMETERS*	DN25 - DN150
*BODY MATERIAL*	aluminum
*MODEL QA*	7 position mechanical numerator
*MODEL QAe*	6 digit LCD indicator for: exercise volume volume on the set date date set
*GAS TEMPERATURE*	- 10°C ÷ + 60°C
*INSTANT CAPACITY*	high resolution volume (decimal) measurement ratio up to 1:20 overload up to 160% of the maximum capacity within a wide measuring range the pressure is independent of the physical characteristics of the gas such as density, pressure and temperature
*PROTECTION CLASS*	*QA model: IP52* (protected against dripping water at an angle within ± 15° and protected against dust, such that it does not interfere with the operation of the device) QAe model: IP44 (protected against splashing water from any direction and protected against the ingress of solid objects larger than 1 mm)
*INTERFACE / OUTPUTS*	QA reed contact E1 QA/QAe exit Namur E 200 (according to EN50227) QAe optical interface (EN 1434 - ZVEI compatible) M-Bus interface (EN 14349)

MODEL	QA/10 - QA/40 - GI	QA/10 - QA/40 - GI	QA/65 - QA/1000 - Z I
COMBUSTIBLE GASES	4 bar	4 bar	20 bar (QAe 4 bar)
MEDIUM / MAXIMUM PRESSURE	16 bar	16 bar	-
FLOW RATE m³/ h	QA/10 DN25: 1.6 - 16 QA/16 DN25: 2 - 25 QA/25 DN25: 2.5 - 40 QA/40 DN 25: 3.3 - 65	QA/e 40 DN25: 3.3 - 65	QA/e 65 DN50: 6 - 100 QA/e 100 DN80: 10 - 160 QA/e 160 DN80: 13 - 250 QA/e 250 DN80: 20 - 400 QA/e 250 DN100: 20 - 400 QA/e 400 DN100: 32 - 650
NOMINAL DIAMETER	25	40	50 - 80 - 100 - 150
OUTPUTS / VALUES PULSES	10 imp/ 500 imp/m³	250 imp/m³	QA 65: 250 imp/m³ QA 100 - 650: 187.5 imp/m³ QA/e 100 - 1000: 187.5 imp/m³

Quantimeters / Flow Meters with Mechanical or Electronic Numerator

Product informations

Technical Features

Vuoi ricevere maggiori informazioni?

Vuoi ricevere maggiori informazioni?

Quantimeters / Flow Meters with Mechanical or Electronic Numerator

You may also be interested in

Rotating Piston Gas Meter

Flexible for Meter Connection

Gas Meter with Locking Tap and Outlet Pressure Tap

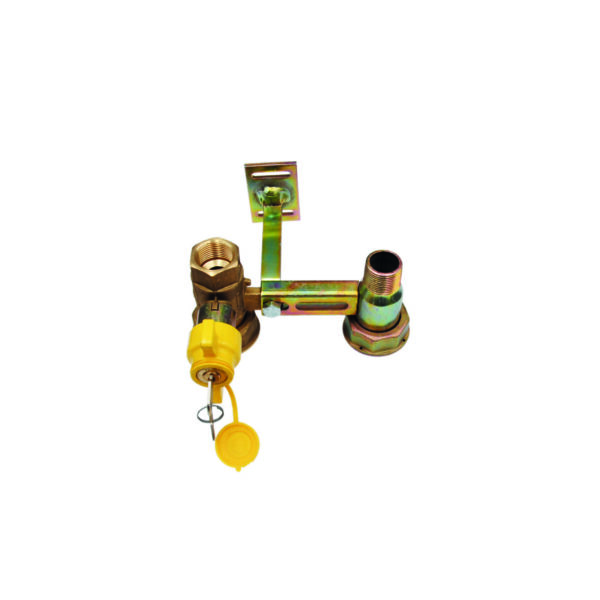

Gas Meter Bracket with Tap and Pressure Socket
