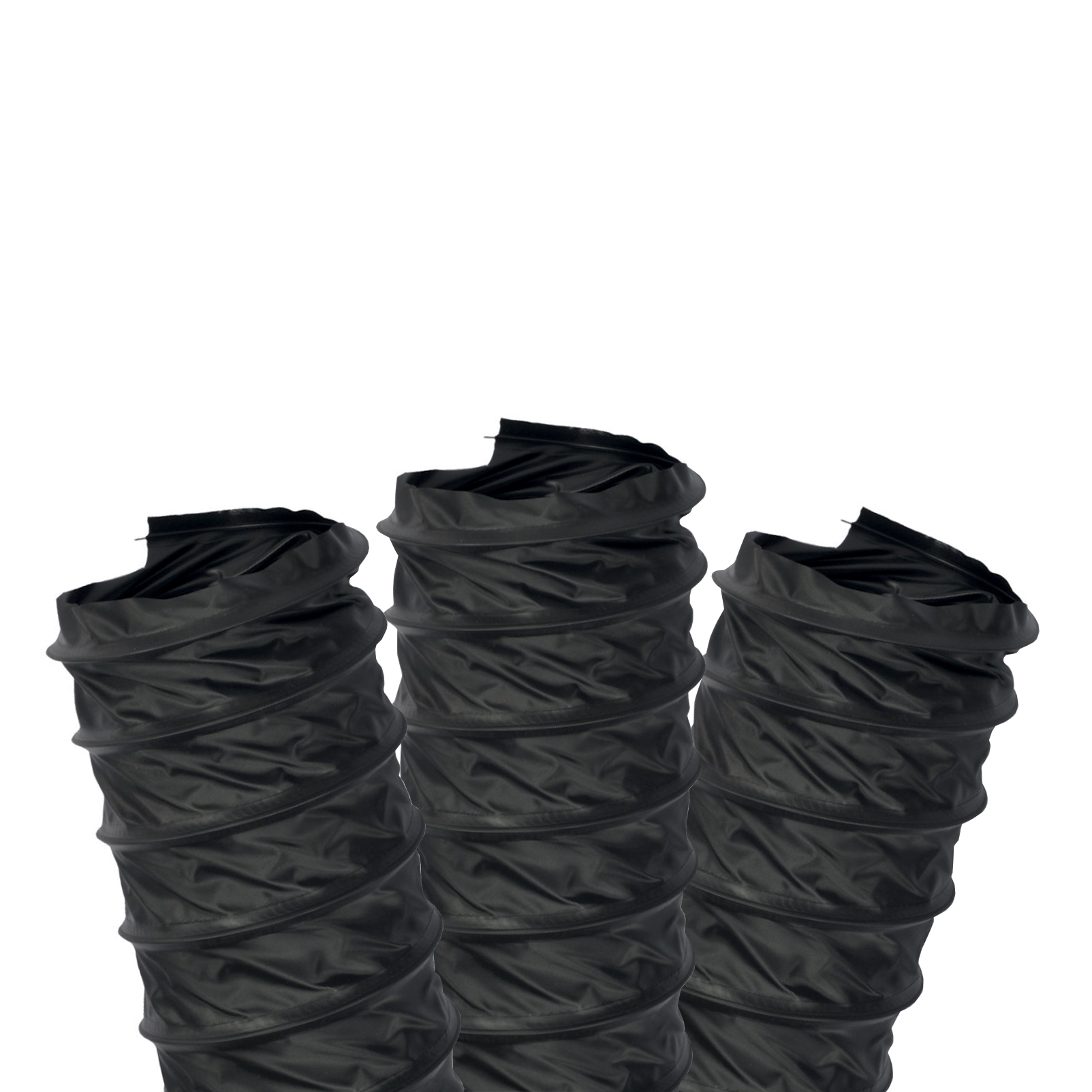

Simple PVC Flexible Pipe
Model with PVC film wall
FIRE REACTION, ITALIAN CLASS: Class 1 (D.M. 06/26/84)
sku | model | price | info | add to cart | |
---|---|---|---|---|---|
|
00000065025 |
SIMPLE PVC FLEXIBLE PIPE - Ø 82 mm |
€4,38 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065026 |
SIMPLE PVC FLEXIBLE PIPE - Ø 102 mm |
€4,53 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065027 |
SIMPLE PVC FLEXIBLE PIPE - Ø 127 mm |
€5,99 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065028 |
SIMPLE PVC FLEXIBLE PIPE - Ø 152 mm |
€6,79 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065029 |
SIMPLE PVC FLEXIBLE PIPE - Ø 160 mm |
€7,23 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065031 |
SIMPLE PVC FLEXIBLE PIPE - Ø 203 mm |
€9,12 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065033 |
SIMPLE PVC FLEXIBLE PIPE - Ø 254 mm |
€12,05 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065034 |
SIMPLE PVC FLEXIBLE PIPE - Ø 305 mm |
€14,31 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
|
00000065035 |
SIMPLE PVC FLEXIBLE PIPE - Ø 315 mm |
€16,36 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Bulky item: Customs data Customs Code |
Info Request |
Product informations
Flexible pipe with 150 micron thickness PVC film wall and armor consisting of a harmonic steel wire spiral incorporated between two heat-welded layers.
This product can be used in the air conditioning and ventilation sector.
Technical Features
COLOR | black |
---|---|
OPERATING TEMPERATURE | 0°C ÷ + 80°C |
BENDING RADIUS | 0,6 times the diameter |
MAXIMUM WORKING PRESSURE | 2000 pa |
MAXIMUM AIR SPEED | 20 m/s |
LENGTH | 10 m |
WALL THICKNESS | 150 micron |
SKU | DIAMETER | AIR SPEED 8 m/sec | AIR SPEED 10 m/sec | ||
AIR FLOW M3/H | PRESSURE DROP IN Pa | AIR FLOW M3/H | PRESSURE DROP IN Pa | ||
65025 | Ø 82 mm | 152 | 19 | 190 | 31 |
65026 | Ø 102 mm | 250 | 15 | 333 | 24 |
65027 | Ø 127 mm | 383 | 12 | 368 | 18 |
65028* | Ø 152 mm | - | - | - | - |
65029 | Ø 160 mm | 575 | 8 | 773 | 14 |
65031 | Ø 203 mm | 900 | 6,5 | 1151 | 10,5 |
65033 | Ø 254 mm | 1445 | 4,7 | 1843 | 7,5 |
65034* | Ø 305 mm | - | - | - | - |
65035 | Ø 315 mm | 2278 | 3,7 | 3105 | 6 |
*To calculate the flow rates and pressure drops of the other diameters, use the diagram in the downloads below within the "Others" section.
