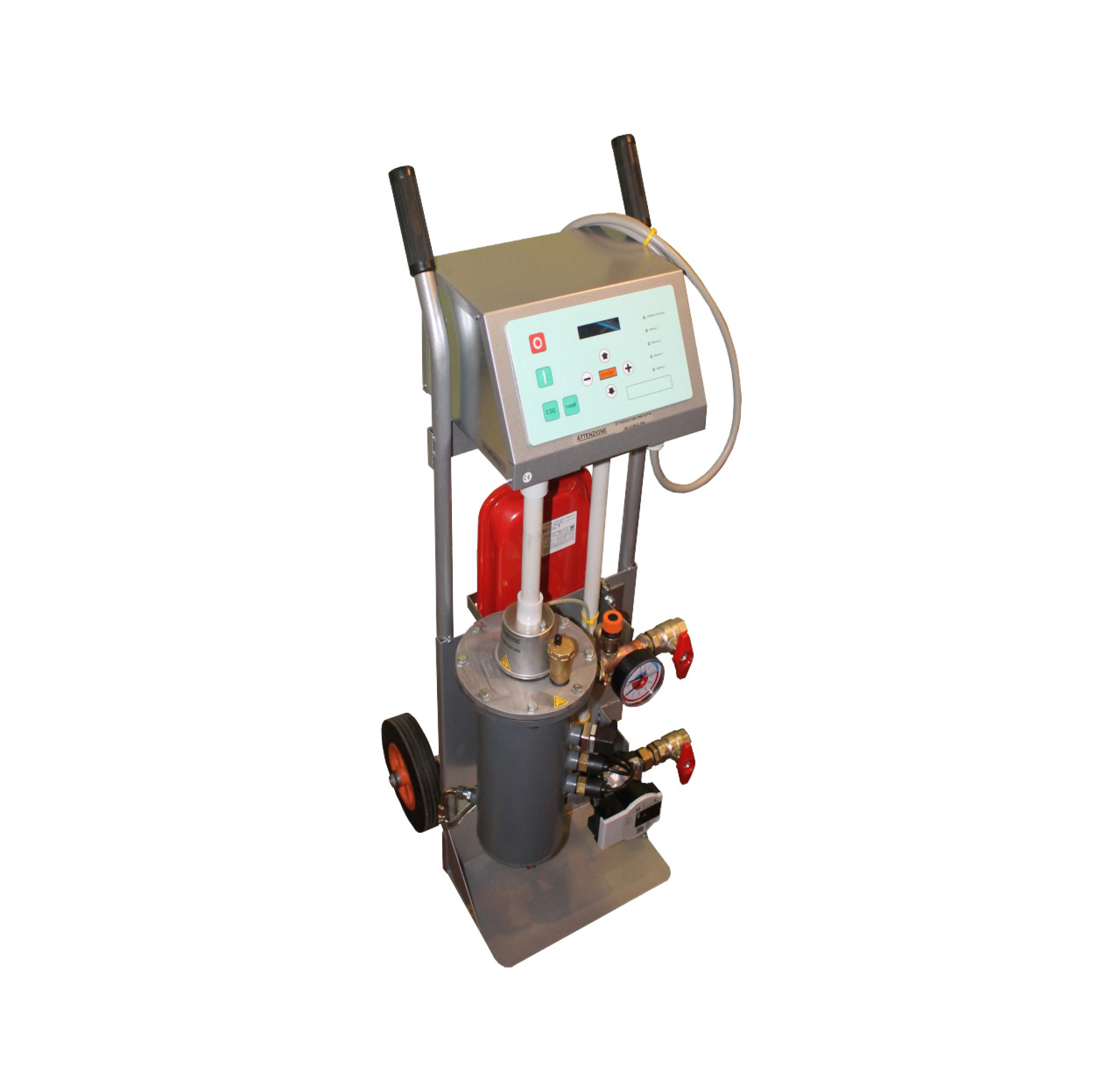

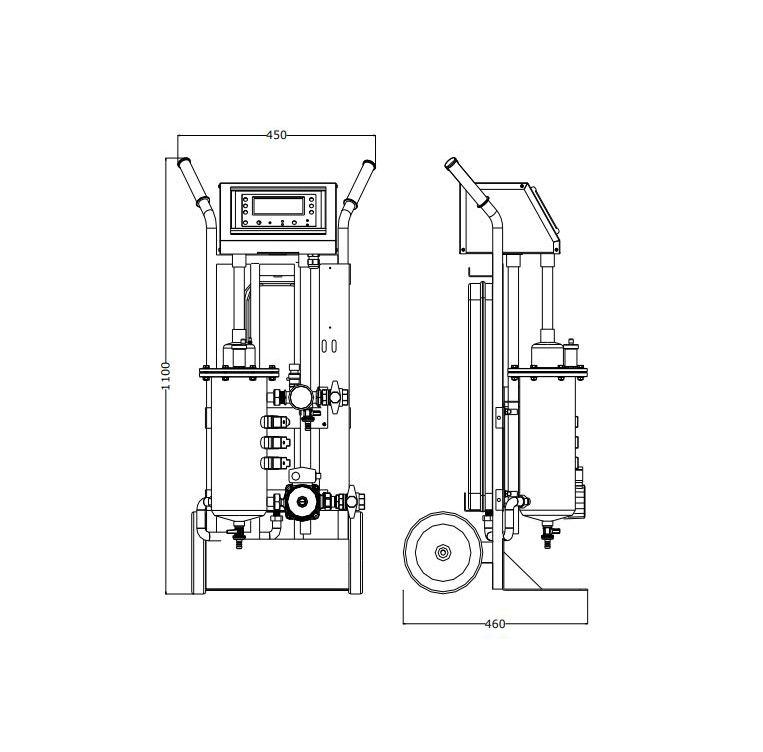

Pump to Heat the Screeds

Electric thermal system adjustable from 1 to 11 Kw, designed for the production of water at low and high temperatures, complete with circulation pump, AT-BT temperature limit probes, control panel with electronic card and LCD display, safety valve calibrated at 3 bar, pressure gauge and thermometer, corrosion resistant stainless steel resistors, heat transfer fluid fill and drain taps, shut-off ball valves Ø 1" inlet and outlet, automatic vent valve and 8 lt expansion tank.

The thermal system is fully assembled, wired and tested both electrically and hydraulically directly by the manufacturer.

ALSO AVAILABLE ON REQUEST THE 13 kW VERSION.

Plus of the product

• manual open cycles that can be set by the user
• resistance in AISI 321 stainless steel with SILICON CABLES, suitable for high temperatures and not subject to deterioration over time
• report file downloadable via USB key, with operating data for any work cycle (optional)
• GSM module installable for remote control via messages and/or alarms (optional)
• pump operation control in ELECTRONIC mode by PWM function
• software updates via email for any customizations (optional)
• implementation of measurement and temperature control instruments to the machine and any remote commands

General applications

• testing and verification of thermal systems
• temporary local heating
• drying of screeds for radiant systems
• heating of greenhouses and emergency environments
