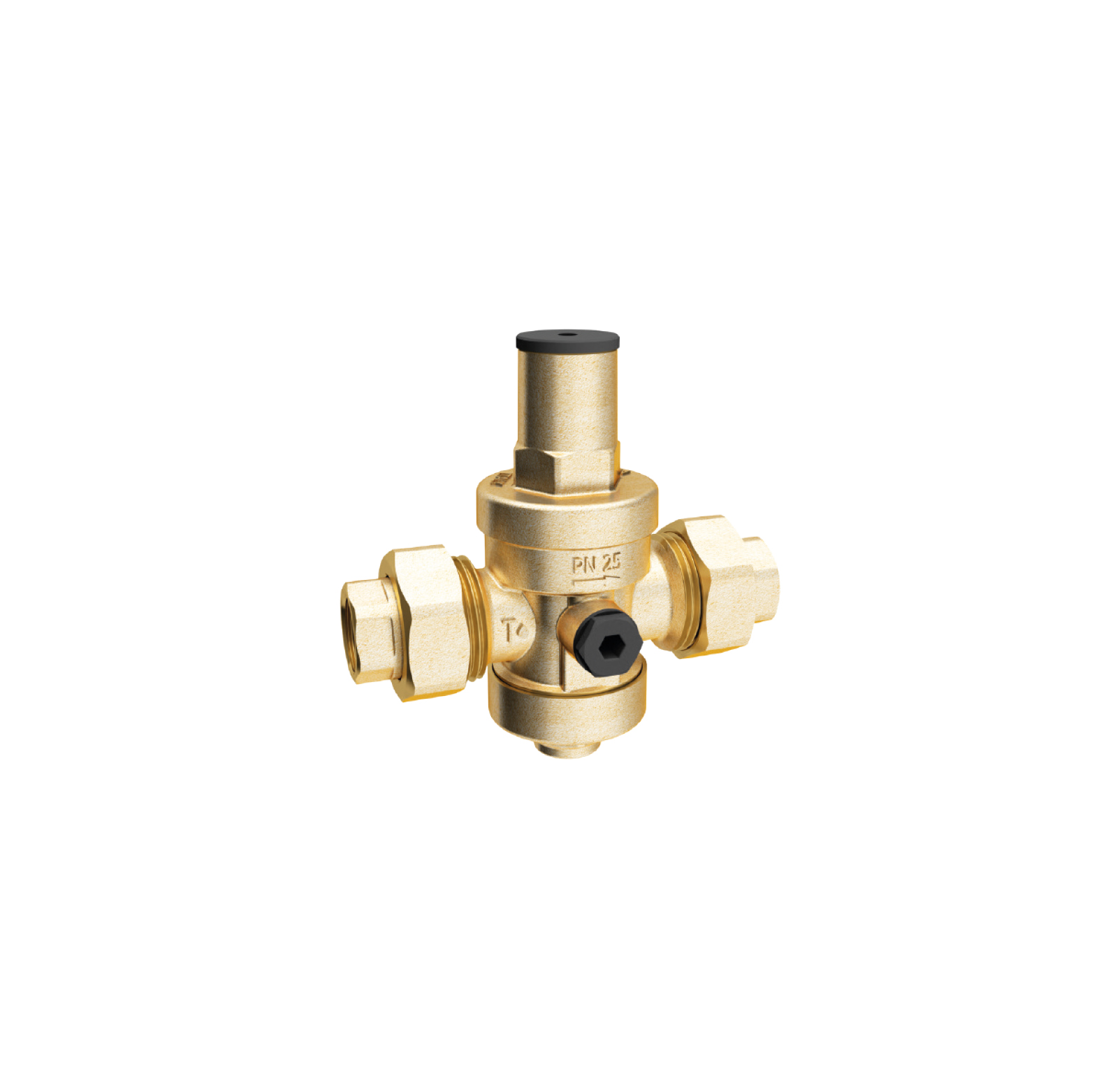

Pressure Reducer for Water
With piston operation
COMPLETE WITH PRESSURE GAUGE WITH REAR CONNECTION
ACS CERTIFIED PRODUCT
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000070101 |
PRESSURE REDUCER - Ø 1/2" FF - complete with pressure gauge |
€71,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070102 |
PRESSURE REDUCER - Ø 3/4" FF - complete with pressure gauge |
€99,90 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070103 |
PRESSURE REDUCER - Ø 1" FF - complete with pressure gauge |
€156,55 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070104 |
PRESSURE REDUCER - Ø 1" 1/4 FF - complete with pressure gauge |
€238,30 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070105 |
PRESSURE REDUCER - Ø 1" 1/2 FF - complete with pressure gauge |
€319,00 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
|
|
00000070106 |
PRESSURE REDUCER - Ø 2" FF - complete with pressure gauge |
€404,60 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations
Automatic valve that reduces and stabilizes the pressure of a fluid inside a distribution pipe according to the pre-set value; the use of this hydraulic device is necessary if the maximum possible pressure at any point of the water supply system can reach or exceed the relative maximum permissible operating pressure.
Product features
- suitable for water supply systems both outside and inside buildings
- the internal piston structure in loaded thermoplastic material guarantees rigidity, resistance and high adjustment precision, thanks to the compensated seat
- its gaskets with a low coefficient of static friction guarantee resistance to wear and limited maintenance interventions
- the internal finish of the body and the increased dimensions of the passages allow to obtain high flow rates even with small water withdrawals
- it can be installed on sanitary systems for water supply, irrigation systems, compressed air distribution systems (no nebulized oils) and on pipes for firefighting services
- suitable for transporting food fluids and drinking water (meets the specific requirements of the Ministry of Health)
- connection with female-female union included
Technical Features
| SKU 70101 | |
|---|---|
| MAX UPSTREAM PRESSURE | 40 bar |
| MAXIMUM REDUCTION SETTING | 2,5 |
| DOWNSTREAM SETTING RANGE | 1 ÷ 6 bar |
| CONNECTIONS | 1/2" |
| MAX WORKING TEMPERATURE | 90°C |
| WORKING FLUID | water |
| REDUCER MATERIALS |
|
| PRESSURE GAUGE CONNECTION | 1/4" rear connection |
| PRESSURE GAUGE DIAMETER | Ø 63 mm |
| MANOMETER MATERIALS |
|
| SKU 70102 / 70103 / 70104 / 70105 / 70106 | |
|---|---|
| MAXIMUM WORKING PRESSURE | 25 bar |
| REGULATION RANGE | from 1 to 5,5 bar (value set during testing: 3 bar) |
| WORKING TEMPERATURE | 0°C (excluding frost) ÷ 130°C |
| COMPATIBLE FLUIDS |
|
| CONNECTIONS |
|
| PRESSURE GAUGE CONNECTION | EN 10226-Rp1/4" (ex ISO7/1) |
| MATERIAL |
|

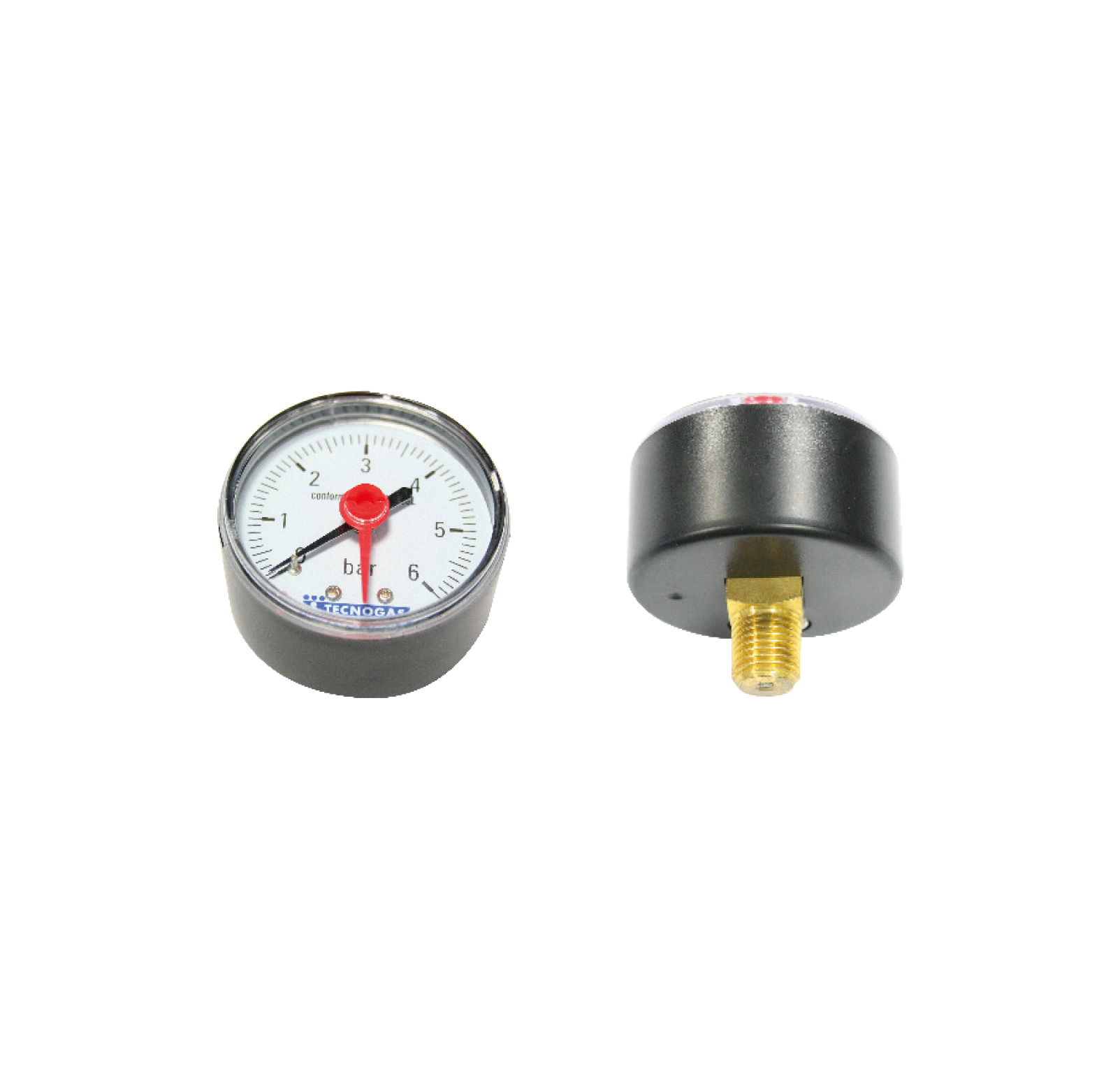

| SKU R01597 | |
|---|---|
| CASE MATERIAL | ABS |
| GLASS MATERIAL | plastic |
| QUADRANT MATERIAL | ABS |
| CLASS | 1,6 |
| MANUAL ELEMENT | copper alloy spring |
| WORKING TEMPERATURE | - 20°C ÷ + 80°C |
| COMPLIANT WITH THE STANDARD | UNI EN 837-1 |
| CONNECTIONS | 1/4" rear connection |
| DIAMETER | Ø 50 mm |
| PRESSURE | 0 ÷ 6 bar |
