DigiPress Classic

Digital manifold

F-GAS

THE INSTRUMENTAL COMPARISON OF THIS PRODUCT IS A NECESSARY CONDITION TO ACCESS THE VERIFICATION OF THE COMPANY CERTIFICATION AND ITS MAINTENANCE

sku model price info add to cart

00000011437

DIGIPRESS CLASSIC

592,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
40 × 13 × 29 cm

Volume:
0.0151 m3

Weight:
3,65 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262080

Buy
Info Request

00000011439

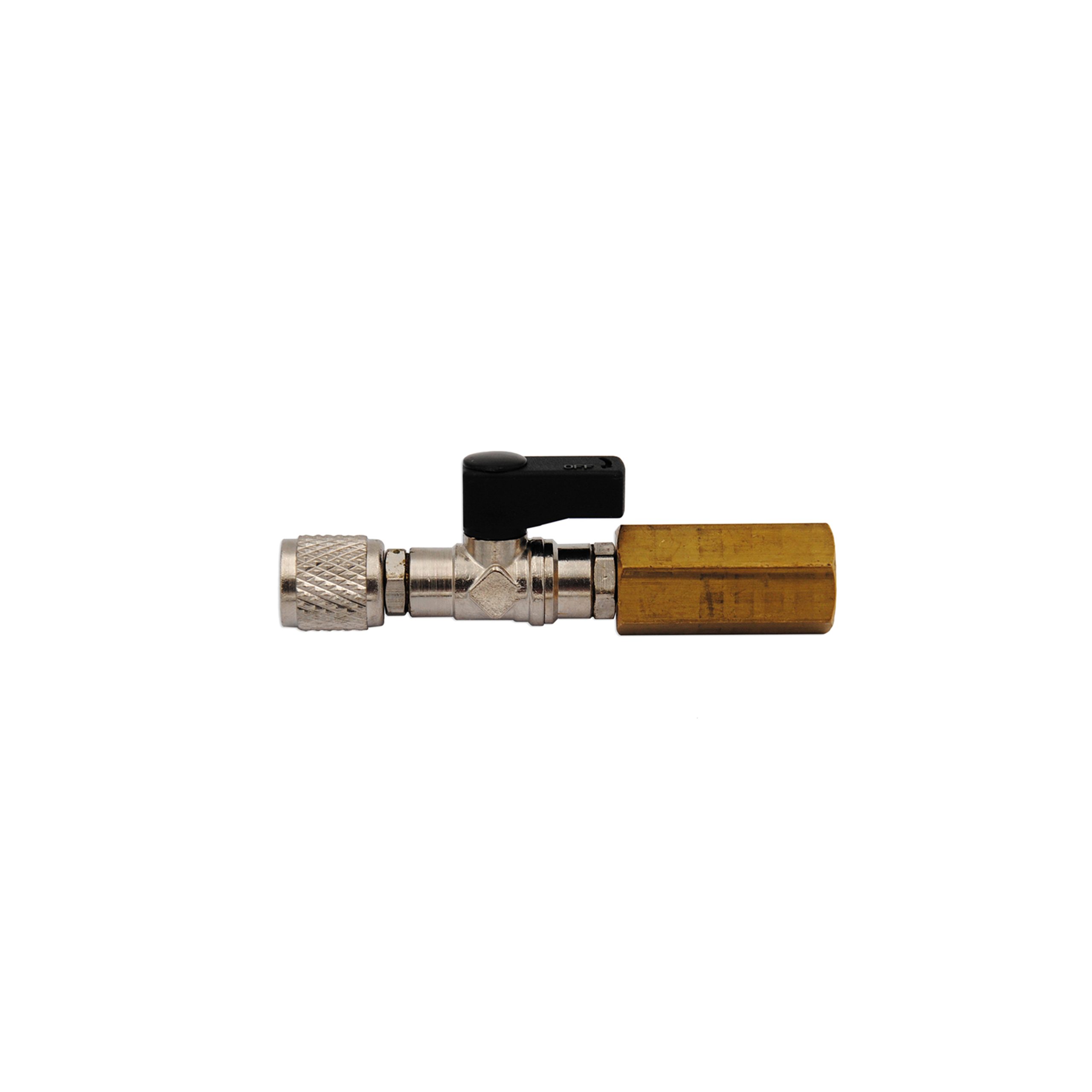

TAP 1/4 SAE F x 1/4 SAE F.G.

42,60 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 4 × 2 cm

Volume:
0.0001 m3

Weight:
0,17 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

Buy
Info Request

00000011460

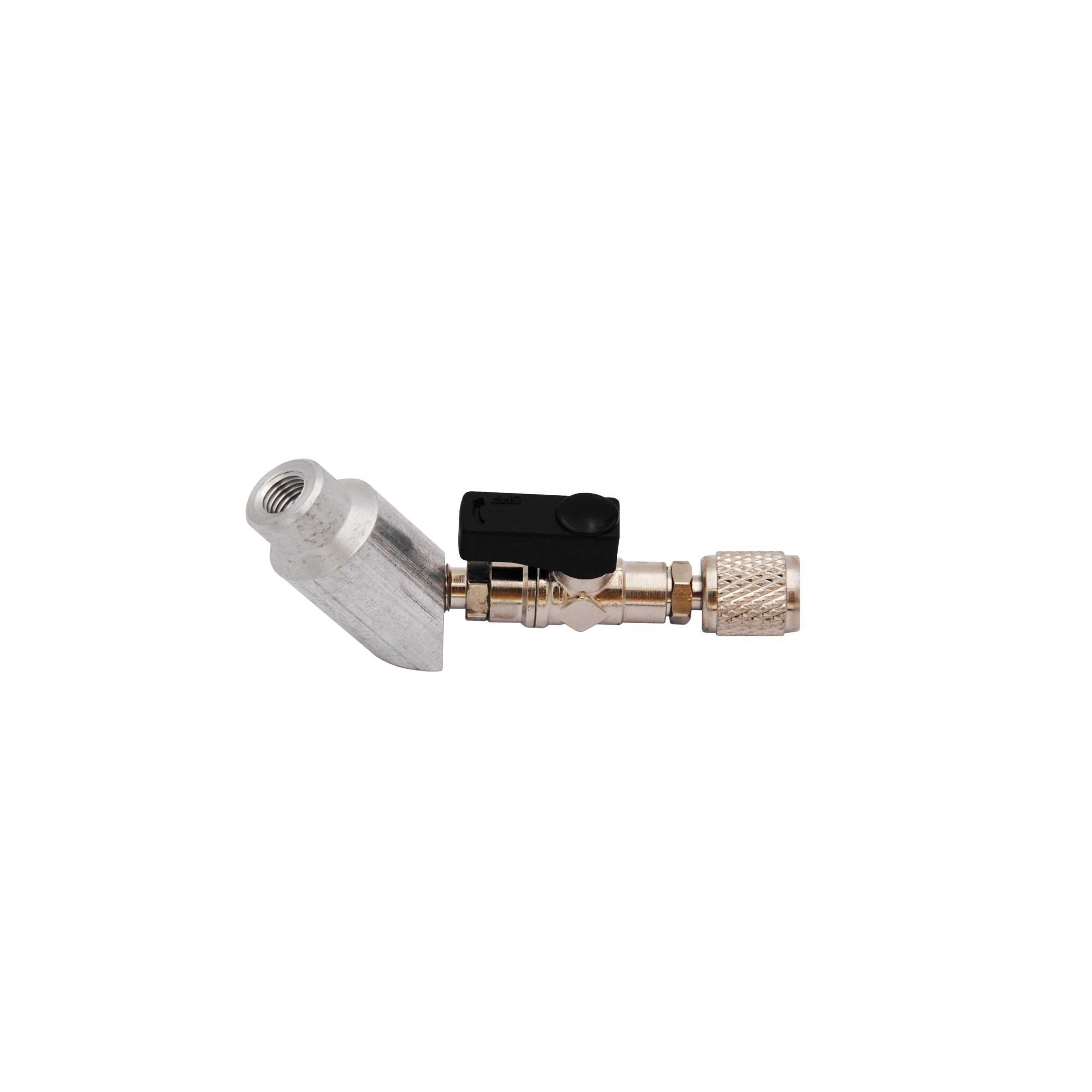

FAUCET 1/4 SAE F.G. - FOR 45° OUTPUT

55,20 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
12 × 4 × 3 cm

Volume:
0.0001 m3

Weight:
0,13 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818099

Buy
Info Request

Product informations

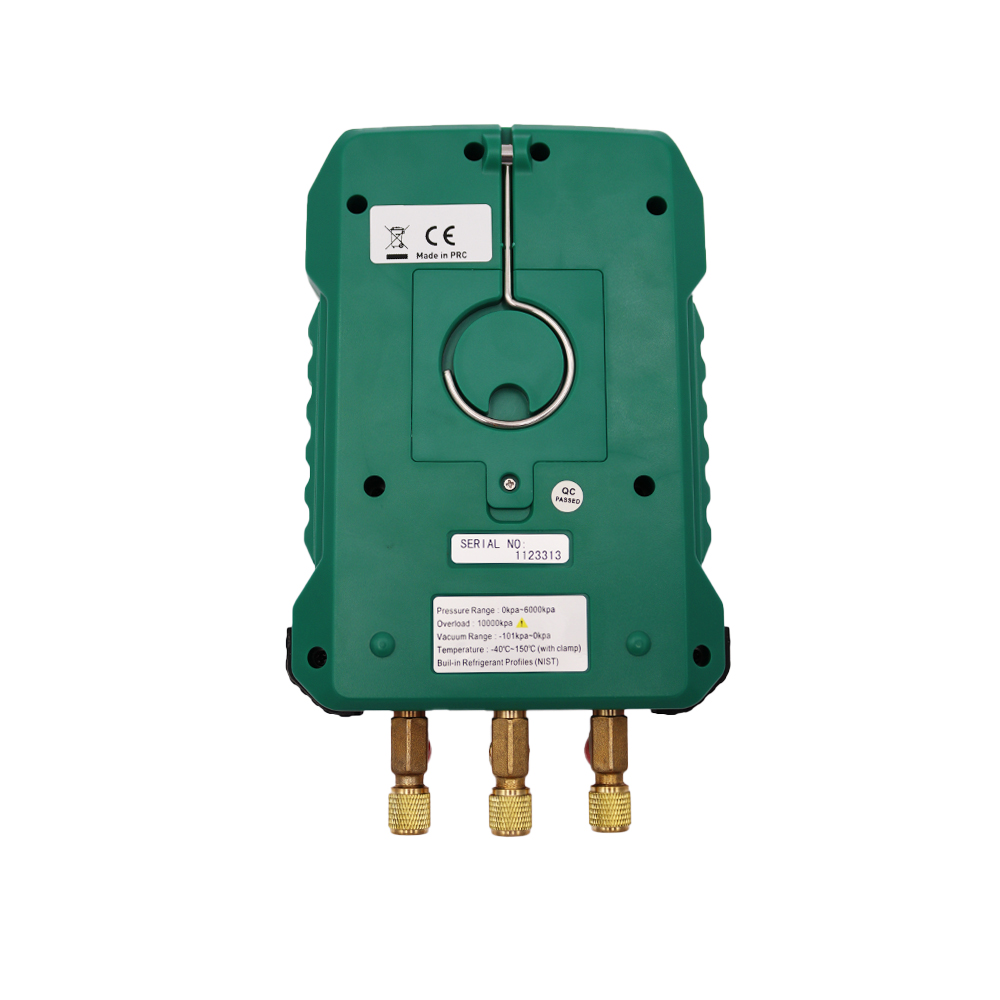

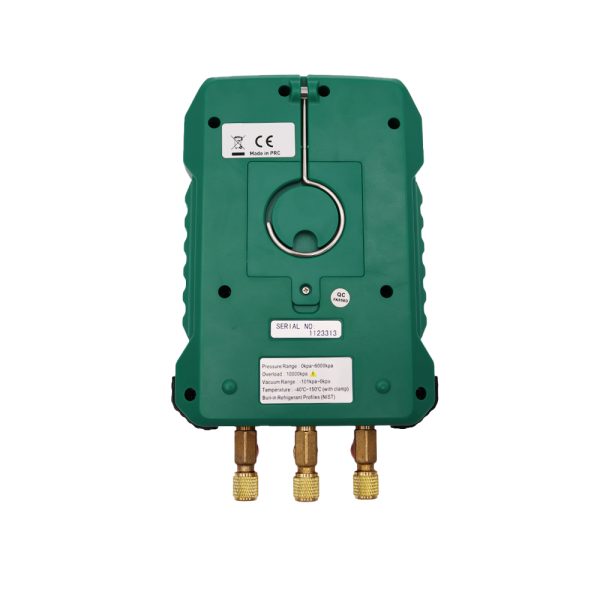

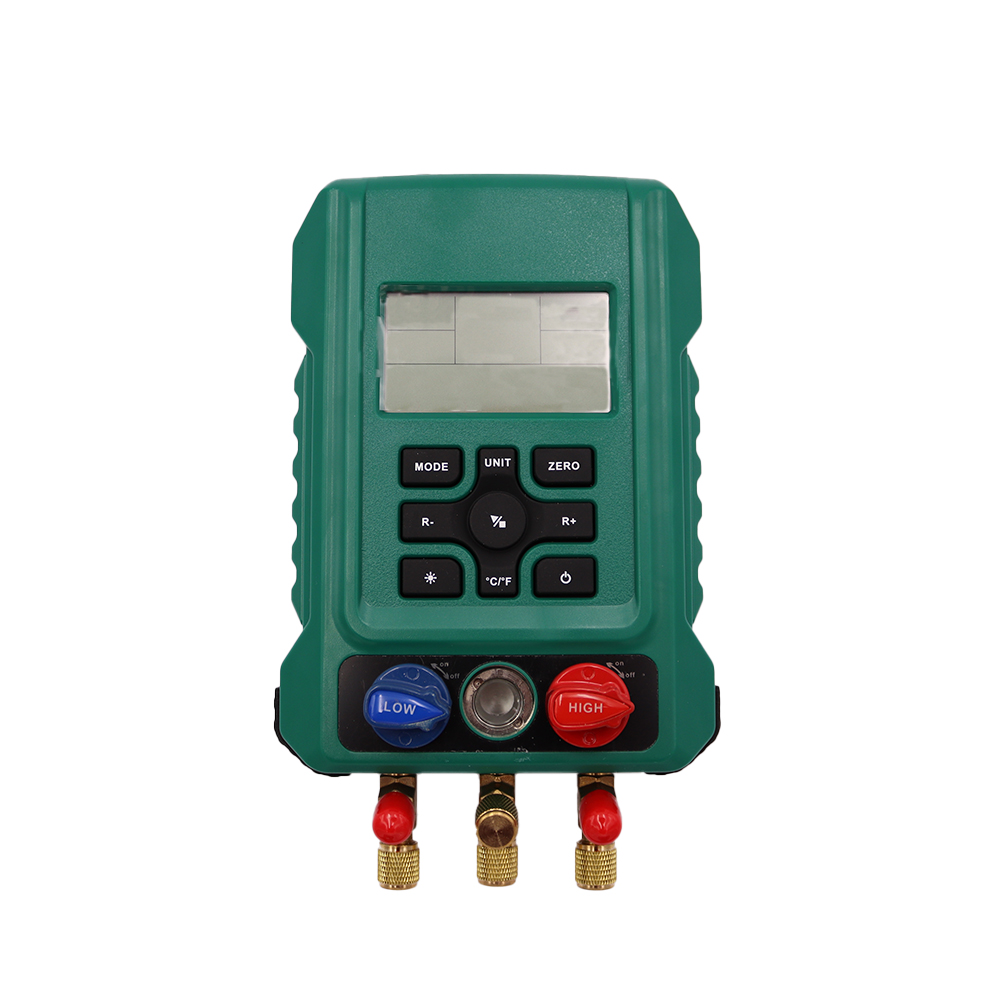

The DigiPress Classic digital manifold assembly is a precision electronic instrument suitable for all refrigerant gases that allows for highly accurate verification of the state of system vacuum, charge and relative operating temperature of the refrigerant gas. The system adapts to any type of vacuum pump through special fittings and/or hoses; moreover, making use of extremely small sizes and weights, put the operator in a position to work very nimbly and perform all vacuum, loading and diagnosis operations using a single tool!



Product features

  • soft and comfortable design shell, impact resistant
  • large backlit LCD display for easy reading, making it suitable even for low-light environments
  • equipped with high-precision pressure and temperature sensor for high measurement accuracy
  • designed with high-quality electronic components that greatly improve battery life
  • real-time temperature measurement can calculate overheating and subcooling
  • multiple mode selection can also be used for vacuum measurement
  • the units of pressure MPa, kPa, bar, psi, and °C or °F can be changed as desired to suit the customer's usage habits

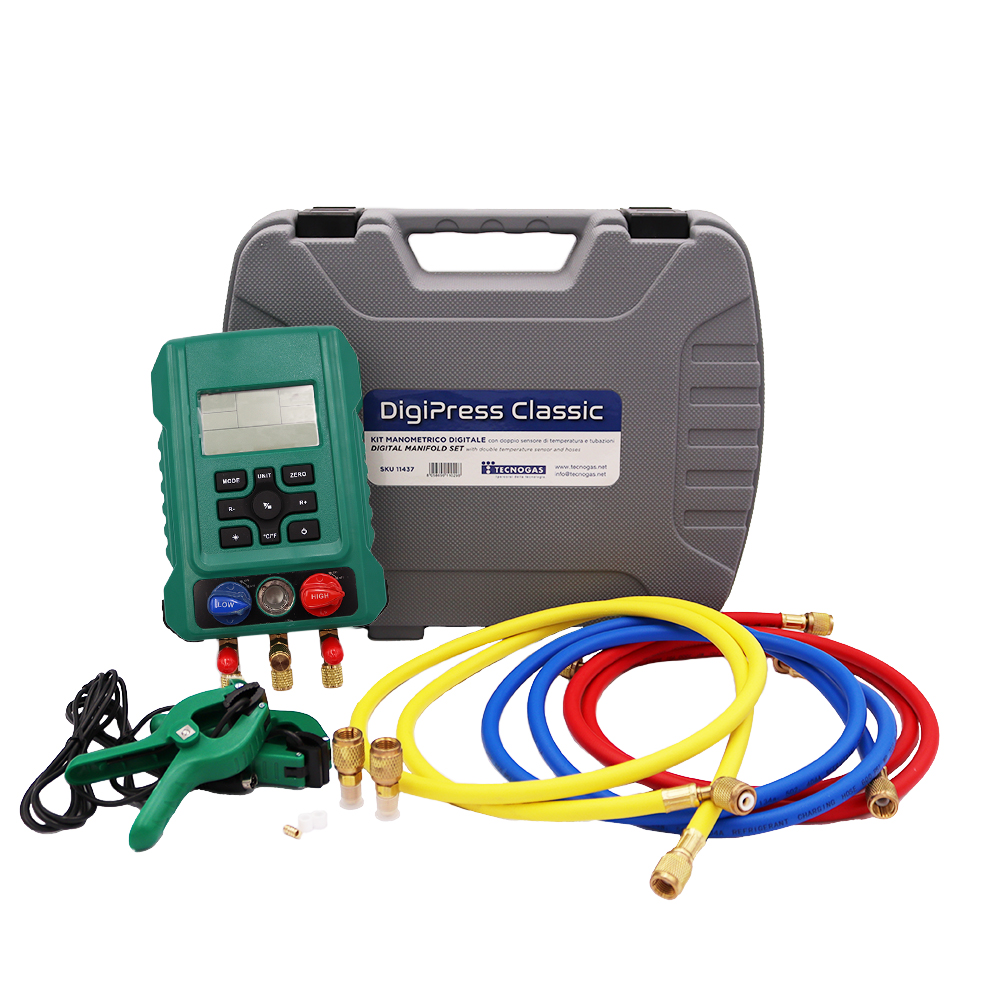

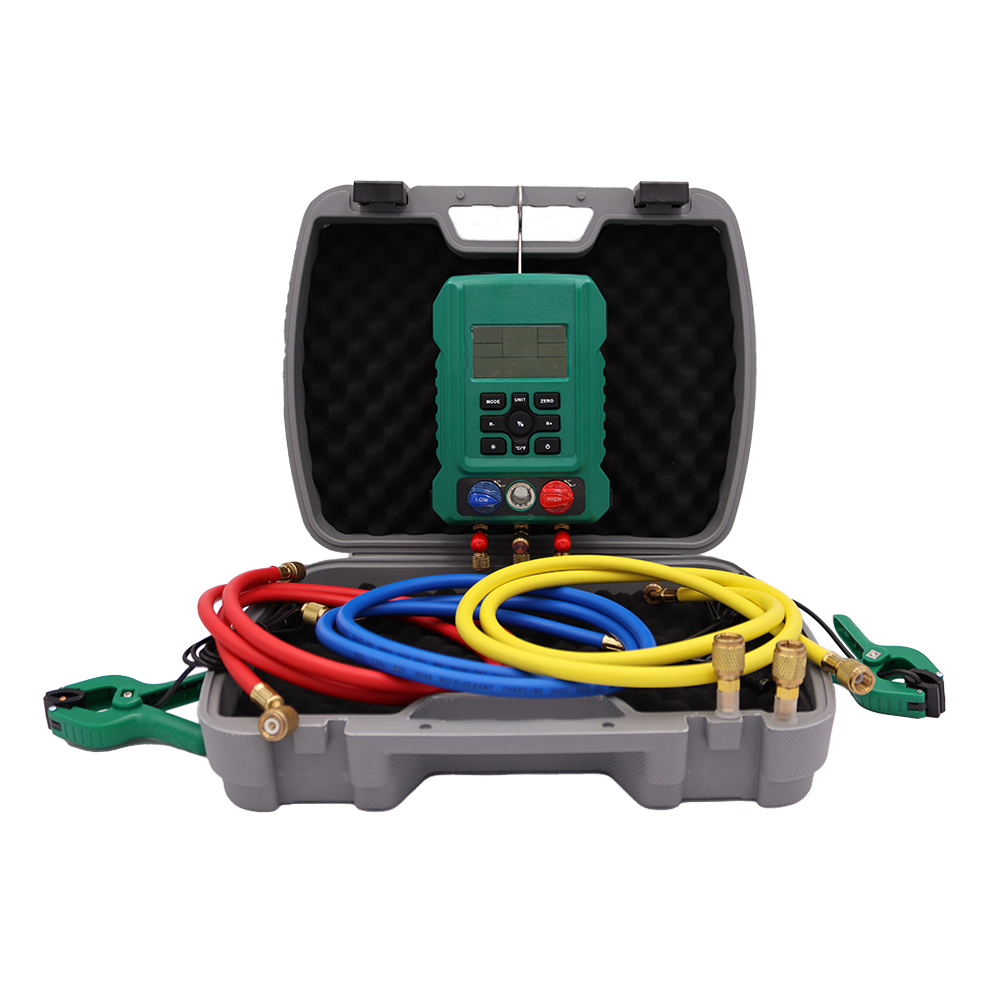

The kit includes

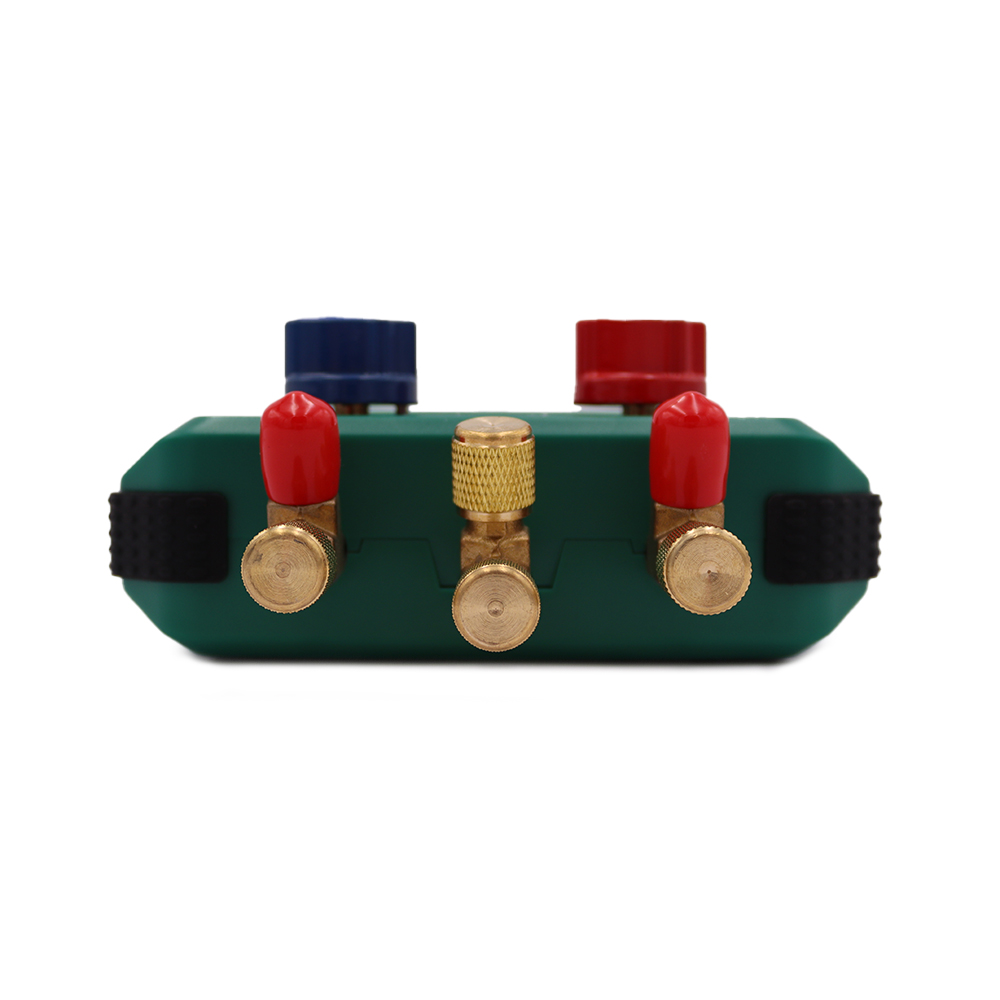

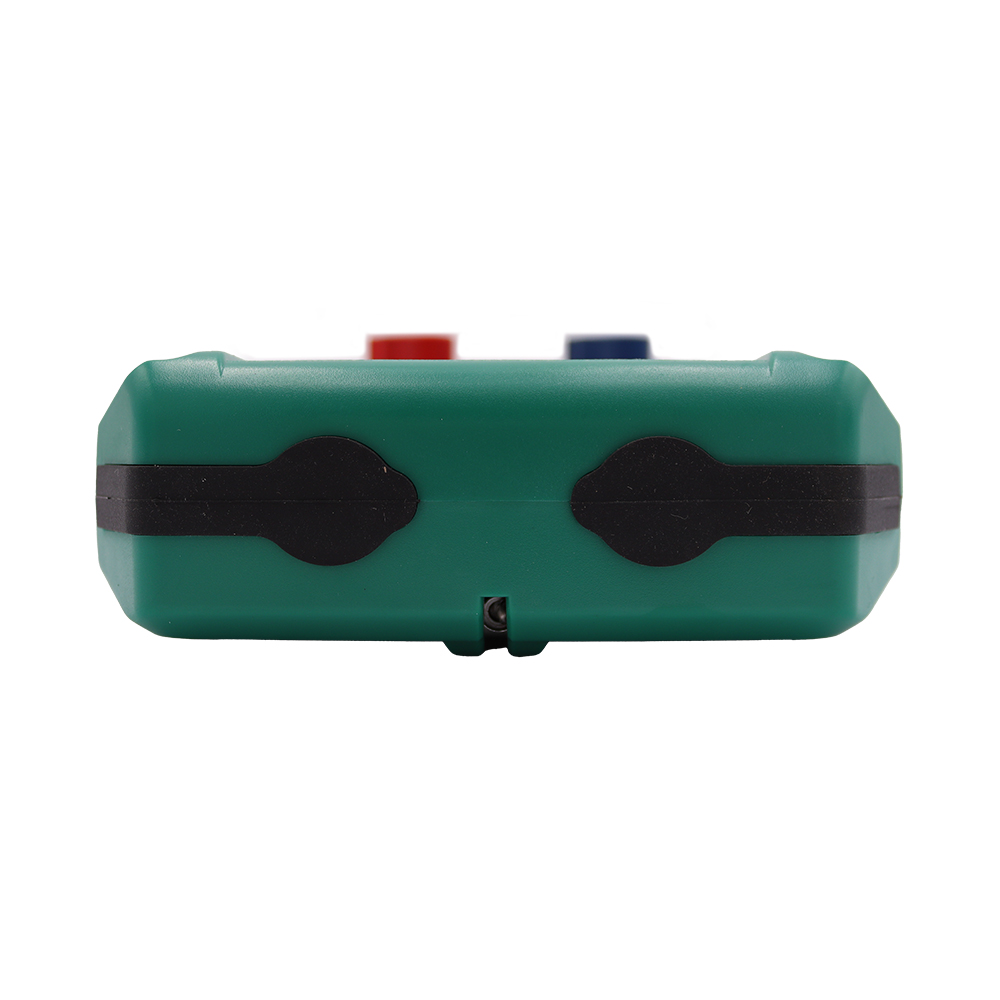

  • 4 ways digital manifold

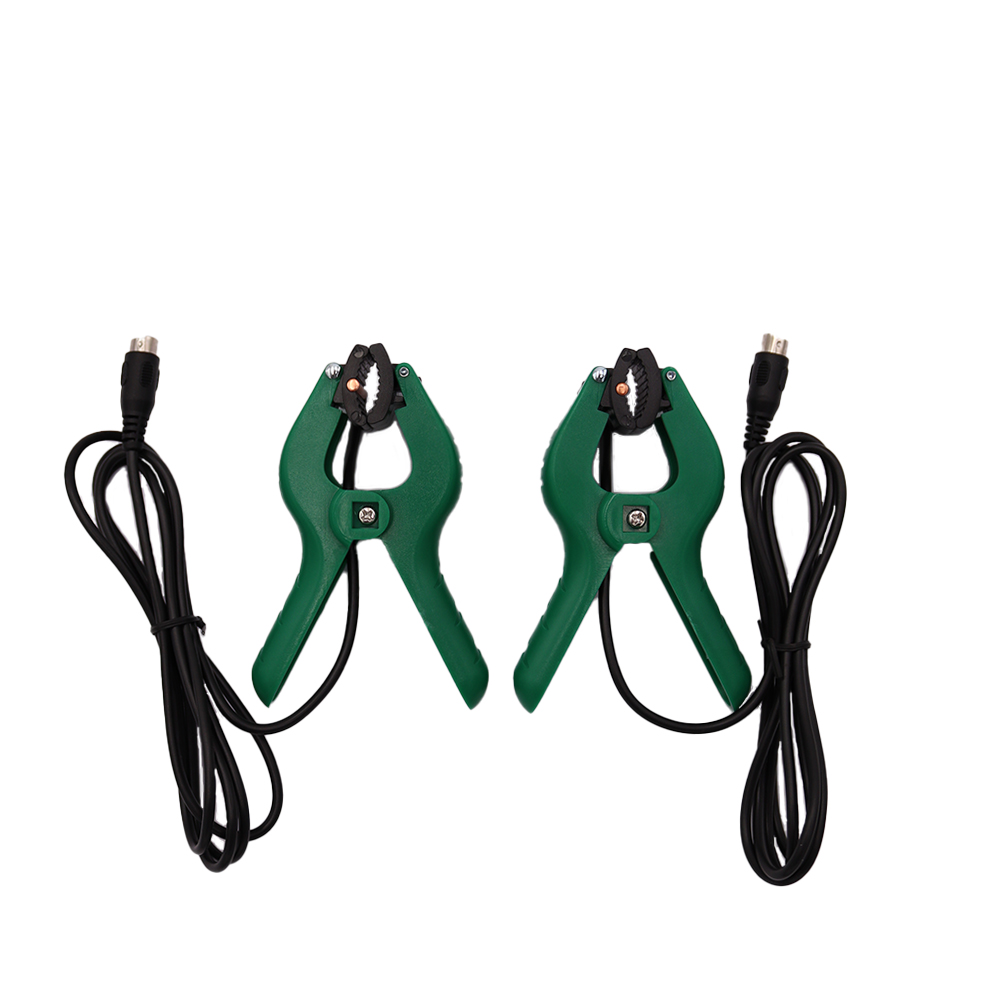

  • 2 temperature sensor with clamp

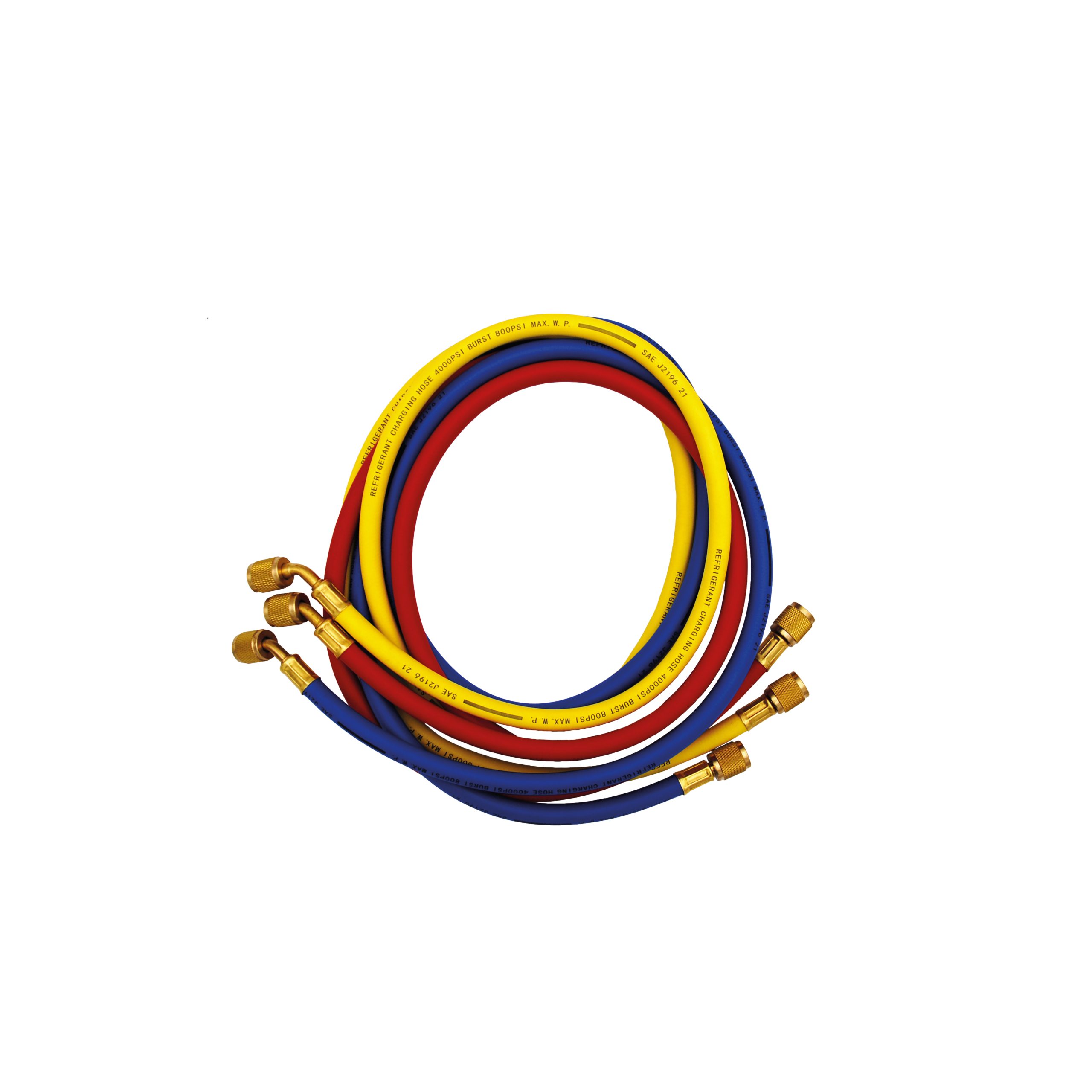

  • 1 yellows pipe for vacuum: L. 150 cm connection 1/4" F SAE

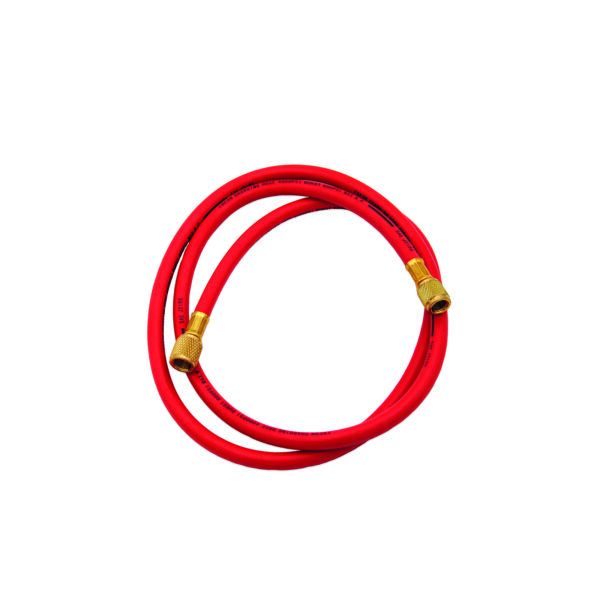

  • 1 red pipe for vacuum: L. 150 cm connection 1/4" F SAE
  • 1 blue pipe for vacuum: L. 150 cm connection 1/4" F SAE

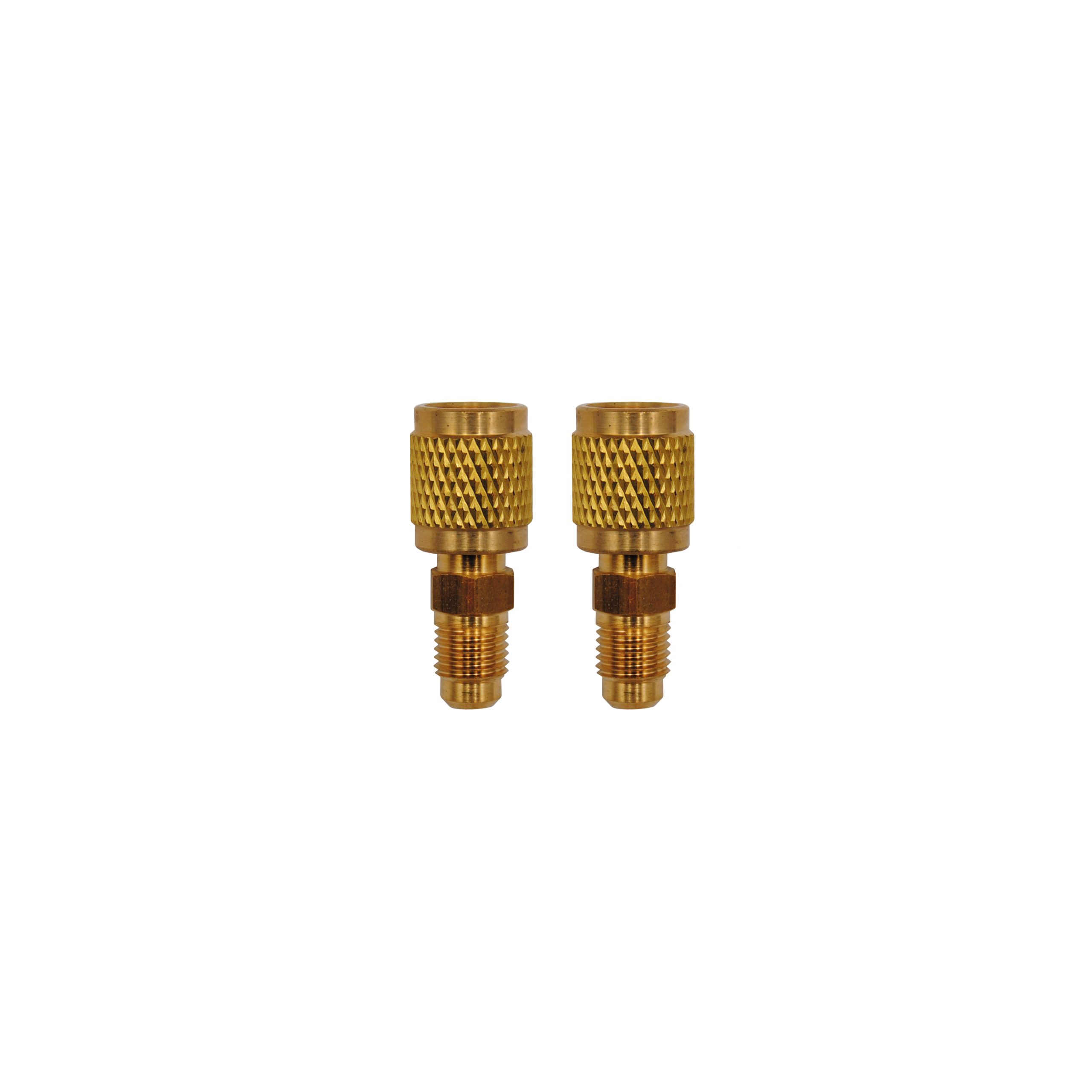

  • 2 SAE M 1/4" adapter - F 5/16"
  • shockproof plastic case
  • instruction manual
  • 2 PTFE spare gasket and one push-valve
  • power cable





Technical Features

USABLE IN GASES R12 - R13 - R14 - R22 - R424A - R23 - R114 - R123 - R134A - R502 - R290 - R401A - R401B - R402A - R427A - R402B - R404A - R406A - R407A - R503 - R407C - R408A - R409A - R410A - R434A - R414A - R416A - R417A - R420A - R507 - R421A - R422A - R422B - R422D - R437A 7 R718 - R32 - R115 - R403B - R423A - R1234yf
PRESSURE READING PSI, Bar, MPa, kpa, mm, Hg
TEMPERATURE READING °F or °C
UNIT OF MEASUREMENT VACUUM  mbar / micron
MAXIMUM WORKING PRESSURE LOW PRESSURE GAUGE 34 bar / 55psi / 3400kPa / 3,4MPa - safety shut-off > 40 bar
MAXIMUM WORKING PRESSURE GAUGE OF HIGH 55 bar / 800psi / 5500kPa / 5,5 MPa - safety shut-off > 60 bar
PRESSURE INDICATOR RESOLUTION 0,001 bar / 0,5 psi / 0,001 MPA / 1,0 kPa
POWER SUPPLY 2 AA batteries
CONNECTIONS PITCH 1/4" SAE
WEIGHT 3,65 kg
DIMENSIONS 162x235x69 mm (LxWxD)
