Portable Electronic Vacuum

Digital vacuum gauge

IN COMPLIANCE WITH DPR 146/2018, OUR PRODUCTS ARE SUPPLIED, UPON REQUEST, WITH THE RELATIVE CALIBRATION REPORT; THIS REPORT MAY ALSO BE REQUESTED ON USED PRODUCTS, EVEN FROM NOT TECNOGAS ORIGINS

sku model price info add to cart

00000011477

PORTABLE ELECTRONIC VACUUM VACUUM

544,00 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
8 × 23 × 5 cm

Volume:
0.0009 m3

Weight:
0,26 kg

Minimum Order Quantity:
1

Customs data

Customs Code
90262080

Buy
Info Request

Product informations

Dual output portable electronic vacuum designed for air conditioning and refrigeration systems.



Product features

  • maintains measurement accuracy even when the sensor is exposed to contaminants in the oil
  • reaction time 1/2 second (update frequency)
  • automatic shutdown

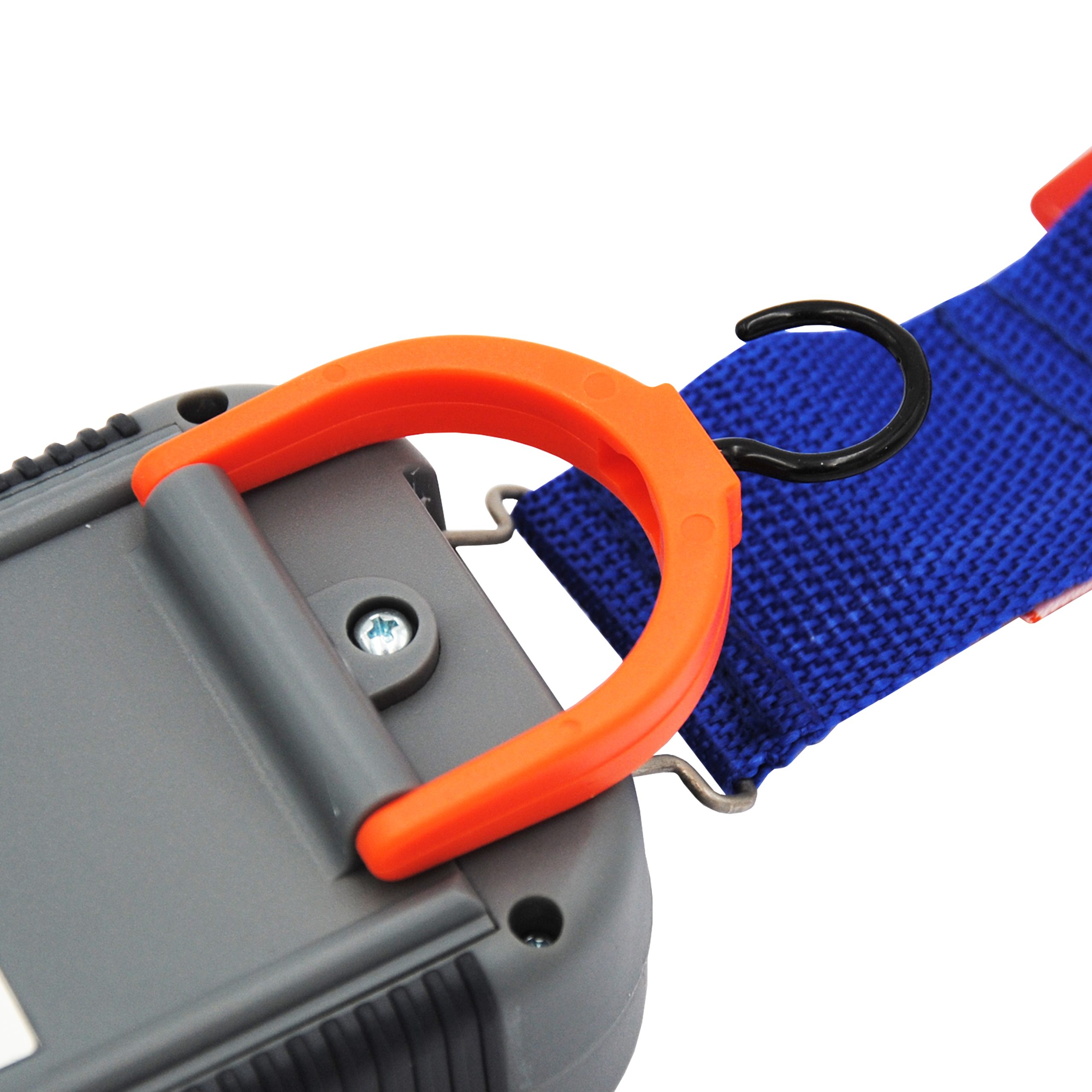

  • built-in hook
  • removable magnetic suspension strap
  • easy-to-clean sensor (use isopropyl alcohol)
  • backlit LCD screen
  • battery life indicator
  • analog bar graph

Technical Features

TYPE OF SENSOR thermistor

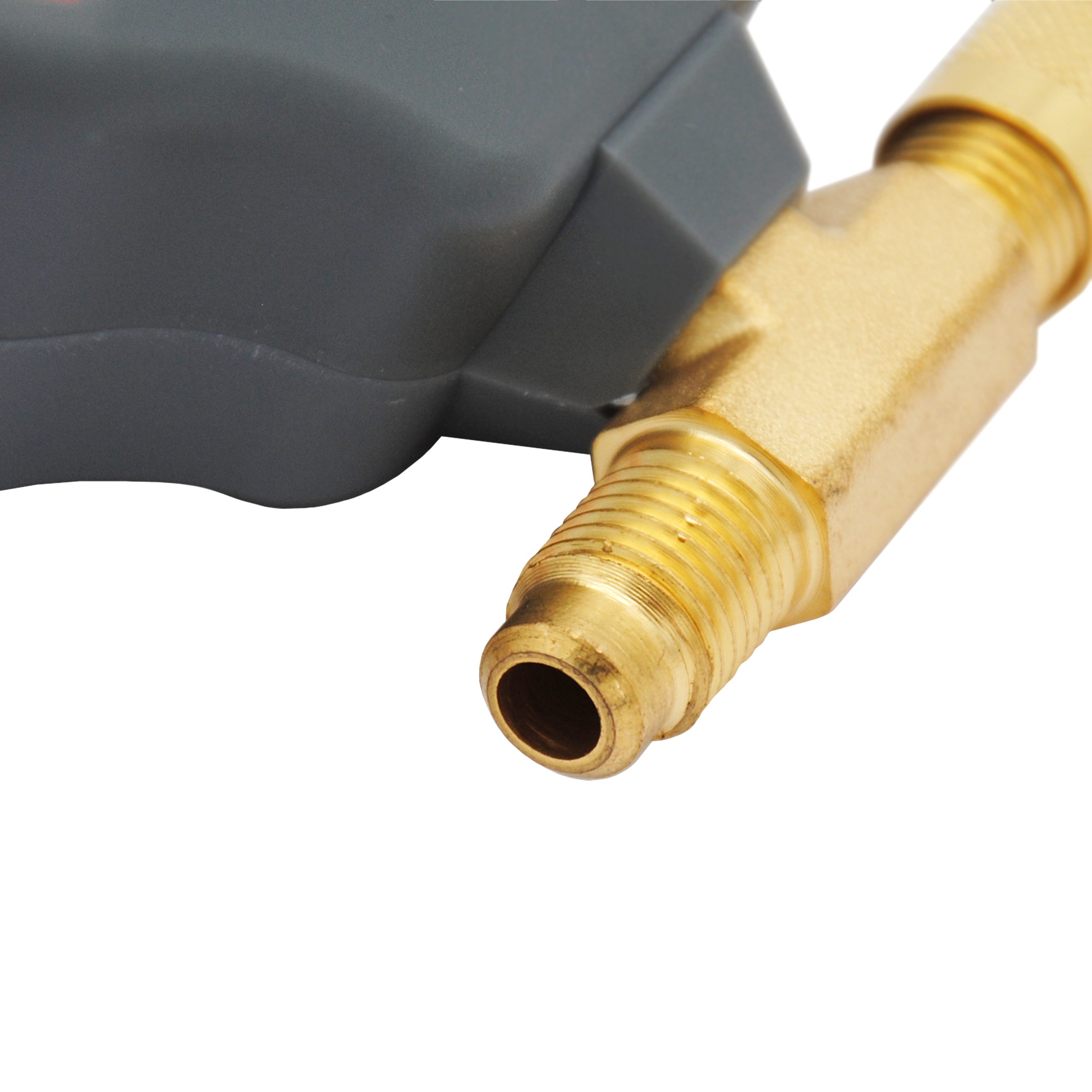

CONNECTIONS 1/4" SAE
VACUUM RANGE 0-19.000 micron (0-2.600 Pascal)
TYPE OF READING micron - milliBar - Pascal - Torr - milliTorr
ACCURACY ± 10% or ± 10 Microns, whichever is greater (50 to 200 microns)
UPDATE FREQUENCY 0.5 seconds
WORKING TEMPERATURE -17°C ÷ + 65°C
MAXIMUM OVERPRESSURE 55 bar (800 PSI)
POWER SUPPLY 3 AA batteries
BATTERY LIFE 600 hours of continuous use
AUTOMATIC SHUT-DOWN
  • after 10 minutes when the vacuum reading is above 19,000 microns
  • after 1 hour when the vacuum value is less than 19,000 microns
DIMENSIONS 8x23x5 mm (HxWxD)
WEIGHT 0,26 kg
