Place Group for LPG Gas Cylinders

Complete with safety valve, pressure gauge, flexible hoses and regulator

PACKAGED IN SINGLE BOX

COMPLIANT WITH UNI 7131 RULE

sku model price info add to cart

00000006786

PLACE GROUP WITH 2 CYLINDER CONNECTIONS - equipped with flexible hoses

106,35 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 11 × 50 cm

Volume:
0.0089 m3

Weight:
2,27 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

00000006787

PLACE GROUP WITH 3 CYLINDER CONNECTIONS - equipped with flexible hoses

132,30 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
76 × 14 × 12 cm

Volume:
0.0128 m3

Weight:
3,04 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

0000006786R

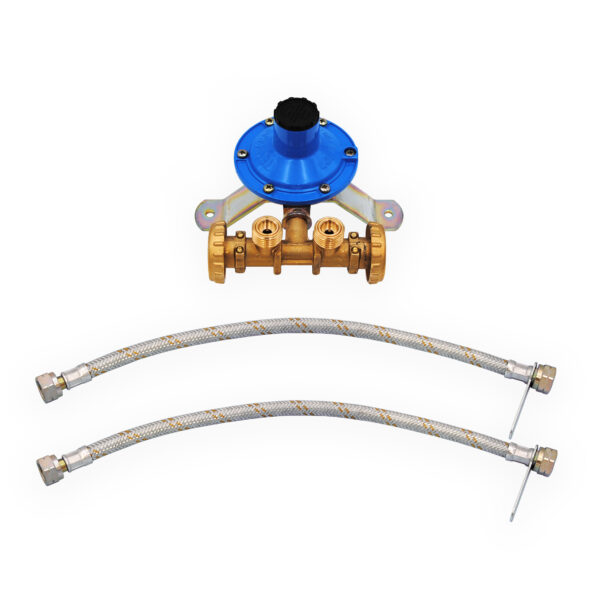

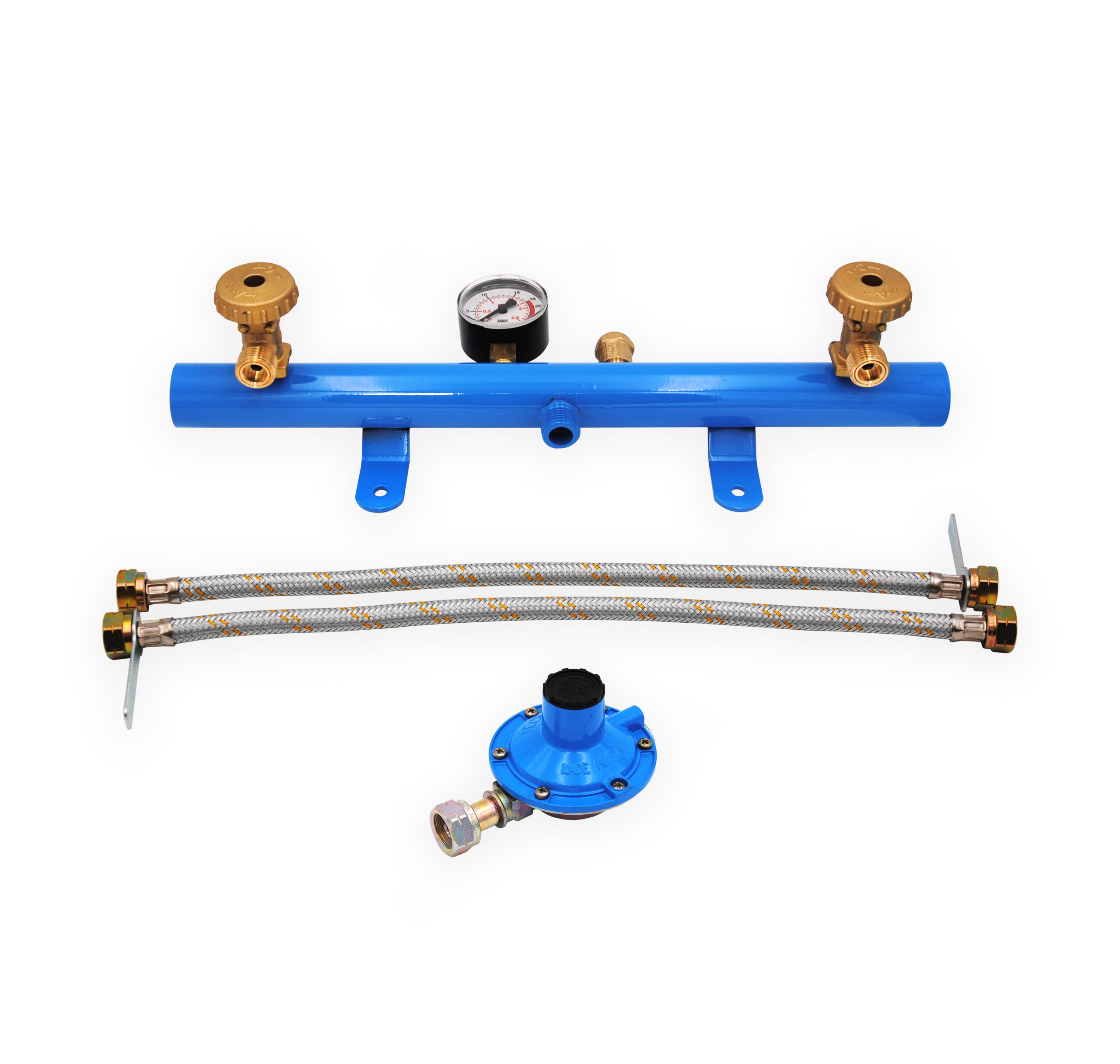

PLACE GROUP WITH 3 CYLINDER CONNECTIONS - equipped with flexible hoses and 4 kg regulator

117,85 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 10 × 50 cm

Volume:
0.0084 m3

Weight:
2,63 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818059

Buy
Info Request

Product informations

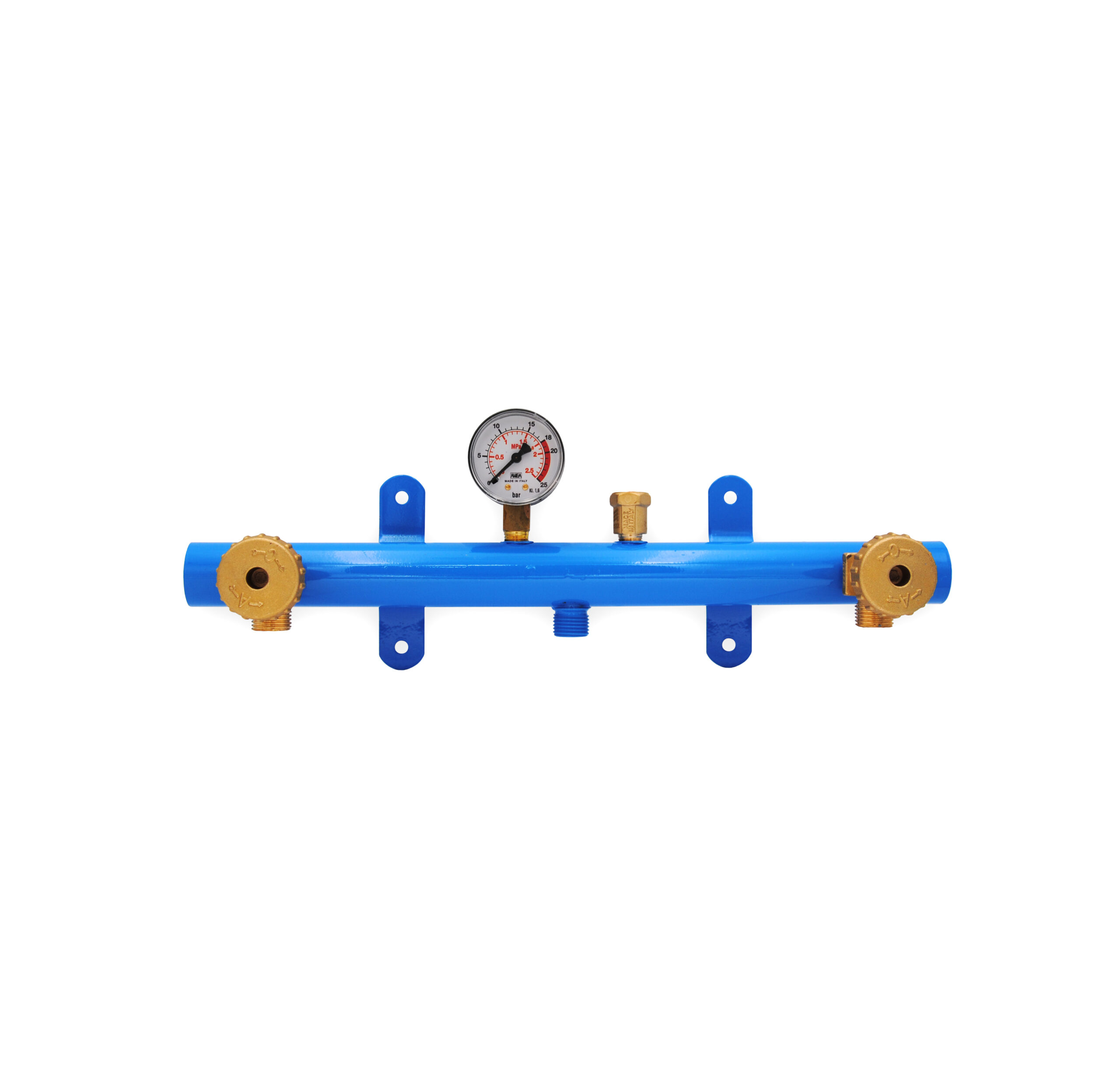

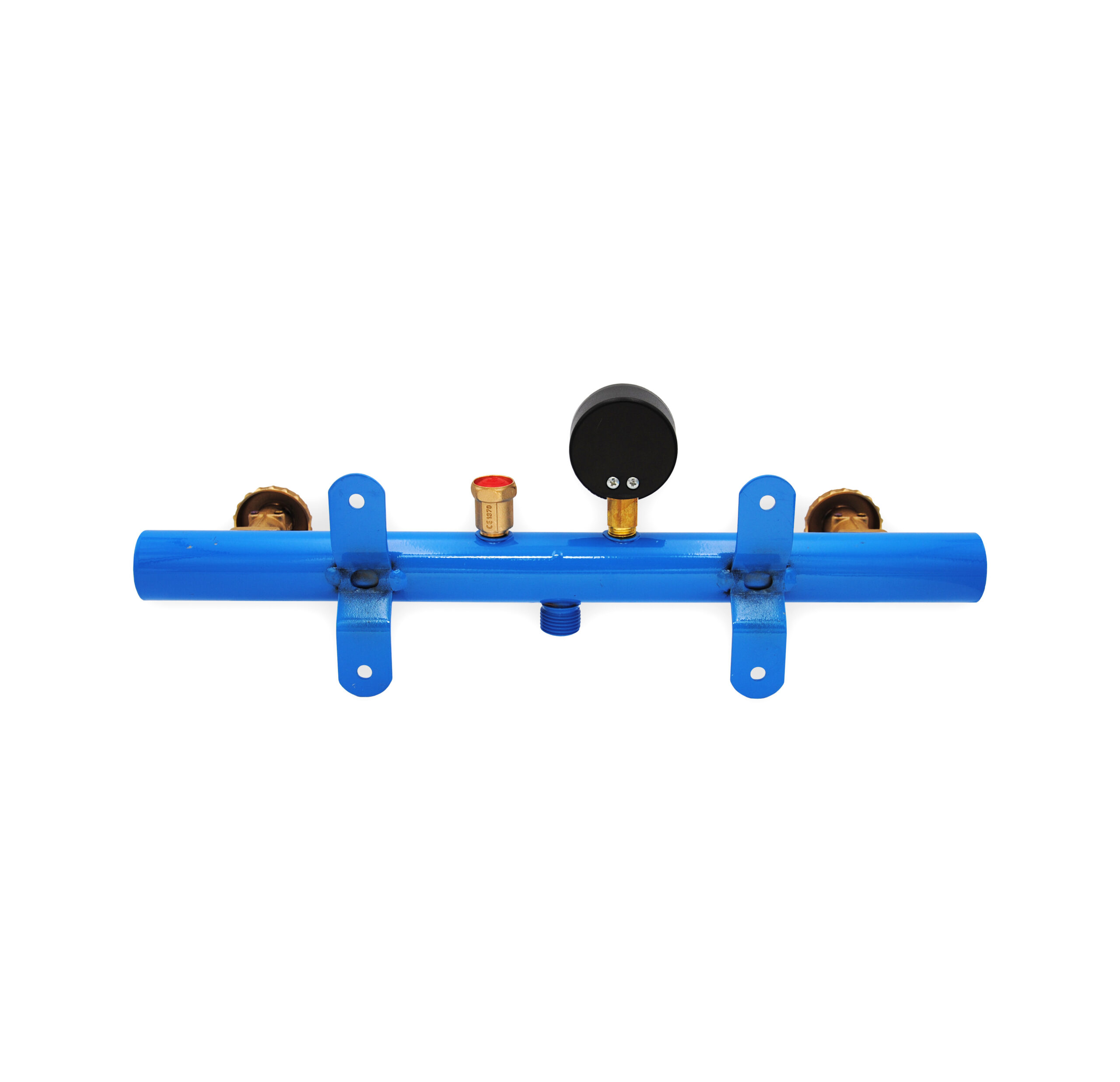

LPG gas cylinder place group, designed for batteries of 2 or more cylinders, with non-return device incorporated in the tap.

Complete with safety valve, pressure gauge and flexible hoses, also available the version with regulator.

Technical Features

  • pipe DN 25 - PN 40
  • available with 2, 3 or 4 cylinder connections

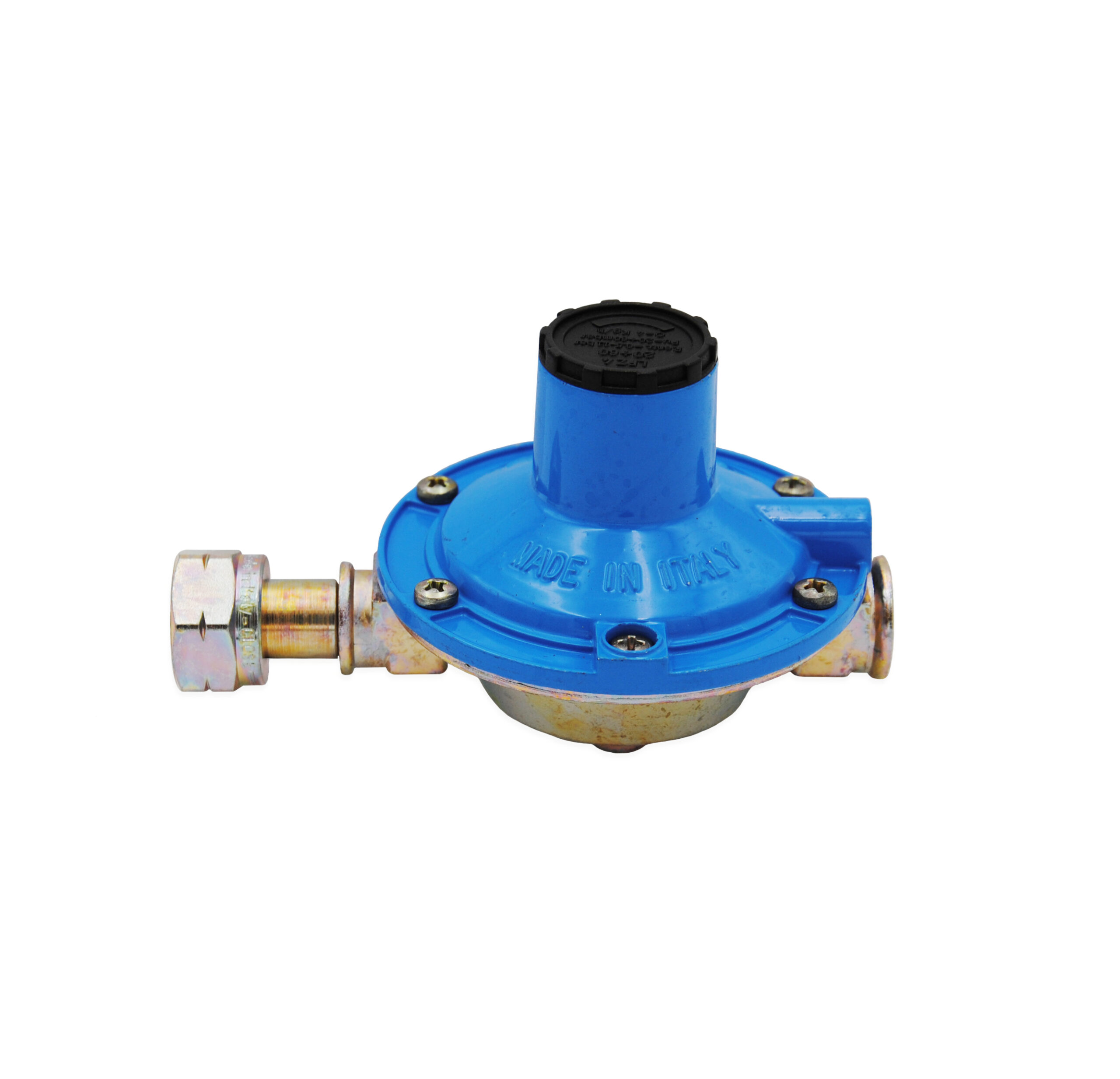

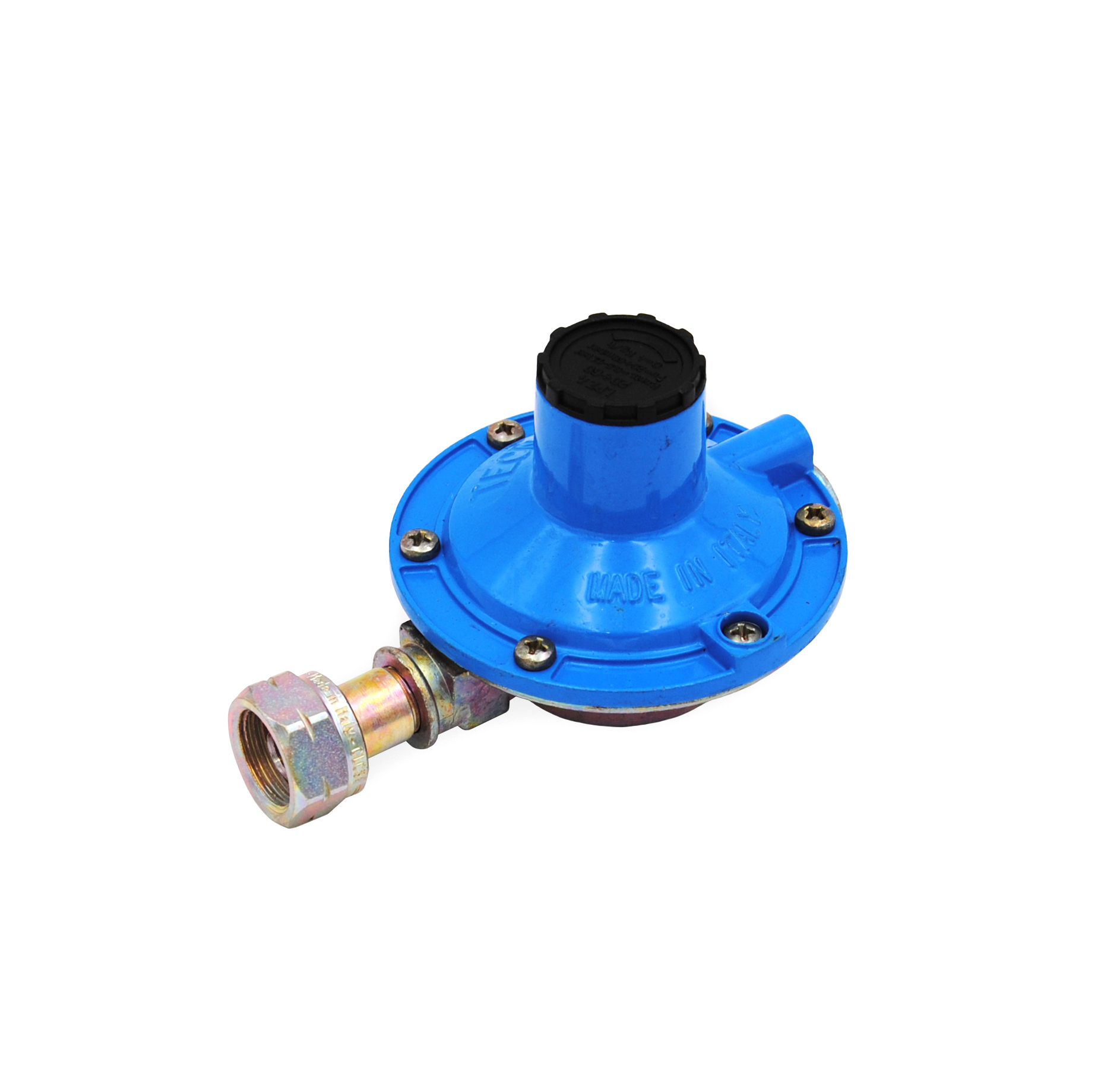

VERSION WITH REGULATOR 4 kg (SKU 6786R)
INLET PRESSURE 0,5 ÷ 10 bar
OUTLET PRESSURE 25 ÷ 60 bar
INLET CONNECTION nut CH25
OUTLET CONNECTION G 3/8" F
OPERATING TEMPERATURE - 20°C ÷ + 50°C
