Flexible Double Wall Aluminum Pipe

Multilayer laminated

COMPLIANT WITH UNI CEI11170-3 Ed.2005 + FA 2007

sku model price info add to cart

00000065040

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 82 mm

11,17 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
17 × 11 × 17 cm

Volume:
0.0032 m3

Weight:
0,26 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065041

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 102 mm

11,10 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
19 × 6 × 19 cm

Volume:
0.0022 m3

Weight:
0,24 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065042

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 127 mm

11,61 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
20 × 6 × 20 cm

Volume:
0.0024 m3

Weight:
0,30 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065043

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 152 mm

12,41 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
24 × 6 × 24 cm

Volume:
0.0036 m3

Weight:
0,32 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065044

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 160 mm

13,37 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
23 × 6 × 23 cm

Volume:
0.0033 m3

Weight:
0,32 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065046

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 204 mm

16,51 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
29 × 6 × 29 cm

Volume:
0.0053 m3

Weight:
0,50 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065047

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 229 mm

17,82 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065048

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 254 mm

21,18 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
34 × 6 × 34 cm

Volume:
0.0071 m3

Weight:
0,62 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

00000065049

INSULATED ALUMINIUM FLEXIBLE PIPE - Ø 305 mm

26,15 Excl. Taxes

Physical data

UM Base:
MT

Dimension:
40 × 7 × 40 cm

Volume:
0.0123 m3

Weight:
0,80 kg

Minimum Order Quantity:
10

Bulky item:
check the cost of transport with our sales department.

Customs data

Customs Code
76169990

Buy
Info Request

Product informations

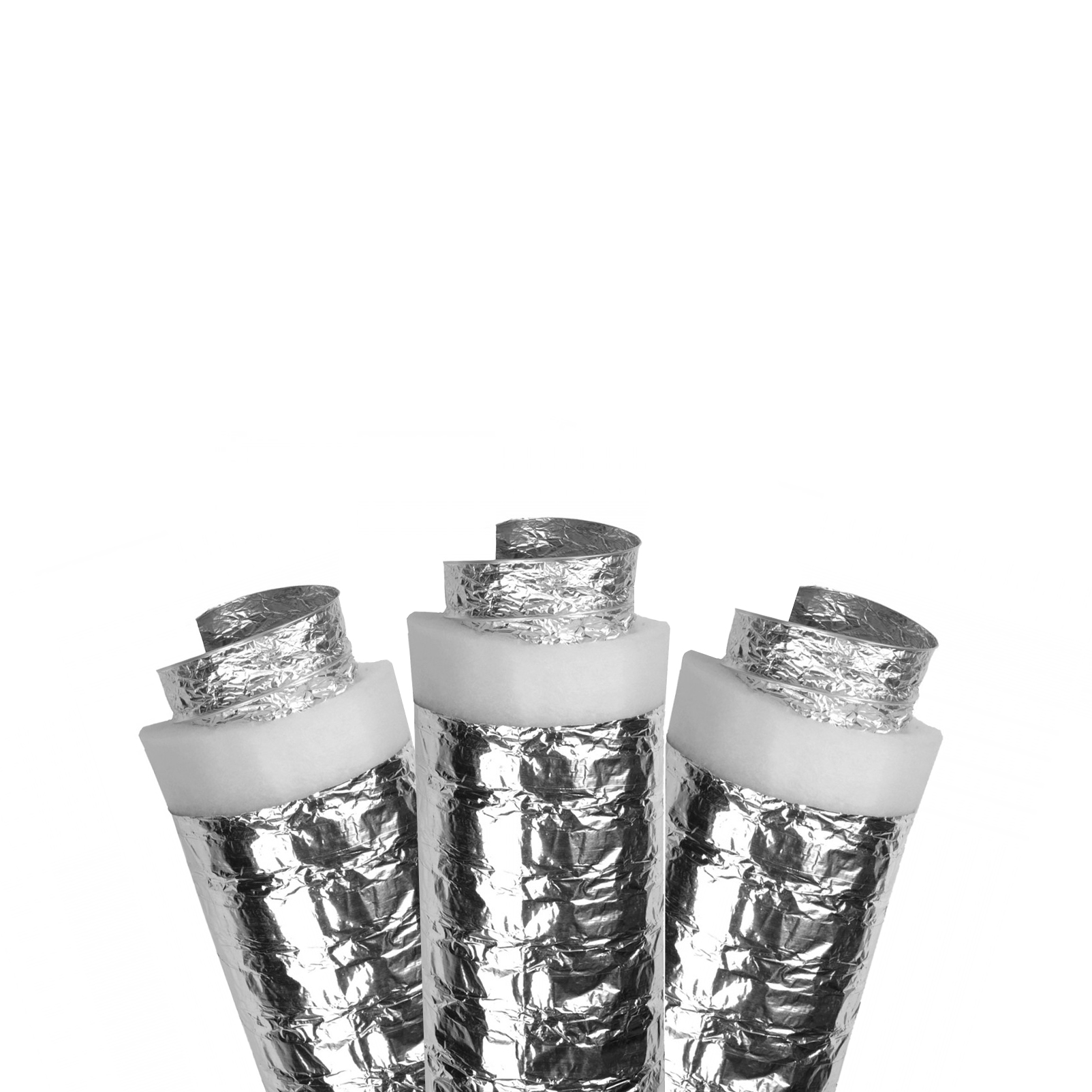

Insulated flexible hose with internal duct made of aluminum laminate multilayer and incorporated harmonic steel wire spiral, with 25 mm thickness and weight 250/300 g/sm polyester fiber insulation.

This product can be used in the air conditioning and ventilation sector.

Technical Features

COLOR grey-aluminium
OPERATING TEMPERATURE - 30°C ÷ + 130°C
BENDING RADIUS 0,8 to 1 times the diameter
MAXIMUM WORKING PRESSURE 2500 pa
MAXIMUM AIR SPEED 30 m/s
LENGTH 10 m
FIRE REACTION ITALIAN CLASS: Class 1 (D.M. 06/26/84)



SKU DIAMETER AIR SPEED 8 m/sec AIR SPEED 10 m/sec
AIR FLOW M3/H PRESSURE DROP IN Pa AIR FLOW M3/H PRESSURE DROP IN Pa
65040 Ø 82 mm 152 19 190 31
65041 Ø 102 mm 250 15 333 24
65042 Ø 127 mm 383 12 368 18
65043* Ø 152 mm - - - -
65044 Ø 160 mm 575 8 773 14
65046 Ø 203 mm 900 6,5 1151 10,5
65047* Ø 229 mm - - - -
65048 Ø 254 mm 1445 4,7 1843 7,5
65049* Ø 305 mm - - - -

 *To calculate the flow rates and pressure drops of the other diameters, use the diagram in the downloads below within the "Others" section.
