Motorized Ball Two-Way Zone Valve

For heating and/or air conditioning

sku model price info add to cart

00000070230

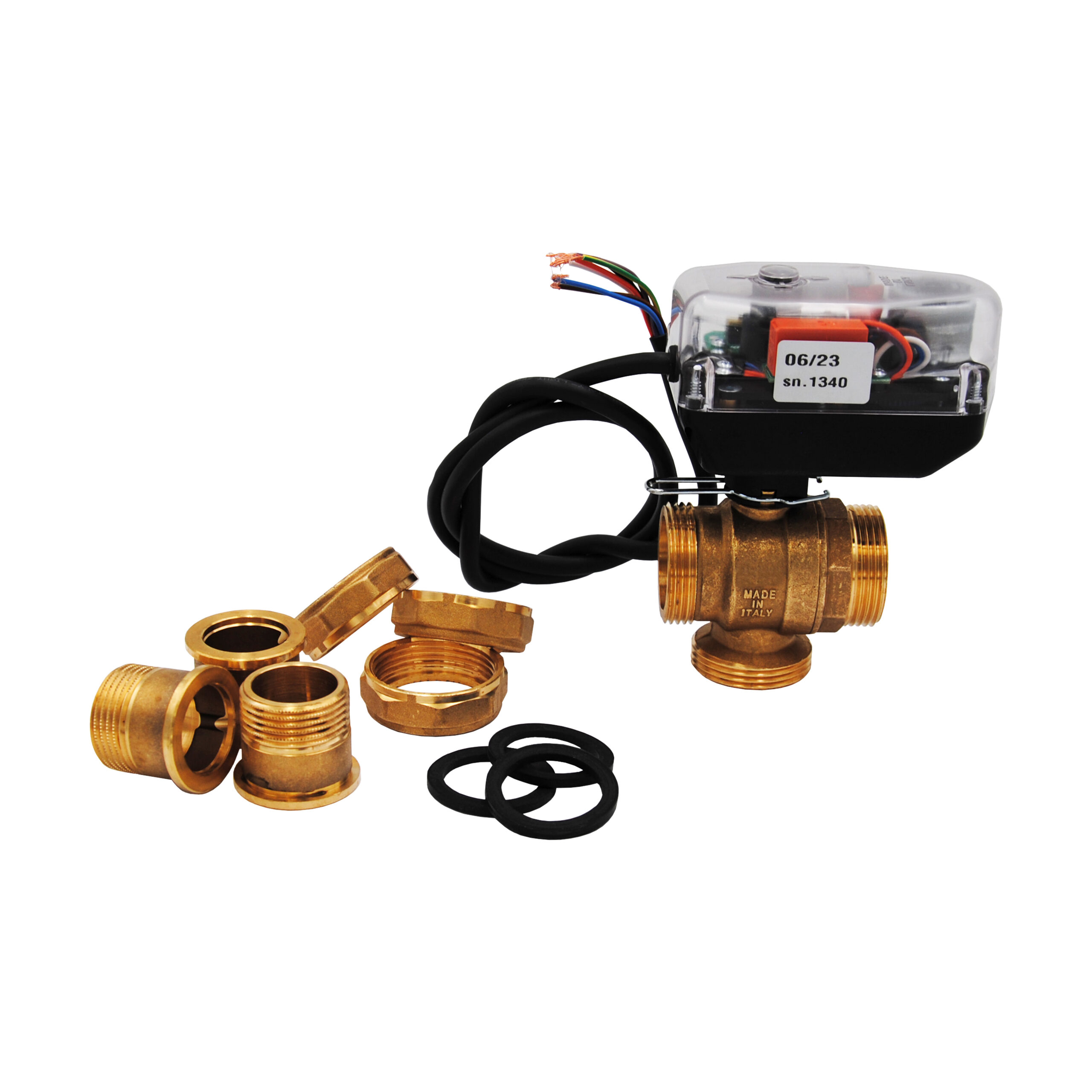

2 WAY VALVE - 1/2" MF COMPLETE

€194,90 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000070231

2 WAY VALVE - 3/4" MF COMPLETE

€196,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
22 × 8 × 10 cm

Volume:
0.0019 m3

Weight:
0,84 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000070232

2 WAY VALVE - 1" MF COMPLETE

€206,65 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
11 × 7 × 20 cm

Volume:
0.0016 m3

Weight:
1,13 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000070235

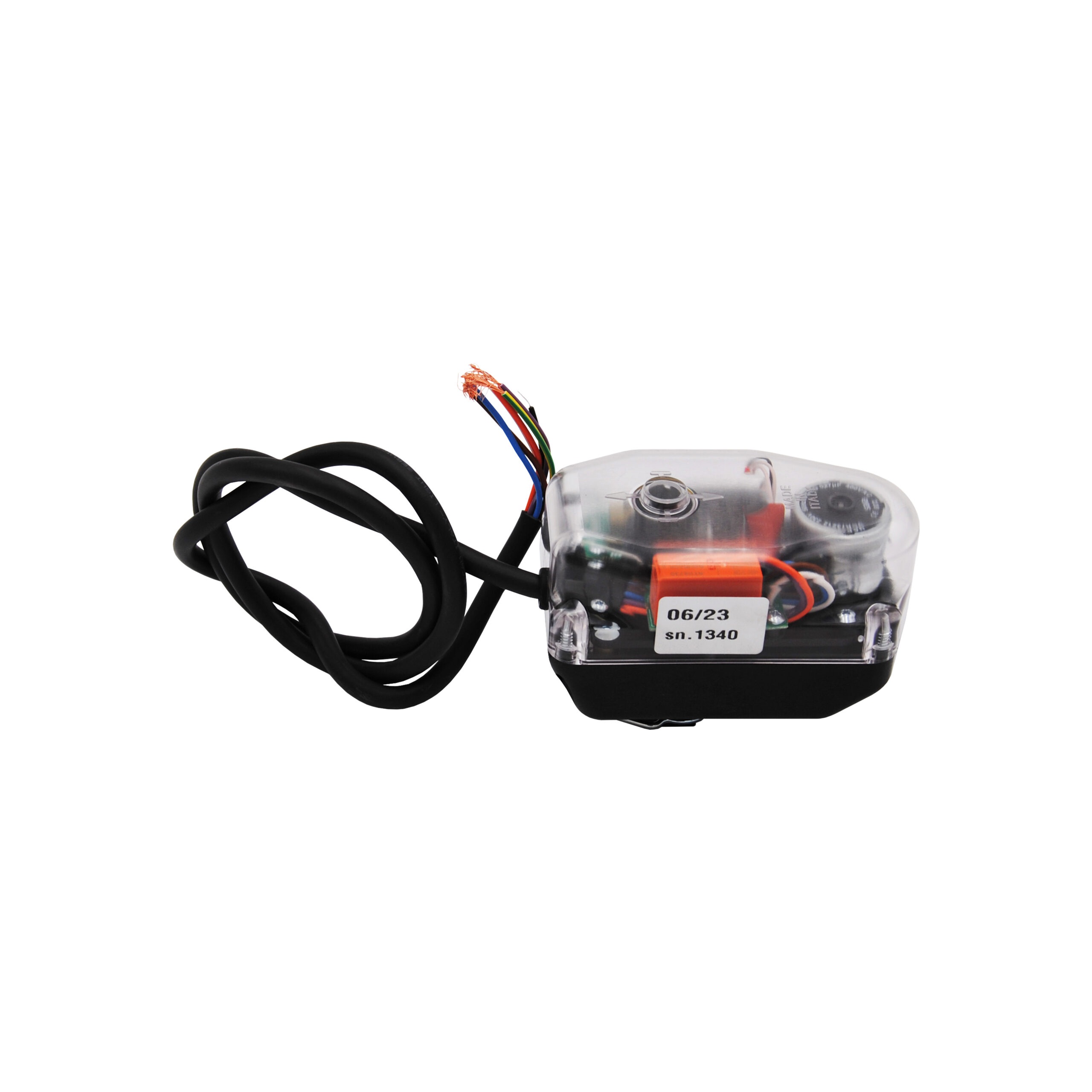

ONLY MOTOR WITH RELAY - 230 Vac

€153,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
16 × 6 × 10 cm

Volume:
0.0011 m3

Weight:
0,38 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000070236

ONLY MOTOR WITH RELAY - 24 Vac

€165,70 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84818081
Buy
Info Request

00000070238

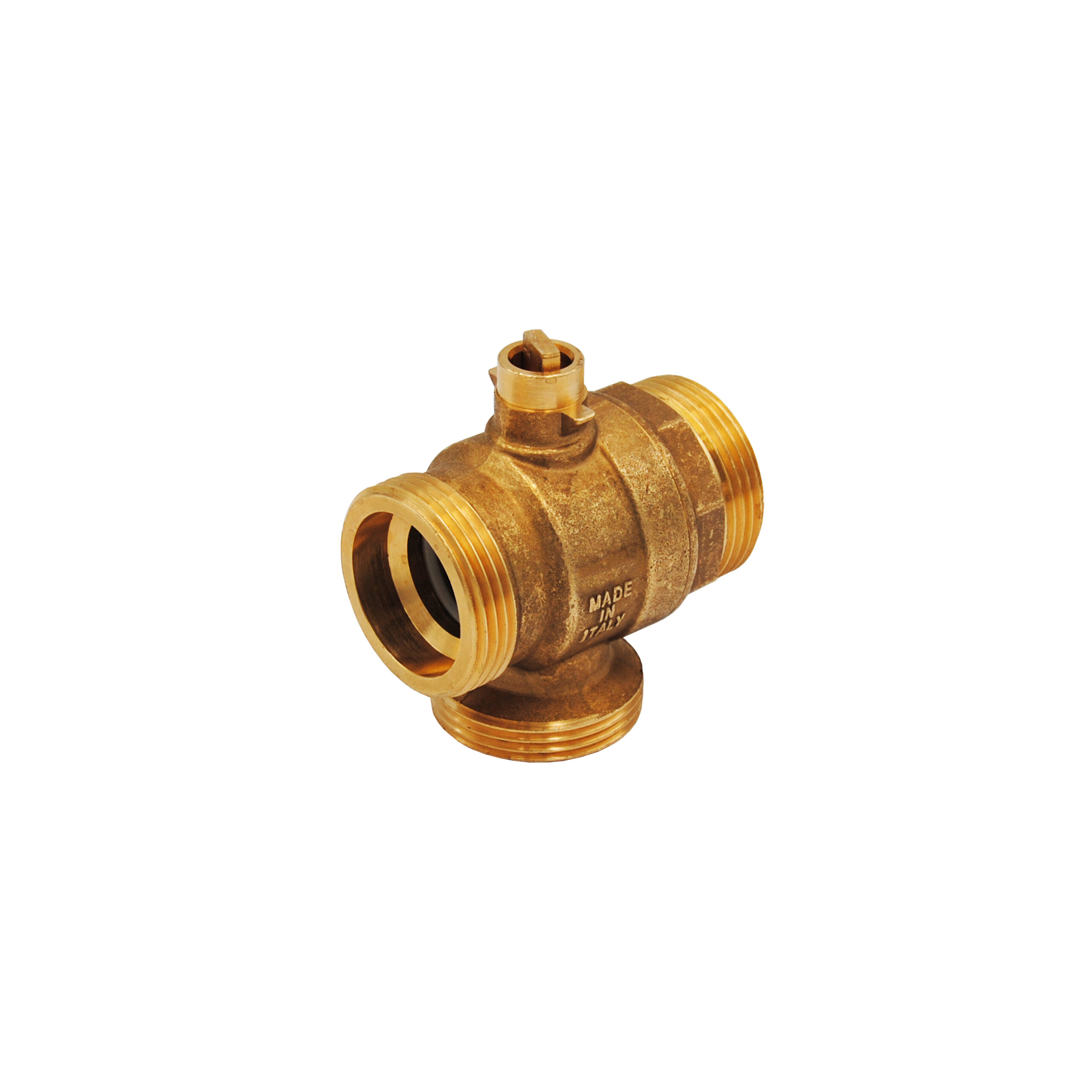

VALVE BODY ONLY - 1/2" MF

€40,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000070239

VALVE BODY ONLY - 3/4" MF

€41,95 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
9 × 15 × 8 cm

Volume:
0.0011 m3

Weight:
0,30 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

00000070240

VALVE BODY ONLY - 1" MF

€52,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84169000
Buy
Info Request

Product informations

The zone valves are aimed at automatically controlling and diverting the fluids in heating, air conditioning and sanitary water systems, these are commanded by a servo-control connected to a room thermostat provided with automatic return function, regulating the ambient temperature. All servomotors are equipped with an auxiliary micro-switch to control the pump, this product, easy to install, shows high hydraulic performance in reduced sizes, this makes it specially suitable for zone heating installations.

Available with 220 and/or 24 V voltages.



Product features

  • soft seat ball movement, valve opening torque < 6N
  • quick connection system
  • the motor can be used manually as a release device in the event of power failure
  • highly reliable motor
  • high precision gears, in sintered metal materials
  • motor start-up torque doubled if compared with the valve body
  • quick and repeatable motor lock/unlock, without damaging the motor or the valve

Technical Features

MAX PRESSURE 10 bar
POWER SUPPLY 230 Vac - 24 Vac
OPERATING TEMPERATURE - 5°C ÷ + 110°C
FLUIDS OF USE water, casting solutions max. 50%
CONNECTIONS
  • 1/2" MF (SKU 70230)
  • 3/4" MF (SKU 70231)
  • 1" MF (SKU 70232)
MATERIALS
  • valve body: brass CW617N UNI 12165
  • control beam: brass CW614N UNI 12164
  • ball: CW614N UNI 12164 chrome-plated
  • sealing seats: PTFE
  • O-ring: EPDM PEROX (high-strength)
  • servocontrol upper protective shell: transparent ABS
  • servocontrol lower protective shell: nylon 66 black
DEGREE OF PROTECTION
  • vertical control beam: IP44 (protected against splashing water from any direction and protected against the ingress of solid objects larger than 1 mm)
  • casing: IP40 (not protected against the ingress of fluids, protected against the ingress of solid objects larger than 1mm)
ABSORPTION 5 VA
MOVEMENT TIME (90° rotation angle) 45 sec
DYNAMIC START UP TORQUE 12 Nm
