Mini Ecoline Pump

For condensate drain

sku model price info add to cart

00000011946

MINI ECOLINE PUMP

106,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
13 × 7 × 8 cm

Volume:
0.0008 m3

Weight:
0,34 kg

Minimum Order Quantity:
1

Customs data

Customs Code
84135069

Buy
Info Request

Product informations

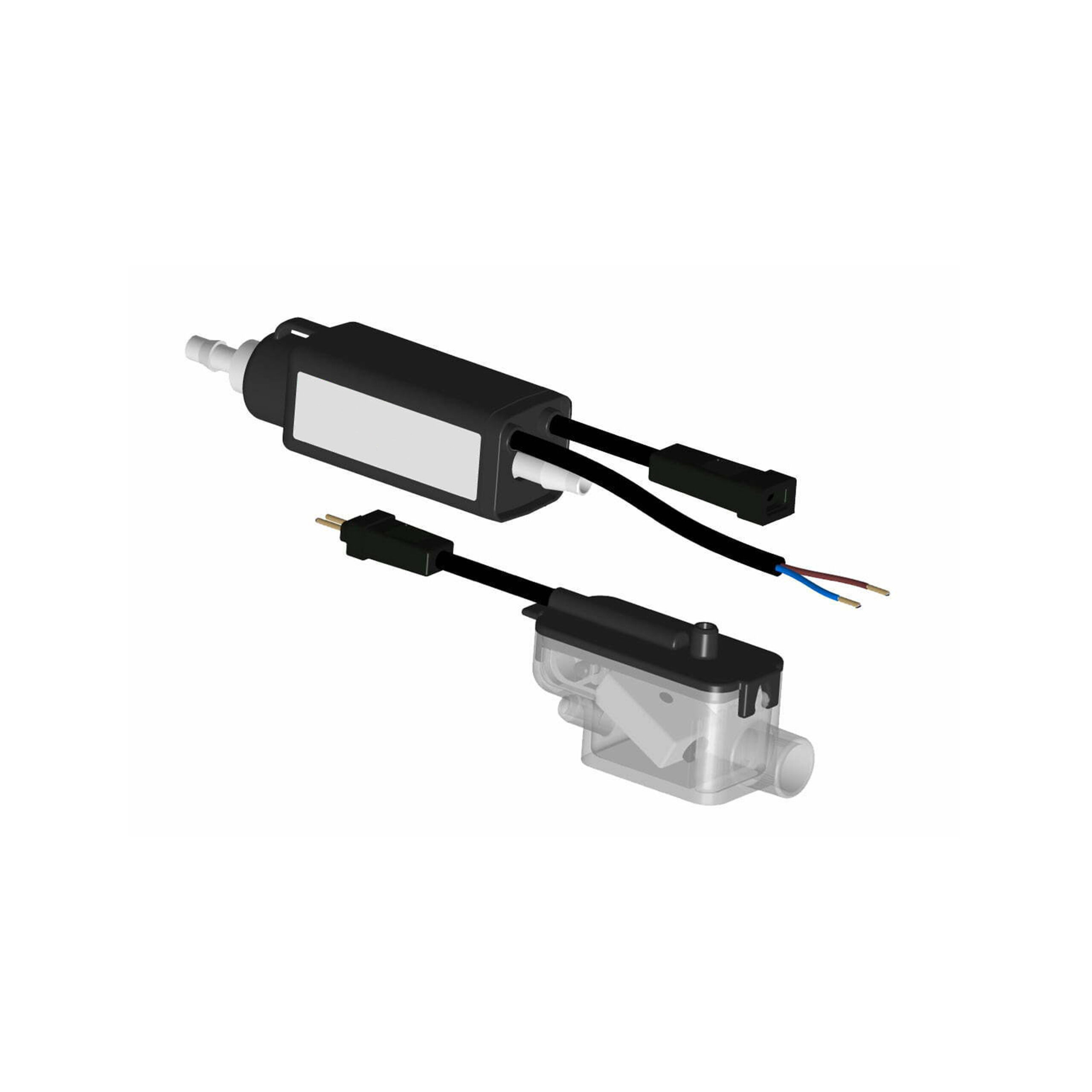

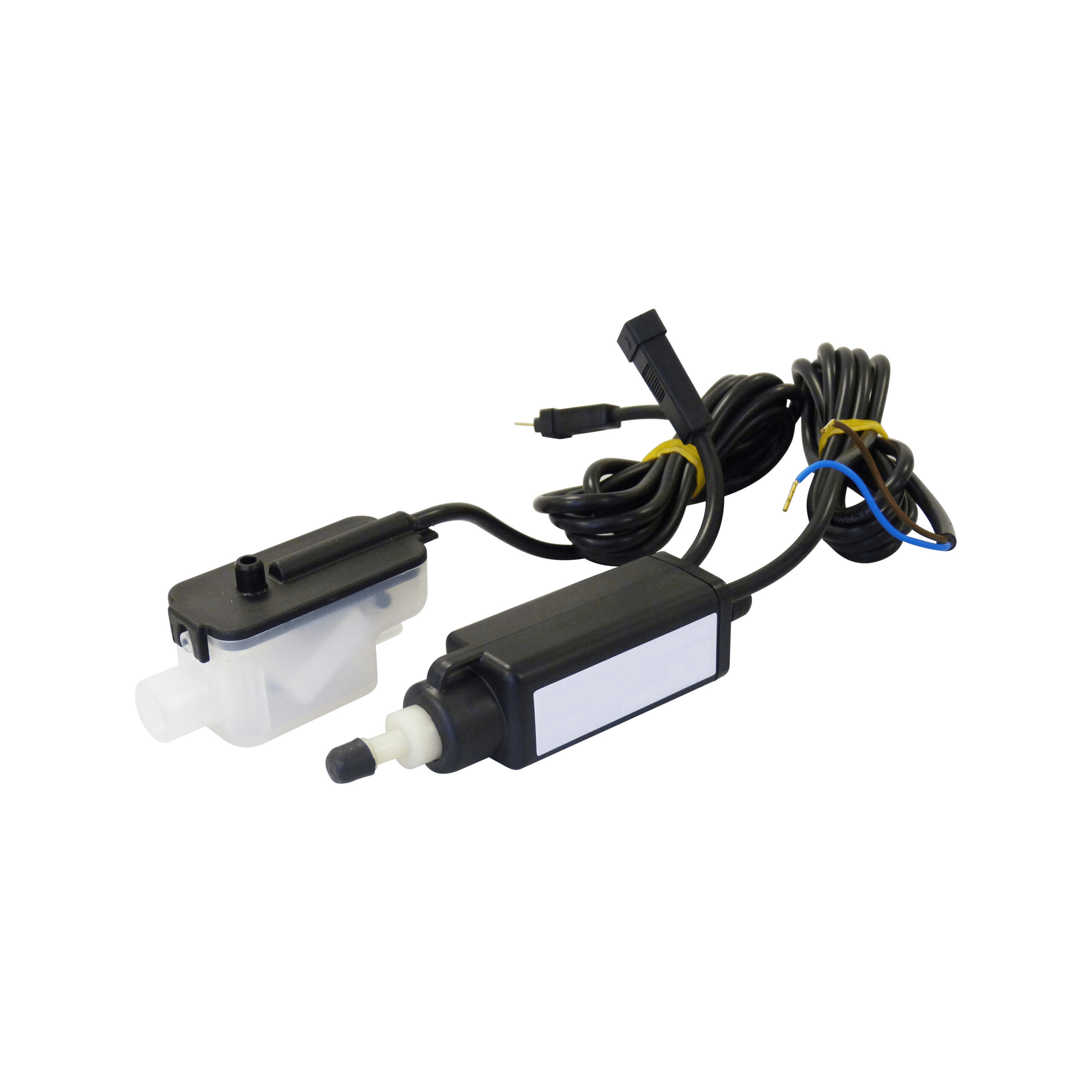

ECOLINE mini pump is designed for air conditioners with power up to 8 kW.



Product features

  • ultra compact with easy installation in the duct or directly in the air conditioner
  • quick connectors that facilitate maintenance
  • removable transparent tank for easy viewing of the tank status
  • all installation accessories are included in the package
  • fixing hook to fix the pump where you want it
  • equipped with thermal protection and integrated filter



The kit includes

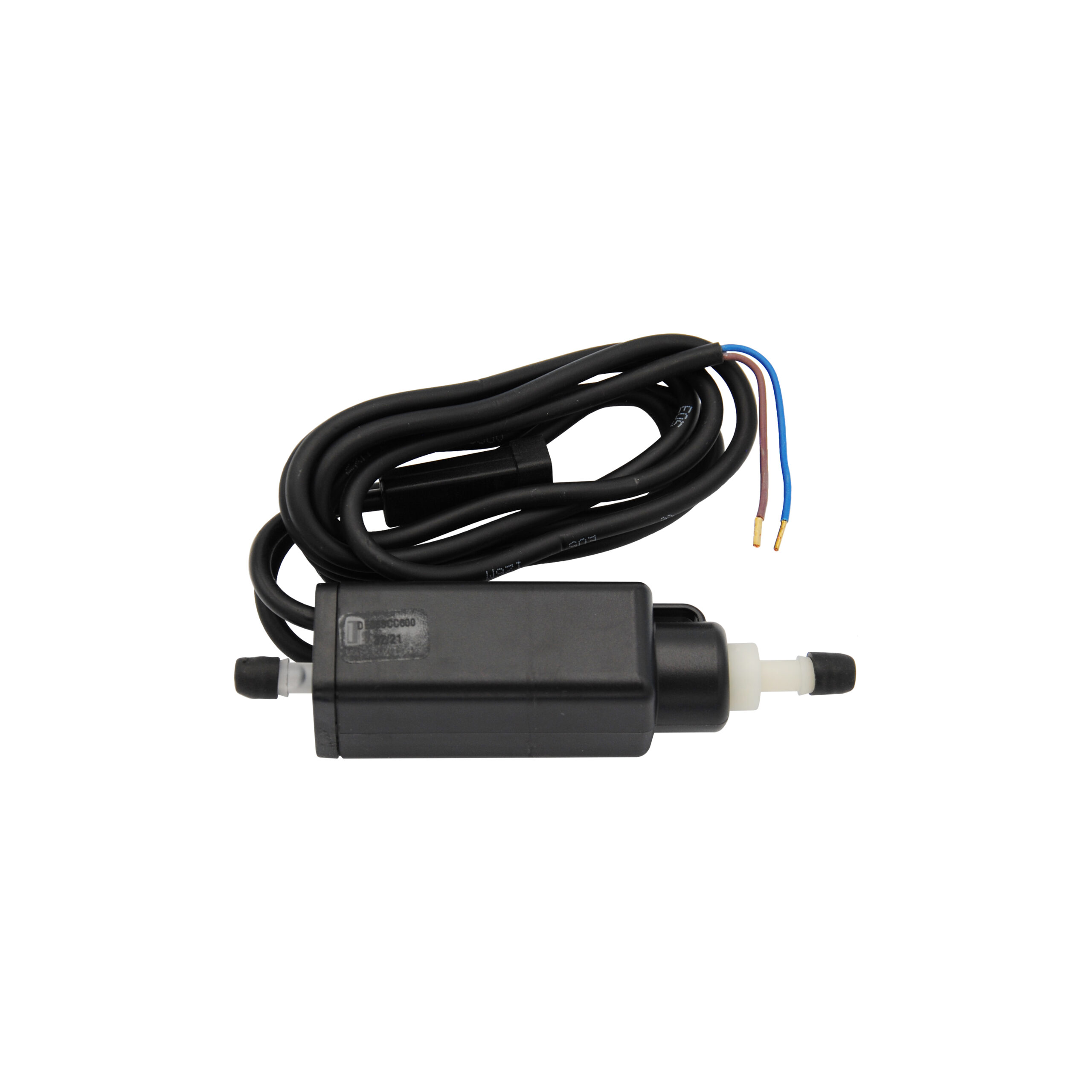

  • Mini Ecoline Pump

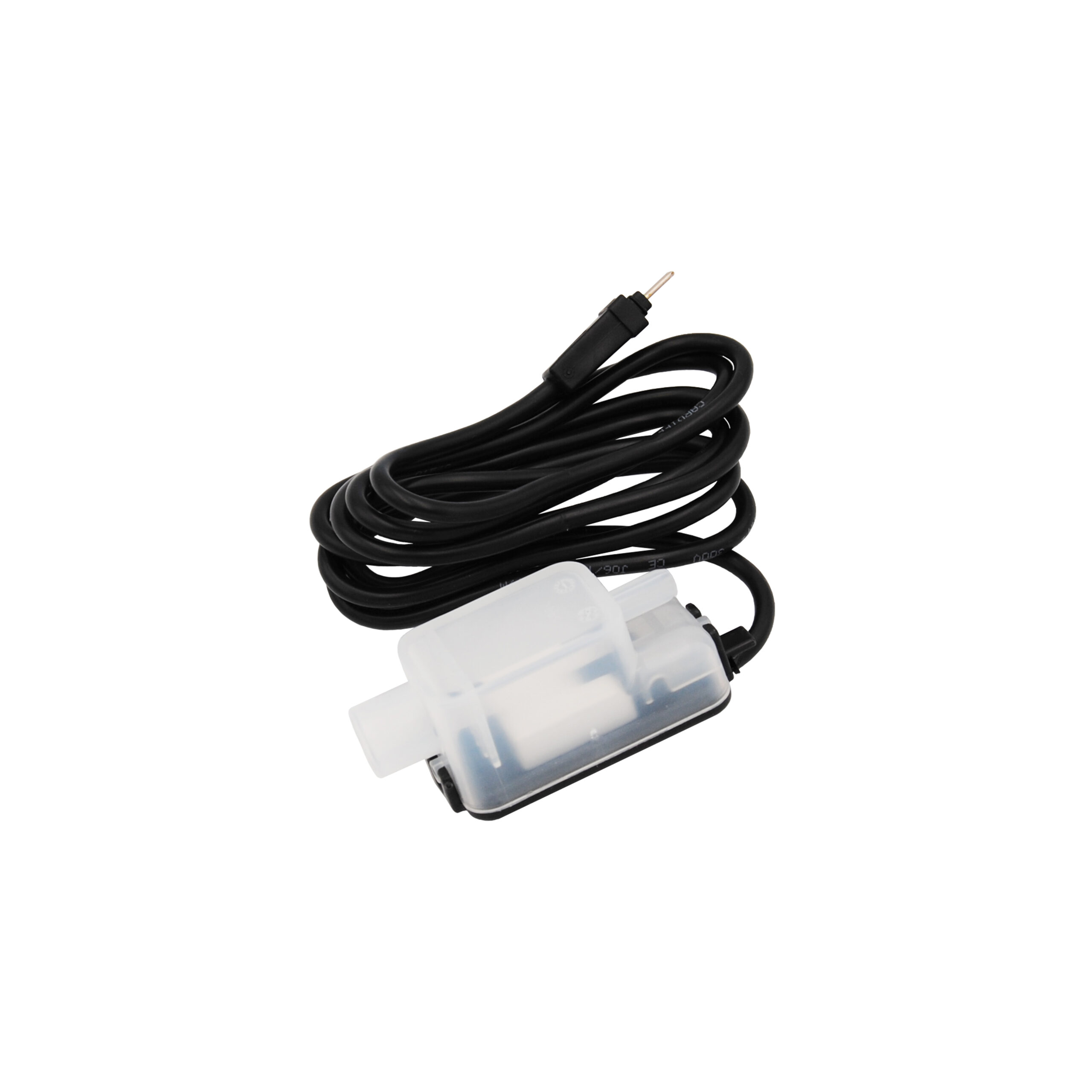

  • detection block
  • velcro adhesive for fixing the detection block

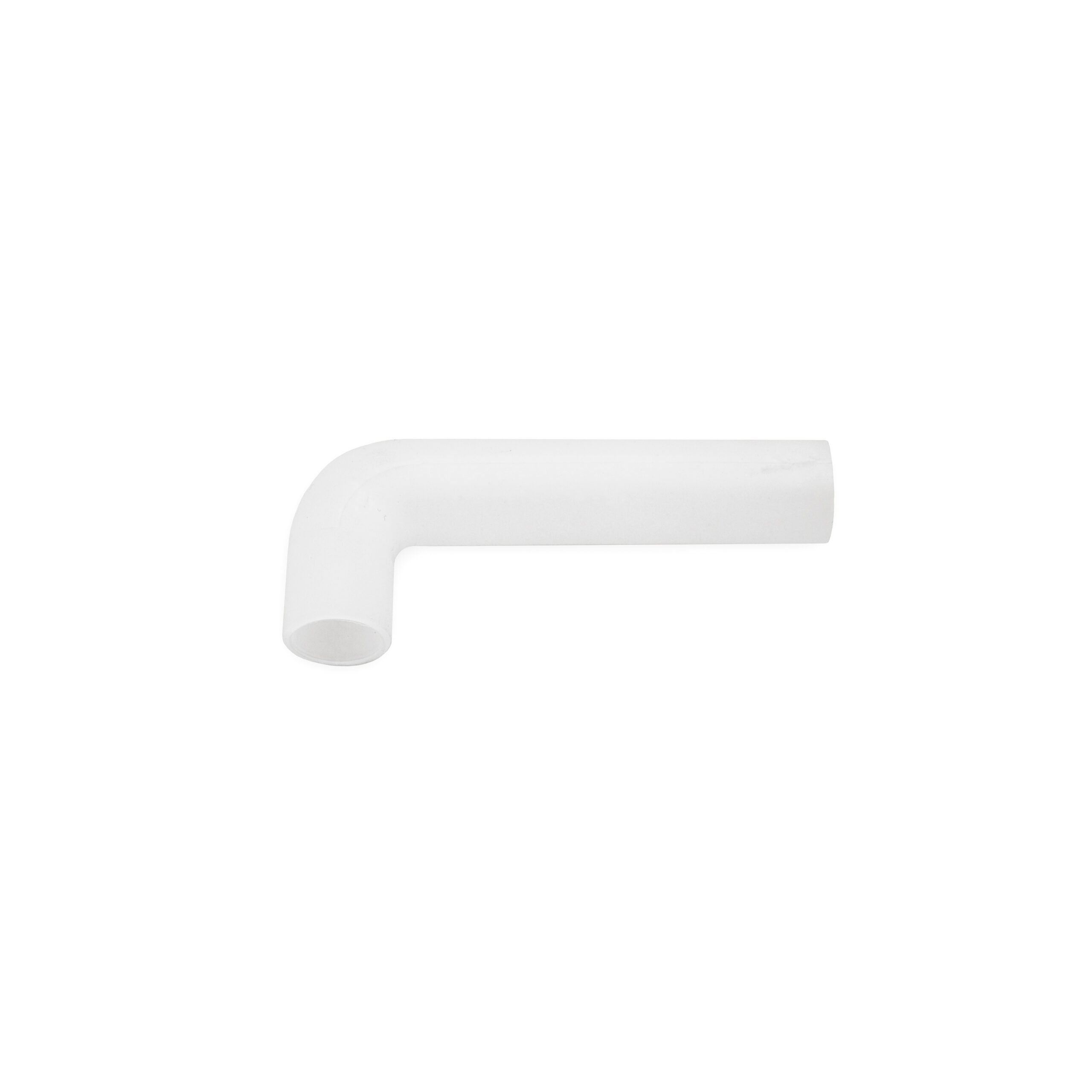

  • entrance pipe
  • 3 tightening bands
  • assembling instruction

Technical Features

POWER SUPPLY 220-240 V  50/60 Hz 19 W
MAXIMUM FLOW RATE 13,2 l/h
MAXIMUM ASPIRATION 1,5 m
MAX DISCAHRGE 10 m
PUMP DIMENSIONS 92x30x30 mm (BxDxH)
SENSOR UNIT DIMENSIONS 90x32x42 mm (BxDxH)
DEGREE OF PROTECTION IP64 (Completely sealed against dust and fumes, protected against splashing water from any direction)
