Kit Flowatch Design
For condensate drain
| sku | model | price | info | add to cart | |
|---|---|---|---|---|---|
|
|
00000011924 |
 KIT FLOWATCH DESIGN |
€207,40 Excl. Taxes |
Physical data UM Base: Dimension: Volume: Weight: Minimum Order Quantity: Customs data Customs Code |
Info Request |
Product informations

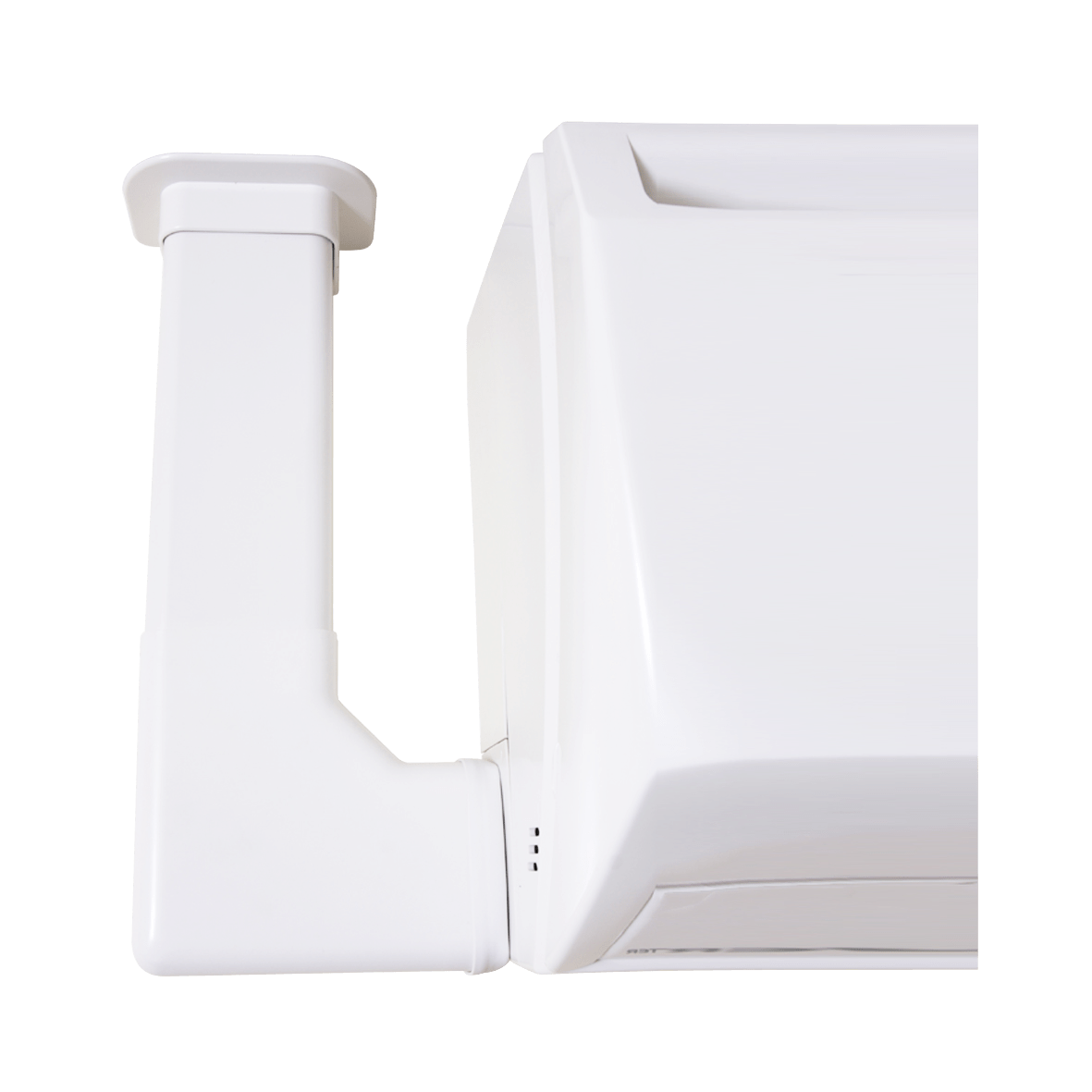

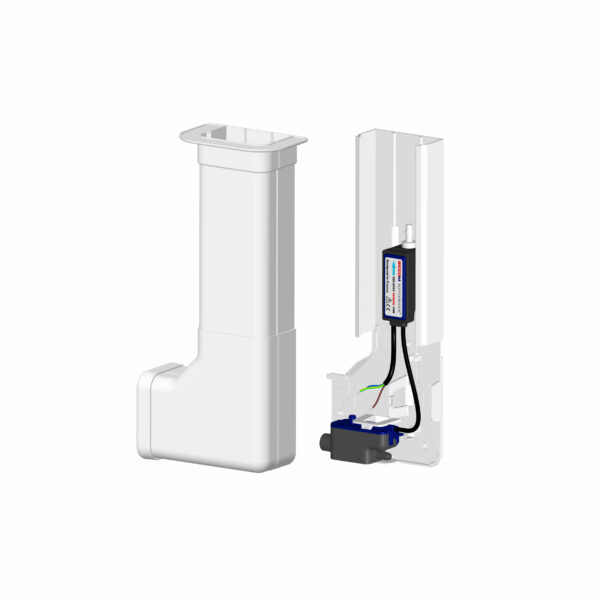

FLOWATCH DESIGN is a pre-assembled kit with an essential design conceived for the condensate drain of air conditioners with cooling capacity up to 10 kW.
The kit includes
- 800 m curved duct
- fixing plate

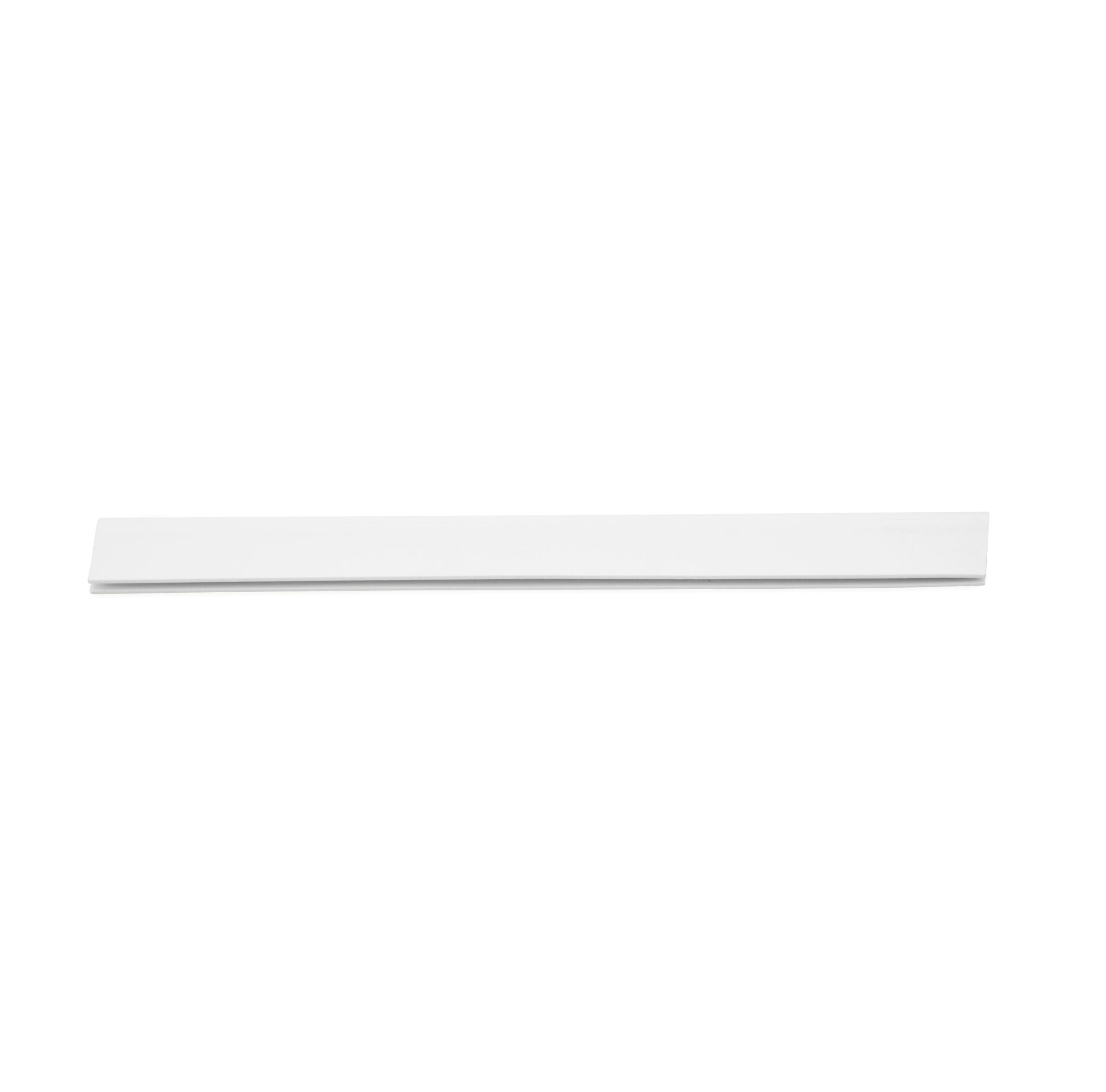

- finishing gasket

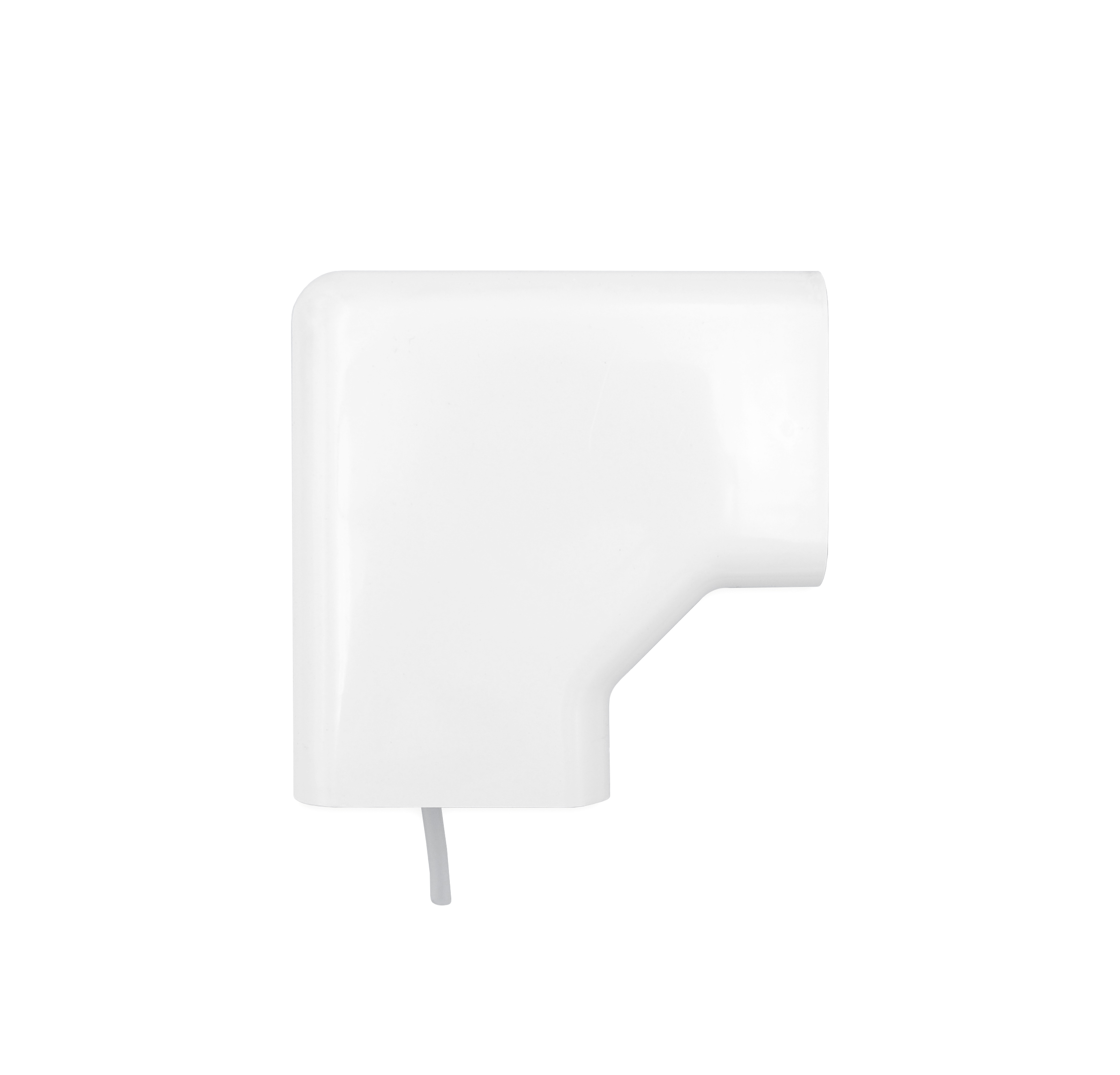

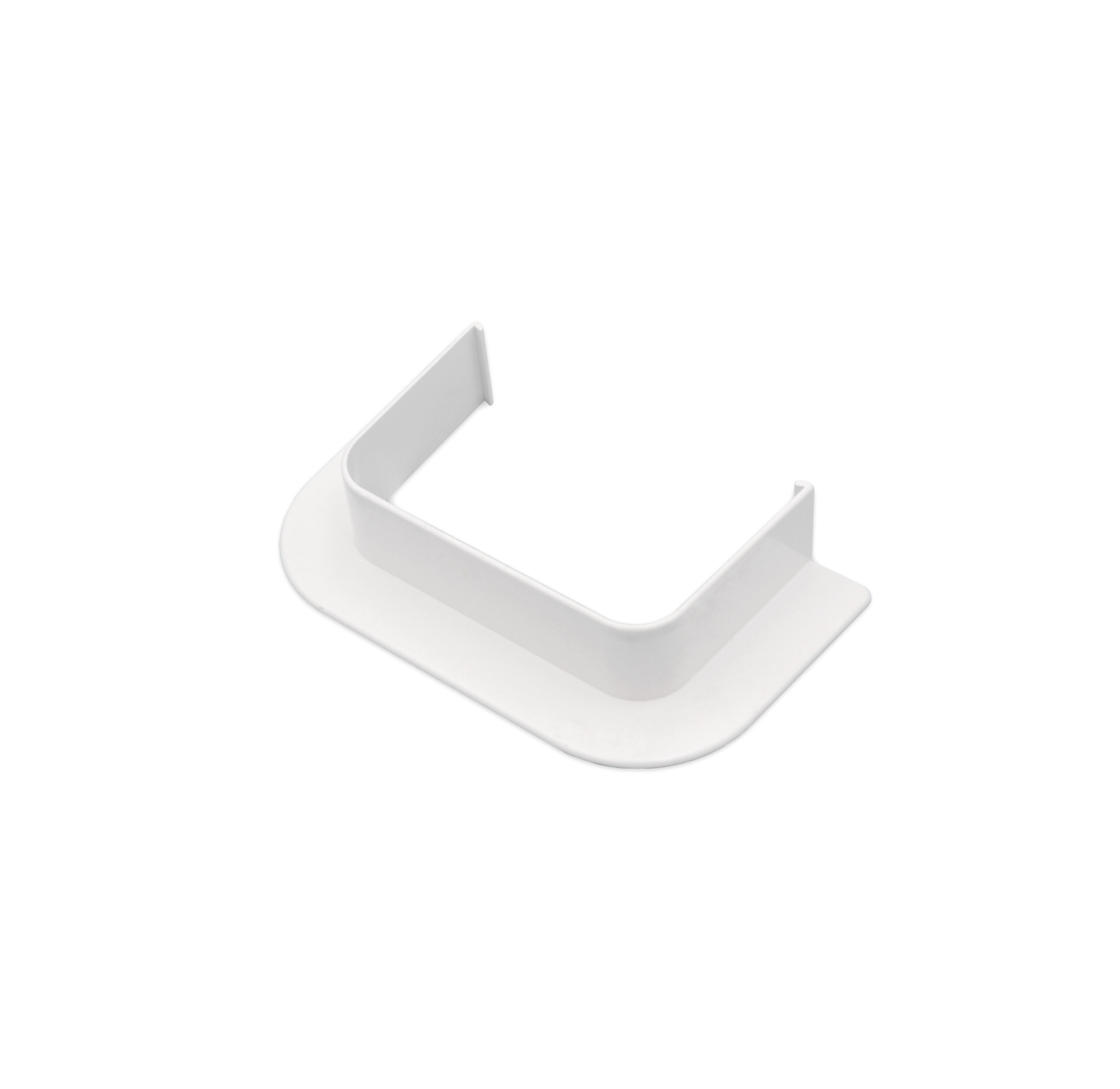

- wall passage

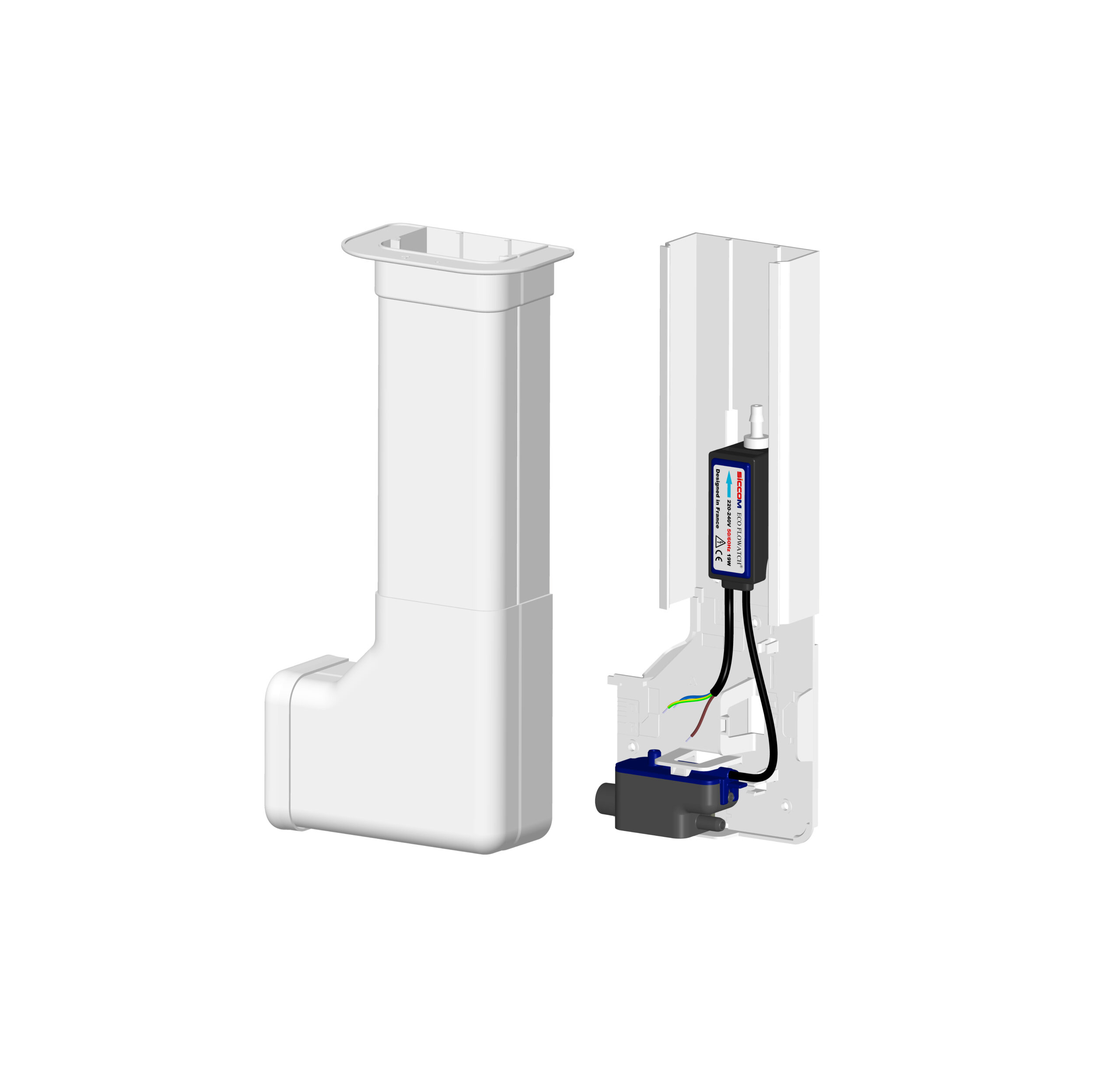

- detection block with vent pipe

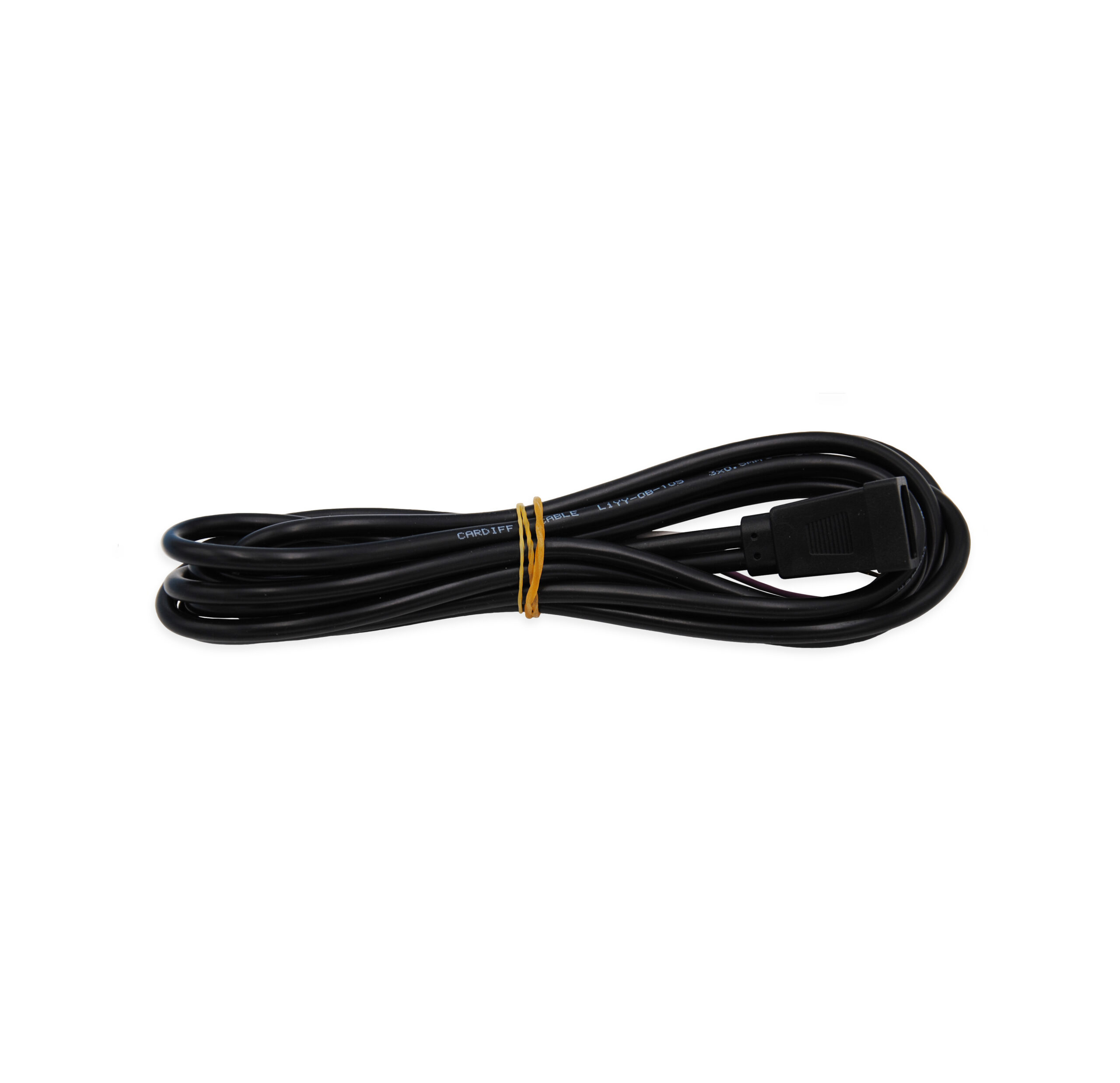

- power/Alarm Cable (1,6 m)

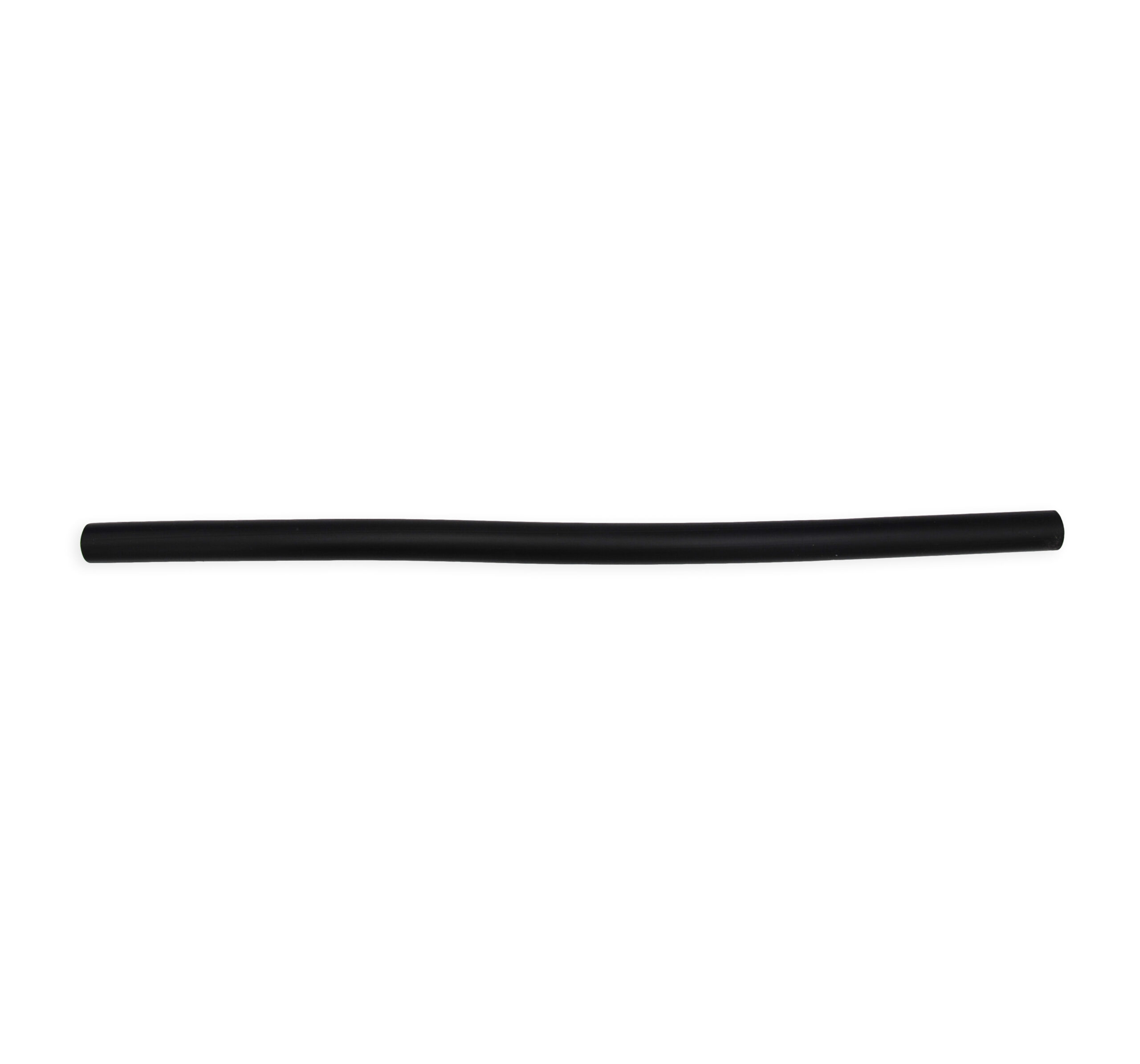

- inlet pipe
Technical Features
| POWER SUPPLY | 220 - 240 V 50/60 Hz 19 W |
|---|---|
| MAXIMUM FLOW RATE | 15 l/h |
| MAX DISCHARGE | 10 m |
| SOUND LEVEL | 21 dB(A) |
| DUCT DIMENSIONS | 80x55x800 mm |
| DEGREE OF PROTECTION | IP64 (Completely sealed against dust and fumes, protected against splashing water from any direction) |
