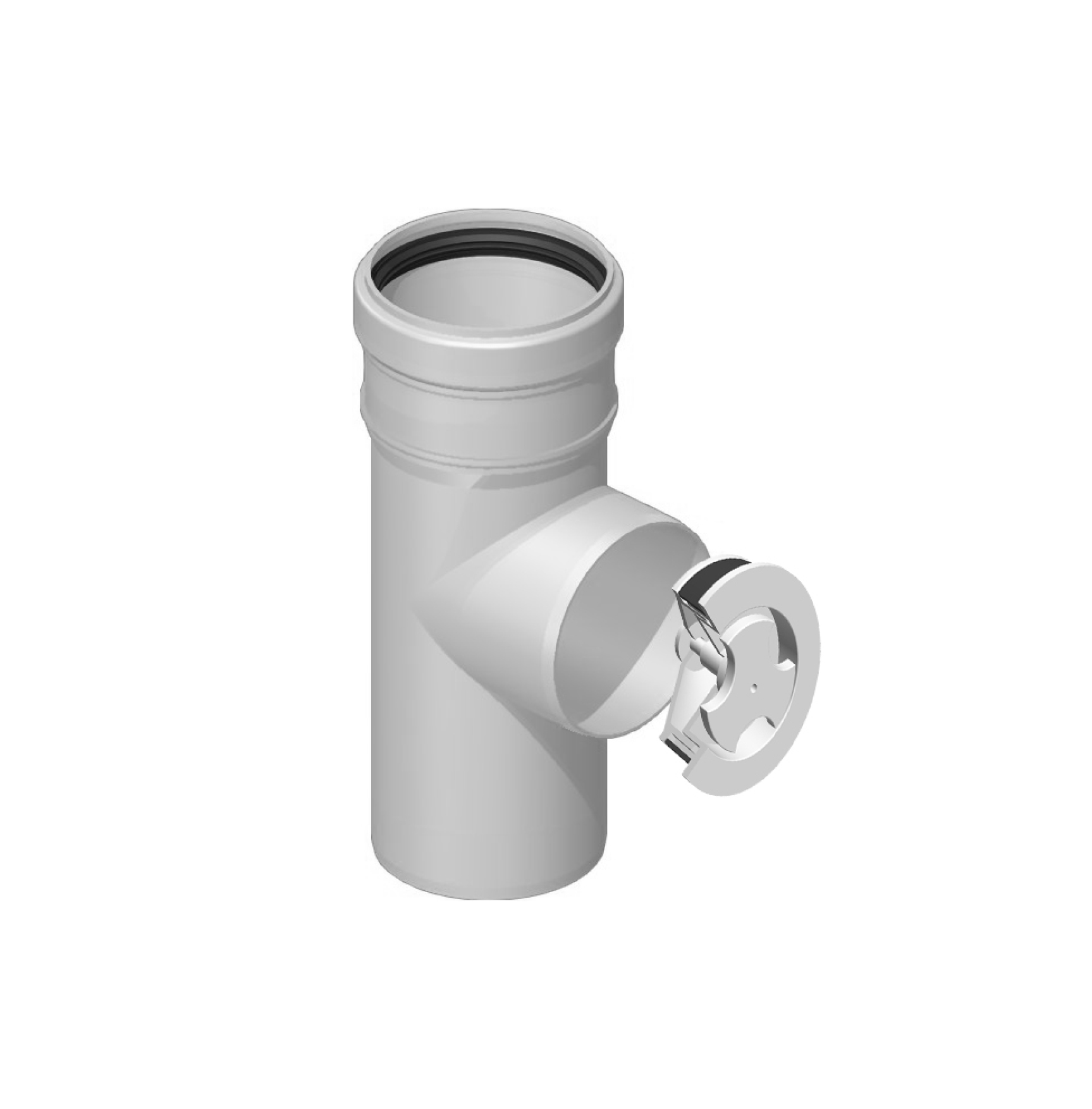

Inspection with Round Door

For single wall rigid system

UNI EN 14471 - UNI 11528 - UNI 7129 RULES

sku model price info add to cart

00000051750

INSPECTION FORM - Ø 60 mm

13,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

00000051751

INSPECTION FORM - Ø 80 mm

15,05 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
24 × 9 × 14 cm

Volume:
0.003 m3

Weight:
0,20 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

00000051752

INSPECTION FORM - Ø 100 mm

21,40 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

00000051753

INSPECTION FORM - Ø 125 mm

29,15 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
30 × 15 × 17 cm

Volume:
0.0077 m3

Weight:
0,53 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

00000051754

INSPECTION FORM - Ø 160 mm

39,80 Excl. Taxes

Physical data

UM Base:
NR

Dimension:
N/A

Volume:
0 m3

Weight:
0,00 kg

Minimum Order Quantity:
1

Customs data

Customs Code
73269098

Buy
Info Request

Product informations

Inspection form indispensable in a chimney system, as, through an expansion cap, it allows to check the fumes evacuation system ensuring its correct functioning, for the total safety of the end user.



Product features

  • made in diameters: Ø 60 mm - Ø 80 mm - Ø 100 mm - Ø 125 mm - Ø 160 mm
  • finished in the color RAL 9010

Technical Features

DESIGNATION T120 H1 W 2 O00 LI E U
TYPE OF MATERIAL self-extinguishing PPs
PRESSURE RESISTANCE with EPDM gaskets conforming to the EN 14241 standard
APPLICATION RANGE condensing boilers and cooking steam exhaust
CORROSION RESISTANCE type 2
SUITABLE FUELS methane gas
FIRE REACTION Class "E" (according to EN 13501-1)
OPERATING TEMPERATURE continuous operation up to 120°C wet under pressure with EPDM gasket

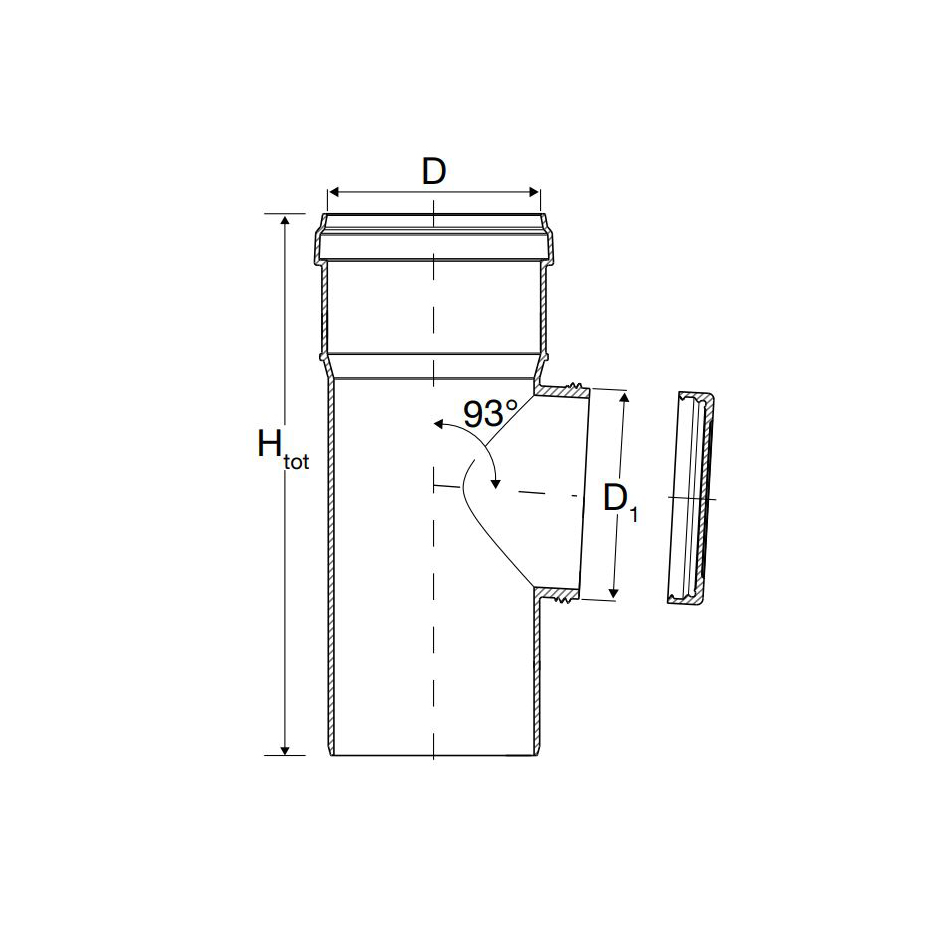

SKU D D1 Htot
51750  Ø 60 mm 80  180
51751  Ø 80 mm  80 205
51752  Ø 100 mm 80 230
51753  Ø 125 mm 125 297
51754  Ø 160 mm 125 356
